I. Introduction
As the world’s modern society moves forward, it is inevitable to try and look for more means to combine
efficiency with comfort and practicality. It is because we at Abrites understand the problematics and
necessities of this “fast-paced” reality, that we did our best to develop our new product in a way where
results could be seen in the matter of seconds, requiring only a smart-phone or a tablet.
The Abrites Mobile Diagnostics Interface is a convenient, reliable and efficient hand-held device used
together with Android or iOS based mobile devices, in order to provide you with the opportunity to run
swift mobile diagnostics of your vehicle, so you can distinguish any fault codes in specific modules.
Another great feature that the Abrites MODI provides is that the device allows easy actuation of various
components of the selected vehicle, as well as making queries concerning live data from different mod-
ules. Simultaneously with this, the Abrites Mobile Diagnostics Interface is also programmed to portray
this live data graphically.
Abrites Mobile Diagnostics Interface looks like this:
6
Abrites MODI User Manual
modi.abrites.com
II. Using the Abrites MODI
1. Installation
Once the MODI is received, you can download the Abrites MODI software, as well. It looks like this in the
Google Play Store®, Apple App Store®, or App Gallery®:
After installing the Abrites MODI application software, it will appear in the list of installed applications
of either the Android, iOS, or HarmonyOS based mobile device.
7
Abrites MODI User Manual
modi.abrites.com
2. Setting your MODI Interface up
To begin working with the Mobile Diagnostics Interface, it will be necessary to first enable Bluetooth on
the given Android, IOS, or HarmonyOS based mobile device. This can be done by going to the settings
menu, then bluetooth, then enable. Once the bluetooth is enabled the MODI application can be opened
and set up.
Once the software is opened , the following two options will be provided:
The first one is to connect to the MODI device (therefore a scanning process is automatically launched
by the application, in order for your device to be discovered). This could be done by simply pressing
the “Connect” button which will be displayed on the provided device. Keep in mind that in order for
the device to be discovered by the application it needs to be supplied with power*. In order to supply
your MODI device with power, you will need to insert it in the vehicle’s OBD II port. Following the
scanning process, a list device window will appear, where the personal MODI of the user should be
selected.
The second option that will be provided is to run a DEMO process. The DEMO process does not
require the MODI device to be inserted in the vehicles OBDII port.
8
Abrites MODI User Manual
modi.abrites.com
Once the MODI is connected to a power supply and the Bluetooth of the device used is ON, the MODI
device which is going to be used could be selected. The Mobile Diagnostics Interface can now be used.
The next step is to select the brand which is going to be worked with, after that the MODI will start an
automatic vehicle identification.
9
Abrites MODI User Manual
modi.abrites.com
If you press and hold on a selected logo an additional window is
going to appear, which will enable you to buy the full functions for
the given brand
Once the vehicle is identified, the following screen with advanced
diagnostic and coding options will be displayed:
10
Abrites MODI User Manual
modi.abrites.com
III. Using Abrites MODI Device in a vehicle
From this point on, the MODI device is going to communicate via the bluetooth connection made with
the mobile device.
After the Advanced Diagnostics option is selected, the Mobile Diagnostics Interface is going to run a
diagnostic on the vehicle, providing information concerning the number of fault codes in the system. Ad-
ditionally, the tool can also display information concerning the status of the modules in the vehicle. From
there on, in order for the processed fault codes to be cleared, the “Clear all” button should be pressed.
This button should be essentially found on the bottom of the mobile device display.
11
Abrites MODI User Manual
modi.abrites.com

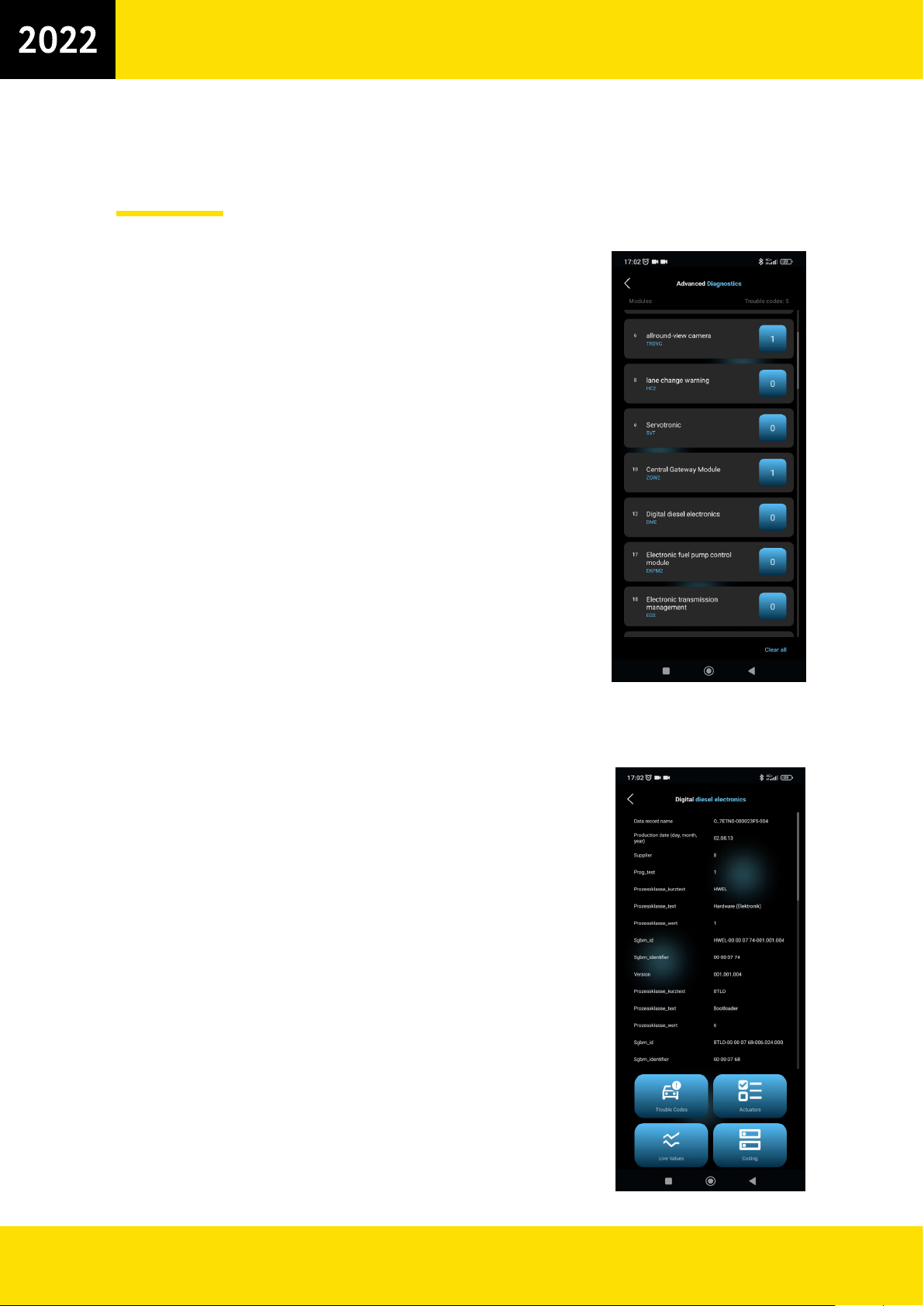

When a module is selected, the additional diagnostic func-
tions will be dispalyed – trouble codes, actuators, live values,
as well as the coding function with all available coding op-
tions in the selected module:
12
Abrites MODI User Manual
modi.abrites.com
The four additional functions that could be used are the following:
For example, let’s say that the selected module is the Digital diesel elec-
tronics (DDE). This module should be pressed.
Following this step, this page will appear
“Actuators” (Therefore actuate listed module components of the se-
lected vehicle).
*In order for this to be done, a given module from the ones that are listed
after the scanning process is done should be selected.
13
Abrites MODI User Manual
modi.abrites.com
After that the “Actuators” button on the display should be pressed and the opportunity to select from the
available actuators test should be provided.
14
Abrites MODI User Manual
modi.abrites.com
Let’s say that the Digital diesel electronics (DDE) is going to be used
Redirection to this given page is going to follow once again.
“Live Values” / The device will provide the opportunity to make
quarries concerning live data of different modules, as well as to ad-
ditionally portray this information graphically
*In order for this to be done,ca module from the ones listed after the
scanning process has been finished should be selected.
15
Abrites MODI User Manual
modi.abrites.com
Following this the “Live Values” button on the display should be pressed.
Now the option to choose from the available parameters should follow.
In order to select a specific system, or systems, it will be necessary to press and it will be selected (the
color of the selected system, or systems, will turn blue).
Therefore there is the provided option to choose “Query” and receive the live engine speed and engine
oil temperature, together with additional data depending on the module that has been selected. Addi-
tionally if the “Graphics” button is pressed all of the live data is going to be illustrated on a graph.
16
Abrites MODI User Manual
modi.abrites.com
“Trouble Codes” / This is an option which allows for the specific fault codes located in the module
selected earlier to be seen.
*In order to do this, the “Trouble Codes” button on the display should be pressed. Following this the
option of clearing the trouble codes in the selected module should be available, as well as to specifically
see in which components are the given faults located.
17
Abrites MODI User Manual
modi.abrites.com
Let’s say that the Car access system (CAS) is going to be used
Redirection to this given page is going to follow once again.
“Coding” is an option which allows for the specific coding op-
tions in the module selected be seen and activated/disabled.
18
Abrites MODI User Manual
modi.abrites.com
After that the “Coding” button on the display should be pressed and the opportunity to select from the
available “fast coding” options should be provided.
19
Abrites MODI User Manual
modi.abrites.com
MODI connection issues troubleshooting guide:
1. Plug the MODI device into the car or a power supply.
2. Make sure you are connected to the Internet
3. Make sure the bluetooth is NOT paired to a phone. ( Phone settings > Bluetooth )
4. Make sure the MODI application has access to all required permissions. (including location services —
We use only bluetooth but according to regulations bluetooth usage is considered a location usage)
5. The blue indicator lamps should blink slowly ( E.g. one blink in a second ) - If the blue lamp is always
on - that means it’s already connected to a phone and no other connection is possible at that time.
6. Close the application on all nearby phones. (Make sure MODI device blinks, as described in step 4)
If your MODI device blue indicator lamp does not blink slowly, or at all, it is possible that the vehicle’s
ignition is not on, therefore the MODI device has no power supply. Make sure you turn ignition ON.
In case any difficulty occurs while using the application or the MODI device and troubleshooting for
this specific issue is not suggested in the manual, make sure to contact support@abrites.com.
IV. Troubleshooting
20
Abrites MODI User Manual
modi.abrites.com
Common Advice:
Abrites Ltd. kindly asks you to make sure that you have familiarized yourself with the general guidelines
related to installation, operation and maintenance of this device.
The following information is concerning safety when working with the device.
In order to avoid any unwanted damage (which could eventually lead to certain risk and even impossibility
of the device to function), please keep in mind to follow the following restrictions:
Keep the device in clean and unpolluted spaces
Make sure that the device is not exposed to rain or moisture
Do not use the device when your hands are not dry
Make sure tо avoid heating the device too much
Do not leave the device to any objects or substances which are hot
Make sure that you do not apply too much physical pressure on the device
The device should not be thrown, twisted, bent or put below heavy objects
Make sure to keep the device away from your mouth (the device should not be swallowed)
Make sure that the device is not being used by minors, or individuals which are not informed on the
safety regulations of the product, as well as how to operate with it
The device should not be in the hands of infants. If the device has been swallowed (even partly), it to
may lead to serious physical damage
For your safety, do not use Modi while driving. Abrites Ltd. is not responsible in case of overcoming
the security measures of the technical equipment and would like to inform that this may result in
injuries or any other damages to you or third parties.
About the product:
Make sure not to dislocate any components of the device. Do not remove any parts from its exterior,
or interior. The device is not equipped with parts, which could be eventually fixed by the buyer. The
maintenance of this device is strictly done only by Abrites, when and if the warranty policy has been
followed. For any questions in relation to usage, functionality and warranty repair,
Side components:
Make sure to use only the side components (such as cables,axle boxes and etc...) that are presented
to you by Abrites. Do not swap them with any components, from your choosing. The replacement of
original periphery components with other may cause serious functional damage to the device.
Safety and Regulations
Table of contents
Other ABRITES Diagnostic Equipment manuals
