ABSCO SHEDS A15081FKFD User manual

Absco Industries Assembly Instruction Manual

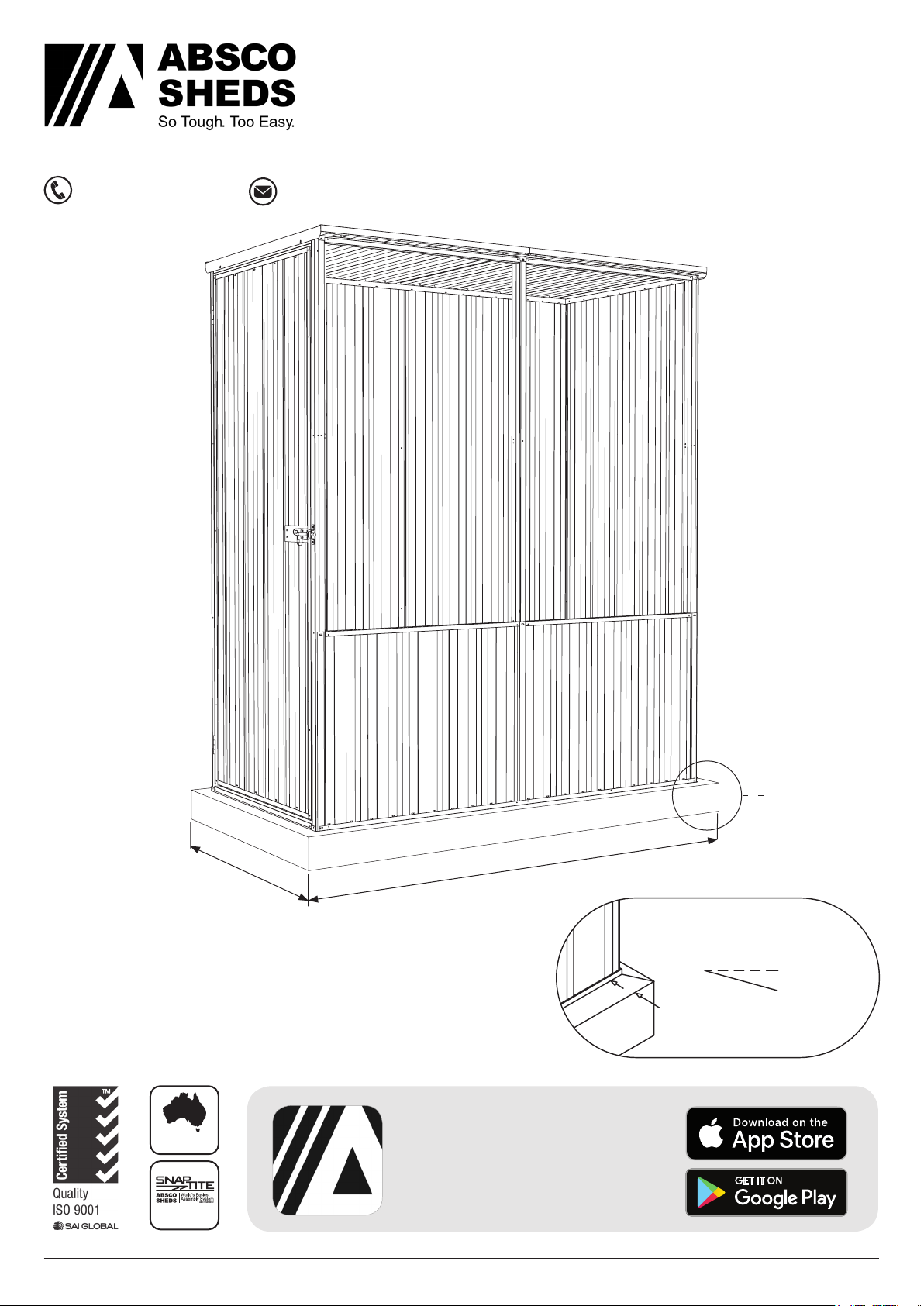

ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 1
Download the Absco
Sheds Assembly App
for instructional videos
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
880mm
1620mm
10mm
50mm
WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
50mm
THIS WILL ENSURE THAT
CLEAR FROM YOUR SHED
WATER RUN OFF IS KEPT
CONCRETE SLAB

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 3

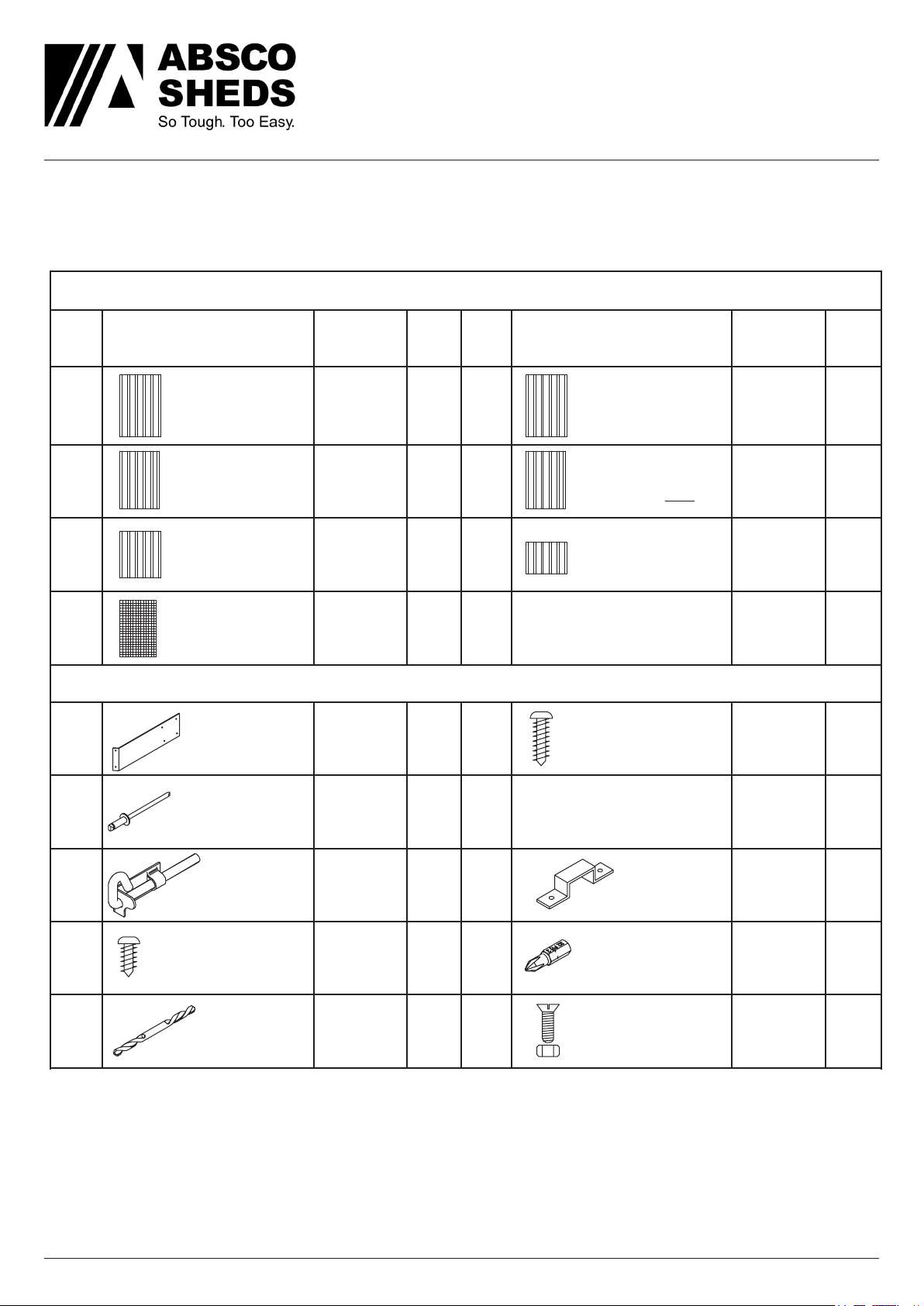

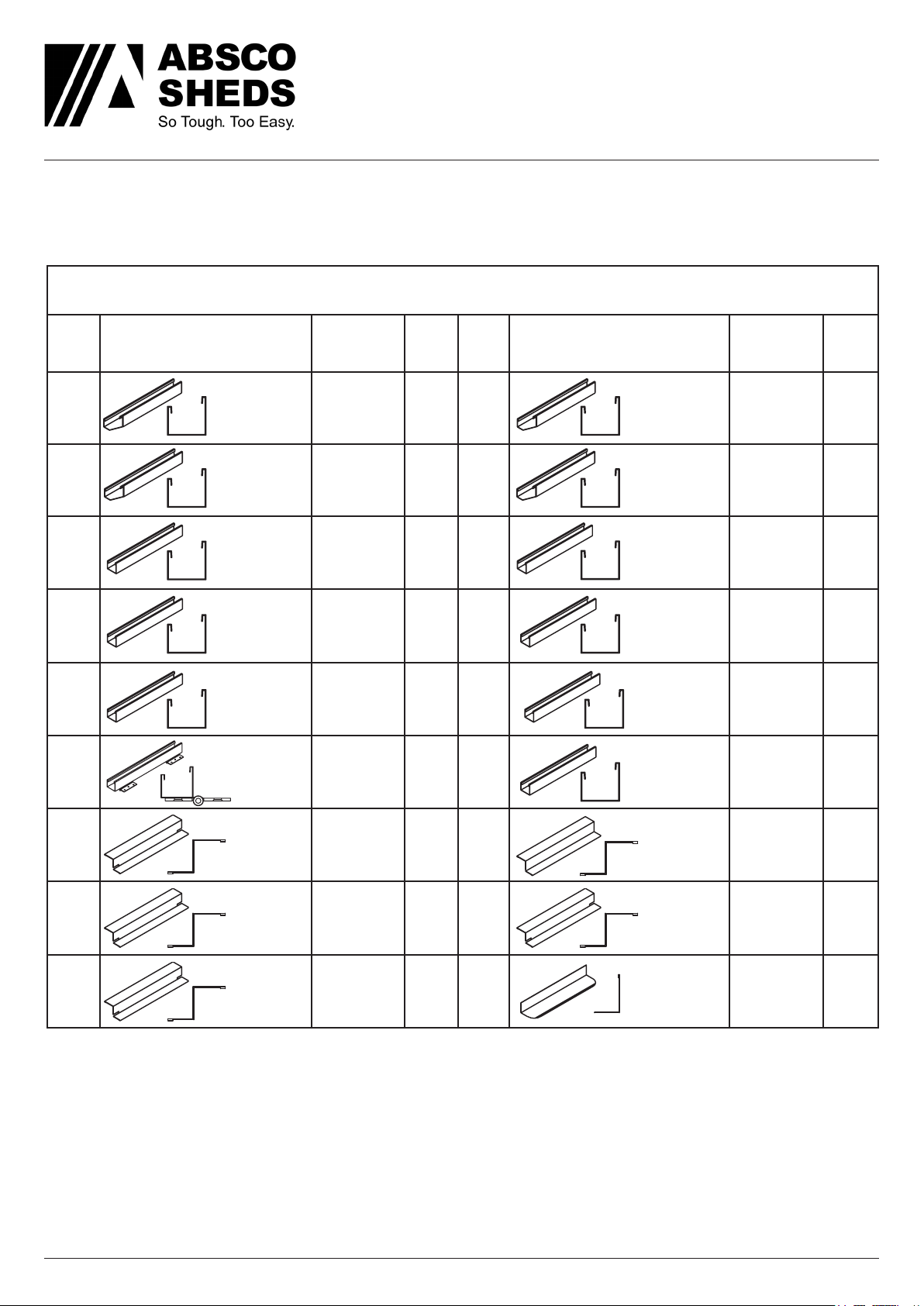

COMPONENT PACKING LIST
Check off all components.
SHEETING
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT DESCRIPTION
PART
No. CHK
1STEEL SHEET
1785 x 773mm 30A 1 STEEL SHEET 1785 x 773mm 30E
1STEEL SHEET
1785 x 773mm 30G 1 STEEL SHEET 1725 x 711mm 37A
2STEEL SHEET
845 x 773mm 44V 2 STEEL SHEET 600 x 773mm 31D
2MESH SHEET
1195 x 705mm MESH20
INSTRUCTIONS AND FITTINGS PACKET
1DOOR PLATE 12A 15 8G x 3/4” SELF
TAPPING SCREW FAST013
63mm POP RIVET FAST009 1INSTRUCTION
MANUAL IM
1PADBOLT
115mm LONG FAST006 1PADBOLT HASP FAST007
1
8G x 3/8” SELF
TAPPING SCREW
PACK QTY 220
FAST001
PACK220 1PHILLIPS HD
DRIVER BIT FAST038
13mm
DRILL BIT DRILL 6
3/16 x 1/2”
CSK SCREW
& NUT
FAST004
FAST005
HUNGRY CHOOKS
1FEEDER
KIT
HCFEEDER
KIT 1DRINKER
KIT
HCDRINKER
KIT

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 4
COMPONENT PACKING LIST
Check off all components.
COMPONENT PACKING LIST
CHANNEL PACK
QTY COMPONENT
DESCRIPTION
PART
No. CHK QTY COMPONENT DESCRIPTION
PART
No. CHK
3CHANNEL
1785mm 80L 1 CHANNEL 1513mm 81F
1CHANNEL
1513mm 53C 2 CHANNEL 1488mm 53T
4CHANNEL
712mm 181 3 CHANNEL 766mm 139
1CHANNEL
773mm 185 2 CHANNEL 1513mm 81E
2CHANNEL
712mm 58M 1 CHANNEL 720mm 54G
1
CHANNEL
W/ HINGES
1725mm
58A 1 CHANNEL
1725mm 58B
1JAMB
1785mm 89A 1 JAMB 1785mm 89B
4JAMB
1785mm 70D 1 JAMB 720mm 91D
2JAMB
1080mm 91E 2 LIP TRIM 847mm 88Y
Check off all components.

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 5

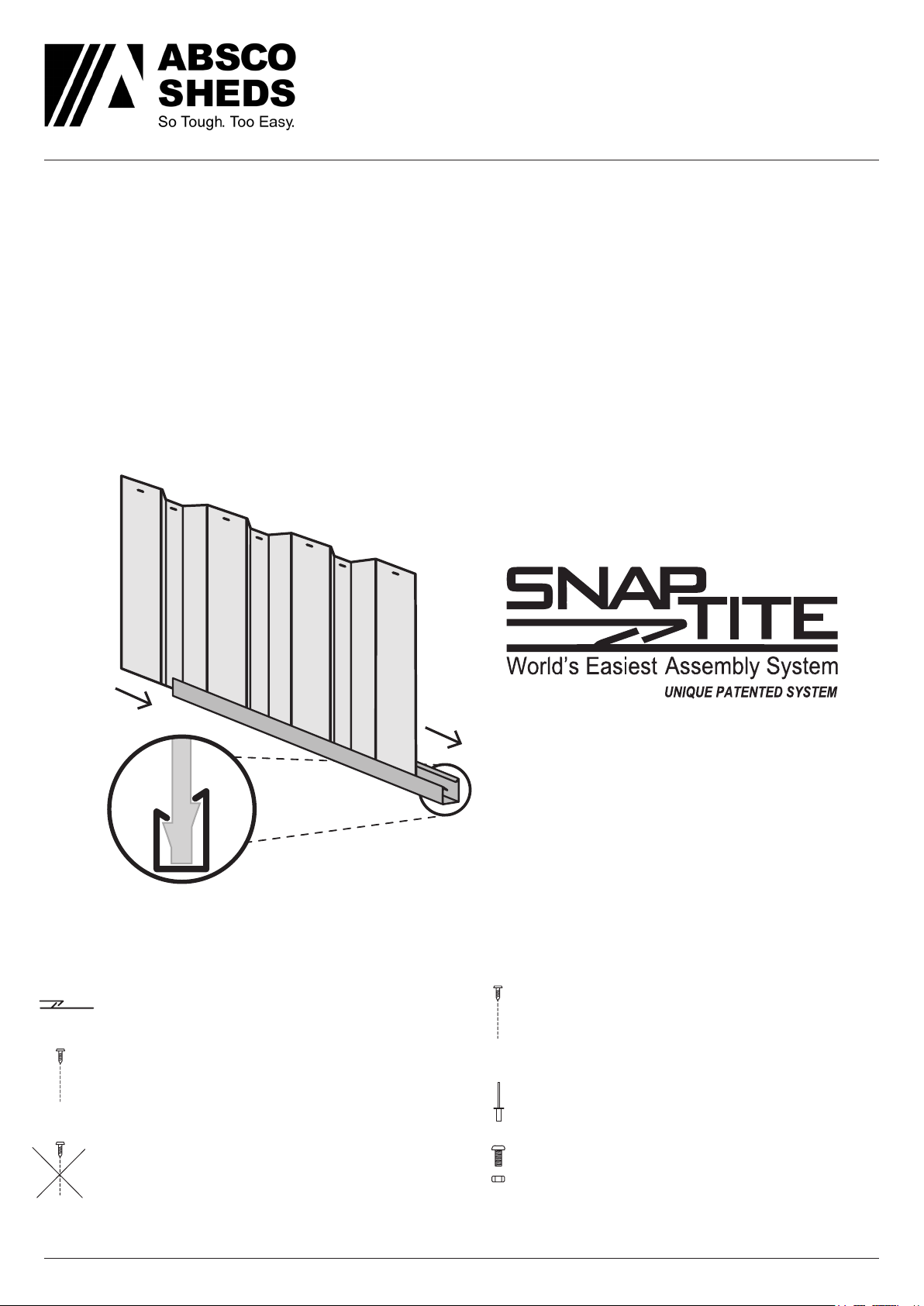

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 6
44S
44S
88Y
88Y
81E
81E
81E
88Y
81E
88Y
44V
44V

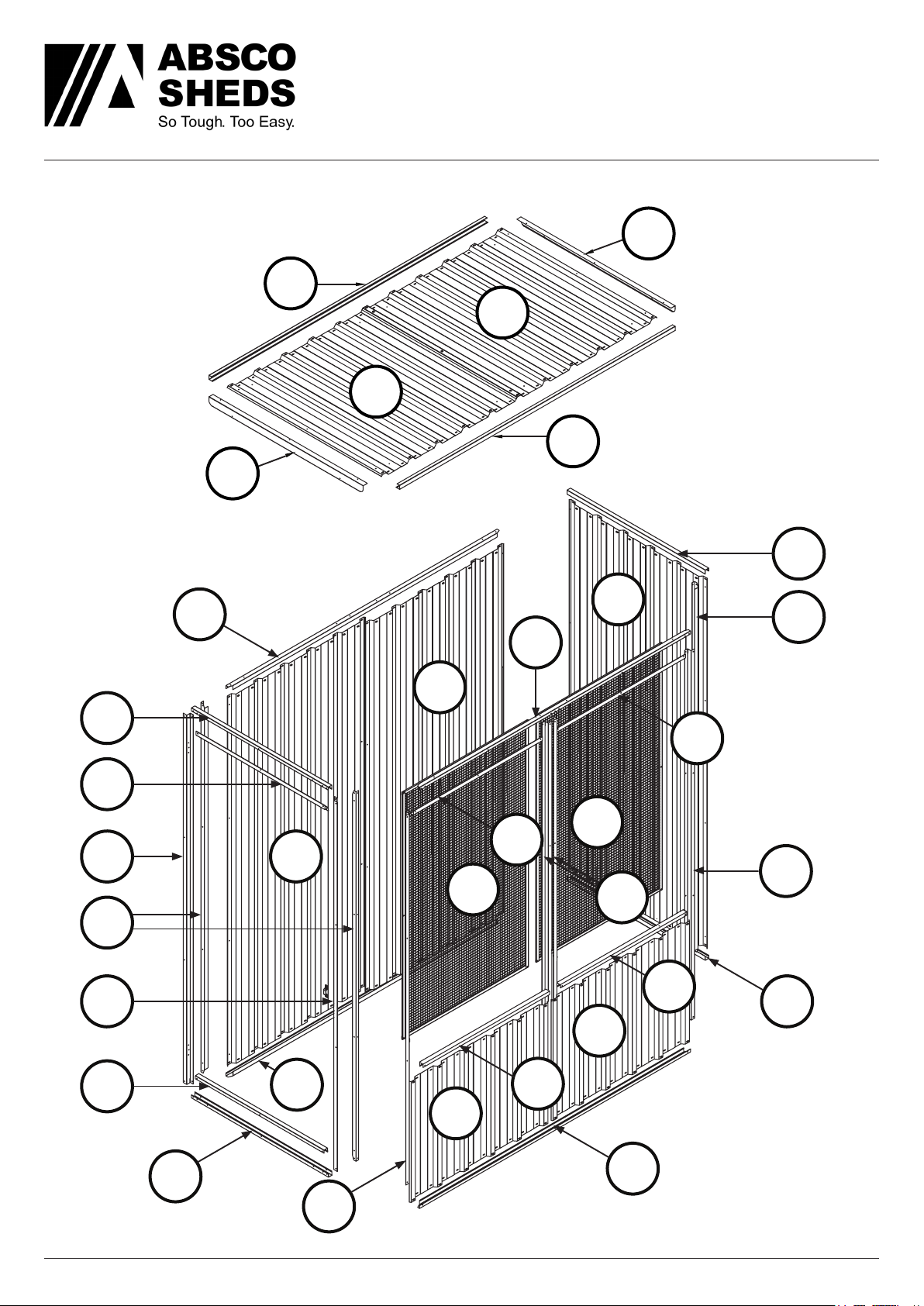

ROOF AND WALL OVERVIEW
MESH
20
MESH
20
53C
139
139
91D
89A
89B
54G
139
80L
80L
30G
81F
70D
70D
70D
30A
30E
53T
53T
31D
31D
181
181
181
181 185

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 7

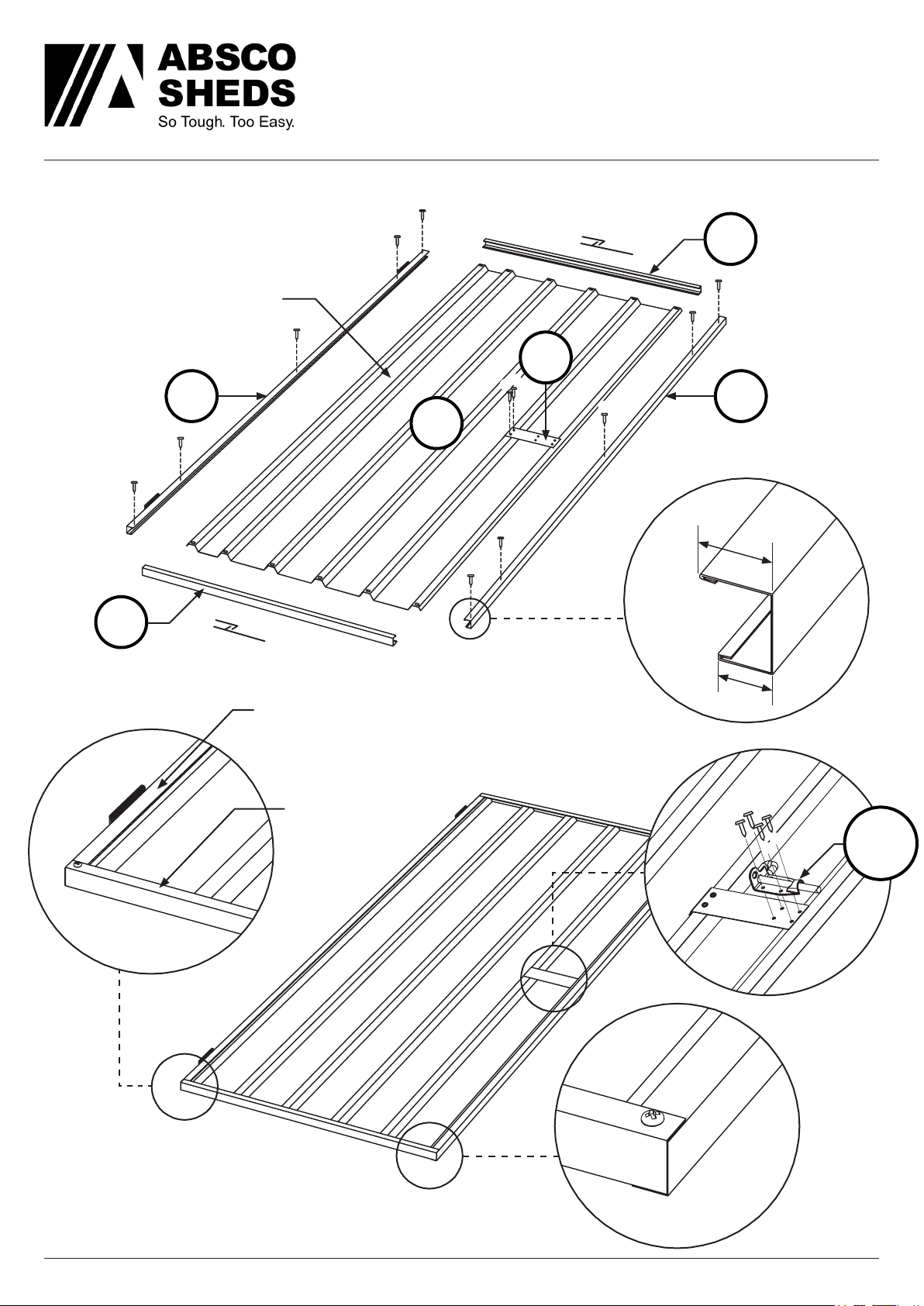

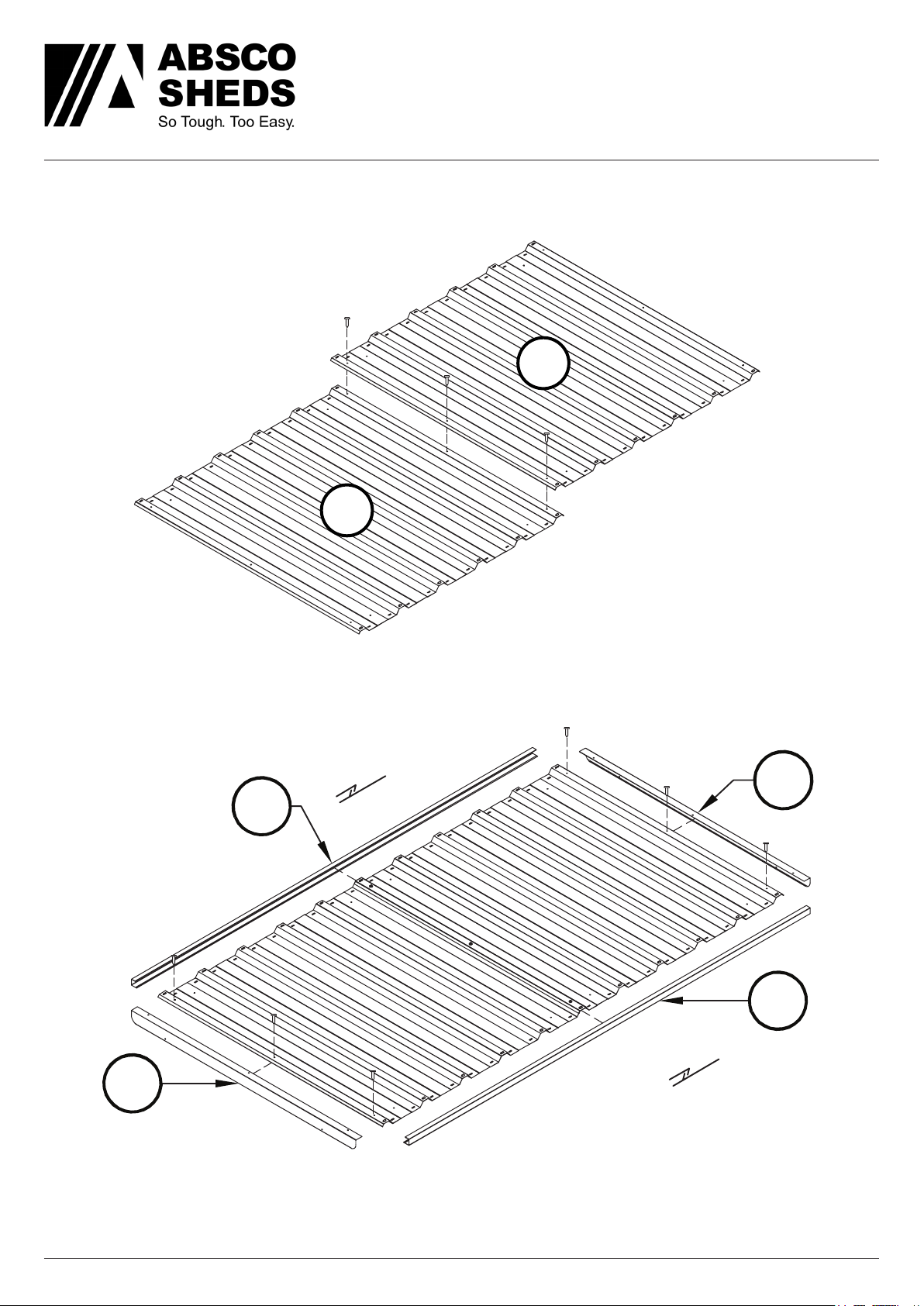

ROOF PANEL ASSEMBLY
81E
88Y
SNAP
T TE
i
SNAP
T TE
i
88Y
81E
FAST001 x3
FAST001 x6
1x required
44V
44V

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 8
RIGHT SIDE PANEL ASSEMBLY
1x required
Inside view of 80L and
139
FAST001 x4
80L
185
139
30E
SNAP
TTE
i
SNAP
T TE
i
80L
80L
139

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 9

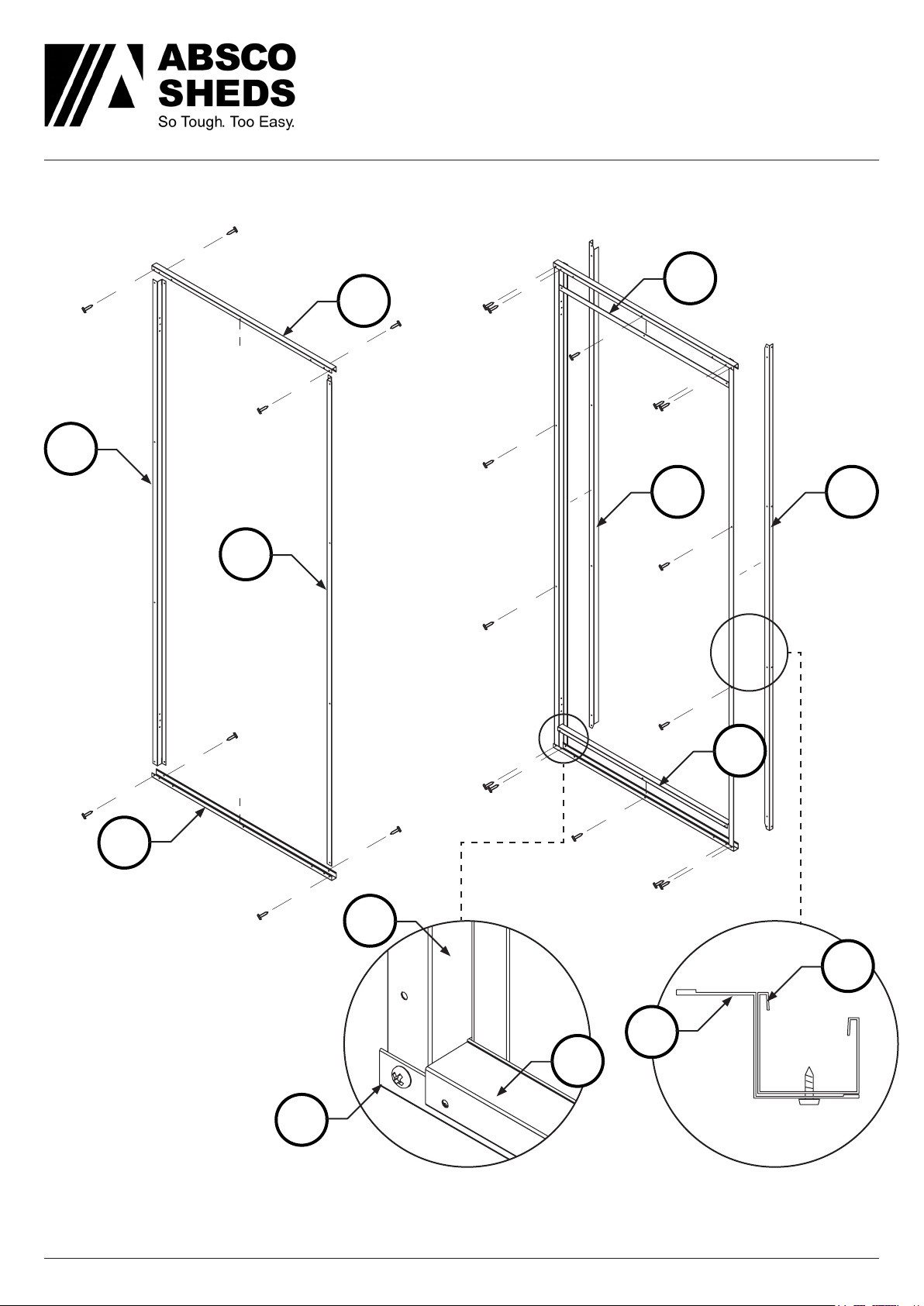

DOOR PANEL ASSEMBLY
1x required
58A 58B
12A
37A
58M
SNAP
T TE
i
SNAP
T TE
i
58M
Narrow pan of sheet
to this side
20mm
Side channels of door
are to be orientated
opposite to top and
bottom channels.
Side channels are
positioned behind top
and bottom channel.
15mm
20mm flange
15mm flange
FAST006
FAST001 x12
FAST001 x4
D
D
D
D
D
D
D
D
D
D
D
D
D
D
Position 12A
midway along the
door.

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 10

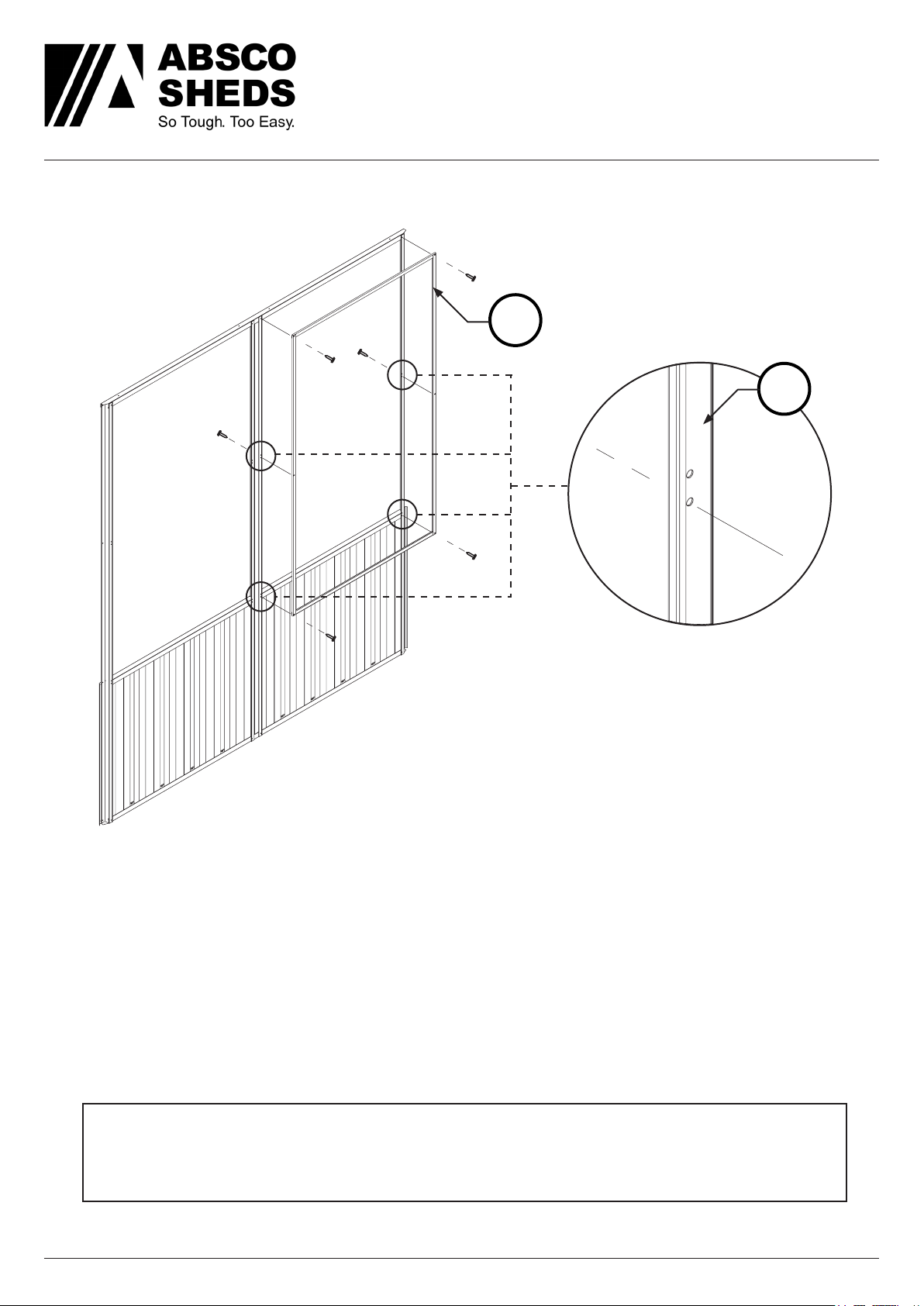

91E
91E
37A
Using the jambs as templates
drill 3mm holes into the
sheet and secure with screws
from the outside of the
sheet.
Turn over the panel and fit
braces.
FAST001 x14
D
D
D D

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 11
LEFT SIDE PANEL ASSEMBLY
1x required
80L
91D
54G
80L
89A
89B
139
139
80L
89B
139
54G
89A
FAST001 x8
FAST001 x14

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 12
DOOR PANEL ASSEMBLY
Lay the LEFT SIDE PANEL
face up and lay the DOOR
PANEL down in the open
position on top as shown.
Using three rivets per hinge,
FAST009, secure the door to
the frame.
NOTE: Run the 3mm drill bit
through the punched holes
in the jamb before riveting
the hinge on.
FAST009 x6
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 13
REAR PANEL ASSEMBLY
1x required
30A
30G
53C
81F
FAST001 x2
SNAP
T TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 14

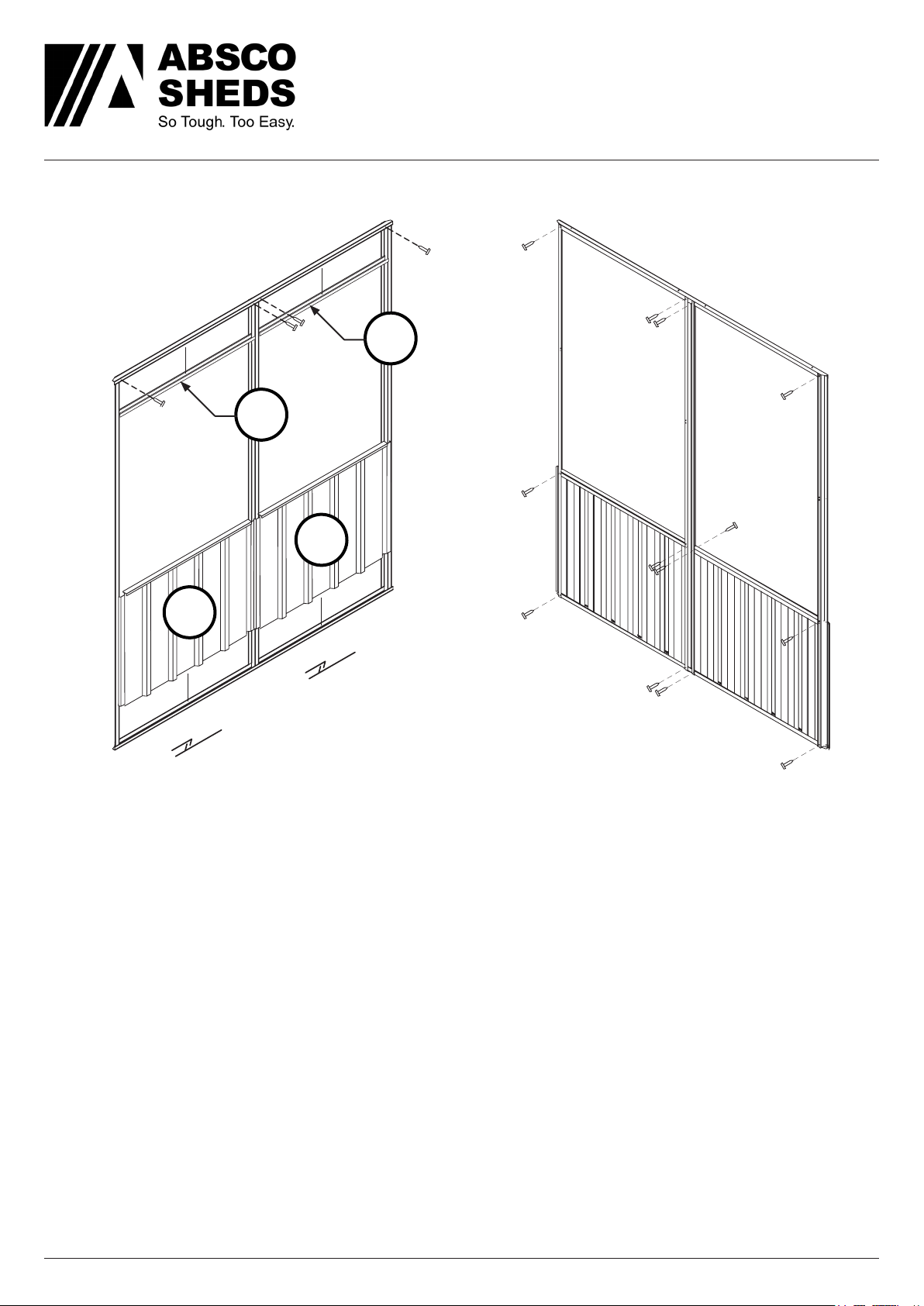

FRONT PANEL
1.
3.
2.
53T
53T
70D
70D
53T
Prepare two
short sheets
70D
FAST001 x7
30
15
SNAP
T TE
i
181
31D
Notch out both bottom corners as
shown using tinsnips.

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 15
SNAP
T TE
i
SNAP
T TE
i
181
181
31D
31D
4. 5.
FAST001 x4
INSIDE VIEW
FAST001 x13

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 16
FITTING MESH PANELS
The mesh panels are fixed to the interior
of the wall panels.
There are six holes in the border of the
mesh panel, these align with holes in the
vertical jambs 70D in the wall panel and
are fixed with FAST001 screws.
The top and bottom FAST001 are to be
screwed from the inside of the panel.
The middle two are to be done from the
exterior.
If the panel is bowing out between
screws use additional fixings. Be sure to
predrill with a 3mm drill bit before using
additional FAST001 screws.
Repeat this for every mesh position.
MESH
20
FAST001 x6
WARNING: It is recommended that new galvanised mesh should be weathered for two
(2) months or scrubbed with a mild acidic solution, such as vinegar, then rinsed with
water before being used in bird housing applications.
NOTE: 70C has twin holes, use the
lower of the two to fix the mesh
panel.
70D

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 17
D
D
Side wall
channels
fit into the
notched
rear wall
channels.
Tuck the edge of 31D
sheet inside when
fastening side panel.
Position hasp centrally
over the padbolt shaft
and drill 3mm holes
and secure with screws.
NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel
are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
Mesh panels are not shown for
illustrative purposes.

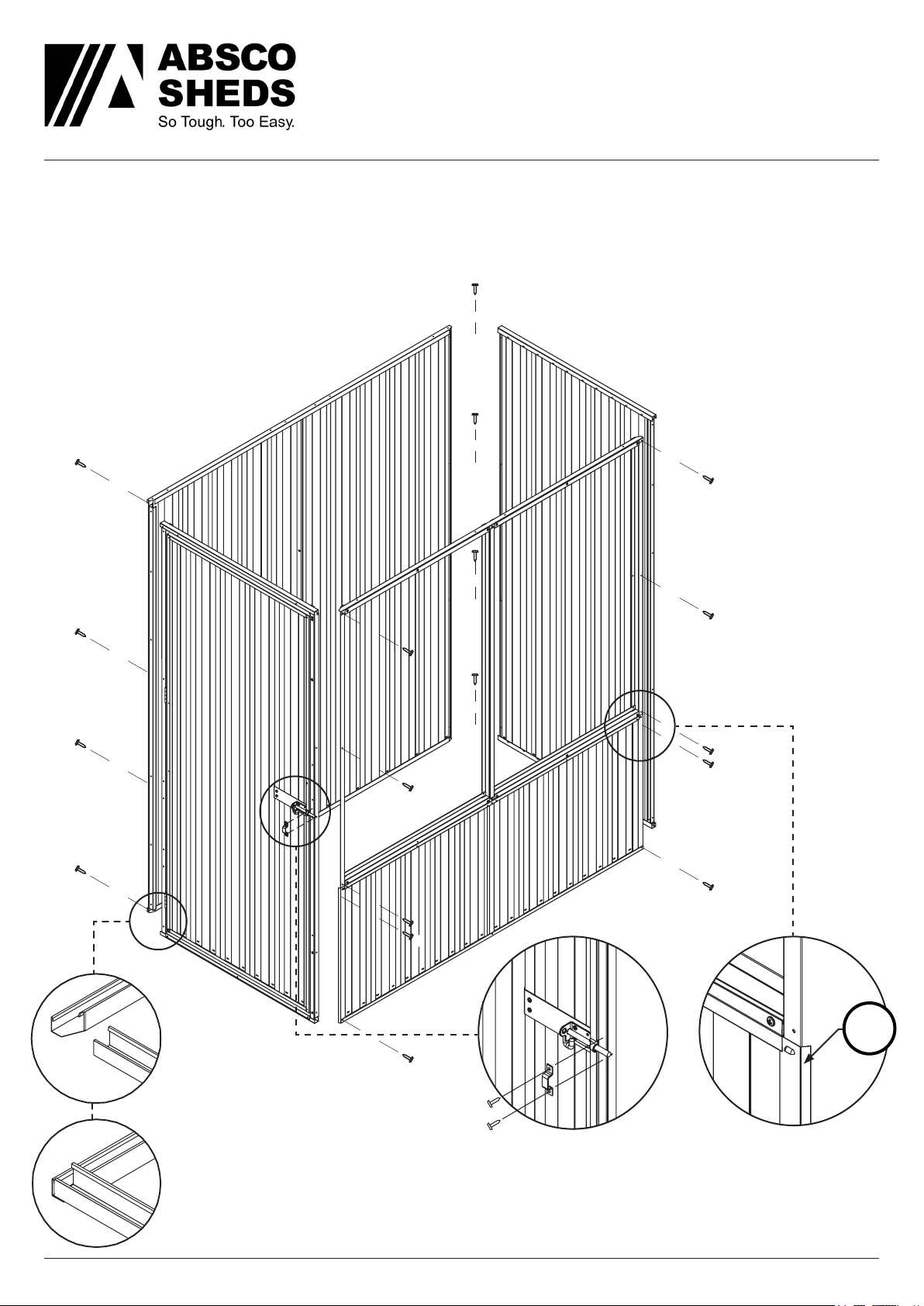

PANEL CONSTRUCTION
D
D
FAST013 x5
FAST013 x5
31D
FAST013 x4
FAST001 x4

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 18

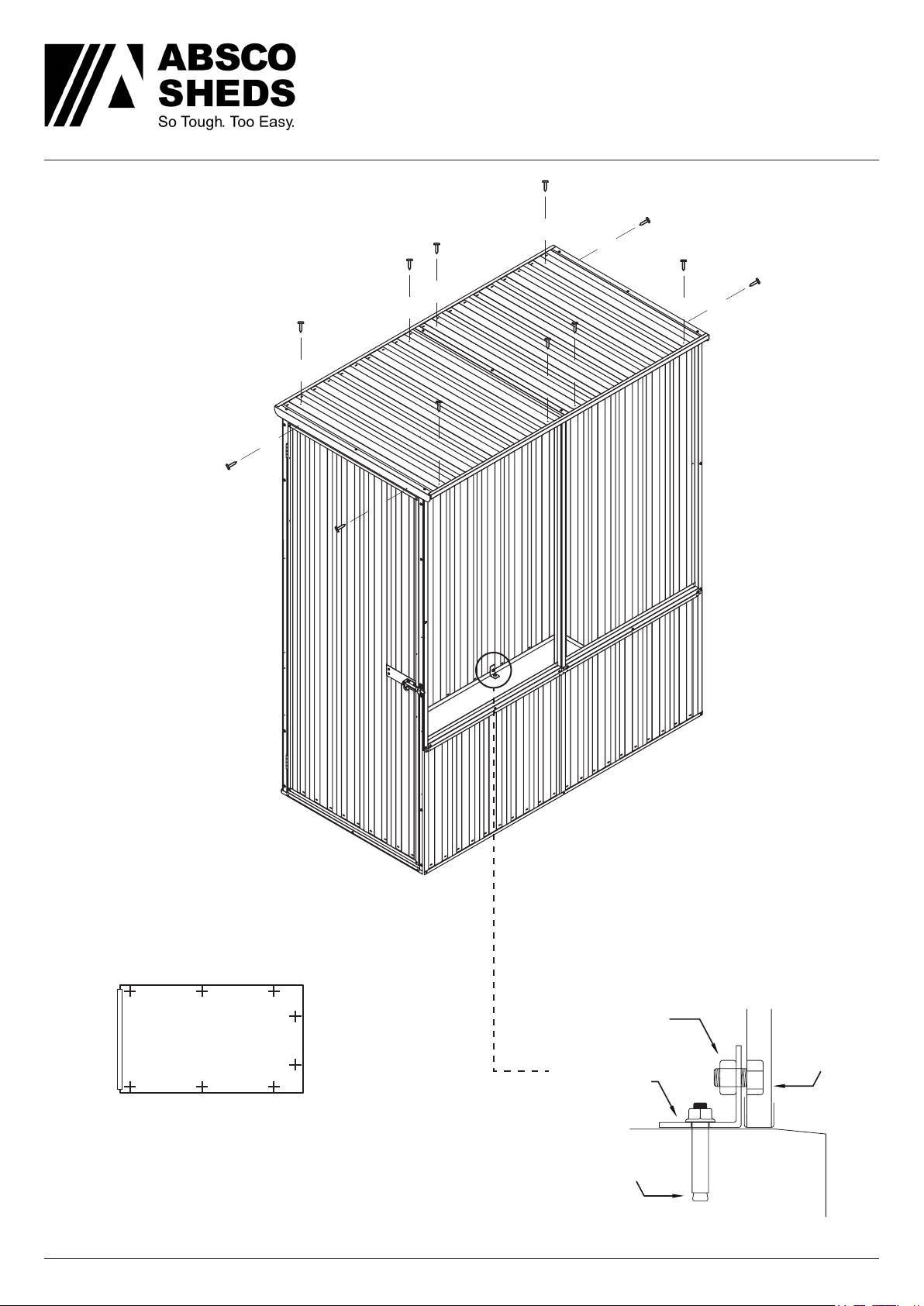

FINAL CONSTRUCTION
Each anchor consists of one nut, bolt, M10
dynabolt and steel angle.
Drill a 10mm hole into the wall sheet.
Drill a 10mm hole into the concrete.
Bolt and Nut*
M10 4.6/S
Steel Angle*
35 x 35 x 3
M10 Dynabolt*
* Denotes hot dip galvanised finish
Wall Sheet
Slab
ANCHORING OF COOP
Location of 8
concrete anchors
FAST001 x12
Line up the holes in
the roof sheet with
front and back top
channels.
Secure with screws.
Line up the holes in
the roof lips with holes
in the top channel of
the side panels.
Secure with screws.

Absco Industries Assembly Instruction Manual
ABSCO CHICKEN COOP
MODEL: A15081FKFD
1.52mW x 0.78mD x 1.80mH
Model: A15081FKFD 13/08/19 2.2 19

Lifetime Warranty Statement
This warranty against defects is given by:
Absco Industries (ABN: 77 869 708 678)
Address: PO Box 119 Acacia Ridge QLD 4110
Ph: 1800 029 701
Fax: [phone]
Email: [e-mail]
Date of issue: 19 December 2018
Details of Manufacturer’s Warranty
This product comes with a Lifetime structural warranty from the date of purchase. This warranty also
applies where there are missing or damaged parts identied in the parts list referred to in the instruction
kit within the product packaging.
Please ensure that you keep this warranty form in a safe place along with your proof of purchase. You can
register your warranty online http://abscosheds.com.au/warranty-details/ or complete the form on the
back of this document and mail it back to Absco, along with a copy of your proof of purchase.
The benets of this warranty are in addition to your rights under the Australian Consumer Law (ACL) and
in particular, the guarantees implied under the ACL and any other rights and remedies of the consumer
under a similar law in relation to the goods and services to which this warranty relates.
Process of claiming warranty:
To make a claim under the warranty within the warranty period, you will need to contact the manufacturer
directly by phone or email:
Contact Number: 1800 029 701
Contact Email: [e-mail]
You will be required to produce proof of purchase (this is at discretion of the manufacturer) at the time of
the claim.
The manufacturer bears the cost of replacing the products or spare parts or repairing the products and
reasonable direct expenses of claiming under this warranty:
Where parts are replaced, the manufacturer will bear the cost of sending the spare part and will endeavour
to deliver it to the customer’s nearest reseller within 20 working days for the customer to pick up. At such
time the customer may be required to return the alleged faulty parts.
Where assessment is required in case of replacing or repairing the product, the manufacturer will appoint
an assessor within 10 working days to identify the alleged defect. The manufacturer will bear the repair
costs by appointing a local tradesman. The manufacturer may choose to replace the product if the repair or
the cost of repair is not feasible. The replacement product will be available for collection from the nearest
reseller within 20 working days. The customer will bear the cost of assembly for the replacement product.
1
