WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
PRODUCT MODEL UPC-A
MANUAL CODE IG2108X1
AC-IBS22
AC-IBS24
AC-IBS33
AC-IBS44
IONBOARD S22
IONBOARD S24
IONBOARD S33
IONBOARD S44
819137022515
819137022522
819137022539
819137022546

5
MANUAL INDEX
Manual Index ...................................................................................
Key Features ...................................................................................
Product Contents ............................................................................
Installation .......................................................................................
Power and Setup .............................................................................
Starter Guide ...................................................................................
Adding More Lights .........................................................................
Universal Infinity System .................................................................
Programming ...................................................................................
Other AC Infinity Products ...............................................................
Warranty ..........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17

6
KEY FEATURES
DIMMABLE LED DRIVER
Convenient dimmer knob
adapts light intensity to your
plant's grow cycle stage:
20/40/60/80/100%
SAMSUNG LED DIODES
Built with genuine Samsung
LM301B full spectrum LEDs
running at 100W & 2.6 μmol/j
for high efficiency lighting.
IP-65 PROTECTION
Sealed to Ingress Protection 65
standards against liquids and
dust for excellent performance
in grow tent environments.
EVEN COVERAGE
Algorithmically spaced diodes
achieve wider light spread for
optimized use in all grow stages
while eliminating hot spots.
UIS™ COMPATIBLE
Connect with next-gen smart
controllers or other grow lights
for greater control and custom
programming.
THERMALLY OPTIMIZED
Black anodized aluminum
frame offers no-noise heat
dissipation to keep the grow
light cool over extended use.
*Model shown: IONBOARD S22 (AC-IBS22)

7
ROPE
CLIP
(x2)

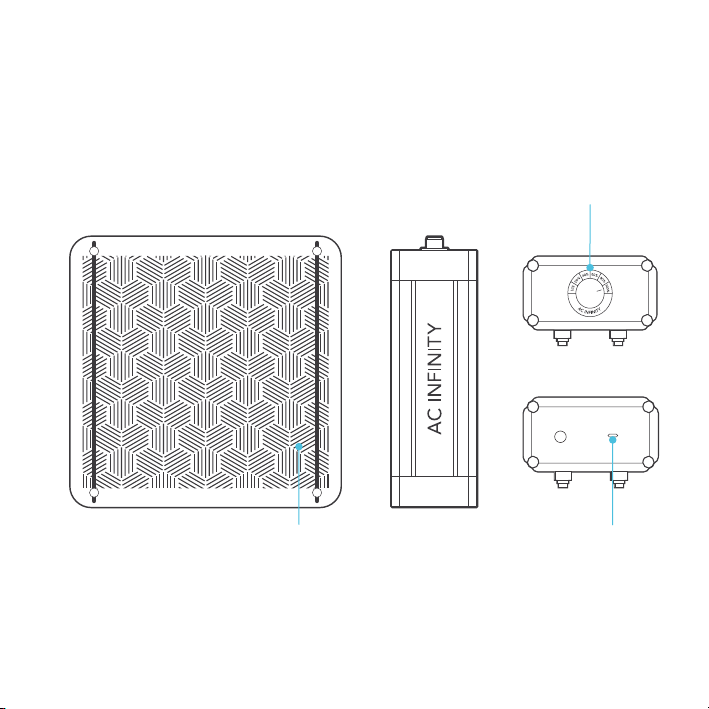

PRODUCT CONTENTS
IONBOARD S-Series
GROW
LIGHT
(x1)
LED
DRIVER
(x1)
STAINLESS STEEL
HANGING HOOK
(x2)
VELCRO
TIE SET
(x4)
UIS M-M
CORD
(x1)

8
IONBOARD S22 / S24

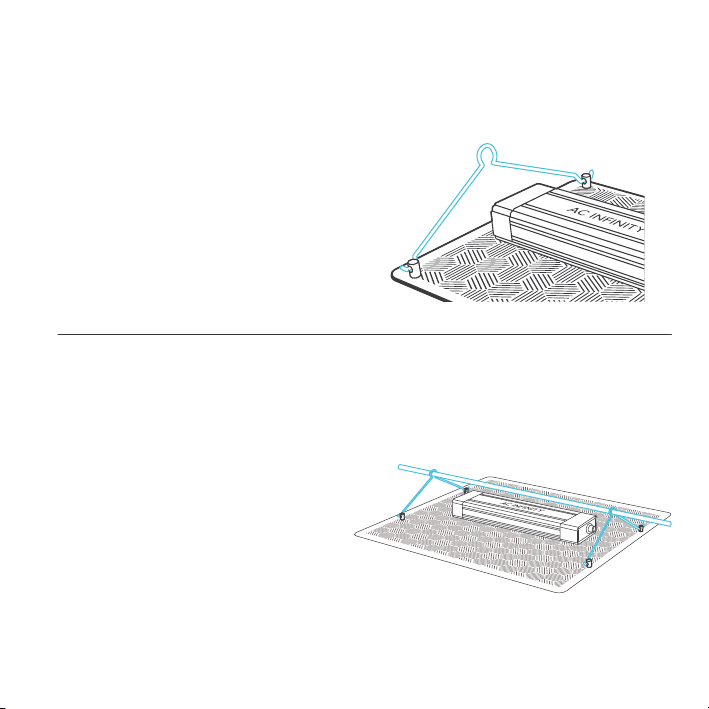

INSTALLATION
STEP 1
Hang the steel hooks over your grow tent's
support beams.
STEP 2
While supporting your grow light, bend the
steel hooks to insert the ends into the slotted
holes of the end caps.
Repeat this step on the other side of your grow
light.

9
IONBOARD S33 / S44
INSTALLATION
STEP 1
Insert the steel hooks into your grow light's
slotted holes of the end caps.
STEP 2
Position your grow tent's pole under the steel
hooks. Install the pole onto your grow tent's
frame.
*Two people is recommended for this installation.

10
ROPE CLIP HANGING
INSTALLATION
STEP 1
Insert the steel hooks into your grow light's
slotted holes of the end caps.
STEP 2
Loop the rope clip hangers around your grow
tent's support beams.
Hook the carabiners into the steel hooks.

11
STEP 2
You may connect an external controller to set
smart programming.
Plug one end of the extension cord into the
LED driver, and the other end into your chosen
controller.

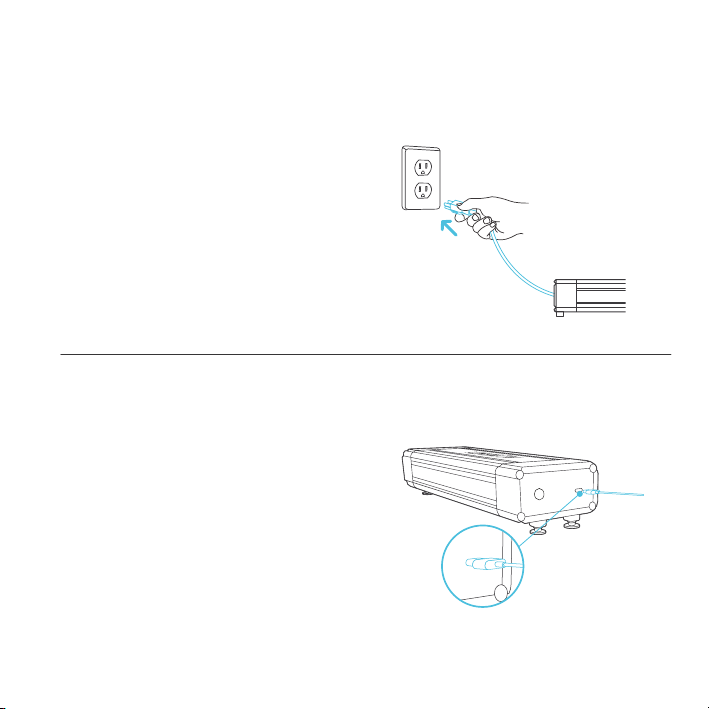

POWERING AND SETUP
STEP 1
Plug the power cord into an AC power outlet to
power your grow light.

12
STARTER GUIDE

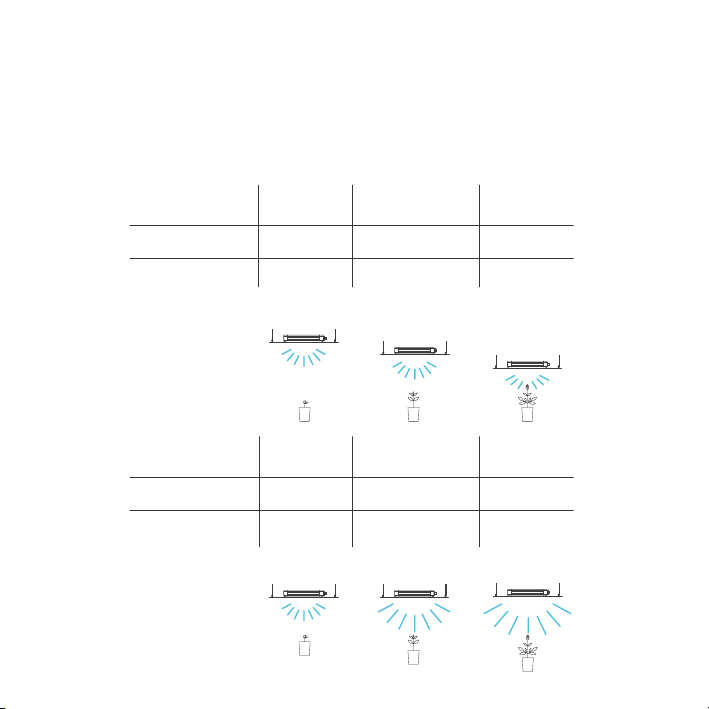

The charts below offer suggested mounting heights and light intensities for each stage in the
growing process of your preferred method. These factors will vary based on the plant you are
growing. Height refers to distance from the canopy (tip of the plant).
HEIGHT
ADJUSTMENT
Seedling
Stage
Vegetative
Stage
Flowering
Stage
Intensity 100% 100% 100%
Height 3 ft. 2 ft. 1.5 ft.
Intensity 40% 80% 100%
LIGHT
ADJUSTMENT
Seedling
Stage
Vegetative
Stage
Flowering
Stage
Height 1.5 ft. 1.5 ft. 1.5 ft.

13
ADDING MORE LIGHTS
Smart grow light controllers can program light intensity levels and scheduled activations of all grow
lights plugged into its UIS ports.
An expansion dongle (sold separately) will allow you to daisy-chain additional grow lights past the
number of units your controller can support.
AC Infinity smart controllers are equipped with
multiple ports to add more grow lights and share the
same programming. Refer to the diagram below to
learn how to connect additional units.

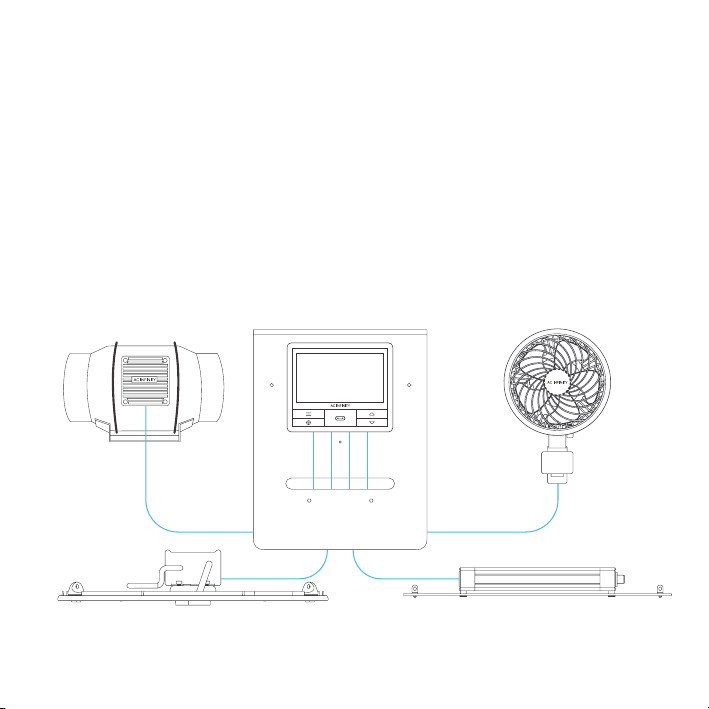

Multi-Light Connection
EXPANSION DONGLE
The expansion dongle will allow you to connect 2 or 4 more devices and can be daisy-chained to
create more expansion ports (up to 64 units supported with the use of 20 dongles). Intended for
exclusive use with AC Infinity controllers built with UIS ports.
*Smart Controller and dongle are sold separately.

14
The Universal Infinity System™ enables you to connect this LED grow light with a central controller
and other grow devices simultaneously. By creating this fully integrated system, you can power and
program your LED grow light and all your other devices together, or separately, for optimized grow
tent management.
Use select smart controllers to set triggers that will activate your LED grow light based on your
grow tent’s temperature and humidity. Create independent timers and schedules for customized
activation in your desired timeframe.
Your grow system can be regulated using your controller hub or remotely on the AC Infinity app
(paired with compatible controllers), where you will have access to automation programming and
climate data.
Central controllers and grow devices will be sold separately and may still be in development
at the time of your purchase of this product.
UNIVERSAL INFINITY SYSTEM

15
PROGRAMMING
OFF/UIS MODE
Turning the knob to UIS switches the grow light off, or passes control over to your smart controller
if one is connected.
INTENSITY LEVEL
Turning the knob from UIS will establish a set light intensity level in 20% increments, up to 100%.

16
AC INFINITY PRODUCTS
Discover the latest innovations in cooling and ventilation at acinfinity.com
Advance Grow Tents
The CLOUDLAB series is a line of grow tents designed to create
ideal growing conditions and facilitate indoor plant cultivation
year-round. Features 2000D thick oxford canvas lined with inner
diamond patterned mylar that maximizes grow light luminosity, and
a reinforced frame with 150 lb. weight capacity. Includes a mounting
plate to install your AC Infinity controller onto.
Inline Duct Fans
The CLOUDLINE series is a line of duct fans designed to quietly
ventilate AV rooms and closets, as well as various DIY air circulation
and exhaust projects. Features a thermal controller with intelligent
programming that will automatically adjust duct fan speeds in
response to changing temperatures.
Carbon Filters
The duct carbon filter is designed to eliminate odors and chemicals
for grow tents and hydroponic spaces. It utilizes premium grade
Australian charcoal that features greater absorption power and a
longer lifespan. Enables maximum airflow pass through as part of an
intake or an exhaust system.

17
WARRANTY
If you have any issues with this product, contact us and we’ll
happily resolve your problem or issue a full refund!
This warranty program is our commitment to you, the product sold by AC Infinity will be free from
defects in manufacturing for a period of two years from the date of purchase. If a product is found
to have a defect in material or workmanship, we will take the appropriate actions defined in this
warranty to resolve any issues.
The warranty program applies to any order, purchase, receipt, or use of any products sold by AC
Infinity or our authorized dealerships. The program covers products that have become defective,
malfunctioned, or expressively if the product becomes unusable. The warranty program goes into
effect on the date of purchase. The program will expire two years from the date of purchase. If your
product becomes defective during that period, AC Infinity will replace your product with a new one
or issue you a full refund.
The warranty program does not cover abuse or misuse. This includes physical damage,
submersion of the product in water, incorrect installation such as wrong voltage input, and misuse
for any reason other than its intended purpose. AC Infinity is not responsible for consequential
loss or incidental damages of any nature caused by the product. We will not warrant damage from
normal wear such as scratches and dings.
For more information about our dealers and distributors, please contact our customer service at
[e-mail] or [phone] Monday to Friday (9:00 am to 5:00 pm PST).
