AC Infinity IONFRAME Series User manual

1
IONFRAME SERIES
USER MANUAL
GROW LIGHT SYSTEM

WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
[e-mail]
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA

4
MANUAL CODE IF2212X1
MODEL
AC-IF3K
AC-IF4K
AC-IF6K
AC-IF8K
AC-IF10K
PRODUCT
IONFRAME EVO3
IONFRAME EVO4
IONFRAME EVO6
IONFRAME EVO8
IONFRAME EVO10
UPC-A
819137024045
819137024052
819137024069
819137024076
819137024083

5
MANUAL INDEX
Manual Index ...................................................................................
Product Warning ..............................................................................
Key Features ...................................................................................
Product Contents ............................................................................
Installation .......................................................................................
Powering and Setup ........................................................................
Controller Mounting .........................................................................
Starter Guide ...................................................................................
UIS™ Platform ................................................................................
UIS™ Compatibility .........................................................................
Adding More Lights .........................................................................
Programming ...................................................................................
Other Settings .................................................................................
Other AC Infinity Products ...............................................................
Warranty ..........................................................................................
Page 5
Page 6
Page 7
Page 8
Page 9
Page 16
Page 17
Page 19
Page 21
Page 22
Page 23
Page 26
Page 31
Page 32
Page 33

6
Ensure your power source conforms to the electrical requirements of this product.
Check your local code restrictions for additional safety measures that may be needed for a
proper code compliant installation.
Read all instructions before installing and using this product.
If you are unfamiliar or have doubts about performing this product’s installation, seek the
services of a qualified, trained, and licensed professional. Inappropriate installation will void
this product’s warranty.
Do not attempt to hardwire this product. Performing any retrofitting actions may result in
personal injury and/or electrical damage, and will void this product's warranty.
This product must not be used in potentially hazardous locations such as flammable,
explosive, chemical-laden or wet atmospheres.
Do not cover power cords with rugs or other fabric materials.
Safety precautions should be exercised during the installation, operation, and maintenance of
this product.
Do not block or tamper with this product in any manner while it is in operation as it may cause
electric shock, fire, or damage to this product.
Do not depend on the on/off programming as the sole means of shutting power from this
product. Unplug the power cord before installing, servicing, or moving this product.
Do not operate this product while its cord is damaged, or if it malfunctions, has been dropped,
or is damaged in any manner.
1.
2.
3.
4.
5.
6.
7.
8
9.
10.
11.
PRODUCT WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

7
KEY FEATURES
CUSTOM LED DRIVER
Designed to reliably
deliver high-wattage
power and enables PWM
control of its power output.
SAMSUNG LED DIODES
Commercial-grade Samsung
LM301H EVO LEDs deliver full-
spectrum lighting to achieve
greater growth rates.
IP65 PROTECTION
Sealed to Ingress Protection 65
standards against liquids and
dust for excellent performance
in grow tent environments.
EVEN COVERAGE
Algorithmically spaced diodes
achieve wider light spread for
optimized use in all grow stages
while eliminating hot spots.
REMOVABLE DRIVER
Detachable LED driver allows
for flexible placement along
grow tent walls or positioning
outside of the tent.
SCHEDULE CONTROLLER
Digital controller features
SCHEDULE and SUNRISE/SET
modes that trigger activation in
ten light intensity levels.
IONFRAME EVO4 (AC-IF4K) shown

8
PRODUCT CONTENTS
IONFRAME EVO4 (AC-IF4K) shown
NYLON
SCREWS
(x6)
WOOD SCREWS
(DRIVER)
(x4)
DRIVER SCREWS
(BRACKET MOUNT)
(x4)
WOOD SCREWS
(CONTROLLER)
(x2)
CONTROLLER
PLATE BOLTS
(x2)
LED
DRIVER
(x1)
SCHEDULE
CONTROLLER
(x1)
ROPE
CLIPS
(x2)
DRIVER
BRACKETS
(x2)
GROW
LIGHT
(x1)
HOOK AND
LOOP TIES
(x4)
WIRE
TIE SET
(x1)
UIS M-M
CORD, 10 FT.
(x1)
UIS M-M
CORD, 2 FT.
(x1)
DRIVER
EXTENSION CORD
(x1)
STAINLESS STEEL
WIRE HANGERS
(x2)

9
INSTALLATION
STEP 1
Align the brackets' mounting holes with the
driver's mounting points located on the driver's
underside, making sure the brackets' legs are
pointing up.
Secure the brackets by screwing in the driver
screws using a Phillips screwdriver.
STEP 2
Flip the driver over and place it over the two
center columns of your grow light.
Secure the brackets to the columns by
screwing in the nylon screws using a
flathead screwdriver.
DRIVER MOUNTING (FRAME)

10
DRIVER MOUNTING (FRAME)
INSTALLATION
STEP 3
Connect the driver socket to the grow light
connector. This will lock the connection in place.
Twist the lock and pull the connector out to
disconnect it from the driver's socket.

11
INSTALLATION
DRIVER MOUNTING (WALL)
STEP 1
Align the brackets' mounting holes with the
driver's mounting points located on the driver's
underside, making sure the brackets' legs are
pointing down.
Secure the brackets by screwing in the driver
screws using a Phillips screwdriver.
STEP 2
Mark your desired mounting position using the
brackets' mounting slots.

12
DRIVER MOUNTING (WALL)
INSTALLATION
STEP 3

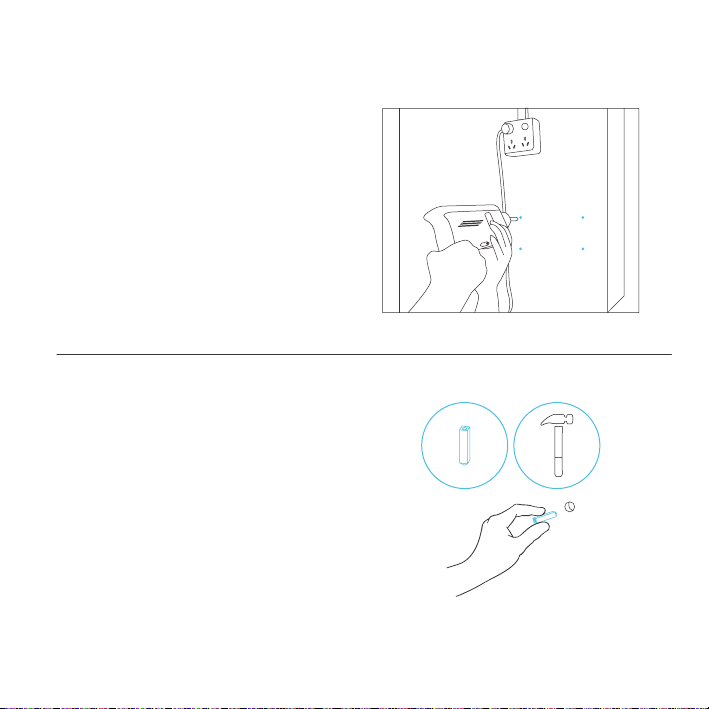

Drill four holes into the marked locations. Make
sure your mounting area is structurally sound
and free from obstruction.
STEP 4
If you are mounting onto anything other than a
wood support or stud, insert the included four
wall anchors into the drilled mounting holes.
You may need to use a hammer to secure them
through the holes.

13
INSTALLATION
DRIVER MOUNTING (WALL)
STEP 5
Align the bracket’s holes with the wall anchors.
Screw in four wood screws with a screwdriver
or drill to secure the brackets.
STEP 6
Connect the driver socket to the grow light
connector using the driver extension cord.
Twist the lock and pull the connector to
disconnect it from the driver's socket.

14
INSTALLATION
HANGING
STEP 1
Clip the lanyard hooks onto the four anchors
located at the corners of your grow light.
STEP 2
Clip the two carabiners onto your grow tent's
roof support beams.
You may also use rope clip hangers to hang
your grow light lower.

15
INSTALLATION
SUPPLEMENTAL LIGHTING
IONBEAM LED light bars (not included) can
magnetically mount to the frame to adjust the
light spectrum, introduce new spectrums (UV/
IR), and increase the light intensity output.
STEP 2
You may connect the LED light bars' controller
to the schedule controller using a UIS
extension cord to match its schedule with your
grow light's schedule.
STEP 1
Magnetically mount the LED light bars onto the
frame of your grow light.

16
STEP 2
Plug one end of the UIS extension cord into
the LED driver, and the other end into the
schedule controller.
You may alternatively use another UIS
controller to set smart programming.
POWERING AND SETUP
STEP 1
Plug the power cord into an AC power outlet
to power your grow light.

17
STEP 1 — WALL MOUNTING
Locate a spot free of obstruction and secure
the anchor into your wall. Twist the wood screw
into the anchors.
STEP 2 — WALL MOUNTING
Hang the controller by the screw using the
holes on the backside.
CONTROLLER MOUNTING

18
CONTROLLER MOUNTING
MAGNET MOUNTING
Magnetically mount the schedule controller
onto the frame of your grow light or a controller
mounting plate.
PLATE MOUNTING*
Screw the controller plate bolts into the slot or
mounting holes at the upper half of the plate.
Hang the controller by the bolts using the holes
on the backside.
*Controller plate not included

19
STARTER GUIDE
The chart below lists the coverage area of each grow light size in each growth stage. The
supplemental CO2column refers to sealed grow spaces that use a CO2enrichment system with a
1200+ PPM.
3 x 5
Vegetative
Stage
4 x 4
5 x 5
6 x 6
7 x 7
1 x 3
Supplemental
CO2
2 x 2
3 x 3
4 x 4
5 x 5
2 x 4
Flowering
Stage
3 x 3
4 x 4
5 x 5
6 x 6
IONFRAME EVO3
IONFRAME EVO4
IONFRAME EVO6
IONFRAME EVO8
IONFRAME EVO10
AREA
COVERAGE (FT.)

20
STARTER GUIDE

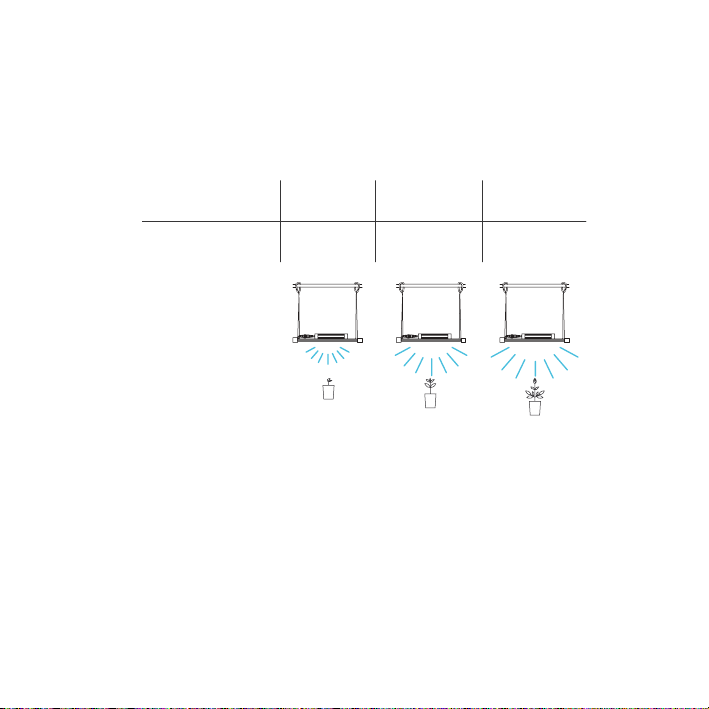

The chart below offers suggested light intensities for each stage in the growing process of your
preferred method when hung at least 1 foot above your plant. These factors will vary based on the
plant you are growing.
Intensity
LIGHT
ADJUSTMENT
40%
Seedling
Stage
80%
Vegetative
Stage
100%
Flowering
Stage
