AccuRelief ACRL-3000 User manual

Dual Channel
TENS
Natural, drug-free pain relief
Target-specific pain relief.
Model ACRL-3000
User Manual
Clinically
Proven

This manual is valid for the AccuRelief™ Dual Channel TENS Pain Reliever ACRL-3000.
This instruction manual is published by Carex Health Brands.
Carex Health Brands reserves the right to improve and amend this manual at any time without prior notice.
Amendments may however be published in new editions of this manual.
All Rights Reserved. Rev. V2.0 © 2014, 20140513
Conformity to safety standards
Carex Health Brands declares that the device complies with the following normative documents:
IEC60601-1, IEC60601-1-2, I EC60601-2-10, IEC62366, IEC60601-1-11
ISO10993-5, ISO10993-10, ISO10993-1, ISO7010

3
TABLE OF CONTENTS
Introduction .............................................................................................................................. 4
Important safety precautions and warnings ............................................................................... 5
How TENS works for pain relief ............................................................................................... 12
Package contents .................................................................................................................. 13
Know your device ................................................................................................................... 14
Inserting batteries .................................................................................................................. 16
Attaching the belt clip ............................................................................................................. 16
Easy steps to get started with your therapy with electrode pads .............................................. 17
Other important functions in this stimulator.............................................................................. 24
Program list ............................................................................................................................ 25
Specifications ......................................................................................................................... 26
How to control and reduce your pain....................................................................................... 26
Cleaning and storage .............................................................................................................. 30
Disposal.................................................................................................................................. 32
Troubleshooting ...................................................................................................................... 33
Important information regarding electromagnetic compatibility (EMC)....................................... 35
Glossary of symbols................................................................................................................ 42
Warranty ................................................................................................................................. 42

4
Standard Parts

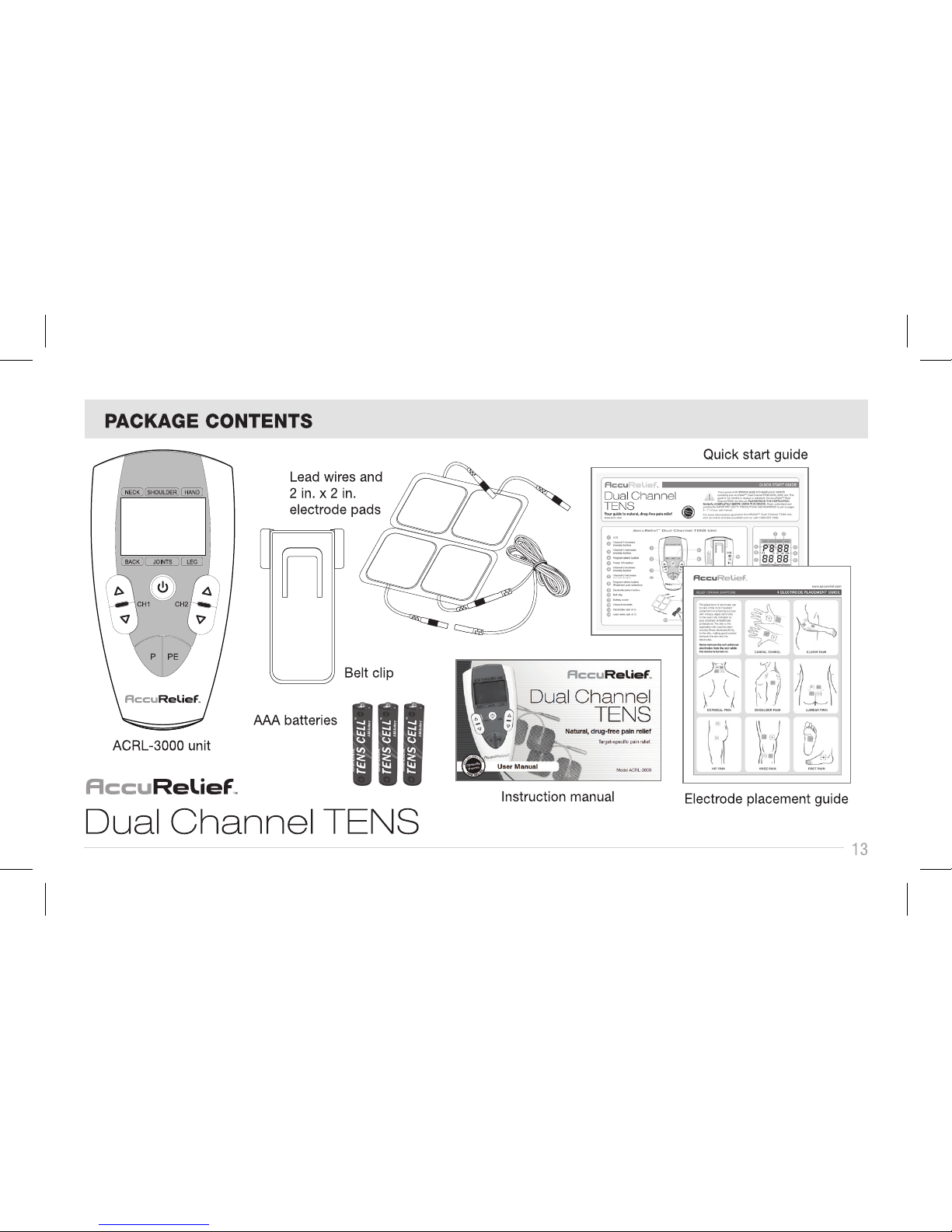

The package contains the following components:
INTRODUCTION
Thank you for purchasing the AccuRelief™ Dual
Channel TENS unit (Model ACRL-3000) for your
pain relief solution.
In order to use the stimulator safely, read the
complete manual carefully before using the device
for the first time.
Keep this instruction manual in a convenient place,
or store with the device for future reference.
The AccuRelief™ Dual Channel TENS unit is
designed to be used for temporary relief of pain
associated with sore and aching muscles in the
shoulder, waist, back, neck, upper extremities
(arm), and lower extremities (leg) due to strain from
exercise or normal household work activities. It
should be applied to normal, healthy, clean and dry
skin of adult patients.
No. DESCRIPTION QUANTITY
ADual Channel TENS
Stimulator ACRL-3000
1PC
BElectrode pad
(2 in. × 2 in.)
4PCS
CLead wires 2PCS
DInstruction manual 1PC
EQuick start guide 1PC
FElectrode placement guide 1PC
GBatteries AAA 3PCS

5
SAFETY SYMBOLS USED IN THIS MANUAL
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in
serious injury and equipment damage.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury to the user, or damage
to the device or other property.
IMPORTANT SAFETY PRECAUTIONS AND WARNINGS
It is important that you read all the warnings and precautions included in this manual because they
are intended to keep you safe, prevent injury and avoid a situation that could result in damage to
the device.
DANGER
This stimulator must not be used in
combination with the following medical
devices:
n Internally transplanted electronic medical
devices, such as pacemakers.
n Electronic life-support equipment, such as
respirators.
n Electronic medical devices attached to the body,
such as electrocardiographs.
Using this stimulator with other electronic medical
devices may cause erroneous operation of those
devices.

6
WARNING
Consult with your physician before using
this device, because the device may
cause lethal rhythm disturbances in certain
susceptible individuals.
DO NOT USE THIS DEVICE UNDER
THESE CONDITIONS:
n If you have a cardiac pacemaker, active
implanted defibrillator, or other implanted
metallic or electronic device. Such use
could cause electric shock, burns, electrical
interference, or death.
n Together with a life-supporting medical
electronic device such as an artificial heart, lung
or respirator.
n In the presence of electronic monitoring
equipment (e.g., cardiac monitors, ECG alarms),
which may not operate properly when the
electrical stimulation device is in use.
n On open wounds or rashes, over swollen, red,
infected, inflamed areas, or skin eruptions (e.g.,
phlebitis, thrombophlebitis, varicose veins); or
on top of, or in proximity to, cancerous lesions.
n Over areas of skin that lack normal sensation.
n On the opposite sides of your head since the
effects of stimulation of the brain are unknown.
DO NOT USE ON THESE INDIVIDUALS:
n Pregnant women, because the safety of
electrical stimulation during pregnancy has not
been established.
n Children or infants, because the device has not
been evaluated for pediatric use.
n Persons incapable of expressing their thoughts
or intentions.

7
DO NOT USE THIS DEVICE DURING
THESE ACTIVITIES:
n Bathing or showering;
n Sleeping;
n Driving, operating machinery or any activity in
which electrical stimulation can put you at risk
for injury.
PAIN MANAGEMENT WARNINGS
n If you have had medical or physical treatment
for your pain, consult with your physician before
using this device.
n If your pain does not improve, becomes
seriously chronic or severe, or continues for
more than five days, stop using the device and
consult with your physician.
n The mere existence of pain functions as a very
important warning telling us that something is
wrong. Therefore, if you suffer from any serious
illness, consult your physician in order to confirm
that it is advisable for you to use this TENS unit.
WARNINGS AND PRECAUTIONS
REGARDING THE PADS
n Apply pads to normal, healthy, clean, dry skin
(of adult patients) because it may otherwise
disrupt the healing process.
n If you experience any skin irritation or redness
after a session, do not continue stimulation on
that area of the skin.
NEVER APPLY THE PADS TO:
n The head or any area of the face.
n Any area of the throat because this can cause
severe muscle spasms resulting in closure
of the airway, difficulty breathing, or adverse
effects on heart rhythm or blood pressure.
nBoth sides of the thorax simultaneously (lateral
or front and back), or across your chest
because the introduction of electrical current
may cause rhythm disturbances, which could
be lethal.

8
CAUTION
WARNINGS AND PRECAUTIONS
REGARDING THE PADS
n Do not bend or fold because the pad may
not function properly. Place the pads onto the
plastic film and then store in the sealed package
when not in use.
n Do not apply ointment or any solvent to the
pads or to your skin because it will keep the
pads from functioning properly.
n The pads are already pre-gelled and will adhere
to your skin.
n To avoid damage to the adhesive surface of the
pads, put the pads only on the skin or on the
plastic film provided.
n Place pads at least 2 inches apart on your skin.
The pads should never touch each other.
n Always place clean pads in accordance with the
illustrations provided (Refer to pages 18 and 19
for electrode placement).
n Make sure the components are connected well
and the pads are fixed on the part of the body you
wish to treat or the therapy may not be effective.
DO NOT USE YOUR PADS THIS WAY:
n Pads should not touch each other
when placed onto your skin.
n Do not place on your spine or backbone.
n Pad should not touch any metal object, such as
a belt buckle, necklace or other jewelry made
from metal.
n Pads should not be placed simultaneously on
the soles of both feet.
n Pads should not be placed simultaneously on
the calves of both legs.
n Do not share pads with another person. This
may cause a skin irritation or infection. Pads are
intended for use by one person.
n Do not place or relocate the pads while the
device is on.

9
n Always turn the power off before removing or
changing the pad location.
n Do not leave pads attached to the skin after
treatment.
CAUTION WHILE USING THE TENS UNIT
n If the TENS unit is not functioning properly or
you feel discomfort, immediately stop using
the device.
n Do not use for any other purpose except as
described in this manual.
n Do not insert the electrode plug into any place
other than the jack on the main TENS unit.
n Do not mix alkaline and manganese batteries,
as this will shorten the battery life.
n Do not pull on the electrode cord during
treatment.
n Do not use the TENS device while wearing
electronic devices such as watches as this may
damage the device.
n Do not use near a cell phone as this may cause
the TENS unit to malfunction.
n Do not bend or pull the end of the cord.
n When removing the cord from the device, hold
the plug and pull.
n Replace the cord when broken or damaged.
n The size, shape and type of pads may affect the
safety and effectiveness of electrical stimulation.
n The electrical performance characteristics of the
pads may affect the safety and effectiveness of
electrical stimulation.
n Using pads that are too small or incorrectly
applied, could result in discomfort or skin burns.
n Do not throw the batteries into a fire. The
batteries may explode.
n Dispose of the device, batteries, and
components according to applicable legal
regulations. Unlawful disposal may cause
environmental pollution.

10
GENERAL PRECAUTIONS
n The long-term effects of electrical stimulation are
unknown.
n Apply stimulation to only normal, intact, clean,
dry, and healthy skin.
n TENS is not effective in treating the original
source or cause of the pain, including headache.
n TENS is not a substitute for pain medications
and other pain management therapies.
n TENS devices do not cure disease or injuries.
n TENS is a symptomatic treatment and, as such,
suppresses the sensation of pain that would
otherwise serve as a protective mechanism.
n Effectiveness is highly dependent upon patient
selection by a practitioner qualified in the
management of pain patients.
n You may experience skin irritation or
hypersensitivity due to the electrical stimulation
or electrical conductive medium (gel) on the
electrodes.
n If you have suspected or diagnosed heart
disease, you should follow precautions
recommended by your physician.
n If you have suspected or diagnosed epilepsy,
you should follow precautions recommended by
your physician.
n Use caution if you have a tendency to bleed
internally, such as following an injury or fracture.
n Consult with your physician prior to using
the device after a recent surgical procedure,
because stimulation may disrupt the healing
process.
n This stimulation should not be applied over the
menstruating or pregnant uterus.
n This stimulation should not be applied over
areas of skin that lack normal sensation.
n Keep unit away from young children.
The unit contains small pieces that may
be swallowed. Contact your physician
immediately if ingested.

11
n For best results use this device with the
AccuRelief™ brand electrodes and lead wires.
n Keep unit out of the reach of young
children. The electrode cord can
cause strangulation.
POSSIBLE ADVERSE REACTIONS
n Do not use device to treat one region for
extended periods of time (more than 30 minutes
a session, up to 3 times/day) or muscles in that
region may become exhausted and sore.
n You may experience skin irritation and burns
beneath the stimulation electrodes applied to
your skin.
n You should stop using the device and consult
with your physician if you experience adverse
reactions from using the device.

12
What is it?
The Dual Channel TENS ACRL-3000 is a two
output channel TENS machine and is highly
effective in relieving pain. TENS is now regularly
recommended by doctors, physiotherapists and
pharmacists throughout the world.
Transcutaneous Electrical Nerve Stimulation (TENS)
is a noninvasive, drug-free method of controlling
pain. TENS uses tiny electrical impulses sent
through the skin to the nerves to modify pain
perception. TENS does not cure any physiological
problem. It only helps control the pain. TENS does
not work for everyone. However, in most patients,
it is effective in reducing or eliminating the pain,
allowing for a return to normal activity.
HOW TENS WORKS FOR PAIN RELIEF
How TENS works?
Scientific theory suggests that electrical stimulation
therapy may work in several ways:
n The gentle electrical pulses move through the
skin to nearby nerves to block the pain message
from the source of pain from ever reaching
the brain.
n The gentle electrical pulses increase the
production of endorphins, the body’s natural
pain killer.

14
KNOW YOUR DEVICE
Features
n Two output channels TENS stimulator, allowing for the option of two or four electrodes. The lead wires
insert into Channel 1 and Channel 2 and each wire connects to two electrodes. The intensity of each pair
of electrodes can be adjusted independently, and it is not necessary to have both channels running (you
can use just one wire with two electrodes).
n ACRL-3000 offer six (6) programs (P1~P6) for you to choose from plus an additional six (6) PE preset
programs that are suitable for different parts of the body and pain.
n 25 intensity levels of therapy, one (1) low intensity to 25 high intensity.

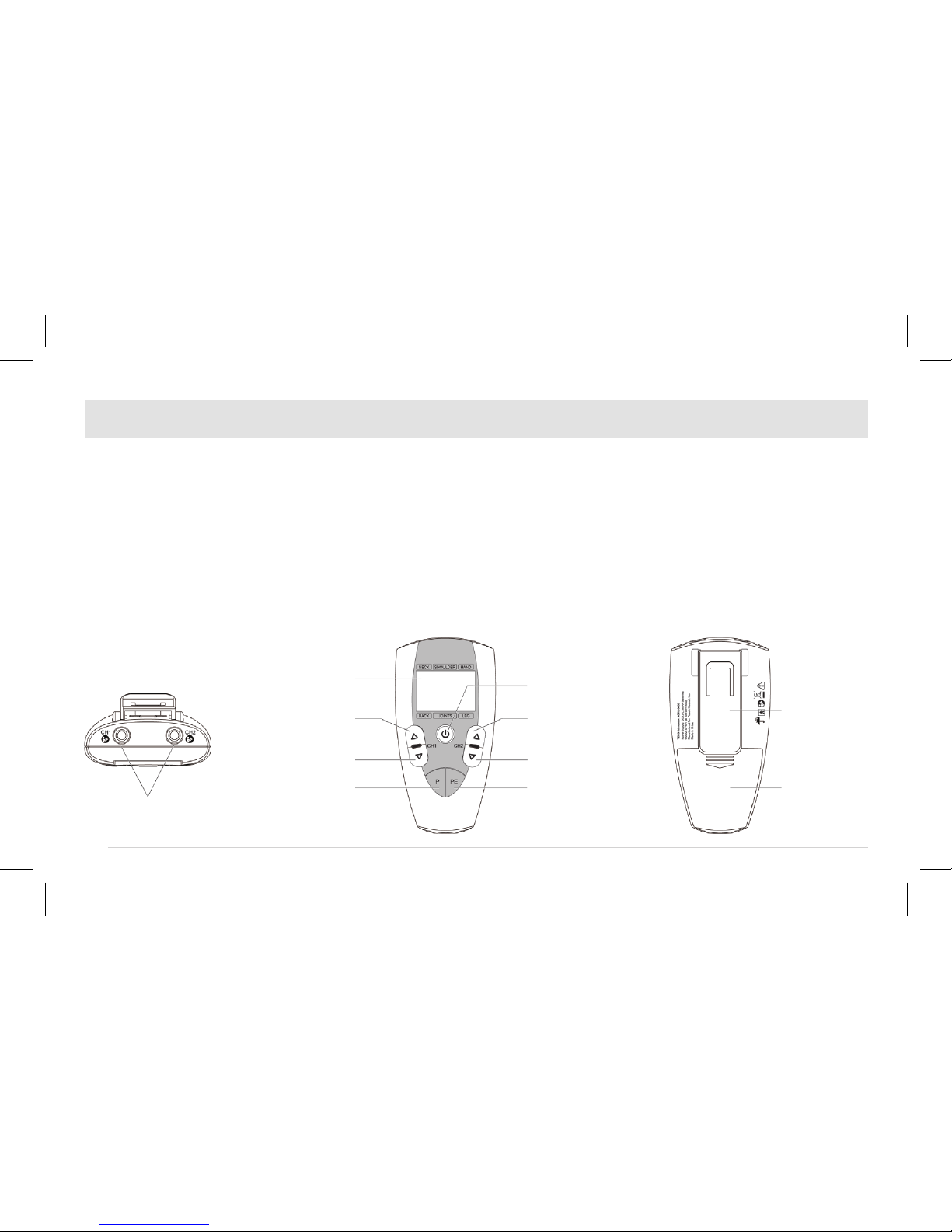

Front and rear panel
Top View
Output socket
LCD
Increasing intensity
button of channel 1
Decreasing intensity
button of channel 1
Treatment program
select button
Power on button
Increasing intensity
button of channel 2
Decreasing intensity
button of channel 2
Treatment body part
select button
Belt clip
Battery cover

15

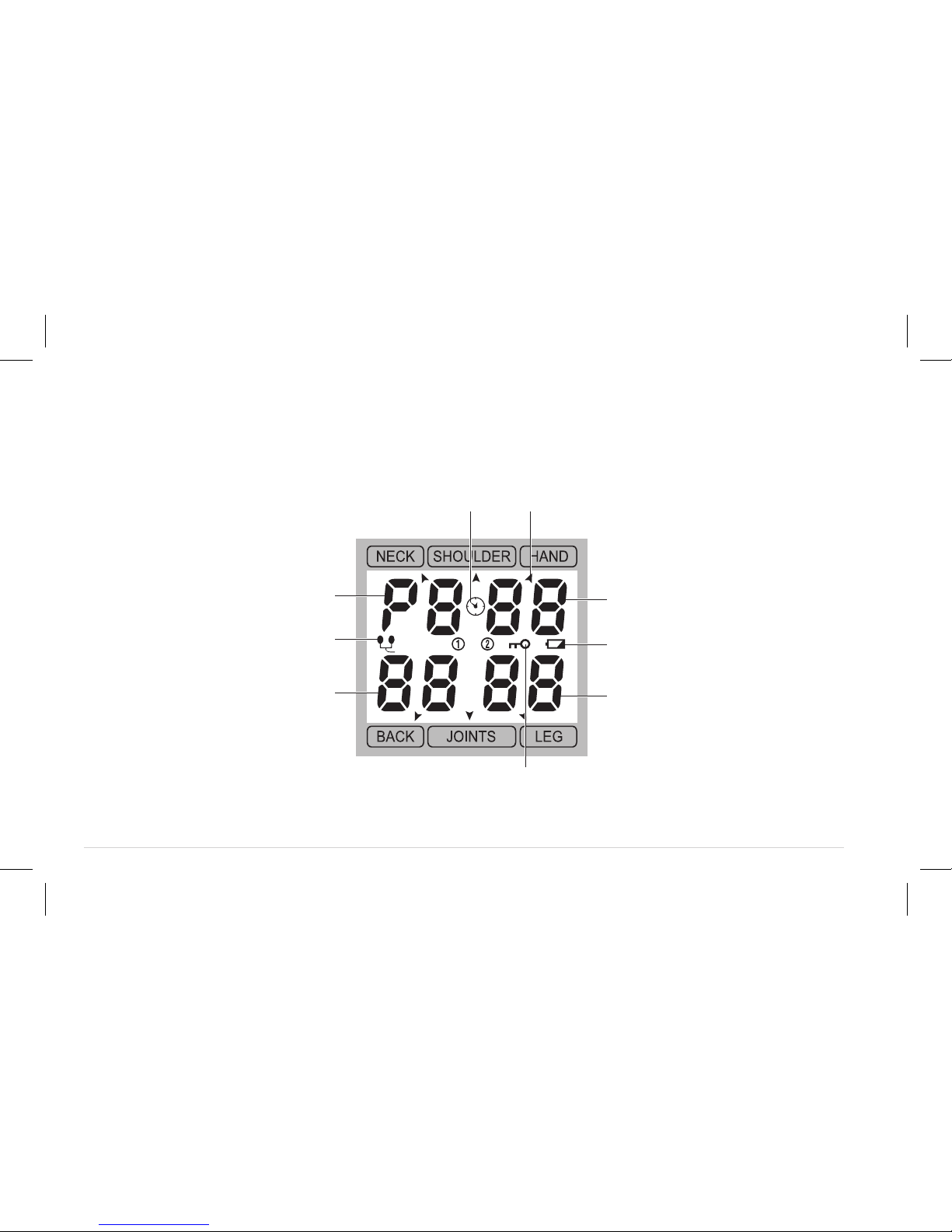

LCD Display
Treatment program
Electrode pad indicator
Intensity of Channel 1
Treatment time indicator
Low battery indicator
Intensity of Channel 2
Treatment
time indicator
Body part
treatment indicator
Intensity lock
indicator

16

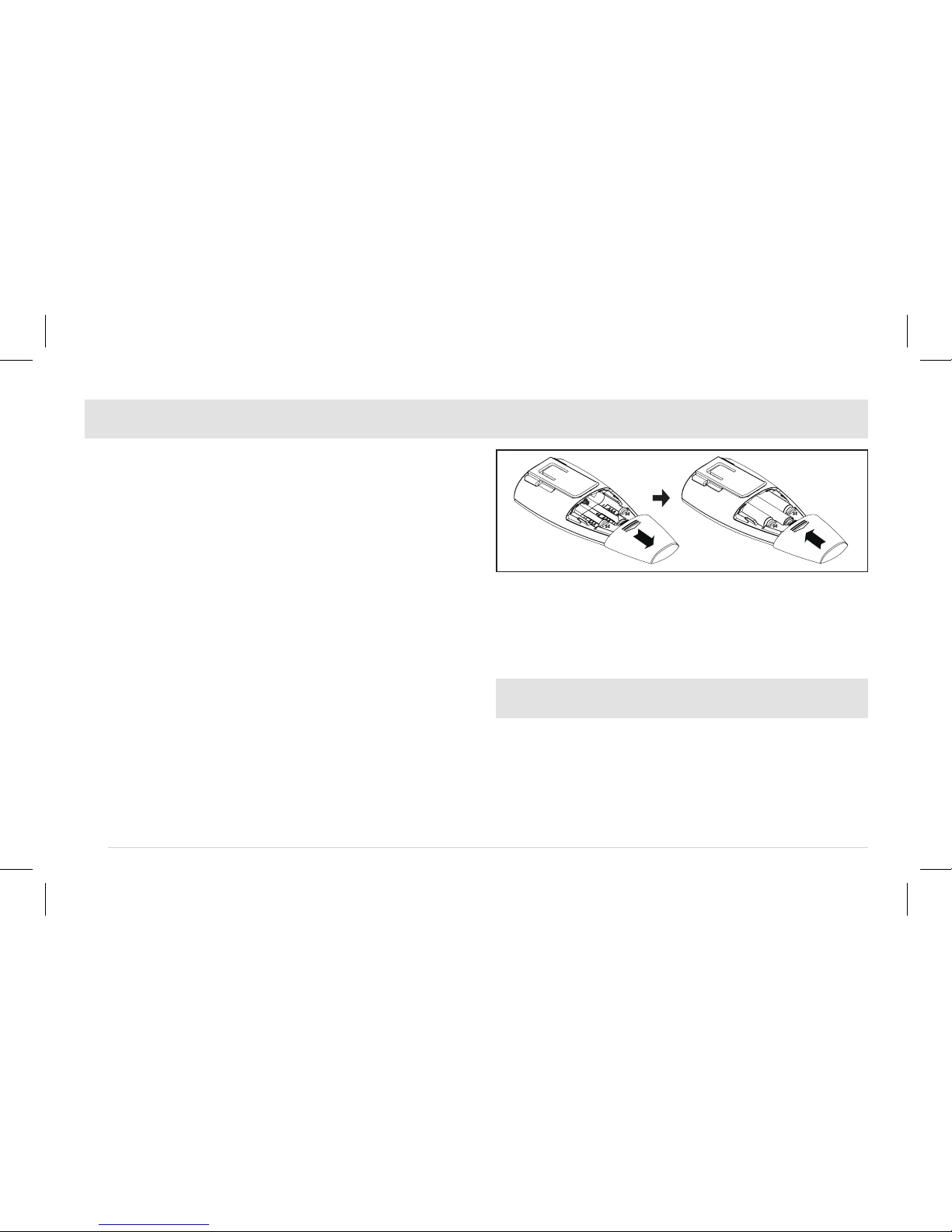

INSERTING BATTERIES
1. Remove the battery cover on the back of the
device as shown by the graphic to the right.
2. Insert 3 x AAA batteries. Make sure the positive
+and negative –signs correspond with the
markings in the device when inserting batteries.
Reinstall the battery cover as shown by the
graphic to the right.
Notes:
n Please use 3 x AAA batteries in this TENS unit.
n Remove the batteries if the device is not in use
for long periods of time.
n Do not mix old and new batteries or different
types of batteries.
n Remove exhausted batteries from the unit.
n Warning: If batteries leak and come into contact
with the skin or eyes, wash immediately with
large amounts of water.
n Batteries must be handled by an adult. Keep
batteries out of the reach of children.
n Dispose the used batteries safely according to
local regulations.
ATTACHING THE BELT CLIP
n To attach the belt clip to the device, simply slide
the clip up into the two connecting points until
you hear a click.
n To remove the belt clip from the device, simply
slide the belt clip down.

17
STEP 1
Attach pads to
the lead wires
Take the pads out of the
sealed package. Insert
the lead wire pin into
the electrode connector.
Make sure there are no
bare metal pins exposed.
STEP 2
Insert lead wires
into the TENS unit
Hold the lead wire plug
and insert it into the
socket on the top of the
stimulator, as shown by
the graphic to the right.
STEP 3
Pad placement
Remove the clear
plastic film from the
pack of the pads. Place
pads on clean, dry and
healthy skin, near or
surrounding the pain at
least 2 inches apart, and
do not let them touch. The red lead wire connector
denotes the (+) positive electrode and the black
lead wire connector denotes the (–) negative
electrode. For best results, before beginning
treatment, make sure the positive (+) electrodes
and (–) negative electrodes are placed exactly as
illustrated on pages 18-19 for single channel and
pages 20-21 for dual channels, or refer to the
enclosed Electrode Placement Guide. Be sure
there is a linear path between the pads.
EASY STEPS TO START YOUR THERAPY WITH ELECTRODE PADS
1
2
3

18
NECK / CERVICAL PAIN
Attach both pads on the neck.
(Do not place on the carotid
artery or throat.)
SHOULDER PAIN
Attach one pad in front and one
in back of the muscle.
CARPAL TUNNEL /
HAND PAIN
Attach both pads on the hand
where you feel pain.
LOWER BACK /
LUMBAR PAIN
Attach both pads on the lower
back with the backbone in the
center. Do not place on the
backbone or spine.
ELBOW PAIN
Attach both pads on either side
of the joint with the pain.
UPPER ARM PAIN
Attach both pads on either
side of the region where you
feel pain.
Single Channel Electrode Placement
The AccuRelief™ Dual Channel TENS unit features one or two channels for pain relief. When using only one
channel and one set of electrodes, use the following placement guide:

19

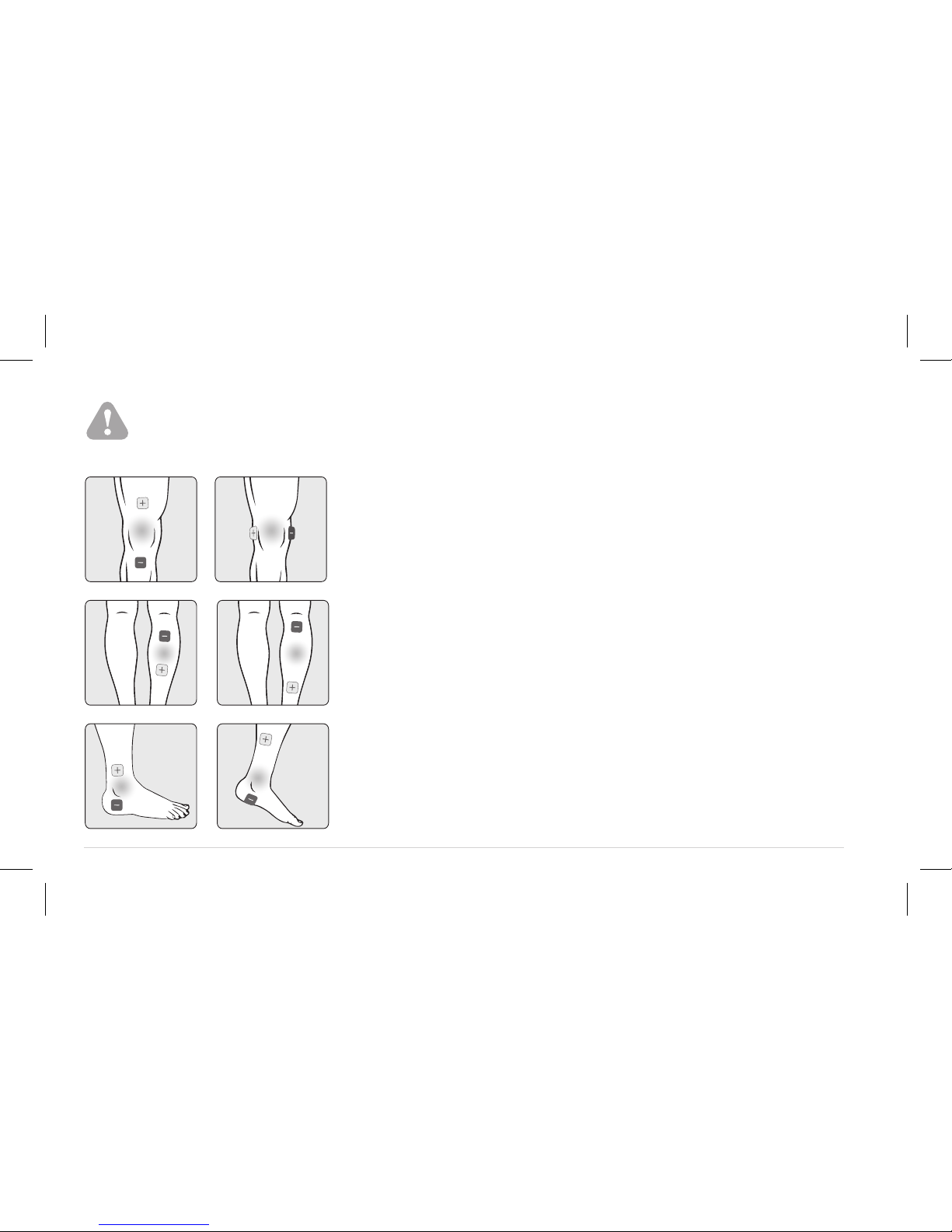

KNEE / JOINT PAIN
Attach both pads above the knee or above and below the joint with
pain.
CALF PAIN
Attach both pads on the calf/leg where you feel pain. Do not place
electrode pads simultaneously to the calves of both legs. Treat
one calf at a time.
ANKLE / FOOT PAIN
Attach pads per the illustration on the left for pain on the outside of
your ankle/foot. Attach the pads per the illustration on the right for
pain on the inside of your ankle/foot. Do not place electrode pads
simultaneously to the soles of both feet. Treat one at a time.
WARNING: Make sure the device is turned off or the intensities are set to zero (0) levels before
placing pads on skin. Never remove the self-adhesive electrodes from the skin while the
device is turned on.

20
NECK / CERVICAL PAIN
Attach both sets of pads on
the neck. (Do not place on the
carotid artery or throat.)
SHOULDER PAIN
Attach one set of pads in front
and one set in back of the
muscle.
CARPAL TUNNEL /
HAND PAIN
Attach both sets of pads on the
hand where you feel pain.
LOWER BACK /
LUMBAR PAIN
Attach both sets of pads on the
lower back with the backbone in
the center. Do not place on the
backbone or spine.
ELBOW PAIN
Attach both sets of pads on
either side of the joint with
the pain.
UPPER ARM PAIN
Attach both sets of pads on
either side of the region where
you feel pain.
Dual Channel Electrode Placement
The AccuRelief™ Dual Channel TENS unit features one or two channels for pain relief. When using two
channels and two sets of electrodes, use the following placement guide:
Top
of
hand
Palm
