AccuRelief ACRL-9100 User manual

Model ACRL-9100

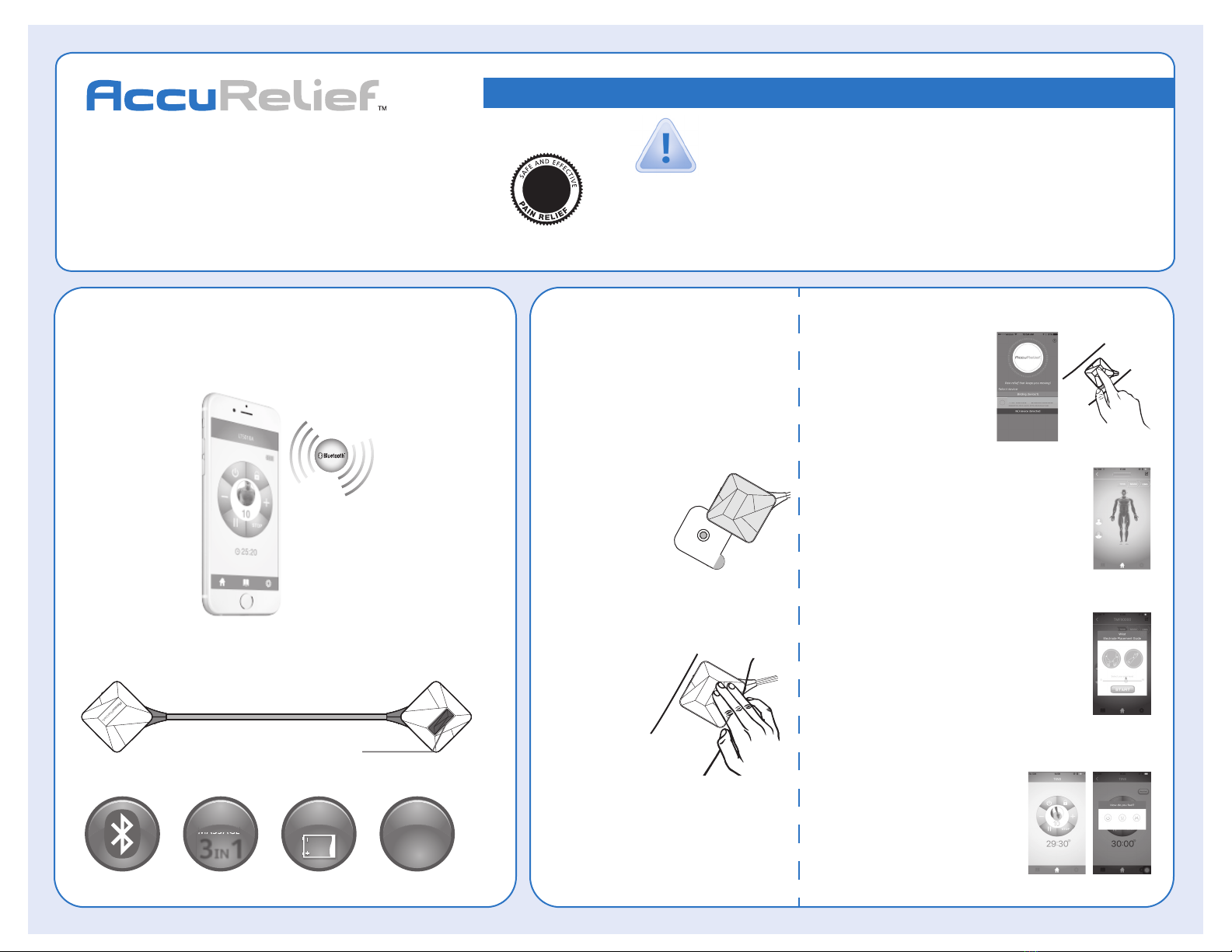

QUICK START GUIDE
Clinically
Proven
Ensure that the Bluetooth (4.0) connection is activated on your
smartphone or tablet.
Wireless 3-in-1
Pain Relief Device Apply pads to normal, healthy, clean and dry skin of adult patients because it may
otherwise disrupt thehealing process.
If you experience any skin irritation or redness after a session, donot continue
stimulation in that area of the skin.
KNOW YOUR DEVICE
Power on/o button
TENS
EMS
MASSAGE
RECHARGEABLE
LITHIUM BATTARY
MASSAGE
3IN 114
PROGRAMS
When you open the Wireless 3-in1 app in your
mobile phone, the app asks you to turn on
Bluetooth. Please accept.
- For iOS: Press settings to turn on Bluetooth.
- For Android: Press "allow" to turn on Bluetooth.
2
PLACE THE GEL PADS
ON THE SKIN
CONNECT THE GEL PADS
TO THE DEVICE
1TURN ON THE BLUETOOTH
Each gel pad is pre-fixed
with a stud to connect
to the back of the device,
and is protected by a
transparent film.
Attach the gel pads
to the back of the
device, pressing
them in place.
3
Clip excess hair
from the area to be
treated. Wash with
soap and water,
and dry completely.
Remove the
protective film
layer and apply
the gel pad to the
skin. Press firmly
to ensure adhesion.
See the Recommended Gel
Pad Positions on reverse page.
4
TURN ON THE ACRL-9100
UNIT AND START A SESSION
THROUGH THE USE OF THE
DEVICE APPLICATION
Press the on/off button so that the
appliance is put on standby mode
(Continuous green light : Standby
mode, ready for the session).
The App will detect the device
when it is switched on. In case
of inactivity for more than 5 min,
the device switches off. Simply
press the on/off button again to
reenter standby mode. Press the
name of the device on your app
screen to enter main menu.
ACRL-9100---Disconnected
SELECT THE AREA
TO BE TREATED
To start a new session, select a program
(TENS, EMS or Massage) and using the
labels on the front and back of the body
image select the area you wish to treat.
5
ACRL-9100
ACRL-9100
ESTIMATE THE INTENSITY
OF PAIN (IN TENS MODE)
On a scale of 1 to 10, evaluate the intensity of
the pain. For no pain press 0, for extremely
intense pain press 10.
6
SELECT AND START A
SESSION.
Starting a session : Click on “+” button
to begin increasing intensity. When your
session is complete, estimate your
satisfaction level. The session will be
recorded in the History folder of the app.
To turn off, press the power button on
the app or device. Remove the
electrodes from the skin. Remove the
device from the electrodes. If the device
is idle for more than 5 minutes, it will turn off.
Make sure the device is turned off before removing the electrodes.
7

Model ACRL-9100
QUICK START GUIDE
Clinically
Proven
Wireless 3-in-1
Pain Relief Device Apply pads to normal, healthy, clean and dry skin of adult patients because it may
otherwise disrupt thehealing process.
If you experience any skin irritation or redness after a session, donot continue
stimulation in that area of the skin.
KNOW YOUR DEVICE
Power on/off button
2
PLACE THE GEL PADS
ON THE SKIN
CONNECT THE GEL PADS
TO THE DEVICE
1INSERT BATTERIES
Each gel pad is pre-fixed
with a stud to connect to the
back of the device, and is
protected by a transparent
film. Attach the gel pads
to the back of the device,
pressing them in place.
3
Press the power button on the
ACRL-9100 unit to turn on.
A steady green indicator
light will turn on to let you
know the unit is powered
on and in standby mode.
4TURN ON THE
ACRL-9100 UNIT
OPERATING THE
ACRL-9100 UNIT
Press the Power/Mode button on the remote
to connect to the electrode unit. Press Mode
again to switch between TENS, EMS and
Massage. Press Program to select treatment
area for TENS & EMS or select Massage
program. Use the ▲and ▼buttons to
increase and decrease the intensity of each
treatment.
5
TURN OFF THE
ACRL-9100 UNIT
Hold down the power button on
the remote until it turns off. Press
the power button on the electrode
unit to turn off. Make sure the
device is turned off before
removing the electrodes.
6
Power
ON/OFF
button
Mode select
(TENS/EMS/
MASSAGE)
LCD DISPLAY
Intensity increase
Treatment program
select: Neck/
Shoulder/Arm/
LBack/Joint/Leg
Tap/Knead/Rub
Intensity
decrease
Remote Controller
Power supply:DC3.0V(2xAAA)
Manufactured for:
Compass Health Brands Corp
IP 22
Battery cover
Recommended Gel Pad Positions
M
CH1 CH2
/MODE
PROGRAM
Clip excess hair from the area
to be treated. Wash with soap
and water, and dry completely.
Remove the protective film
layer and apply the gel pad
to the skin. Press firmly to
ensure adhesion.
Two AAA batteries are included.
Remove the back cover of
remote control by pressing
and sliding the cover in the
direction of the arrow. Insert
batteries as marked in unit.
Slide cover back into position.
