Dinosaur Era Manual
Dinosaur Era
(DX, 4 Players Water Shooting)
MANUAL
Please read the manual before installation and use.
Please put the manual together with the machine.
Warning
ACE Amusement Technologies Co., Ltd.
ADD: #5 Building, No. 6, HengFeng 6th Road,
Gangkou Town, Zhongshan City, Guangdong,
P. R. China PC: 528447
TEL: [phone]
E-Mail: [email protected]
Web: www.ACE-Amusement.com

Dinosaur Era Manual
1
CONTENTS
Introduction ..................................................................................................................2
Specifications and Technical Parameters ...................................................................4
Accessory List ...............................................................................................................5
How to Move and Position the Machine .................................................................... 6
How to Move the Machine ..................................................................................... 6
How to Position the Machine ..................................................................................7
Unsuitable places .................................................................................................... 7
Where to Place ........................................................................................................ 7
Installation Location Dimension .............................................................................8
Precautions before Startup ...................................................................................... 8
Wiring and Precautions ...............................................................................................9
Installation and Maintenance ................................................................................... 10
Troubleshooting..........................................................................................................12
Instructions on Game ................................................................................................ 19
Adjustment of Game Program Setting .....................................................................21
Installation Figures and Steps ...................................................................................25
Dinosaur Era I/O Table .......................................................................................... 29
Very Important ...........................................................................................................30
Instructions on Restoring U Disk ............................................................................. 31

Dinosaur Era Manual
2
Introduction
I. Company Profile
Thank you for choosing the amusement machine produced by our company. We are a
comprehensive enterprise integrating development, production, sales, operation and
services. “Quality first, users first, services first” is our solemn promise to customers
and our action guide.
Please carefully read the manual for correct, appropriate and safe use of the machine.
We hope it can help you to succeed!
II. Introduction to the Product:
Dinosaur Era is an indoor water shooting redemption machine newly developed by
our company and especially designed for any FEC or amusement locations. It is
novel and beautiful in appearance, safe and reliable, and easy to operate, so it is the
most valuable amusement product with a higher coin collecting rate in amusement
center.
III. Features of the Product:
Novel gameplay full of fun;
Elegant appearance, bright-colored and exquisite patterns, made of MDF,
plywood, angle iron and metal plate, safe and durable due to rust-proof
treatment;
Large-scale integrated circuit, built-in program, stable and reliable working
performance;
Sophisticated and adjustable game program and win ratio.

Dinosaur Era Manual
3
IV. Note on Safety:
Before use, please note the safety warning stickers on the machine; while reading the
manual, please pay special attention to some signs. We divide the safety warnings
into 3 categories as follows. They mean different levels of danger.
Danger It means there will be danger of harm to people due to improper
operation.
Warning It means there will be possibility of harm to people due to
improper operation.
Attention It means there will be possibility of harm to people or the
machine due to improper operation.

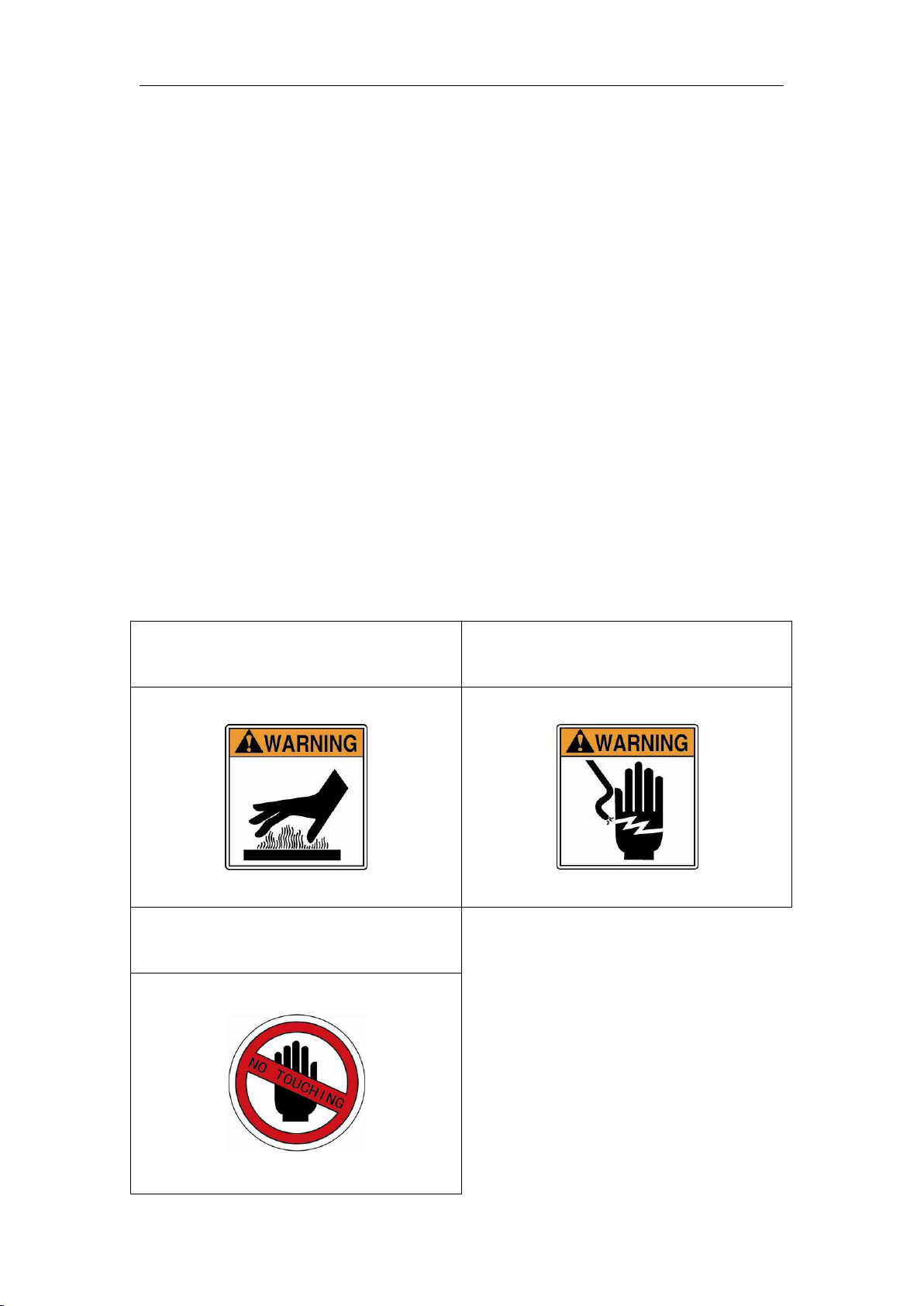

Please pay attention to the following signs on the machine:
High temperature sign
High temperature sign
No touching sign

Dinosaur Era Manual
4
Specifications and Technical Parameters
75” Version 65” Version
1) Operating Voltage: AC 220V - 240V, 50/60 Hz or AC110V±5%, 50/60 Hz
2) Maximum Power: 2000W
4) Dimensions:
75” Version: W199 × D245 × H 270 (cm) W78.3 × D96.5 × H 106.3 (inch)
65” Version: W184 × D236 × H 263 (cm) W72.4 × D93 × H103.5 (inch)
5) Weight: 75” Version: 1000Kgs 65” Version: 950Kgs
6) Operating Environment: Temperature (indoors): 0℃～35℃;
Humidity: ≤90%；
Atmospheric pressure: 86Pa～106Pa.
Warning: After turning off the machine, please wait 1 minute if you want to
turn it on.
Attention: The above technical parameters are subject to change without
prior notice.
Note: Please refer to the nameplate at the back of game for the voltage of your
machine.

Dinosaur Era Manual
5
Accessory list
For the normal use of the machine, please open the package and carefully check
whether the following items are included.
The accessory list is below:
No.
Name
No.
/Specification
QTY
Unit
Remark
1
Cable
10A/250V-3M
1
Pc
2
Fuse
Φ5×20mm T5A
250VAC
1
Pc
3
Pin for
Clear Water
Gun’s Holes
1.1mm
3
Pc
4
Manual
English
1
Pc
5
Key
AA33
2
Pc
6
Key
AA32
2
Pc
Please open the package and check whether all accessories are included. If not,
please contact the distributor of the machine for check.
Attention: The above technical parameters are subject to change without
prior notice.

Dinosaur Era Manual
6
How to Move and Position the Machine
How to Move the Machine
There are trundles under the machine. When moving the machine for a short distance,
you should raise foot to make the trundles touch the ground and push the machine.
As there will be danger of overturning when the foot hits obstacle on the ground, you
should move the foot up as much as you can and pay attention to obstacles ahead and
uneven places when moving the machine along the ground.
When moving the machine for a short distance, you should raise the foot to make the
trundles touch the ground and push the machine.
When you move the machine and pass uneven places or place with steps, 4 people or
more are needed to lift the machine for safety.

Dinosaur Era Manual
7
How to Position the Machine
Please place it on flat ground where it won’t slide easily;
Please use the following foot to fix the machine (as shown below)
1Loosen the tightly locked nuts of the foot, tighten the bolts of the foot with
a wrench, and keep the trundle approximately 5mm away from the ground.
2Tighten the nuts clockwise and fix them.
Unsuitable places
Place in which the machine may have condensate water or with high humidity;
Place close to high-temperature objects;
Place close to dangerous substances;
Smooth or unstable place;
Place close to equipment that may easily produce sparks;
Place with heavy vibration;
Dusty place.
Where to Place
Warning: The machine is only suitable for indoor use, not outdoor use.
Warning: Please do not use the forklift to move the machine, otherwise it
may be damaged.

Dinosaur Era Manual
8
◎Do not change or replace parts at your will when assembling the machine to prevent
fire disaster or short circuit.
Installation Location Dimension
The machine should be placed according to the following dimensions for customers’
safety and enough space to run the machine.
Game area: 30cm
Attention: The machine should not be placed at inclined place, or there
may be an accident.
Attention: The division of the game area should refer to labels of each
machine.
Precautions before Startup
1) Check parameters of the power supply. Ensure parameters of the machine meet
the requirements, or the machine might be damaged or there might be fire
accident.
2) Excessive loads on a power socket might cause socket overheat and fire accident.
Warning
Unit: mm

Dinosaur Era Manual
9

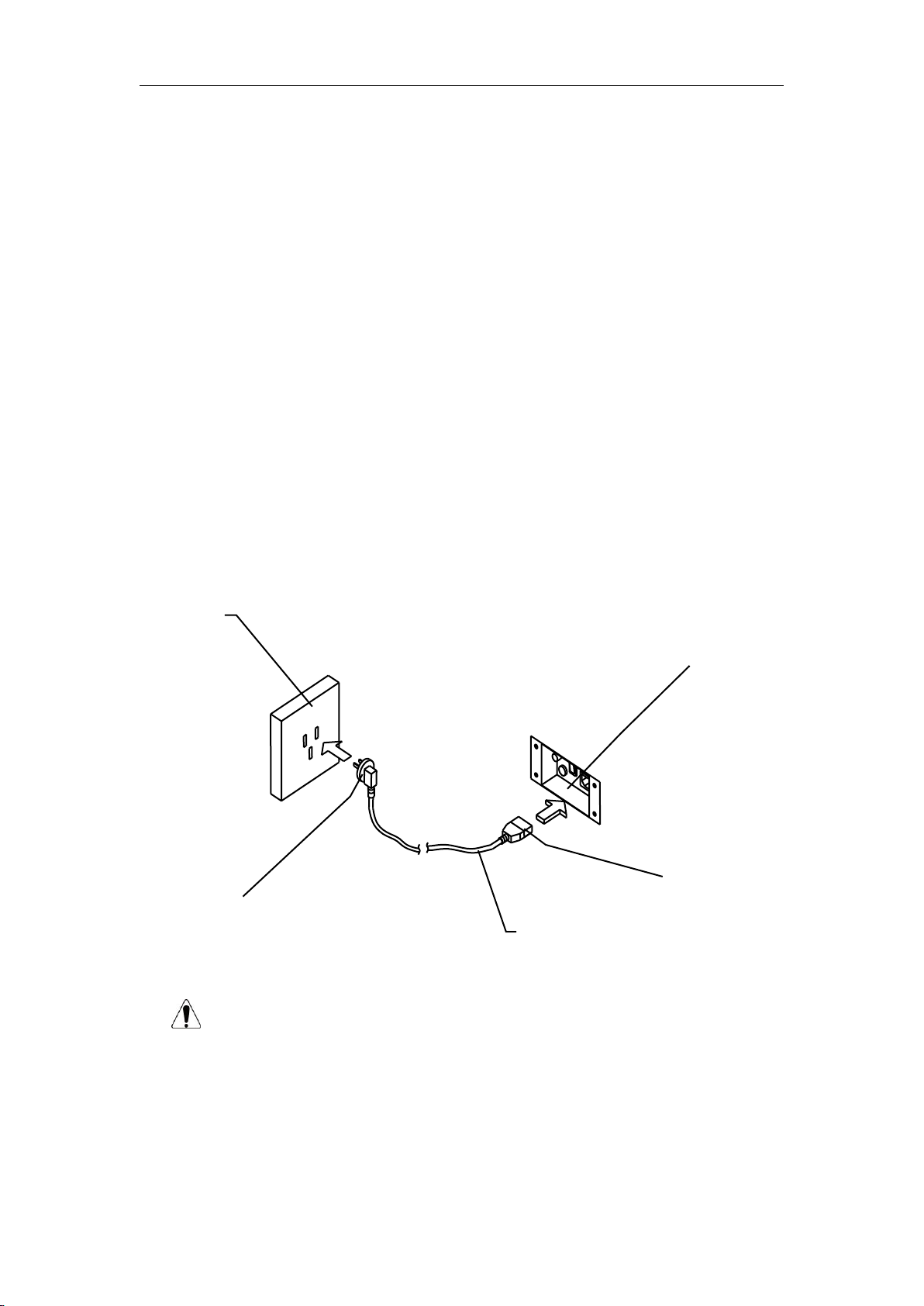

Wiring and Precautions
Connect one end of the cable to the terminal box of the machine, and connect
the other end to the socket.
Connect the power supply according to the voltage on the label, or the machine
might be damaged.
Please confirm whether there is grounding in the socket to avoid unnecessary
damage.
If the grounding cannot be done through the socket, please try other methods.
Warning: The working voltage of the machine is 220V. Please connect
the power supply according to the label, or the machine might be damaged.
Plug
Socket
Cable
Plug
Terminal box

Dinosaur Era Manual
10
Installation and Maintenance
Installation and commissioning
Please check the accessory list to assemble components before installation;
The ground must be flat and solid. After placing the machine, adjust the feet to
the ground and horizontally fix it;
After installation, plug the cable and turn on the machine to check whether each
part runs well. If no, immediately turn off the machine for troubleshooting.
Visual inspection
To safely use the machine, please check the following before startup:
Whether the warning sign is intact, visible and stuck correctly.
Whether parameters of power supply are consistent with the machine’s.
Whether screws of each component and components of the steering wheel are
loose.
Whether the connectors and terminals are loose.
Whether the machine is placed stably; whether the adjustment of the trundle and
the top foot is proper.
Whether the machine is placed properly.
Operation inspection
Whether the speaker works normally.
Whether the daylight lamp and the button light are on.
Whether the image is clear and normal.
Maintenance
Before operation, confirm the machine runs normally and then use it;
When there is dirt on the machine, wipe it with a soft cotton cloth with
detergent;
After the new machine has been used for one month, check whether each part
runs normally;
Often check the machine.
Cleaning
Housing
Clean dirt on the surface of the machine with clean and soft cotton cloth.
Display

Dinosaur Era Manual
11
Clean the outside of the display with clean and soft Display screen with no
water; anything with acid is forbidden to touch the surface of the display.
Exhaust fan
The exhaust fan is one of the main tools of dissipating heat inside the machine.
It has to be clean and run normally with unobstructed outlet.
Warning:
Cut off the power supply for maintenance and repair of the
machine.
To prevent short circuit, relevant personnel should cut off the power supply
when touching internal components of the machine. If the operation requires
power supply, it should meet the requirements of the user's manual.
Use proper parts for replacement.
Improper parts may cause short circuit, and damage of the main board and the
components.
Do not disassemble, assemble and change the equipment by
yourself.
It may cause short circuit and machine failure, and even fire disaster.
Do not place vases, cups, containers with water, chemicals or
heavy objects on the machine.
The spilt liquid may cause short circuit and damage of parts. Meanwhile, falling
objects may injure people and damage the machine.
Do not place objects in the air outlet of the machine.
The blocked air outlet may cause temperature rise inside the machine, affect the
normal operation of the game, and even damage the parts.
Do not repair the machine by yourself.
It may cause short circuit or malfunction and other failure.

Dinosaur Era Manual
12
Troubleshooting
Common Failure
Phenomenon
Main cause
Troubleshooting
After the machine is
powered on,(the
power supply fan
works), but the display
is not on.
The screen is not connected to power supply.
Please reconnect the power cable or replace it
with new.
The signal wire of the screen is not connected or
damaged
Please reconnect the signal wire or replace it
with new.
After the machine is
powered on, there is
no response and the
screen is not on
The power supply is inconsistent with the
machine’s parameters
Please check whether the power supply is
consistent with the machine’s parameters
The fuse is burnt
Please replace the fuse
The power supply is not connected
Please confirm the 220V power supply is
connected and the power switch is on
The signal wire of the screen is not connected or
damaged
The signal wire of the screen is not connected
or damaged
The machine is not
powered on
Check whether the input of the 220V power supply
is right. The short circuit is not allowed.
Please check whether the voltage of the circuit
board inside the machine is normal
The control board is
not powered on
Check whether the output of 5V, 12V and 24V of
the power supply box is normal
Please adjust the cable to the correct position
The display has no
raster
The cable of the display might fall off or be loose
due to vibration
Please check the power supply circuit or replace
the cable
The display is not on
Turn on the machine manually or with the
remote control
The power supply is
suddenly cut off
The circuit protector works, while the power
switch is off (note: when the abnormal current
runs, the circuit protector cuts off the current)
Please turn on the power switch again. When
the circuit protector repeatedly works, it means
there is something wrong with the machine.
Please contact the distributor
After the machine is
powered on, the
projector shows a
white screen without
image and sound
The host does not work
Please manually start the host
The host power supply is damaged or replace
it
The memory bank of the main board is in poor
contact or replace it
Please contact professionals and the
manufacturer if the main board is broken
No water comes out
after the game starts
The water level on the left of the screen is too
low; the water level of the tank is too low
Please put water into the tank till the green
safety line
The 24V cable has no voltage output
Please replace the 24V power supply box
The solid-state relay controlling the pump or
the pump does not work
Please replace the solid-state relay and the
pump connection circuit
The solenoid valve controlling water pressure is
not on or does not work
Please adjust or replace the solenoid valve
The high-power driver board and the IO
board controlling the solenoid valve do not
work
Please replace the high-power driver board
or the IO board
No water comes out
from the big water gun
The solenoid valve controlling the big water gun
is not on or does not work
Please adjust or replace the solenoid valve

Dinosaur Era Manual
13
Phenomenon
Main cause
Troubleshooting
No water comes out
from the small water
gun
There is something blocking the small water
gun or the solenoid valve controlling the small
water gun is not on or does not work
Please clean the water gun or replace the
solenoid valve
Press the start button,
and the game cannot
start
The holder of the start button falls off or goes
wrong; the switch cable falls off; the switch of the
start button goes wrong
The holder of the button is broken or replace it;
press and plug the switch cable; the switch of
the start button is broken or replace it
The coin collector
does not respond
The coin collector is damaged
Replace the coin collector
The signal wire of the coin collector is loose
Check whether the signal wire of the coin
collector is loose
The IO control board is damaged
Replace the IO control board
Coins are blocked in
the coin collector
The sample coin is not placed well
Please check whether the sample coin is placed
well, or try another sample coin
The coin slot is not aligned or deformed
Please check whether the coin slot is aligned or
deformed, and adjust it
The coin collector is not assembled properly. The
red braking bar above the coin collector is pressed
Please re-insert it into the coin collector
The coin collector
does not score
Check whether there is signal feedback
Please re-connect the coin collector. It will
make a sound if there is signal
The connected target board is not connected to the
pull-up resistor
Please connect the pull-up resistor
Check whether the token in the coin collector is the
same with that inserted in the coin collector
Please replace it with proper token
The gear of the switch (normally on, normally off)
is incorrect
Please check whether the gear of the switch
(normally on, normally off) is correct
The socket of the coin connector is in poor contact
Please check whether the socket of the coin
connector is in poor contact
The speaker does
not make a sound
Whether the circuit board of the power
amplifier is powered on
Please turn on the switch of the amplifier
circuit board to power on
The volume is too low
Please turn on the volume
Whether the audio connection port falls off
or is damaged
Please re-connect the audio connection
port
The circuit board of the power amplifier
goes wrong
Please replace the circuit board
The speaker goes wrong
Please replace the speaker
No ticket fed
The ticket machine goes wrong or the
switch is turned on wrong
Please replace the ticket machine or set
the switch to the factory settings
Fail to shoot well
Check whether the potentiometer up, down,
left and right are damaged
Replace the potentiometer and re-adjust
the gun

Dinosaur Era Manual
14
Installation and commissioning
Please check the accessory list to assemble components before installation;
After installation, plug the cable and turn on the machine to check whether each
part runs well. If no, immediately turn off the machine for troubleshooting.
Visual inspection
To safely use the machine, please check the following before startup:
Whether the warning sign is intact, visible and stuck correctly.
Whether parameters of power supply are consistent with the machine’s.
Whether screws of each component and components of the steering wheel are
loose.
Whether the connectors and terminals are loose.
Whether the machine is placed stably; whether the adjustment of the trundle and
the top foot is proper.
Whether the machine is placed properly.
Operation inspection
Whether the speaker works normally.
Whether the daylight lamp and the button light are on.
Whether the image is clear and normal.
Maintenance
Before operation, confirm the machine runs normally and then use it;
When there is dirt on the machine, wipe it with a soft cotton cloth with
detergent;
After the new machine has been used for one month, check whether each part
runs normally;
Often check the machine.
Cleaning
<I> Water filter and Sterilizing equipment flow chart

Dinosaur Era Manual
15
Real Shot Pictures of Cleaning
1. Primary filter device
2. Secondary filter device 3.Sterilization device
The primary filter
components
The Secondary filter device
The Secondary filter device
structure and High density filter
Sterilization device
Sterilization ultraviolet
radiation tube
The water inlet of the primary
filter is above the sink

Dinosaur Era Manual
16

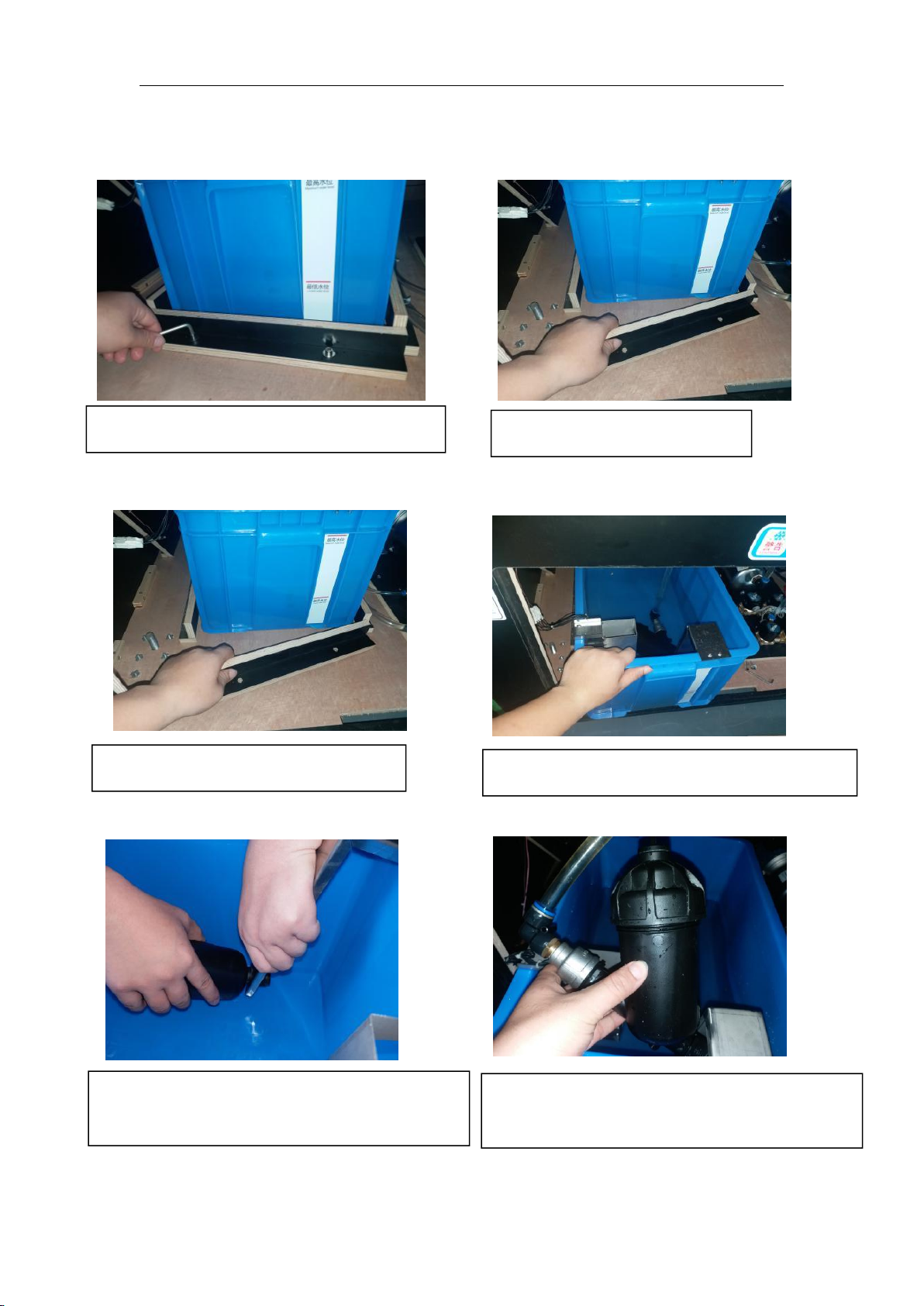

4.Cleaning Steps
Step 1: Remove the screws of tank baffle.
Step 2: Remove the baffle.
Step 3: Unplug the sensor connector.
Step 4: Gently pull out tank by 1/3.connector.
Step 5: Remove the secondary filter as shown
in the following two figures.
Step 6: Unscrew the top cover after removing
the secondary filter.

Dinosaur Era Manual
17
Step 7: Remove the filter element and
rinse with tap water until the dirt is
flushed.
Step 8: Gradually install the secondary filter
according to the original disassemble steps.
Step 9: Insert the sensor connector back
Step 10: gently push the tank back into the tank
slot and the tank baffle.

Dinosaur Era Manual
18

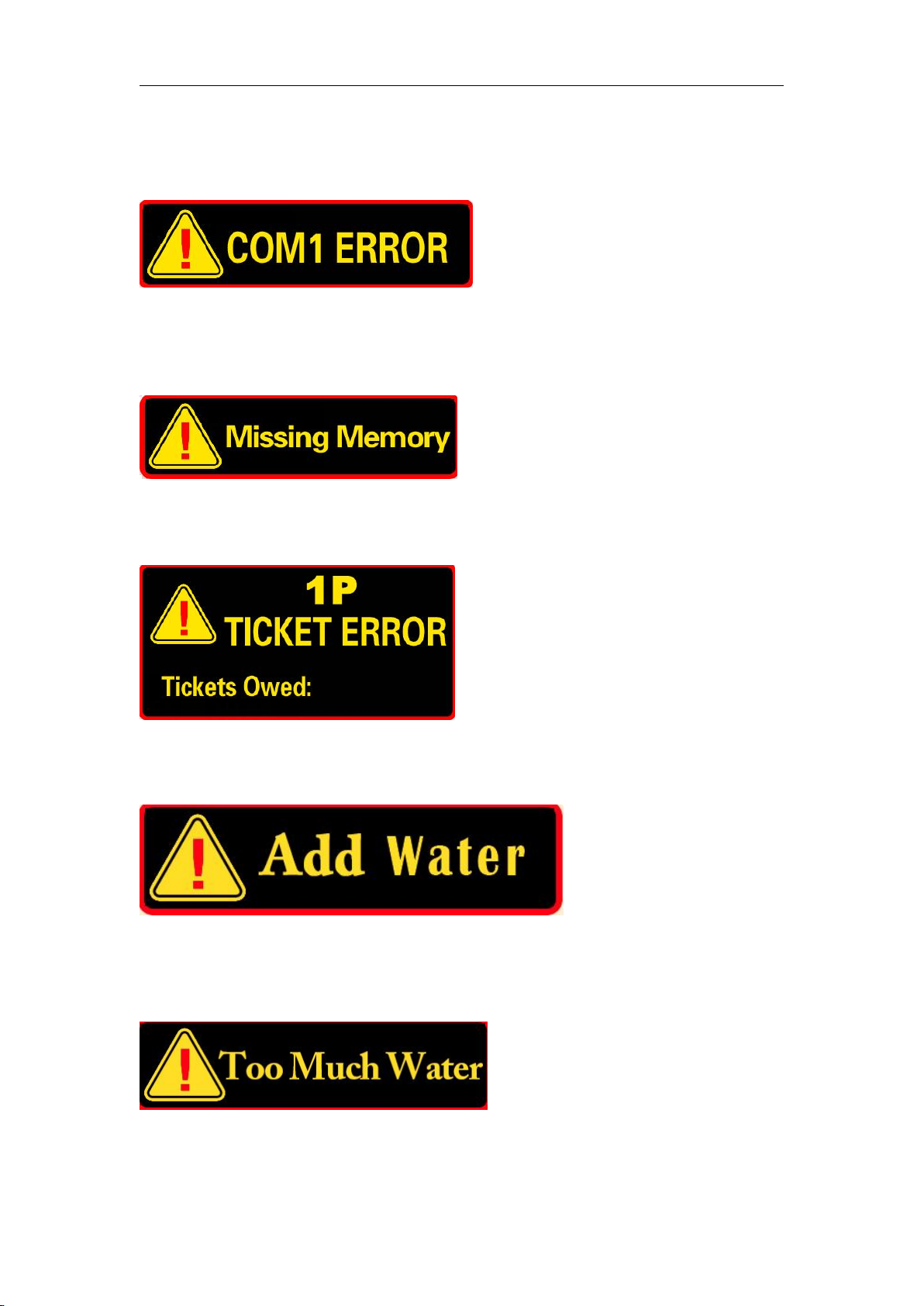

Error Code
1. Cause: Disconnection with the IO board
2. Solution: Restart the machine, and press the reset button on the IO board (there is only one button on
the board)
1. Cause: The memory of the host is insufficient
2. Solution: Plug out the memory of the host, and then plug it in again.
1. Cause: No enough tickets; the ticket dispenser is damaged
2. Solution: Refill tickets; replace the ticket machine
1. Cause: The water level is too low
2. Solution: Fill more water in the water tank.
1. Cause: The water level is too high
2. Solution: Remove some water from the water tank

Dinosaur Era Manual
19

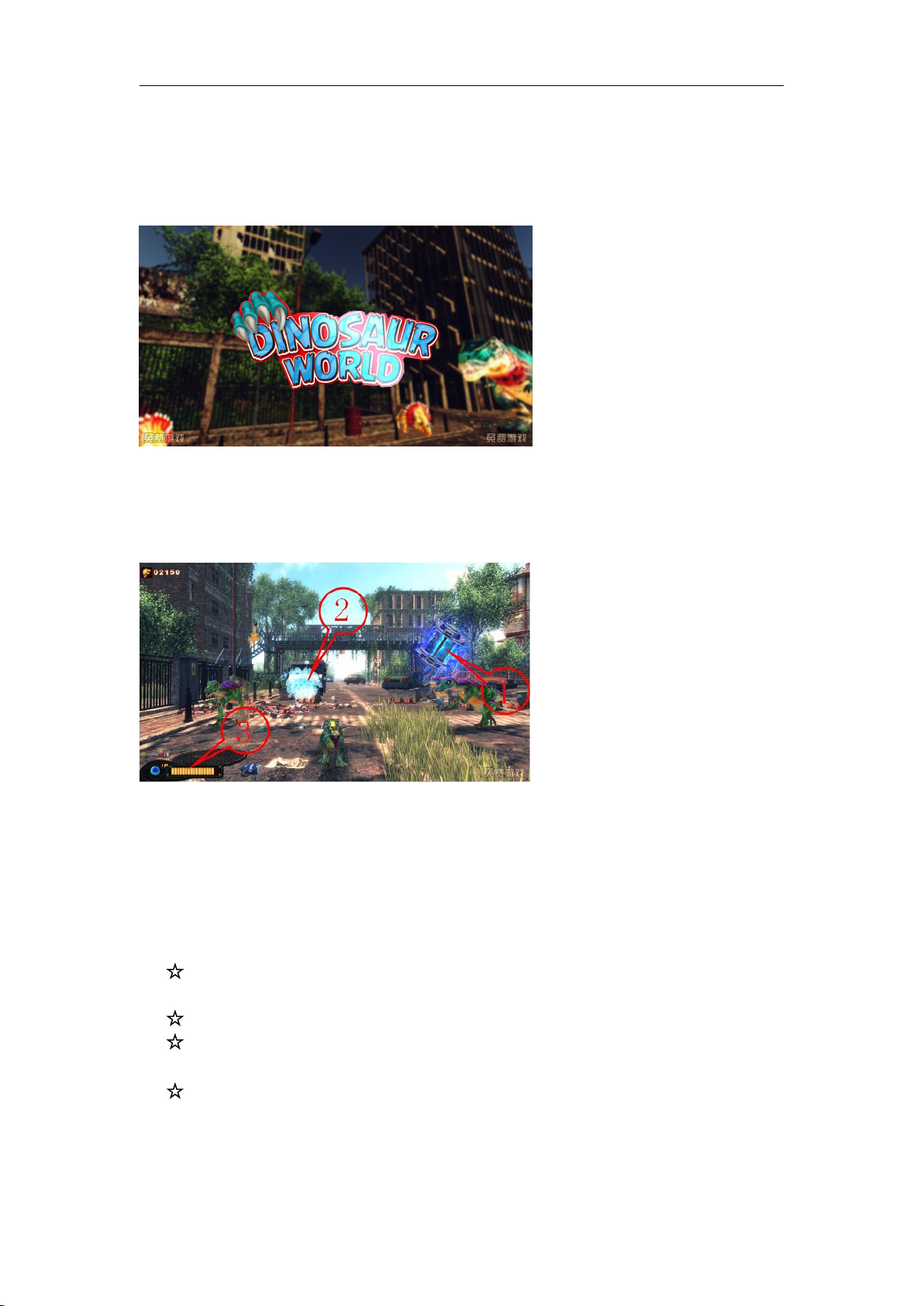

Instructions on Game
Game logo/standby image
Game Interface:
1. Front sight of player, to align with a target
2. Game props, to increase shooting power.
3. Player status UI interface
Characteristics of the machine:
There are 6 scenes in the game map. Players cannot enter the next scene until they
complete the corresponding plots.
There are also hidden props in the scenes which can make powerful area damages.
Players will face a variety of monsters in the game. Different attacks from different
monsters will arouse greater freshness and tension in players.
A variety of bosses in the game presents players with greater fun of challenge.
.
