System Tour
Your computer’s front panel consists of the following:
Front panel
No. Description No. Description
1 Optical Drive 2 Floppy Drive
36-in-1 Card Reader
(Manufacturing Option)
4 Power button
5 Speaker or Headphone Jack 6 Microphone Jack
7 USB Ports

System Tour2
English

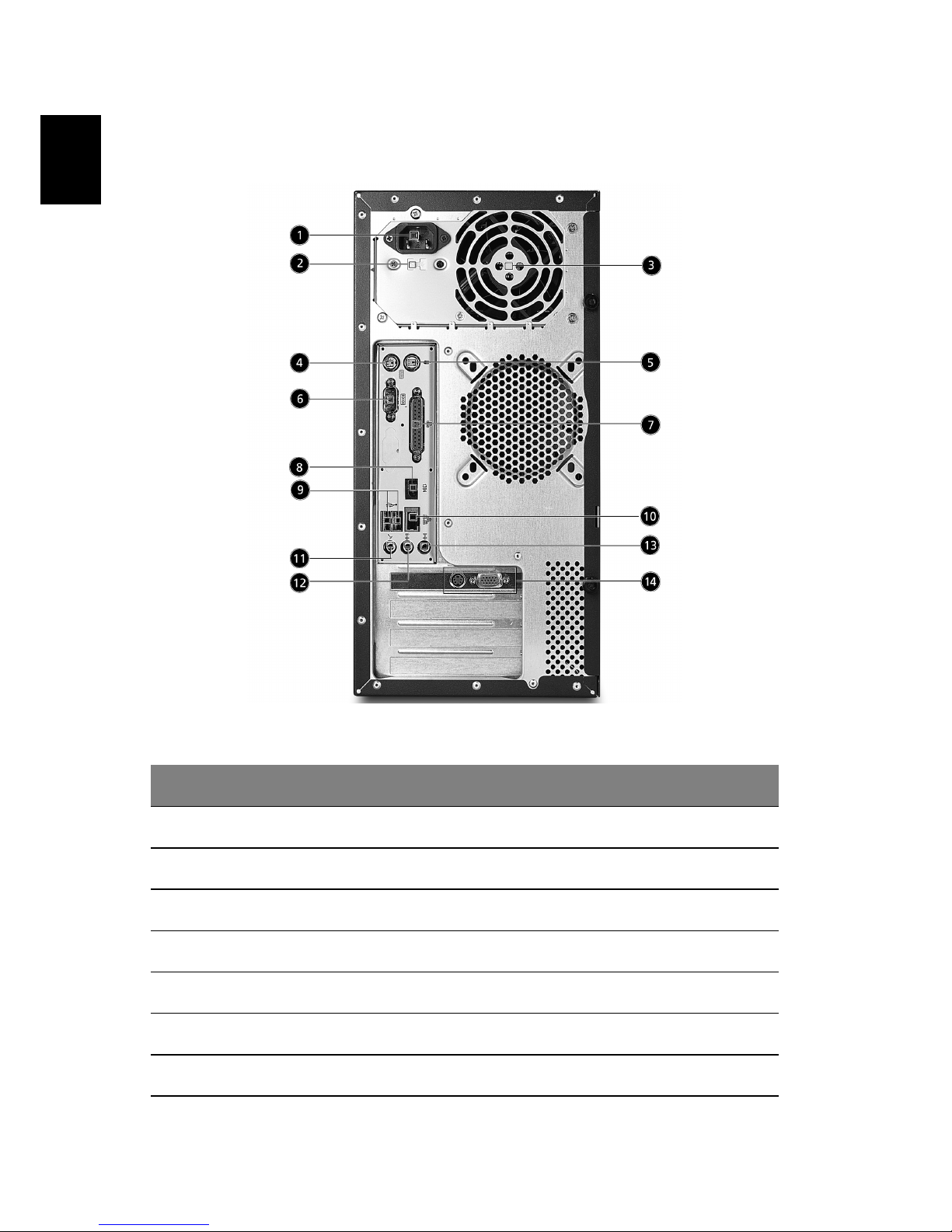

Rear panel
No. Description No. Description
1 Power cord socket 2 Voltage selector switch
3 Fan Aperture 4 PS/2 Keyboard Port
5 PS/2 Mouse Connector 6 Serial Connector
7 Printer Connector 8 IEEE 1394 Port
9 USB Connectors 10 RJ-45 Ethernet Connector
11 Microphone Jack 12 Line-out Jack
13 Line-in Jack 14 Monitor connector

3
English
System Features
Your computer features:
Performance
•AMD Athlon™ 64 CPU
• System Memory DDR 266/333, 2 DIMM Slots, expandable to 2GB
• Power management function
• 3.5 inch floppy drive
• CD-ROM, DVD-ROM, CD-RW (52X/24X), DVD/CD-RW combo or
DVD writer
• High-capacity, Enhanced-IDE drive
• Support USB 2.0 high performance peripherals
Multimedia
• 3D quality audio system via onboard audio controller
• Audio-in/Line-in, Audio-out/Line-out, Headphone out and external
Microphone in jacks
Note: the system has two Microphone-in Jacks (front and rear)
However, you can not use both of them at the same time. By
default, you system enables your microphone-in jack in front and
disables the one at the back.
Connectivity
• Two PS/2 ports for keyboard and mouse
• One serial port
• One Parallel port
• One VGA port
• Six USB 2.0 ports (two on the front, four on the rear panel)
• High speed V.92, 56K fax/Data modem (optional)
• 10 Base-T/100 Base-TX Ethernet Network

System Tour4
English
System peripherals
The Aspire T130 computer consists the system itself, and system
peripherals, like a mouse, a keyboard and a set of speakers (optional).
This section provides a brief description of basic system peripherals.
Mouse(PS/2 or USB, manufacturing option)
The included mouse is a standard two-button wheel mouse. Connect
the mouse to the PS/2 mouse port or USB port on the back panel of the
system.
Keyboard(PS/2 or USB, manufacturing option)
Connect the keyboard to the PS/2 keyboard port or USB port on the
back panel of the system.

5
English
Speakers
For systems bundled with speakers, before powering on the system,
connect the speaker cable to the audio out (external speaker) port on
the back panel of the system.
For more detailed information about the speakers, please refer to the
included operating instructions.
Note: speakers are optional and the appearance might be
different depending on the actual product.

System Tour6
English
System upgrade
You can expand your Aspire T130 system quickly and easily by adding
components. You can also upgrade the components of your Aspire T130
system.
Open the computer
Before removing any panels or covers, please make sure to shut off the
computer and unplug the power cord from the outlet.
• Remove the two screws on the side panel.
• Slide the panel back and off.
Set up new components
You can only use components compatible with Aspire T130 computers.
Before you choose new components, please ask your authorized Acer
dealer whether the part will operate within your Aspire T130 system.
In order to ensure proper setup and installation, please consult the
instructions provided with your new components.
Probable upgrades are:
- Upgrade to High Capacity HDD
- Expand high-level memory
- Upgrade from a CD-ROM drive to CD-RW, DVD-ROM, DVD/CD-
RW combo, or DVD writer
- Install additional interface cards in empty PCI slots e.g., PCI
fax/modem card

7
English
Setting up your computer
Aspire T130 is a versatile, high-power system, supporting AMD Socket A
(462) CPUs. The computer uses Peripheral Component Interface (PCI)
and Accelerated Graphics Port (AGP) design. This improves system
efficiency and helps the system support varied multimedia and
software applications.
Your Aspire T130 has standard I/O (Input/Output) interfaces such as a
serial port, parallel port, PS/2 keyboard and mouse ports, the system
includes six USB ports, two microphone ports and stereo line-out jacks
(one at front and one at rear panel) and a stereo line-in Jack. The
system can accommodate extra peripheral equipment through those I/
O ports.
Your system can also support an optional high-speed fax/data modem
or an additional LAN (local area network) card.
Furthermore, the system is compatible with Windows® XP Home,
Windows® XP Professional operating systems.
Necessary to know before Setup
Prior to setting up your Aspire T130 System:
• Select a location
• Open package
Select location
Selecting the optimum location for your computer:
• Don't place the system too close to other electrical equipment.
• Don't place the system in high traffic areas or where the power
cord or other cords may be stepped on.
• Avoid placing the system in any location that is excessively dusty or
damp.
Open package
Open the package carefully and keep all packing materials for later
use.

Setting up your computer8
English
Ensure that all items are present and in good condition. If any of the
following items are missing or appear damaged, contact your dealer
immediately.
•Aspire T130 Series
• PS/2 or USB keyboard (manufacturing option)
• PS/2 or USB mouse (manufacturing option)
• Spearkers ( for selected models only)
• User's Guide and Starter poster
Other user documentation and third party software.
Connecting the peripherals
Note: Don't connect system power cord before connecting all
peripherals to the system.
After everything is connected, plug the power cord into the system and
insert the other end into a power outlet.

9
English
Starting your computer
After connecting all the peripheral equipment, start your computer
according to the below steps:
1 Power on all peripheral equipment, such as monitor, printer, fax,
speakers etc.
2 Turn on the system. Once the start-up process is complete, you can
begin to use the computer.
Shutting down your computer
From the "Start" Menu, select "Shut Down" and click OK.
In the event of a system crash, press and hold the power button on the
front of the system for four seconds. After the system has shut down,
turn off all peripheral devices.

Setting up your computer10
English

11
English
Troubleshooting
The following questions are possible situations that may arise during
the use of your computer and each is followed by simple answers and
solutions to the situation.
Q: I pressed the power switch but the system did not boot up.
A: Check the LED located above the power switch.
If the LED is not lit, no power is being applied to the system. Do any of
the following:
• Check if the voltage selector switch located on the rear panel of
the computer is set to the correct voltage.
• Check if you properly plugged the power cable into an electrical
outlet.
• If you are using a power strip or AVR, make sure that it is plugged
in and turned on.
If the LED is lit, check the following:
• Is a non bootable (non system) diskette in the floppy drive? If yes,
remove or replace it with a system diskette and press Ctrl + Alt +
Del to restart your computer.
Q: Nothing appears on the screen.
A: Your computer's power management function automatically blanks
the screen to save power. Press any key to turn the display back on.
If pressing a key does not work, your computer. If restarting your
computer does not work, contact your dealer or the technical support
center for assistance.
Q: The printer does not work.
A: Do the following:
• Make sure that the printer is connected to a power outlet and that
it is turned on.
• Make sure that the printer cable is connected securely to the
system's parallel port and the corresponding port on the printer.
• For additional information concerning the printer, refer to the
printer's documentation.

Troubleshooting12
English
Q: No sound comes out from the speakers.
A: Check the following:
• The volume may be muted. Look for the Volume icon on the
taskbar. If it is crossed-out, click on the icon and deselect the Mute
option. You can also press the volume control/mute knob on your
USB keyboard to toggle the mute function.
• If headphones, earphones, or external speakers are connected to
the line-out jack of your computer, the internal or built-in
speakers are automatically turned off.
Q: System cannot read diskette, hard disk, CD or DVD information.
A: Check the following:
• Make sure that you are using the correct type of media.
• Check if the diskette is formatted correctly. If not, format it again.
Caution: If you reformat a diskette, you will lose any data on it.
Make sure the diskette, CD or DVD is inserted into the drive correctly.
• Check if the CD or DVD is clean and not scratched.
• Check your drive by using a good (i.e., undamaged) diskette or a
good disc. If your floppy drive, CD or DVD drive can not read the
information on the good diskette, CD or DVD there may be a
problem with the drive. Contact your dealer or technical support
center for assistance.
Q: System cannot write diskette, hard disk or disc.
A: Check the following:
• Make sure the media is not write-protected.
• Make sure that you are using the correct type of diskette. Check if
the diskette is formatted correctly. If not, format it again.
Caution: If you reformat a diskette, you will lose any data on it.

13
English
Taking Care of your computer
Please read the important instructions listed in this section. Following
these instructions will help you maximize the durability of your
computer.
Important tips
• Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
• Do not subject the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill water on the computer.
• Do not subject the computer to heavy shock or vibration.
• Do not expose the computer to dust and dirt.
• Never place the system on uneven surfaces.
• Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal
traffic.
• When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
• The total ampere rating of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into a
single wall outlet should not exceed the fuse rating.
• Check the documentation that came with your software programs
to see if you can select other combinations of resolution and color.
These adjustments could make viewing the screen more
comfortable.
Cleaning and servicing
To clean your computer and keyboard
1 Turn off the computer and unplug the power cord.
2 Use a soft cloth moistened with water and gently wipe the exterior
of the computer and the keyboard. Do not use liquid or aerosol
cleaners.

Taking Care of your computer14
English
To clean your pointing device
To clean your mouse (with rubber ball)
1 Open the circular cover underneath the mouse.
2 Take out the rubber ball and wipe it with a soft, damp cloth.
3 Put the ball back and replace the cover.
To clean your optical mouse
For users of an optical mouse, refer to the documentation that came
with your mouse for maintenance instructions.
To clean your monitor
Make sure that you keep your screen clean. For cleaning instructions,
refer to the documentation that came with your monitor.
When to contact a service technician
• If you dropped and damaged the computer.
• If liquid has been spilled into the computer.
• If the computer is not operating normally.
Asking for technical assistance
For technical assistance, contact your local dealer or distributor. You
may also access the Acer Web site (www.acersupport.com) for
information on how and where to contact the service centers available
in your area.

Appendix A:
Regulation and
Safety Notices

This chapter lists the general notices for your
computer.
