1.1 Features
The V58LA is an all-in-one Pentium-based system board that utilizes
the PCI local bus architecture. It is capable of offering multimedia and
network functions by simply integrating a VGA controller with 3D
support, a Sound Blaster-compatible audio chip, and a Fast Ethernet
controller.
The system memory is expandable to 256 MB via two onboard 168-pin
DIMM (double in-line memory module) sockets. To further enhance
system performance, the board also comes with 256-/512-KB
pipelined-burst second-level cache and 1/2/4-MB video memory.
Standard onboard I/O interfaces comprise of two UART 16C550 serial
ports, a parallel port with Enhanced Parallel Port (EPP)/Extended
Capabilities Port (ECP) feature, PS/2 keyboard and mouse ports, and
VGA port. Two Universal Serial Bus (USB) interfaces are added to the
design to enable the system to support more peripherals. For full
multimedia support, video, audio and network interfaces are also
provided.
Other special features supported are Hardware Monitoring and
Wake-on Ring-in functions. For details, read the following sections.
The system is fully compatible with Windows 95, Windows NT,
NetWare, MS-DOS V6.X, OS/2, and UNIX operating systems.

1-2 User’s Guide
1.2 Major Components
The system board has the following major components:
•A ZIF (zero insertion force) socket that supports 3.3V Intel
Pentium P54C/P55C processor running at 90/60, 100/66, 120/60,
133/66, 150/60, 166/66, 200/66, or 233/66 MHz. Also supports
Cyrix M1/M2 or AMD K5/K6 processor
•Two 168-pin DIMM sockets that accept SDRAMs with 8, 16, 32,
64, and 128-MB capacities (256-MB maximum system memory)
•256-KB or 512-KB pipelined-burst second-level cache
•Onboard video memory (1-/2-/4-MB SGRAM)
•One riser card slot for future expansion
•Enhanced PCI local bus IDE controller
•Onboard VGA with 2D/3D support
•Onboard 16-bit PnP audio controller, Sound Blaster-compatible
•Onboard 100Base-TX/10Base-T Ethernet controller with Wake-
on LAN solution (optional)
•APM-compliant DMI BIOS
•Ultra I/O controller
•Two 16C550 buffered serial ports and one SPP/ECP/EPP parallel
port
•Two USB interfaces, Open HCI 1.0a compliant
•VGA AMC connector to support TV-tuner, MPEG and H/W
capture
•Audio interface, includes fax/modem and CD-audio
•Fast Ethernet interface
•PS/2 mouse and keyboard interface

System Board 1-3
1.3 Layout
Figure 1-1 shows the board layout and the locations of the important
components.
1 Riser card slot 17 Aux. line-in connector
2 Ultra I/O controller 18 AMC connector
3 LAN controller 19 Modem ring-in connector
4 Power connector 20 Video controller
5 Battery 21 Video port
6 Standby connector 22 Printer port
7 BIOS chip 23 COM2/USB port
8 Audio controller 24 COM1 port
9 AIO board connector 25 PS/2 mouse port
10 Fax/modem connector 26 PS/2 keyboard
11 CD-in and Line-in connectors 27 LAN port
12 Pipelined-burst cache 28 USB board connector
13 Voltage regulators with heatsink 29 SGRAMs (video memory)
14 DIMM sockets 30 Floppy disk drive connector
15 CPU socket 31 IDE 2 connector
16 Buzzer 32 IDE 1 connector
Figure 1-1 System Board Layout
1 2 3
4 5 6
7 89
10 12
13
14
29
16
15
17
18
19
20
21
22
23
24
25
26
27
32
31
30
28
11

1-4 User’s Guide
The heatsink becomes very hot when the
system is on. NEVER touch the heatsink with
any metal or with your hands.
1.4 Jumpers and Connectors
1.4.1 Jumper and Connector Locations

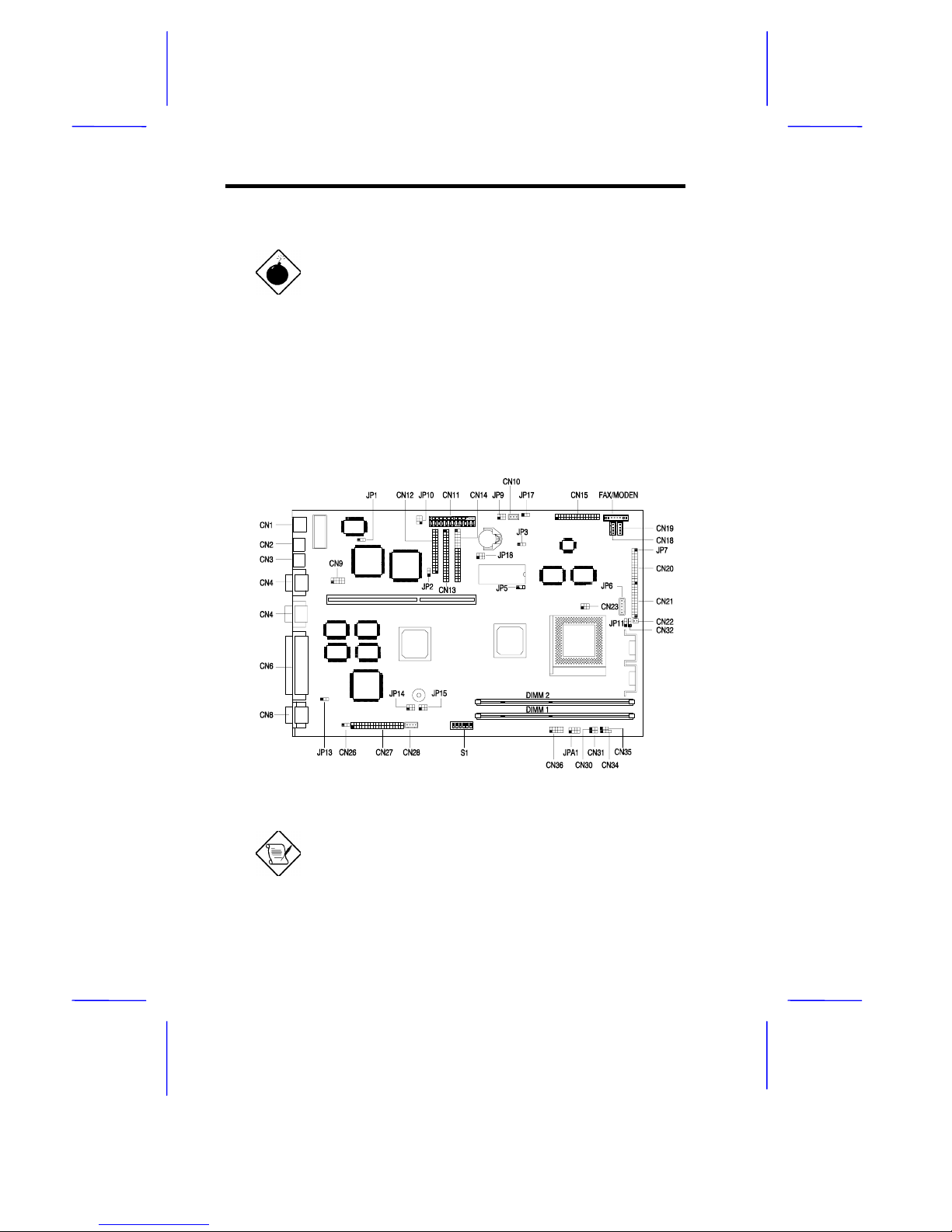

Figure 1-2 shows the jumper and connector locations.
Figure 1-2 Jumper and Connector Locations
The shaded pin indicates pin 1.

System Board 1-5
1.4.2 Jumper Settings
The following tables list the jumper settings and their corresponding
functions:
Table 1-1 Jumper Settings
Jumper Setting Function
JP1 1-2
2-3
BIOS Logo
Acer
OEM
JP2 1-2
2-3
LED Function
for IDE and FDD
for IDE only
JP3 1-2
2-3 *
Suspend/Reset Switch Function
Suspend
Reset
JP5 1-2
2-3
L2 Cache Mode
Intel or Cyrix M1/M2 “1+4” mode
Cyrix M1/M2 linear-burst mode
JP10 3-5, 4-6
1-3, 2-4
Power Supply Type
With standby power current > 1A
With standby power current < 1A
CN23 1-3, 2-4
3-5, 4-6
CPU Voltage Option
Single-voltage CPU (P54C)
Dual-voltage CPU (P55C)
CN36 1-2
3-4
5-6
7-8
9-10
Vcore Select
2.8V
2.9V
3.2V
3.31V
3.52V
S1 Switch 1
On
Off
Password Check
Bypass password
Check password

1-6 User’s Guide
Table 1-1 Jumper Settings (continued)
Jumper Setting Function
S1 Switch 2
On
Off
Switch 3
On
Off
Switch 6
On
Off
Onboard Sound
Disabled
Enabled
Onboard LAN
Disabled
Enabled
Clock Select
Cypress CY2273
Clk 9148
Table 1-2 Host Bus Frequency Select
Jumper 60 MHz 66 MHz 75 MHz 83 MHz
CY2273
JP14 1-3, 2-4 1-3, 2-4 3-5, 4-6 3-5, 4-6
JP15 1-3, 2-4 3-5, 4-6 1-3, 2-4 3-5, 4-6
Table 1-3 CPU/Host Bus Frequency Ratio Select
S1 CPU/Host Bus Frequency Ratio
JP11 switch 4 switch 5 Intel AMD Cyrix
2-3 On On 2.5 2.5 2.5
2-3 Off Off 1.5/3.5 1.5/3.5 3.5
2-3 Off On 2.0 2.0 2.0
2-3 On Off 3.0 3.0 3.0
1-2 Off On 4.0
1-2 On On 4.5

System Board 1-7
Table 1-4 CPU Type and Frequency Select
CPU
Freq.
(MHz) JP11 JP14 JP15 S1
switch 4 S1 switch 5 CN23 CN36
Intel P54C
P90 2-3 1-3, 2-4 1-3, 2-4 Off Off 1-3, 2-4 7-8
P100 2-3 1-3, 2-4 3-5, 4-6 Off Off 1-3, 2-4 7-8
P120 2-3 1-3, 2-4 1-3, 2-4 Off On 1-3, 2-4 7-8
P133 2-3 1-3, 2-4 3-5, 4-6 Off On 1-3, 2-4 7-8
P150 2-3 1-3, 2-4 1-3, 2-4 On On 1-3, 2-4 7-8
P166 2-3 1-3, 2-4 3-5, 4-6 On On 1-3, 2-4 7-8
P200 2-3 1-3, 2-4 3-5, 4-6 On Off 1-3, 2-4 7-8
Intel P55C
P150 2-3 1-3, 2-4 1-3, 2-4 On On 3-5, 4-6 1-2
P166 2-3 1-3, 2-4 3-5, 4-6 On On 3-5, 4-6 1-2
P200 2-3 1-3, 2-4 3-5, 4-6 On Off 3-5, 4-6 1-2
P233 2-3 1-3, 2-4 3-5, 4-6 Off Off 3-5, 4-6 1-2
Cyrix M1 (6x86)
P150+ 2-3 1-3, 2-4 1-3, 2-4 Off On 1-3, 2-4 7-8
P166+ 2-3 1-3, 2-4 3-5, 4-6 Off On 1-3, 2-4 7-8
P200+ 2-3 3-5, 4-6 1-3, 2-4 Off On 1-3, 2-4 7-8
Cyrix M1 (6x86L)
P150+ 2-3 1-3, 2-4 1-3, 2-4 Off On 3-5, 4-6 1-2
P166+ 2-3 1-3, 2-4 3-5, 4-6 Off On 3-5, 4-6 1-2
P200+ 2-3 3-5, 4-6 1-3, 2-4 Off On 3-5, 4-6 1-2
Cyrix MX
PR166 2-3 1-3, 2-4 1-3, 2-4 On On 3-5, 4-6 3-4
PR200 2-3 1-3, 2-4 3-5, 4-6 On On 3-5, 4-6 3-4
PR233 2-3 3-5, 4-6 1-3, 2-4 On On 3-5, 4-6 3-4

1-8 User’s Guide
Table 1-4 CPU Type and Frequency Select (continued)
CPU
Freq.
(MHz) JP11 JP14 JP15 S1
switch 4 S1 switch 5 CN23 CN36
AMD K5
PR90 2-3 1-3, 2-4 1-3, 2-4 Off Off 1-3, 2-4 9-10
PR100 2-3 1-3, 2-4 3-5, 4-6 Off Off 1-3, 2-4 9-10
PR120 2-3 1-3, 2-4 1-3, 2-4 Off On 1-3, 2-4 9-10
PR133 2-3 1-3, 2-4 3-5, 4-6 Off On 1-3, 2-4 9-10
PR166 2-3 1-3, 2-4 3-5, 4-6 On On 1-3, 2-4 9-10
AMD K6
PR166 2-3 1-3, 2-4 3-5, 4-6 On On 3-5, 4-6 5-6
PR200 2-3 1-3, 2-4 3-5, 4-6 On Off 3-5, 4-6 5-6
PR233 2-3 1-3, 2-4 3-5, 4-6 Off Off 3-5, 4-6 5-6
1.4.3 Onboard Connectors
Table 1-5 lists the onboard connectors.
Table 1-5 Onboard Connectors
Connector Function
CN1 Ethernet connector
CN2 PS/2 keyboard port
CN3 PS/2 mouse port
CN4 COM1 port
CN6 COM2 port (USB port - optional)
CN7 Printer port

System Board 1-9
Table 1-5 Onboard Connectors (continued)
Connector Function
CN8 Monitor port
CN9 USB board connector
CN10 Standby power connector
CN11 Power connector
CN12 Floppy disk drive connector
CN13 IDE 2 connector
CN14 IDE 1 connector
CN15 AIO board connector
CN18 CD-in connector
CN19 Line-in connector
CN22 Two-pin fan connector
CN26 Modem ring-in connector
CN27 AMC connector
CN28 Auxiliary line-in connector (for add-on card)
CN30 Power LED connector
CN31 Message-in LED/HDD LED connector
CN32 Power button connector
CN34 External speakers connector
CN35 Reset/Suspend switch connector
JPA1
2-4
7-8 Turbo LED connector Power button connector
(for Aspire 6-pin connector

1-10 User’s Guide
1.5 ESD Precautions
Electrostatic discharge (ESD) can damage your processor, disk drives,
expansion boards, and other components. Always observe the
following precautions before you install a system component.
1. Do not remove a component from its protective packaging until
you are ready to install it.
2. Wear a wrist grounding strap and attach it to a metal part of the
system unit before handling components. If a wrist strap is not
available, maintain contact with the system unit throughout any
procedure requiring ESD protection.
1.6 Pre-installation Instructions
Always observe the following before you install a system component:
1. Turn off the system power and all the peripherals connected to
the unit before opening it.
2. Open the system according to the instructions in the housing
installation manual.
3. Follow the ESD precautions in section 1.5 before handling a
system component.
4. Remove any expansion boards or peripherals that block access
to the DIMM sockets or CPU socket.
5. See the following sections for specific instructions on the
component you wish to install.
Do not attempt the procedures described in
the following sections unless you are a
qualified service technician.

System Board 1-11
1.7 Installing Memory
The system memory is upgradable to a maximum of 256 MB via two
168-pin DIMM sockets onboard. These DIMM sockets accept 8, 16,
32, 64, and 128-MB, 3.3V SDRAMs. See Figure 1-1 for the location of
the DIMM sockets. Section 1.7.1 tells how to install DIMMs.
Table 1-6 lists the possible memory configurations.
Table 1-6 Memory Configurations
DIMM 1 DIMM 2 Total Memory
8 MB 8 MB
8 MB 8 MB
8 MB 8 MB 16 MB
16 MB 16 MB
16 MB 16 MB
16 MB 16 MB 32 MB
32 MB 32 MB
32 MB 32 MB
32 MB 32 MB 64 MB
64 MB 64 MB
64 MB 64 MB
64 MB 64 MB 128 MB
128 MB 128 MB 256 MB

1-12 User’s Guide
1.7.1 Installing a DIMM
Follow these steps to install a DIMM:
1. Align pin 1 of the DIMM with pin 1 of the socket. Pin 1 is labeled
1 on both of the DIMM and the socket.
2. Gently push the DIMM until the holding clips lock the DIMM into a
vertical position.
Figure 1-3 Installing a DIMM
Be careful when inserting DIMMs. Forcing a
DIMM in or out of a socket can damage the
socket or the DIMM (or both).
12

System Board 1-13
1.7.2 Removing a DIMM
To remove a DIMM:
1. Press the holding clips on both sides of the socket outward to
release the DIMM.
2. Gently pull the DIMM out of the socket.

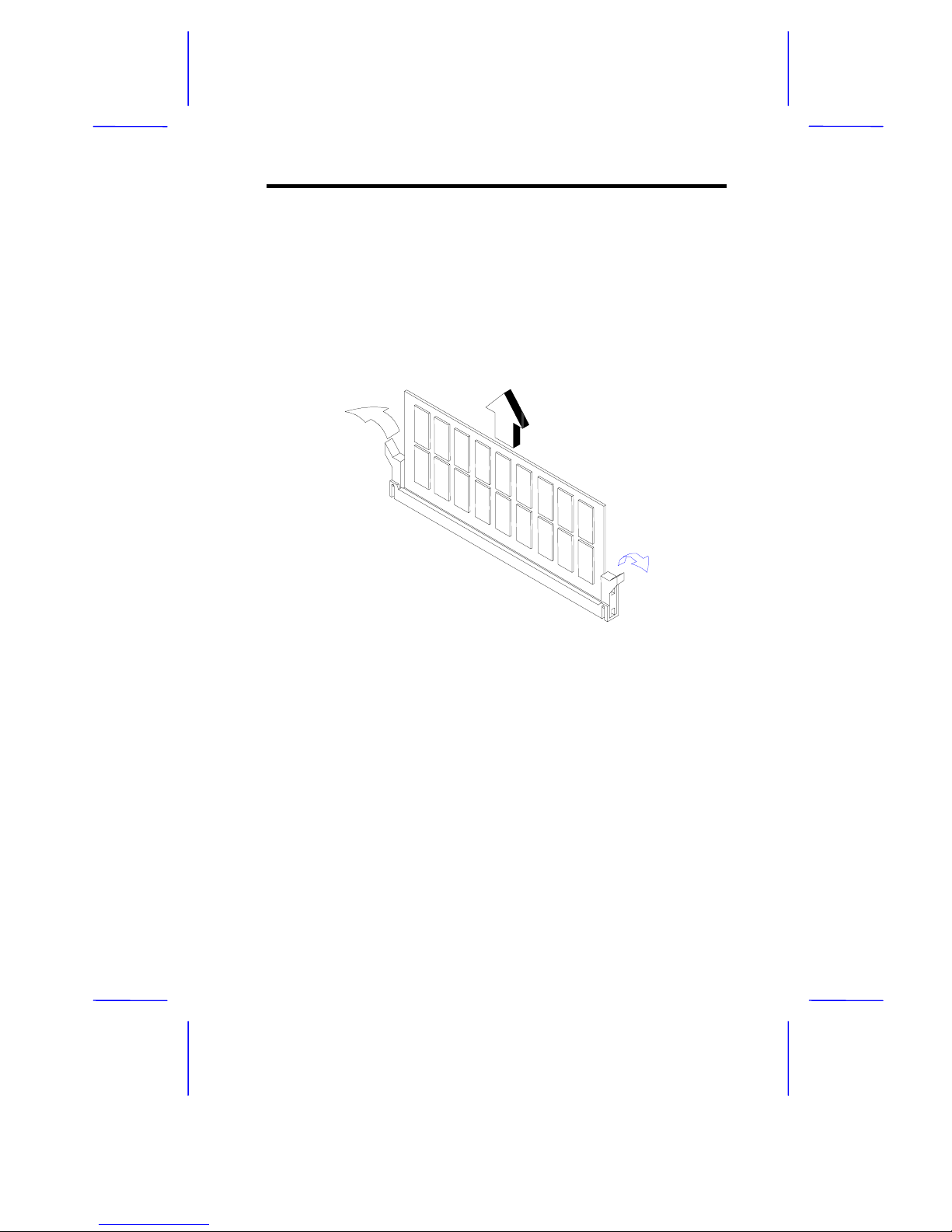

Figure 1-4 Removing a DIMM
1.7.3 Reconfiguring the System
The system automatically detects the amount of memory installed.
Run Setup to view the new value for total system memory and make a
note of it.
1
2

1-14 User’s Guide
1.8 Second-level Cache
The board may come with either 256-KB or 512-KB pipelined-burst
second-level cache. Refer to the following table for the possible cache
configurations.
Table 1-7 Second-level Cache Configurations
Cache
Size Data RAM (12 ns) Location Tag RAM (12 ns) Cacheable Memory
256 KB 32K x 32 x 2 pcs. U24, U25 32K x 8 x 1 pc 64 MB
512 KB 64K x 32 x 2 pcs. U24, U25 32K x 8 x 1 pc 64 MB
1.9 Upgrading the CPU
1.9.1 Removing the CPU
In case you want to replace or upgrade your CPU, you need to remove
the previously installed CPU first.
Follow these steps to remove the CPU:
1. Locate the CPU socket with CPU mounted on the system board.
2. Detach the fan cable connector.
3. Pull up the socket lever. The CPU pins will be automatically
released from the socket holes.
4. Detach the CPU from the socket.

System Board 1-15
1.9.2 Installing the Upgrade CPU
Observe the ESD precautions when installing
components. See section 1.5.
Before you proceed, make sure that there is no CPU installed in the
CPU socket.
Follow these steps to install the upgrade CPU:
1. Pull up the socket lever.
2. Insert the CPU, making sure that pin 1 (indicated by a notched
corner) of the CPU connects to hole 1 of the socket.
3. Pull down the socket lever to lock the CPU into the socket.
Figure 1-5 Installing a CPU
4. Attach the heatsink and fan to the CPU.
notched corner
hole 1

1-16 User’s Guide

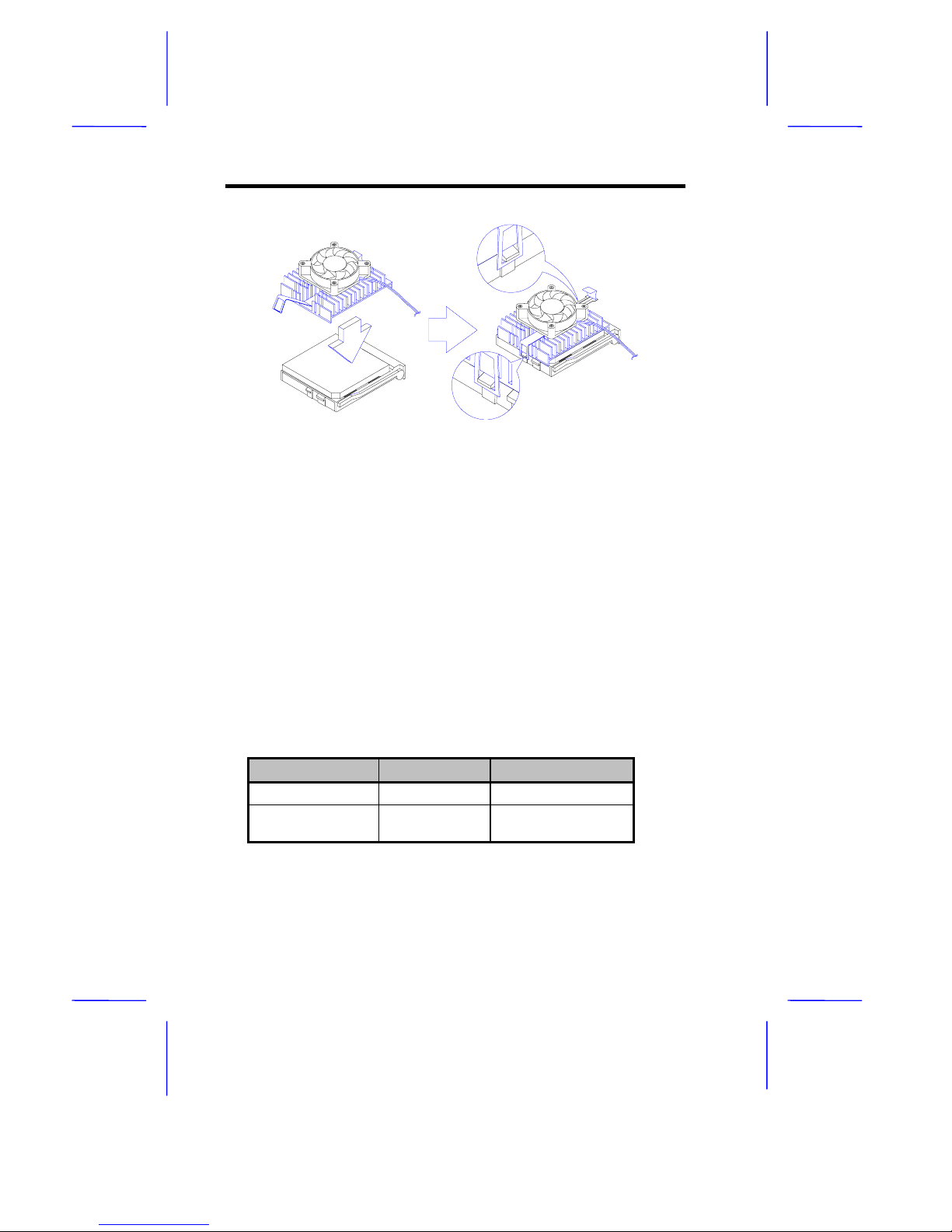

Figure 1-6 Attaching the Heatsink and Fan to the CPU
5. Plug the fan cable to the fan connector on the system board.
1.10 IDE Hard Disk Support
The system board supports four IDE hard disks, or any other IDE
devices, through the two onboard PCI IDE interfaces. See Figure 1-2
for the location of the IDE interfaces.
Follow the instructions in the housing installation manual on how to
install a hard disk in the system. Connect the cables according to the
IDE hard disk configuration in Table 1-8.
Table 1-8 IDE Hard Disk Configuration
IDE Connector Master Slave
Channel 1 Hard disk 0 Hard disk 1
Channel 2 Hard disk 2 Hard disk 3 /
IDE CD-ROM drive

System Board 1-17
1.11 Video Memory
1.11.1 Video Memory Configurations
The system board may come with 1, 2, or 4-MB SGRAM video
memory. Larger video memory allows you to display higher
resolutions and more colors.
The following table lists the possible video memory configurations.
Table 1-9 Video Memory Configurations
Memory Size SGRAM Location
4 MB 256K x 32 x 4 pcs. U31, U32, U33, U34
2 MB 256K x 32 x 2 pcs. U33, U34
1 MB 256K x 32 x 1 pc. U34
1.11.2 Supported Video Resolutions
The following table lists the video resolutions supported by the
onboard VGA:
Table 1-10 Supported Video Resolutions
Resolution bpp V-Freg.
(Hz) H-Freq. (KHz) Pixel Clock (MHz)
640 x 480 8/16 60 31.4 25.2
640 x 480 8/16 72 37.5 31.2
640 x 480 8/16 75 37.5 31.5
640 x 480 8/16 90 47.9 39.9
640 x 480 8/16 100 52.9 44.9
800 x 600 8/16 48 int. 33.8 36.0
800 x 600 8/16 56 35.1 36.0
800 x 600 8/16 60 37.8 40.0

1-18 User’s Guide
Table 1-10 Supported Video Resolutions (continued)
Resolution bpp V-Freg.
(Hz) H-Freq. (KHz) Pixel Clock (MHz)
800 x 600 8/16 70 44.5 44.9
800 x 600 8/16 72 48.0 50.0
800 x 600 8/16 75 46.8 49.5
800 x 600 8 90 57.0 56.6
800 x 600 8 100 62.5 67.5
1024 x 768 8/16 43
int.
35.5 44.9
1024 x 768 8/16 60 48.3 65.0
1024 x 768 8/16 70 56.4 75.0
1024 x 768 8/16 72 58.2 75.0
1024 x 768 8/16 75 60.0 78.8
1024 x 768 8/16 90 76.2 100
1024 x 768 8/16 100 79.0 110
1152 x 864 8 43
int.
45.8 65.0
1152 x 864 8 60 54.9 80.0
1152 x 864 8 70 66.1 100
1152 x 864 8 75 75.1 110
1280 x 1024 8 43
int.
50.0 80.0
1280 x 1024 8 47
int.
50.0 80.0
1280 x 1024 8 60 63.9 110
1280 x 1024 8 70 74.6 126
1280 x 1024 8 72 78.8 130
1280 x 1024 8 75 79.9 135

System Board 1-19
1.12 Expansion Cards
1.12.1 Installing a Riser Card
A riser card is a card that contains the PCI and ISA slots. This
enables you to add functions to your system further enhance its
performance.
To install a riser card:
1. Locate the riser card slot on the system board.
2. Gently insert a riser card into the slot. Make sure that the card is
properly seated into the slot.

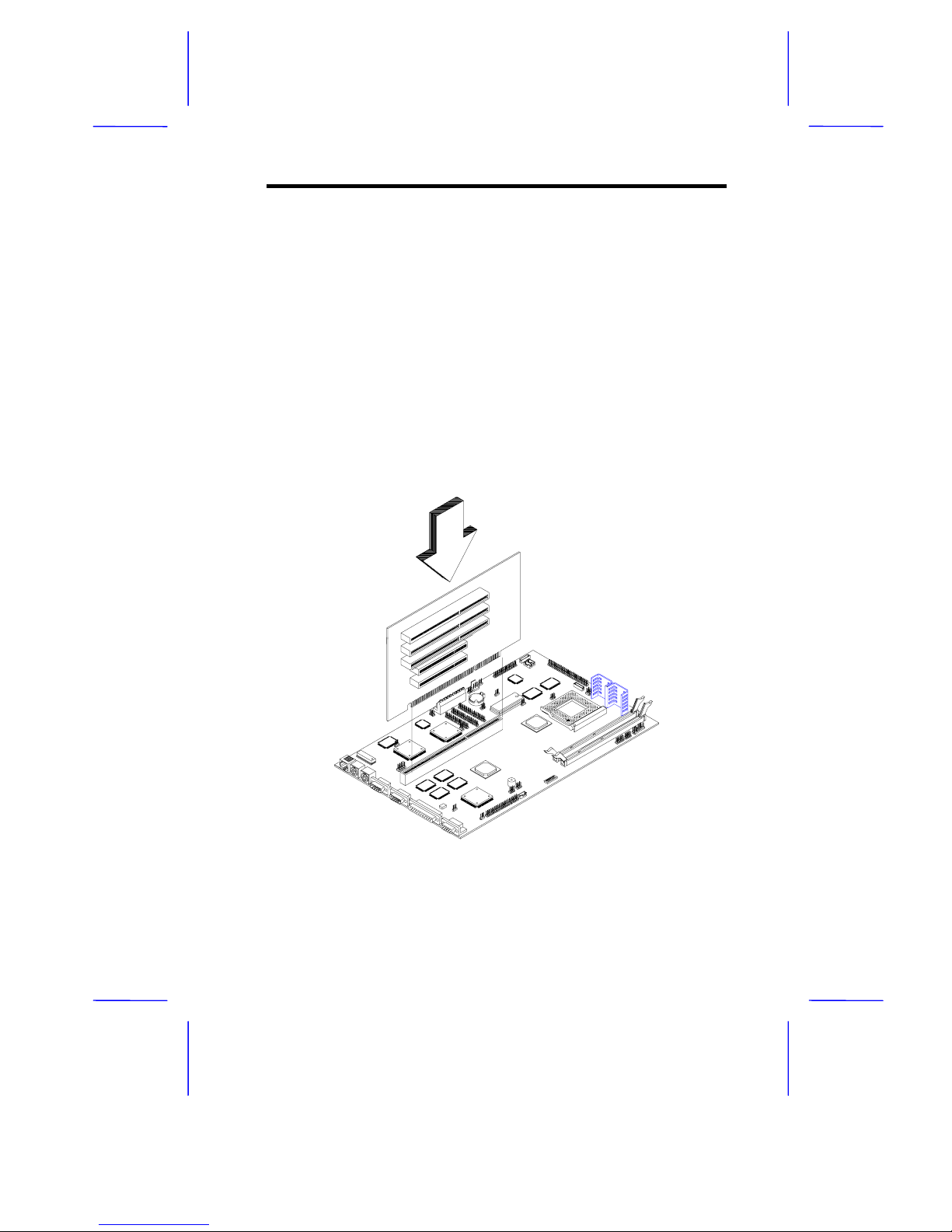

Figure 1-7 Installing a Riser Card

1-20 User’s Guide
1.12.2 Installing a PCI Card
To install a PCI card:
1. Locate the PCI slot(s) on the slot board.
2. Remove the bracket on the housing opposite to the empty PCI
slot.
3. Insert a PCI card into the slot. Make sure that the card is properly
seated.
4. Secure the card to the housing with a screw.
When you turn on the system, BIOS automatically detects and assigns
resources to the PCI devices.

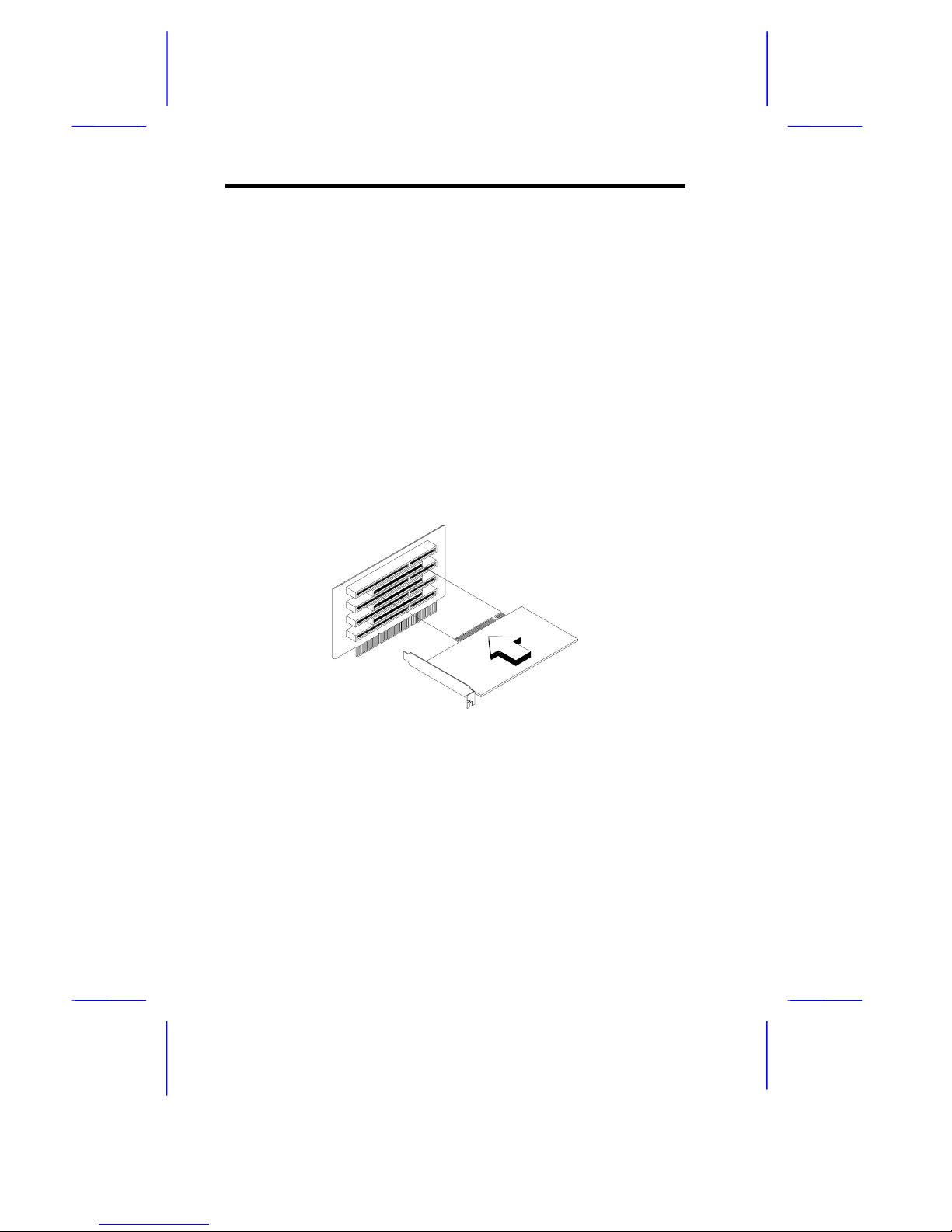

Figure 1-8 Installing a PCI Card
