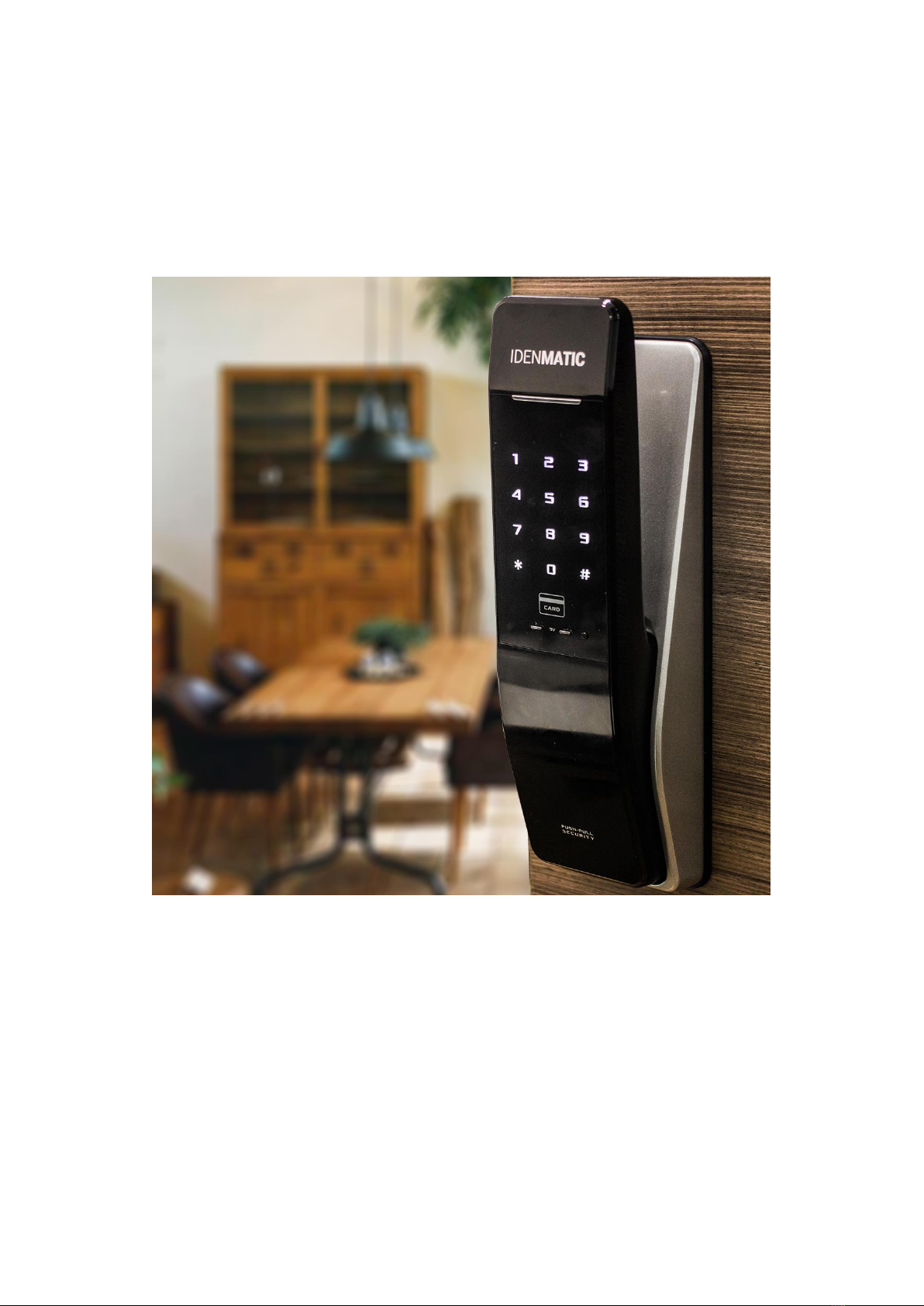

ACME Idenmatic IDH-811 Use and care manual

1
Master Guide to Idenmatic
IDH-811

2
Contents
General Information ......................................................................................................4
Precautions ....................................................................................................................5
Product Specification ....................................................................................................6
Settings ..........................................................................................................................7
Password Registration................................................................................................7
RFID card Registration ..............................................................................................8
RFID card Deletion....................................................................................................9
Fingerprint Registration ...........................................................................................10
Fingerprint Deletion.................................................................................................11
Pattern Registration..................................................................................................12
Sound Pitch setting...................................................................................................13
Manual lock mode....................................................................................................13
Automatic lock mode time setting ...........................................................................14
Automatic lock mode...............................................................................................14

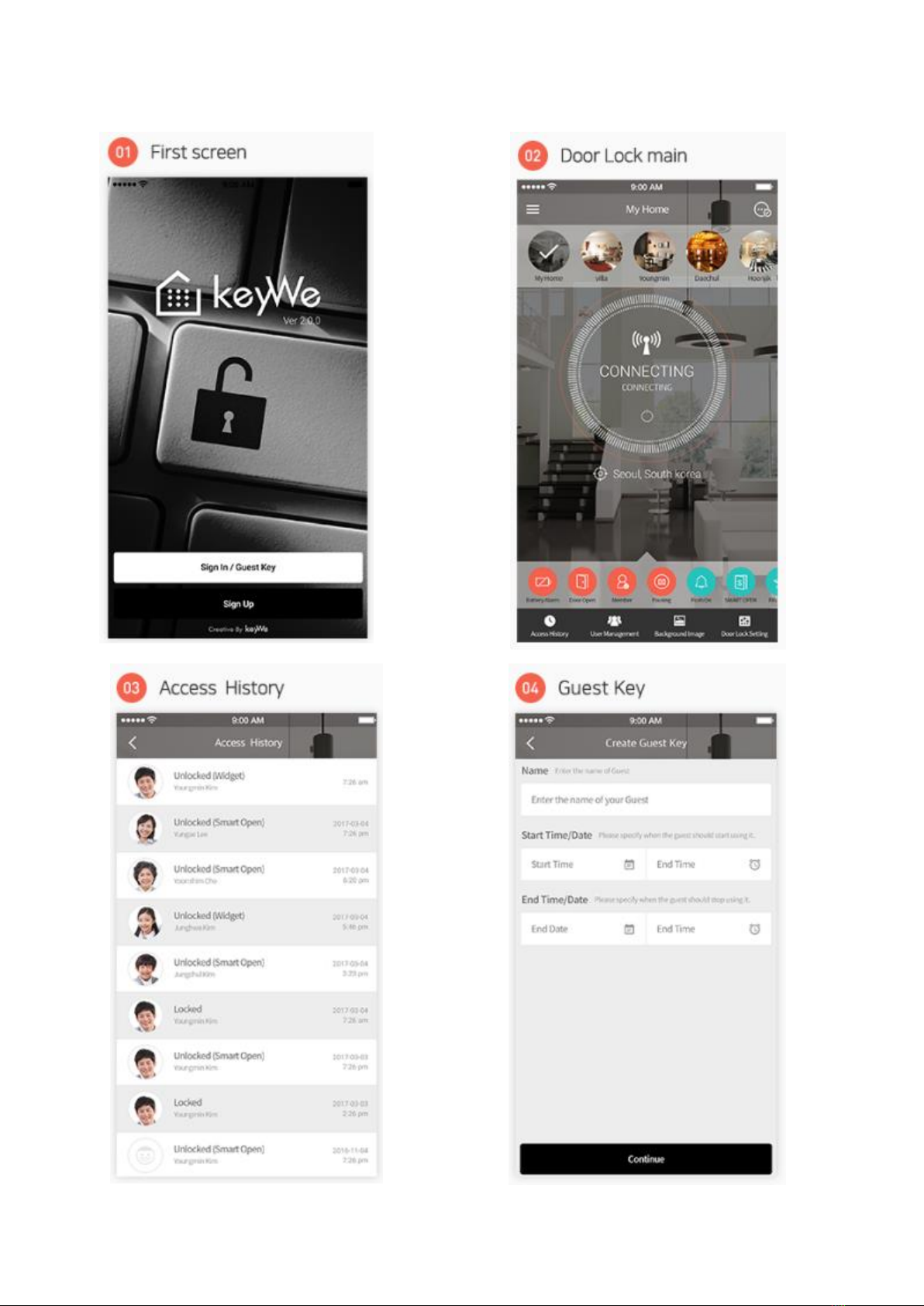

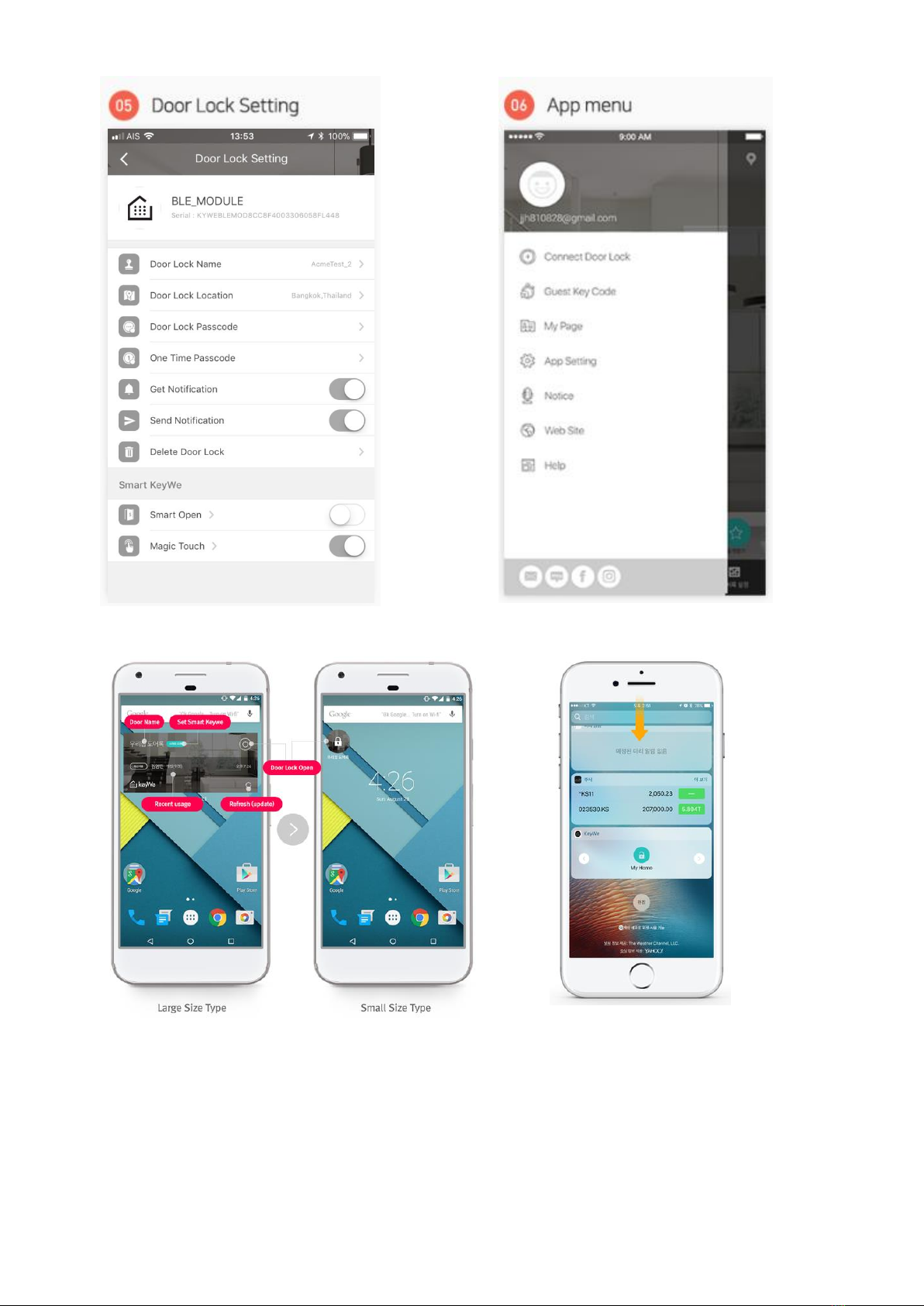

Mobile Application Setup ........................................................................................15
Remote Controller Registration ...............................................................................18
Remote Controller Deletion.....................................................................................19
Battery Replacement Method...................................................................................20
Operations....................................................................................................................21
Authentication Methods...........................................................................................21
Password................................................................................................................21
RFID Key Card.....................................................................................................21
Fingerprint.............................................................................................................21
Pattern Unlock.......................................................................................................22
KeyWe Mobile Application..................................................................................22
Opening with fake password....................................................................................37
Opening on silent mode............................................................................................38
Manual locking methods..........................................................................................38
Outward double –locking / Privacy mode function................................................39

3
Inward double –locking / Child lock function........................................................39
Other Special Functions/Features................................................................................40
Security Alarm function...........................................................................................40
Fire Safety function..................................................................................................40
Battery Low Indicator ..............................................................................................41
Keypad Illumination.................................................................................................41

4

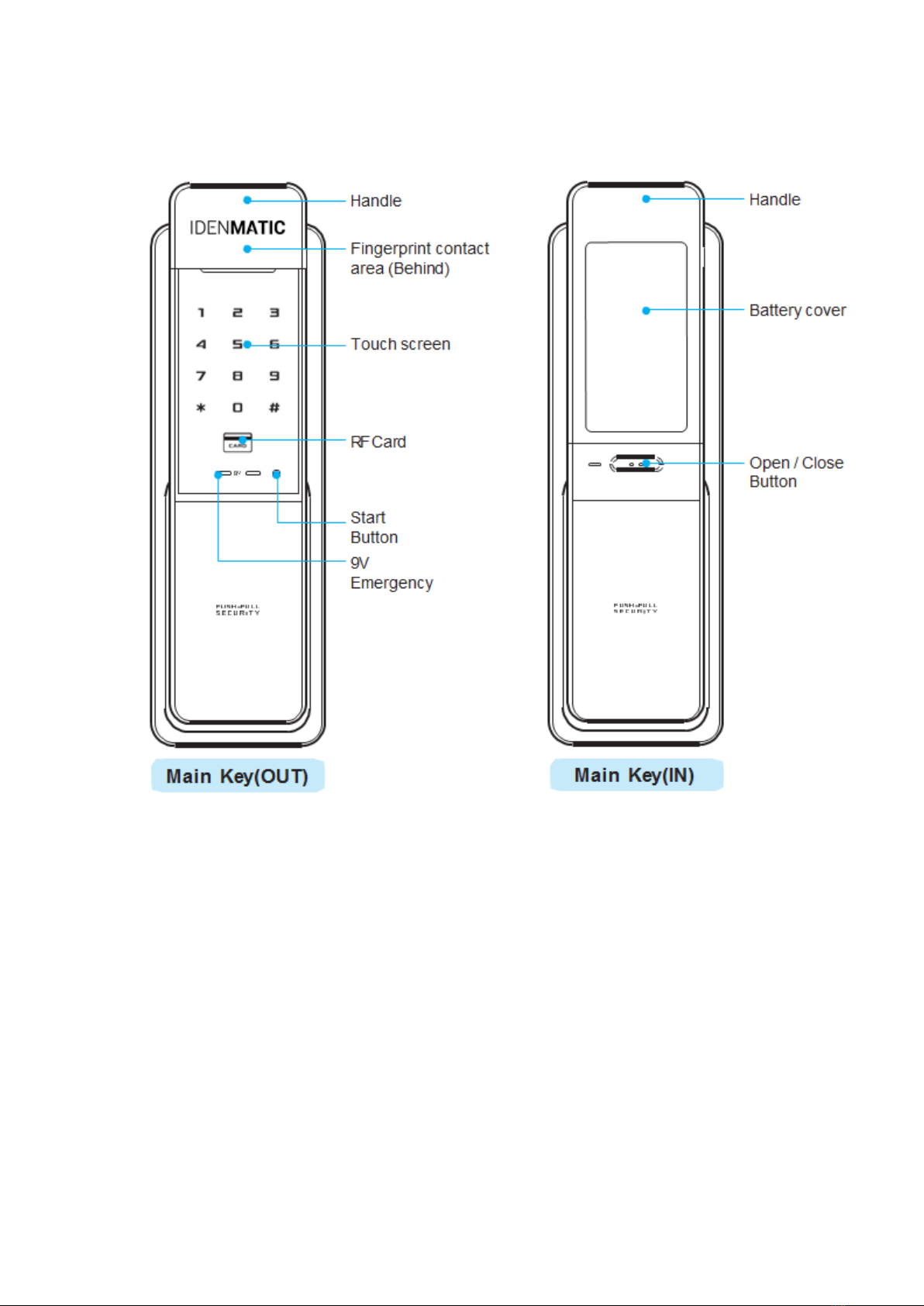

General Information

5

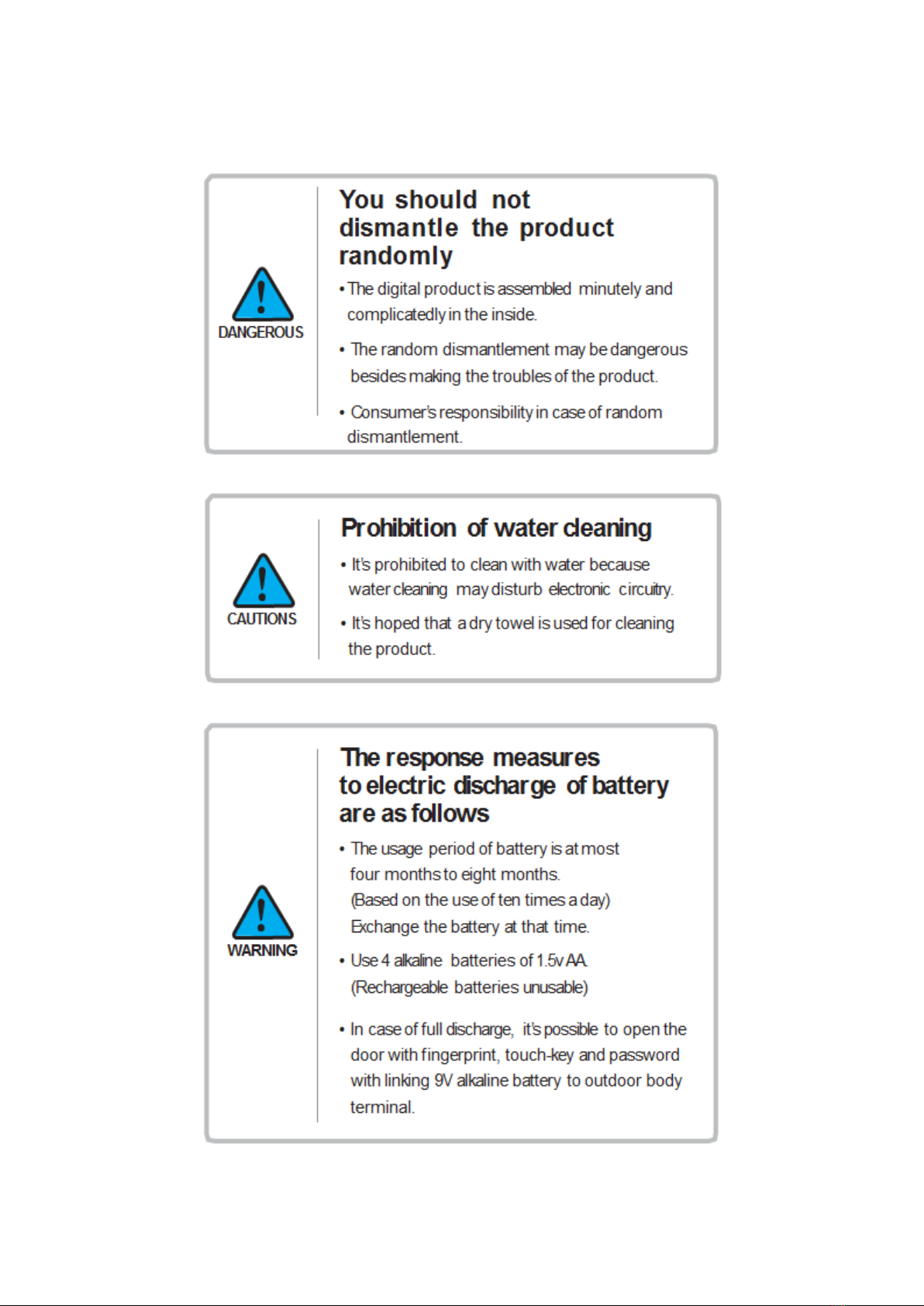

Precautions

6
Product Specification
Item
Specification
Rated Voltage
4EA –1.5V (LR6) AA alkaline batteries (6V)
Emergency
power source
1EA –9V battery (6LF22)
Operation
Method
Electronic control (entering password, RF card, finger print,
pattern or mobile app)
Weight
1.95Kg (including the outdoor and indoor units)
Dimensions
Indoor Unit
85mm(W) × 288mm(H) × 70mm(D)
Outdoor Unit
89mm(W) × 286mm(H) × 65mm(D)
Item
Usable
Frequency
Type of radio
wave
Type of
radio
wave
Type
of
radio
wave
Power
supply
RFID
13.56MHz
A1D
ASK
Single
DC 6V
(1.5VAA
× 4EA)
For Safety
System
447.275MHz
F1D
FSK
Single
Self-Regulatory
safety
confirmation
certificate No.
B223H5004-17001
Type and symbol
F-T-NK-M
Authorized
manufacture’s
name
ACME International (Thailand) Limited
Model
IDH-811
Country of
manufacture
Korea
Vendor
ACME International (Thailand) Limited

7
Settings

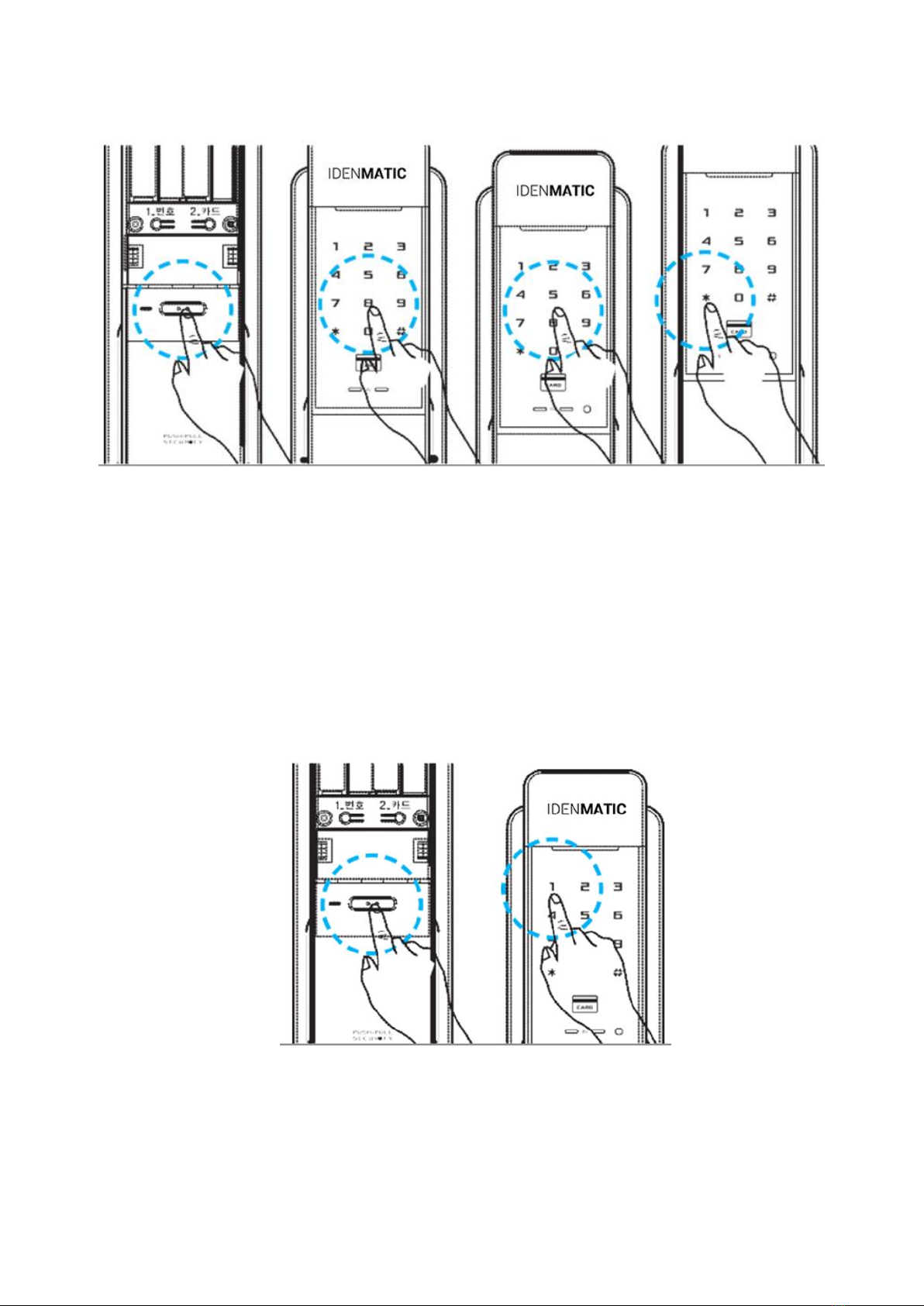

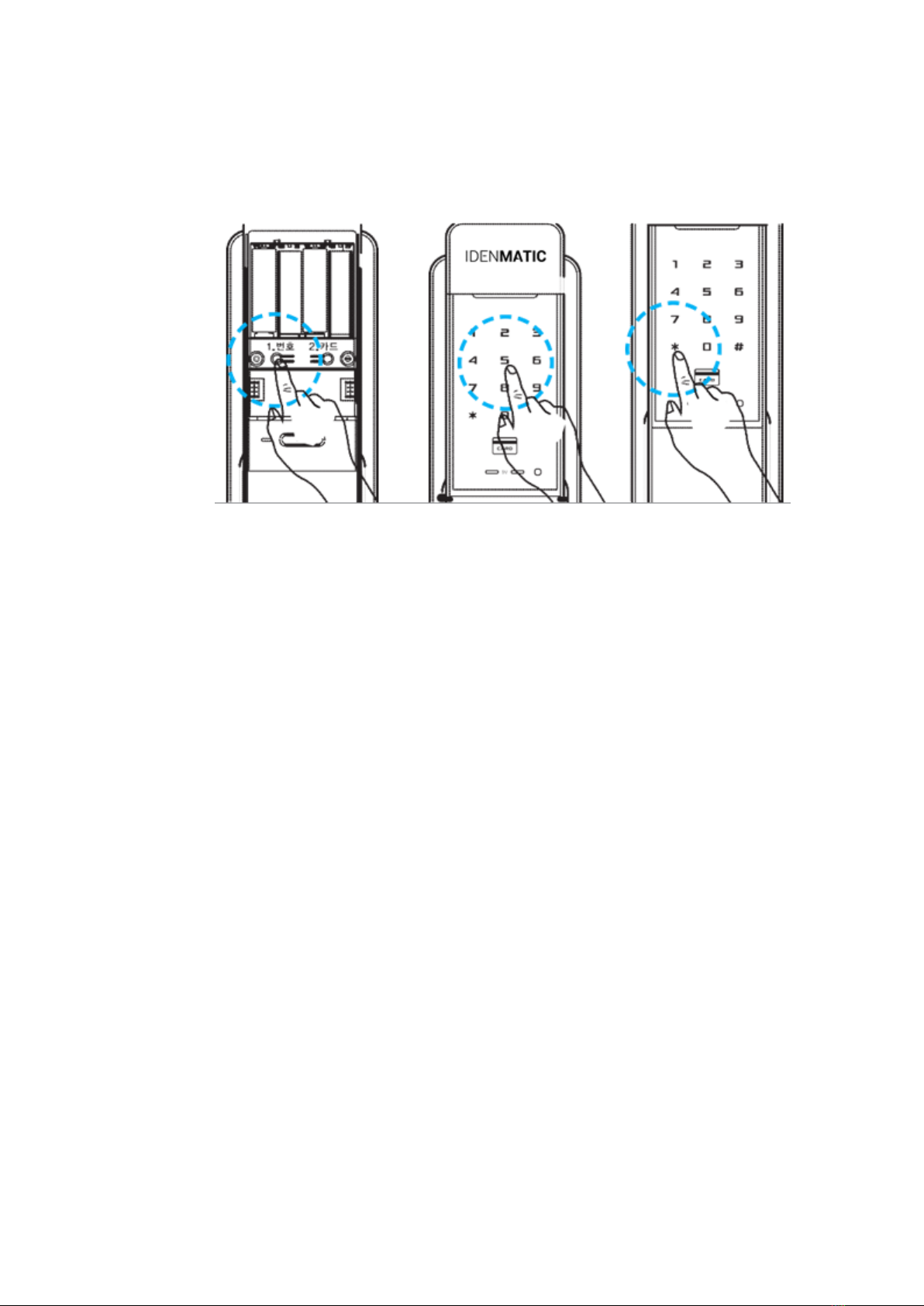

Password Registration
Open the battery cover on the indoor unit of the door lock (the indoor unit)
with the door open, and press the registration button ① on the left bottom side.
Enter the numbers you want on the number panel of the front unit. (3-12 digit
numbers possible)
When you press “*” a notification sound (sounding “ppiririk”) will be heard
and the entry will be completed.
After password registration make sure it works.
1. When you register passwords for the first time or change them, the door may
be locked by mistake. Make sure to open the front door when registering and
carry an emergency key card with you.
2. For the passwords, specify the 3-12 digit number except for “*” and “#”
3. If you enter new passwords, the existing ones will be deleted.
4. When all products are delivered, their passwords are set into 1, 2, 3, 4, 5, 6, 7,
8, 9, 0.
5. When you install a product for first time, make sure the user enters the
passwords himself/herself.

8

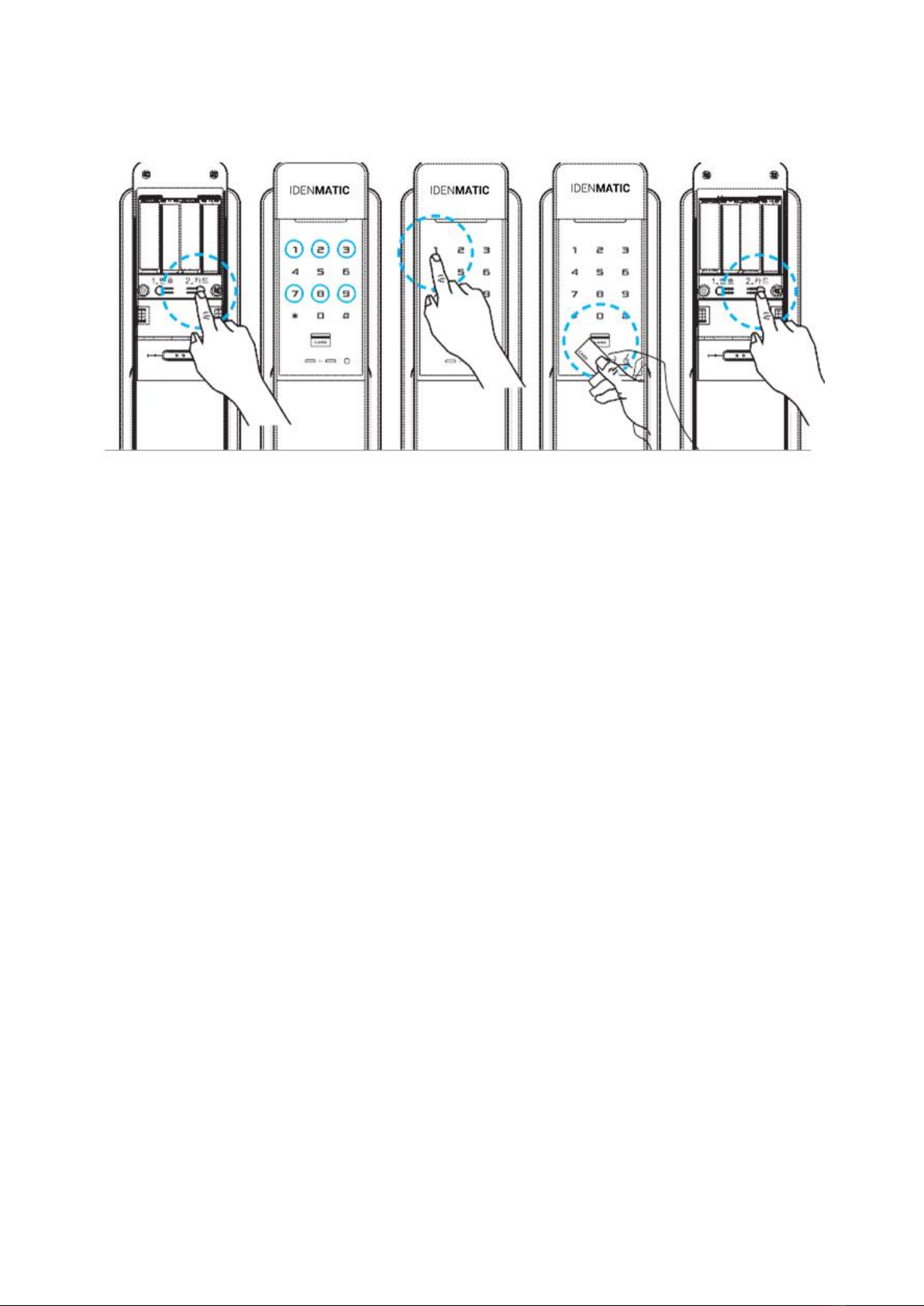

RFID card Registration
Open the battery cover on the indoor unit of the door lock (the indoor unit)
with the door open, press the registration button ②on the right bottom side.
On the screen, the numbers 1, 2, 3, 7, 8, 9 will lit. (If transmission module isn’t
connected, only 1, 3, 7, 8, 9 are lit)
Press “1” - the numbers will blink on the screen
Hold the card near the reader (continuous registration possible), (Max. 50
cards).
Press the registration button ②on the indoor unit (the card registration
finished). After card registration, make sure it works.
Only 13.56MHz frequency RFID cards can be used.

9

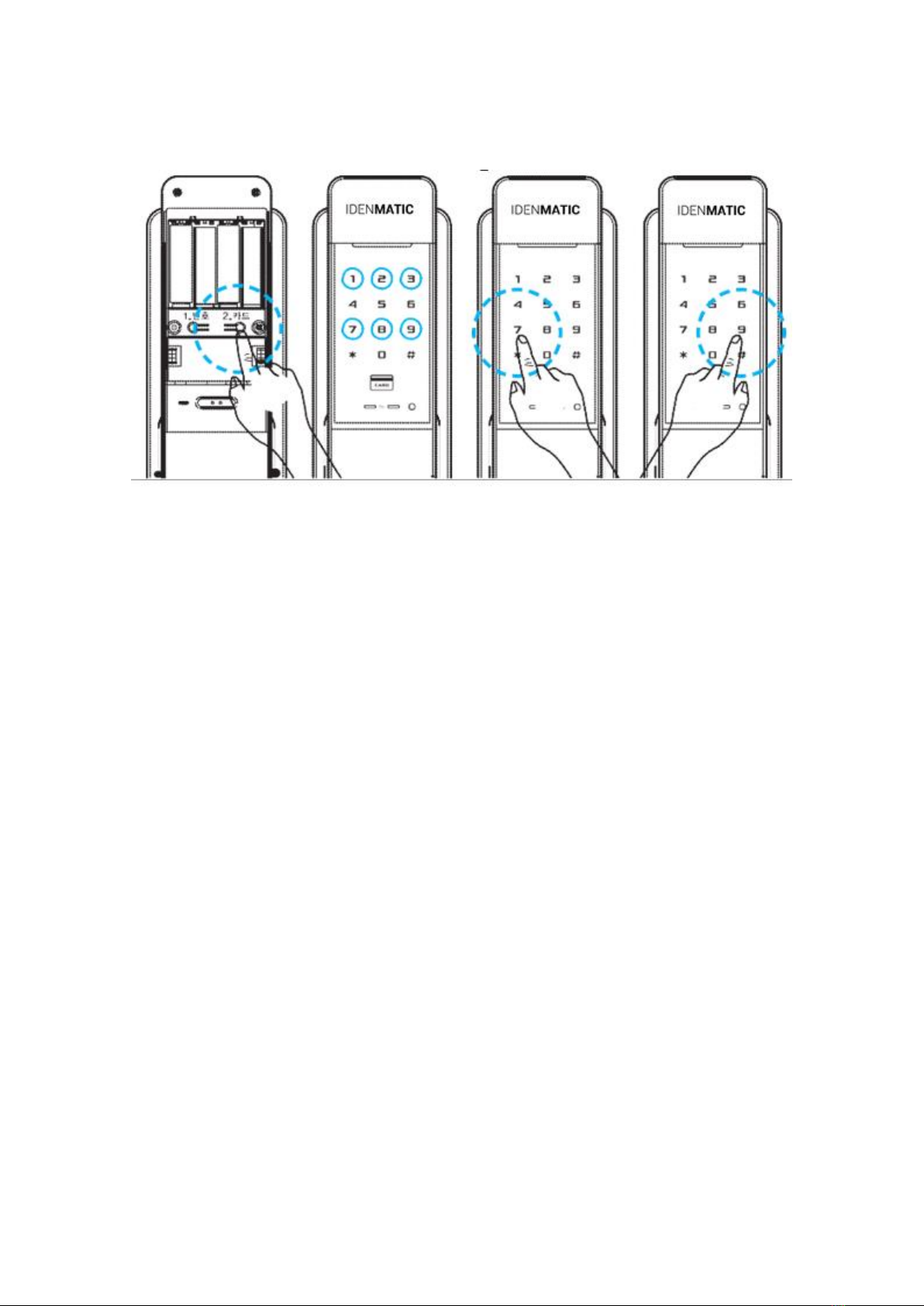

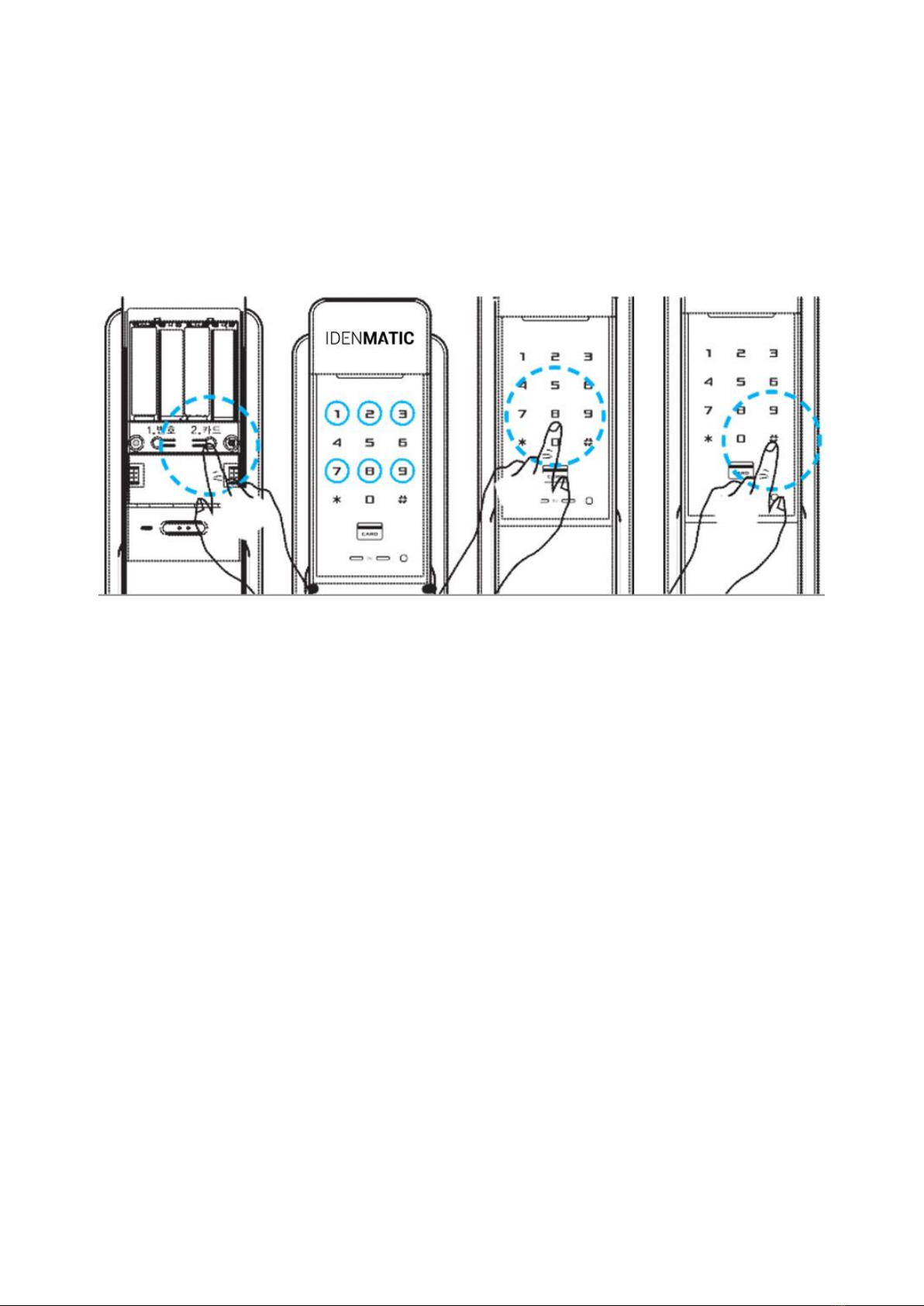

RFID card Deletion
Open the battery cover on the indoor unit of the door lock (the indoor part)
with the door open, and press the registration button ②on the right bottom
side.
On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit. (If transmission module isn’t
connected, only 1, 3, 7, 8, 9 are lit)
Press “7” — on the screen, “#” is lit (the card deletion ready)
When you press and hold “#” for 3 seconds, all the cards will be deleted, with a
notification sound.

10
Fingerprint Registration
Open the battery cover on the indoor unit of the door lock (the indoor part)
with the door open, and press the registration button ②on the right bottom
side.
On the screen, the numbers 1, 2, 3, 7, 8, 9 are lit. (If transmission module isn’t
connected, only 1, 3, 7, 8, 9 are lit).
Press “3” - the fingerprint registration ready (number is lit and then the
numbers 1, 2, 3, 4 are lit).
As soon as the numbers blink, touch your fingerprint to the fingerprint reader
(a total of 4 times). (Continuous registration possible), (Max. 100 fingerprints).
Press the registration number ②on the indoor unit (the fingerprint registration
finished).
