APM5084
8.4” industrial panel mount LCD monitor
User Manual
APM5084: 8.4”industrialpanelmountLCDmonitor

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
Table of Contents
CHAPTER 1 Introduction
1-1 ImportantSafeguards......................................................................................................................1
1-2 BeforeInstallation...........................................................................................................................2
1-3 Unpacking.......................................................................................................................................2
1-4 OptionalAccessories.....................................................................................................................2
CHAPTER 2 Front Aluminum LCD Panel
2-1 PackageContents..........................................................................................................................3
2-2 StructureDiagram...........................................................................................................................4
2-3 MountingMethod.............................................................................................................................5
CHAPTER 3 Connection
3-1 On-ScreenDisplay Operation........................................................................................................7
3-2 On-ScreenMenu............................................................................................................................9
CHAPTER 4 Operation
4-1 LCDSpecifications........................................................................................................................11
CHAPTER 5 AV/BNC Options
5-1 AV/BNCOptions............................................................................................................................12
CHAPTER 6 Touchscreen Options
6-1 TouchscreenOptions......................................................................................................................13
6-2 TouchscreenQuickUser Guidelines..............................................................................................15

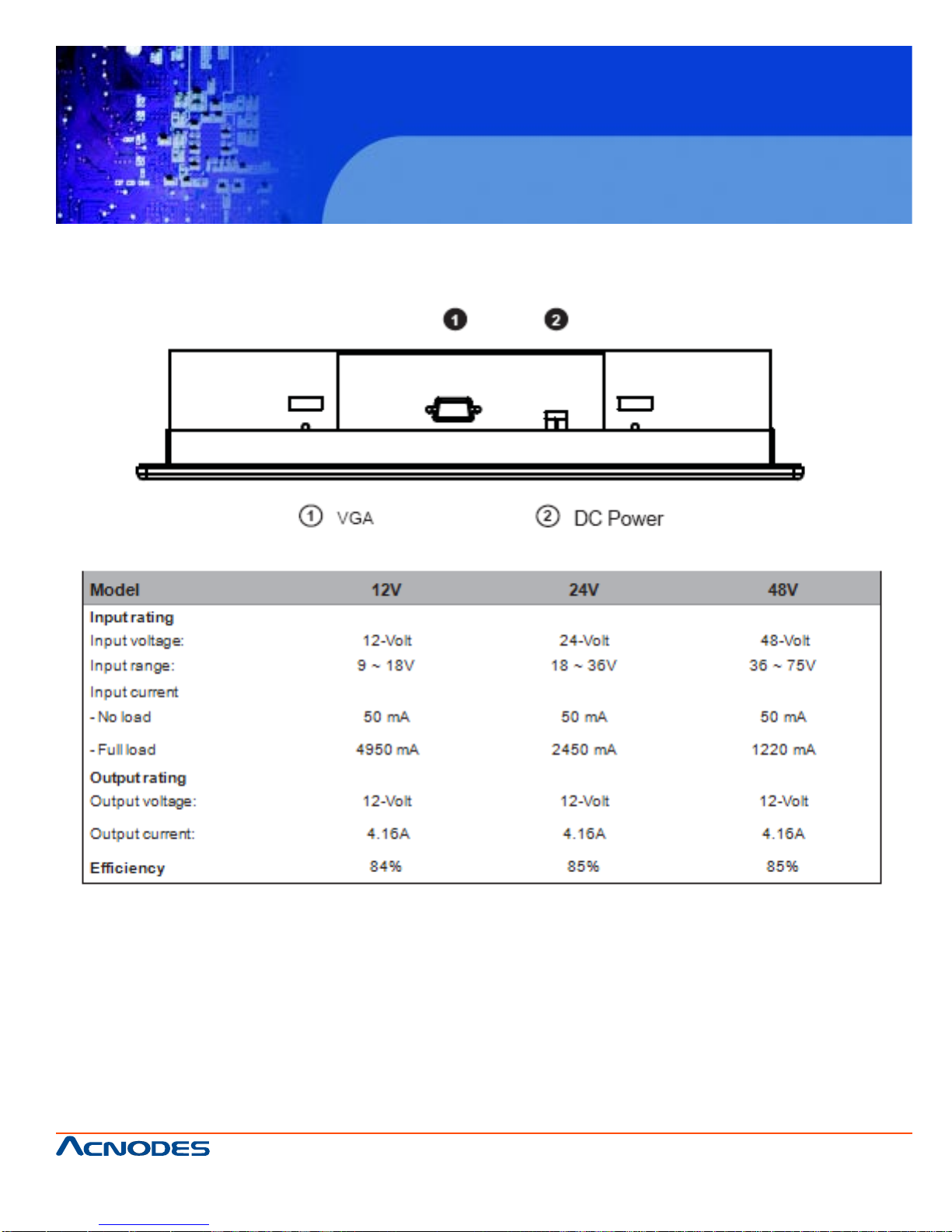

CHAPTER 7 DC Power Options.............................................................................18

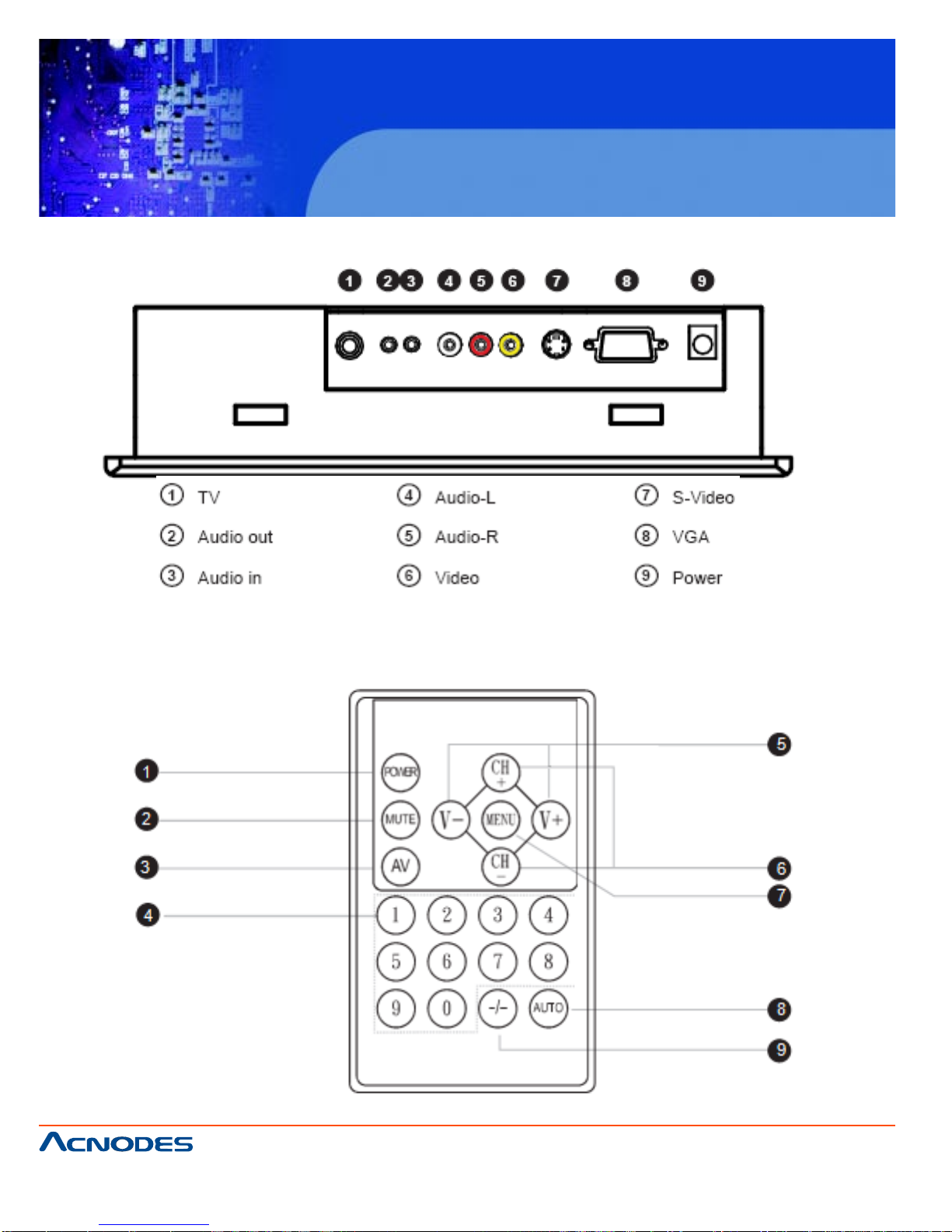

CHAPTER 8 TV Turner Options
8-1 HowtoUseRemotecontroller.......................................................................................................19
CHAPTER 9 Audio Input Options.........................................................................21
CHAPTER 10 Troubleshooting...............................................................................22
CHAPTER 11 Cleaning the LCD Display...............................................................24

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
CHAPTER 1 INTRODUCTION
1-1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover:
-Any product, on which the serial number has been defaced, modified or removed.
- Damage, deterioration or malfunction resulting from:
- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi-
cation, or failure to follow instructions supplied with the product.
- Repair or attempted repair by anyone not authorized by us.
- Any damage of the product due to shipment.
- Removal or installation of the product.
- Causes external to the product, such as electric power fluctuation or failure.
- Use of supplies or parts not meeting our specifications.
- Normal wear and tear.
- Any other causes which does not relate to a product defect.
- Removal, installation, and set-up service charges.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
1-2 Before Installation
- It is very important to locate the LCD Display in a suitable environment.
- The surface for placing and fixing the LCD Display should be stable.
- Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
- Convenience for connecting the LCD Display to the related facilities should be well considers too.
1-3 Unpacking
The LCD Display comes with the standard parts shown on the package contents. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the supplier
immediately.
1-4 Optional Accessories
1. Power Cord
1.1 IEC power cord
1.2 NEMA 5-15 power cord (US)
1.3 BS 1363 power cord (UK)
1.4 CEE 7/4 power cord (German)
1.5AS 3112 power cord (Australia)

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
CHAPTER 2 FRONTALUMINUM LCD PANEL

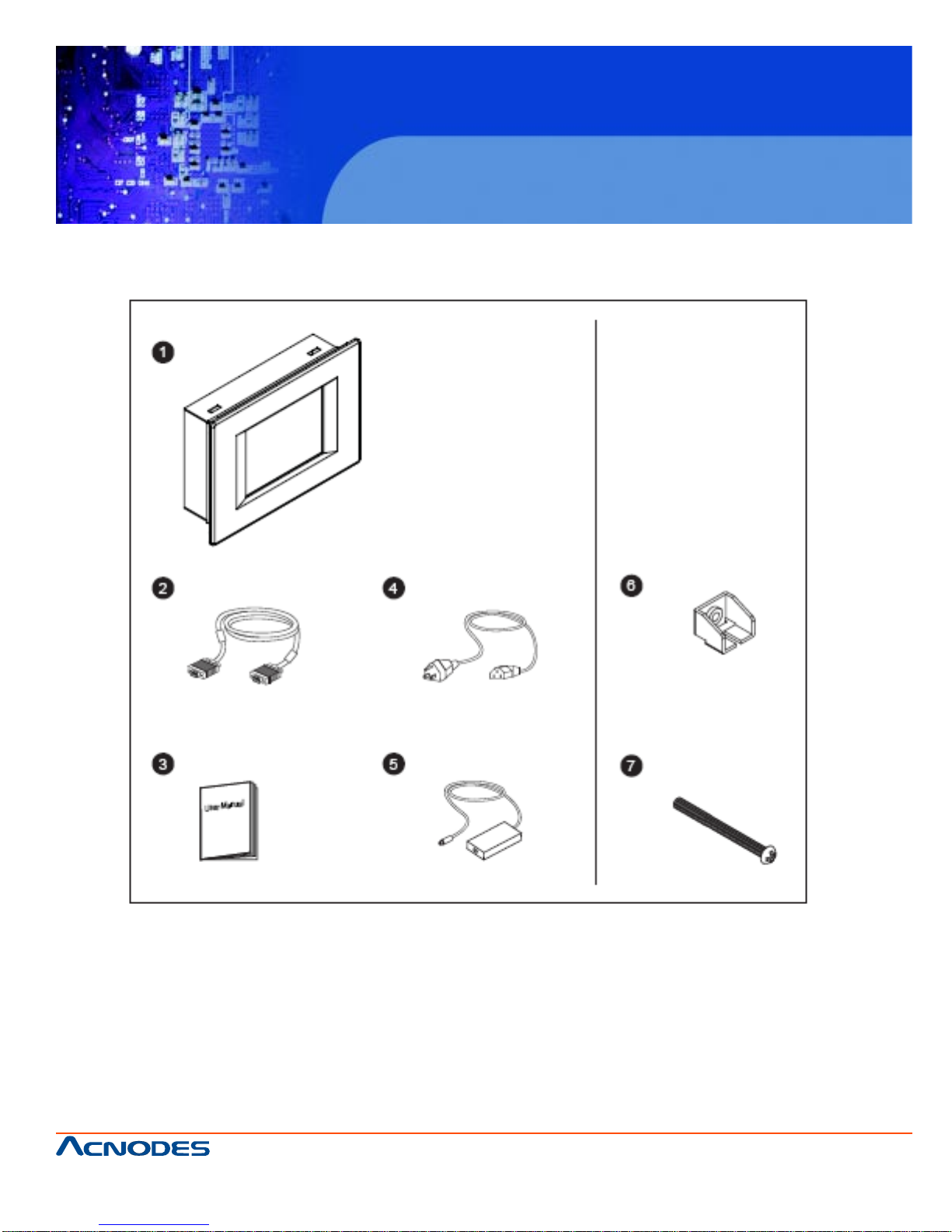

2-1 Package Contents
1. LCD Display x 1 pc
2. 6” VGA Cable (male to male) x 1 pc
3. User Manual x 1 pc
4. Power Cord x 1 pc
** Remarks: item 6-7 are for installation
5.Auto switch PowerAdapter x 1 pc
6. Mounting bracket x 4 pcs
7. M4*50mm screw x 4 pcs

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.

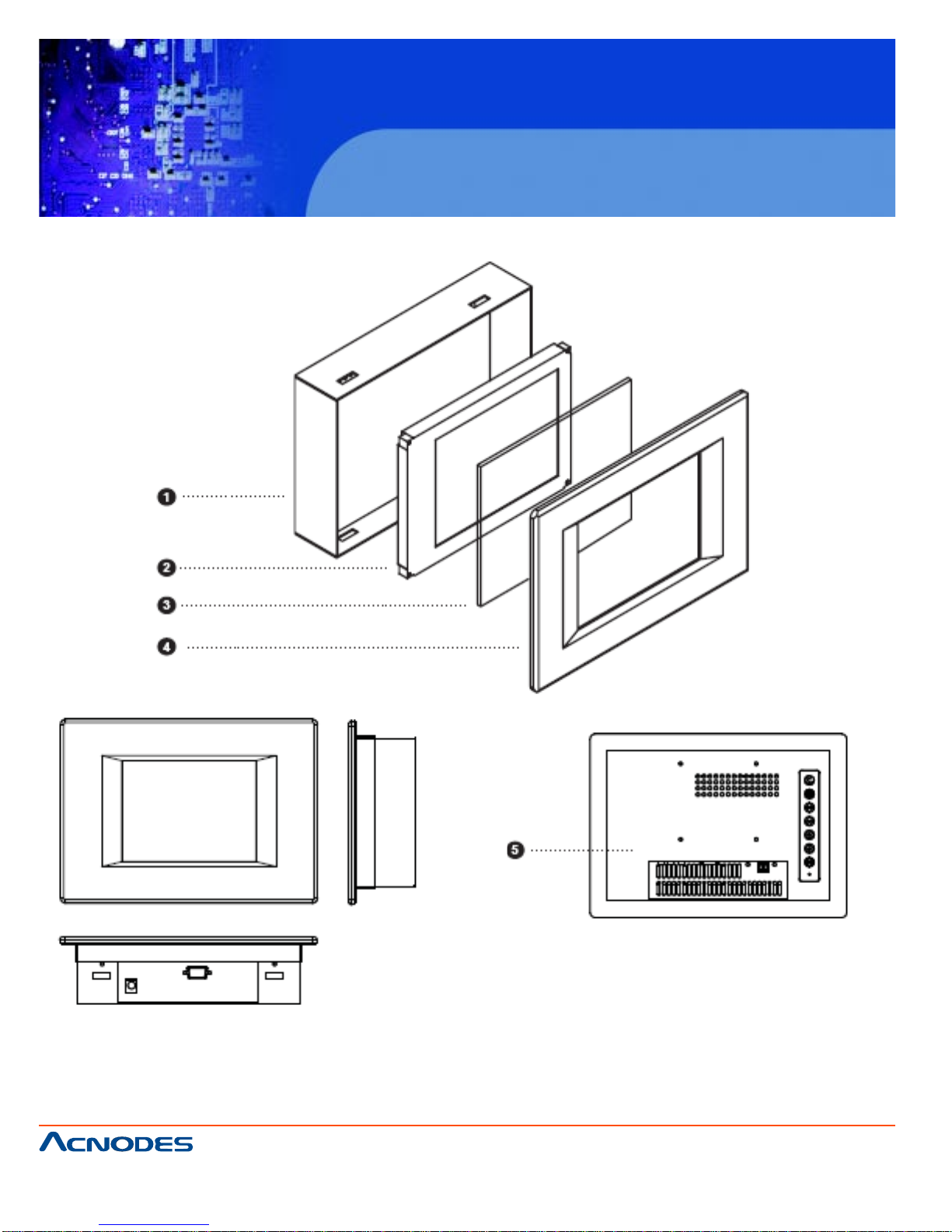

2-2 Structure Diagram
Front View Rear View
1. Rear Case
2. ClassATFT LCD Panel
3. 4mm Protective Glass
4. 6mmAluminum front Bezel
5. LCD Membrane

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
2-3 Mounting Method

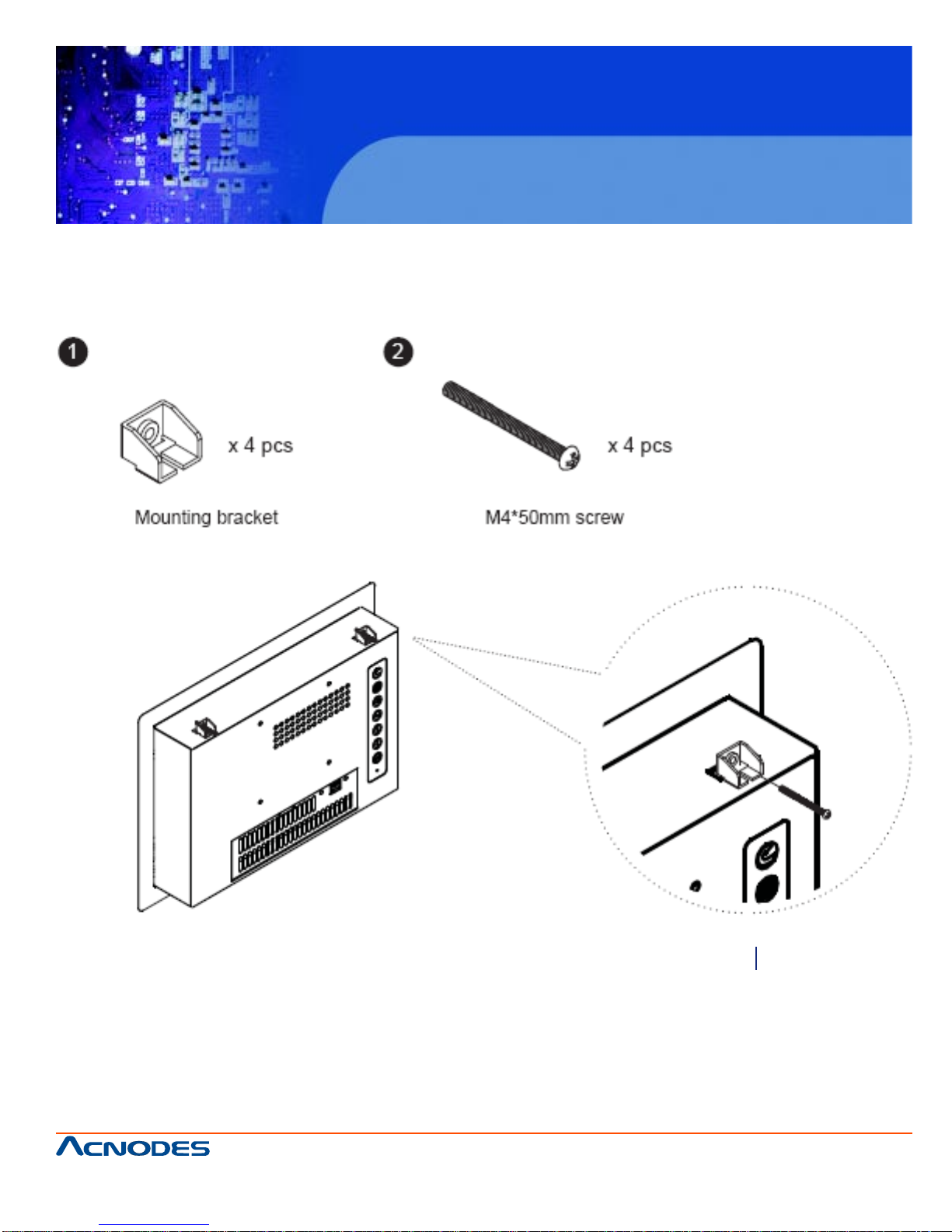

Bracket Mounting

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.

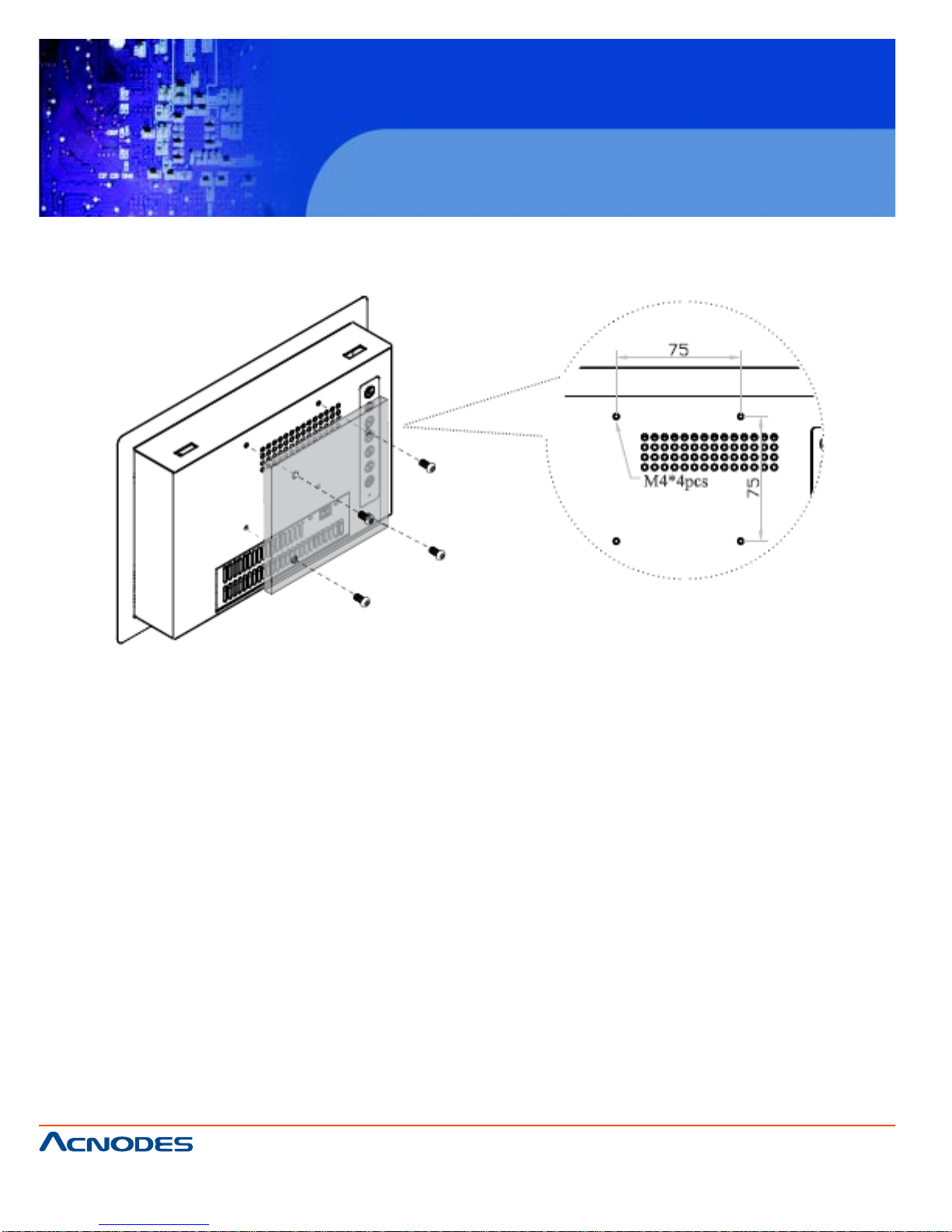

75mm VESA Standard:
** Remarks:
- Hardware and M4*4 pcs for VESA mounting is not provided
- To avoid damage of internal components, when mounting the VESAbracket, do not use screws that
exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause
damage to your display.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor

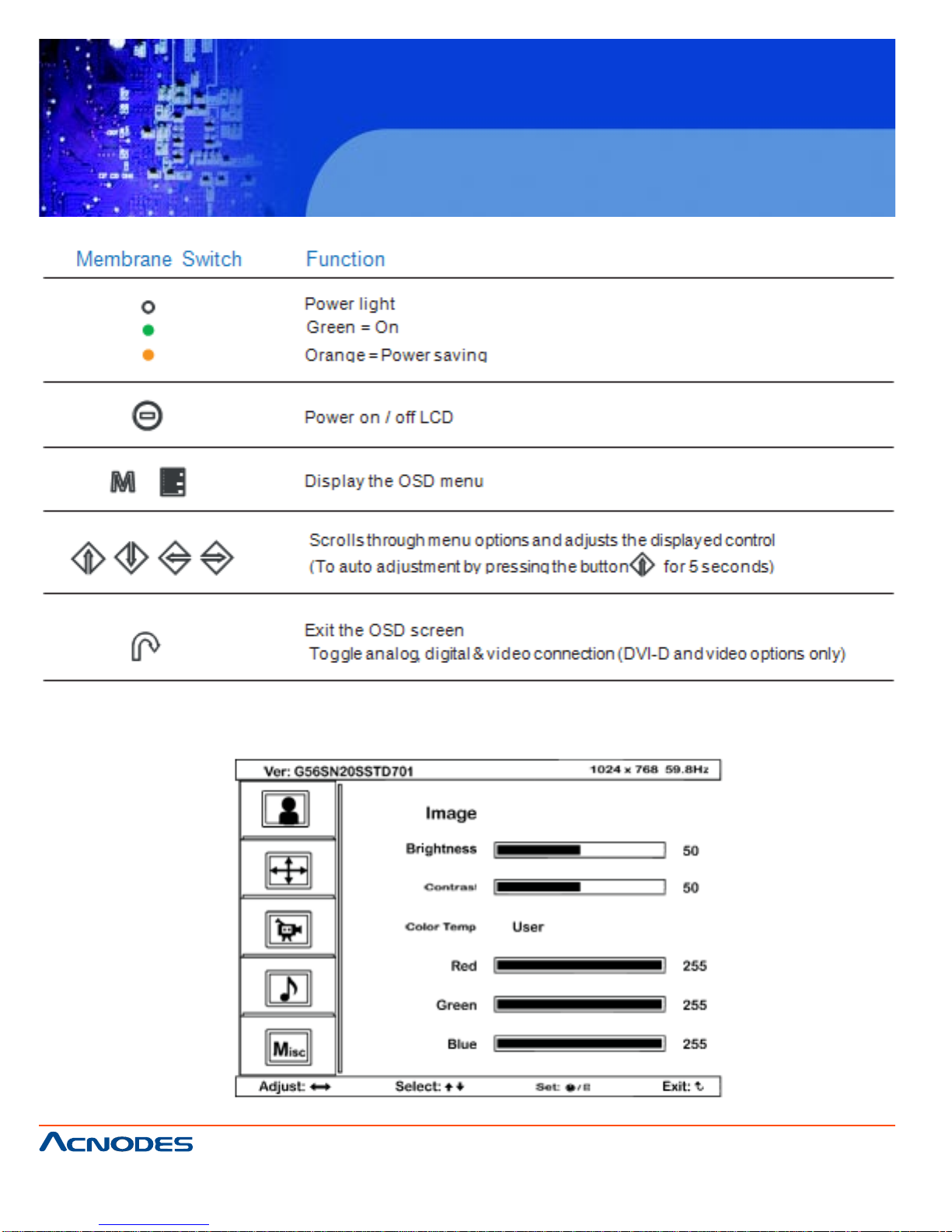

3-1 On-Screen Display Operation

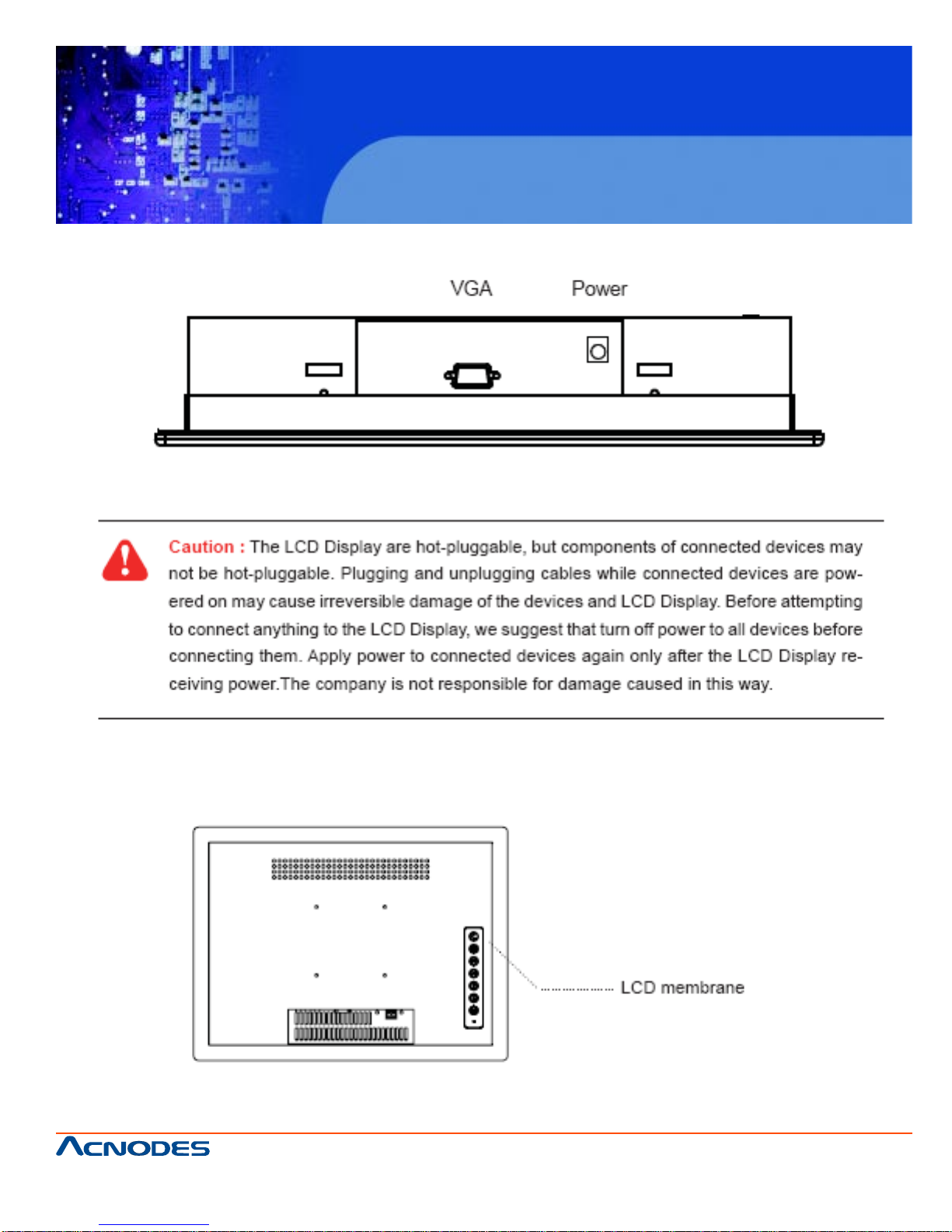

CHAPTER 3 CONNECTION

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
3-2 On-Screen Menu

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
CHAPTER 4 OPERATION
4-1 LCD Specifications

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
CHAPTER 5 AV/ BNC OPTIONS
5-1 AV/BNC Options
** Remarks: Package includes 1x 6ft S-Video cable

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
CHAPTER 6 TOUCHSCREEN OPTIONS

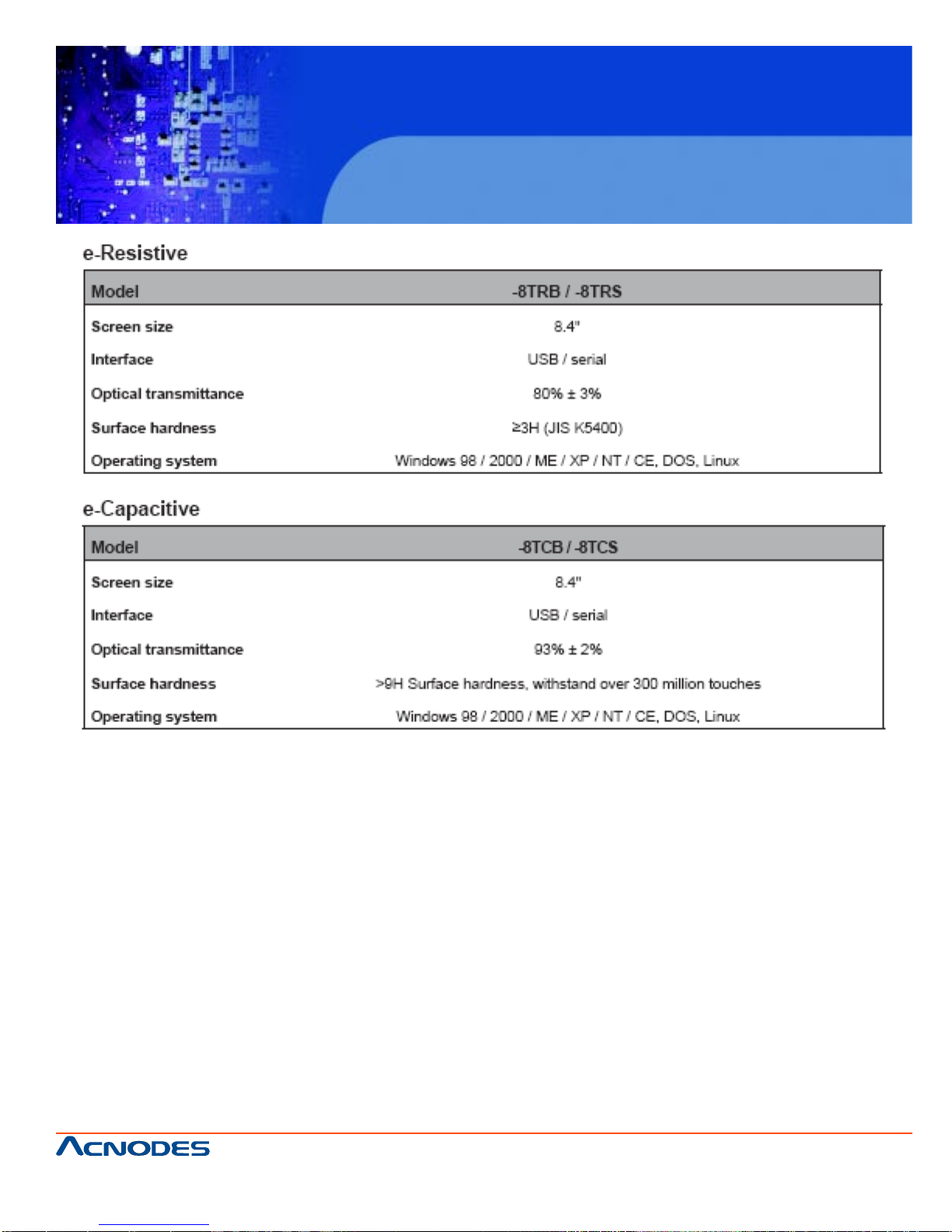

6-1 Touchscreen Options

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
** Remarks:
- USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
- Serial touchscreen package includes 1 x 6ft serial cable, quick reference guideline and CD disc
- For detailed information, please refer to the attached CD disc
-As the touchscreen unit is not made of toughened glass, please handle it carefully

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
6-2 Touchscreen Quick User Guidelines

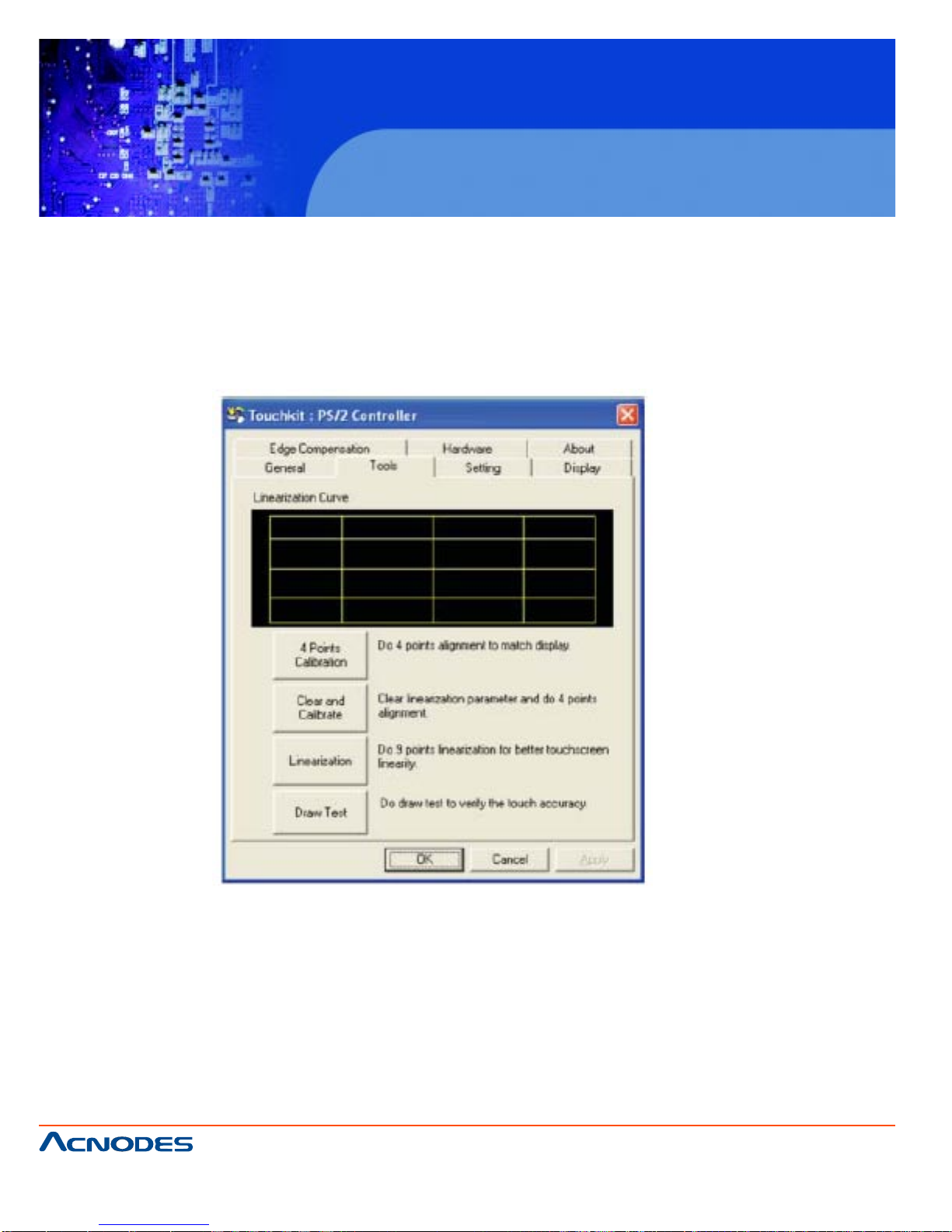

Calibration:
Tool property page- Calibration, draw test tools and the linearity curve of the touchscreen were list in
this property page shown as below for user to do touchscreen calibration and touch position test.
User can do calibration or draw test by pressing the function push buttons.
1. Linearization Curve
Linearization curve of the touchscreen is list in this page for reference and trouble shooting purpose.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor

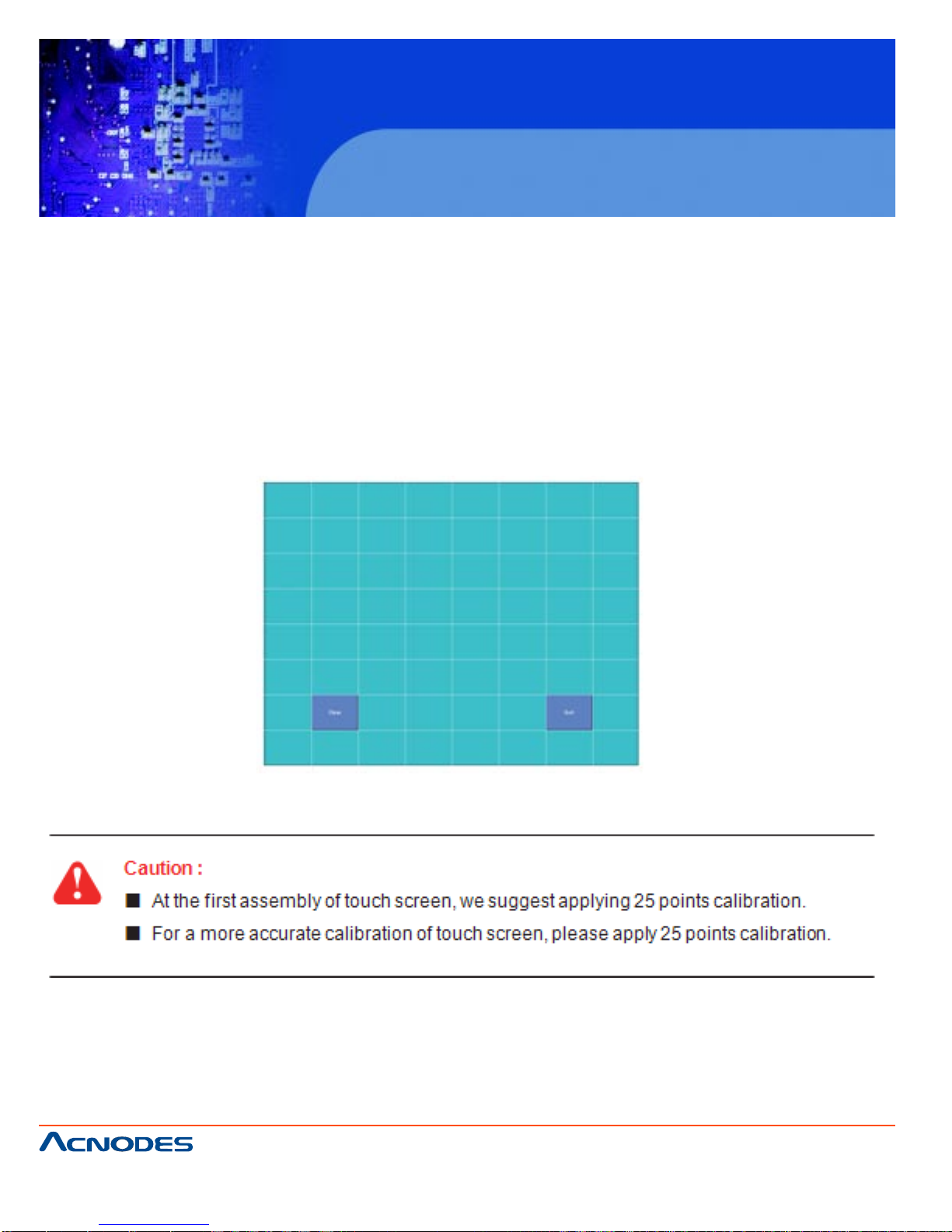

2. 4 points calibration
It needs calibration before the touchscreen can work accurately. Whenever the user feel the accuracy
lost, user can do calibration again to get a more accuracy touch function.
Pressing this button, a new window will be popped-up at the location when the touchscreen was
mapped to area for this touch system to guide the user do 4 points calibration.
User should follows the guide to touch and hold the blinking X symbol in the calibration window until it
does not blink to make sure that the utility can gather enough data for computation. In addition, a time
line bar is shown in the bottom of the window to indicate time elapsed. If the touchscreen was not
touched before the time line bar going to right end, the calibration task will be terminated automati-
cally.
3. Clear and Calibration
Press this button to erase the 25 points calibration/linearization parameters and force user to do 4
points cali- bration again.After 25 points calibration data was clear, the 4 points calibration data will
be invalid. It needs to do 4 points calibration.
4. Linearization
Linearization ( 25 or 9 points calibration ) function is used to compensate the touchscreen linearity.
After lin- earization completed, the linearity of the touchscreen will be shown in the Linearity curve
window.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
Pressing this button, a new window will be popped-up at the location when the touchscreen was
mapped to area for this touch system to guide the user do 25 points calibration. User should follows
the guide to touch and hold the blinking X symbol in the calibration window until it does not blink to
make sure that the utility can gather enough data for computation. In addition, a time line bar is shown
in the bottom of the window to indi- cate time elapsed. If the touchscreen was not touched before the
time line bar going to right end, the calibra- tion task will be terminated automatically.
5. Draw Test
This function is used for accuracy and performance check. Press this button and a new pop up window
will be popped up in the location where the touchscreen was mapped to the touch system as below,
User can press the Clear button to clear the window. Press Quit button to terminate this draw test.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APM5084
8.4” industrial panel mount LCD monitor
CHAPTER 7 DC POWER OPTIONS
** Remarks: Package does not include power cord andAC power adapter

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APM5084
8.4” industrial panel mount LCD monitor
© Copyright 2011 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
CHAPTER 8 TV TURNER OPTIONS
** Remarks: Package includes 1 x remote controller
8-1 How to use Remote Controller
