APW 5320
32” Wide Industrial LCD monitor
User Manual
APW5320: 32” widescreenindustrial panelmountmonitor

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
Table of Contents
CHAPTER 1 Introduction
1-1 ImportantSafeguards......................................................................................................................1
1-2 BeforeInstallation...........................................................................................................................2
1-3 Unpacking.......................................................................................................................................2
1-4 OptionalAccessories.....................................................................................................................2
CHAPTER 2 Front Aluminum LCD Panel
2-1 PackageContents..........................................................................................................................3
2-2 StructureDiagram...........................................................................................................................4
2-3 MountingMethod.............................................................................................................................5
CHAPTER 3 Connection
3-1 On-ScreenDisplayOperation........................................................................................................7
3-2 On-ScreenMenu............................................................................................................................9
CHAPTER 4 Operation
4-1 LCDSpecifications........................................................................................................................10
CHAPTER 5 TV Tuner Options
5-1 AV/BNCOptions............................................................................................................................12
CHAPTER 6 Quad Display Options
6-1 Specifications.................................................................................................................................14
CHAPTER 7 Troubleshooting................................................................................15
CHAPTER 8 Cleaning the LCD Display
8-1 CleaningtheRemotecontroller......................................................................................................16

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 1 INTRODUCTION
1-1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover:
-Any product, on which the serial number has been defaced, modified or removed.
- Damage, deterioration or malfunction resulting from:
- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi-
cation, or failure to follow instructions supplied with the product.
- Repair or attempted repair by anyone not authorized by us.
- Any damage of the product due to shipment.
- Removal or installation of the product.
- Causes external to the product, such as electric power fluctuation or failure.
- Use of supplies or parts not meeting our specifications.
- Normal wear and tear.
- Any other causes which does not relate to a product defect.
- Removal, installation, and set-up service charges.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
1-2 Before Installation
- It is very important to locate the LCD Display in a suitable environment.
- The surface for placing and fixing the LCD Display should be stable.
- Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
- Convenience for connecting the LCD Display to the related facilities should be well considers too.
1-3 Unpacking
The LCD Display comes with the standard parts shown on the package contents. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the supplier
immediately.
1-4 Optional Accessories

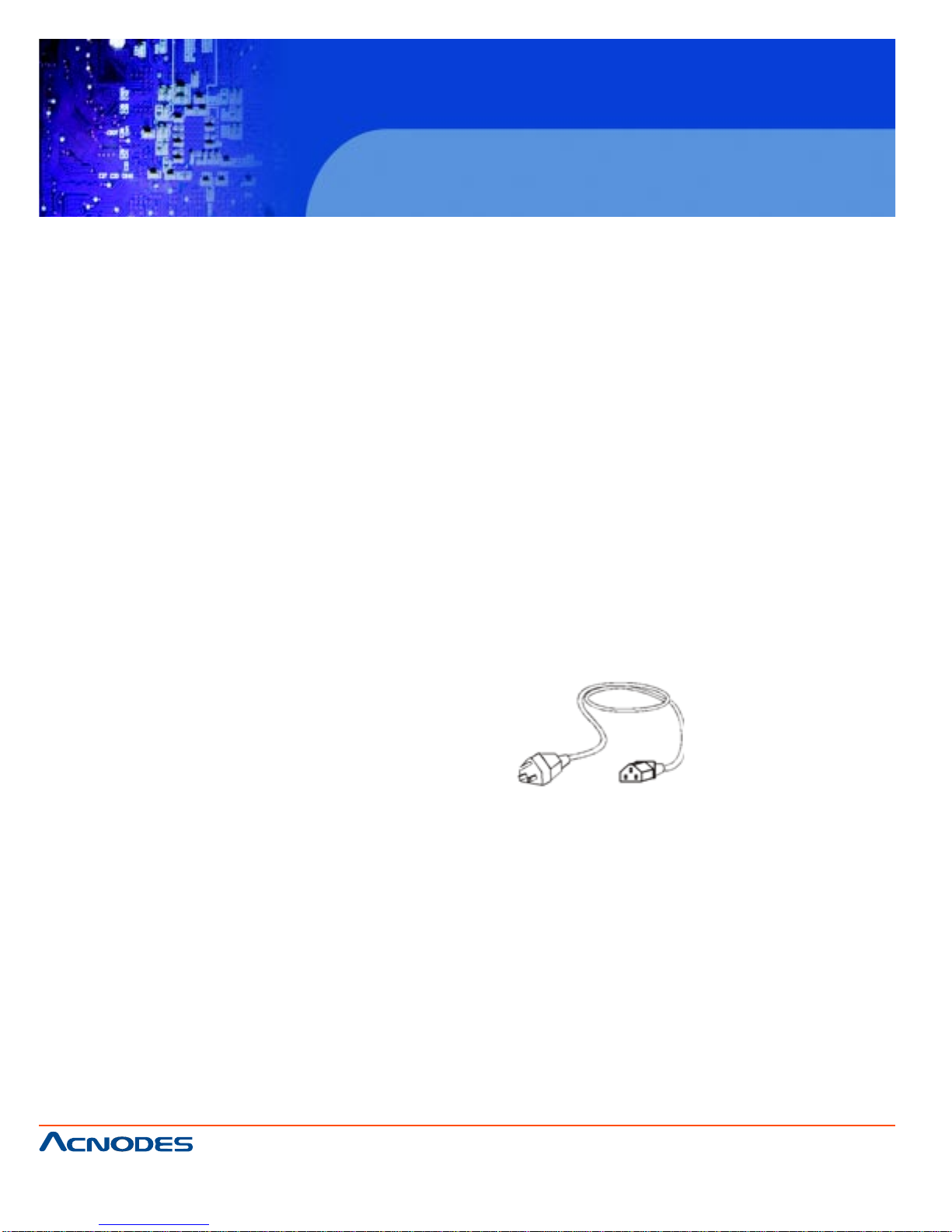

1. Power Cord
1.1 IEC power cord
1.2 NEMA 5-15 power cord (US)
1.3 BS 1363 power cord (UK)
1.4 CEE 7/4 power cord (German)
1.5 AS 3112 power cord (Australia)

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 2 FRONTALUMINUM LCD PANEL
2-1 Package Contents
1. LCD Display x 1 pc
2. 6” VGA Cable (male to male) x 1 pc
3. User Manual x 1 pc
4. Power Cord x 1 pc
** Remarks: Wall mounting set is already installed on the back of the LCD panel
5. S-Video cable x 1 pc
6. RCA cable x 1 pc
7. Remote Controller x 1 pc

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
2-2 Structure Diagram
Front View Rear View
1. Rear Case
2. SAMSUGN classATFT LCD Panel
3. 6mmAluminum front Bezel
4. LCD Membrane
5. Wall-mount bracket

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
2-3 Mounting Method
Wall Mounting
** Remarks: Wall mounting set is already installed on the back of the LCD panel.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor

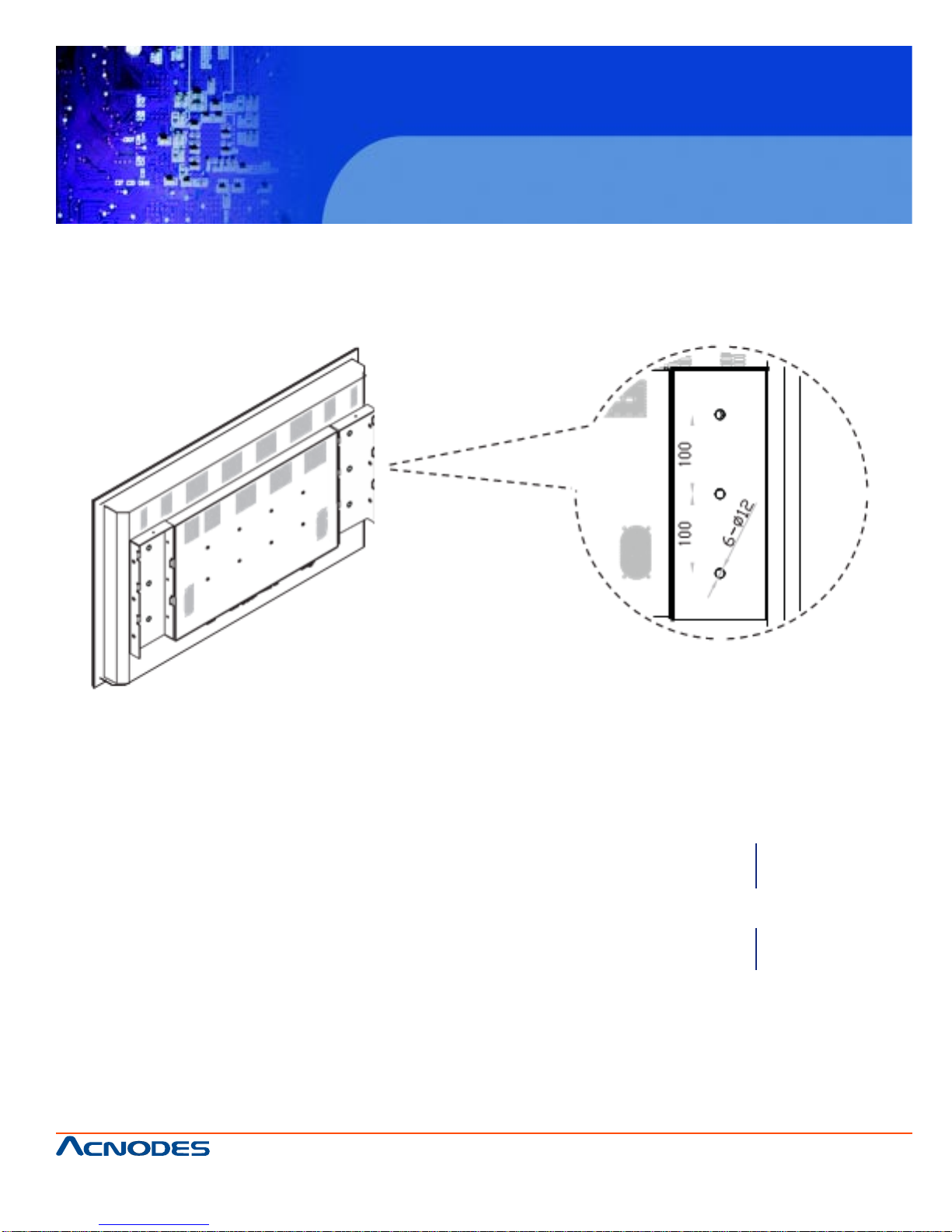

100mm VESAStandard:
** Remarks:
- Hardware and M6*8pcs for VESA mounting is not provided
- To avoid damage of internal components, when mounting the VESAbracket, do not use screws that
exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause
damage to your display.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 3 CONNECTION
1. Video out
2. Video 1
3.Y
4. Pb
5. Pr
6. Video 2

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
3-1 On-Screen Display Operation

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor

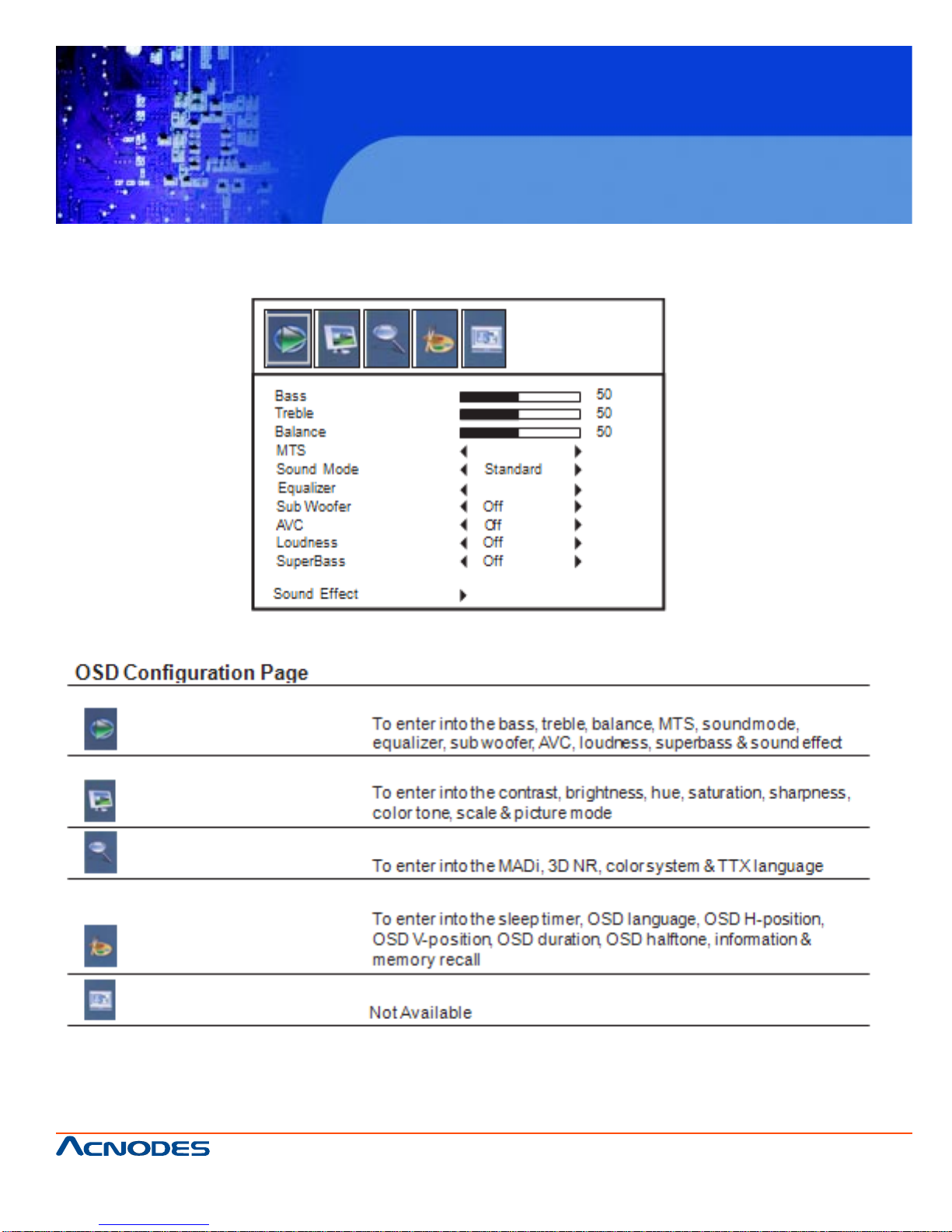

3-2 On-Screen Menu

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 4 OPERATION

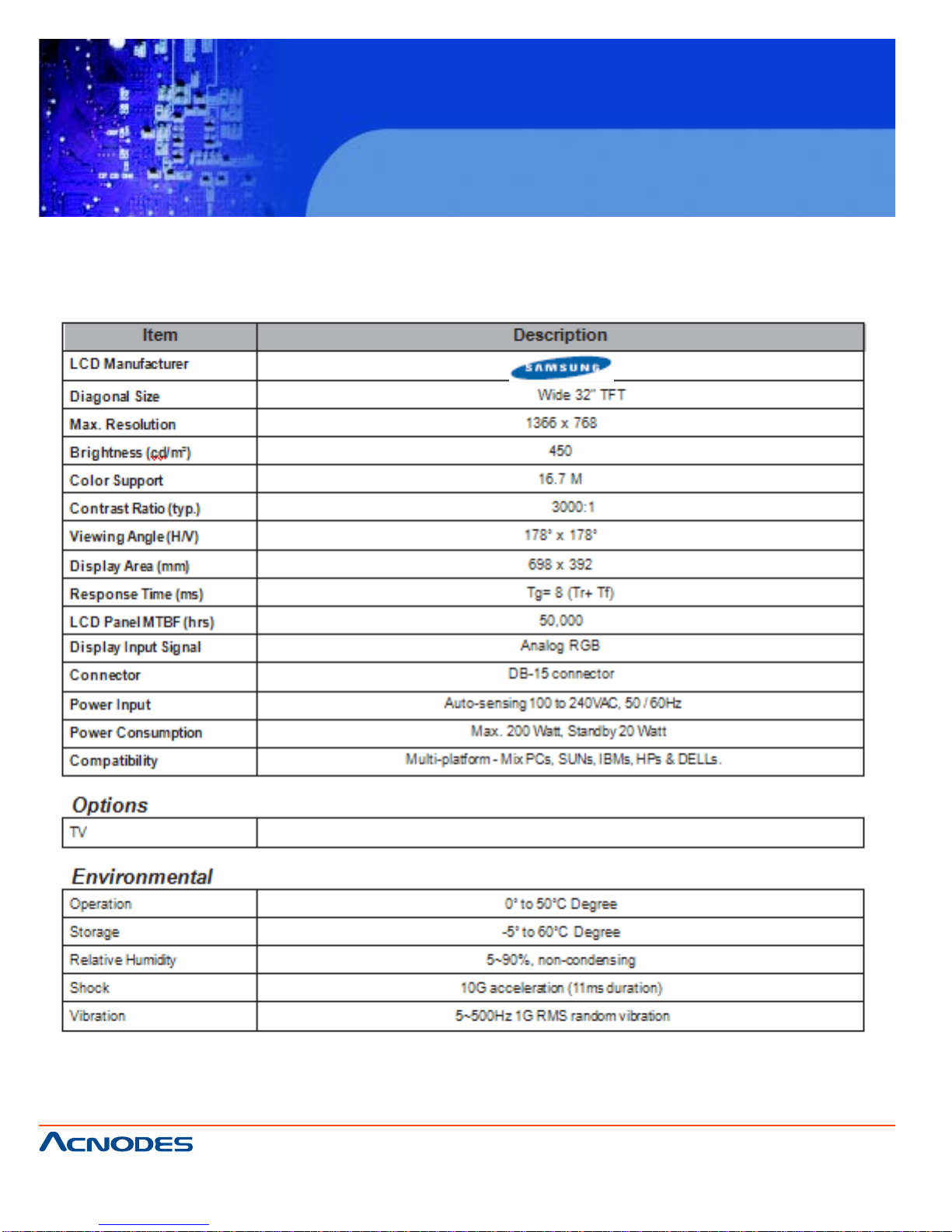

4-1 LCD Specifications

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 5 TV TUNER OPTIONS
5-1 TV Tuner Options
1. Video out
2. Video 1
3.Y
4. Pb
5. Pr
6. Video 2
** Remarks: Package includes a remote controller

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor

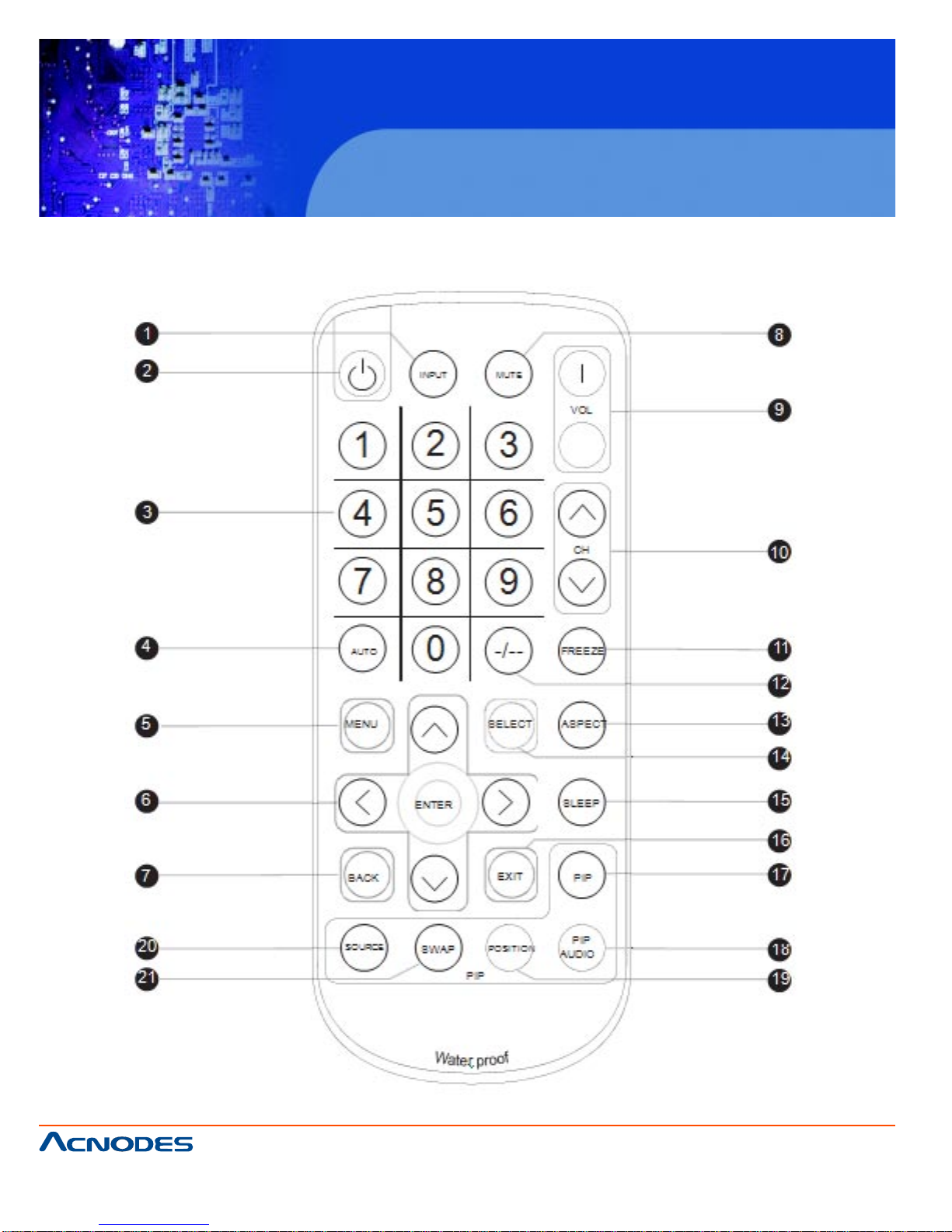

5-2 How to Use Remote Controller

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 6 QUAD DISPLAY OPTIONS
10-1 Specifications

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
** Remarks:
- For more details, please refer to Quad Display User Manual

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 7TROUBLESHOOTING
1. The membrane power light is not ON
- Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.
- Check the power cord is properly connected to the LCD display and power outlet.
2. Power does not turn ON
- Check whether the power plug is securely inserted into the receptable.
3. No picture are displayed
- Check cables for disconnection.
- Check whether the power for all inout equipment is ON.
- Check for connection to wrong terminals or for wrong input mode.
4. Remote controller does not function properly
- Check for incorrect battery orientation.
- Check for dead batteries.
- Check whether you are pointing the remote control transmitter properly at the display's receiver.
- Check for any obstacle between the remote and the display.
5. There are spots on the screen
- Check whether yourAV equipment is affected by interference from automobiles, trains, high-volt-
age transmission lines, neon signs or other potential sources of interference.
6. Degraded colors/tints
- Check whether all picture adjustments have been properly made.
7. Improper screen position/size
- Check whether screen position and size have been properly adjusted.

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone]
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
APW 5320
32” Wide Industrial LCD monitor
CHAPTER 8 CLEANINGTHE LCD DISPLAY
You may need the following precautions before you begin to clean the LCD display, please read and
understand the details below fully.
1. Make sure the monitor is turned off
2. Never spray or pour any liquid onto the screen directly
3. To remove dust and other particles, wipe the screen with a clean, soft, lint-free cloth.
4. Be cautions of all kinds of cleaning solvents or chemicals, some individuals may be harmful to the
LCD display.
5. If the LCD display is still not clean enough, apply a small amount of non-ammonia, non-alcohol
based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
6. Don't use water or oil on the monitor directly.
8-1 Cleaning the Remote Controller
1. Use a soft cloth for cleaning
2. If it is heavilystained, soak a soft cloth in a mixture of water and detergent and squeeze it dry
before wiping off the stains.
3. Use a soft, dry cloth for final cleaning.
