Acorn Safety S0701 Manual

WWW.ACORNSAFETY.COM
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
DRENCH HOSES
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER
1.800.591.9360
TECHNICAL ASSISTANCE FAX: [phone]
ACORN SAFETY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744-0527
UNITED STATES OF AMERICA
Manual #7109-503-001
Models: S0701 / S0702
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical, ANSI Z358.1 and
other applicable codes.
LIMITED WARRANTY
UNITED STATES AND CANADA
Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment or 18 months after the date of shipment from factory ,
whichever comes first. Acorn's liability under this warranty shall be discharged solely by replacement of repair of
defective material, provided Acorn is notified in writing within one year from date of shipment, F.O.B. Industry,
California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn under this warranty.
Acorn shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects in
materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties expressed
or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance with these
instructions will constitute an abnormal use condition and void the warranty. Stainless steel must be protected on job
sites during construction and must be properly maintained after the water has been introduced into the safety product
or Acorn's warranty is void.
Revised: 03/22/13
Acorn Safety a division of Acorn Engineering ™Company

ROUGH-IN
Installation & Operation Manual
Manual #7109-503-001
PRELIMINARY STEPS
1. Read the installation instructions prior to beginning the installation.
2. Separate parts from packaging and verify all necessary parts are accounted for and undamaged. Obtain missing or
damaged parts from Acorn Safety prior to beginning installation.
3. Flush water supply lines prior to installation. This will remove unwanted debris from the lines and prevent unwanted
blockages in the safety equipment.
4. In order to comply with ANSI Z358.1, the safety equipment must be inspected periodically. An inspection tag is provided for
documentation purposes.
5. All employees at risk of contamination should be informed and trained in the use of this and any other safety equipment.
The signage provided should be posted appropriately in close proximity to this equipment.
31
8"
(78)
101
2"
(266)
21
8"
(54)
23
4"
(70)
3/8-18 NPT
SWIVEL CONNECTION
1-11 1/2 NPS
MOUNTING HOLE
SIZE 1-3/8"
31
8"
(78)
101
2"
(266)
21
8"
(54)
23
4"
(70)
3/8-18 NPT
SWIVEL CONNECTION
1-11 1/2 NPS
MOUNTING HOLE
SIZE 1-3/8"
S0701 S0702
Revised: 03/22/13
Acorn Safety a division of Acorn Engineering ™Company
Page 2 of 5

Installation & Operation Manual
Manual #7109-503-001
INSTALLATION INSTRUCTIONS:
Supplies required: (not provided by Acorn)
1. Wall fasteners, washers, anchors and screws.
2. Pipe sealant or Teflon tape for sealing water
connections.
IMPORTANT: flush water supply lines prior to
connection to safety equipment
Notes:
—Use hand tools and wrenches in a manner which will
prevent marring finished surfaces. Strap wrenches or
tools with plastic jaw linings are highly recommended.
—Refer to Rough-in for location of supply and drain lines.
—Fragments of Teflon tape or pipe sealant residue can
interfere with the proper operation of this unit. Ensure
pipe sealant methods do not cause contamination in
the system.
STEP ONE: MOUNTING
1. Determine desired mounting location and drill 1 3/8”
DIA. mounting hole through counter top.
2. Insert deck escutcheon through hole and secure in
place with washer and retaining nut (provided) from
underneath counter top.
3. Insert drench hose assembly down into mounted
escutcheon.
STEP TWO: SUPPLY LINE
1. Install water line (supplied by others) in close proximity
to drench hose location.
2. Connect 3/8” NPT reinforced hose (supplied with
drench
hose) to plumbed water supply.
3. Open water supply.
4. Test for leaks, proper operation and flow.
STEP THREE: SIGNAGE & INSPECTION
1. Position sign with clear visibility, in close proximity to
safety equipment and mark mounting hole locations.
2. Select appropriate 1/4” anchors, screws and washers
(Supplied by others) to install signage.
3. Attach inspection tag supplied, with plastic zip tie.
3/8" NPT FITTING
CONNECT TO
WATER LINE
(SUPPLIED BY
INSTALLER)
MOUNTING HARDWARE
(PROVIDED BY
INSTALLER)
DRENCH HOSE
ASSEMBLY
DECK
ESCUTCHEON
Revised: 03/22/13
Acorn Safety a division of Acorn Engineering ™Company
Page 3 of 5

Installation & Operation Manual
Manual #7109-503-001
OPERATION INSTRUCTIONS:
become familiar with the location and operation of the
nearest emergency plumbing fixture. Emergency
plumbing fixtures stations are simple to use and require
hands free operation once the station is activated.
Regular instruction regarding proper care and use will
increase confidence that the units are accessible and
function properly.
The route and area surrounding the Eye Wash should
be clear and unobstructed; the sooner eyes are flushed,
the less likelihood of damage. Eye Wash stations should
be located in close proximity to the hazard and take no
more than 10 seconds to reach. In the case of sever eye
contamination the victim may require assistance to the
Eye Wash station and help flushing their eyes.
Safety plumbing fixture equipment should be operated
weekly for a period long enough to verify operation,
clear the supply line of any sediment build-up and
minimize microbial contamination due to sitting water.
1. To start the Drench Hose, squeeze handle. Flushing
should start, popping the spray nozzle caps open.
2. Lower eyes into flow. Both eyes should be flushed to
prevent contamination from one eye from being
delivered to unaffected eye. Personnel who wear
contact lenses should remove them immediately prior
to or during the flush to prevent the contamination
from remaining against the cornea possibly causing
unnecessary damage or pain.
3. Using thumb and forefingers, fully open eyelids and
flush eyes thoroughly for approximately 15 minutes or
until medical personnel arrive. Be prepared to let the
doctor know what type of contamination has entered
the eye.
4. When finished release the handle and return drench
hose assembly to standby position. Flushing fluid
should stop. Once flushing fluid has stopped flowing,
return spray nozzle lids to the closed position to
protect from airborne contaminates.
MAINTENANCE GUIDE:
Maintain and inspect in accordance with ANSI Z358.1-
2009
1. Check for obvious signs of wear, broken or defective
equipment. Re-paint if necessary. Replace missing or
defective equipment such as broken push paddles,
missing signs and inspection tags.
2. Remove strainer and washout any debris collected
–replace as required.
3. Operate Drench Hose by squeezing handle, checking
for smooth operation of valve push paddle
mechanism at the same time ensuring that the drench
hose spray nozzle caps pop off immediately when
actuated. If the ball valve does not operate smoothly
check the actuating assembly for binding or missing
parts. If the
Employees who work with hazardous materials should
Drench hose spray nozzle caps do not pop off
immediately when actuated check for correct supply
inlet pressure.
4. While in operation, inspect spray nozzles for clogs or
debris correct or replace as required.
5. Release the handle. To prevent drench hose spray
nozzles from becoming contaminated, always close
nozzle lids after each use.
Revised: 03/22/13
Acorn Safety a division of Acorn Engineering ™Company
Page 4 of 5

Installation & Operation Manual
Manual #7109-503-001

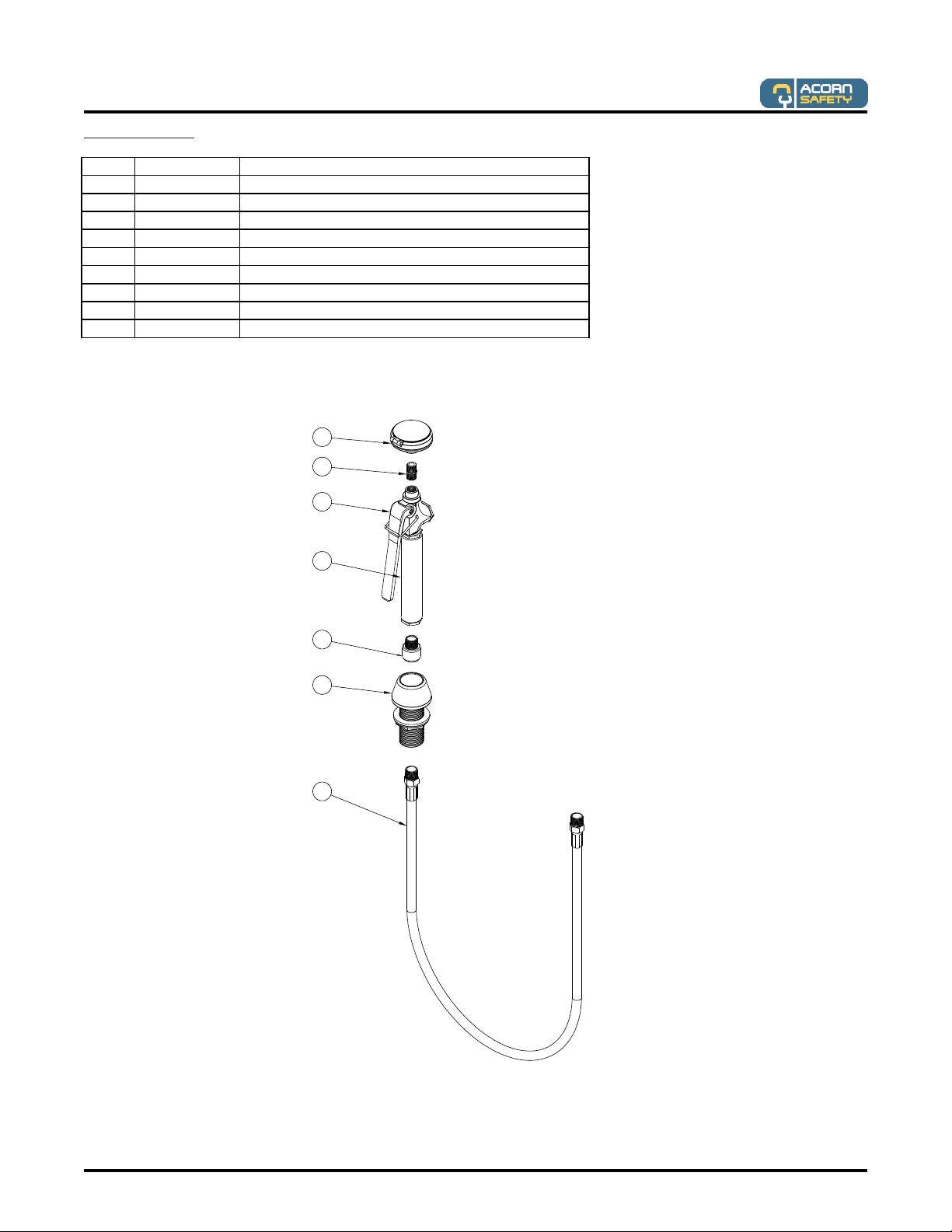

PARTS LIST
ITEM # PART NUMBER DESCRIPTION
1 7101-104-001 FACEWASH ASSY
7101-058-001 FACEWASH ASSY W/ S/S LID
2 7105-050-000 DRENCH HOSE VALVE, 3/8-14UNSx1/4-18 NPT
3 7100-210-000 1/4" CLOSE NIPPLE, STAINLESS STEEL
4 7105-054-000 DRENCH HOSE HANDLE, 3/8-FPT X 3/4-14 UNS
5 7105-057-000 8' FLEXIBLE PVC REINFORCED HOSE
7105-056-000 8' S/S FELXIBLE HOSE
6 7105-068-199 DRENCH HOSE DECK MOUNT ADAPTER, CHROMED
7 7105-075-001 DRENCH HOSE DECK MOUNT ESCUTCHEON ASSY
1
3
2
4
6
7
5
