Acorn Safety S0730 Manual

WWW.ACORNSAFETY.COM
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
DECK MOUNTED EYE/FACEWASH
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER
1.800.591.9360
TECHNICAL ASSISTANCE FAX: [phone]
ACORN SAFETY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744-0527
UNITED STATES OF AMERICA
Model S0730 / S0740
Manual #7109-104-001 Revised: 01/04/13
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical, ANSI Z358.1 and
other applicable codes.
LIMITED WARRANTY
UNITED STATES AND CANADA
Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment or 18 months after the date of shipment from factory ,
whichever comes first. Acorn's liability under this warranty shall be discharged solely by replacement of repair of
defective material, provided Acorn is notified in writing within one year from date of shipment, F.O.B. Industry,
California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn under this warranty.
Acorn shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects in
materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties expressed
or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance with these
instructions will constitute an abnormal use condition and void the warranty. Stainless steel must be protected on job
sites during construction and must be properly maintained after the water has been introduced into the safety product
or Acorn's warranty is void.
Acorn Safety a division of Acorn Engineering ™Company

1. Read the installation instructions prior to beginning the installation.
2. Separate parts from packaging and verify all necessary parts are accounted for and undamaged. Obtain missing or
damaged parts from Acorn Safety prior to beginning installation.
3. Flush water supply lines prior to installation. This will remove unwanted debris from the lines and prevent unwanted
blockages in the safety equipment.
4. In order to comply with ANSI Z358.1, the safety equipment must be inspected periodically. An inspection tag is
provided for documentation purposes.
5. all employees at risk of contamination should be informed and trained in the use of this and any other safety
equipment. The signage provided should be posted appropriately in close proximity to this equipment.
Installation & Operation Manual
PRELIMINARY STEPS
Manual #7109-104-001
ROUGH IN
21
8"
(54)
133
4"
(348)
Ø21
8"
(54)
7"
(178)
3
4"
(19)
63
8"
(161)
Ø61
8"
(155)
13
4"
(43)
1/2" NPT
BALL VALVE
STRAINER 1/2" NTP
MALE
CONNECTION
1/2" NTP
FEMALE CONNECTION
SUPPLY LINE
BY OTHERS
Ø111
2"
(292)
HOLE
Ø13
8"
(32)
HOLE 2X
4"
(102)
2"
(51)
81
2"
(216)
MIN.
Revised: 01/04/13
Page 2 of 5
Acorn Safety a division of Acorn Engineering ™Company

INSTALLATION INSTRUCTION
Supplies required: (not provided by Acorn)
1. Wall fasteners for signage & possible eye/face
wash mounting.
2. Pipe sealant or Teflon tape for sealing water
connections.
IMPORTANT: FLUSH WATER SUPPLY LINES
PRIOR TO CONNECTION TO SAFETY
EQUIPMENT.
NOTES:
—Use hand tools and wrenches in a manner which
will prevent marring finished surfaces. Strap
wrenches or tools with plastic jaw linings are
highly recommended.
—Refer to Rough-in for location of supply and
drain lines.
—Fragments of Teflon tape or pipe sealant residue
can interfere with the proper operation of this
unit. Ensure pipe sealant methods do not cause
contamination in the system.
STEP ONE: MOUNTING
1. Determine desired mounting location and cut (1)
11-1/2” DIA. mounting hole for eye/facewash
assembly and (2) 1-3/8” DIA. holes for the
actuator assembly through counter top at a
minimum of 8-1/2” apart.
2. Remove flange nut and bracket from drain fitting.
3. Insert eye/facewash assembly through hole and
secure in place with bracket assembly (provided)
from under side of counter top.
4. Tighten flange nut on drain fitting. Adjustment
screws can be tightened to secure basin to
contour. Do not over tighten.
5. Insert valve actuator assembly down into the 1-
3/8” DIA. mounting holes adjacent to
eye/facewash assembly and secure with flange
nuts and washers from under side of the deck.
STEP TWO: SUPPLY LINE
1. Install water line (supplied by installer) in close
proximity to actuator valve location and connect
to the ½ water supply shown in the installation
diagram.
2. Connect actuator assembly to strainer using
installer's preferred method.
3. Open water supply.
4. Test for leaks, proper operation and flow.
STEP THREE: SINAGE & INSPECTION
1. Position sign with clear visibility, in close
proximity to safety equipment and mark
mounting hole locations.
2. Select appropriate 1/4” anchors, screws and
washers (Supplied by others) to install signage.
3. Attach inspection tag supplied, with plastic zip
tie.
Installation & Operation Manual
Manual #7109-104-001
MOUNTING SCREWS
(PROVIDED BY
INSTALLER)
EYE/ FACEWASH
BOWL ASSY.
ACTUATOR
ASSY.
1/ 2" NPT
CONNECTION
TO WATER LINE
(SUPPLIED BY
INSTALLER)
FLANGE NUTS
DEC MOUNT DIAGRAM
CUT AWAY-VIEW
1/ 2" NPT, M X F
SUPPLY TUBE,
(SUPPLIED BY
INSTALLER)
INSTALLATION
BRACKET &
ADJUSTMENT
SCREWS
DECK (SUPPLIED
BY OTHERS)
Revised: 01/04/13
Page 3 of 5
Acorn Safety a division of Acorn Engineering ™Company

Page 4 of 5 Revised: 01/04/13Manual #7109-104-001
Installation & Operation Manual
OPERATION INSTRUCTIONS:
become familiar with the location and operation of the
nearest emergency plumbing fixture. Emergency
plumbing fixtures stations are simple to use and require
hands free operation once the station is activated.
Regular instruction regarding proper care and use will
increase confidence that the units are accessible and
function properly.
The route and area surrounding the Eye Wash should
be clear and unobstructed; the sooner eyes are flushed,
the less likelihood of damage. Eye Wash stations should
be located in close proximity to the hazard and take no
more than 10 seconds to reach. In the case of sever eye
contamination the victim may require assistance to the
Eye Wash station and help flushing their eyes.
Safety plumbing fixture equipment should be operated
weekly for a period long enough to verify operation,
clear the supply line of any sediment build-up and
minimize microbial contamination due to sitting water.
1. To start the Eye Wash, swing spray nozzle assembly
over the basin and push the paddle forward to the
horizontal or fully “ON” position. Flushing should start,
popping the spray nozzle caps open.
2. Lower both eyes into flow. Both eyes should be
flushed to prevent contamination from one eye from
being delivered to unaffected eye. Personnel who
wear contact lenses should remove them immediately
prior to or during the flush to prevent the
contamination from remaining against the cornea
possibly causing unnecessary damage or pain.
3. Using thumb and forefingers, fully open eyelids and
flush eyes thoroughly for approximately 15 minutes or
until medical personnel arrive. Be prepared to let the
doctor know what type of contamination has entered
the eye.
4. When finished return the push paddle to the vertical
or fully “OFF” position and return spray nozzle
assembly to standby position. Flushing fluid should
stop. Once flushing fluid has stopped flowing, return
spray nozzle lids to the closed position to protect from
airborne contaminates.
MAINTENANCE GUIDE:
Maintain and inspect in accordance with ANSI Z358.1-
2009
1. Check for obvious signs of wear, broken or defective
equipment. Re-paint if necessary. Replace missing or
defective equipment such as broken push paddles,
missing signs and inspection tags.
2. Remove strainer and washout any debris collected
–replace as required.
3. Operate Eye Wash nozzles using the push paddle to
place ball valve in the fully “ON” position checking for
smooth operation of valve push paddle mechanism at
the same time ensuring that the Eye Wash spray
nozzle caps pop off immediately when actuated. If the
ball valve does not operate smoothly check the
actuating assembly for binding or missing parts. If the
Employees who work with hazardous materials should
Eye Wash spray nozzle caps do not pop off immediately
when actuated check for correct supply inlet
pressure.
4. While in operation, inspect spray nozzles for clogs or
debris correct or replace as required.
5. Return push paddle to vertical or fully “OFF” position
and swing back to stand by position. To prevent Eye
Wash spray nozzles from becoming contaminated,
always close nozzle lids after each use.
Page 4 of 5
Acorn Safety a division of Acorn Engineering ™Company

Installation & Operation Manual

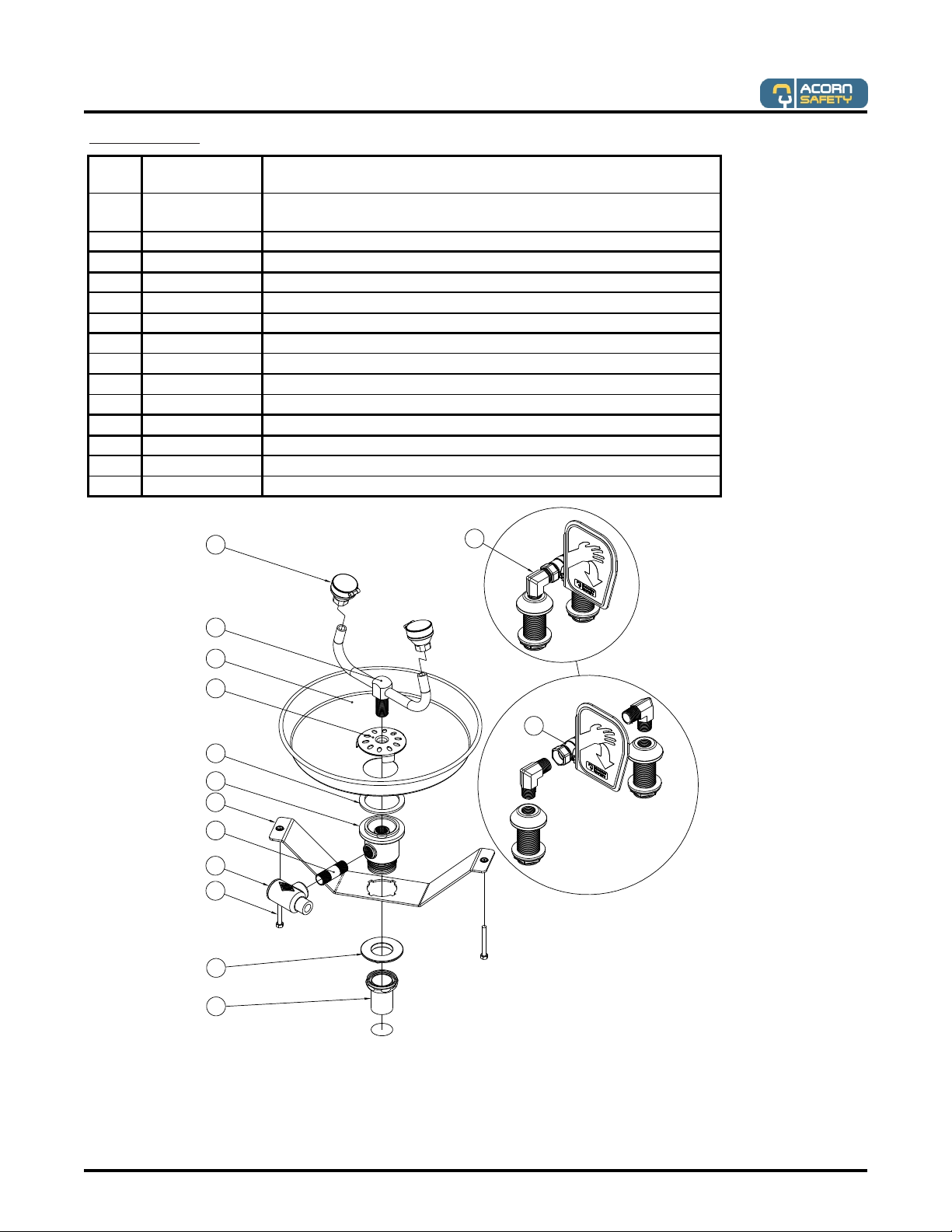

PARTS LIST
Manual #7109-104-001
ITEM
#
PART
NUMBER DESCRIPTION
1 7101-104-001 EYE/FACEWASH ASSY
7101-100-001 EYEWASH ASSY
2 7101-003-001 EYE/FACEWASH YOKE ASSY
3 7101-008-000 STAINLESS STEEL EYE/FACEWASH BOWL
4 7100-108-000 STAINLESS STEEL STRAINER
5 7101-046-000 GASKET, EYE/FACEWASH STEEL BOWL
6 7101-054-022 BASIN FLANGE, MACHINED CASTING, YELLOW
7 7101-250-004 DECK MOUNTED EYE/FACEWASH BRACKET ASSY
8 7100-218-000 3/8" X 2" NPT GALV. NIPPLE
9 7100-140-001 STRAINER ASSY
10 0206-016-000 1/4" X 2" LG STAINLESS STEEL HEX BOLT
11 7000-020-199 1-1/4" NPSM FLANGE NUT
12 7100--113-001 1-1/4" EYE/FACEWASH CHROME DRAIN ASSY
13 7105-096-001 PADDLE ACTUATED DECK MOUNT VALVE ASSY
14 7101-205-001 1/2" CHROME VALVE ACTUATOR ASSY
12
11
10
9
8
7
6
5
4
3
2
113
14
Revised: 01/04/13
Page 5 of 5
