1 Introduction
AR-B5800A is designed for rack-mounted platform for networking appliance, e.g. VPN, SSL, UTM
or firewall. With Intel advanced Core 2 Quad / Duo / Pentium / Celeron CPU, AR-B5800A is a
powerful platform to satisfy different applications. By eight 10/100/1000Mbps LANs and two fiber
SFP ports, the AR-B5800A is sufficient for the small to middle size business security solution.
AR-B5800A can install 2 x HDD for RAID 0/1 redundancy. Customers don’t need to worry about
data lost due to HDD defected problem. BIOS, GPIO and Jumper can control LAN bypass feature.
It provides flexibility to access Internet by user setting.
Key features:
1. Support Intel Core 2 Quad or Core 2 Duo or Pentium or Celeron CPU
2. Intel G41 + ICH7R Chipset to support RAID 0/1 redundancy
3. DDRIII DIMM x 2, up to 4GB memory
4. Intel 82574L 10/100/1000Mbps x 6 + 82541PI 10/100/1000Mbps x 2
5. Two pairs LAN ports support bypass feature (LAN 1/2 + LAN 3/4)
6. Support two fiber SFP ports (Optic A / Optic B)
7. LAN bypass can be controlled by BIOS, GPIO and Jumper
8. CF socket, 2.5” HDD x 2, SATA II interface x 2
9. Console, VGA (pinhead), USB 2.0 x 4 (2 x connectors, 2 x pin head)
10. Support boot from LAN, console redirection
4

AR-B5800A User Manual
1.1 Specifications
1.1 Specifications
 CPU: a LGA775 socket for Intel Core2 Processors in the 775-Land LGA package.
 DMA channels: 7.
 Interrupt levels: 16 (24 APIC interrupts).
 Chipset: Intel G41 express chipset 82G41 + 82801GR + W83627DHG-P.
 Memory: provides two 240-pin DIMM sockets to support DDRIII 1066 non-ECC DIMM. The
memory capability can up to 2GB.
 VGA Controller: G41 GMCH integrated.
 Analog Display Interface: 10-pin box header, and resolution up to 2048x1536@75Hz.
 Serial ATA Interface: supports Two SATA devices, and data transfer rates up to 300MB/s per
device.
 Compact flash interface: supports TYPE-II compact flash card with UDMA supported.
 USB2.0 interface: one stacked USB connector and two 10-pin pin header to support Six
USB2.0 compatible devices. All resettable fuses protected.
 Ethernet interface: on-board six PCI express gigabit Ethernet controllers and two PCI gigabit Ethernet
controllers to support eight LAN ports. Dual Gigabit Optical fiber Ethernet Intel 82575EB PCI express LAN
chip with SFP connectors (Optical A /optical B), They provide a standard IEEE 802.3 Ethernet interface for
1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab,
respectively).
 BYPASS function: supports by ports LAN1 & LAN2 , LAN3 & LAN4 software programmable.
 Serial ports (RS232): One high-speed 16550 compatible UARTs ports with 16-byte
send/receive FIFOs.
COM1: RJ45 connector.
 LCM interface: a 7-pin pin header could be used to LCM for chassis＇control panel.
 General Purpose Input/Output: 8-bit, 3.3V TTL level, bidirectional, and software
programmable GPIOs.
 WATCHDOG: software programmable 1~255 second(s) / minute(s).
 Power Consumption: +12V [5.3A], +5V [3.5A], +3.3V [1.8A], -12V [0.9A], +5Vsb [0.8A]
typically.
Test equipments list as below:
Main board: AR-B5800A
Processor: Intel Pentium Processor E6500 2.93GHz / FSB1066 / 2MB
5

AR-B5800A User Manual
L2 cache / 45nm.
Memory: one Kingston KVR1333D3N9/2G.
One 3.5＂HDD
OS: Windows XP SP3.
Processor was running at 100% loading.
Note: A proper power supply unit choice means that we should consider at least about
a.) Protection of overload, short-circuit, and other safeties.
b.) Summation of all devices＇power requirements.
c.) Thermal de-rating.
1.2 Package Contents
Check if the following items are included in the package.
In addition to this User's Manual, the AR-B5800A package includes the following items:
 A quick setup manual.
 One AR-B5800A networking board.
 One Software utility CD.
 One adaptable cable for COM1.
 One D-SUB-15 adaptable cable for VGA.
 Two SATA cable.
 One USB adaptable cable. (Optional) (ACROSSER’s P/N.190030779-G)
6

AR-B5800A User Manual
1.3Block Diagram
7

AR-B5800A User Manual
2 H/W Information
This chapter describes the installation of AR-B5800A. At first, it shows the Function diagram and
the layout of AR-B5800A. It then describes the unpacking information which you should read
carefully, as well as the jumper/switch settings for the AR-B5800A configuration

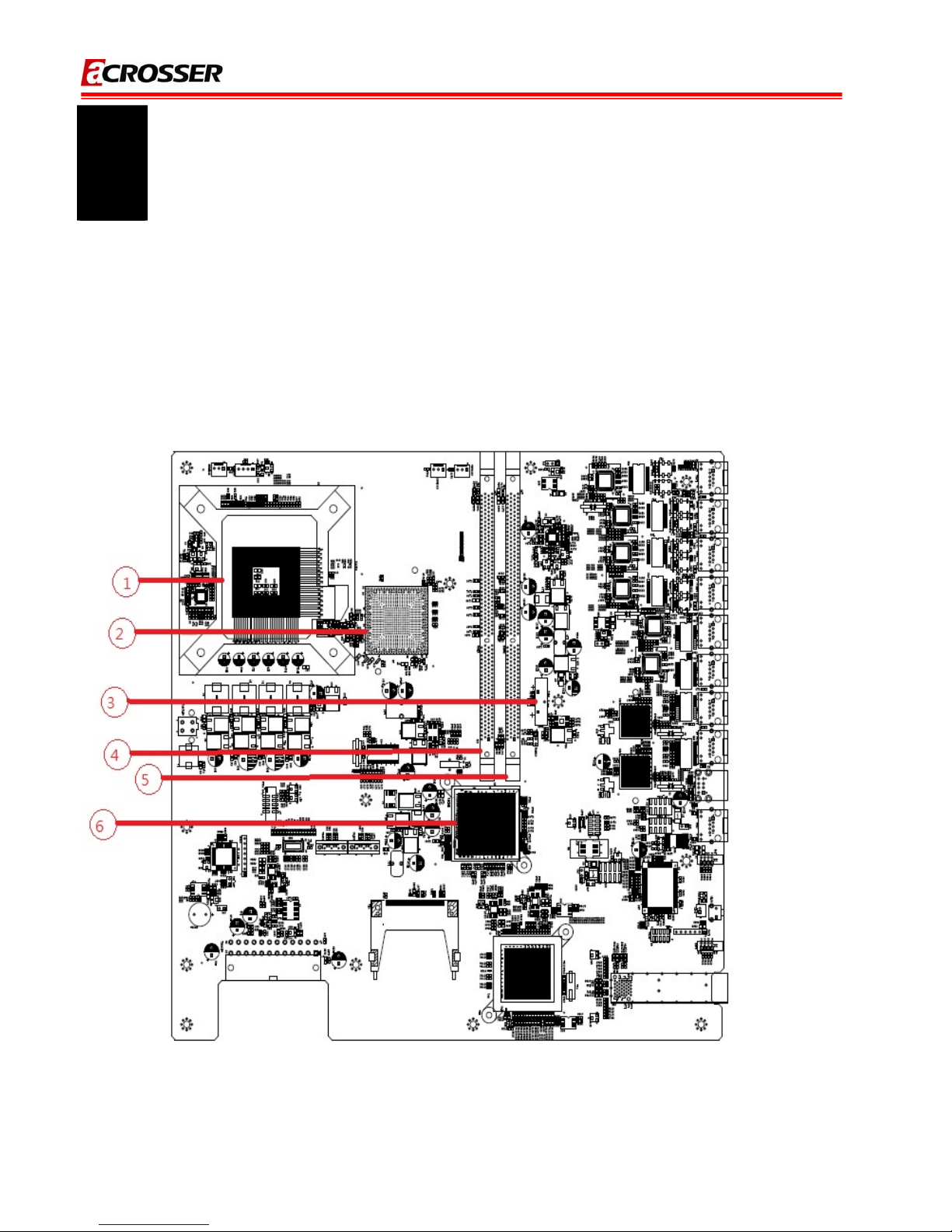

2.1 Locations (Top side)
8

AR-B5800A User Manual
LGA775 CPU Socket Intel GMCH 82G41
RTC1
System RTC battery socket
DIMM1
240-Pin DDR3 Socket
DIMM2
240-Pin DDR3 Socket
Intel ICH7R
9

AR-B5800A User Manual

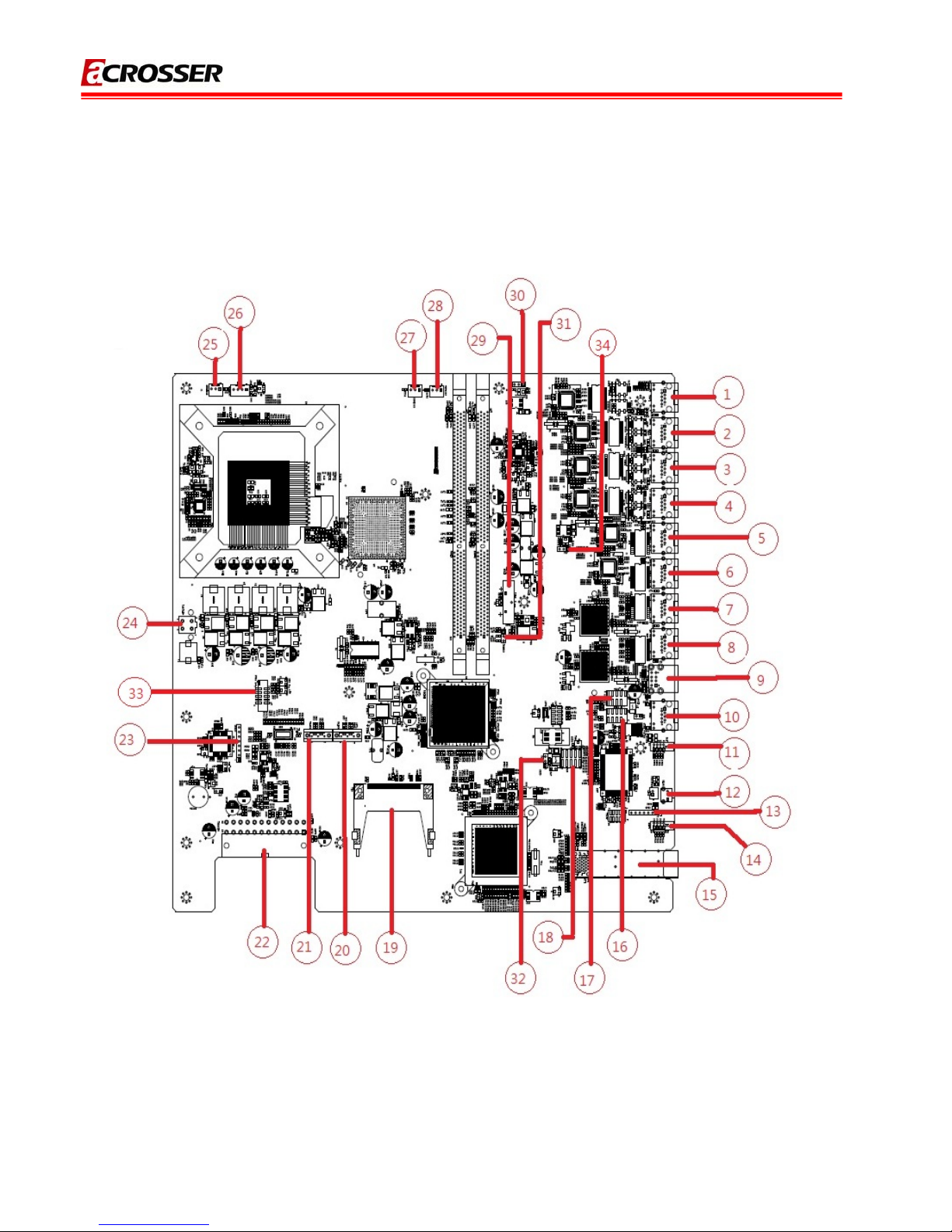

2.2 Connectors and Jumper Setting
2.2.1 Locations (Top side)
10

AR-B5800A User Manual
LAN1
LAN1 RJ45 Connector
LCM1
Pin Header for LCM
SYSFAN3
System FAN Connector.
LAN2
LAN2 RJ45 Connector
LED2
4 in 1 LED for LAN LED.
CPUFAN1
CPU FAN Connector.
LAN3
LAN3 RJ45 Connector
CN3
Dual SFP Connector
SYSFAN2
System FAN Connector.
LAN4
LAN4 RJ45 Connector
FP_USB2
Internal USB4, USB5 connector.
SYSFAN1
System FAN Connector.
LAN5
LAN5 RJ45 Connector
FP_USB1
Internal USB2, USB3 connector.
RTC1
CR2032 Battery Hold Connector.
LAN6
LAN6 RJ45 Connector
GP1
GPIO Header.
JP1
For LAN1/LAN2 Bypass Function
Select.
LAN7
LAN7 RJ45 Connector
CF1
CF CARD SOCKET.
CCMOS1
CMOS Memory Clearing Header
LAN8
LAN8 RJ45 Connector
SATA2
SATA device connector #2.
JP2
GPIO Header Voltage Selection.
USB1
Two USB ports (USB0, USB1)
connector.
SATA1
SATA device connector #1.
VGA1
VGA connecter (2x5 Pin Header)
CONSOLE
RS232 Serial Port
COM1.(RJ45)
ATXPWR1
ATX Power Supply input connector..
JP4
For LAN3/LAN4 Bypass Function
Select.
LED1
4 in 1 LED for LAN Bypass,
Power & HDD LED.
CPLD1
For CPLD Firmware Update
RST2
System Reset Switch.
ATX12V1
ATX12V Power Supply input
Connector.
11

AR-B5800A User Manual
2.3 Connector and Jumper Setting
1. LAN1 ~ LAN8 RJ45 Connector 9. USB1 Connector
LAN RJ45 Connector
Connects to Local Area
Network.
External USB Connector Pin Define
PIN SIGNAL
1 VCC
2 USB0-
3 USB0+
4 GND
5 VCC
6 USB1-
7 USB1+
8 GND
10. CONSOLE ( RJ45 Connector ) 11. LED1
COM Port RJ45 Connector
Green1: Power ON LED.
Green2: HDD LED
Yellow1: LAN3&LAN4 Bypass LED.
Yellow2: LAN1&LAN2 Bypass LED.
12. RST2 13. LCM1 ( for LCM use )
Push this button to
reset the system.
Pin SIGNAL
1 Pull-High to VCC5
2 VCC5
3 SOUTB
4 SINB
5 RTSB#
6 CTSB#
7 GND
12

AR-B5800A User Manual
14. LED2 15.CN3
Up:
Green1: Link LED..
Yellow1: Ative LED.
Down:
Green2: Link LED
Yellow2: Ative LED
Dual SFP Connector.
1000BASE-SX/LX SMALL
FORM-FACTOR
PLUGGABLE (SFP) OPTICAL FIBER
TRANSCEIVER OR MINI-GBIC
CONNECTOR
16,17. FP_USB1 & FP_USB2 18. GP1 ( GPIO Header )
PIN SIGNAL PIN SIGNAL
1 5VDUAL 2 5VDUAL
3 Data0 - 4 Data1 -
4 Data0 + 6 Data1 +
7 GND 8 GND
10 NC
PIN SIGNAL PIN SIGNAL
1 VCC_GP 2 GND
3 GP30 4 GP34
5 GP31 6 GP35
7 GP32 8 GP36
9 GP33 10 GP37
19. CF1 ( CF CARD Socket ) 20,21. SATA2, SATA1 (SATA device
connector #2 and #1).
To connect SATA device:
1.Attach either end of the signal cable
to the SATA connector on
motherboard.
Attach the other end to the SATA
device.
2. Attach the SATA power cable to the
SATA device and connect the other
End from the power supply.
13

AR-B5800A User Manual

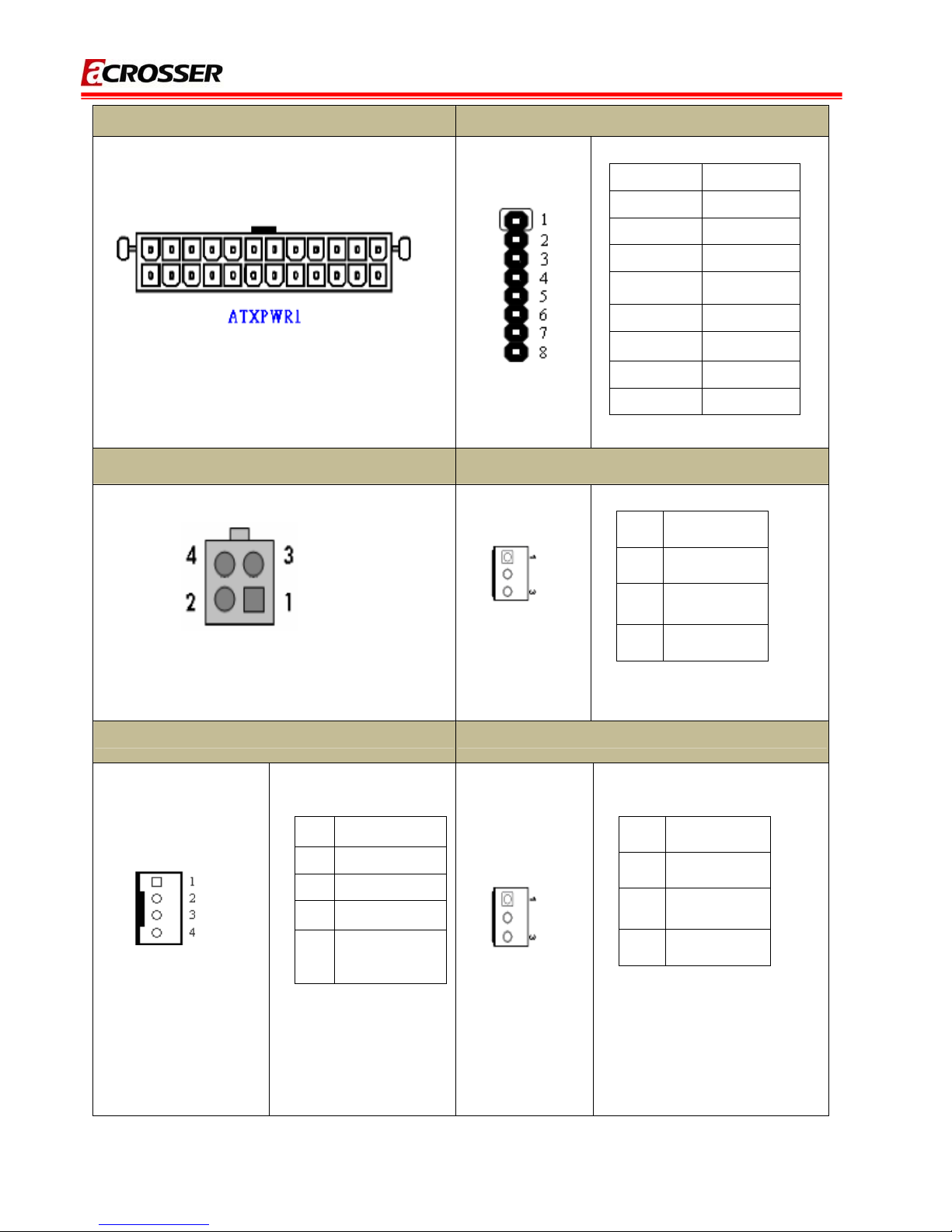

22. ATXPWR1 ( ATX Power Supply Input ) 23. CPLD1 ( for CPLD Firmware Update)
PIN SIGNAL
1 3VDUAL
2 G_TDO
3 G_TDI
4 NC
5 NC
6 G_TMS
7 GND
8 G_TCK
24. ATX12V1. (ATX12V Power Input) 25. SYSFAN3 (System FAN connector 3).
PIN SIGNAL
1 GND
2 +12V
3 Fan speed data
26. CPUFAN1 (CPU FAN connector). 27. SYS_FAN2 (System FAN connector 2)
PIN SIGNAL
1 GND
2 +12V
3 Fan speed data
4 CPU FAN PWM
Control
PIN SIGNAL
1 GND
2 +12V
3 Fan speed data
14

AR-B5800A User Manual
28. SYS_FAN1 (System FAN connector 1). 29. RTC1
PIN SIGNAL
1 GND
2 +12V
3 Fan speed data
CMOS Backup Battery:
An onboard battery saves the CMOS
memory to keep the BIOS information
stays on even after disconnected your
system with power source.
Nevertheless, this backup battery
exhausts after some five years.
Once the error message like “CMOS
BATTERY HAS FAILED” or “CMOS
checksum error” displays on monitor,
this backup battery is no longer
functional and has to be renewed
30. JP1 (For LAN1/LAN2 Bypass Function
Select.).
31. CCMOS1.
Pins 1 and 2 shorted
(Default): Forced Normal.
Pins 2 and 3 shorted:
Controlled By CPLD.
O
therwise : Forced Bypass
15

AR-B5800A User Manual

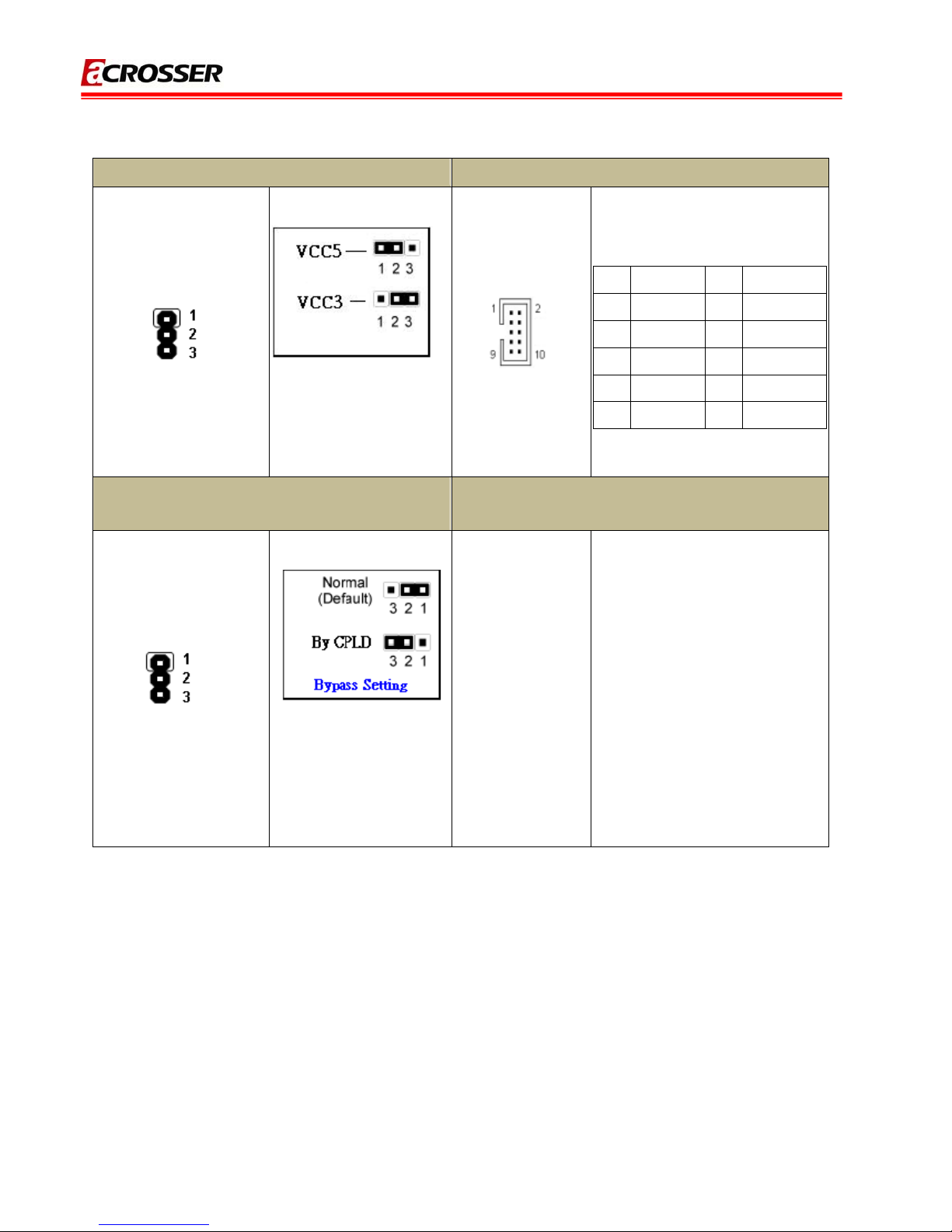

32. JP2 GPIO Header Voltage Selection 33. VGA1 (2x5pin 2mm Wafer).
Pins 1 and 2 shorted
(Default): VCC 5
Pins 2 and 3 shorted:
VCC 3
VGA Wafer CONNECTOR .
PIN SIGNAL PIN SIGNAL
1 RED 2 GND
3 GREEN 4 GND
5 BLUE 6 GND
7 VSYNC 8 DDCCLK
9 HSYNC 10 DDCDATA
34. JP4 (For LAN3/LAN4 Bypass Function
Select.).
Pins 1 and 2 shorted
(D .
P
Otherwise : Forced Bypass
efault): Forced Normal
ins 2 and 3 shorted:
Controlled By CPLD.
16

AR-B5800A User Manual
3 BIos setting
This chapter describes the BIOS menu displays and explains how to perform common tasks
needed to get the system up and running. It also gives detailed explanation of the elements found
in each of the BIOS menus. The following topics are covered:
Main Setup
Advanced Chipset Setup
Peripherals Setup
PnP/PCI Setup
PC Health Setup
Boot Setup
Exit Setup
17

AR-B5800A User Manual
3.1 Main Setup

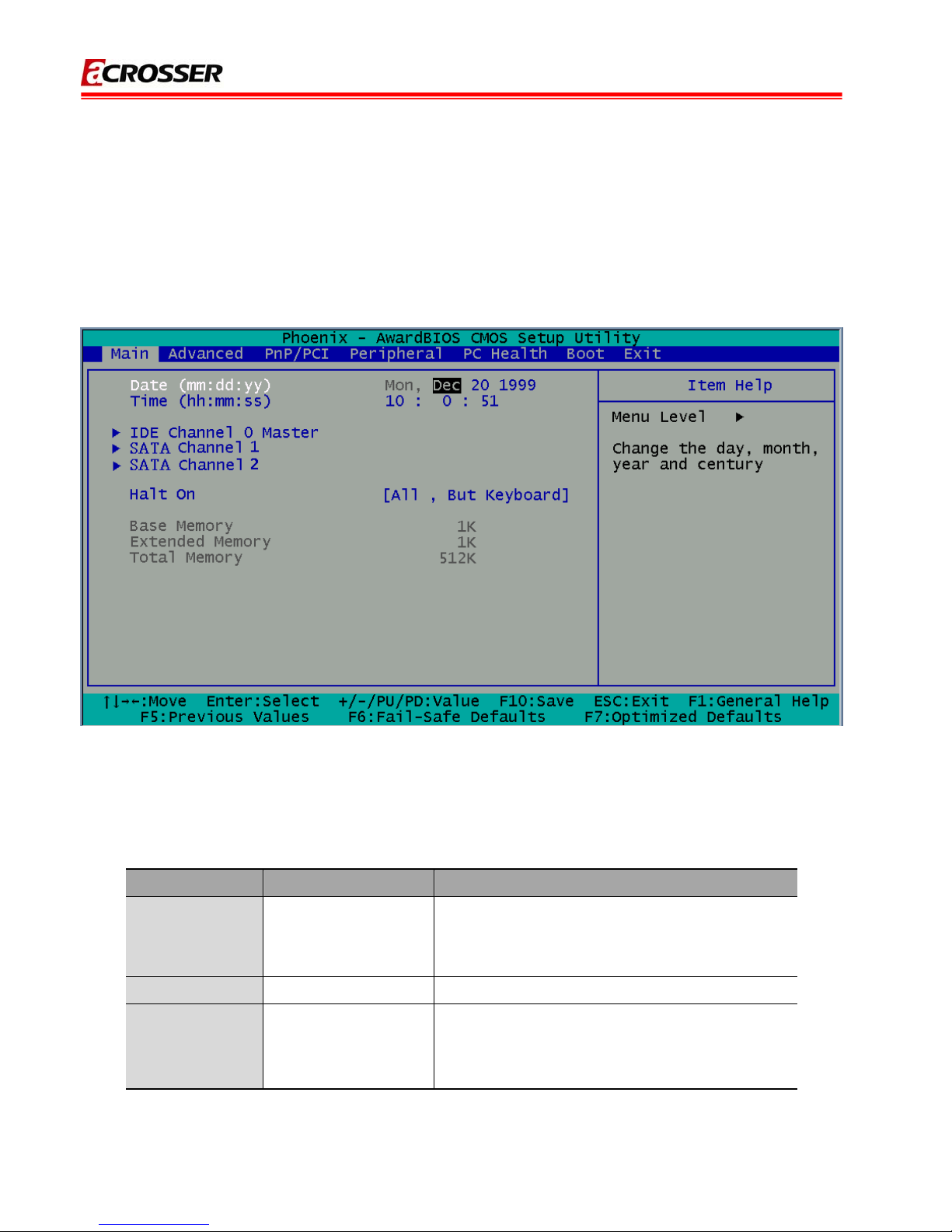

Once you enter the Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the screen.
Use the arrow keys to highlight the item and then use the <Pg Up> <Pg Dn> keys to select the
desired value in each item.
Note: The control keys are listed at the bottom of the menu. If you need any help with the item fields, you
can press the <F1> key, and the relevant information will be displayed.
Option Choice Description
Date Setup N/A
Set the system date. Note that the ‘Day’
automatically changes when you set the
date.
Time Setup N/A Set the system time.
IDE Channel 0
Master N/A
The onboard CF connectors provide one
channel for connecting one CF CARD Only
the BIOS will auto-detect the CF type.
18

AR-B5800A User Manual
SATA Channel
1/2 N/A
The onboard SATA connectors provide 1
channel for connecting one SATA hard disks,
the BIOS will auto-detect the SATA type.
Halt On
All Errors,
No Errors,
All but keyboard.
Select the situation in which you want the
BIOS to stop the POST process and notify
you.
3.2 Advanced Chipset Setup
This section allows you to configure and improve your system and follows you to set up some
system features according to your preference.
Option Choice Description
Quick Power On Self
Test
Enabled
Disabled
This category speeds up Power On Self Test (POST) after you
have powered up the computer. If it is set to Enable, BIOS will
shorten or skip some check items during POST.
19

AR-B5800A User Manual
Full Screen Logo
Show
Enabled
Disabled
Select Enabled to show the OEM full screen logo if you have
add-in BIOS.
APIC Mode Enabled
Disabled
Advanced Programmable Interrupt Controller.This item
[Enabled] for more system INTerrupts that AR-B5800A
required.
Pre-allocated
Memory Size
32Mb
64Mb
128Mb
This Item is for setting the Frame Buffer (Share system memory
as display memory).
DVMT Mode Enabled
Disabled
Dynamic Video Memory Technology.
[Enabled] for optimizing amount of memory is located for
balanced graphics and system performance.
Console Redirection Enabled
Disabled
[Enabled] for user who w ant to remote control the system via
serial port.
Baud Rate 115200(Max) The baud rate of remote control machine should the same as
the system for communication.
LAN Bypass
Function
Enabled
Disabled For user Enable/Disable LAN Bypass Function !!.

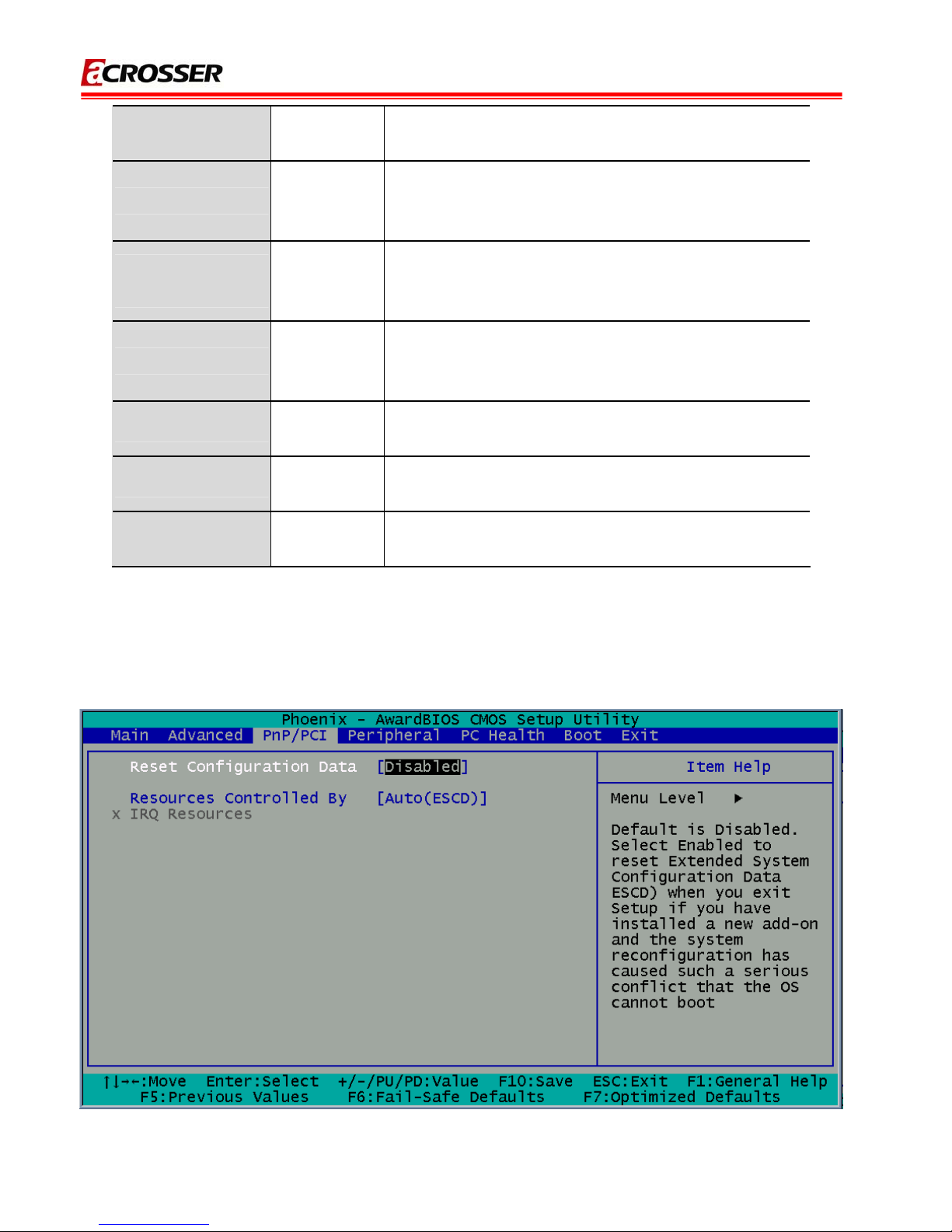

3.3 PnP/PCI Setup
The option configures the PCI bus system. All PCI bus system on the system use INT#, thus all
installed PCI cards must be set to this value.
20
