ACTi E51 Instructions for use
www.acti.com
E51 Hardware User’s Manual
2
Table of Contents
0. Precautions 3
1. Introduction 4
Package Contents ........................................................................... 4
Features and Benefits ..................................................................... 5
Safety Instructions .......................................................................... 6
Physical description ........................................................................ 8
Installation Procedure .................................................................... 9
Ceiling Mount.................................................................................9
Wall Mount...................................................................................12
Adjust Viewing Angle and Focus..................................................15
Basic Connections ......................................................................... 17
Product Specification.................................................................... 18
2. Accessing Camera 19
If you have DHCP server / router in your network: ...................... 19
If you do
NOT
have DHCP server / router in your network: ......... 19
www.acti.com
E51 Hardware User’s Manual
3
0. Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions.We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
FCC/CE Regulation
NOTE:This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the users will be required to correct the
interference at their own expense.
www.acti.com
E51 Hardware User’s Manual
5
Features and Benefits
This is a cutting-edge digital video surveillance camera.It can compress and transmit real time
images with outstanding image quality through a standard TCP/IP network.This camera is
your best choice to build an intelligent IP surveillance system.
H.264 High Profile/MJPEG Multi-Codec Dual Streaming
This device supports 2 compression formats, H.264 High Profile and MJPEG.It brings superior
image quality at 30 frames per second up to a resolution of 720p (1280 x 720) pixels and VGA
(640 x 480) pixels.
Built-in Hardware Motion Detection
No more external motion sensors are required.You may assign up to 3 video motion detection
areas.By tuning the object size and sensitivity, it will reliably detect objects passing though is
view. Hardware motion detection also offers better sensitivity and faster response time than
software motion detection.
Powerful Bundled Surveillance Software
To extend the capabilities of the IP Camera series, a powerful surveillance program is included
in the package for free. Users can easily use an existing PC as a digital video recorder.
Scheduled recording and manual recording keep every important video recorded in the local
hard disk. Reliable and accurate motion detection with instant warning enables immediate
response in every condition.Quick and simple search and playback function lets you easily find
the images and video you want.
Software Development Kit Support
This IP Camera can be integrated or controlled by applications from third party software
developers. Software developers can save considerable efforts by using our Streaming Library
or ActiveX control. Please contact us for details on integration support.
www.acti.com
E51 Hardware User’s Manual
6
Safety Instructions
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.
www.acti.com
E51 Hardware User’s Manual
8
Physical description
1) Power LED
LED light will light up while the power is on. LED light will light off after the unit has successfully
completed the boot process.
2) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector.Supporting NWAY, this
IP device can auto detect the speed of local network segment (10Base-T/100Base-TX
Ethernet).
3) Reset Button
Step 1: Press and continue to hold the Reset Button for 15 seconds (with a sharp tipped object,
like a pen.) while the power of the unit is on.
Step 2: The Ethernet LED light will turn off for about 1~2 seconds and flash on for another
second.By this time the reset to default operation is already completed.You may then release
the reset button.This length of time fluctuates slightly with the environment.The unit will come
back on and stay on after a few more seconds.The unit will start up with factory default
settings automatically.
www.acti.com
E51 Hardware User’s Manual
12
Wall Mount
Tighten wall mount bracket to the wall by 3 PAN Head Tapping screws
Use the mounting plate and choose the correct three screw holes.
Tighten the plate to wall mount bracket with M4*6 screws (not to use screws other than flat
heads), and connect all necessary cables through the hole on the plate and wall mount kit
www.acti.com
E51 Hardware User’s Manual
17
Basic Connections
Follow the procedures below to connect the IP device to the respective apparatuses.
Please use a PoE (Power over Ethernet) supported switch or injector:
1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45
connector.
2) Connect your PoE Switch / Injector to PC with another CAT5 / CAT6 network cable.
www.acti.com
E51 Hardware User’s Manual
18
Product Specification
E51
• Device
Device Type Fixed Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Day / Night No
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 °K)
Mechanical IR Cut Filter No
IR Sensitivity Range No
IR LED No
Electronic Shutter 1/5 - 1/2,000 sec (Manual / Auto mode)
• Lens
Focal Length / Aperture Fixed focal, f2.8 mm / F2.0
Iris Fixed iris
Focus Fixed focus
Mount Type Board Mount
Horizontal Viewing Angle 77.5°
Viewing Angle Adjustment Pan: 0°- 330°; Tilt: 0°- 180°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate
vs. Resolution
30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement
Basic WDR; White balance: automatic, hold, and manual;
Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response
Notify control center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source / Consumption PoE Class 2 (IEEE802.3af) / 3.79 W
Weight 292 g (0.64 lb)
Dimensions (Φ x H) 128 mm x 99 mm (5.12” x 3.90“)
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE, FCC
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
www.acti.com
E51 Hardware User’s Manual
19
2. Accessing Camera
If you have DHCP server / router in your network:
Many network server / routers are able to automatically provide IP addresses through DHCP.If
you are using such a network, just plug in your computer and IP Camera into the network and
your IP device will acquire network address by itself. Find and access the device with our IP
Utility program.You may download it at:
http://www.acti.com/product/detail/Software/ACTi_Utility_Suite
If you do
NOT
have DHCP server / router in your
network:
1. Configure your PC to use the same subnet by changing your PC’s IP address to the
subnet with prefix 192.168.0.XXX.The last number should be anything from 1 to 254
except 100 and other occupied IP addresses. Subnet mask should be 255.555.255.0.
2. The default IP used by this device is 192.168.0.100. Please make sure your PC is
NOT using this address and that no two equipments use the same IP address in
the network.

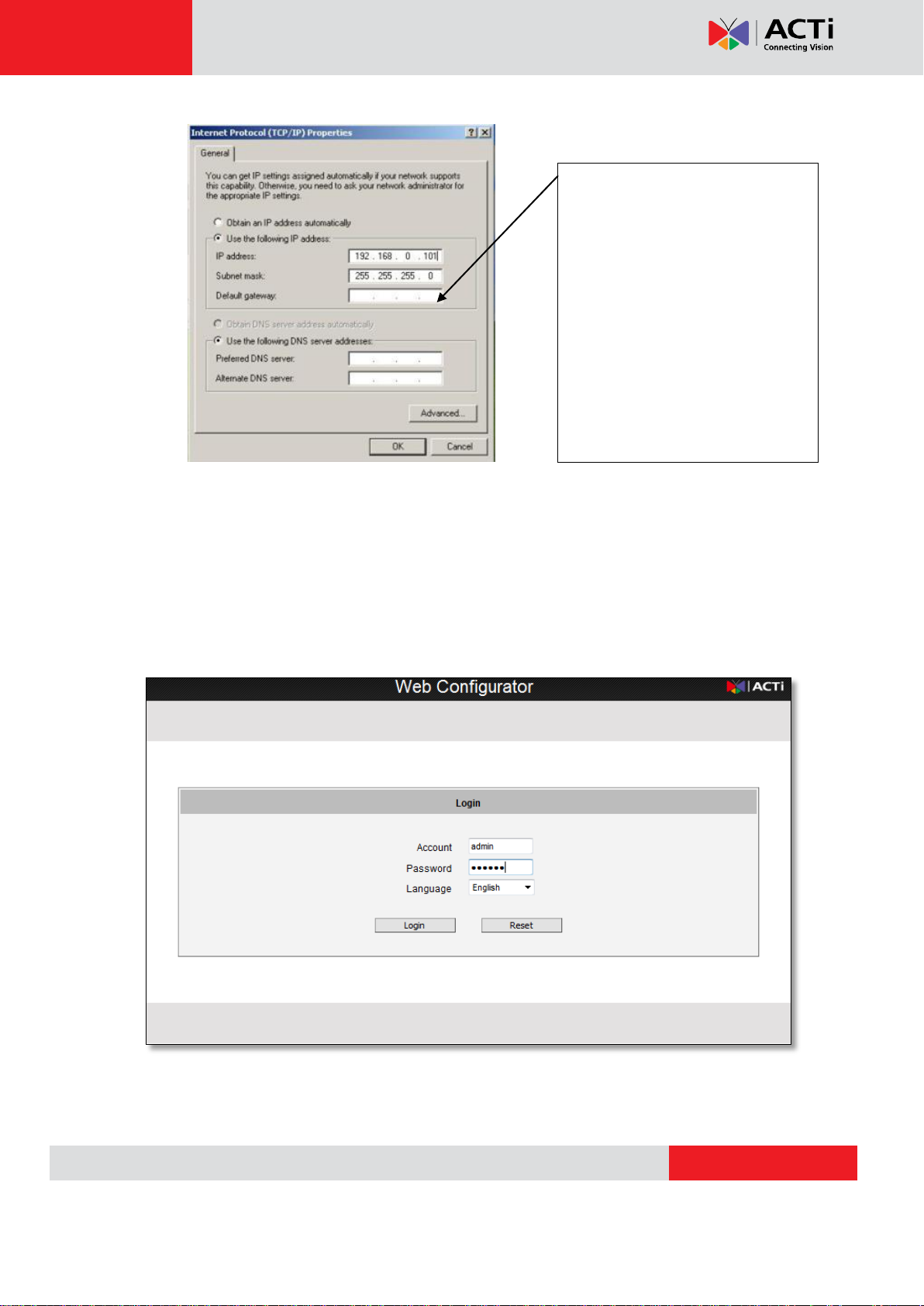

3. Change your IP address by going to Control Panel ->Manage Network Connections ->
Right click on the connection to change -> Option -> TCP/IP IPv4 Properties.
www.acti.com
E51 Hardware User’s Manual
20
4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP:
192.168.0.100
5. When you see the login window, please input default user and password:
Default User: Admin Password: 123456
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255.
0
(NOTE: xxx should be a number
from 1 to 254 except 100, which is
used by the IP device. Please also
make sure that no two equipments
use the same IP address in the
same network..)
