ActronAir easyconnect CRE-071AS Assembly instructions

ActronAir Easyconnect
Installation and Setup Guide for
UltraSlim Ducted, Bulkhead Ducted
and Cassette Systems
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.
That’s better. That’s Actron.
Smart Port compatible with:
CRE-071AS MRE-035AS
CRE-100AS MRE-050AS
CRE-125AS BRE-026BS
CRE-140AS BRE-035BS
LRE-071AS BRE-052BS
LRE-100AS BRE-071BS
LRE-130AS

Installation Guide Easyconnect App
2Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
Table of Contents
01. Specification and Precautions .............................. 3
02. Components ........................................................4
03. Installation........................................................... 5
04. Download and Install the Easyconnect App ........ 10
05. Create an Account.............................................. 10
06. Get Started.......................................................... 11
07. Operating Functions ...........................................18

Installation Guide Easyconnect App
3
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
01. Specification and Precautions
Model: WUK-CAC1 (CAC#WF-60A1)
Standard: IEEE 802.11b/g/n
Antenna Type: External omnidirectional Antenna
Frequency: Wi-Fi 2.4G
Maximum Transmitted Power: 15dBm Max
Operation Temperature: 0 °C ~45 °C
Operation Humidity: 10%~85%
Power Input: DC 5V/300mA
Applicable system: iOS, Android
NOTE
Easyconnect App will require software updates from time to time to ensure
compatibility with the latest Android and iOS operating versions. ActronAir will
ensure updates are made quickly but will ultimately not be responsible for any
issues relating to Android and iOS operating systems.
Wireless safety strategy:
Smart kit only supports WPA-PSK/WPA2-PSK encryption and non encryption.
WPA-PSK/WPA2-PSK encryption is recommended.
NOTES
• The Smart phone camera needs to be 5 megapixels or more to scan the QR
code.
• Network encryption may need to be reconfigured, when necessary, to
ensure connectivity.
• Where issues in connectivity arise from the wireless network, there may
be some differences in the display between the Easyconnect App and
connected controllers.
• ActronAir will not be liable for any issues and problems caused by network
connections, Wi-Fi router and smart devices. Please contact the product
supplier of these third party devices directly to get further assistance.

Installation Guide Easyconnect App
4Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
02. Components
Name Shape Quantity
Smart Port Reciever and CN2 Cable 1
Extension Cable (6 m) 1
4 Core Wire Control Cable 1
Disposable Remote Controller
(Easyconnect setup only) 1
Easyconnect Wi-Fi USB 1
QR Label 1
Screw 3
Wall Mounting Plug 3
AAA Battery (1.5V) 2

Installation Guide Easyconnect App
5
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
03. Installation

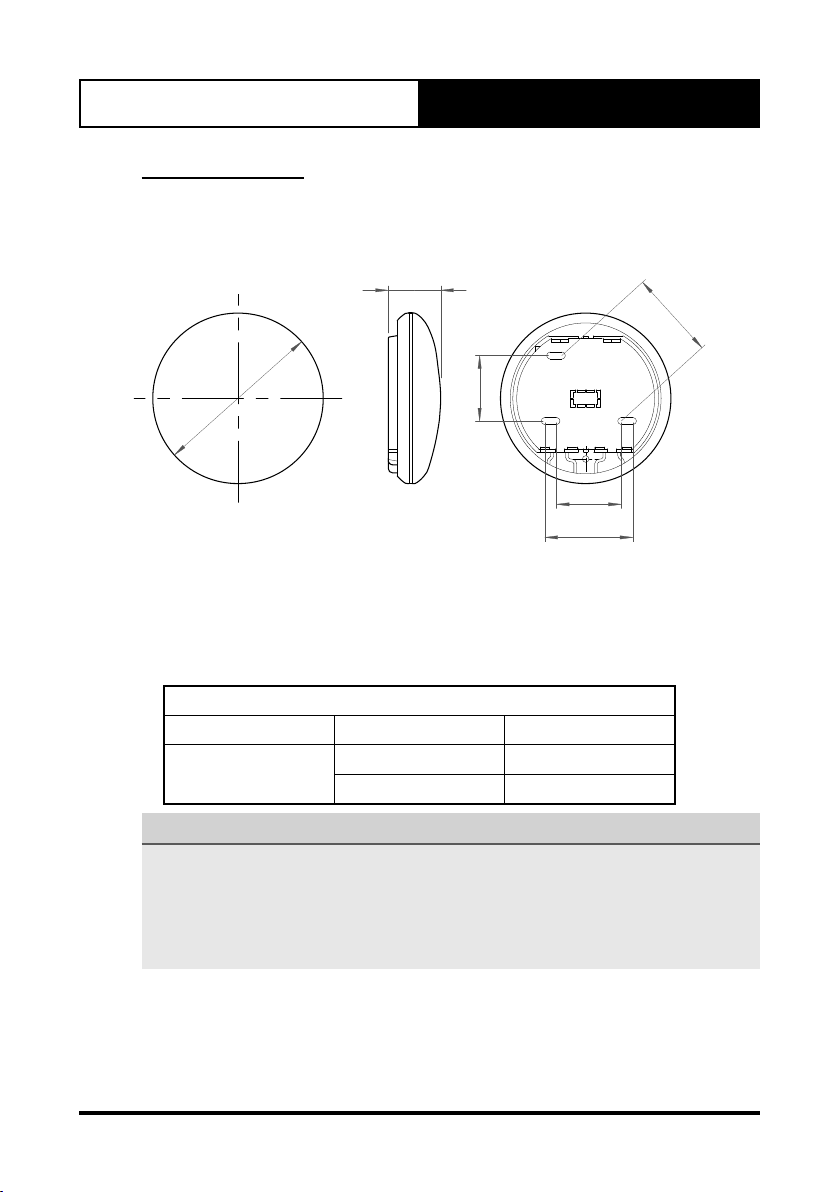

Wi-Fi controller structure size figure:
( All dimensions are in mm unless specified).
46
62
36.8
Ø120.0
46
62
Figure 4-1
Do not exceed supplied cable lengths between indoor unit and smart port.
Extension of this length may create loss of communication between the PCB
and/or wired control Wi-Fi Smart Port. We recommend the following wired
controller cable length maximums:
Wiring Specifications
Wiring type Size Total Length
Shielded PVC or
Cable
0.75mm2≤ 20m
1.5mm2≤ 50m
NOTE
In order to avoid potential interference, it is recommended that the Wi-Fi
Smart Port is mounted inside the living space, as close to the internet router
as is practical. It is not recommended to install the Smart Port inside the
wall cavity or roof space. If possible, avoid items which can cause potential
interference in direct line between the modem and the Smart Port.

Installation Guide Easyconnect App
6Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126

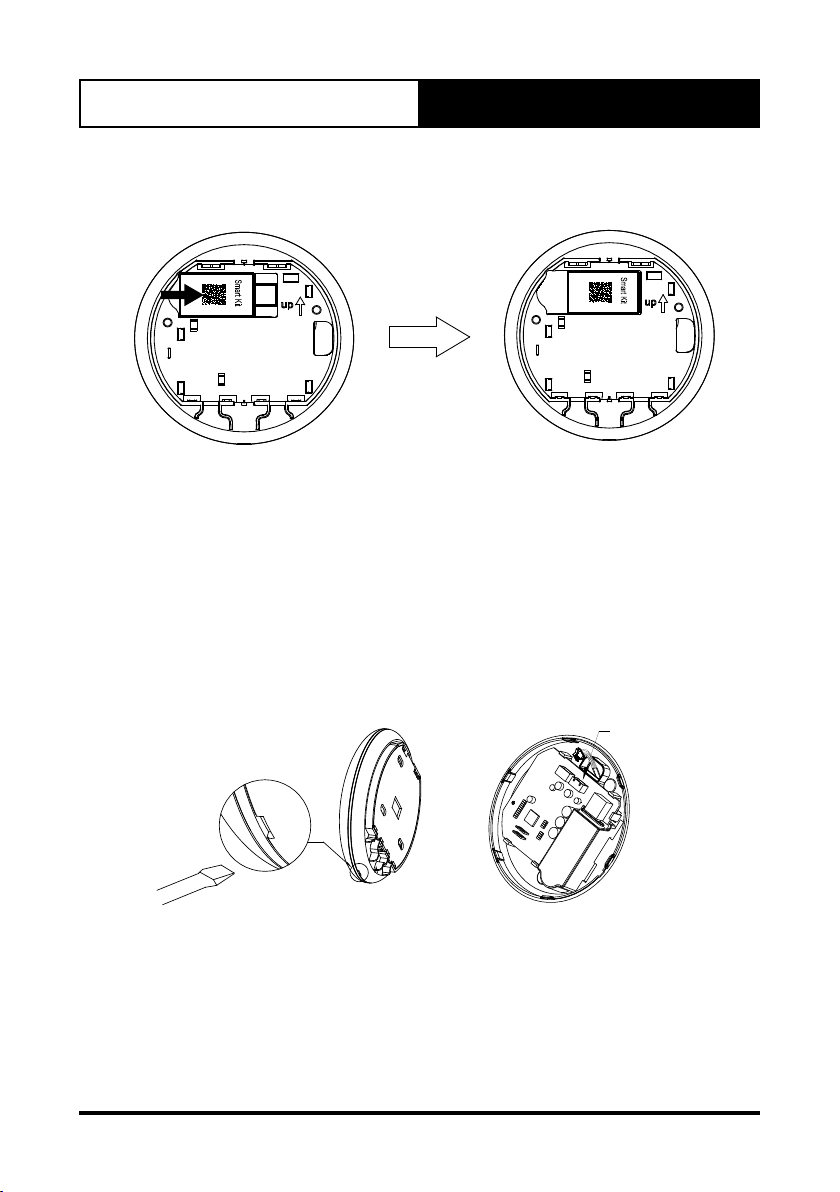

1. Remove the backing plate from the Smart Port Reciever.
Insert a screwdriver into the two slots in the lower part of the Smart Port
Reciever and remove the backing plate. (See Figure 4-2)
8
Fig 4-5
4. INSTALLATION METHOD
4.Remove the upper part of the smart port
For exposed mounting, fasten
the back plate on the wall with
the 3 screws (M4×20) and plugs.
(Fig.4-6)
6. Insert the smart kit with slightly strength into the main PCB
of the smart port .(Fig.4-7)
5. Fasten the back plate of the smart port
Slots
Insert a slot screwdriver into the slots in the
lower part of the smart port (2 places), and
remove the upper part of the smart port.
(Fig.4-5)
Fig 4-6
Back plate
Screws (M4×20)
Fig 4-7
Figure 4-2
Slots
2. Mount the backing plate of the Smart Port Reciever inside the
conditioned area, on the wall or ceiling, as close to the Wi-Fi router as is
practical , using the three screws (M4x20) provided. (See Figure 4-3)
8
Fig 4-5
4. INSTALLATION METHOD
4.Remove the upper part of the smart port
For exposed mounting, fasten
the back plate on the wall with
the 3 screws (M4×20) and plugs.
(Fig.4-6)
6. Insert the smart kit with slightly strength into the main PCB
of the smart port .(Fig.4-7)
5. Fasten the back plate of the smart port
Slots
Insert a slot screwdriver into the slots in the
lower part of the smart port (2 places), and
remove the upper part of the smart port.
(Fig.4-5)
Fig 4-6
Back plate
Screws (M4×20)
Fig 4-7
Figure 4-3
Backing Plate
Screws (M4x20)

Installation Guide Easyconnect App
7
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
3. Insert the supplied Easyconnect Wi-Fi USB into the port at the back of the
Smart Port Reciever. (See Figure 4-4)
8
Fig 4-5
4. INSTALLATION METHOD
4.Remove the upper part of the smart port
For exposed mounting, fasten
the back plate on the wall with
the 3 screws (M4×20) and plugs.
(Fig.4-6)
6. Insert the smart kit with slightly strength into the main PCB
of the smart port .(Fig.4-7)
5. Fasten the back plate of the smart port
Slots
Insert a slot screwdriver into the slots in the
lower part of the smart port (2 places), and
remove the upper part of the smart port.
(Fig.4-5)
Fig 4-6
Back plate
Screws (M4×20)
Fig 4-7
Figure 4-4

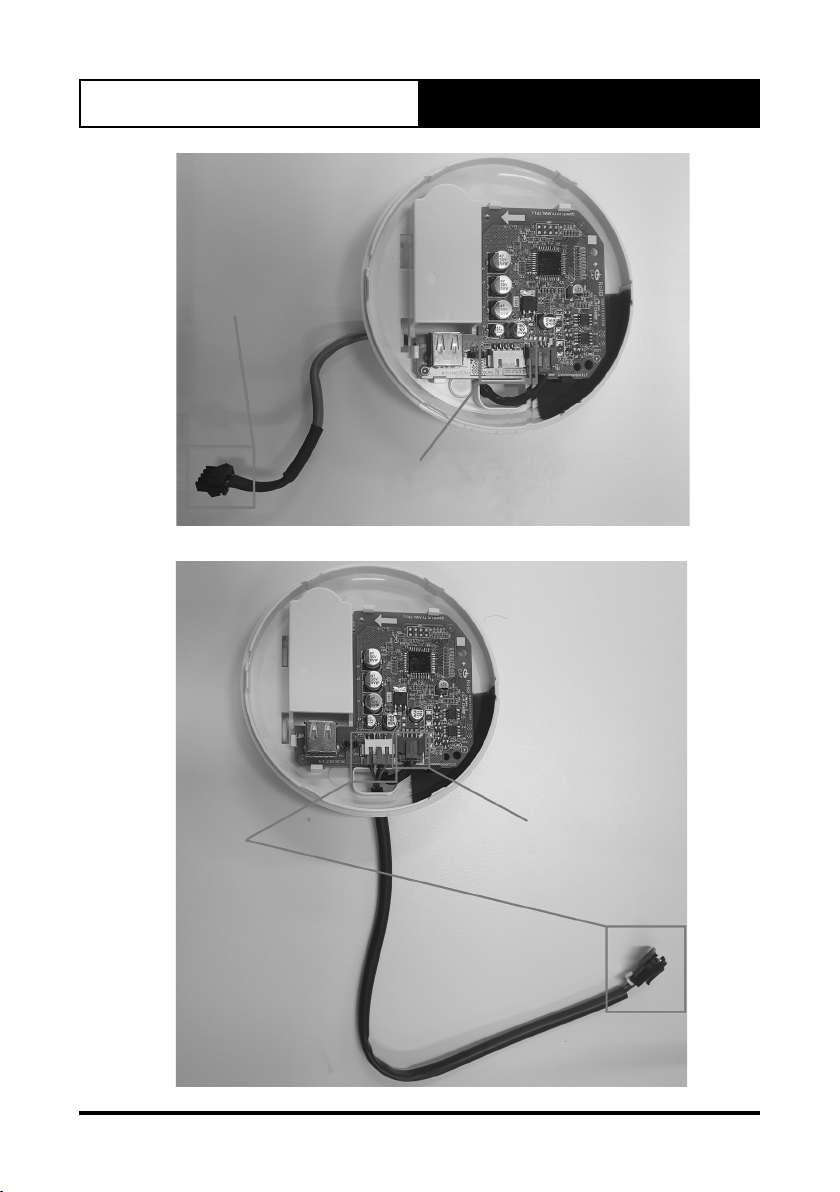

4. Connect the Smart Port:
There are two ways to connect the Smart Port to the air conditioning unit.
a. Connection to indoor unit and wired controller
Remove the top cover as shown in Figure 4-5 and Figure 4-6. Use the
wired control cable (supplied) to connect the wired controller and CN3
of the Smart Port. (See Figure 4-7). Use the extension cable (supplied)
to connect the Smart Port Receiver from the CN2 port to the indoor PCB
CN40 port.
11
4. INSTALLATION METHOD
NOTE:
Connection for wired control function by KJR-120C/TF-E
KJR-120G2/TFBG-E
9. Connect the smart port to the wire controller （if needed）
Fig 4-12
①Remove the top cover from the gap between the top cover
and bottom by a tool with at head. (See Fig.4-12)
②Use the connective cable to connect the wire controller
and CN3 of the smart port. (See Fig.4-13)(refer to the Wire
controller manual for details)
Fig 4-13
CN3
Figure 4-5 Figure 4-6
CN3

Installation Guide Easyconnect App
8Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
Figure 4-7
To main PCB
CN3 Terminal
(4 Core Wire Control
Cable Connection)
Figure 4-8
CN2 Cable
Connected
To the
Wired
Controller

Installation Guide Easyconnect App
9
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
7
4. INSTALLATION METHOD
Fig 4-4
smart port
CN3
4-core shielding wire
Extension cord
The connective wires group-2
wire controller
If you want to use both wire controller and WIFI control at the
same time , you can use the CN3 port on the smart port
terminal to connect the wire controller ( shown as Fig 4-4).
Figure 4-9
b. Conection to indoor unit with no wired connection.
Run the 6m Extension Cable (Supplied) from the Smart Port Receiver CN2
connector to the indoor pcb terminal CN40. See Figure 4-10.This is the
required method of installation if using exclusively with Wi-Fi or if using
with a remote controller.
6
4. INSTALLATION METHOD
Please conrm the connective wires group-1 (shown in
Fig 4-3) , one side is connected to the port CN40 on indoor
main PCB board , another side is plugged into CN40 on the
WIFI smart port terminal . On some case , when you need
a extension cord , please contact your distributor .
Fig 4-3
3.Wiring gure
If want to extent the wire ,please use extension cord
(purchased separately) . (See Fig.4-3)
smart port
Mainboard
4-core shielding wire
Extension cord
(purchased separately)
The connective wires group-1
CN40
CN40
Figure 4-10
Extension cord
CN2

Installation Guide Easyconnect App
10 Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
5. Reattach the upper part to the PCB backing cover.
Buckle the upper case after adjusting it, to avoid clamping the wiring
during installation and clip it into place onto the backing plate mounted
on the wall or ceiling. (See Figure 4-11)
10
Fig 4-10
4. INSTALLATION METHOD
CAUTION
Avoid the water enter into the smart port, use trap and putty
to seal the connectors of wires during wiring installation. (Fig.
4-9) When under installation, reserve certain length of the
connecting wire for convenient to take down the smart port
while during maintenance.
Putty Putty
Trap
Trap
8. Reattach the upper part of the smart port
After adjusting the upper case and then buckle the upper
case; avoid clamping the wiring during installation. (
Fig 4-11 )
Fig 4-11
Figure 4-11
04. Download and Install the Easyconnect App
Search Easyconnect on your compatible mobile phone, tap download and
then open the app to create a new account. (Refer to Section 05, for new
account setup)
05. Create an Account
●Please ensure that you have a secure and operational internet
connection readily available for the creation of your account and
system setup.
●You will also require an active e-mail address which will be used as
your username when creating an account, logging into and using the
Easyconnect app.

Installation Guide Easyconnect App
11
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
2. Enter your e-mail address, create and
confirm a unique password, confirm
the terms and conditions and tap on
Registration.
1. Tap on Create Account.
06. Get Started
NOTES
• Ensure that the Android or iOS device can be automatically connected to
the Wi-Fi network - you can adjust this in your phone settings.
• To configure Easyconnect, a wireless remote controller must be used - a
disposable control is supplied in the kit to setup the Wi-Fi.

Installation Guide Easyconnect App
12 Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
1. Tap on + Add Device.
2. Tap the Cassette/Duct option.

Installation Guide Easyconnect App
13
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
3. Power the Air conditioner off from the
power supply for 15 seconds, then back
on again.

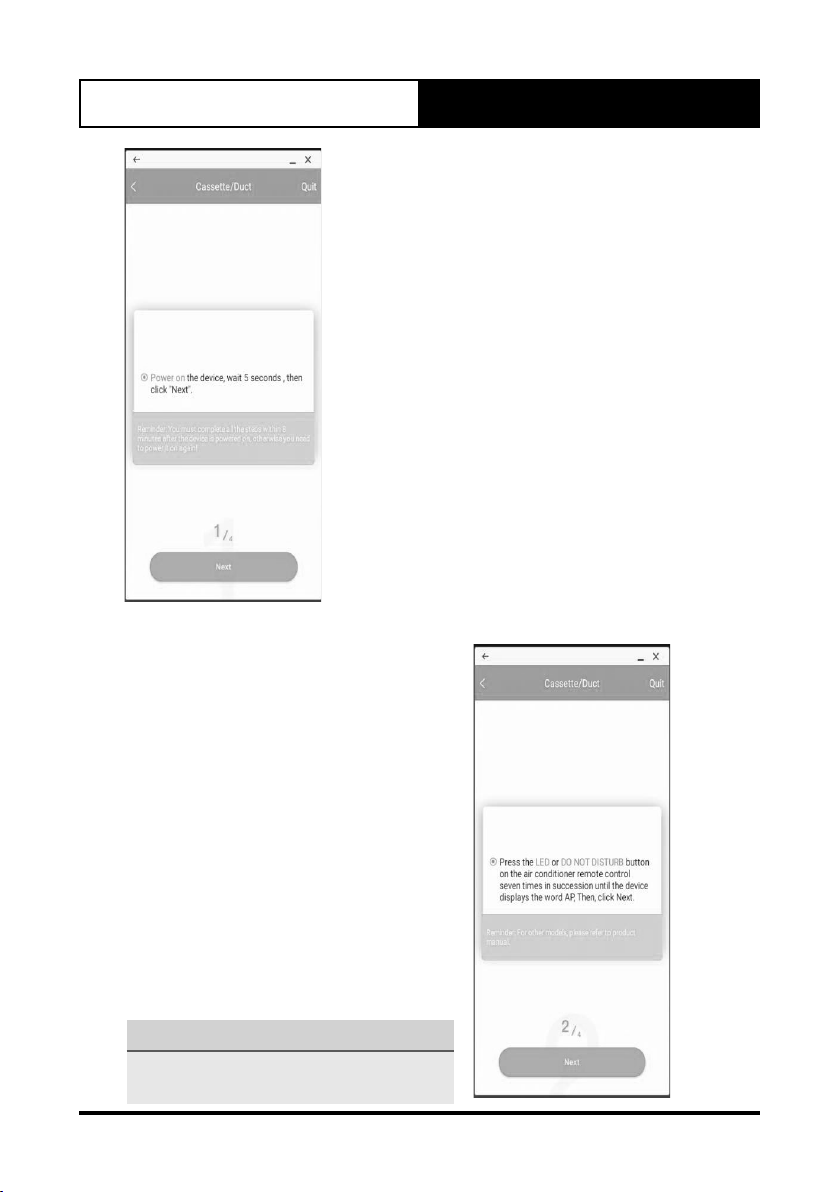

4. Within 8 minutes of power being reset,
press the LED button on the remote
control 7 times - this will initiate access
point mode and allow your phone to
link with the Easyconnect app setup
process.
Ensure the remote control is pointed at
the appropriate receiver:
Cassettes (CRE) – Receiver on the
indoor unit fascia.
Ducted (LRE/BRE) – Remote receiver
PCB connected to the indoor unit
(Port CN10) on unit commissioning.
(Appendix A on Page 19)
If no receiver is located on the indoor
unit it can be purchased as a spare part
LRE13016B .
NOTE
Access Point mode is indicated by the
white LED on the smart port flashing.

Installation Guide Easyconnect App
14 Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126

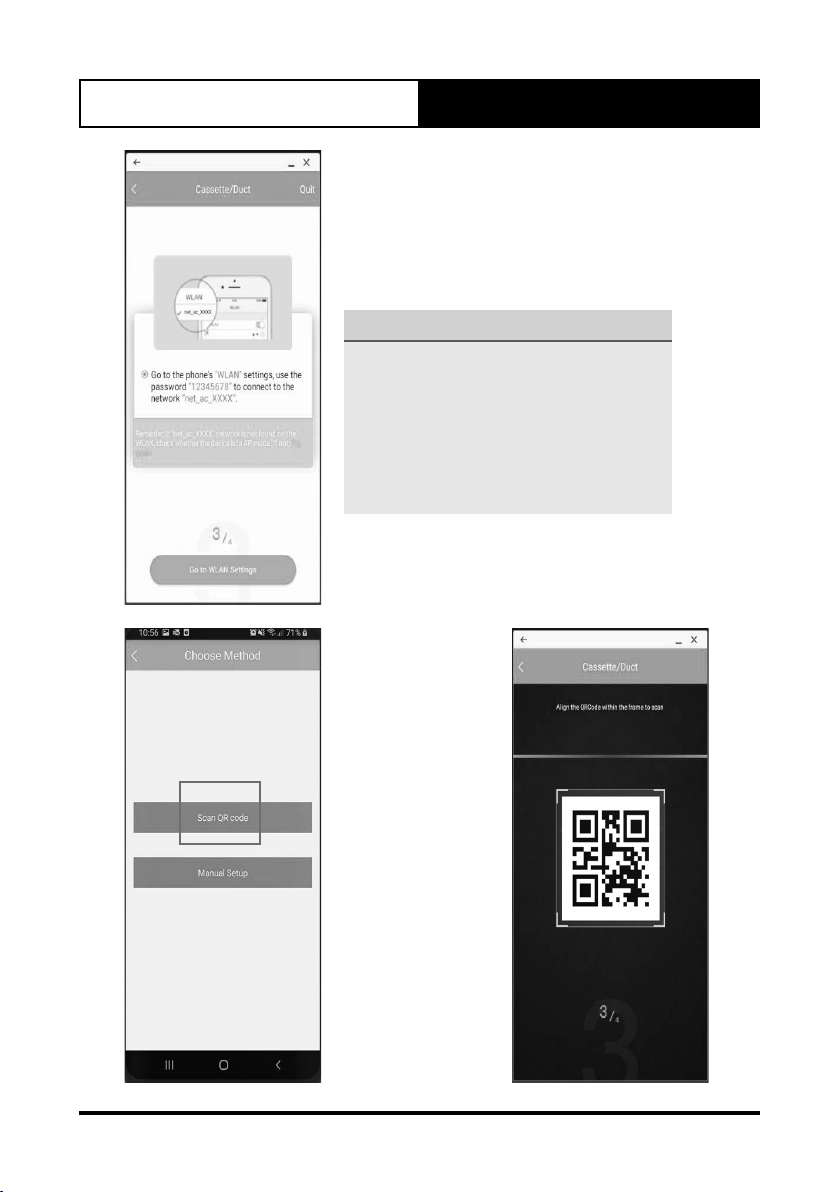

5. The next step will direct you to connect
your network - link to: net_ac_xxxx
Default password is “12345678”.
NOTE
Android devices will allow you to scan the
QR code provided with the
Easyconnect module, this will bypass
the manual setup - allowing for quicker
configuration. For android configuration
using QR scanner, please refer to images
below.
You can either scan
the QR code or do
manual setup.

Installation Guide Easyconnect App
15
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126

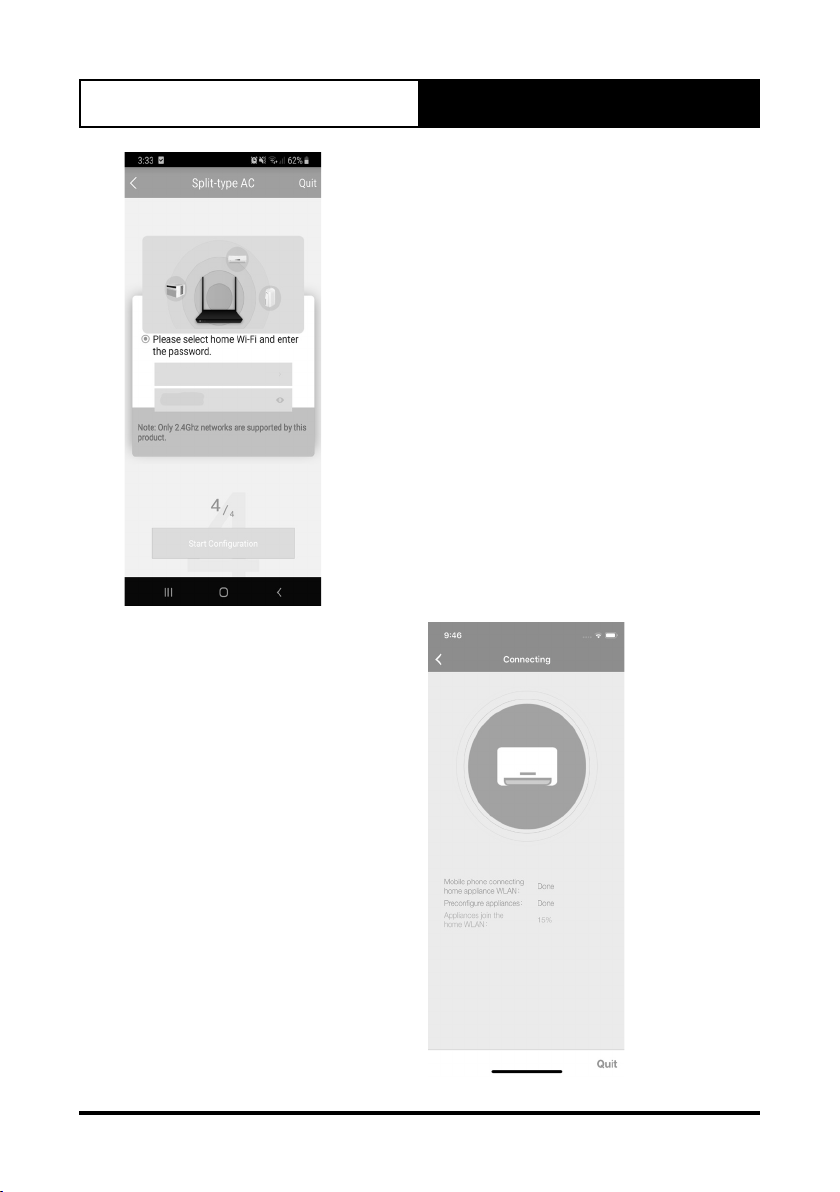

6. Select your Wi-Fi name
(SSID) and enter your router
password to commence
configuration.
7. When a Wi-Fi connection has been
established between Easyconnect
and the network - automatic setup
will begin.
• Once network configuration is
successful, a success message
notification will appear on the
display screen.
• If the device status displayed is
offline, refresh the device list by
swiping down and releasing the
screen.
Alternatively, turn off the unit and turn
it on again.

Installation Guide Easyconnect App
16 Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
8. When opening the Easyconnect
App, you are greeted with this
login page.
9. After a moment, you are
taken to your account screen,
which will have your linked
air conditioners. Multiple
air conditioners can be
controlled from the one
account.

Installation Guide Easyconnect App
17
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
10. Press the power button to
turn on the air conditioner.
11. Once on, you can control
all available options for that
air conditioner, to control
others, you must go back
to the main screen and
activate them separately.

Installation Guide Easyconnect App
18 Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
07. Operating Functions
Clickwheel
Use the clickwheel to adjust the system set temperature up/down.
Vertical Swing
Turns On/Off vertical louvre.
Horizontal Swing
Turns On/Off horizontal louvre.
Turbo
Sets turbo mode On/Off by pressing the lightning symbol when operating in
heat and cool modes.
Sleep Mode
8 hour customisable sleep setting depending on the user’s comfort.
Check System
Run the system through a diagnostic test to check more than 100 system
parameters.
Share Device (via Easyconnect app on mobile devices)
Share access to air conditioner control, by sharing the QR code on each
mobile device so that all family members can have easy access to the control
of the air conditioner.
Timer On/Off
Operating on a 12/24 clock depending on user preference.

Installation Guide Easyconnect App
19
Installation Guide - Easyconnect App
Document: 9590-4009 Ver. 2 201126
Appendix A
Receiver Board for Ducted Units:

©Copyright 2020 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited.
ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifications are subject to change without notice.
Document: 9590-4009 Ver. 2 Issue Date: 11/2020
Refrigerant Trading Authorisation
No.: AU06394
