Adam Equipment CBW Series User manual

@Adam Equipment Company 2005
Adam Equipment
CBW SERIES
SERVICE MANUAL
ADAM EQUIPMENT CO. LTD.
p.n. 4331, Rev. A3, January 2005

@Adam Equipment Company 2005
2
CONTENTS
1.0 INTRODUCTION .............................................................................................3
2.0 TROUBLE SHOOTING GUIDE........................................................................3
3.0 ERROR CODES ..............................................................................................5
4.0 CBW DESCRIPTION .......................................................................................6
5.0 CBW CALIBRATION & PARAMETERS (VER.1.2-2.03)..................................7
5.1 CBW CALIBRATION (VER. 1.2-2.03) ..........................................................7
5.2 CBW PARAMETERS (VER. 1.2-2.03)..........................................................8
6.0 TWO POINT FACTORY CALIBRATION........................................................10
6.1 ADC OUTPUT CHECKING............................................................................11

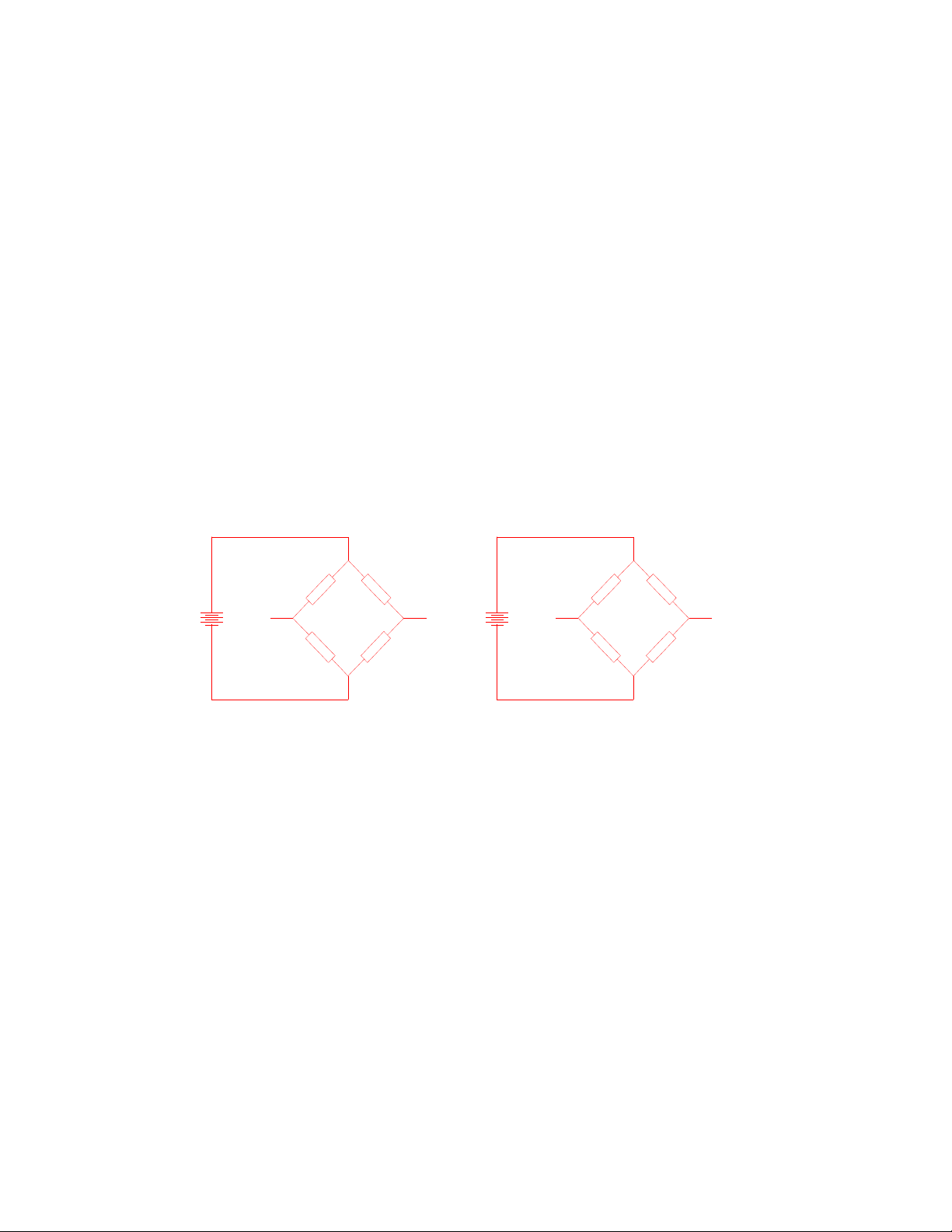

7.0 LOAD CELL DAMAGE...................................................................................12
8.0 CBW RS-232 INSTALLATION.......................................................................14
9.0 SCHEMATICS ...............................................................................................16

@Adam Equipment Company 2005
3
1.0 INTRODUCTION
The CBW series of scales are general purpose scales.
Refer to the Operators Manual for details of operation.
This manual will cover details of calibration and troubleshooting.
If you have a problem with the scales that is not directly addressed by this manual
then contact your dealer or Adam Equipment for more assistance.
In order to supply further assistance we will need the following information:
2.0 TROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Display is blank Power Switch faulty or not connected
No turn on test Battery not charged or faulty
Power supply faulty or incorrect type
E6 is displayed Pan not installed
Poor connection
Load cell damaged
Electronics faulty
“- - - - - -“appears on display Maximum capacity exceeded
Load Cell damaged
Electronics is faulty
Name of your company:
Contact Name:
Contact telephone, e-mail, fax or other methods:
Model number of the scales:
Serial number:
Software revision number (displayed when power is first turned on):
Brief description of the problem:
Include any recent history of the scale. For example-
Has it been working since it’s delivered
Water entered
Damaged from a fire
Electrical Storms in the area
Dropped on the floor, etc.

@Adam Equipment Company 2005
4
Display is unstable Drafts or air currents
Obstruction under pan
Sample is moving (animal weighing)
Vibrations through table
Temperature changed dramatically
Electronics faulty or Battery low
Weight value incorrect Calibration error, Recalibrate
Unit calibrated with inaccurate weight
Balance not level
Obstruction between sample pan
Wrong unit of weight displayed
Cannot use Full Capacity Over-load Stops hitting pan support or hitting
bottom of load cell
Electronics faulty
Parameters set incorrectly
Load Cell Damaged
Not Linear Overload stops hitting too soon
Faulty factory calibration
Off Centre Loading error Overload Stops not correct
Obstruction under pan
Battery will not charge Charging circuit failure
Battery Failure
Incorrect adapter (below 800 mA)
Processor failure

@Adam Equipment Company 2005
5
3.0 ERROR CODES
ERROR CODE DESCRIPTION POSSIBLE CAUSES

Initial Zero is greater than
allowed (4% of maximum
capacity) when power is turned
on or when the [Zero/Enter] key
is pressed.
Weight on the pan when turning
the scale on.
Excessive weight on the pan when
zeroing the scale.
Improper calibration of the scale.
Damaged load cell.
Damaged Electronics.

Keyboard error. Improper operation of the scale.

A/D count is not correct when
turning the scale on. Platform is not installed.
Load cell is damaged.
Electronics is damaged.

Scale is not stable when setting
the percentage weighing. The scale is not stable.
Improper operation of the scale.
 or 
or in old
versions 
Calibration error. Improper calibration (should be
within + 10% of the factory
calibration). The old calibration
data will be retained until the
calibration process is complete.

Scale is unstable. There is vibration or draft making
the scale unstable.
Electronics may be damaged.

@Adam Equipment Company 2005
6
4.0 CBW DESCRIPTION
The CBW scales have an enclosure with all components mounted within it. To gain
access to the components remove the 4 screws securing the cover to the base.
The basic unit consists of:
Base
Load Cell frame
Power switch
Main PCB assembly
Battery
Display PCB assembly
Keypad
All models of CBW are similar except the selection of load cells and the program.
The main circuit board is the same as used in the CBC scales. Normally if a problem
is found with a circuit board the most cost effective method of solving the problem is
to replace the circuit board.

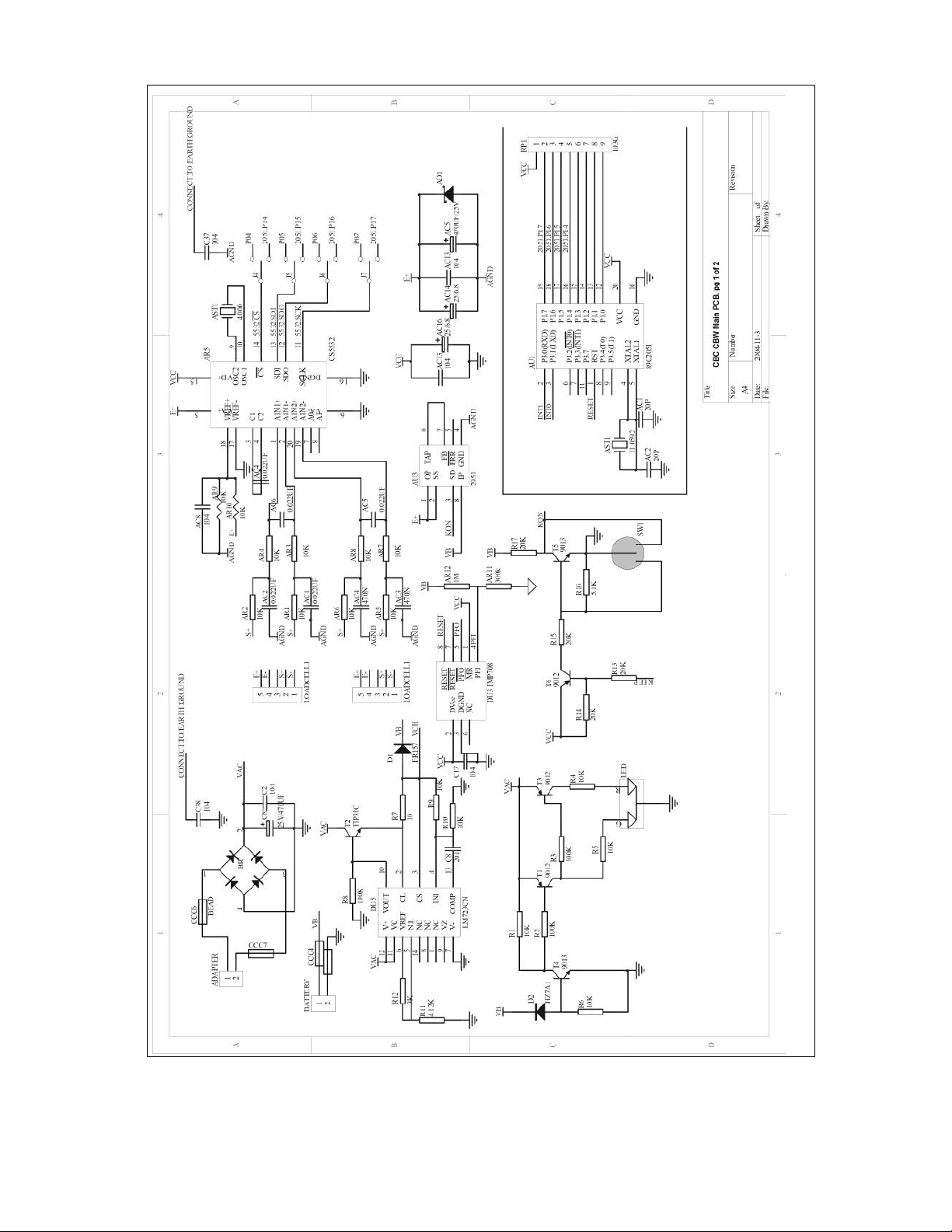

Schematics are attached in order to complete the documentation. However it is rare
that the problem due to a faulty component on the PCB is traced by a user.
The main PCB assembly includes:
A/D converter (AU1),
Microprocessor (DU1) and
Power supply/battery charger circuits (DU5, T2).

@Adam Equipment Company 2005
7
5.0 CBW CALIBRATION & PARAMETERS (VER.1.2-2.03)
5.1 CBW CALIBRATION (VER. 1.2-2.03)
The CBW scales calibrate using metric weights and the CBWa scales can calibrate
using either metric or pound weights, depending on the weighing unit in use before
calibration.
To start calibration turn the scale off and then turn it on again. Press the [Tare] and
[%] keys together once, during the initial counting from 9 to 0 on the display.
The display will show "  ". Remove all weight from the pan and then press the
[Zero/Enter] key to set the initial zero point when the scale is stable.
The display will then show “  ” at which point the calibration mass should be
placed on the pan. It is best to use a weight close to the full capacity of the scale.
Press the [Zero/Enter] key. The display will then show the last mass used. If this is
the same as the mass on the pan then this can be used or a different value can be
entered.
To use this value, press the [Zero/Enter] key when the stable indicator is on.
Or if a different value is desired, enter the value using the []arrow key to select the
flashing digit and the []to increment the flashing digit. If value is correct, press the
[Zero/Enter] key to accept when the stable indicator is on.
Remove the calibration weight as the scale counts back from 9 to 0.
If an error message “   ” or “   ” is shown during calibration, re-check the
calibration and repeat, if necessary. If the error cannot be corrected contact your
dealer or Adam Equipment for advice.
After calibration the scale should be checked to verify the calibration and linearity is
correct. If necessary, repeat the calibration.
Note: Ensure that the scale is stable before accepting any weight.
To view the ADC Counts press [Zero/Enter] and [%] together. At zero load, it
should be 25,000 and at full load, it should be approximately 500,000.
CBW
a scales
will also have the Lb or Kg (or g)
indicator on to show the
denomination of the weight requested. If the scale was in pounds before starting
calibration the weights requested will be pound values, or if the scale was weighing in
kilograms then metric weights will be requested.

@Adam Equipment Company 2005
8
5.2 CBW PARAMETERS (VER. 1.2-2.03)
The scale has several parameters that allow the user to set the scale to:
Display the weight in other increments of weight to minimise the affects of
vibration, wind or other environmental conditions.
Control the back light on the display. It may be necessary to turn the backlight
off to maximise battery life.
Set the Accumulation to Automatic, manual or set the RS-232 interface to
continuously print the weight.
Set the accumulation to be active when [Print] key is pressed or to be inactive.
Set a range for auto zero.
Select another weighing unit than the standard.
Disable the Limit Warning Beeper.
Adjust the ADC Speed.
To set these parameters press the [Func] and [Print] keys at the same time.
Setting the scale increment
The display will show "  " where  can be 1, 2, 5,10 or 20. The first value
shown is the default scale increment value.
To change to a different increment value press [Tare/].
Press the [Zero/Enter] key to store the changed value.
For example, on a 15kg scale the standard increment is 0.5g, the value can be
changed to 1.0g or 2.0g.
Control the backlight
The standard is to have the backlight operate automatically, turning it off when
the scale is not being used.
The backlight can be set to be "   ", "   " (Automatic) or "   ". The
maximum battery life is achieved with the backlight turned off.
Press the [Tare/] key to change the setting.
Press the [Zero/Enter] to store the changed setting.
Automatic accumulation
With "  " the memory will accumulate the weight automatically.
"  " will enable the manual accumulation.
"
  " will set the RS-232 interface to send the weight continuously and the
accumulation function is disabled.

@Adam Equipment Company 2005
9
Press the [Tare/]key to change the setting.
Press the [Zero/Enter] key to store the changed setting.
Accumulation of data in memory when [Print] is pressed
To accumulate weight in the memory when [Print] is pressed, set "  ". To
use the [Print] key to only print the weight without adding it to memory, set " 
 ".
Press [Tare/]to change the setting between  and  .
Press the [Zero/Enter] key to store the changed setting.
Auto zero range
The auto-zero will automatically set the scale to zero when the displayed weight
is almost near zero. This helps to make sure that the scale is measuring weight
from an accurate zero starting point.
The Auto zero value can be set to 0.5, 1, 2 or 4 scale divisions. The normal
setting is 1 scale division. The display will show “  ”.
Press the [Tare/]key to change the value.
Press the [Zero/Enter] key to store the changed setting.
Selectable unit of weight displayed
The scales are normally set to display in kilograms, however they will show the
weight in grams, if enabled.
The display will show “  ” or “  ”.
Press [Tare/]to change the setting between  or  
Press the [Zero/Enter] key to store the changed setting.
The CBWa scales can change units from kilograms to grams, pounds or
pounds/ounces immediately if they are enabled as in the step above. This also
allows the scales to be calibrated in either kilograms or pounds and all memory
accumulations are in either kilograms or pounds as last selected.
When the scales are set to display in other units of weight the accumulation
function is still keeping the weight in kilograms (or pounds for the CBWa series)
in memory and will use the base weighing unit when printing over the RS-232
interface.

@Adam Equipment Company 2005
10
Setting of the check weighing alarm
The display will show “  ” where “  ” is a digit from  to  .
will set the buzzer to off when check weighing
will set the buzzer to on when the OK symbol is on
will set the buzzer to on when the weight is outside the OK symbol limit
To change this digit press the [Tare/]key.
Press the [Zero/Enter] key to store the changed value and continue to the next
parameter.
Speed at which the machine will run the ADC
The slowest setting is  and the fastest is  . The default setting is usually  .
The display will show “  ”.
To change this setting press the [Tare/]key.
Press [Zero/Enter] to store the changed value and return to the normal weighing.
6.0 TWO POINT FACTORY CALIBRATION
This procedure is the same as normal calibration but can be set even if the stability
indicator will not show or when the raw counts do not seem to be moving.
Please ensure that the load cell is not damaged and that the load cell is wired
correctly with the right output voltages.
To start the factory calibration, turn the scale off and then turn it back on. Press the
[Limit] and [%] keys together during the initial counting from 9 to 0 on the display.
The display will show "  ". Remove all weight from the pan and then press the
[Zero/Enter] key to set the initial zero point when the scale is stable.
The display will then show the first calibration weight used. This value will be one
third of the scale capacity.
Place this value weight on the scale and press the [Zero/Enter] key when the stable
indicator is on
The display will then show then second value weight to be used which will be full
capacity of the scale.
Place this value calibration weight on the platform and then press the [Zero/Enter]
key when the stable indicator is on.
Remove the calibration weight as the scale counts back from 9 to 0.

@Adam Equipment Company 2005
11
Calibration weights
CBW SERIES
CBW 3 CBW 6 CBW 15 CBW 30 CBW 45
Weight 1 1000 g 2 kg 5 kg 10 kg 15 kg
Weight 2 3000 g 6 kg 15 kg 30 kg 45 kg
CBWa SERIES
CBW 6a CBW 12a CBW 35a CBW 65a CBW 100a
lb kg lb kg lb kg lb kg lb kg
Weight 1 2 lb 1000 g 4 lb 2 kg 10 lb 5 kg 20 lb 10 kg 40 lb 15 kg
Weight 2 6 lb 3000 g 12 lb 6 kg 30 lb 15 kg 60 lb 30kg 100 lb 45kg
6.1 ADC OUTPUT CHECKING
It is possible to check the raw count output of the Analogue to Digital Converter
which will also verify if the load cell is in good condition.
To start the ADC check, turn the scale off and then turn it back on. Press the
[Zero/Enter] and [%] keys together during the initial counting from 9 to 0 on the
display.
The raw ADC counts will be displayed. With no load on the pan the raw counts
should typically be between 10,000 and 100,000 although this is not critical.
Different capacity scales have different load cells and the pan assembly will vary the
dead load percentage of the cell. If with no load on the pan the counts are below
1000 or above 200,000 then the load cell should be tested as explained in the next
section.
Apply full capacity to the pan to verify that the raw counts increase to a value that will
not exceed the capability of the ADC. Typically the raw counts will increase to a
figure below 500,000 although if a mass has been added to the pan then this may be
exceeded. If the counts go above 900,000 or decrease with load then please test the
load cell for damage or incorrect wiring.
To check if the ADC has a good output for best accuracy then empty the pan and
press the [Zero/Enter] key to set the counts to “0”.
Now apply full capacity to the pan and note the span of raw counts.
Divide the number of counts by the number of displayed divisions (i.e. 30,000 as
standard). If the input to the ADC is good then there should be approximately 10 or
more counts per division for best accuracy.
If there are less than 10 counts / d then check that the correct load cell is fitted and
that the over load stops are adjusted correctly.
To exit the ADC raw counts mode remove any weights and press the [Tare/] key.

@Adam Equipment Company 2005
12
7.0 LOAD CELL DAMAGE
The most common reason a scale fails is that the load cell has been damaged. The
damage can be from 2 primary causes. The first is physical damage due to an
overload or an impact from the side and the second is damage due to the
environment, such as moisture, extreme heat or a cut cable if the cables are
exposed.
PRINCIPLE OF OPERATION
The stain gauge load cell is a method of measuring the amount of stress put onto a
metal structure due to a weight being supported by the structure. The stress is
measured using 4 strain gage sensors mounted in a particular way on the metal
structure.
These 4 strain gauges are connected in such a way that they form a wheatstone
bridge. See figure below. In the simplest load cells there are only the 4 resistances
of the strain gages to consider. Normally without a load on the load cell all the
resistances are the same. However when the load cell has a weight on it 2 of the
strain gages will be in compression (A and D) and the resistance will decrease and 2
will be in tension (B and C) and their resistance will increase.
350ohm
350 ohm
350ohm
350ohm
AB
CD
+E
-S
-E
+S
BALANCED BRIDGE
10 VOLT POWER
SUPPLY
Vout = O VOLTS,
BETWEEN +S AND -s
351ohm
349ohm
351ohm
349ohm
AB
CD
+E
-S
-E
+S
UNBALANCED BRIDGE
FULL CAPACITY LOAD
ON THE LOAD CELL
10 VOLT POWER
SUPPLY
Vout = 0.028 VOLTS (28mv),
BETWEEN +S AND -s

@Adam Equipment Company 2005
13
This will cause the bridge to become unbalanced. When the bridge has a voltage
across it from +E to -E then the signal output at +S and -S will show a voltage of zero
volts with no load and a small voltage proportional to the load as the load is
increased. Typical load cells show 20-30mv of signal if the excitation voltage is
10volts and the load cell is fully loaded.
Most load cells used in scales are not as simple as this example. They have
additional resistance elements added to compensate for temperature variations and
to set the outputs to correct voltages. The circuit of a typical load cell is shown
below-
A method to check the basic function and integrity of a load cell can be done using a
ohmmeter and voltmeter with up to a 10volt power supply.
Before the load cell is connected to the power supply use the ohmmeter to measure
the resistance between the wires. Typical resistance values are:
+E to -E 410 ohms ±30 ohms
+S to -S 350 ohms ± 2 ohms
+E to +S or any other combination similar approximately 270 ohms.
If the load cell has Sense connections in addition they are connected to the
excitation internal to the load cell.
Connect the load cell +E and -E to a power supply, typically 10 volts. Never use
more than 12 volts as it may damage the load cell.
Measure the voltage between +S and -S.
With no load the voltage should be approximate 0mv ±3mv.
With a mass on the load cell the output voltage should increase. The amount by
which it increases will be dependent upon the sensitivity of the load cell, capacity of
the load cell, the excitation voltage and the amount of mass placed on the load cell.
Most load cells have a sensitivity of either 2mv/V or 3mv/V.

@Adam Equipment Company 2005
14
The expected change to the output is:
Vout = (2mv/V) * Vext * Mass
capacity of load cell
For example a 2mv/V load cell of 30Kg capacity with 20Kg placed on it. Vext is 5
volts would give a output of approximately:
Vout = (2mv/V) * Vext * Mass = 2mv/V * 5V * 20Kg = 6.7mv
capacity of load cell 30kg
If the load cell has been damaged the no load voltage will likely be greater than 3mv
or the loaded voltage will be grossly different from the expected value. Remember
the loaded voltage will be offset by the amount of zero load voltage measured.
The load cell can be tested while it is connected to the A/D converter circuit board,
using the scale power supply for excitation voltage.
TESTING LOAD CELLS IN THE SCALE
The signal from the load cells is amplified by the circuits on the A/D circuit board.
The signal needs to be amplified to make it acceptable for the A/D converter used.
The TCC/CBW scales amplify the input by 200, and change the no load voltage to
about +2.5V. The TFC and TFW scales use a gain of 500.
The amplified and offset voltage is measured at pin 6 of IC7, the INA118P amplifier
IC. This voltage is sent to the filter and then to the A/D converter.
8.0 CBW RS-232 INSTALLATION
The addition of the RS-232 interface for these scales requires the following:
Scale
Lead with 9-pin d-subminiature connector
Cover with RS-232 Connector Hole cut out
A new main PCB with RS-232 interface included
The scale will have a PCB for the main parts of the electronics. These boards will not
have any parts included for the RS-232 interface. Replace the main PCB with the
new one which has the RS-232 interface included. Fit the CPU and the jumpers -
taken from the earlier PCB into the new PCB.
All parameters and Calibration including the Two Point Factory Calibration must be
set before the new PCB will be put to use for weighing.

@Adam Equipment Company 2005
15
The 3 pin connector from the RS-232 connector goes to the main PCB. The 9 pin d-
sub-miniature connector is attached inside the case using the 2 hex standoffs that
come with the connector, with lock-washers and nuts.
There is no special configuration or software that needs to be enabled for the
interface to operate. The user manual has the details for the RS-232 interface in it.
INSTALLING THE RS-232 IN CBW SCALES
•Remove the top pan and take
out the 5 screws from the
bottom of the scale.
2.
•Detach the 4 cables connected with
the Load-cell, Display, Power Switch
and Battery Chamber from the main
PCB.
•Remove the main PCB by
taking out the 4 screws
from the 4 corners.
•Install a new main PCB
which has the RS-232
hardware already fitted into
it.
•Plug in the RS-232
interface cable into the
connector marked “SER”.
•Take-out the blanking label
from the window provided
on the right side of the
scale.
•Fix the 9-pin D-subminiature connector in the cut-out of the window and
secure it with the special screws provided.
•Remove the Microprocessor from the earlier PCB and install in the new

@Adam Equipment Company 2005
16
board and also if the link between K1 and K5, if any. Install the micro-
processor and the links in the same way as it was in the old board into the
new board. Be very careful not to bend the legs while removing the micro-
processor.
•Plug the cables coming from the Load-cell, Display, Battery and Power
Switch into the main PCB.
•Turn the scale on to check whether the scale is working. Note that without
the pan installed the scale may not show zero.
•Replace the cover back and secure it with all 5 screws.
•Place the stainless steel pan back on the scale.
•Switch the scale on to verify proper installation.
•Set the parameters as described in the Service Manual and perform the
Factory Calibration by using the [Limit] and [%] keys together.
•If the RS-232 needs to be disabled or configured, follow the procedure for
parameter settings as given in the manual.
9.0 SCHEMATICS
The following schematics are included as a guide for the experienced Service
Technician. If you are not experienced we do not advice you to change parts on the
circuit boards or otherwise disturb the electronics.
If you require assistance please contact your dealer or Adam Equipment. We will be
happy to help you resolve problems or determine the cause of a problem if you send
us a full description of the scale and the problem.
The following schematics are included.
CBW Main PCB assembly, pages 2

@Adam Equipment Company 2005
17

@Adam Equipment Company 2005
18

@Adam Equipment Company 2005
Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with the harmonised European
standards, following the provisions of the below stated directives:
Electro Magnetic Compatibility Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
Adam Equipment Co. Ltd.
Bond Avenue
Denbigh East Estate
Milton Keynes, MK1 1SW
United Kingdom
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. The
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance wit
h the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Shielded interconnect cables must be employed with this equipment to insure compliance with the
pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by Adam Equipment could void the user's authority
to operate the equipment.

@Adam Equipment Company 2005
ADAM EQUIPMENT is an ISO 9001:2000 certified global organisation with more
than 30 years experience in the production and sale of electronic weighing
equipments. Products are sold through a world wide distributor network -supported
from our company locations in the UK, USA and SOUTH AFRICA. The company
and their distributors offer a full range of Technical Services such as on site and
workshop repair, preventative maintenance and calibration facilities.
ADAM’s products are predominantly designed for the Laboratory, Educational,
Medical and Industrial Segments. The product range can be classified as follows:
−Analytical and Precision Laboratory Balances
−Top Loading Balances for Educational establishments
−Counting Scales for Industrial and Warehouse applications
−Digital Weighing/Check-weighing Scales
−High performance Platform Scales with extensive software
features including parts counting, percent weighing etc.
−Digital Electronic Scales for Medical use
−Retail Scales for price computing
Adam Equipment Co. Ltd.
Bond Avenue
Milton Keynes
MK1 1SW
UK
Phone:[phone]
Fax: [phone]
e-mail:
[e-mail]
Adam Equipment Inc.
26, Commerce Drive
Danbury, CT
06810
USA
Phone: [phone]
Fax: [phone]
e-mail:
[e-mail]
Adam Equipment S.A. (Pty) Ltd.
P.O. Box 1422
Kempton Park 1620
Johannesburg
Republic of South Africa
Phone [phone]
Fax: [phone]
e-mail:
[e-mail]
© Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this
publication may be reprinted or translated in any form or by any means without the
prior permission of Adam Equipment.
Adam Equipment reserves the right to make changes to the technology, features,
specifications and design of the equipment without notice.
All information contained within this publication was to the best of our knowledge
timely, complete and accurate when issued. However, we are not responsible for
misimpressions which may result form the reading of this material.
The latest version of this publication can be found on our Website.
Visit us at www.adamequipment.com
