2.0 INTRODUCTION
2.1 FEATURES
TheSHS/SHSaSeriesarearangeofheavy‐dutylowercapacitycranescales
Themainfeaturesinclude:
EasyOperation&Ruggedconstruction
15mmbrightredLEDdisplayenablingagoodviewingangle.
360degreerotarysafetyhookandsupportringdesign
Overloadsafetyupto150%ofmodelcapacity
Selectableweighingunitsincludekg,LbsandNewtons(Newtonsnot
availablefor“a”models)
StandardandPeakHoldfeature
Internallithiumbatteryfittedasstandard
AlternativepowerfromAAorNiMHbatteries
Autopoweroffafter30minutesofnonuse
8.4Vdc800mabatterycharger
StrongABSplastichousing
Infraredremotecontrol
EN
© Adam Equipment Company 2012 3 7.00.6.6.0202, Revision B November 2012
2.2 TECHNICALSPECIFICATIONS
ModelNo Capacity Division ModelNo Capacity Division
SHS50 50kg 0.01kg SHS 100a 100lb/50kg 0.02lb/0.01kg
SHS150 150kg 0.02kg SHS 300a 300lb/150kg 0.05lb/0.02kg
SHS300 300kg 0.05kg SHS 600a 600lb/300kg 0.1lb/0.05kg
EN
© Adam Equipment Company 2012 4 7.00.6.6.0202, Revision B November 2012
2.3 SAFETYNOTICE
ThelimitstatedbelowistheUltimateOverloadLimitsofthescales.
Adam Equipment Co. Ltd. Its directors, owners and affiliated companies and
organisationscannotbeheldliableforanyresultingdamageorinjurysustainedasa
resultofthemachinesbeingusedinexcessoftheirstatedcapacities or ultimate
overloadlimits.
ModelNo. SHS50/SHS100a SHS150/SHS300a SHS300/SHS600a
Max
capacity 50kg/100lb 150kg/300lb 300kg/600lb
Overload
capacity 100kg/200lb 300kg/600lb 450kg/900lb
NOTICE:
Donotusethescalesifanypartsarebentorlooseorshowsignsofdamageorwear.
Refertotheusermanual.
EN
© Adam Equipment Company 2012 5 7.00.6.6.0202, Revision B November 2012
2.4 KEYANDPANELDESCRIPTION
[ON/OFF] Thepowerswitchislocatedontherearhousing.Usethiskeyto
turnthescaleONandOFF.
[Zero] Pressthe[Zero] keytoreturnthereadingtozero.
[Unit]
Pressthe[Unit] keytochangetheweighingunitbeingdisplayed
between Kg, Lbs and Newtons (Newtons not available for “a”
models)
[Hold]
Use this key to activate standard Hold. When pressed the Hold
LEDwilllightatthetopleftsideofthedisplayandthereadingon
the display will lock and flash. Press the [Hold] key again to
cancelthe[Hold]function.
*WhenPeakholdisselectedfromtheparametersectionthe
pressoftheHoldkeywillactivatePeakHold.TheHoldLEDwill
flash and the display will also flash and lock showing the
maximumweightregisteredofasingleweighingprocess.
Pressthe[Hold]keyagaintocancelthe[Hold]function.
EN
© Adam Equipment Company 2012 6 7.00.6.6.0202, Revision B November 2012
2.5 DISPLAYINDICATIONSWITHLED
KglbN WeighingunitIndicator
LowbatteryIndicator
Hold HoldIndicator
Stab StableIndicator
3.0 OPERATION
3.1 SAFETYINSTRUCTIONS
ReadthismanualcarefullybeforeyouoperatetheSHSCraneScale.
UnpacktheCraneScalecarefullyfromthepackaging.
Attachittoyourhoistorequivalentexistingequipmentsecurelyatthe
groundleveltothesupportringintheuprightposition.Makesurethat
theequipmenttowhichthescaleisattachedisinpropercondition.The
operatorshouldbetrainedforitssafeoperation.
Carryoutregularvisualinspectionforanydamageorwearandtearon
parts.Thesplitpinsinparticularatthehookandeyebolts,aswellasthe
innerwallofthehookandalljointsshouldbecheckedregularly.Ifany
damageorwearhastakenplace,stopusingthescaleandreplacethe
parts.
Doallinspectionandmaintenanceworkwhenthescaleisnotinuse.
Donotexposethescaletoextremetemperatures.Theoperating
temperaturerangeis0°Cto40°C.
Securethesampletobeweighedinthehookofthescale.Ensurethat
the sprung Safety Lever returns to its resting position which prevents
thesamplefromslippingoutofthehook.
DonotexceedthemaximumcapacityoftheScale.
EN
© Adam Equipment Company 2012 7 7.00.6.6.0202, Revision B November 2012
Cleanandprotectyourscaleafteruse.
OverloadWarning
Please do not add any item that exceeds the maximum capacity ofthescale.
Whenthedisplayshows”- - - - - ”removetheitemtoavoiddamagetotheload
cellandscale.
3.2 BATTERYOPERATION
The lithium battery will operate continuously for 20 hours before
requiringrecharging.Thescalewillalertyouthatthebatteryislowon
chargewhentheIndicatorLEDabovethebatterysymbollightsup.
Tochargethebattery,unclipthebatterycoverontherearofthescale
andinserttheconnectorintothesocketasmarked.Plugthecharger
intothemainspowersupplyandwaituntiltheLEDonthecharger
showsgreen.Thebatteryisnowfullycharged.
Chargingtimeforacompletelydischargedbatteryisapproximately16
hours. A full battery pack is recommended to keep the scale
continuouslyoperational.
Onlyusethechargerassuppliedwiththeunit.
TheswitchinsidethebatterycovermustbeinpositionAtomakeuse
ofthelithiumbattery.
IfusingAAorNiMHbatteriestheswitchmustbeinpositionB
Thescalewillautomaticallypowerdownafter30minutesofnonuseto
furtherprotectthebattery.
Toreplacethelithiumbatterypackpleasecontactyourdealer
EN
© Adam Equipment Company 2012 8 7.00.6.6.0202, Revision B November 2012
3.3 BASICOPERATIONS
Poweronandoff
Pressthe[ON/OFF]buttontoturnthescaleonoroff.Thedisplayonthescale
willshowthemodelcapacitythencountdownfrom9to0beforedisplayingzero
weight.
Zerothescale
Pressthe[Zero]keysothatthedisplayshowszero.
ChangetheweighingUnit
Pressthe[Unit]keytochangetheweighingunit
StandardHold(setting1)
When the reading may not be perfectly stable or you cannot viewareading
easilyyoucanpressthe[Hold]keytolockit.Thereadingwillbelockedandalso
flashatthepointyoupressthe[Hold]buttonenablingyoutoviewitwhenyou
can.TheHoldLEDwillalsolightupandonceyouhavenotedthereadingapress
ofthe[Hold]keywillreturnthescaletothenormalweighingmode.
PeakHold(setting0)
PeakHoldisthehighestweightreadingregisteredbythescalewhenaweighing
takesplace.Pressthe[Hold]keywhenthedisplayisatzeroandtheHoldLED
willflashwhichdenotesPeakHoldhasbeenactivated.Whenweight/force is
appliedtothescalethedisplaywillalsoflashandlockthehighest recorded
weightofthatweighingprocess.ThisvalueandtheHoldLEDwillremainflashing
onthedisplayuntilthe[Hold]keyispressedagainatwhichpointthescalewill
returntonormalweighingmodedisplayingthecurrentweightonthescale.
Press[Hold]againtoperformanotherPeakHoldweighingatanytime.
EN
© Adam Equipment Company 2012 9 7.00.6.6.0202, Revision B November 2012
3.4 REMOTECONTROLUNIT
TheremotecontrolworksviainfraredandcanbeusedtooperatetheSHSfrom
longdistances.Itoperatesusing2xAAAbatteriesandthesecanbeexchangedby
unclippingacoverontherearoftheremotecontrolunit.
3.5 USERPARAMETERS
FourUSERsettableparametersareavailableontheSHS,to accessthesepower
upthescaleandwhilstthedisplayiscountingdownpressandthenreleasethe
[Unit]button.ThedisplaywillshowBee0.Pressthe[Hold]buttontochangethe
setting,andthe[Zero]buttontomovetothenextparameter.
Parametersettingtable.
FUNCTION DESCRIPTION DEFAULT
BEE Setsbuzzer
0:Disable
1:Enable
1
HODSetstheHoldfunction
0:Peak
1:Standard
1
CHT
Setsweighingunitonpowerup
0:kg
1:Lb’s
2:Newtons(Newtonsnotavailablefor“a”
models)
0
YES Setssave:
0:notsaved
1:savenewsettings
0
EN
© Adam Equipment Company 2012 10 7.00.6.6.0202, Revision B November 2012
4.0CALIBRATION
Pressthe[Zero]keyandpowerupthescaleusingtheon/offbutton.
Releasethe[Zero]keyandthedisplaywillshow“SPAN”.Makesurethe
hookisemptyunlessyouintendtouseanychains,slingsetctoholdthe
calibrationmass.Addanyitemssuchasthesetothehookbefore
continuing.
Pressthe[Zero] buttonandthedisplay will show“SET”then “00000”
whenthereadingatzeroisstable.Thiscompletesthezerocalibration
Followingzerocalibrationthevalueofthemassbeingusedtocalibrate
the scale should be entered. Use the [Hold] button to increment the
right hand digit, and the [Unit] button to move this digit to the left.
Proceed by entering a number for the next digit if required, until the
valueofyourchosencalibrationweightisdisplayedcorrectly.
Loadthismassontothehookandwhenthescaleisstablepressthe
[Zero]key.Thedisplayshows‘HOLD’.
Afterafewseconds,thecalibrationiscompleteandthescalereturnsto
normalweighingshowingthevalueofthecalibrationmassasused.
**TocalibrateinLbsmakesurethatthescaleisLbsmodebefore
commencing,tocalibrateinKgmakesurethescaleisinKgmode before
commencing.
EN
© Adam Equipment Company 2012 11 7.00.6.6.0202, Revision B November 2012

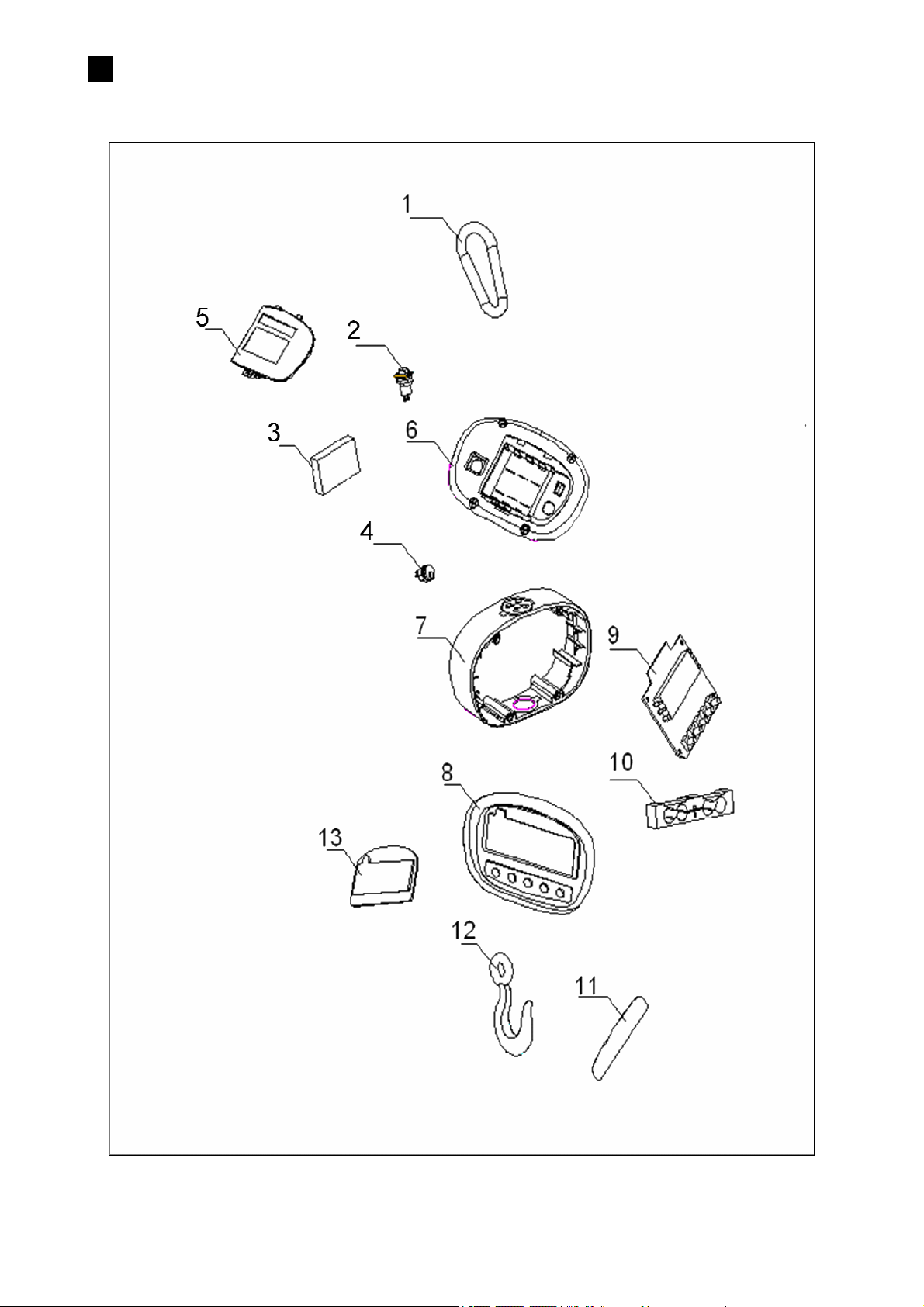

5.0 PARTSLIST
SHS/SHSa
Part number Description Item No
7.00.1.0.0286 SHS SUPPORT RING 1
7.00.4.0.0091 SHS ON/OFF PUSHBUTTON 2
7.00.4.0.0092 SHS LITHIUM BATTERY PACK - 2 PIECES 3
7.00.4.0.0095 SHS POWER CONNECTOR SOCKET 4
7.00.4.0.0011 SHS COMPLETE HOUSING 5, 6, 7, 8
7.00.4.0.0093 SHS MAIN PCB 9
7.00.1.0.0280 SHS LOAD CELL - 50kg/100lb 10
7.00.1.0.0281 SHS LOAD CELL - 150kg/300lb 10
7.00.1.0.0282 SHS LOAD CELL - 300kg/600lb 10
7.00.5.6.0048 SHS KEYPAD PANEL 11
7.00.1.0.0283 SHS HOOK 12
7.00.5.6.0049 SHS DISPLAY PANEL - 50kg 13
7.00.5.6.0050 SHS DISPLAY PANEL - 150kg 13
7.00.5.6.0051 SHS DISPLAY PANEL - 300kg 13
7.00.2.0.0084 SHSa DISPLAY PANEL - 100lb 13
7.00.2.0.0085 SHSa DISPLAY PANEL - 300lb 13
7.00.2.0.0086 SHSa DISPLAY PANEL - 600lb 13
7.00.4.0.0094 SHS KEYBOARD PUSHBUTTON
7.00.4.0.0112 SHS 8.4 VDC @ 800ma CHARGER UNIT USA
7.00.4.0.0113 SHS 8.4 VDC @ 800ma CHARGER UNIT
AUSTRALIA
7.00.4.0.0114 SHS 8.4 VDC @ 800ma CHARGER UNIT SA
7.00.4.0.0096 SHS 8.4 VDC @ 800ma UK CHARGER UNIT
7.00.4.0.0097 SHS 8.4 VDC @ 800ma EURO CHARGER UNIT
7.00.4.0.0099 SHS REMOTE CONTROL UNIT
7.00.3.0.0026 SHS COMPLETE PACKAGING SET
EN
© Adam Equipment Company 2012 12 7.00.6.6.0202, Revision B November 2012
EN
© Adam Equipment Company 2012 13 7.00.6.6.0202, Revision B November 2012
WARRANTYINFORMATION
Adam Equipment offers Limited Warranty (Parts and Labour) for any components that fail due to defects in
materials or workmanship. Warranty starts from the date of delivery.
During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam
Equipment Company. The company or its authorised Technician reserves the right to repair or replace the
components at any of its workshops at no additional cost, depending on the severity of the problems. However,
any freight involved in sending the faulty units or parts to the Service Centre should be borne by the purchaser.
The warranty will cease to operate if the equipment is not returned in the original packaging and with correct
documentation for a claim to be processed. All claims are at the sole discretion of Adam Equipment.
This warranty does not cover equipment where defects or poor performance is due to misuse, accidental damage,
exposure to radioactive or corrosive materials, negligence, faulty installation, unauthorised modifications or
attempted repair, or failure to observe the requirements and recommendations as given in this User Manual.
This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam
Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or
workmanship during the initial period of use of the product in which the battery is installed.
As with all batteries, the maximum capacity of any battery included in the product will decrease with time or use,
and battery cycle life will vary depending on product model, configuration, features, use, and power management
settings. A decrease in maximum battery capacity or battery cycle life is not a defect in materials or workmanship,
and is not covered by this Limited Warranty.
Repairs carried out under the warranty do not extend the warranty period. Components removed during warranty
repairs become company property.
The statutory rights of the purchaser are not affected by this warranty. The terms of this warranty is governed by
the UK law. For complete details on Warranty Information, see the terms and conditions of sale available on our
web-site.
FR
© Adam Equipment Company 2012 14 7.00.6.6.0202, Revision B November 2012
AdamEquipment
SERIESHS
(P.N.7.00.6.6.0202,RévisionA1Mars2012)
FR
© Adam Equipment Company 2012 15 7.00.6.6.0202, Revision B November 2012
1.0 SOMMAIRE
1.0 SOMMAIRE ....................................................................... 15
2.0 INTRODUCTION ............................................................... 16
2.1 INTRODUCTION .............................................................................. 16
2.2 CARACTERISTIQUES TECHNIQUES ............................................. 17
2.3 NOTE SUR LA SECURITE ............................................................... 18
2.4 DESCRIPTION DES TOUCHES ET DE L’ECRAN .......................... 19
2.5 SYMBOLES DE L’ECRAN AVEC LED ............................................. 19
3.0 FONCTIONNEMENT ......................................................... 20
3.1 INSTRUCTIONS SUR LA SECURITE .............................................. 20
3.2 FONCTIONNEMENT DE LA BATTERIE .......................................... 21
3.3 FONCTIONNEMENT DE BASE ....................................................... 22
3.4 TELECOMMANDE ........................................................................... 23
3.5 PARAMETRES UTILISATEUR ......................................................... 23
4.0 CALIBRAGE ..................................................................................... 24
5.0 LISTE DES PIECES DETACHEES ................................... 25
INFORMATION SUR LA GARANTIE ........................................ 27
FR
© Adam Equipment Company 2012 16 7.00.6.6.0202, Revision B November 2012
2.0 INTRODUCTION
2.1 INTRODUCTION
LasérieSHSestunegammedecrochetpeseuràfaiblecapacitéconçue
pourlesapplicationsindustrielles.
Lesfonctionsprincipalescomprennent:
Utilisationsimpleetuneconstructionrobuste
Ecran LED rouge lumineux avec des chiffres de 15mm offrant un
excellentangledevision.
Crochetrotatifde360degréssécuriséavecanneaudesupport
Sécuritécontrelessurchargesjusqu’à150%delacapacitédumodèle.
Unitésdepesagesélectionnablescomprenantkg,LbsetNewtons
FonctionHold,blocagedelavaleur.
Batterieinternelithiumfournieenstandard
AlimentationalternativeparpilesAAouNiMH
Autoextinctionaprès30minutesdenonutilisation
Adaptateur8.4Vdc800mA
CarterrobusteenplastiqueABS
Télécommandeinfrarouge.
FR
© Adam Equipment Company 2012 17 7.00.6.6.0202, Revision B November 2012
2.2 CARACTERISTIQUESTECHNIQUES
No.Modèle Capacité Division
SHS‐50 50kg 0.01kg
SHS‐150 150kg 0.02kg
SHS‐300 300kg 0.05kg
FR
© Adam Equipment Company 2012 18 7.00.6.6.0202, Revision B November 2012
2.3 NOTESURLASECURITE
Leslimitesindiquéesci‐dessoussontlesLimitesUltimesdeSurchargesdesbalances.
AdamEquipmentCo.Ltd.sesdirecteurs,propriétésetlessociétés affiliées et les
organisationsnepeuventpasêtretenueresponsablepourtoutdommagerésultant
oud’uneblessureàlasuited’utilisationdesmachinesau‐delàdeleurscapacitésou
deslimitesultimesdesurchargesindiquées.
ModèleNo. SHS50 SHS150 SHS300
Capacité
Max 50kg 150kg 300kg
Capacité de
Surcharge
100kg 300kg 450kg
NOTE:
Nepasutiliserlesbalancessidespiècessonttorduesoudéfaitesoumontrentdes
signesdedétériorationsoud’usures.Reportezvousaumanueld’utilisation.
Other manuals for SHS Series
1
This manual suits for next models
7
Table of contents
Languages:
Other Adam Equipment Scale manuals
Adam Equipment
Adam Equipment Warrior Series User manual
Adam Equipment
Adam Equipment HIGHLAND HCB123 User manual
Adam Equipment
Adam Equipment 103 User manual
Adam Equipment
Adam Equipment CB Balance User manual
Adam Equipment
Adam Equipment Gladiator GGS 8 User manual
Adam Equipment
Adam Equipment CQT1751GR User manual
Adam Equipment
Adam Equipment CBC SERIES User manual
Adam Equipment
Adam Equipment MTB User manual
Adam Equipment
Adam Equipment WBW 3M User manual
Adam Equipment
Adam Equipment MCW-250 L User manual
Adam Equipment
Adam Equipment MUW 300L User manual
Adam Equipment
Adam Equipment HCB-J Jewellery Series User manual
Adam Equipment
Adam Equipment PTS plus Series User manual
Adam Equipment
Adam Equipment LBK-3/6a User manual
Adam Equipment
Adam Equipment CPWplus 6 User manual
Adam Equipment
Adam Equipment CBW Series User manual
Adam Equipment
Adam Equipment Warrior Series User manual
Adam Equipment
Adam Equipment AZplus Series User manual
Adam Equipment
Adam Equipment PGL SERIES User manual
Adam Equipment
Adam Equipment CCEU-20 User manual
