ADC M35/35ES Administrator Guide

ES35/35 / M35/35ES
Installation/Operator Manual
WFR112807-15
American Dryer Corporation
88 Currant Road, Fall River MA 02720-4781 USA / Telephone: [phone] / Fax: [phone]
e-mail: [email protected] / www.adclaundry.com
AVERTISSEMENT:Assurez-vous de
bien suivre les instructions données
dans cette notice pour réduire au
minimum le risqué d’incendie ou
d’explosion ou pour éviter tout dommage
matériel, toute blessure ou la mort.
—Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●Ne pas tenter d’allumer d’appareils.
●Ne touchez à aucun interrupteur. Ne
pas vous server des téléphones se
trouvant dans la bâtiment.
●Évacuez la pièce, le bâtiment ou la
zone.
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●Do not try to light any appliance.
●Do not touch any electrical switch;
do not use any phone in your
building.
●Clear the room, building or area of
all occupants.
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
!!
!!
!!!
!!
!

2 American Dryer Corp. WFR112807-15
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves
the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material,
and to change or discontinue models. The illustrations included in this manual may not depict your particular dryer
exactly.
IMPORTANT
For your convenience, log the following information:
DATE OF PURCHASE _________________________________________________________ MODEL NO. ______________
RESELLER’S NAME ___________________________________________________________________________________
SERIAL NUMBER(S) ___________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your reseller or theADC factory. When ordering replacement parts from the
factory, you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts
Department at [phone]. Please specify the dryer model number and serial number in addition to the description
and part number, so that your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning
the modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY CAUTION” must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet appareil
ou de tout autre appareil.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These instructions
must be posted in a prominent location near the dryer.

WFR112807-15 www.adclaundry.com 3
List of Acronyms _________________________
HVAC Heating, Ventilating, and Air-Conditioning
in WC Inches of Water Column
L.C.D. Liquid Crystal Display
OSHA Occupational Safety and Health
Administration
R.M.A. Return Material Authorization
U L Underwriters Laboratory
Proposition 65
Use of this product could expose you to substances
from fuel combustion that contain chemicals
known to the State of California to cause cancer,
birth defects and other reproductive harm.
!WARNING
IMPORTANT
You must disconnect and lockout the electric supply
and the gas supply or the steam supply before any
covers or guards are removed from the machine to
allow access for cleaning, adjusting, installation, or
testing of any equipment per OSHA standards.
Please observe all safety precautions displayed on
the equipment and/or specified in the installation
manual included with the dryer.
Before installation, check that the local distribution
conditions, nature of gas and pressure, and adjustment
of the appliances are compatible.
CAUTION
Dryer(s) should never be left unattended while in
operation.
Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper
operation.
Attention: Au moment de l’entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des
erreurs de câblage peuvent entraîner un
fonctionnement inadéquat.
WARNING
Children should not be allowed to play on or near the
dryer(s). Children should be supervised if near
dryer(s) in operation.
Under no circumstances should the dryer door
switch(es), lint door/drawer switch(es), or heat safety
circuit(s) ever be disabled.
DO NOT MODIFY THIS APPLIANCE.
The dryer must never be operated with any of the back
guards, outer tops, or service panels removed.
Personal injury or fire could result.
The dryer must never be operated without the lint filter/
screen in place, even if an external lint collection
system is used.
If the hi-limit switch trips, a service call is required to
investigate the reason and resolve the issue.
FOR YOUR SAFETY
Do not dry mop heads in the dryer. Do not use
dryer in the presence of dry cleaning fumes.
The dryers must not be installed or stored in an area
where it will be exposed to water and/or weather.
The wiring diagram for the dryer is located behind the
control panel.
Table of Contents __________________
In the State of Massachusetts, the following
installation instructions apply:
■Installations and repairs must be performed by
a qualified or licensed contractor, plumber, or
gasfitter qualified or licensed by the State of
Massachusetts.
■If using a ball valve, it shall be a T-handle type.
Safety Precautions ..............................................4
Specifications ......................................................6
Installation Procedures ....................................... 8
Location Requirements ............................................ 8
Unpacking / Setting Up.............................................. 8
Dryer Enclosure Requirements ................................ 8
Fresh Air Supply Requirements ................................ 9
Exhaust Requirements ............................................. 9
Electrical Information............................................... 11
Gas Information ....................................................... 13
Converting from One Family of Gas to Another ...... 16
Gas Pressure Testing ............................................. 18
Water Information .................................................... 18
Preparation for Operation / Start-Up ....................... 19
Preoperational Test ................................................. 19
Preoperational Instructions..................................... 19
Shutdown Instructions ............................................ 20
Service / Parts Information .............................. 20
Service ..................................................................... 20
Parts ......................................................................... 20
Warranty Information ........................................ 20
Returning Warranty Cards ...................................... 20
Warranty ................................................................... 20
Returning Warranty Parts ........................................ 20
Routine Maintenance ........................................ 21
Cleaning .................................................................. 21
Adjustments............................................................. 22
Data Label Information ..................................... 22
Programming..................................................... 23

4 American Dryer Corp. WFR112807-15
Safety Precautions ____________________
!WARNING
For your safety, the information in this manual must
be followed to minimize the risk of fire or explosion
and to prevent property damage, personal injury, or
loss of life.
The dryer must never be operated with any of the
back guards, outer tops, or service panels removed.
Personal injury or fire could result.
Failure to properly install, maintain, and/or operate
dryer according to this manual and operator’s
manuals included with dryer may result in conditions,
which can cause serious injury, death and/or property
damage.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Do not spray aerosols in the vicinity of this appliance while
it is in operation.
Purchaser and user should consult the local gas supplier
for proper instructions to be followed in the event the user
smells gas. The instructions should be posted in a
prominent location.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency, or gas supplier.
Dryers must be exhausted to the outdoors.
Although the manufacturer produces a very versatile dryer,
there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
!WARNING
Dry only water washed fabrics. Do not dry articles
spotted or washed in dry cleaning solvents,
combustible detergents, industrial chemicals, or “all
purpose” cleaner. Explosion could result.
Do not dry rags or articles coated or contaminated
with gasoline, kerosene, oil, paint, or wax. Explosion
could result.
Items that have been spotted or soaked with vegetable
or cooking oil constitute a fire hazard and should not
be placed in a tumble dryer.
Do not dry mop heads. Contamination by wax or
flammable solvents will create a fire hazard.
!WARNING
Do not use heat for drying articles that contain plastic,
foam, sponge rubber, or similarly textured rubber
materials. Drying in a heated tumbler may damage
plastics or rubber and also may be a fire hazard.
The possible presence of residual quantities of aggressive
or decomposed chemicals in the load may produce damage
to the machine and harmful fumes.
A program should be established for the inspection and
cleaning of lint in the burner area, exhaust ductwork, and
area around the back of the dryer. The frequency of
inspection and cleaning can best be determined from
experience at each location.
Do not operate steam dryers with more than 150 psi (10.34
bar) steam pressure. Excessive steam pressure can
damage the steam coil and/or harm personnel.
Replace leaking flexible hoses or other steam fixtures
immediately. Do not operate the dryer with leaking flexible
hoses. Personal injury may result.
!WARNING
The collection of lint in the burner area and exhaust
ductwork can create a potential fire hazard.
For personal safety, the dryer must be electrically grounded
in accordance with local codes and/or the National Electrical
Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada,
the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990
or LATEST EDITION.
NOTE: Failure to electrically ground the dryer properly will
void the warranty.
!WARNING
Personal injury or fire could result should the dryer
door switch, lint door/drawer, or heat safety circuit
ever be disabled.
Remove articles from the dryer as soon as the drying cycle
has been completed.
!WARNING
Articles left in the dryer after the drying and cooling
cycles have been completed can create a fire hazard.
For safety, proper operation, and optimum performance, the
dryer must not be operated with a load less than 66% of its
rated capacity.
!WARNING
You must disconnect and lockout the electric supply
and the gas supply or the steam supply before any
covers or guards are removed from the machine to
allow access for cleaning, adjusting, installation, or
testing of any equipment per OSHA standards.

WFR112807-15 www.adclaundry.com 5
NOTES _____________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
IMPORTANT: The dryer must be installed in a location/
environment, which the ambient temperature remains
between 40° F (4.44° C) and 130° F (54.44° C).
The operation of this appliance may affect the operation of
other types of gas appliances, which take their air for safe
combustion from the same room. If in doubt, consult the
appliance manufacturer(s).
Use this dryer only for its intended purpose, drying fabrics.
The “cool down” cycle of tumble dryers should be used to
reduce the temperature of the items. They should not be
removed from the tumble dryer or piled or stacked while
hot.
Fabric softeners or similar products should not be used in
a tumbler dryer to eliminate the effects of static electricity
unless this practice is specifically recommended by the
manufacturer of the fabric softener or product.
!WARNING
To reduce the risk of personal injury, install lockable
doors to prevent public access to the rear of the
dryers.
Exhaust duct outlet should be checked periodically for
blockages, and if any found, removed.
IMPORTANT: A means of restraint must be used to
prevent straining of the gas supply when the appliance is
moved.
An external means of power removal (disconnect device)
must be provided by the installer.
CE ONLY
IMPORTANT: This appliance must only be installed and
operated in the country of destination indicated on the
dryer’s data plate. If the appliance is to be installed and
operated in a country other than the one indicated on the
data plate, a data plate amendment must be obtained
from American Dryer Corporation.
IEC335 applies.
!WARNING
This appliance must only operate with the gas type
indicated on the dryer’s data plate. If the appliance is
converted (gas type is changed), a data plate
amendment must be obtained from American Dryer
Corporation.
This appliance may cause spillage of products of
combustion from an open-flue appliance fitted in the
same room, and that such an appliance shall be tested
for clearance of products with the appliance in
operation and all windows and doors closed.

6 American Dryer Corp. WFR112807-15
MAXIMUM CAPACITY (DRY WEIGHT) PER POCKET 35 lb 15.88 kg
TUMBLER DIAMETER 30” 76.20 cm
TUMBLER DEPTH 30” 76.20 cm
TUMBLER VOLUME
PER POCKET 12.27 cu ft 347.44 L
TUMBLER/DRIVE MOTOR
PER POCKET 1/4 hp 0.19 kW
BLOWER/FAN MOTOR
PER POCKET 1/2 hp 0.37 kW
DOOR OPENING
(DIAMETER) 19-3/8” 49.21 cm
DOOR SILL HEIGHT
TOP POCKET / BOTTOM POCKET 54-11/16” / 14-7/8” 138.91 cm / 37.78 cm
WATER CONNECTION 3/4”-11.5 NH
(North America)
3/4” B.S.P.T. (Outside North America)
DRYERS PER 20’/40’ CONTAINER 14 / 28
DRYERS PER 53’ TRUCK 36
VOLTAGE AVAILABLE 120-240V 1ø 2w 50/60 Hz
APPROXIMATE NET WEIGHT 600 lb 272.16 kg
APPROXIMATE SHIPPING WEIGHT 630 lb 285.76 kg
AIRFLOW
PER POCKET
60 Hz
380 cfm 10.76 cmm
50 Hz
320 cfm 9.06 cmm
HEAT INPUT
PER POCKET
60 Hz
64,000 Btu/hr 16,128 kcal/hr
50 Hz
55,000 Btu/hr 13,860 kcal/hr
EXHAUST CONNECTION
(DIAMETER) PER POCKET 6” 15.24 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION
PER POCKET 1/2” M.N.P.T.
3/8” M.B.S.P.T.
(CE and Australia Only)
VOLTAGE AVAILABLE 200-416V 1,3ø 2,3,4w 50/60 Hz
APPROXIMATE NET WEIGHT 600 lb 272.16 kg
APPROXIMATE SHIPPING WEIGHT 630 lb 285.76 kg
AIRFLOW
PER POCKET
60 Hz
380 cfm 10.76 cmm
50 Hz
320 cfm 9.06 cmm
EXHAUST CONNECTION
(DIAMETER) PER POCKET 6” 15.24 cm
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
OVEN SIZE
PER POCKET
kW Btu/hr kcal/hr
7.9 26,962 6,794
8.3 28,327 7,138
9.0 30,716 7,740
11.3 38,566 9,719
12.4 42,320 10,665
12.5 42,661 10,751
13.5 46,074 11,611
VOLTAGE AVAILABLE
N / A
APPROXIMATE NET WEIGHT
APPROXIMATE SHIPPING WEIGHT
AIRFLOW
PER POCKET
STEAM CONSUMPTION PER POCKET
OPERATING STEAM PRESSURE
EXHAUST CONNECTION
(DIAMETER) PER POCKET
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
BOILER HORSEPOWER
(NORMAL LOAD) PER POCKET
SUPPLY CONNECTION PER POCKET
RETURN CONNECTION PER POCKET
Specifications _____________________________________________________________________
Shaded areas are stated in metric equivalents 8/25/15
GAS
ELECTRIC
STEAM
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

WFR112807-15 www.adclaundry.com 7

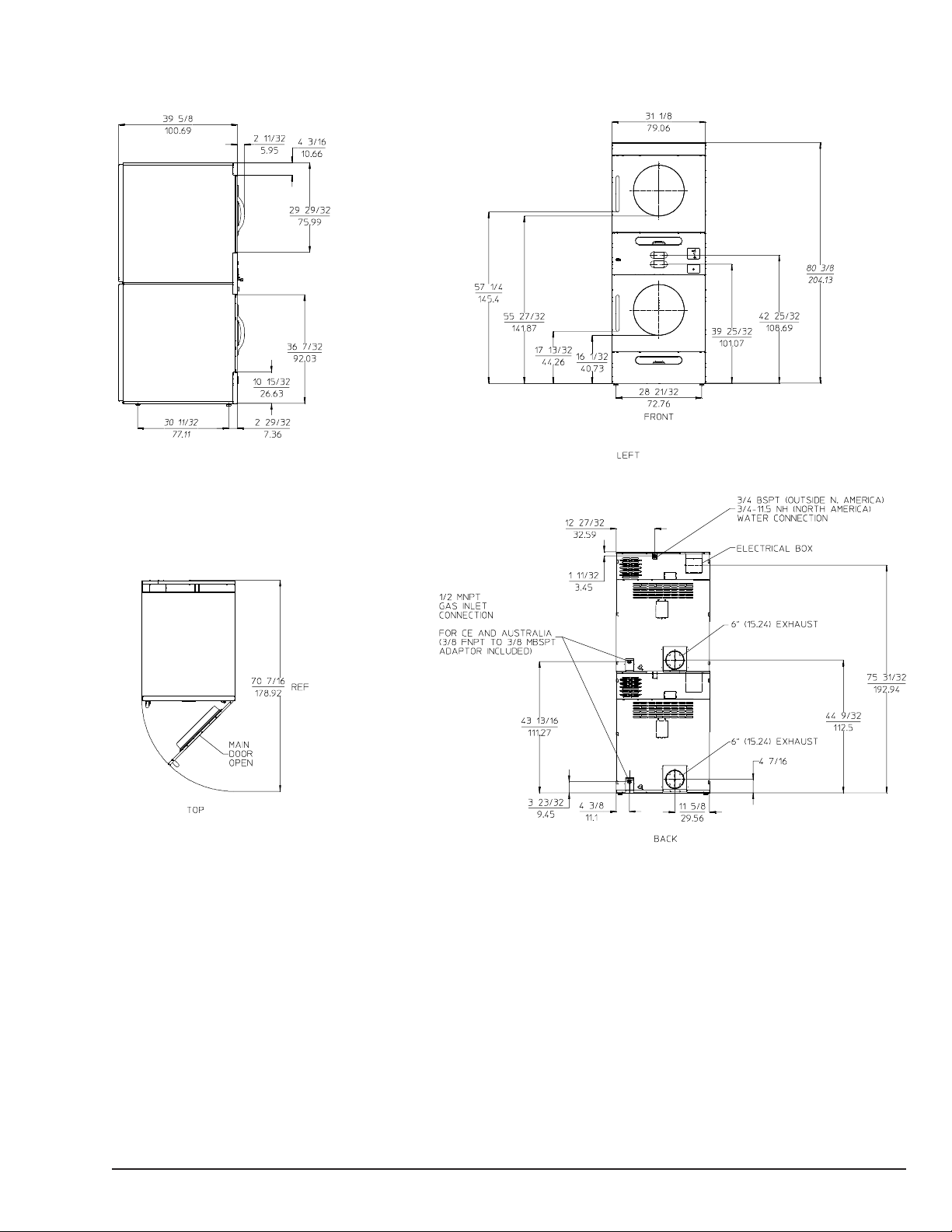

Specifications _____________________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

8 American Dryer Corp. WFR112807-15
Installation Procedures ______________
Installation should be performed by competent professional
in accordance with local, state, and country codes. In the
absence of these codes, the installation must conform to
applicable American National Standards: ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA
NO. 70-LATEST EDITION (National Electrical Code) or in
Canada, the installation must conform to applicable
Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas)
or CAN/CGA-B149.2-M91 (Propane Gas) or LATEST
EDITION (for General Installation and Gas Plumbing) or
Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or
LATEST EDITION (for Electrical Connections).
Location Requirements ______________
Before installing the dryer, be sure the location conforms to
local codes and ordinances. In the absence of such codes
or ordinances the location must conform with the National
Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada,
the installation must conform to applicable Canadian
Standards: CAN/CGA-B149.1-M91 (Natural Gas) or
CAN/CGA-B149.2-M91 (Propane Gas) or LATEST EDITION
(for General Installation and Gas Plumbing).
The dryer must be installed on a sound level floor capable
of supporting its weight. Carpeting must be removed from
the floor area that the dryer is to rest on.
The dryer must not be installed or stored in an area where it
will be exposed to water and/or weather.
Provisions for adequate air supply must be provided as
noted in this manual (refer to Fresh Air Supply Requirements
section).
Clearance provisions must be made from combustible
construction as noted in this manual (refer to Dryer
Enclosure Requirements section).
Provisions must be made for adequate clearances for
servicing and for operation as noted in this manual (refer to
Dryer Enclosure Requirements section).
The dryer must be installed with a proper exhaust duct
connection to the outside as noted in this manual (refer to
Exhaust Requirements section).
The dryer must be located in an area where correct exhaust
venting can be achieved as noted in this manual (refer to
Exhaust Requirements section).
IMPORTANT: The dryer should be located where a
minimum amount of exhaust ducting will be necessary.
The dryer must be installed with adequate clearance for air
openings into the combustion chamber.
CAUTION: This dryer produces combustible lint and
must be exhausted to the outdoors. Every 6 months,
inspect the exhaust ducting and remove any lint
buildup.
IMPORTANT: The dryer must be installed in a location/
environment, which the ambient temperature remains
between 40° F (4.44° C) and 130° F (54.44° C).
Unpacking / Setting Up _______________
Remove protective shipping material (i.e., plastic wrap and
optional shipping box) from the dryer.
IMPORTANT: Dryer must be transported and handled in
an upright position at all times.
The dryer can be moved to its final location while still
attached to the skid or with the skid removed. To remove
the skid from the dryer, locate and remove the 2 bolts
securing the base of the dryer to the wooden skid. One is
located at the center rear and the other is at the center front.
With the skid removed, use caution and assure all four
leveling legs are fully retracted, if the dryer is to be slid into
its final position.
Leveling Dryer
The dryer is equipped with 4 leveling legs, 1 at each corner
of the base. For optimum performance the dryer should be
level front-to-back and side-to-side.
Dryer Enclosure Requirements ______
Bulkheads and partitions should be made of
noncombustible material.
NOTE: Allowances must be made for opening the control
door.

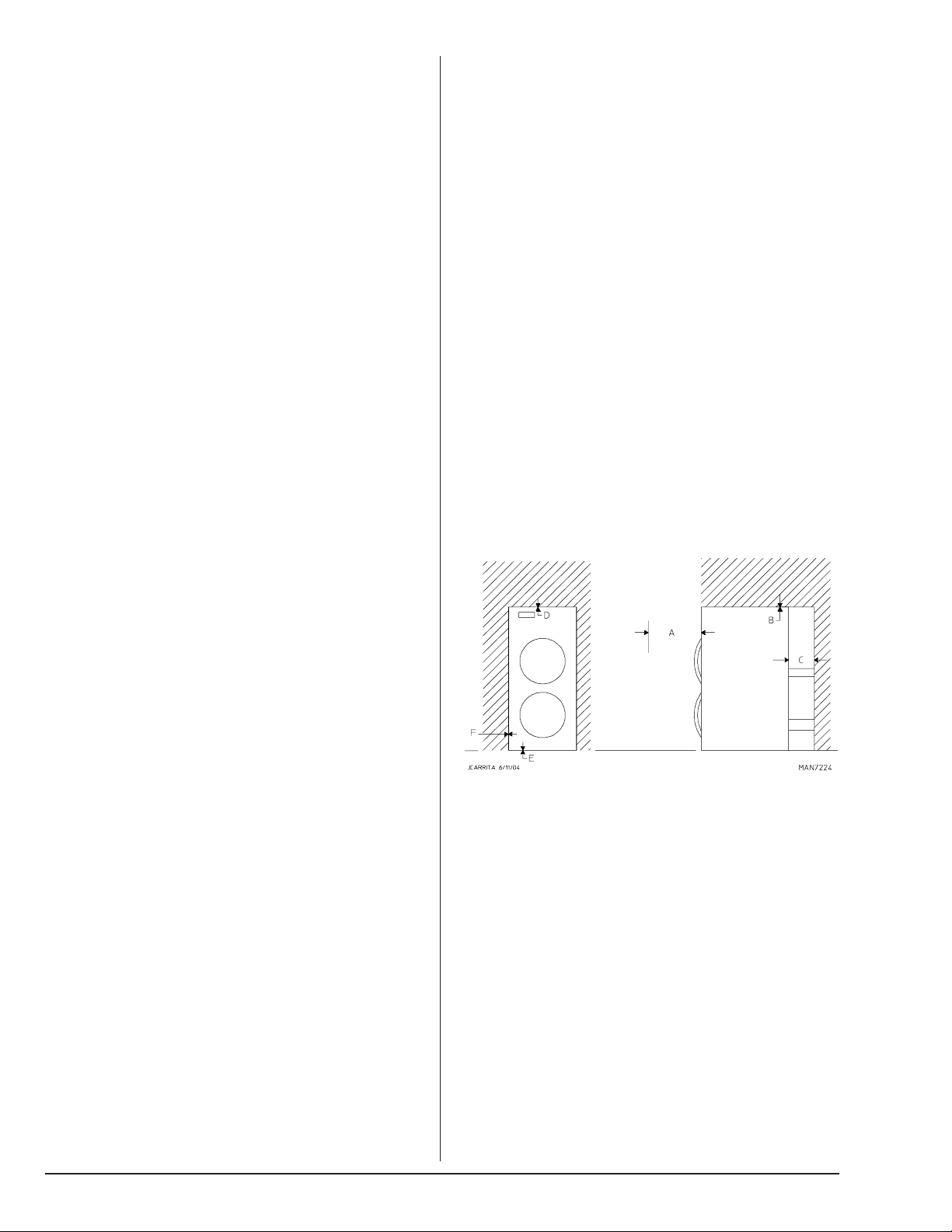

A The requirement to allow the door to open completely
is 33-inches (83.8 cm).
B A minimum overhead clearance of 6-inches (15.24 cm)
is required.
C Dryer should be positioned a minimum of 12-inches
(30.48 cm) away from the nearest obstruction.
24-inches (60.96 cm) is recommended for ease of
installation, maintenance, and service.
D 1/16” (1.5875 mm) minimum is required.
E Flooring should be level or below dryer cabinet for ease
of removing panels during maintenance.
F Dryers may be positioned sidewall to sidewall, however
a 1/16” (1.5875 mm) minimum allowance must be
made for the opening and closing of the control door,
along with the removal of panels during maintenance.

WFR112807-15 www.adclaundry.com 9
Fresh Air Supply Requirements ______
This appliance may only be installed in a room that meets
the appropriate ventilation requirements specified in the
national installation regulations.
When the dryer is operating, it draws in room air, heats it,
passes this air through the tumbler, and exhausts it out of
the building. Therefore, the room air must be continually
replenished from the outdoors. If the make-up air is
inadequate, drying time and drying efficiency will be
adversely affected. Ignition problems and sail switch
“fluttering” problems may result, as well as premature motor
failure from overheating. The dryer must be installed with
provisions for adequate combustion and make-up air supply.
Air supply (make-up air) must be given careful consideration
to ensure proper performance of each dryer. Fresh air
ventilation openings shall not be blocked and/or sealed. As
a general rule, an unrestricted air entrance from the outdoors
of 128 inch2(826 cm2) is required for each dryer. (Based on
1 inch2[6.5 cm2] per 1,000 Btu [252 kcal].)
It is not necessary to have a separate make-up air opening
for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner
that the make-up air is distributed equally to all the dryers.
Exhaust Requirements _______________
Exhaust ductwork should be designed and installed by a
qualified professional. Improperly sized ductwork will create
excessive back pressure, which results in slow drying,
increased use of energy, and shutdown of the burner by the
airflow (sail) switch, burner hi-limits, or lint chamber hi-limit
protector thermostat. The dryer must be installed with a
proper exhaust duct connection to the outside.
The design of the flue system shall be such that any
condensate formed when operating the appliance from cold
shall either be retained and subsequently re-evaporated or
discharged.
CAUTION: This dryer produces combustible lint and
must be exhausted to the outdoors.
Improperly sized or installed exhaust ductwork can
create a potential fire hazard.
The ductwork should be laid out in such a way that the
ductwork travels as directly as possible to the outdoors with
as few turns as possible. There should be a minimum
6-inch (15.24 cm) clearance between the back guard and
the first bend in the ductwork for ease of servicing. Single or
independent dryer venting is recommended. It is suggested
that the use of 90° turns be avoided; use 30° and/or 45°
bends instead. The radius of the elbows should preferably
be 1-1/2 times the diameter of the duct. All ductwork should
be smooth inside with no projections from sheet metal
screws or other obstructions, which will collect lint. When
adding ducts, overlap the duct being connected. All ductwork
joints must be taped to prevent moisture and lint from
escaping into the building. Back draft dampers must be
installed in all commonly ducted systems. Inspection doors
should be installed at strategic points in the exhaust
ductwork for periodic inspection and cleaning of lint from
the ductwork.
IMPORTANT: Exhaust back pressure measured by a
manometer/magnehelic in the exhaust duct must be no
less than 0 and must not exceed 0.6 in WC (1.5 mb) with
both tumblers operating.
NOTE: It is recommended that exhaust or booster fans
not be used in the exhaust ductwork system except where
necessary to maintain exhaust back pressure (in the
exhaust duct) between zero and 0.6 inch water column
with both tumblers operating. Where employed, booster
fans must not activate the dryer airflow proving switch (sail
switch) when the dryer is not in operation.
When the exhaust ductwork passes through a wall, ceiling,
or roof made of combustible materials, the opening must
be 2-inches (5.08 cm) larger than the duct (all the way
around). The duct must be centered within this opening.
As per the National Fuel Gas Code, “Exhaust ducts for
type 2 clothes dryers shall be constructed of sheet metal
or other noncombustible material. Such ducts shall be
equivalent in strength and corrosion resistance to ducts
made of galvanized sheet steel not less than 26 gauge
(0.0195-inches [0.50 mm]) thick.”
The ductwork for this appliance must be suitable for the
appliance category in accordance with national installation
regulations of the country of destination.
EXAMPLE: For a bank of 4 dryers, 2 unrestricted openings
measuring 16-inches by 16-inches (40.64 cm by 40.64 cm)
are acceptable.
To compensate for the use of registers or louvers used over
the openings, this area must be increased by approximately
33%. Make-up air openings should not be located in an
area directly near where exhaust vents exit the building.
Allowances must be made for remote or constricting
passageways or where dryers are located at high altitudes
or predominantly low pressure areas.
IMPORTANT: Make-up air must be free of dry cleaning
solvent fumes. Make-up air that is contaminated by dry
cleaning solvent fumes will result in irreparable damage
to the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent
fumes will void the warranty.
A = 16-inches (40.64 cm) B = 16-inches (40.64 cm)

10 American Dryer Corp. WFR112807-15
NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)
larger than the duct (all the way around). The duct must be centered
within this opening.
NOTE 2 Distance should be 2 times the diameter of the duct to the nearest
obstruction.
A = 8-inches (20.32 cm)
B = 12 feet (3.66 meters)
NUMBER OF DRYERS 4 3 2 1
MINIMUM CROSS-
SECTIONAL AREA
SQ IN 164 120 80 54
SQ CM 1058 774.2 516.1 348.4
MINIMUM ROUND
DUCT DIAMETER
IN 14 12 10 8
CM 35.56 30.48 25.4 20.32
Outside Ductwork Protection
To protect the outside end of the horizontal ductwork from
the weather, a 90° elbow bent downward should be installed
where the exhaust exits the building. If the ductwork travels
vertically up through the roof, it should be protected from the
weather by using a 180° turn to point the opening downward.
In either case, allow at least twice the diameter of the duct
between the duct opening and the nearest obstruction (refer
to the diagram).
IMPORTANT: Do not use screens, louvers, or caps on the
outside opening of the exhaust ductwork.
Single Dryer Venting
IMPORTANT: For extended ductwork runs, the cross-
sectional area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum
limits as noted in this manual, a professional HVAC firm
should be consulted for proper venting information.
NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)
larger than the duct (all the way around). The duct must be centered
within this opening.
NOTE 2 Distance should be 2 times the diameter of the duct to the nearest
obstruction.
A = 12 feet (3.66 meters)
B = 8-inches (20.32 cm)
The length of the ductwork from the dryer to the outside
exhaust outlet, must not exceed 12 feet (3.66 meters). The
minimum diameter of this ductwork must be at least
8-inches (20.32 cm) even though the dryer exhaust duct
connection is smaller. Including tumbler/dryer elbow
connections or elbows used for outside protection from the
weather, no more than 4 90° elbows should be used in the
exhaust duct run. If more than the equivalent of four 90°
elbows are used, the cross-sectional area of the ductwork
must be increased.
Multiple Dryer (Common) Venting
IMPORTANT: For extended ductwork runs, the cross-
sectional area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum
limits as noted in this manual, a professional HVAC firm
should be consulted for proper venting information.
If it is not feasible to provide separate exhaust ducts for
each dryer, ducts from individual dryers may be channeled
into a “common main duct.” The individual ducts should
enter the bottom or side of the main duct at an angle not
more than 45º in the direction of airflow. The main duct
should be tapered, with the diameter increasing before each
individual duct is added. The minimum diameter of the
individual ductwork must be at least 8-inches (20.32 cm).
IMPORTANT: No more than four dryers should be
connected to one main common duct.
The illustration below shows the minimum cross-sectional
area for multiple dryer round or square venting. These
figures must be increased if the main duct run from the last
dryer to where it exhausts to the outdoors is longer than 12
feet (3.66 meters) or has more than 1 elbow in it.
Multiple Dryer Venting with 8-Inch (20.32 cm) Diameter
720 cfm (20.38 cmm) Exhaust Connections at Common Duct

WFR112807-15 www.adclaundry.com 11
Electrical Information ________________
Electrical Requirements
All electrical connections must be made by a properly
licensed and competent electrician. This is to ensure that
the electrical installation is adequate and conforms to local,
state, and national regulations or codes of the country of
destination. In the absence of such codes, all electrical
connections, materials, and workmanship must conform to
the applicable requirements of the National Electrical Code
ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the
Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or
LATEST EDITION.
IMPORTANT: Failure to comply with these codes or
ordinances, and/or the requirements stipulated in this
manual can result in personal injury or component failure.
NOTE: Component failure due to improper installation will
void the warranty.
Each pocket should be connected to an independently
protected branch circuit. The dryer must be connected with
copper wire only. Do not use aluminum wire, which could
cause a fire hazard. The copper conductor wire/cable must
be of proper ampacity and insulation in accordance with
electric codes for making all service connections.
NOTE: The use of aluminum wire will void the warranty.
An individual ground circuit must be provided to each
pocket, do not daisy chain.
Component failure due to improper voltage application
will void the warranty.
The manufacturer reserves the right to make changes in
specifications at any time without notice or obligation.
IMPORTANT: A separate protected circuit must be
provided to each pocket.
It is necessary to have a power disconnect for each
pocket. These disconnects must be located within 9
meters of the unit and also be identified as being one of
two power sources supplying a dryer.
The dryer must be connected to the electric supply shown
on the data label. In the case of 208 VAC or 230/240
VAC, the supply voltage must match the electric service
specifications of the data label exactly.
The wire size must be properly sized to handle the related
current.
!WARNING
208 VAC and 230/240 VAC are not the same. Any
damage done to dryer components due to improper
voltage connections will automatically void the
warranty.
TERM LINE VOLTAGE
50 Hz 60 Hz
HIGH
260
226
283
249
MED
239
208
260
230
LOW
217
189
236
208
Electrical Service Specifications
Gas Models Only
5/5/14
!WARNING (Gas Models Only)
Dryers built for use with a voltage between 200 and
230/240 must verify the input voltage during
installation. If the nominal voltage is outside of the
medium tolerances shown on the diagram below,
adjust the autotransformers, located near the burner
assemblies. To adjust the autotransformer wiring,
place the red wire on the appropriate tap (HIGH, MED,
LOW) of the autotransformer. For additional wiring
details, refer to the electrical diagram located on the
inside of the control panel.
ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)
IMPORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to
listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type
ONLY. For others, calculate/verify correct breaker size according to
appliance amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE
SERVICE
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
120 1ø 2 10.3 —15
200 1ø 2 8.7 8.8 15
208 1ø 2 8.4 —15
220 1ø 2 8.1 8.1 15
230 1ø 2 —7.4 15
240 1ø 2 7.7 7.0 15

12 American Dryer Corp. WFR112807-15

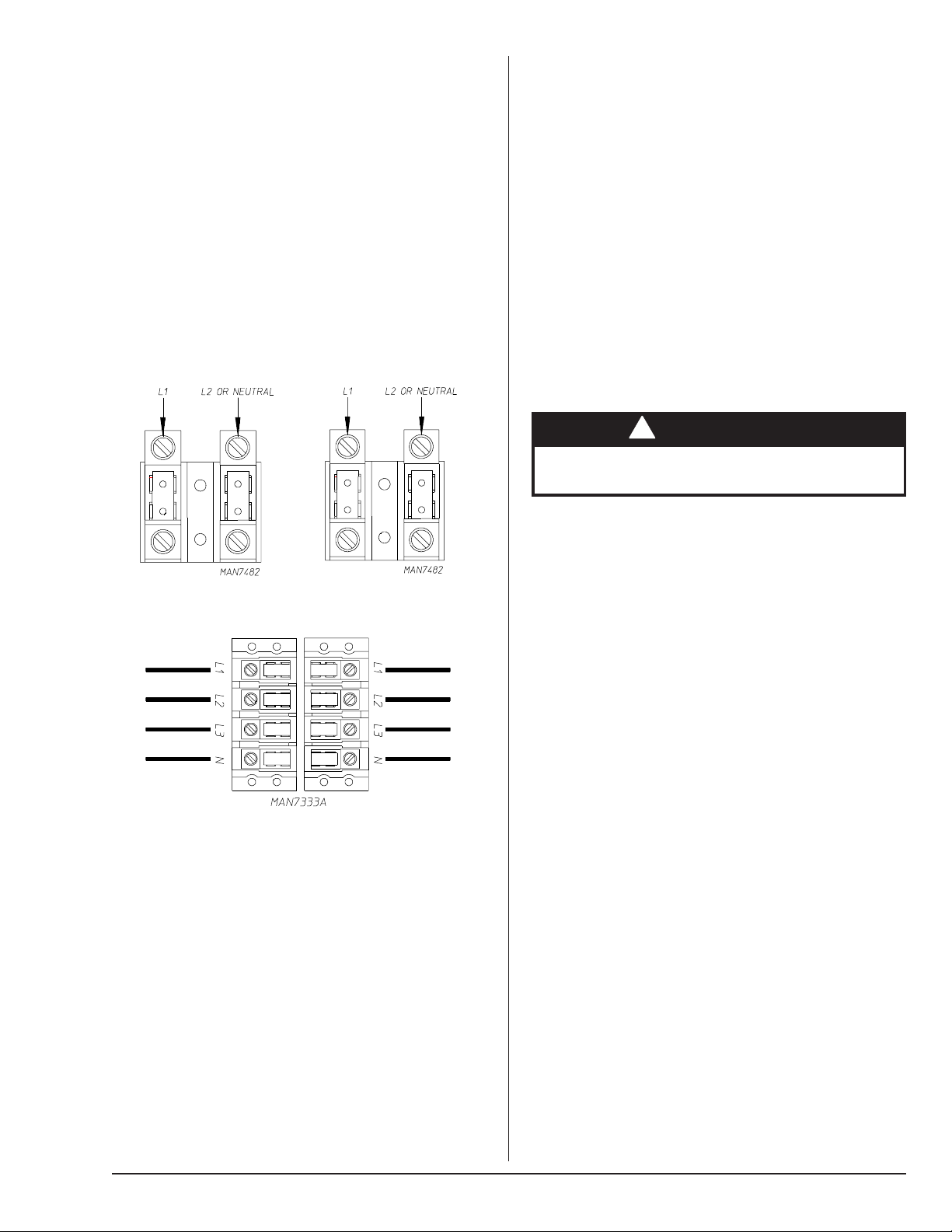

208-240V Application without Neutral
Electric Models Only
All electrically heated dryers must be connected to the
electric service shown on the dryer’s data label. The
connecting wires must be properly sized to handle the rated
current.
Electrical Connections
A wiring diagram is located behind the control panel for
connection data.
If local codes permit, power to the dryer can be made by the
use of a flexible UL listed power cord/pigtail (wire size must
conform to rating of dryer), or the dryer can be hard wired
directly to the service breaker panel. In both cases, a strain
relief must be installed where the wiring enters the dryer.
For CE Models Only
The means for disconnection from the supply must be
incorporated into wiring having a minimum contact
separation of 3.0 mm in all poles.
Single-Phase (1ø)
Wiring Connections / Hookup
The electrical input connections are made into the rear
service box located at the upper right area of the dryer. The
ground connection is made to the copper lug, also provided
in this box. To gain access, the service box cover must be
removed.
Gas and Steam Models Only
120-240V Application with Neutral
ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)
IMP ORTANT:
NOTES: A.
B.
C.
208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to
listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) type ONLY. For
others, calculate/verify correct breaker size according to appliance
amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE SERVICE
OVEN
kW
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
200 1ø 2 12.5 68.4 67.7 90
208 1ø 2 7.9 43.8 —60
208 1ø 2 13.5 70.7 —90
220 1ø 2 11.3 54.2 —70
230 1ø 2 8.3 —41.3 60
230 1ø 2 12.4 —59.1 80
240 1ø 2 9.0 42.7 —60
240 1ø 2 13.5 61.5 61.3 80
208 3ø 3 13.5 43.3 —60
220 3ø 3 11.3 35.3 —50
230 3ø 3 12.4 —36.5 50
240 3ø 3 13.5 37.7 —50
380 3ø 4 11.3 22.8 —30
380 3ø 3 / 4 11.3 —22.6 30
400 3ø 3 / 4 12.4 —23.1 30
416 3ø 3 / 4 13.5 —23.7 30
CAUTION: The dryer must be grounded. A ground lug
has been provided for this purpose.
Input connection wiring must be sized properly to handle
the dryer’s current draw. This information is printed on the
dryer’s data label.
IMPORTANT: A strain relief must be used where the input
wiring enters the oven assembly.
Electrically Heated Models Only
The electrical input connections are made at the rear service
box located at the right upper section of the dryer. The ground
connection is made to a copper lug also provided in this
area. To gain access, remove rear service cover.
5/5/14
Grounding
A ground (earth) connection must be provided and installed
in accordance with local, state, and national regulations or
codes of the country of destination. In the absence of these
codes, grounding must conform to applicable requirements
of the National Electrical Code ANSI/NFPA NO. 70-LATEST
EDITION, or in Canada, the installation must conform to
applicable Canada Standards: Canadian Electrical Codes
Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The
ground connection may be to a proven earth ground at the
location service panel.
For added personal safety, when possible, it is suggested
that a separate ground wire (size per local codes) be
connected from the ground connection of the dryer to a
grounded cold water pipe. Do not ground to a gas pipe or
hot water pipe. The grounded cold water pipe must have
metal-to-metal connection all the way to the electrical ground.
If there are any nonmetallic interruptions, such as, a meter,
pump, plastic, rubber, or other insulating connectors, they
must be jumped out with a wire (size per local codes) and
securely clamped to bare metal at both ends.
IMPORTANT: For personal safety and proper operation,
the dryer must be grounded.
Provisions are made for ground connection in each dryer at
the electrical service connection area.

WFR112807-15 www.adclaundry.com 13
3-Phase (3ø) Wiring Connections / Hookup
The only electrical input connections to the dryer are the
3-phase (3ø) power leads (L1, L2, L3, and sometimes
neutral) and ground. Single-phase (1ø) power for the control
circuit and for any single-phase (1ø) motors (if present) is
done internally to the dryer by the factory at the oven contactor.
No single-phase (1ø) input connection is required on a
3-phase (3ø) dryer.
The neutral will only be used on 4-wire service. This is
typical for 380-416V, 50 Hz.
CAUTION: The dryer must be grounded. A ground lug
has been provided for this purpose.
Input connection wiring must be sized properly to handle
the dryer’s current draw. This information is printed on the
dryer’s data label.
Electric Models Only
Single-Phase (1ø) Wiring Connections / Hookup
IMPORTANT: Failure to comply with these codes or
ordinances, and/or the requirements stipulated in this
manual, can result in personal injury and improper
operation of the dryer.
For ease of service, the individual gas supply line of each
dryer must have its own manual shutoff valve.
Failure to isolate or disconnect the dryer from supply as
noted can cause irreparable damage to the gas valve,
voiding the warranty.
The dryer and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa) for non-CE dryers or 50 mb
for CE dryers.
NOTE: The dryer must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure test of the gas supply system at
test pressures equal to or less than 1/2 psig (3.5 kPa) for
non-CE dryers or 50 mb for CE dryers.
!WARNING
Fire or explosion could result due to failure of isolating
or disconnecting the gas supply as noted.
NOTE: Undersized gas piping will result in ignition
problems, slow drying, increased use of energy, and can
create a safety hazard.
The dryer must be connected to the type of heat/gas indicated
on the data label and pressure must be confirmed. If this
information does not agree with the type of gas available,
do not operate the dryer. Contact the reseller who sold the
dryer or contact the manufacturer.
The input ratings shown on the data label are for elevations
up to 2,000 feet (610 meters), unless elevation requirements
of over 2,000 feet (610 meters) were specified at the time
the dryer order was placed with the factory. The adjustment
or conversion of dryers in the field for elevations over 2,000
feet (610 meters) is made by changing each burner orifice.
If this conversion is necessary, contact the reseller who sold
the dryer or contact the manufacturer.
IMPORTANT: If connection to this appliance is made with
a flexible hose, it must be suitable for the appliance
category in accordance with national installation
regulations of the country of destination, and if in doubt
the installer must contact the supplier. The manufacturer
of this appliance does not recommend the use of flexible
gas supply line/hose. An external gas supply shutoff must
be provided.
CE and Australian Dryers
There are 2 N.P.T. to B.S.P.T. adaptors included with each
dryer, which must be installed to the gas inlets. The adaptors
are shipped in the upper tumbler.
IMPORTANT: Pipe joint compounds that resist the action
of natural, propane, and butane gases must be used.
Gas Information ______________________
It is your responsibility to have all plumbing connections,
materials, and workmanship conform to local and state
regulations or codes of the country of destination. In the
absence of such codes, all plumbing connections,
materials, and workmanship must conform to the applicable
local requirements. In the USA this is the National Fuel Gas
Code ANSI Z223.1-LATEST EDITION, or in Canada, the
Canadian Installation Codes CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGAB149.2-M91 (Propane Gas) or
LATEST EDITION.
In Australia, the fuel gas code is AS/NZS5601, local authority,
gas, electricity, and any other relevant statutory regulations.
It is important that gas pressure regulators meet applicable
pressure requirements, and that gas meters be rated for
the total amount of all the appliance Btu being supplied.

14 American Dryer Corp. WFR112807-15
Gas Specifications for Dryers Going to Rest of the World***
Gas Type and
Nominal Heating Value
Supply
Pressure
**Gross Heat Input
per Pocket/Tumbler Orifice Size
**Orifice
(Injector)
Qty. per
Pocket/
Tumbler
Burner
Pressure
Btu/ft
3
in WC Btu/hr kW DMS mm in WC
Natural 1,000 7.0-13.0 64,000 18.74 23 3.912 13.5
*Propane 2,500 11.0 64,000 18.74 42 2.375 1 10.5
Gas Specifications for Dryers Going to CE Countries**
Gas
Type
Nominal
Heating Value
Supply
Pressure***
Gross Heat Input
Per Pocket/Tumbler
Fuel
Consumption
Per Pocket/
Tumbler
Orifice Size Orifice
(Injector)
Quantity
Burner
Pressure
Btu/ft
3
mb Btu/hr kW DMS mm mb
Natural (I
2H
/I
2E
) 1,000 15-30 55,000 16.12 1.556 M
3
/H 22 3.988 16.9
Natural (I
2L
)83020-35 55,000 16.12 1.874 M
3
/H 22 3.988 19.5
Natural (I
2ELL
)830 15-30 55,000 16.12 1.874 M
3
/H 22 3.988 19.5
*Natural (I
2E+
)1,000 20 55,000 16.12 1.556 M
3
/H 31 3.048 1—
830 25 55,000 16.12 1.874 M
3
/H 31 3.048 1—
*Butane (I
3+
) 3,175 28-30 55,000 16.12 1.161 kg/H 48 1.93 1—
*Propane (I
3+
) 2,500 37 55,000 16.12 1.161 kg/H 48 1.93 1—
Butane (I
3B/P
) 3,175 28-30/50 55,000 16.12 1.161 kg/H 44 2.184 118.1
Propane (I
3P
) 2,500 28-30/50 55,000 16.12 1.161 kg/H 44 2.184 124.9
Heat Input / Gas Consumption / Orifice (Injector) Data
Shaded areas are stated in metric equivalents
* Gas valve’s internal regulator disabled.
** Information is per pocket/tumbler.
*** Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.
!WARNING (CE Dryers Only)
This appliance must only be operated with the gas
type indicated on the dryer’s data plate. If the
appliance is converted (gas type changed), a data
plate amendment must be obtained from American
Dryer Corporation for CE approved units.
Shaded areas are stated in metric equivalents
* Gas valve’s internal regulator disabled.
** Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.
*** Nominal supply pressure.
For Australia, refer to data plate.
Shaded areas are stated in metric equivalents
* Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.
Gas Connections
Inlet connection ..... 1/2” N.P.T.
3/8” B.S.P.T. (CE and Australian dryers)
Inlet supply size ....1/2” Diameter Pipe (minimum)
Gas Specifications for Dryers Going to Australia*
Gas
Type
Supply
Pressure
Gross Heat Input
Per Pocket/
Tumbler
Orifice Siz e Orifice
(Injector)
Quantity
Burner
Pressure
kPa MJ/h DMS mm kPa
Natural 1.7-3.2 58.03 22 3.988 10.69
Propane 2.75 58.03 44 2.184 12.49

WFR112807-15 www.adclaundry.com 15
Piping / Connections
The dryer is provided with two 1/2” N.P.T. (3/8” B.S.P.T. for CE
and Australian dryers) inlet pipe connections (1 for each
tumbler) at the rear of the dryer. If a separate feed is provided
for each tumbler from the main supply line (header), then a
1/2” (12.7 mm) line connection is sufficient. However, if the
top and bottom tumbler connections are connected together,
the supply from the header must be increased to 3/4-inch
(19.05 mm). There should be a minimum 6-inch (15.24
cm) clearance between the back guard and the first bend in
the gas piping for ease of servicing. It is recommended that
a gas shutoff valve be provided to the gas supply line of
each dryer for ease in servicing.
Installer within Australia – refer to AS/NZS5601.1 for
guidance on gas supply pipe sizing required for this
appliance installation.
The size of the main gas supply line (header) will vary
depending on the distance this line travels from the gas
meter or, in the case of propane gas, the supply tank, other
gas-operated appliances on the same line, etc. Specific
information regarding supply line size should be determined
by the gas supplier.
NOTE: Undersized gas supply piping can create a low or
inconsistent pressure, which will result in erratic operation
of the burner ignition system.

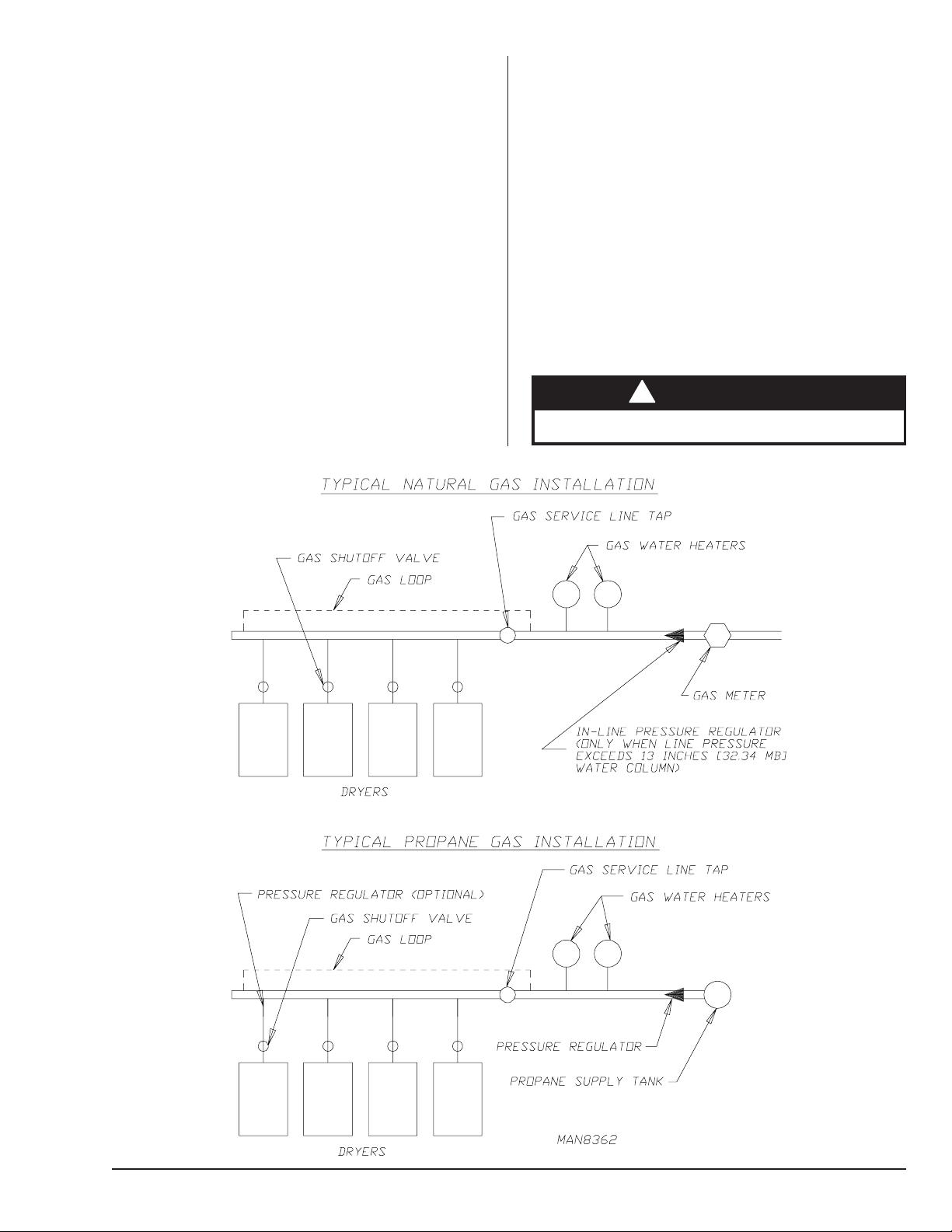

Consistent gas pressure is essential at all gas connections.
It is recommended that a 3/4-inch (19.05 mm) pipe gas
loop be installed in the supply line servicing a bank of dryers.
An in-line pressure regulator must be installed in the gas
supply line (header) if the (natural) gas pressure exceeds
13.0 in WC (32.34 mb) pressure.
A plugged tap, accessible for a pressure gauge connection,
must be installed in the main gas supply line immediately
upstream of the dryers.
IMPORTANT: Pipe joint compounds that resist the action
of natural, propane, and butane gases must be used.
Test all connections for leaks by brushing on a soapy
water solution (liquid detergent works well).
!WARNING
Never test for leaks with a flame!!!

16 American Dryer Corp. WFR112807-15
Converting from One Family
of Gas to Another _____________________
!WARNING (CE Dryers)
This appliance must only be operated with the gas
type indicated on the dryer’s data plate. If the
appliance is converted (gas type changed), a data
plate amendment must be obtained from American
Dryer Corporation (dryer’s serial number is required
to purchase a conversion kit).
IMPORTANT: Any burner changes or conversions must
be made by a qualified professional.
The dryers manufactured for Belgium, Luxemburg,
Greece, Estonia, Slovak Republic, Iceland, Malta, Poland
and Cyprus cannot be converted from one family of gas to
another.
Conversion from Natural Gas
to Propane or Butane Gas
The following conversion allows the dryer to be operated
with either propane, butane, or other liquefied petroleum
gases. The use of gas valve kit (ADC P/N 140414) disables
the internal regulator of the gas valve. Therefore, the gas
supply is ungoverned and an external regulator must be
provided at the source of the supply (example propane tank)
or the gas supply line to the dryer. The conversion kit
supplied will depend on the country the dryer is installed in.
Parts Required for Conversion:
Description ADC P/N Qty
Unregulated Gas Conversion Kit*** 140414 2*
OR
Regulated Propane Gas Conversion Kit**** 140416 2*
Burner Orifice (Injector) ** 2*
Propane Conversion Label 114515 2*
* This includes one for each pocket/tumbler.
** Refer to page 14 for orifice (injector) size.
*** Required for unregulated propane or butane only.
**** Required for regulated propane or other liquefied petroleum gases only.
Instructions
Disconnect electrical power to the dryer.
Close all shutoff valves (for both top and bottom tumbler) in
dryer’s gas supply line.
IMPORTANT: The following procedures must be
performed on both top and bottom tumblers.
Open the panels located just below each loading door.

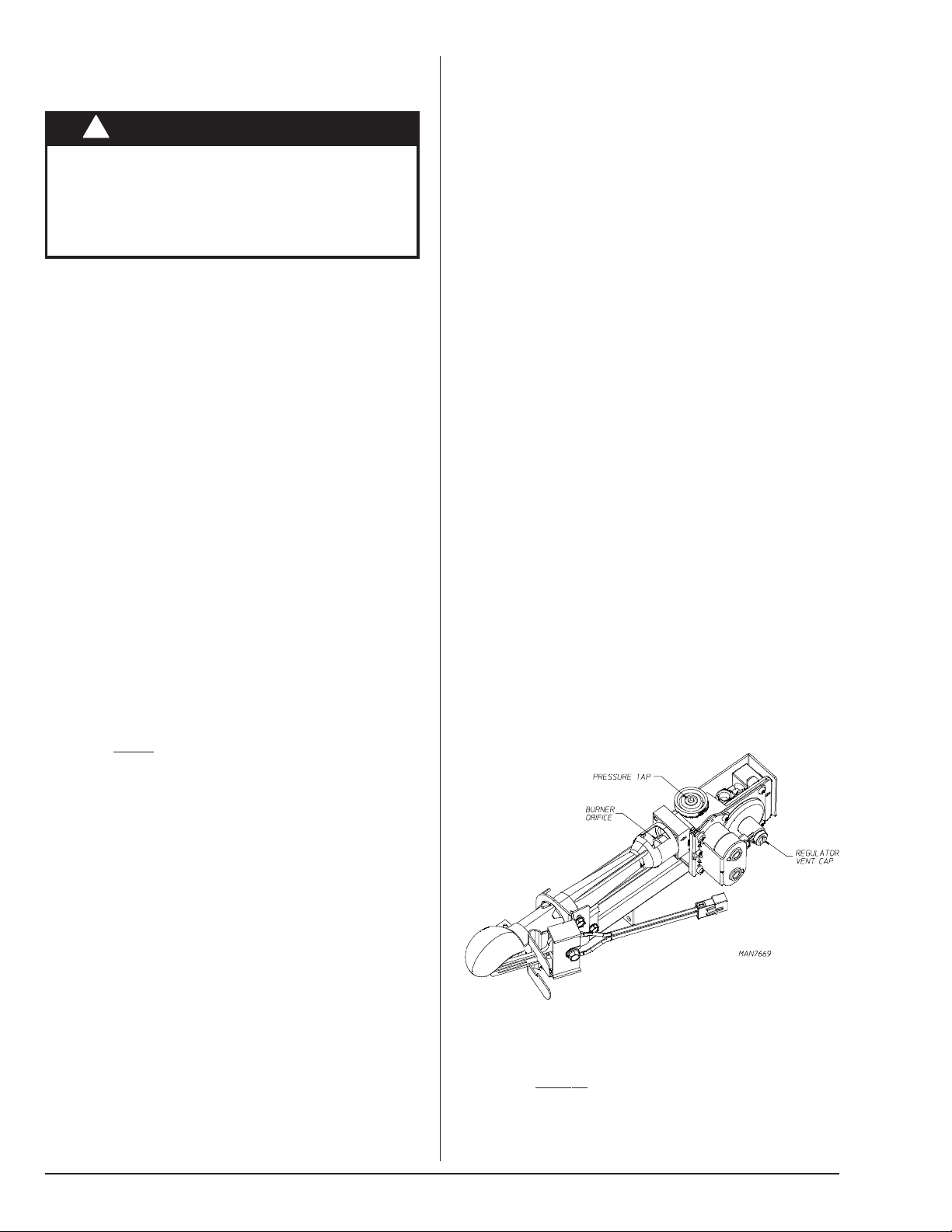

Locate the gas train and disconnect the union, three electrical
plugs, and the gas train mounting screws from the burner.
Carefully slide the gas train out of the gas train enclosure.
(The carbon ignitor located at the far end of the gas train is
very fragile.)
Remove two burner tube mounting screws and remove
burner tube in order to gain access to the orifice.
Using a 3/8” wrench or socket, remove the existing orifice
and replace it with an orifice from the kit.
Unregulated Gas Valve
Regulate (govern) gas externally (refer to “Supply Pressure”
in chart on page 14) to the correct gas pressure for the gas
being used. Operate dryer through one complete cycle to
ensure proper operation.
IMPORTANT: Use extreme care when removing and
replacing orifice (injector). This orifice (injector) is made
of brass, which is easily damaged.
Reinstall the burner tube onto the burner base.
Use a flat screwdriver to remove the regulator vent cap.
•For unregulated propane gas (most countries): install
blocking pin (ADC P/N 140414).
•For regulated propane gas (some countries): remove
the white plastic regulator adjustment screw (under vent
cap). Remove spring under screw and replace with
spring from kit (ADC P/N 140416). Replace regulator
adjustment screw.
Install the gas train back into the dryer gas train enclosure.
Be sure the tab at the rear of the gas train engages into the
mounting slot.
Connect the union and the three electrical plugs.
Repeat these steps for the other burner.
Affix Propane Conversion Label (ADC P/N 114515) to the
dryer’s data label.
Complete Propane Kit Conversion Confirmation Label (ADC
P/N 114083) and affix this label as close as possible to the
dryer’s existing dryer rating (data) label/plate.
Non-CE Dryers
Affix Propane Conversion Rating Label Addendum (ADC
P/N 114090) as close as possible to the dryer’s existing
dryer rating (data) label/plate.
CE Dryers
Affix new data plate label that came with the conversion kit.
Open all shutoff valves, reconnect electrical power to the
dryer, and test for leaks.
IMPORTANT: Never test for leaks with an open flame!!!
Use a soapy water solution or product intended for that
purpose.

WFR112807-15 www.adclaundry.com 17

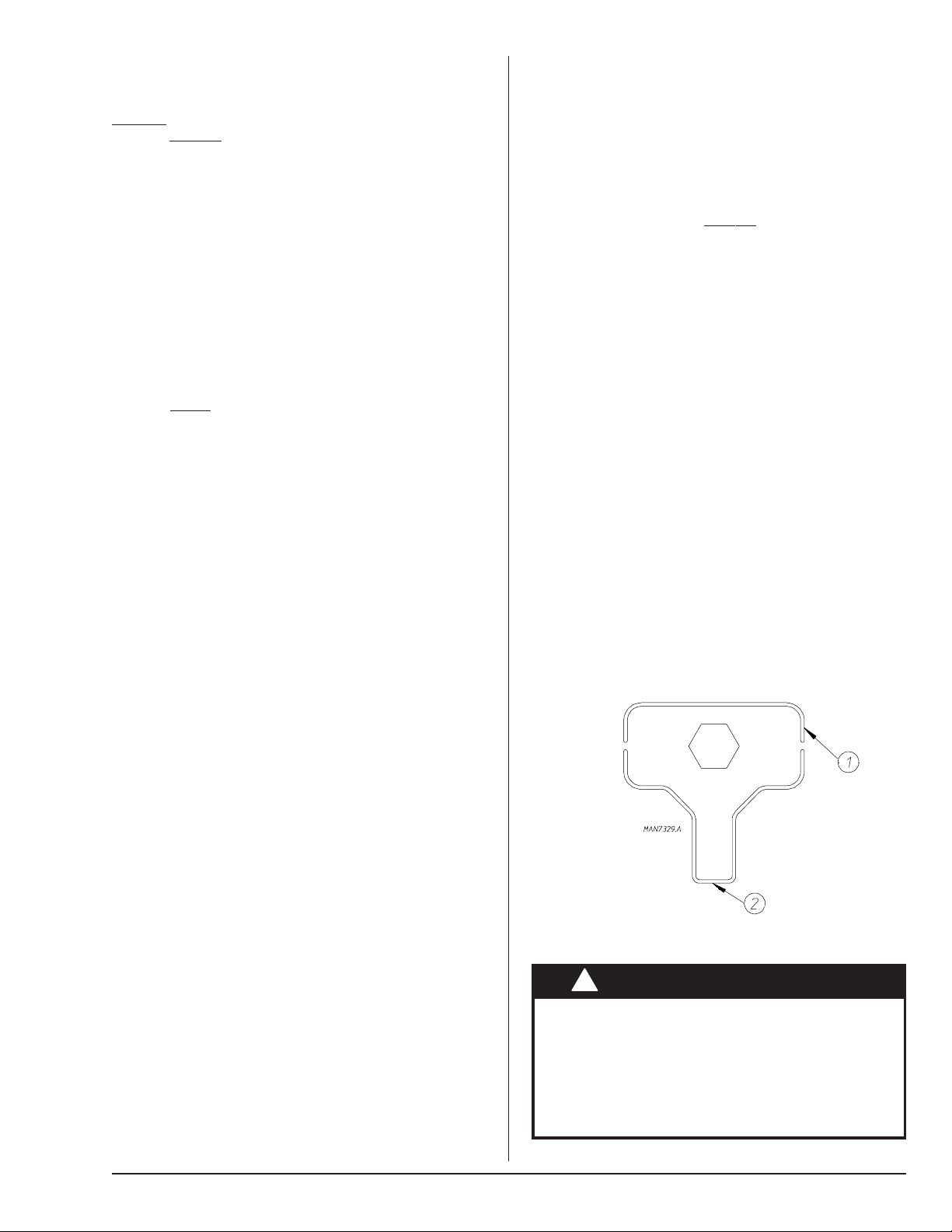

Edge #1 for vent cap
Edge #2 for adjustment screw
Regulated Gas Valve
Refer to “Gas Pressure Adjustment” on this page to adjust
the gas valve to the appropriate burner pressure listed on
page 14. The supply pressure must also match what is
listed on page 14 for the type of gas to be used.
IMPORTANT: Conversions done improperly can result in
a fire or explosion!
Conversion from Propane
or Butane Gas to Natural Gas
The following conversion allows the dryer to be operated
with natural gas.
Parts Required for Conversion:
Description ADC P/N Qty
Vent Cap and Spring 140415 2*
Burner Orifice (Injector) ** 2*
* This includes one for each pocket (tumbler).
** Refer to page 14 for orifice (injector) size.
Instructions
Disconnect electrical power to the dryer.
Close all shutoff valves (for both top and bottom tumbler) in
dryer’s gas supply line.
IMPORTANT: The following procedures must be
performed on both top and bottom tumblers.
Open the panels located just below each loading door.
Locate the gas train and disconnect the union, three electrical
plugs, and the gas train mounting screws from the burner.
Carefully slide the gas train out of the gas train enclosure.
(The carbon ignitor located at the far end of the gas train is
very fragile.)
Remove two burner tube mounting screws and remove
burner tube in order to gain access to the orifice.
Using an 11/16” wrench or socket, remove the existing orifice
and replace it with an orifice from the kit.
IMPORTANT: Use extreme care when removing and
replacing orifice (injector). This orifice (injector) is made
of brass, which is easily damaged.
Reinstall the burner tube onto the burner base.
Select from the following three options, the conversion to
be performed:
•Converting from unregulated propane to regulated
natural gas: use a flat screwdriver to remove the cap
with blocking pin and install the regulator vent cap from
the kit (ADC P/N 140415).
•Converting from unregulated propane to unregulated
natural gas: no change to the regulator is required.
•Converting from regulated propane to regulated
natural gas: remove the white plastic regulator
adjustment screw (under vent cap). Remove spring
under screw and replace with spring from kit (ADC P/N
140415). Replace regulator adjustment screw.
Install the gas train back into the dryer gas train enclosure.
Be sure the tab at the rear of the gas train engages into the
mounting slot.
Connect the union and the three electrical plugs.
Repeat these steps for the other burner.
Open all shutoff valves, reconnect electrical power to the
dryer, and test for leaks.
Operate the dryer through one complete cycle to ensure
proper operation.
With dryer operating, check the manifold (burner) pressure
at the tap on the gas valve to ensure proper operating
pressure (refer to chart on page 14).
Gas Pressure Adjustment
Disconnect electrical power to the dryer.
IMPORTANT: The following procedures must be
performed on both top and bottom tumblers.
To adjust gas valve’s internal regulator, remove the regulator
vent cap with the regulator adjustment tool, which is located
on the back guard between the gas inlet and exhaust outlet
(refer to the illustration below for proper use of adjustment
tool). Be sure to use one of the wide ends of the adjustment
tool for removal of the vent cap. Once vent cap is removed,
the narrow end of the adjustment tool can be used to turn
the plastic adjustment screw in the valve. Turn the screw
clockwise to raise pressure and counterclockwise to lower
pressure.
Gas (burner) pressures are measured with the burner in
operation for all burner adjustment conditions. Therefore
once the necessary adjustments have been made, the dryer
must be operated in a heating cycle to verify that the pressure
is correct. If it is not correct, you must discontinue the power
to the unit and make further adjustments. Repeat these
steps as many times as necessary to achieve the correct
burner pressure. Once the adjustment of the valve is
complete, the vent cap must be replaced and sealed with,
for example, paint to prevent maladjustment by the user.
!WARNING (CE Dryers)
This appliance must only be operated with the gas
type indicated on the dryer’s data plate. If the
appliance is converted (gas type changed), a data
plate amendment must be obtained from American
Dryer Corporation.
Conversions done improperly can result in a fire or
explosion!

18 American Dryer Corp. WFR112807-15
Gas Pressure Testing _________________
For proper operation, the gas pressure must be correct,
consistent and maintained at the gas pressure rates shown
on page 14. Provisions are made at the gas valve for taking
gas pressure readings.
There are two types of devices used to measure gas
pressure. They are the spring/mechanical type gauge and
the manometer. The use of the spring/mechanical type
gauge is not recommended because they are very easily
damaged and are not always accurate. The preferred type
of gauge is the manometer because it is a simple device to
use and is highly accurate. A manometer is simply a glass
or transparent plastic tube with a scale graduated in inches
or millibars. When it is filled with water and pressure is
applied, the water in the tube rises, showing the exact gas
pressure.
Gas Pressure Test Procedure
Turn gas cock in gas supply line to “OFF” position.
60 Hz dryers: Install pressure tap and attach manometer
(refer to the illustration on page 16).
Turn gas cock to “ON” position.
Start the dryer in Heat Mode and wait for ignition. Gas
manifold pressure should be as shown on page 14.
If the gas pressure needs to be adjusted, refer to “Gas
Pressure Adjustment” on page 17.
Once test is complete, turn gas cock to “OFF” position.
Remove manometer. Tighten screw inside the pressure
tap or install plug.
Turn gas cock to “ON” position and check for leaks with
soap solution with main burner “ON.”
Water Information ____________________
Before You Start
Check Local Codes and Permits
Call your local water company or the proper municipal
authority for information regarding local codes.
IMPORTANT: It is your responsibility to have all plumbing
connections made by a qualified professional to ensure
that the plumbing installation is adequate and conforms to
local, state, and federal regulations or codes.
It is the installer’s or owner’s responsibility to see that the
required water pressure, pipe size, or connections are
provided. The manufacturer assumes no responsibility if
the fire suppression system is not connected, installed, or
maintained properly.
Installation
Water Supply
The fire suppression system must be supplied with a
minimum water pipe size of 1/2-inch (12.7 mm) and be
provided with 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar) of
pressure.
If the rear area of the dryer or the water supply is located in
an area where it will be exposed to cold/freezing
temperatures, provisions must be made to protect these
water lines from freezing.
!WARNING
If the water in the supply line or water solenoid valve
freezes, the fire suppression system will be
inoperative!!
Water Connections
The water connection is made to the 3/4”-11.5 NH hose
adaptor, which is shipped in the tumbler and must be
installed to the 1/2” N.P.T. water connection, located at the
upper rear of the dryer. A flexible supply line/coupling must
be used in an effort to avoid damaging the electric water
solenoid valve.
NOTE: The 3/4”-11.5 NH is a standard hose coupling
screw thread. It is not to be confused with 3/4” N.P.T. The
sealing of an NH connection is made with a washer
opposed to the mating threads of an N.P.T. assembly. The
2 thread designs are not compatible.
It is recommended that a filter or strainer be installed in the
water supply line.
IMPORTANT: Flexible supply line/coupling must be used.
Solenoid valve failure due to hard plumbing connections
will void warranty.
The dryer is to be connected to the water mains using a
new hose set and the old hose set should not be reused.
Optional Manual Bypass
Provisions are made in the dryer’s fire suppression system
for the installation of an optional manual bypass. The
connections for the manual bypass are made at the “cross”
or “four way” fitting located in the outlet supply side of the
water solenoid valve. The manual ball cock shutoff valve
must be located outside of the dryer at a distance from the
dryer where it is easily accessible. The use and connection
of this manual bypass is at the option or discretion of the
owner.
The water connection for the manual bypass is made to the
“cross” or “four way” fitting, which has a 3/8” F.N.P.T. and a
coupling must be used to provide the minimum 1/2-inch
(12.7 mm) supply (feed) line.
Electrical Requirements
No independent external power source or supply connection
is necessary. The 24-volt power to operate the fire
suppression system is accomplished internally in the dryer
(from the dryer controls).
!WARNING
Electrical power must be provided to the dryer at all
times. If the main electrical power supply to the dryer
is disconnected, the fire suppression system is
inoperative!!

WFR112807-15 www.adclaundry.com 19
ELECTRICAL SHOCK HAZARD
Electrical shock hazard can result in serious injury.
If the water dispensing system is activated do not
attempt to operate the dryer.
If the water dispensing system is activated have the
dryer inspected by a qualified agency before operating
the dryer.
Preparation for Operation / Start-Up__
The following items should be checked before attempting
to operate the dryer:
• Read all “CAUTION,” “WARNING,” and “DIRECTION”
labels attached to the dryer.
• Check incoming supply voltage to be sure that it is the
same as indicated on the data label. In the case of 208
VAC or 230/240 VAC, the supply voltage must match the
electric service exactly.
• GAS MODELS – Check to ensure that the dryer is
connected to the type of heat/gas indicated on the dryer
data label.
• GAS MODELS – Be sure that all gas shutoff valves are
in the open position.
• Be sure all back panels (guards) and electric box
covers are in place.
• Be sure the service doors are closed and securely in
place.
• Be sure the lint door/drawer is securely in place.
• Rotate the tumbler (drum) by hand to be sure it moves
freely.
• Check bolts, nuts, screws, terminals, and fittings for
tightness and security.
• Check that the vent is connected to the dryer and is
exhausted to the outdoors.
• STEAM MODELS – Check to ensure all steam shutoff
valves are open.
Preoperational Test __________________
All dryers are thoroughly tested and inspected before leaving
the factory. However, a preoperational test should be
performed before the dryer is publicly used. It is possible
that adjustments have changed in transit or due to marginal
location (installation) conditions. Installer must instruct the
user on how to correctly operate the dryer before leaving.
Turn on electric power to the dryer.
Refer to the Operating Instructions for starting your particular
model dryer.
Gas Dryers
Open all shutoff valves.
!WARNING When a gas dryer is first started (during initial start-up), it
has a tendency not to ignite on the first ignition attempt.
This is because the gas supply piping is filled with air, so it
may take a few minutes for the air to be purged from the
lines.
NOTE: During the purging period, check to be sure that
all gas shutoff valves are open.
A gas pressure test should be taken at the gas valve
pressure tap of each dryer to ensure that the water column
pressure is correct and consistent.
NOTE: Water column pressure requirements (measured
at the pressure tap of the gas valve body) must be
verified.
IMPORTANT: In most cases there is no regulator provided
in a propane dryer. The water column pressure must be
regulated at the source (propane tank), or an external
regulator must be added to each dryer.
Electrical Dryers
Check to ensure that electric oven/contactor assembly is
activating.
Safety Related Circuits
Make a complete operational check of all safety related
circuits:
• Door Switch(es)
• Hi-Limit Thermostats
• Sail Switch
Make a complete operational check of all operating controls.
Tumbler Coating
The tumbler is treated with a protective coating. We suggest
dampening old garments or cloth material with a solution
of water and nonflammable mild detergent and tumbling
them in the tumbler to remove this coating.
Microprocessor Programs / Selections
Each microprocessor controller (computer) has been
preprogrammed by the factory with the most commonly used
parameter (program) selections. If computer program
changes are required, refer to the computer programming
manual, which was shipped with the dryer.
Preoperational Instructions __________
IMPORTANT: For more detailed information regarding the
microprocessor controller (computer), refer to the
microprocessor user’s manual included with the dryer.
Coin Models
Microprocessor Controller (Computer)
When the microprocessor controller (computer) is in the
ready state, the L.C.D. screen will display “Ready, Insert
$XX.XX (amount) to Start”.
Insert coin(s). Once the correct “Amount to Start” has been
inserted, the L.C.D. will display “Select Temperature”.

20 American Dryer Corp. WFR112807-15
Service / Parts Information __________
Service
Service must be performed by a qualified trained technician.
If service is required, contact the reseller from whom the
equipment was purchased. If the reseller cannot be
contacted or is unknown, contact the Service Department
for a reseller in your area.
NOTE: When contacting the Service Department, be sure
to give them the correct model number and serial number
so that your inquiry is handled in an expeditious manner.
Parts
Replacement parts should be purchased from the reseller
from whom the equipment was purchased. If the reseller
cannot be contacted or is unknown, contact the Parts
Department for a reseller in your area. Parts may also be
purchased directly from the factory by calling the Parts
Department at [phone] or you may FAX in your
order at [phone].
NOTE: When ordering replacement parts from the reseller
or the manufacturer, be sure to give them the correct
model number and serial number so that your parts order
can be processed in an expeditious manner.
Warranty Information _________________
Returning Warranty Cards
Before any dryer leaves the factory test area, a warranty card
is placed on the inside of the main door glass. These
warranty cards are intended to serve the customer where
we record the individual installation date and warranty
information to better serve you should you file a warranty
claim.
If a warranty card did not come with your dryer, contact the
Warranty Department or the Service Department at +1 (269)
923-3000.
IMPORTANT: A separate warranty card must be
completed and returned for each individual dryer.
NOTE: Be sure to include the installation date when
returning the warranty card(s).
Warranty
For a copy of the commercial warranty covering your particular
dryer(s), contact the reseller from whom you purchased the
equipment and request a dryer warranty form. If the reseller
cannot be contacted or is unknown, warranty information
can be obtained from the factory by contacting the Warranty
Department at [phone].
NOTE: Whenever contacting the factory for warranty
information, be sure to have the dryer’s model number
and serial number available so that your inquiry can be
handled in an expeditious manner.
Returning Warranty Parts
All dryer or parts warranty claims or inquiries should be
addressed to the Warranty Parts Department. To expedite
processing, the following procedures must be followed:
Select temperature by pressing “HI,” “MED,” or “LO.” The
cycle will start and the L.C.D. will display the Dry Cycle
selected and the remaining time.
The dryer will continue through the drying and cooling cycles,
until the vended time has expired.
NOTE: To stop the dryer, open main door. Continuation of
the cycle will resume only after the door has been closed
and any one of the three temperature selections is
pressed.
Non-Coin Models
Microprocessor Controller (Computer)
The L.C.D. display reads “SELECT CYCLE” (no cycle in
progress).
Scroll up or down to the desired cycle using the “▲” or “▼”
arrow key. Press the “✓” key and the highlighted cycle will
start (tumbler, blower, then the heat).
The L.C.D. display will read the name of the selected cycle
and the approximate remaining minutes.
NOTE: The dryer can be paused or stopped at any time.
Press the “X” key (Pause/Stop) once to pause the cycle.
Press the “ ✓ ” key to restart the cycle, or press the “X” key
again to cancel the cycle in progress and return to the
“SELECT CYCLE” state. If nothing is done, the cycle will
restart automatically in 20 seconds.
When the programmed drying time has expired, the computer
will proceed into the Cool Down part of the cycle. The L.C.D.
display will read “COOL DOWN” and the remaining minutes.
During the cycle, the dryer will shut off the heat and continue
the fan and tumbler until the Cool Down Time or
Temperature has been reached.
At the end of the cycle the L.C.D. display will read “Cycle
Done”. Opening the main door will put the computer back
into the “Select Cycle” state.
Shutdown Instructions _______________
If the dryer is to be shutdown (taken out of service) for a
period of time, the following must be performed:
Discontinue power to the dryer either at the external
disconnect switch or the circuit breaker.
Discontinue the heat supply:
Gas Models – Discontinue the gas supply.
Shut off external gas supply shutoff valve.
Shut off internal gas supply shutoff valve located in the gas
valve burner area.
Steam Models – Discontinue the steam supply.
Shut off external (location furnished) shutoff valves.
