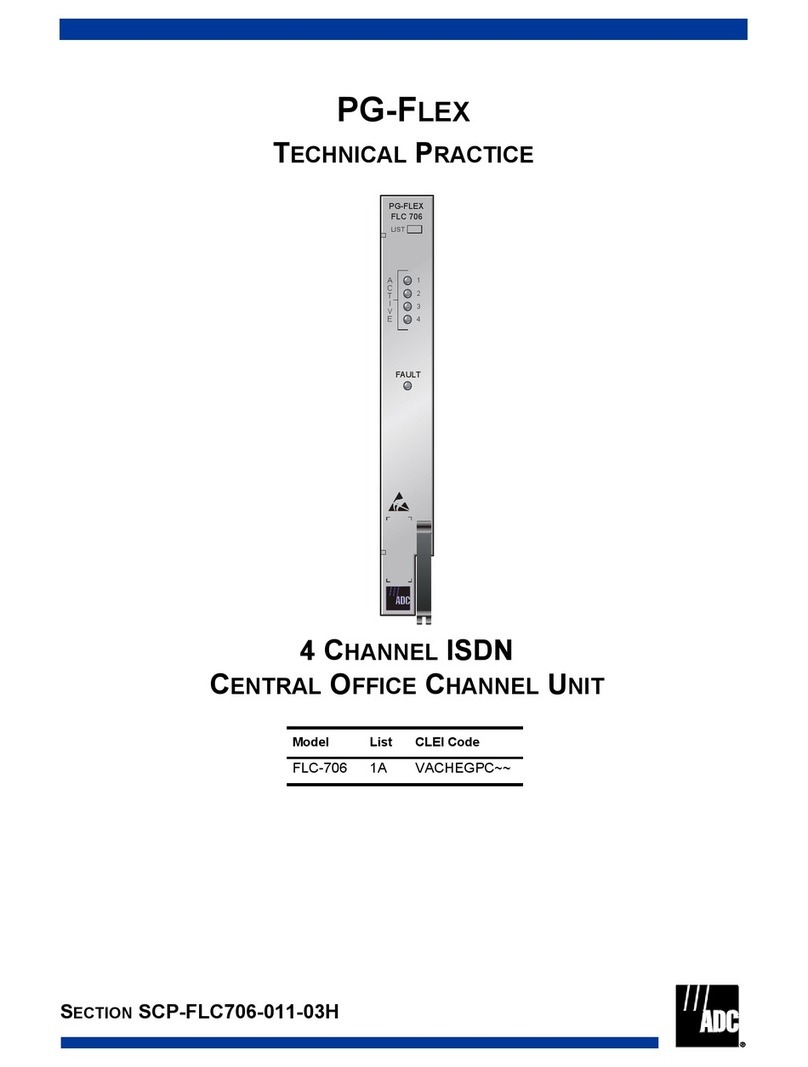

ADC PG-Flex FLC-706 1A Instructions for use

ADC

ADC PG-Flex FLC-706 1A Instructions for use

ADC LoopStar EtherNID User manual

ADC

ADC LoopStar EtherNID User manual

ADC HiGain HMS-317 List 2 User manual

ADC

ADC HiGain HMS-317 List 2 User manual

ADC H2TU-C-388 HiGain Original operating instructions

ADC

ADC H2TU-C-388 HiGain Original operating instructions

ADC PG-Flex FLC-704 User manual

ADC

ADC PG-Flex FLC-704 User manual

ADC HiGain H2TU-C-231 Original operating instructions

ADC

ADC HiGain H2TU-C-231 Original operating instructions

ADC HiGain HRE-420 User manual

ADC

ADC HiGain HRE-420 User manual

ADC HRE-602 List 1 User manual

ADC

ADC HRE-602 List 1 User manual

ADC FlexWave MMX 8000 User manual

ADC

ADC FlexWave MMX 8000 User manual

ADC WorldDSL UTU-702C User manual

ADC

ADC WorldDSL UTU-702C User manual

ADC RF Signal Management SignalOn Series User manual

ADC

ADC RF Signal Management SignalOn Series User manual

ADC HiGain Wideband 3190 Installation and operation manual

ADC

ADC HiGain Wideband 3190 Installation and operation manual

Popular Network Hardware manuals by other brands

socomec SNMP Card II quick start guide

socomec

socomec SNMP Card II quick start guide

NVR SYSTEMS 4-CH user manual

NVR SYSTEMS

NVR SYSTEMS 4-CH user manual

Draytek VigorSwitch G1240 quick start guide

Draytek

Draytek VigorSwitch G1240 quick start guide

Westermo TD-34 LV installation manual

Westermo

Westermo TD-34 LV installation manual

LaCie Network Space MAX Quick install guide

LaCie

LaCie Network Space MAX Quick install guide

ZoneVu ZSI-450-IP Installation guide & user manual

ZoneVu

ZoneVu ZSI-450-IP Installation guide & user manual

QNAP Turbo NAS Application notes

QNAP

QNAP Turbo NAS Application notes

OpenEye MV Series quick start guide

OpenEye

OpenEye MV Series quick start guide

Huawei SmartAX MT880a quick start guide

Huawei

Huawei SmartAX MT880a quick start guide

Proxim Tsunami QuickBridge 2454-R installation guide

Proxim

Proxim Tsunami QuickBridge 2454-R installation guide

Bay Networks CLAM quick start guide

Bay Networks

Bay Networks CLAM quick start guide

Innodisk SATADOM-SH 3SE Series manual

Innodisk

Innodisk SATADOM-SH 3SE Series manual

Cisco CGR 1000 Series Getting connected guide

Cisco

Cisco CGR 1000 Series Getting connected guide

Matrix Switch Corporation MSC-HD161DEL product manual

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

National Instruments NI 653x user manual

National Instruments

National Instruments NI 653x user manual

B&B Electronics ZXT9-IO-222R2 product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor YDS-16 user manual

Yudor

Yudor YDS-16 user manual

D-Link ShareCenter DNS-320L datasheet

D-Link

D-Link ShareCenter DNS-320L datasheet

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1

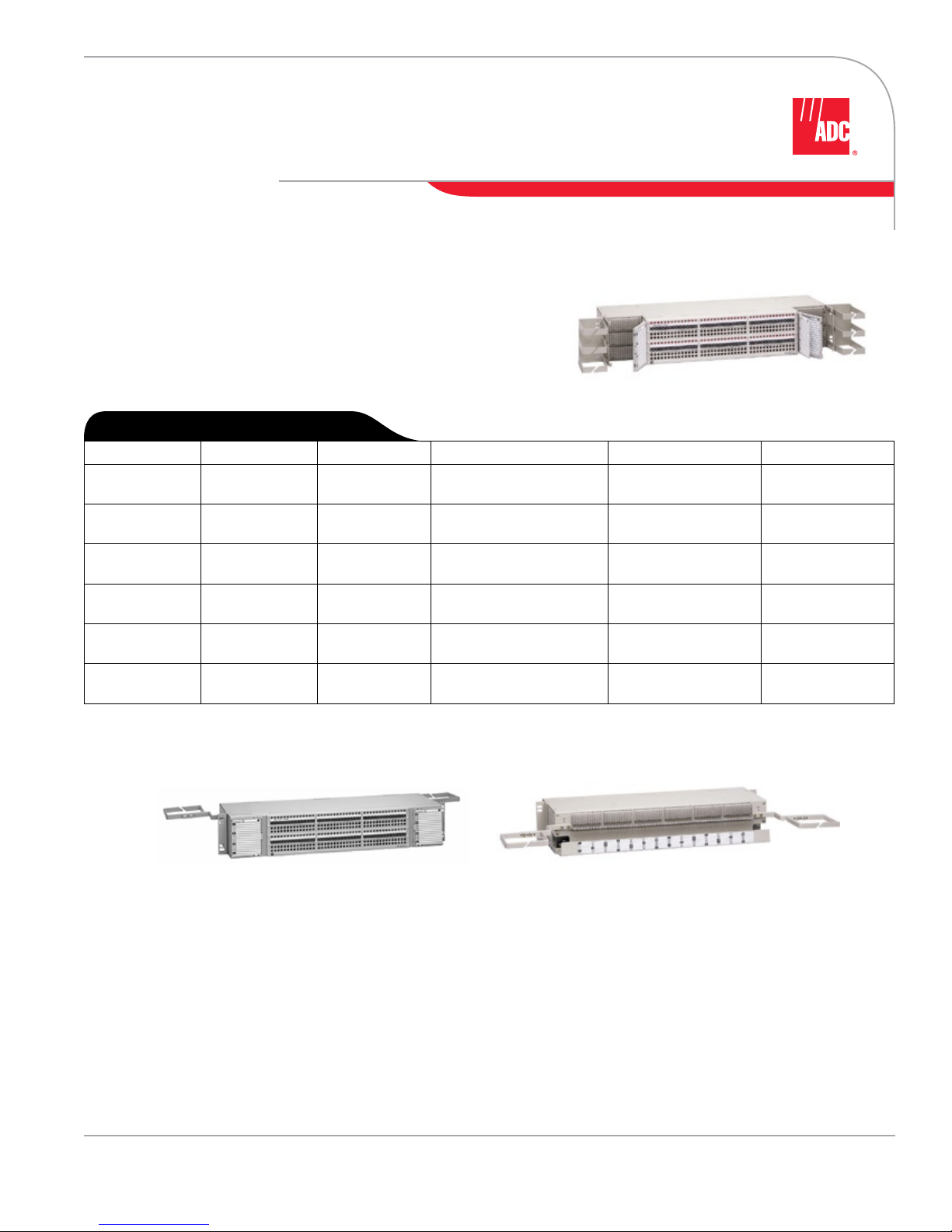

DSXi™ Cross-Connect
DSXi 84 Termination Chassis
Front and Rear Cross-Connect
• Increased density by 20 percent with 4-inch high panels, saving valuable floor space
• Easier circuit access and faster identification to help save time and money
• Improved cable management ensures cables are kept well organized
• Designed to comply with NEBS level 3 standards
36- or 48-Position Chassis
4- and 6-Port Module Options for both Front and Rear Cross-Connect
Cross-connect IN/OUT Cabling Designation Dimensions Mounting Options Catalog Number
Rear Wire-wrap 1-84 4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-G2CU1
Rear Wire-wrap 1-28 A,B,C 4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-G2GU1
Front split Wire-wrap 1-84 4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-M2CU1
Front split Wire-wrap 1-28 A,B,C 4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-M2GU1
Front below Wire-wrap 1-84 7" x 19"/23" x 8"
(17.8 x 48.3/58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-T2CUI*
Front below Wire-wrap 1-28 A,B,C 7" x 19"23" x 8"
(17.8 x 48.3/58.2 x 20.3 cm) Flush, 2", 3", 4" recess DI-T2GUI*
Ordering Information
Di-G2CU1 Front View Di-G2CU1 Rear View
* Reversible bracket for 19" or 23"
Web Site: www.adc.com
From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080
Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our web site.
ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may verify
product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc. views its patent
portfolio as an important corporate asset and vigorously enforces its patents. Products orfeatures contained herein may be
covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
103875AE 11/06 Original © 2006 ADC Telecommunications, Inc. All Rights Reserved
Accessories
Quality patch cords and cross-connect cables in various configurations and lengths
Description Ordering Number
Bantam Patch Cords
Three Conductor Single
.3m (1’) PJ712
.92m (3’) PJ716
1.83m (6’) PJ722
3.66 (12’) PJ1212
6.1m (20’) PJ1420
Three Conductor Dual
.3m (1’) PJ762
.92m (3’) PJ766
1.83m (6’) PJ772
3.66 (12’) PJ1312
6.1m (20’) PJ1520
Bantam Plugs
Three conductor looping plug PJ746
Three conductor dummy plug PJ748
100 OHM termination plug PJ800
Circuit Guard Plug-Red PJ925R
Central Office Cable
26 AWG Dual Shield FTP Riser Cable, 28 Pair
Equivalent to 1249C Series
DSR-28261DDGYXX*
26 AWG Dual Shield FTP Riser Cable, 28 Pair
Equivalent to 600C Series
DSR-28222SDGYXX*
Manual Wire-wrap Tool Kit AUX-0X0165
Cross-Connect Wire
1000’ DSX-CCW/1000
Ordering Information
*To designate reel length, replace XX as follows
02= 304 m (1000 ft)
04= 609 m (2000 ft)
05= 762 m (2500 ft)
06= 914 m (3000 ft)
10= 1524 m (5000 ft)
