Adexa HLC300 User manual

UK
1
VEGETABLE CUTTER
INSTRUCTION MANUAL
Model
HLC300
ADEXA DIRECT LIMITED
GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON UNITED KINGDOM
T: [phone] [e-mail] www.adexa.co.uk

UK
2
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove
any components on this product.
• Consult Local and National Standards to comply with the following:
• Health and Safety at Work Legislation
• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations
• DO NOT immerse the appliance in water.
• DO NOT place hands in either food chute.
• DO NOT attempt to cut frozen food with the appliance.
• Suitable for indoor use only.
• Always switch off and disconnect the power supply to the appliance when not inuse.
• Regularly check the screws fixing the blades to the cutting discs and tighten asnecessary.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not suitable for use by children.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local
authorities.
• If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified
technician in order to avoid a hazard.
Introduction
Please take a few moments to carefully read through this manual.
Correct maintenance and operation of this machine will provide the
best possible performance from your product.

UK
3
Pack Contents
The following is included:
• VegetableCutter
• Food pusher
• Deflector
• Cleaning brush
• Set of 5 cutting disks
• Instruction manual
Should you find any damage as a result of transit, please contact us
immediately.

UK
4
Operation
Location of Controls

UK
5
Cutting Vegetables
1. Connect the appliance to the mains power supply.
2. Place the vegetables in the required food chute.
3. Lower the handle or place the food pusher in the chute.
4. Place a suitable container beneath the exit chute to collect the cut vegetables.
5. Turn the power On [I]. The discs begin to spin.
6. Press down on the handle or the food pusher. As the vegetables are cut they are ejected from the cutter
mouth.
7. Once all vegetables are cut turn Off the appliance and disconnect it from the powersupply.
Note: Before using the first time clean all parts that come into contact with food with warm soapy
water.
WARNING: Do not use anything other than the food pusher supplied with the appliance to press vegetables
against the blades.

UK
6
Selecting a Cutting Disc
The vegetable cutter utilises various discs for different tasks.
Disc
Use
Disc
Use
4mm Grating Disc
Suitable for medium/coarse grating
2.5mm Julienne Disc
Suitable for thin slicing
7mm Grating Disc
Suitable for coarsegrating
4mm Julienne Disc
Suitable for mediumslicing
3mm Grating Disc
Suitable for medium grating
8 x 8mm French Fries Disc
For French fries
8mm Slicing Disc
Suitable for medium/thick slicing
10 x 10mm French Fries
Disc For French fries
2mm Slicing Disc
Suitable for thin slicing
8 x 8mm Dicing Disc
For Diced vegetables
4mm Slicing Disc
Suitable for medium slicing
10 x 10mm Dicing
Disc For Diced
vegetables Product
10mm Slicing Disc
Suitable for thick slicing
Note: Regularly check the screws fixing the blades to the cutting discs
and tighten as necessary.

UK
7
Changing the Cutting Disc
1. Disconnect the appliance from the mains power supply.
2. Turn the lid release knob anti-clockwise.
3. Remove the food pusher (if inserted) and carefully lift the lid.
4. Turn the disc anti-clockwise and lift it away from the appliance. This may require a sharp tap to free it from the
shaft.
5. Slot the new disc in place. Turn the disc if necessary to drop it in place over the lugs.
6. Turn the disc clockwise to secure it in position.
7. Lower the lid and turn the lid release knob clockwise to secure it in place.
Using the Base Discs
Some cutting processes require two discs
to be inserted into the appliance.
1. Open the lid and remove the cutting disc(s), as described above.
2. Slot the desired base disc onto the appliance.
3. Slot the 8 or 10mm slicing disc on top of the base disc, ensuring it is
securely connected to the centre pin and spinsfreely.
4. Lower the lid and turn the lid release knob clockwise to secure it in
place.
Cleaning, Care & Maintenance
• Always turn off and disconnect the appliance from thepower
supply before cleaning.
• Use soapy water and a damp cloth to clean the appliance and cutting discs.
• DO NOT wash the cutting discs in the dishwasher.
• Dry thoroughly after cleaning.
• Ensure all foodstuffs are removed from the appliance after each use.
• If required, lift the cover and loosen the two Lid Release knobs to remove the lid andclean.
WARNING: Only the thinner aluminium cutting discs are
suitable for use with the base discs. DO NOT use the
thicker plastic cutting discs.
WARNING: The blades on the cutting disc are sharp. Take care to avoid the edges when changing discs.
Note: Ensure the appliance is clean and free from food debris when changing discs to ensure the disc can
be securely fitted.
Note: The deflector can also be removed by following this procedure. Removing the deflector is necessary
to thoroughly clean the appliance.
Note: The base cutting disc is not perfectly circular and has a
lip that sits in the cutter mouth to keep it securely in place.

8
Troubleshooting
Fault
Probable Cause
Action
The unit is not working
The unit is not switched on
Check the unit is plugged in correctly and
switched on
Plug and lead are damaged
Call BUFFALO agent or qualified technician
Fuse in the plug has blown
Replace the plug fuse
Power supply
Check power supply
Internal wiring fault
Call BUFFALO agent or qualified technician
Vegetables are not being
ejected from chute
Internal blockage
Disconnect from power supply and empty
chute/cutting area of vegetables
Technical Specifications
Model
Voltage
Power
Current
Cutting Disc RPM
Dimensions
h x w x d mm
Weight
HLC300
230V 50Hz
550W
2.4A
270
470 x 220 x 490
22.5kg
Noise level < 60 dB

9
Electrical Wiring
This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13
amp fuse as standard. The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
•Live wire (coloured brown) to terminal marked L
•Neutral wire (coloured blue) to terminal marked N
•Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed, using a dedicated earthing circuit. If in doubt consult
a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any
emergency disconnection being required they must be readily accessible.

10

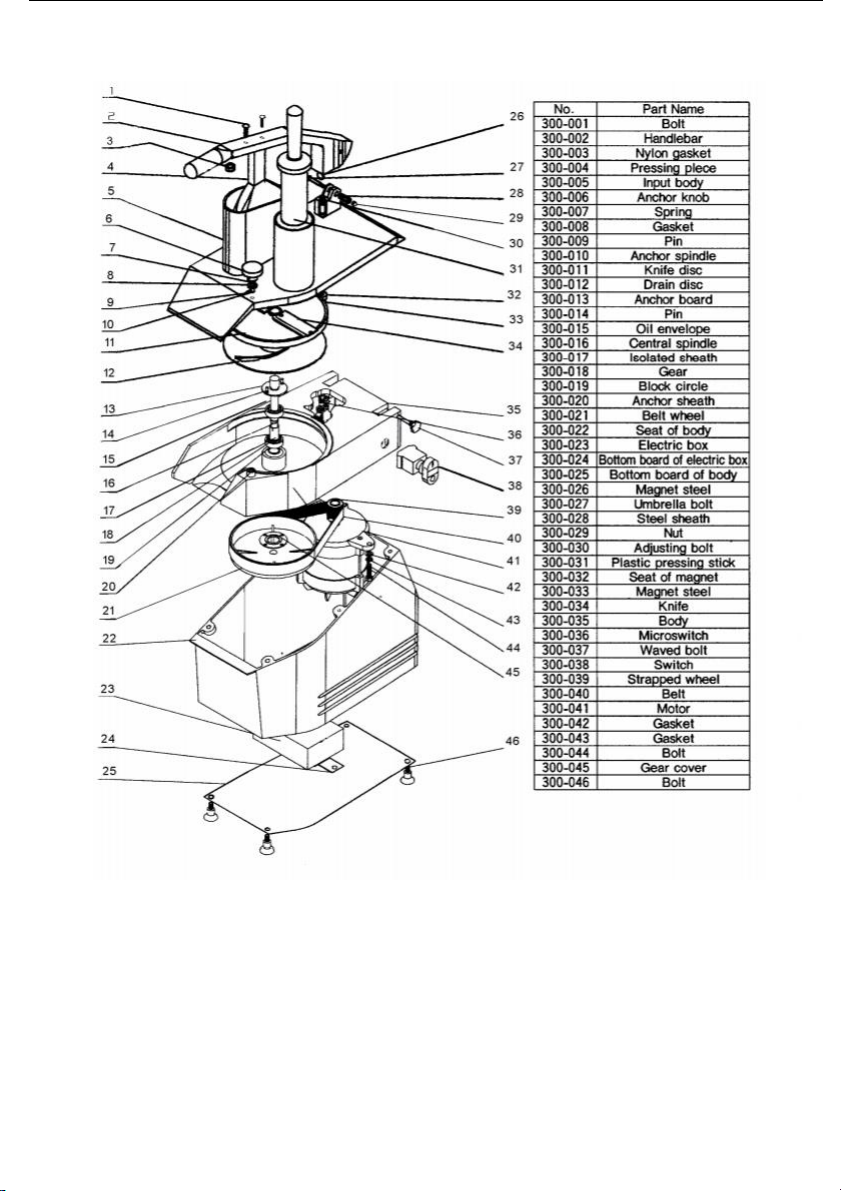

SPARE PART LIST

11
Compliance
The WEEE logo on this product or its documentation
indicates that the product must not be disposed of as
household waste. To help prevent possible harm to
human health and/or the environment, the product must
be disposed of in an approved and environmentally safe
recycling process. For further information on how to
dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste
disposal in your area.
This products has been approved to carry
the following symbol:
