Adey MagnaClean Professional3 Sense User manual

Installation and servicing

MagnaClean Professional3 Sense®, the only Wi-Fi enabled magnetic filter. ADEY’s unique Sense®
technology not only provides high performance system protection, it also predicts potential system
problems and offers connected preventative maintenance.
IMPORTANT – Always follow the electrical & safety standards when installing a filter.
These instructions are designed to support installers in the safe and effective installation and servicing
of the filter. It is recommended that the filter is installed by a qualified heating engineer.
MagnaClean Professional3 Sense®
Combi/sealed system
Open vented system
MagnaClean Professional3 Sense can be installed anywhere before the boiler. To achieve the best
level of protection, it is recommended that the filter is fitted after the last radiator and before the boiler.
This also ensures a system flush can be carried out using a MagnaCleanse®on the return.
Installation overview
Note: In both diagrams, position A is best practice, Position B is suitable if space is tight on the return.
The following instructions are designed to support engineers in the safe and effective installation
and servicing of MagnaClean Professional3 Sense and should be followed at all times.
Pre-Installation checklist
Have you downloaded the ADEY ProClub®App from Google Play or App Store?
Has the homeowner got Wi-Fi?
Is the homeowner happy to provide you with the password for installation?
(Essential) Note: The homeowner’s Wi-Fi password is not stored.
Check Wi-Fi connectivity at proposed filter location to ensure the filter can
connect and communicate with the homeowner’s Wi-Fi router once installed.
Have you recommended to the homeowner to download the homeowner App?
Confirm homeowner details to be used for warranty registration
Ensure guide and filter spanners are left with the homeowner
This must be completed prior to installation:

In App filter set-up
Download the ADEY
ProClub App from Google
Play or App store
Select the
MagnaClean Sense®tile
14
52
3
Remove battery tab from
filter. We recommend the
batteries are replaced
every two years
Log in to or register on
the Adey Proclub App
Connect the product to
the customer’s Wi-Fi
router following the
instructions on the App

ADEY ProClub App

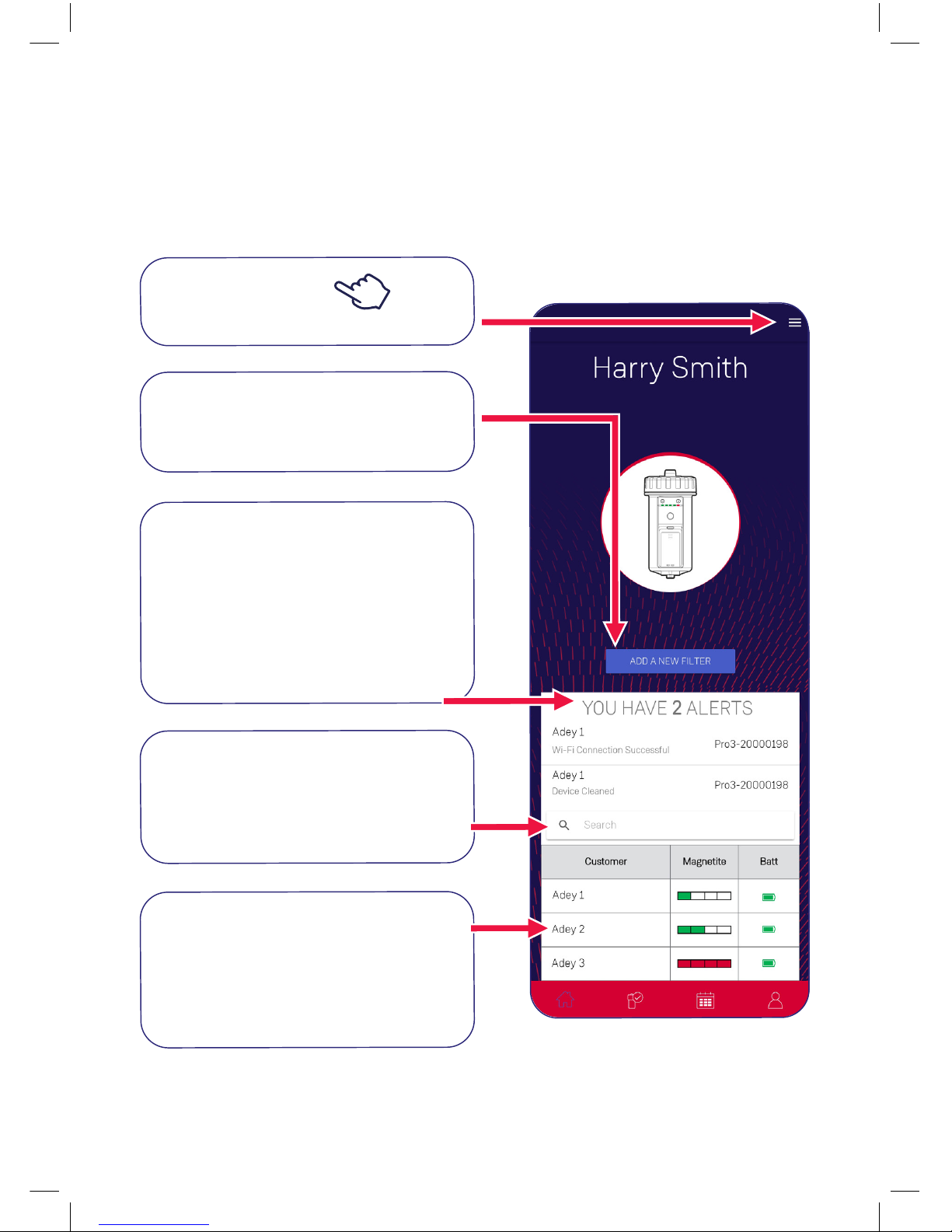

MagnaClean Professional3 Sense Dashboard Overview:
ADD A NEW FILTER
To set up the filter
ALERTS
Informs you of the filter status including:
Wi-Fi connection
Magnetite build-up
Service due date
Low battery
FILTER SEARCH FUNCTION
Searches for customers by name or the
filter serial number
FILTER STOCKLIST
Displays customers’ names, magnetite
capture status and the battery level
Select filter to view details
MENU
Enables easy navigation of App

FACTORY RESET
Restores the product to an ‘out of box’ state
The filter is disconnected from the Wi-Fi and
is deleted from the Installer dashboard
MAGNETITE CAPTURE GAUGE
Green = Magnetite capture level is low
Amber = Magnetite capture level is medium
Red = Magnetite capture level is high
INFORMATION
Informs the installer about how the
system is performing, including recommended
courses of action where appropriate
HOMEOWNER CONTACT
Access customer contact details
REMOVE FILTER FUNCTION
Delete filters that you no longer service
Please visit adey.com for further App details and support

1
4
5
1
4
6
1
1
4 4
78
1
4
9
1
1
4
4
Lock red wheel
against canister.
Tighten
compression
nuts.
CAUTION:
Do NOT
overtighten

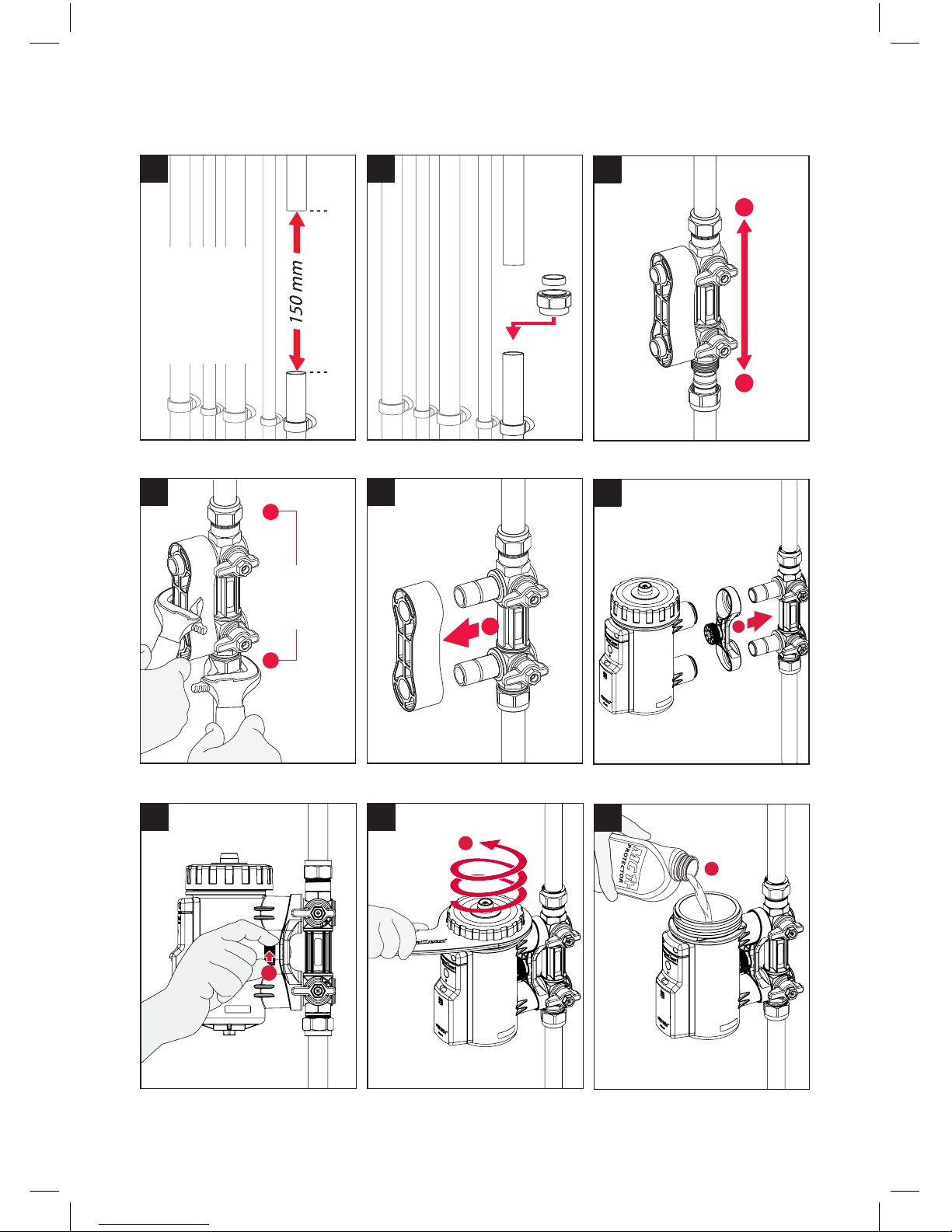

New filter installation
4
2
2
1
4
34
1
- Always ensure the filling loop is fitted after the filter.
Cut and remove
section using
measurement
guide sticker
supplied.

1
4
11
DRAWN
REV
DRG NO.
FL1-02-03434
CHECKED DATE ECR No.
12345678
A
B
D
E
C
F
A
B
C
D
E
F
REV
B
ADEY INNOVATION LTD.
GLOUCESTER RD.
CHELTENHAM
GL51 8NR
THIS DRAWING REMAINS THE PROPERTY OF ADEY INNOVATION LTD. AND MUST NOT BE COPIED OR
PASSED TO A THIRD PARTY WITHOUT PERMISSION TEL: [phone] Email: [email protected]
1 of 1
TOLERANCES & DIMENSIONS IN mm UNLESS OTHERWISE STATED
0.XX - ±0.1
0.X - ±0.2
ANGULAR ±0.1°
SHEET
MATERIAL
WEIGHT
grams (est.)
N/A
FINISH
A3
NTS
DESCRIPTION
COMPLETE PRODUCT, PRO 3 +
MAG SENSOR
SCALE
SIZE 0 - ±0.5
N/A
4
12
1
4
10 Tighten by a ¼ turn.
Important - Do NOT
overtighten.
Hand tighten.
1
2
4
13 1 - Turn valves on.
2 - Vent.
3 - Wipe filter dry.
4
14 4
15
Set filter to
clean mode.
Press
and hold
button for
6 seconds
using the
reset tool
provided.
The MagnaClean
Professional3 Sense filter
will now appear in your
ADEY ProClub App product
dashboard. Select product to
view the filter status.
Your customer’s warranty
registration is now complete.
Your ADEY ProClub loyalty
points will automatically be
added to your account.
1

Remove lid assembly
4
7
Clean
1
2
3
4
8
1
2
3
4
9
Clean
Clean
Remove sleeve.
2
4
6
Vent.
2
4
4
2
4
3
1
2
4
21 - Turn valves off.
2 - Vent.
1
Remove
drain plug

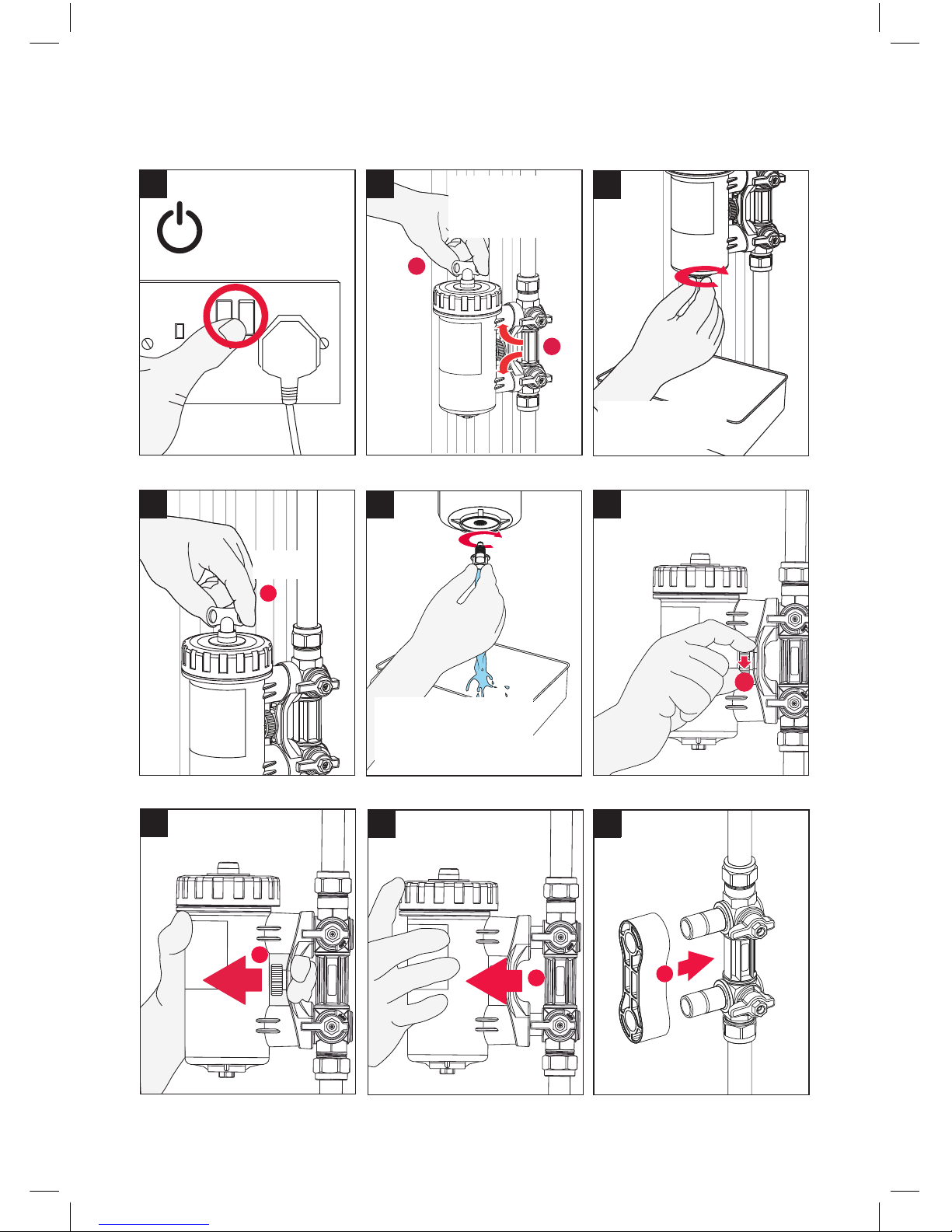

Servicing
4
1Isolate boiler mains
power supply.
Turn power off.
✗
OFF
4
5
Replace drain plug.
Important - Do NOT
overtighten.

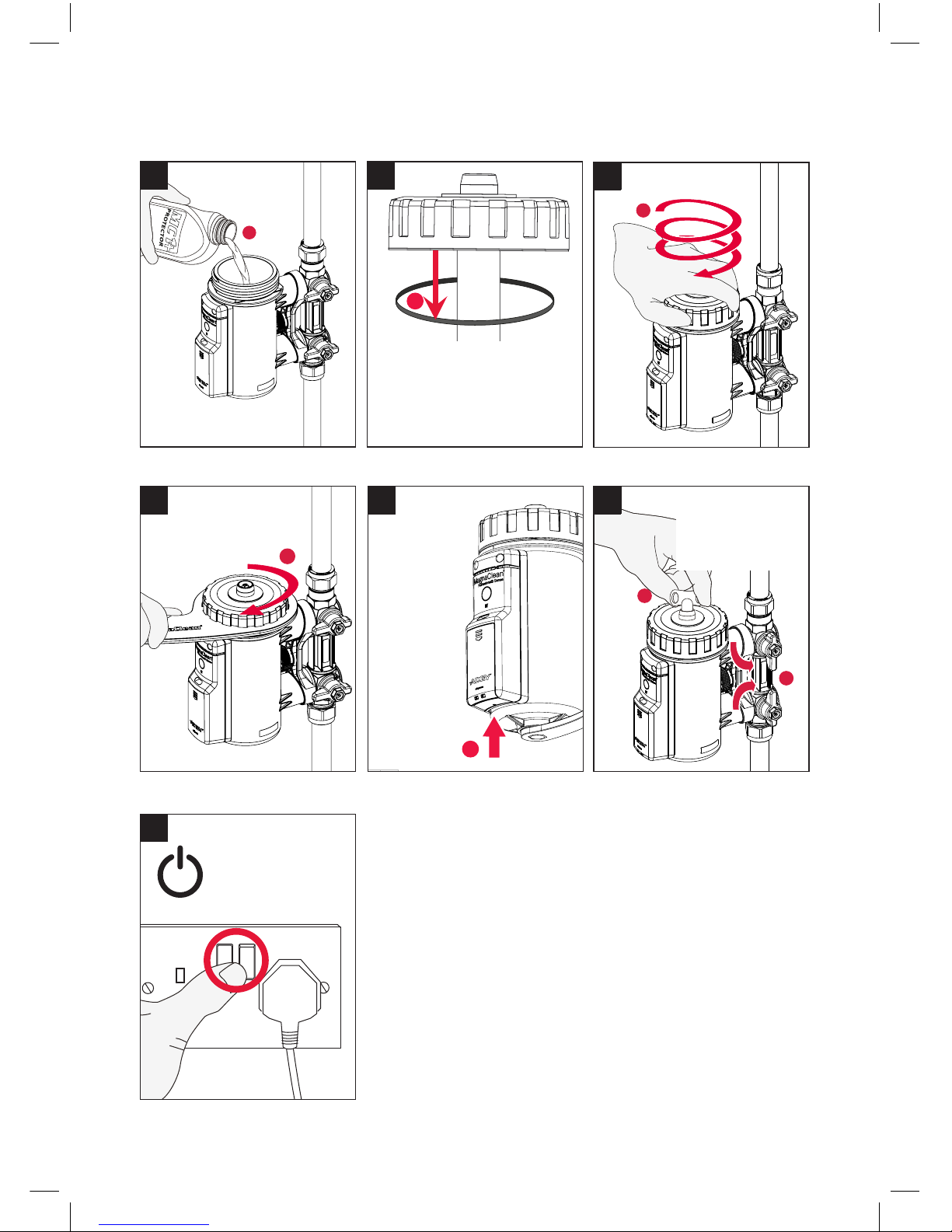

Dose
1
4
10
Tighten by a ¼ turn.
Important - Do NOT
overtighten.
1
4
13
4
16 Turn on boiler power
supply.
Turn power on.
ON
✓
Hand tighten.
4
11
1
4
12
O ring
The lid seal should be
checked for wear when
servicing MagnaClean®. It is
Best Practice to replace the
lid seal at each service
1
1
2
4
15 1 - Turn valves on.
2- Vent.
3- Wipe filter dry.
DRAWN
REV
DRG NO.
FL1-02-03434
CHECKED DATE ECR No.
12345678
A
B
D
E
C
F
A
B
C
D
E
F
REV
B
ADEY INNOVATION LTD.
GLOUCESTER RD.
CHELTENHAM
GL51 8NR
THIS DRAWING REMAINS THE PROPERTY OF ADEY INNOVATION LTD. AND MUST NOT BE COPIED OR
PASSED TO A THIRD PARTY WITHOUT PERMISSION TEL: [phone] Email: [email protected]
1 of 1
TOLERANCES & DIMENSIONS IN mm UNLESS OTHERWISE STATED
0.XX - ±0.1
0.X - ±0.2
ANGULAR ±0.1°
SHEET
MATERIAL
WEIGHT
grams (est.)
N/A
FINISH
A3
NTS
DESCRIPTION
COMPLETE PRODUCT, PRO 3 +
MAG SENSOR
SCALE
SIZE 0 - ±0.5
N/A
4
14
Set filter to
clean mode.
Press
and hold
button for
6 seconds
using the
reset tool
provided.
1
IMPORTANT: Always clean the magnet and reset the product when the filter lid has been opened.

N.B. Periodically remove
collets and lubricate
seals with water.
Lock red wheel
against canister.
Replace the collets,
quick release trigger
and canister.
4
54
6
4
4
1
11

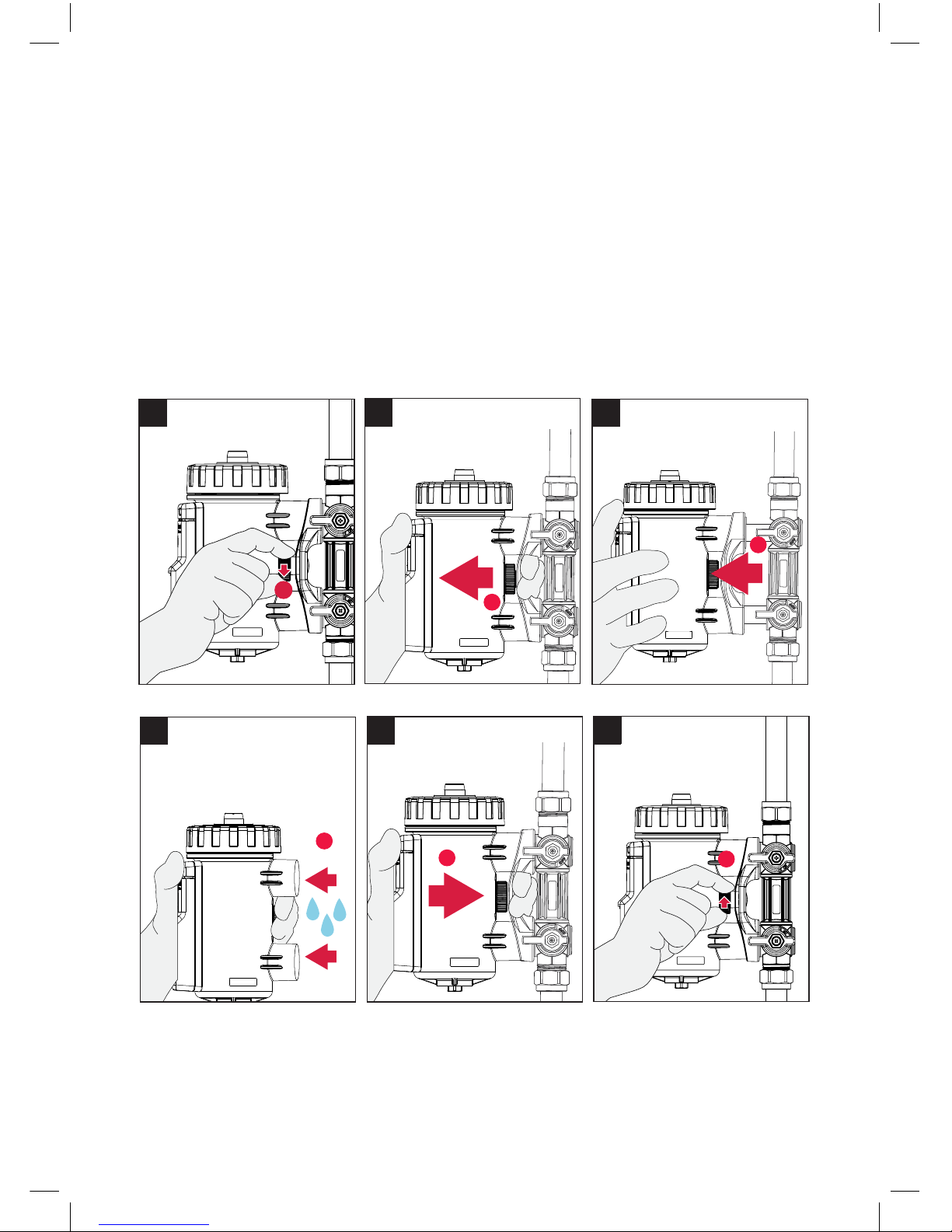

Quick-release trigger
4
2
1
4
14 3
MagnaClean Professional3 Sense incorporates a secure, quick-release, trigger which enables the filter
to be removed and re-installed in seconds. The connections enable easy and swift filter removal during
annual servicing or to undertake a MagnaCleanse system flush. This also makes it ideal for systems
where there is little room to install a filter.
The following instructions are designed to support engineers in the safe and effective servicing of
MagnaClean Professional3 Sense using the quick-release trigger.
NOTE: Follow servicing steps 1, 2, 3, 4 and 5 before following Quick-release trigger instructions.
Disconnect.
Fully unlock red
wheel from canister.
1
1
Remove.

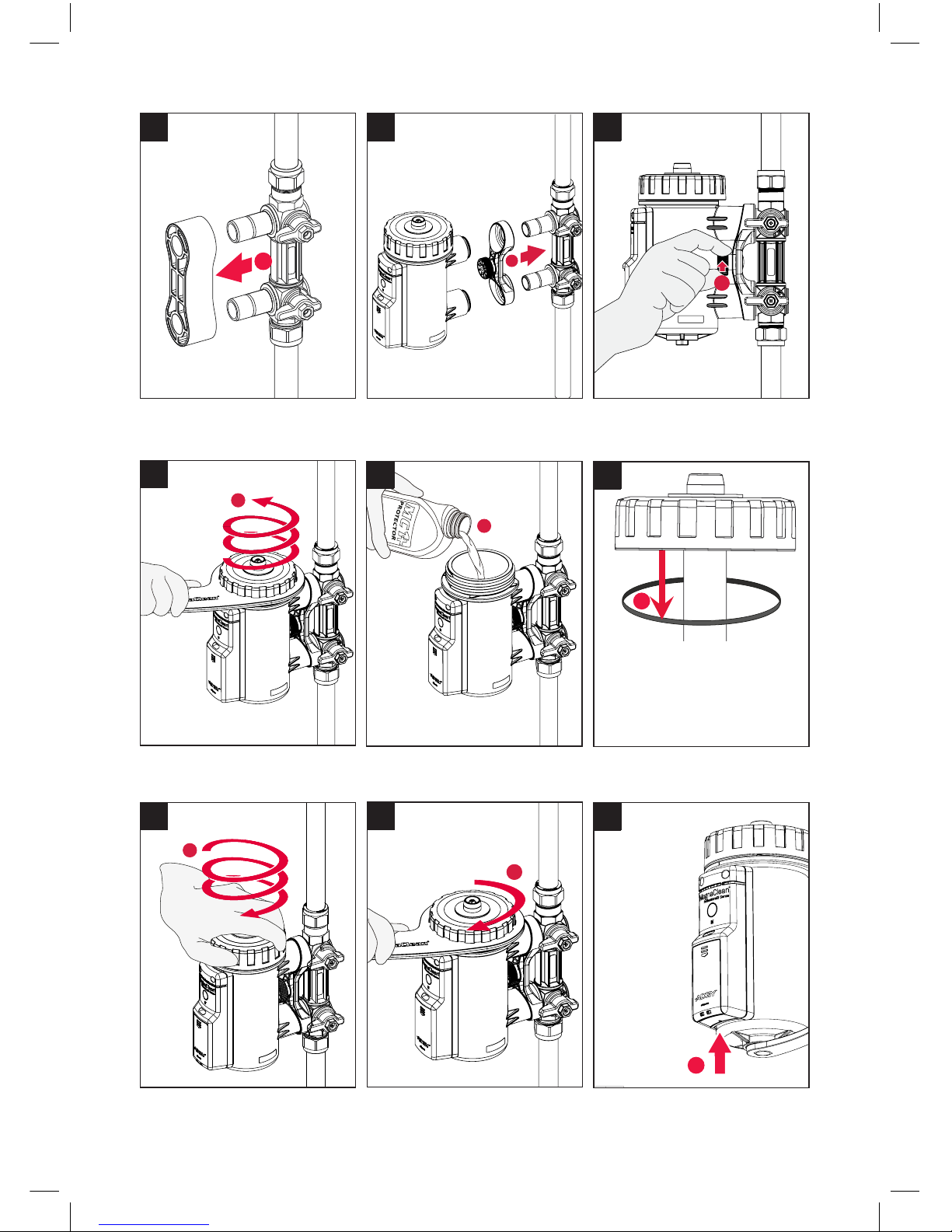

Retro-Fit Installation - Upgrade a MagnaClean Professional2®to a MagnaClean
Professional3 Sense using the simple instructions below:
1
2
4 4
124
3
Open drain valve
to release water.
Isolate boiler mains
power supply.
Turn power off.
✗
OFF
4
4
1 - Turn valves off.
2 - Vent.
1
4
6Fully unlock red
wheel from canister.
1
Vent.
4
74
8
Disconnect. 4
9
1
11
4
5
Replace drain plug.
Important - Do NOT
overtighten.

1
4
10
1
4
11
1
1
4
4
12
13
1
4
14
Lock red wheel
against canister.
Then follow the In App Filter
Set-up instructions on page 3.
Tighten by a ¼ turn.
Important - Do NOT
overtighten.
1
4
17
Hand tighten.
1
4
16
4
15
O ring
The lid seal should be
checked for wear when
servicing MagnaClean®. It is
Best Practice to replace the
lid seal at each service
1
DRAWN
REV
DRG NO.
FL1-02-03434
CHECKED DATE ECR No.
12345678
A
B
D
E
C
F
A
B
C
D
E
F
REV
B
ADEY INNOVATION LTD.
GLOUCESTER RD.
CHELTENHAM
GL51 8NR
THIS DRAWING REMAINS THE PROPERTY OF ADEY INNOVATION LTD. AND MUST NOT BE COPIED OR
PASSED TO A THIRD PARTY WITHOUT PERMISSION TEL: [phone] Email: [email protected]
1 of 1
TOLERANCES & DIMENSIONS IN mm UNLESS OTHERWISE STATED
0.XX - ±0.1
0.X - ±0.2
ANGULAR ±0.1°
SHEET
MATERIAL
WEIGHT
grams (est.)
N/A
FINISH
A3
NTS
DESCRIPTION
COMPLETE PRODUCT, PRO 3 +
MAG SENSOR
SCALE
SIZE 0 - ±0.5
N/A
4
18
Set filter to
clean mode.
Press
and hold
button for
6 seconds
using the
reset tool
provided.
1

Frequently asked questions
Where do I download the App from?
The ADEY ProClub App is available to download for free from the Google Play or App store.
What do I do if I’ve forgotten my password?
Click on ‘forgotten password’ in the App and follow the on-screen instructions to reset your password.
How do I register the product warranty?
The product warranty is registered automatically as part of the product set up via the App. A warranty
confirmation email will be sent to the installer and homeowner. If the homeowner wants proof that their
product warranty has been registered you must enter their email address as part of the product set up
on the App.
How do I know if the product has been successfully connected to the homeowner’s Wi-Fi?
Once the product has successfully connected it will appear in your App filter dashboard. You can view
the status of all of your filter stock at anytime by clicking on the customer name within the App.
What happens if the Wi-Fi drops out?
The product has an internal memory that will store data readings. All unsent readings will be
transferred to the ADEY database when the Wi-Fi connection is restored.
Can the homeowner have visibility of their filter performance?
Yes, we have developed an App designed specifically for the homeowner which simply tells them the
status of magnetite build-up within their filter. They can download the MagnaClean Sense HomeZone
App from the Google Play or App store.
How secure is the homeowner’s Wi-Fi password?
The homeowner’s Wi-Fi password is entered in order to connect the filter to the router. It is not stored
by the ADEY Proclub App and cannot be accessed by the installer after filter set up. The homeowner
can enter the password at this stage of connection if they do not wish to share the password with the
installer.The filter is securely encrypted to ensure the Wi-Fi password cannot be retrieved after setup.
1
2
4

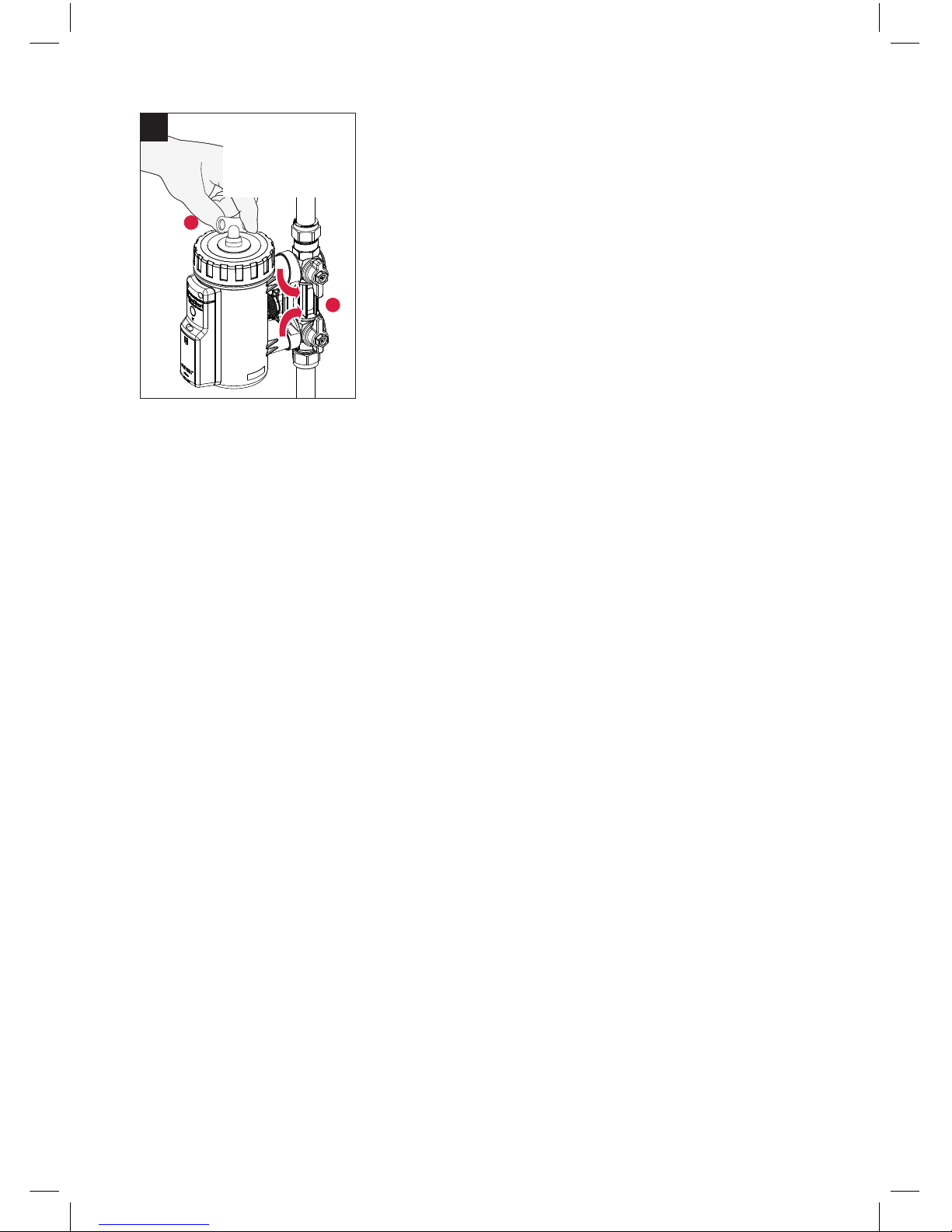

19 1 - Turn valves on.
2- Vent.
3- Wipe filter dry.

What do I do if I can’t get the product to connect?
If the product will not connect after 3 attempts, it is recommended to perform a factory reset.
Access this via the ADEY ProClub App menu and follow the on-screen instructions.
It is also good practice to check the signal strength of the homeowner’s Wi-Fi router from the intended
product position before installation. This can be easily checked by asking the homeowner to check the
signal strength on their phone from the intended product installation position.
How do I manage my filter stock within the App?
Upon set up of a MagnaClean Professional3 Sense you can manually choose how the filter will appear
in your job dashboard. We recommend using the customer’s name as it will make it easy to manage
each filter within your job records.
Does the App store the homeowner’s system details for future reference?
The homeowner’s system details are stored within the ‘Job records’ section of the App and can be
referenced at any time prior to attending an onsite visit.
What are the Wi-Fi connectivity limitations?
The MagnaClean Professional3 Sense should be installed so that it can communicate wirelessly with
the router (up to a maximum distance of 30m). The home’s construction and arrangement may affect
the communication range. Metal objects such as refrigerators and freezers, hot water cylinders, foil
lined plaster board walls, radiators and even thick brick walls, may reduce the Wi-Fi operational range
of the filter.
It is important to check the Wi-Fi strength at the proposed location of the filter before installation.
Technical specification
Operating Parameters:
Internal water operating temperature: 3°C to 95°C
Internal operating water pressure: Up to 6 bar
Recommended ambient room temperature: 3°C to 35°C
Maximum flow rate: 50L/min
Flow direction: Bi-directional
Fluid capacity: 0.55 litres
Inlet: 22mm compression at valve
Outlet: 22mm compression at valve
Electronic sub-assembly:
Enclosure rated to IP52 specification
Battery powered: 2x AA alkaline batteries

IMPORTANT Always follow the Standard Electrical Best Practice guidelines when installing a
MagnaClean filter. A copy of these can be found at http://www.hse.gov.uk/electricity
For the most up to date version of the MagnaClean Professional3 Sense Installation and Servicing
instructions visit adey.com. Warranty Terms & Conditions can be found at adey.com
MagnaClean filter contains a strong magnet. Keep away from all electrical devices, bank cards
and other magnetic devices.
MagnaClean filter contains a strong magnet. Caution should be taken at all times when handling
if you have a pacemaker fitted.
MagnaClean filter is a pressurized device. Always release pressure
before servicing.
Unit may be hot in operation. Handle with care.
Keep water away from battery compartment.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
As a WEEE producer, ADEY Innovation Ltd are obligated to finance the collection, treatment &
recovery of WEEE, and our compliance under these regulations is ensured via our work with our
WEEE Compliance Scheme of choice, B2B Compliance.
THIS PRODUCT COMPLIES WITH CURRENT EU PRODUCT LEGISLATION
CAUTION:
Important

M03808 LF2-01-03577 v1
Telephone: [phone] Email: [e-mail]
www.adey.com
Produced from recycled material
A carbon neutral company
All ADEY marks are trademarks of Adey Holdings (2008) Limited. Please visit adey.com/trademarks for a list of ADEY marks
Copyright Adey Holdings (2008) Limited © 2018. All rights reserved.
®
