Adey MagnaClean CMX User manual

1
Nano Pumped Sidestream
Installation and servicing

2
Contents
Checklist 3
Location 4
Key Features 4
Unit Installation 5
Electrical Installation/Earthing 6
Operation 8
Controller Programming Parameters 9
Filtration & Pressure Differential Monitoring 14
Maintenance & Servicing 15
Environment Protection 16
Technical Specification 17
Troubleshooting Guide 18
UK Declaration of Conformity 20
Product Description
Heating and chilled system sidestream filtration unit with integrated MagnaClean CMX Nano® filter
and electric, motor-driven circulation pump; automated control system with BMS connectivity
providing system filtration monitoring, pressure differential and temperature sensing.
Application
The MagnaClean CMX Pumped Sidestream filter provides high performance, sidestream filtration
when space is a premium and/or where it isn’t possible to install a filter across a pump on any
heating or chilled system. Featuring a high performance MagnaClean CMX Nano Filter, an integrated
Grundfos UPM3 Flex AS pump and the security of pressure differential and temperature sensing
with full BMS alarm connectivity, this solution is designed to actively monitor the filter and the
filtration of heating and chilled systems in a sidestream configuration for 24 hours a day, even when
the system pumps aren’t running.
Storage
If this product is not to be installed immediately on receipt, ensure that it is
stored in a dry, frost and vibration free location in its original packaging.
The WEEE symbol on this product indicates that the product must not be
disposed of with normal household waste. Instead such marked waste
equipment must be disposed of by arranging to return to a designated collection
point for the recycling of waste electrical and electronic equipment.
This MagnaClean CMX Nano filter contains a strong magnet.
Keep away from all electrical devices, bank cards and other magnetic devices.
This MagnaClean CMX Nano filter contains a strong magnet.
Caution should be taken at all times when handling if you have a pacemaker fitted.
This MagnaClean CMX Nano filter is a pressurised device.
Always release pressure before servicing.
The filter unit may be hot in operation.
Handle with care.
THIS PRODUCT COMPLIES WITH ALL CURRENT UK and EU PRODUCT LEGISLATION.

3
Warnings
The electrical installation must be carried out in accordance with the current national
electrical regulations by a qualified person.
This appliance must be earthed via the supply cord.
The pump is not accessible in normal operation mode. The unit must be operated with the
front cover in place.
This appliance must not be used for any other application without the written consent of
ADEY Commercial Limited.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Please read installation details carefully as they are intended to ensure this product provides
long, trouble free service. Failure to install the unit in accordance with the installation
instructions will lead to invalidation of the warranty.
1. Checklist
IMPORTANT: With the appliance removed from its packaging, check for any damage prior to
installation. If any damage is found, please contact ADEY Customer Services on [phone]
within 24 hours of receipt.
Item Description Qty Item Description Qty
APumped Sidestream Cabinet 1 GLED Warning Light 1
BMagnaClean CMX Nano Filter 1HPower Switch 1
CDifferential Pressure & Temp. Sensor 1IAutomatic Air Vent (1”) 1
D28mm Compression Ball Valves 2 JButterfly Valve (1”) 1
EGrundfos UPM3 FLEX AS 130 Pump 1 K¼” Male - ½” Female Adaptor 1
FADEY DEK1001 Modbus Controller 1 L50-Micron Filter Cartridges 3
Fig. 1 A
L
I
J
C
H
EB
D
GF
K

4
2. Location
Location: The pumped sidestream unit should be installed on a solid wall or fabricated skid/
support structure of sufficient strength to support the filled weight of the unit of c.23kg. Ensure the
minimum clearance requirements are followed to allow servicing of the unit.
Access and minimum clearance requirements: For emergencies and maintenance the pumped
sidestream unit must be easily accessible and have the minimum clearance around it as laid out
below in Fig. 2. Additional access to the front of the unit will be required to service the filter/unit and
programme/operate the controller.
Fig. 2 Fig. 3
Protection: The sidestream unit should be located in a dry, frost free area.
Ambient temperature: The sidestream unit should be sited in a location where the ambient
temperature does not drop below +2°C or exceed +40°C.
3. Key Features
1. Robust, mild steel cabinet: High quality, powder-coated cabinet providing simple, single-person
installation & re-installation, offering customers the flexibility to move one or more units from one
location to another across multiple locations.
2. MagnaClean CMX Nano Filter & Grundfos UPM3 Flex AS 130 Pump: This pumped sidestream
solution has been designed to provide complete flexibility across a plant room environment,
offering high performance, sidestream filtration when space is a premium and/or where it isn’t
possible to install a filter across a pump on any heating or chilled system.
3. Grundfos Differential Pressure & Temperature Sensor: The integrated DP Sensor is attached
to the inlet and outlet flow via capillary tubes and monitors the differential pressure between
both outlets, providing alarms to warn about filter servicing requirements and blockages should
they occur. The sensor also monitors system temperature, providing both high and low system
temperature warnings.
4. ADEY DEK1001 Modbus (RS485) Controller: The integrated controller provides integrated
Modbus BMS connectivity and monitoring capability with programmable alarms, providing
automatic on/off control, service interval alerts, unit/pump failure alarms and system data logs
covering servicing, operational hours & pump activity.
5. LED Warning Light & Alarm function: The integrated warning light will flash and an alarm will be
sounded when programmable parameters are reached during operation.
4 5
3
1
2
300mm
300mm
400mm
300mm
150mm 150mm

5
4. Unit Installation
The MagnaClean CMX Nano Pumped Sidestream unit should be installed onto a solid wall or
fabricated skid or support structure of sufficient strength to support the filled weight of the unit of
c.23kg using the mounting dimensions shown below. Ensure the minimum clearance requirements
detailed in Fig.2 on page 4 are followed to allow for servicing of the unit.
IMPORTANT: This unit can be connected to a heating or chilled system in any location in a
sidestream configuration via the two 28mm compression ball valves included with the unit. As the
unit is driven by an integrated pump, the inlet & outlet connections must both be connected to
EITHER the main system flow OR the system return. The inlet & outlet connections must not be
connected across the system flow and system return or across a system pump, as would be the
case in a standard sidestream installation configuration. If the unit is installed incorrectly, it may
result in the unit not operating as intended.
The inlet and outlet connections should be 150cm apart to prevent back-circulation of system water.
Fig. 4
IMPORTANT: Whilst the MagnaClean CMX Nano filter attached to this unit carries a min/max
temperature rating of -10⁰C to +150⁰C, when installed as an integral part of this pumped sidestream
unit as it is, the MagnaClean CMX Nano filter min/max temperature rating is +2⁰C to +100⁰C only.
400mm
232mm
405mm

6
5. Electrical Installation/Earthing
Regulations: The electrical installation must be carried out in accordance with the current
national electrical regulations and installed by a qualified person.
Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied)
should be installed in the supply circuit. This may be part of a consumer unit or a separate unit.
Before starting work on the electrical supply ensure power supply is isolated.
DO NOT allow the supply cord to contact hot surfaces. The cord should be safely routed and secured
by cable clips.
Adjacent pipes: Adjacent suction and delivery pipes should be fitted with earthing clamps in
accordance with current regulations.
Earthing: This appliance must be earthed via the supply cord.
Pipework: Copper or metallic pipework must have supplementary earth bonding where the
continuity has been broken by flexible hoses or plastic components.
Additional earthing: Certain installations may require additional earthing arrangements such as
equipotential bonding. Reference should be made to the relevant regulations concerning this subject
to ensure compliance.
Connections: The unit must be connected to a dedicated fused SPUR via a lockable isolator to avoid
unauthorised disconnection.
The electrical connection must be made adjacent to, (not behind) the Pumped Sidestream unit
to allow disconnection of the electrical supply should the pump module or controller need to be
removed for service or maintenance.
WARNING: This appliance must be earthed.
Wiring of connection unit: The wires in the mains lead (supply cord) are coloured in accordance with
the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your connection unit proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal in the connection
unit which is marked with the letter E or by the earth symbol: or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N
or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
L or coloured red.

7
Electrical Installation/Earthing (Cont.)
RS 485 Modbus – BMS Connection: RS 485 is available on this product for BMS connection directly
into the unit controller.
Fuses: A 5 Amp replacement fuse size should be used. The complete unit is fused via the live
terminal block contained within the upper electrical compartment.
Supply cord replacement: The supply cord and internal wiring within the terminal box are routed
and secured to ensure compliance with the electrical standard EN60335-1. It is essential that prior
to any disturbance of this internal wiring, all cable routing and securing details are carefully noted
to ensure re-assembly to the same factory pattern is always maintained. If the supply cord is to be
changed or is damaged, it must be replaced with a special cord assembly available from ADEY or
one of their approved repairers. On disassembly note the cord retention and routing system. Re-
assemble to the same pattern.
For information on cable connection consult the wiring diagram below:
Fig. 5
L E N230 Volts
Switch
Grundfos
UPM3 Flex AS
Pump
ADEY DEK1001
Modbus Controller
Grundfos
DP Sensor
12v LED
Fused
Terminal Block
L E N230 Volts
Switch
Grundfos
UPM3 Flex AS
Pump
ADEY DEK1001
Modbus Controller
Grundfos
DP Sensor
12v LED
Fused
Terminal Block
L E N230 Volts
Switch
Grundfos
UPM3 Flex AS
Pump
ADEY DEK1001
Modbus Controller
Grundfos
DP Sensor
12v LED
Fused
Terminal Block
L E N230 Volts
Switch
Grundfos
UPM3 Flex AS
Pump
ADEY DEK1001
Modbus Controller
Grundfos
DP Sensor
12v LED
Fused
Terminal Block

8
6. Operation
Controller Overview: The unit controller is designed to be intuitive to use and allows functions and
alarms to be set by the installer/user. It also allows faults to be monitored and logged to enable
easier system fault diagnosis. The functions are set using the 4 buttons on the front of the controller,
as per below:
Fig. 6 Fig. 7
The unit can be connected to a BMS system through RS485
-Modbus. The controller has been tested using ModScan
software. Connection is via RS485 protocol connecting the
positive data wire to MODBUS Terminal A and the negative
data wire to MODBUS Terminal B on the controller, (Fig.7).
The controller is fully programmable providing automatic on/off control, service interval alerts, unit
and pump failure alarms and system data logs covering servicing, operational hours & pump activity.
The controller also monitors pressure differential across the inlet and outlet of the MagnaClean CMX
Nano filter via the integrated Grundfos DPS Sensor, providing warning alarms at two levels:
a) A warning alarm, alerting the persons responsible for monitoring the heating or chilled system
that the installed cartridge filter is beginning to block and that a service visit is advised;
b) A full alarm, alerting the persons responsible for monitoring the heating or chilled system that the
installed cartridge filter is full and needs changing. The pump is deactivated and the controller will
not clear until a new service date is entered.
System temperature can also be monitored by the DPS sensor, providing warning alarms should the
water temperature fall below or above the programmable low/high temperature warning parameters.
A full list of controller parameters and their factory default values can be found on pages 9-10,
together with applicable warnings and alarms on page 11.
DURING NORMAL OPERATION
1. On initial start-up, the controller will scroll “ADEY MagnaClean CMX Nano Pumped Sidestream
Monitor v1.1” then revert to status message.
a) In normal operation with system monitoring and pump running,
the display will scroll, ‘PUMP RUNNING’, ‘UNIT FILTERING’
b) In normal operation with system monitoring and pump disabled,
the display will scroll, ‘SENSOR OK’
2. Press ‘UP’, (Button 1) to display future service date followed by last service date.
3. Press ‘DOWN’, (Button 3) to display date and time.
4. Press ‘SET’ & ‘UP’, (Buttons 4 & 1) to display pressure difference across the filter inlet and outlet
5. Press ‘SET’ &‘DOWN’, (Buttons 4 & 3) to display current system water temperature.
6. Press ‘MUTE’, (Button 2) to stop the alarm. If pressed and held, the controller is reset. If pressed
during ‘POWER ON’, the factory test procedure commences.
2
4
1
3

9
7. Controller Programming Parameters
PROGRAMMING MODES
1. Press ‘UP’ & ‘DOWN’, (Buttons 1 & 3) for 3 seconds to enter TIME & DATE PROGRAMMING MODE
a) Press ‘UP’, (Button 1) to increase the value
b) Press ‘DOWN’, (Button 3) to decrease the value
c) Press ‘SET’ to confirm and move to the next value
d) To exit time & date programming mode, press and hold the ‘SET’ button.
2. Press ‘SET’. (Button 4) for 3 seconds to enter PARAMETER PROGRAMMING MODE and enter the
access code, ‘111’.
a) Press ‘UP’, (Button 1) to increase the value
b) Press ‘DOWN’, (Button 3) to decrease the value
c) Press ‘SET’, (Button 4) to enter the password value during password request and to save any
parameter changes
d) To cycle through the controller parameters, HOLD ‘SET’ followed by ‘UP’, (Button 4 & 1) to move
to the next parameter; HOLD ‘SET’ followed by ‘DOWN’, (Button 4 & 3) to move to the previous
parameter.
e) Press ‘MUTE’, (Button 2) to reset the pump hours counter.
f) To exit parameter programming mode, press and hold the ‘SET’ button.
CONTROLLER PARAMETERS
#Parameter Description Default Range
-
Service Date Adjust future service date: Day/Month/Year.
Press & hold ‘SET’ to cycle across values. Will
pass onto next parameter once complete
--
-
Last Service
Date
Automatically updates when a new service date
has been entered and will be visible next time
user accesses parameters
--
1Cartridge*
Present
Monitors presence of a filter cartridge No Yes/No
2
Magnet Only**
Service Warning
Daily/weekly/monthly warning alarm
Daily
Daily
Weekly
Monthly
3
Magnet Only
Service Warning
Duration
Number of days/weeks/months (unit
representation dependent upon Parameter 2
Alarm choice - Daily, Weekly or Monthly)
21-12
4
Pressure
Difference
Warning
Warning trigger point based on pressure
differential output (The default value of 0.4 bar
should not be changed)
0.4 0.1 - 2.5
bar
5
Pressure
Difference Alarm
Alarm trigger point based on pressure differential
output (The default value of 0.6 bar should not be
changed)
0.6 0.1 - 2.5
bar
6Sensor Minimum
Pressure
Minimum pressure value of sensor (The default
value of 0.0 bar should not be changed) 0.0 bar 0 - 2.5 bar
7Sensor Maximum
Pressure
Maximum pressure value of sensor (The default
value of 2.5 bar should not be changed) 2.5 bar 0 - 2.5 bar

10
#Parameter Description Default Range
8Temperature
Alarm Enable
Enables/disables temperature alarm Yes Yes/No
9Low Temperature
Alarm
Low temperature alarm value 4°C 0-120°C
10 High Temperature
Alarm
High temperature alarm value 90°C 0-120°C
11
Pump Required Disables activation of pump relay. If set to NO,
Current Sense (Parameter 12) will auto NO; When
set to YES, Current Sense (Parameter 12) will
auto YES
Yes Yes/No
12 Current Sense Monitors current for presence of pump Yes Yes/No
13
Alarm Relay
Contact
Type of Contact for Alarm Output (NO = Relay
in open position; closes on alarm; NC = Relay in
closed position; opens on alarm)
No No/NC
14 Pump Hours Total Operation Hours for Pump (Auto Update) 0 - 999 1 = 24
hours
15 ID Number Address for ModBus 00 - 99
16
Battery
Activation
Enable or disable the Battery (Maintains date and
time settings if power is lost to the controller - on
first power up battery will automatically activate)
No Yes/No
*NOTE: PARAMETER 1:
If Parameter 1 “Cartridge Present” is set to “YES”, Parameters 2 & 3 are not activated.
If Parameter 1 “Cartridge Present” is set to “NO”, Parameters 2 & 3 are activated and the timer will
be active from that point.
**NOTE: PARAMETER 2:
Parameter 2 “Magnet Only Service Warning” setting, (Daily, Weekly or Monthly) will affect the
default value of Parameter 3 “Magnet Only Service Warning Duration”, e.g. with Parameter 2 set at
the default “Daily” setting, the controller will provide a warning alarm every 2 days by default.
If Parameter 2 is changed to “Weekly” the controller will provide a warning alarm every 2 weeks.
Default Parameter 3 values can be manually changed during Parameter Programming Mode within
a range of 1 – 12 days, weeks or months as applicable.

11
ADEY DEK1001 MODBUS PROTOCOL – VARIABLE LIST
DEFAULT SETTINGS
BAUD RATE 9600
WORD LENGTH 8
PARITY NO
STOP BITS 1
X Variable
Address
Denomination Type X Variable
Format
Data Conversion Units Equivalent
Range
Range of
X Variable
Notes
40001 Cartridge Present read/write word 16 bits 4 = No 5 = Yes
6 = Fast Fast
4->6 4->6
40002 Magnet Only Service
warning
read/write word 16 bits 11=Daily
12=Weekly
13=Monthly
11->13 11->13
40003 Magnet Only Service
warning Duration
read/write word 16 bits Value = X 1->12 1->12
40004 Parameter Pressure
Difference Warning
read/write word 16 bits Value = X/10 Bar 0,1-0,6 1-6
40005 Parameter Pressure
Difference
read/write word 16 bits Value = X/10 Bar 0,1-6,0 1-60
40006 Parameter Sensor
Minimum Pressure
read/write word 16 bits Value = X/10 Bar 0 - Par.7 0- Par.7 See
note 1
40007 Parameter Maximum
Pressure
read/write word 16 bits Value = X/10 Bar Par.6-6,0 Par.6-60 See
note 2
40008 Parameter Temperature
Alarm Enable
read/write word 16 bits 4 = No 5 = Yes 4-5 4-5
40009 Parameter Low
Temperature Alarm
read/write word 16 bits Value = X °C 0°-Par.10 0°-Par.10 See
note 3
40010 Parameter High
Temperature Alarm
read/write word 16 bits Value = X °C Par.10-120° Par.10-120° See
note 4
40011 Parameter Pump
Required
read/write word 16 bits 4 = No 5 = Yes 4-5 4-5
40012 Parameter Current
Sense Active
read/write word 16 bits 4 = No 5 = Yes 4-5 4-5
40013 Parameter Alarm Relay
Contact Type
read/write word 16 bits 0 = Normal Open;
1 = Normal Close
0-1 0-1
40014 Parameter Pump Hours read/write word 16 bits Value = X h 0-9999 0-9999
40015 Parameter ID Number read/write word 16 bits Value = X 0-99 1-99
40016 Parameter Battery
Activated
read/write word 16 bits 4 = No 5 = Yes 4-5 4-5
40017 Parameter Expansion
Board Present
read/write word 16 bits 4 = No 5 = Yes 4-5 4-5
40018 Parameter Minimum
Flow Alarm
read/write word 16 bits not used
40019 Parameter Maximum
Flow Alarm
read/write word 16 bits not used
40020 Actual Day read/write word 16 bits Value = X 1-31 1-31
40021 Actual Month read/write word 16 bits Value = X 1-12 1-12
40022 Actual Year read/write word 16 bits Value = X 0-99 0-99
40023 Actual Time Hour read/write word 16 bits Value = X 0-23 0-23
40024 Actual Time Minute read/write word 16 bits Value = X 0-59 0-59
40025 Service Date Day read word 16 bits Value = X 1-31 1-31
40026 Service Date Month read word 16 bits Value = X 1-12 1-12
40027 Service Date Year read word 16 bits Value = X 0-99 0-99
40028 Last Serviced Date Day read word 16 bits Value = X 1-31 1-31

12
X Variable
Address
Denomination Type X Variable
Format
Data Conversion Units Equivalent
Range
Range of
X Variable
Notes
40029 Last Serviced Date
Month
read word 16 bits Value = X 1-12 1-12
40030 Last Serviced Date Year read word 16 bits Value = X 0-99 0-99
40031 Pump Status read word 16 bits 0 = OFF 1 = ON 0-1 0-1
40032 Common Alarm Status read word 16 bits 0 = OFF 1 = ON 0-1 0-1
40033 Led Alarm Status read word 16 bits 0 = OFF 1 = ON 0-1 0-1
40034 Alarm Pump Failure read word 16 bits 0 = Not Active
1 = Active
0-1 0-1
40035 Alarm Excessive
Differential Pressure
read word 16 bits 0 = Normal Open;
1 = Normal Close
0-1 0-1
40036 Alarm Irregular Flow read word 16 bits 0 = Not Active
1 = Active
0-1 0-1
40037 Alarm Maximum Pump
Activity
read word 16 bits 0 = Normal Open;
1 = Normal Close
0-1 0-1
40038 Alarm Low Temperature read word 16 bits 0 = Not Active
1 = Active
0-1 0-1
40039 Alarm High Temperature read word 16 bits 0 = Normal Open;
1 = Normal Close
0-1 0-1
40040 Warning Differential
Pressure
read word 16 bits 0 = Not Active
1 = Active
0-1 0-1
40041 Magnet Only Service
Warning
read word 16 bits 0 = Not Active
1 = Active
0-1 0-1
40042 Pressure read word 16 bits Value = X/10 Par.3-Par.4 Par.3-Par.4
40043 Temperature read word 16 bits Value = X 0-120 0-120
40044 Flow read word 16 bits Not used

13
Warning Conditions for Trigger Scrolled Message “Auto Reset” “Action on Outputs”
Pump Fail Current Sense
Parameter = Y
Pump Activated
Current level below
125mA
Pump Fail
N
Pump – OFF
Buzzer – ON
LED Light – ON
Common Alarm – ON
Service
Interval
Alarm
Actual date beyond
Service Date (Control
will not clear error
until new service date
entered)
Filter Service
Required
N
Pump – ON
Buzzer – ON
LED Light – ON
Common Alarm – ON
Magnet-
Only
Service
Warning*
Magnet-only service
requirement value has
been reached
Magnet-Only
Service Warning
- Hold MUTE for 5
secs to reset
N
Pump – ON
Buzzer – ON
LED Light – ON
Common Alarm – OFF
Pressure
Differential
Warning
Pressure Differential
Warning value has
been reached
Differential
Pressure Warning
- Check Cartridge Y
Pump – ON
Buzzer – ON
LED Light – ON
Common Alarm – OFF
Pressure
Differential
Alarm
Pressure Differential
Alarm value has been
reached (Control will
not clear error until
new service date
entered)
Filter Service
Required
N
Pump – OFF
Buzzer – ON
LED Light – ON
Common Alarm – ON
Low
Temperature
Alarm
Low temperature
alarm value reached
Low Temperature
Warning Y
Pump – ON
Buzzer – ON
LED Light – ON
Common Alarm – ON
High
Temperature
Alarm
High temperature
alarm value reached
High Temperature
Warning Y
Pump – ON
Buzzer – ON
LED Light – ON
Common Alarm – ON
*NOTE: When the “Magnet-Only Service Warning” alarm is activated, the alarm is a service
reminder only which can be reset by holding down the MUTE button for 5 seconds. When the alarm
is reset via the mute button, the alarm will reinstate the previous Parameter 2 & 3 values, e.g. if
Parameter 2 is set to “Weekly” the controller will provide another warning alarm in 2 weeks until/
unless default parameters are manually updated/changed.

14
8. Filtration & Pressure Differential Monitoring
The integrated pressure differential sensor
and ADEY DEK1001 Modbus controller within
the pumped sidestream unit monitors the
pressure drop across the inlet and outlet of the
MagnaClean CMX Nano filter as the cartridge
filters fill-up with captured system debris.
The controller has two preset warning and
alarm settings based on debris collection
rates within the spun-bonded cartridge
filters used with the Nano filter. The first
‘warning’ setting sets off an audible and visual
alarm, warning that the installed cartridge
is beginning to fill with debris and that a
service visit will be required soon. The second
‘alarm’ setting creates an audible and visual
alarm, warning that the installed cartridge is
saturated with system debris, automatically
switching off the integrated pump. When this
alarm function is activated, a service visit
is required to clean the internal magnet and
replace the cartridge filter before the unit can
be reset and put back into filtration mode.
For accurate pressure differential monitoring
warnings and alarms, a cartridge filter must
be installed in the filter housing; the DEK1001
controller does however feature programmable
magnet-only service warning alarms for
when the sidestream unit filter is configured
with magnets only, with no cartridge filter
installed. These magnet-only warnings are
based on time elapsed rather than differential
pressure measurement across the filter, as
there is no distinguishable pressure drop across
the filter without a cartridge installed, even
when it is full of captured magnetic debris.
These time-based alarms are important
as ADEY always recommend that when a
MagnaClean CMX filter is installed onto an
existing heating or chilled system, the filter
should initially be configured with magnets
only. This is to ensure that cartridge filters
aren’t needlessly wasted & blocked with
magnetic system debris; debris which can
and should be captured via the internal and
external CMX Nano™ magnet arrays. The
programmable daily, weekly or monthly alarms
are intended as service reminders which can
be easily reset within the controller menu.
Once magnetic capture rates begin to reduce,
5, 10, 20 or 50-micron cartridge filters can
then be installed to capture any non-magnetic
debris within the system whilst also assisting
in the capture of any remaining/reoccurring
magnetic system debris in conjunction with
the internal magnet array and where required,
the Nano External Magnetic Jacket accessory.
However, there is no right or wrong way to
configure the MagnaClean CMX Nano filter.
The filter can be configured with cartridges
from day one if that is what you believe the
system requires. If you have any queries
regarding the setting up of our MagnaClean
CMX filters, please contact ADEY Customer
Services who will put you in direct contact
with one of our highly experienced commercial
team who will be able to assist you.

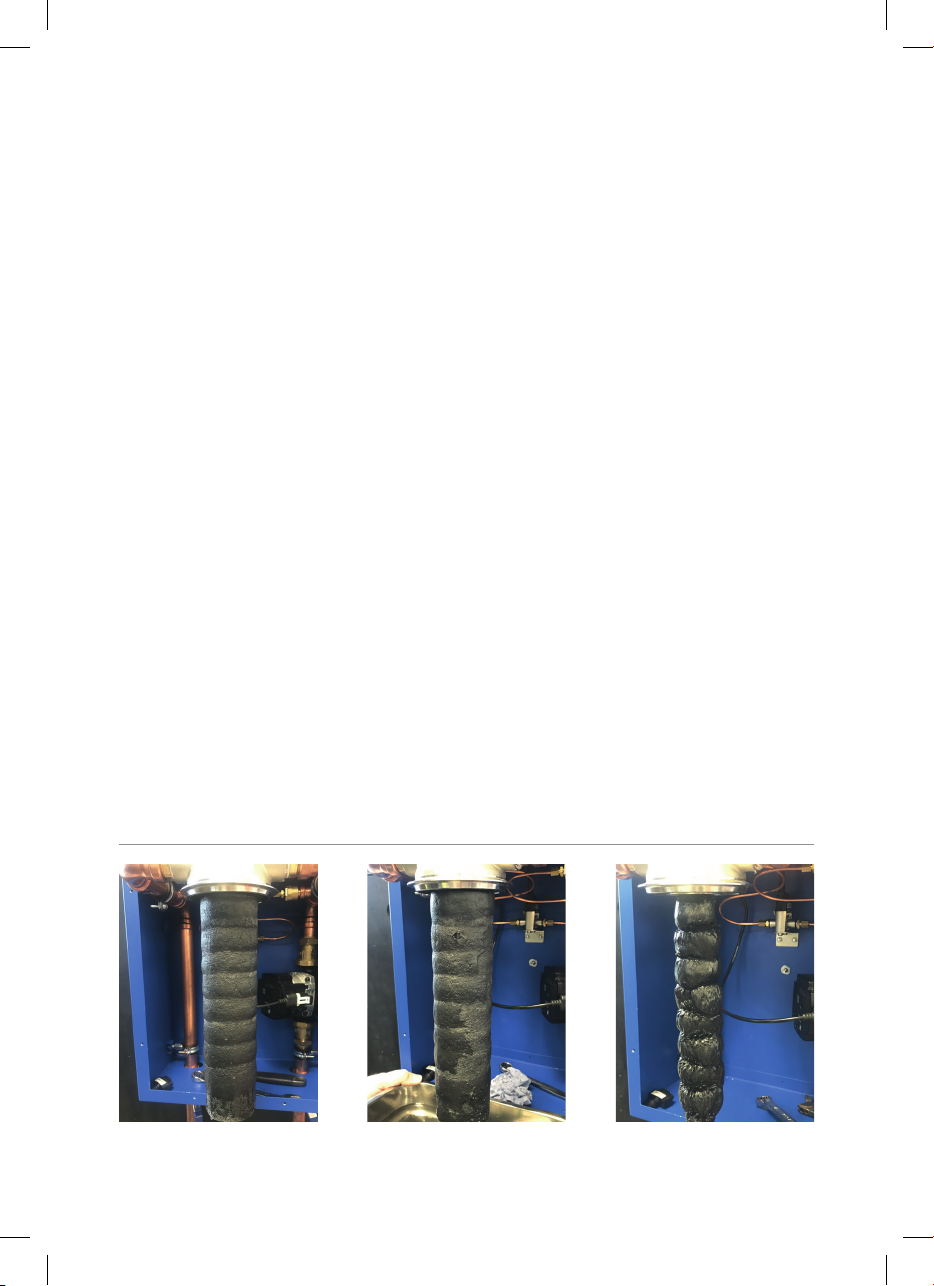

Indicative cartridge condition
‘Pressure Difference Warning’
Indicative cartridge condition
‘Pressure Difference Alarm’
Magnet-only capture
(Internal magnet only)

15
9. Maintenance – MagnaClean CMX Nano Filter
The following steps should be followed when servicing the MagnaClean CMX Nano filter:
1
4
7
2
5
8
3
6
9
1. Turn off the power to the pumped
sidestream unit via the power
switch.
4. Loosen lid clamp, remove and
lower the body away from the
housing lid. Filter may be hot.
Handle with care.
7. If filter cartridge is blocked
with system debris, install a
new cartridge and tighten the
compression nut.
2. Close both isolation valves at the
base of the unit to isolate the filter
from the main system.
5. Unscrew compression nut,
remove cartridge filter, (if installed)
and put safely to one side.
8. Offer up the filter body to the lid
assembly, ensuring that the O-ring is
positioned and re-installed correctly.
3. Connect hose to the drain port and
slowly open the valve to release any
residual pressure remaining within
the housing body. Drain the filter.
6. Clean suspended magnet
assembly thoroughly removing all
magnetite.
9. Re-assemble lid clamp and
tighten. Re-check all connections
and open isolation valves at base
of unit.

16
9. Maintenance – Grundfos UPM3 Flex 130 AS Pump
The following steps should be followed if
servicing the Grundfos UPM3 Flex 130 AS pump:
DANGER
Electric shock
Death or serious personal injury
• Before starting any work at the pump,
switch off the power supply. Make
sure that the power supply cannot be
switched on accidentally.
• Be aware that capacitors will be live
up to 30 seconds after the power
supply has been switched off.
DANGER
Electric shock
Death or serious personal injury
• Before dismantling the complete
pump set, switch off the power
supply at least 5 minutes prior to
commencing work and ensure that
it cannot be switched on again
unintentionally.
WARNING
Strong magnetic field in the rotor area
Danger of death for persons with
pacemaker.
• Keep a safety distance of at least
0.3m during disassembly.
CAUTION
Hot surface
Minor or moderate personal injury.
• Before starting to work on the pump,
let the pump casing cool down to
ambient temperature.
All service work must be carried out by
an instructed service technician.
Before dismantling the pump, drain the
system and close the isolating valves on
the unit.
Maintaining the product
UPM3 pumps are maintenance-free. However,
it might be necessary to deblock or to open the
pump, for example, if it is blocked by impurities.
De-blocking is possible by opening the de-
blocking screw at the front.
1. Unscrew the de-blocking screw at the front
of the pump head.
CAUTION
Pressurised system
Minor or moderate personal injury
• Be aware of splashing hot water
2. De-block the pump with a screwdriver.
Cleaning
If the impeller or pump housing has to be
cleaned from impurities, proceed as follows:
1. Drain the sidestream unit and close the
isolating valves.
CAUTION
Pressurised system
Minor or moderate personal injury
• Be aware of splashing hot water
2. Remove the screws that hold the pump head.
3. Check impeller and pump housing and
remove the impurities.
4. Place the pump head in the desired position,
fit the screws and tighten them securely.
Spares: The MagnaClean CMX Nano
Pumped Sidestream is designed and built
to be a reliable and high quality product
but in the event of spares being required,
please contact ADEY Customer Services
on [phone].
10. Environment Protection
This product assembly contains valuable materials which can be recovered or recycled. At the end
of the product’s useful life, please leave it at an appropriate local civic waste collection point.

17
11. Technical Specification
MAGNACLEAN CMX NANO PUMPED SIDESTREAM
Product codes FL1-03-05666
General
Guarantee 2 years
Approvals UKCA
Features
Filter capacity Up to 43,200 litres
Mounting type Wall mount or fabricated skid
Unit controller DEK1001 Modbus (RS485) Controller
Construction
Cabinet Powder-Coated Mild Steel
MagnaClean CMX Nano Filter Polished 316L Stainless Steel
Performance
Maximum working pressure 10.0 bar / 1,000 kPa
Ambient air temperature Min. +2°C / Max. +40°C
Min./Max. water temperature Min +2°C / Max +100°C
Connections
Inlet & outlet 28mm compression
Pump
Pump model Grundfos UPM3 FLEX AS 25-70 130
Pump type Circulation (PWM A)
Pump head material Electrocoated Cast-Iron
Impeller material Composite (PES 30% GF)
Minimum inlet pressure 0.5 bar
System Monitoring
Differential Pressure & Temperature monitoring Grundfos DP Sensor
Housing Composite (PPS)
Sensing element Silicon-based MEMS Sensor
Response time <0.5 s
Electromagnetic compatibility EN-61326-1
Electrical
Power supply/phase/frequency 220-240V / 1 / 50 Hz
Power consumption 60 Watts
Full load current 0.58 Amps
Fuse rating 4.0 Amps
Power cable (pre-wired) 1.29 metres
Physical
IP rating IPX4
Width 425mm
Depth 367mm
Height 615mm
Empty weight 19.5 Kg
Filled weight 23 Kg

18
12. Troubleshooting Guide
The following steps should be followed if servicing the Grundfos UPM3 Flex AS pump:
TROUBLESHOOTING GUIDE
FAULT CAUSE REMEDY
UNIT/PUMP IS NOT RUNNING.
NO POWER SUPPLY
Unit is switched off Ensure the unit power switch
is ON
Fuse in the terminal block has
blown
Replace the fuse
The circuit breaker has tripped Check the power connection &
switch on the circuit breaker
Power supply failure Check the power supply
UNIT/PUMP IS NOT RUNNING.
NORMAL POWER SUPPLY
Service interval alarm reached Service filter & input new
service interval date
Pressure Differential alarm
activated
Service filter & input new
service interval date
Pump is blocked with
impurities
Unblock the pump and remove
impurities
Pump is defective Replace pump - contact ADEY
Customer Services
PUMP RUNS AT MAX SPEED &
CANNOT BE CONTROLLED
No signal from signal cable Check cable is connected to
pump & controller. If connected
correctly, replace the cable
- contact ADEY Customer
Services
NOISE IN THE PUMP There is air in the pump Let the pump run. The pump
vents itself over time
PUMP LED5 ON. PUMP TRIES
TO RESTART EVERY 1.5 SECS.
Rotor shaft is blocked Unblock the rotor shaft by
pushing it with a screwdriver
from the front of the pump
PUMP LED4 ON.
PUMP IS RUNNING
Supply voltage is too low Check the voltage supply
PUMP LED3 ON.
PUMP STOPS
Supply voltage is too low Check the voltage supply
Serious failure Replace pump - contact ADEY
Customer Services

19
FAULT INDICATION ON THE PUMP OPERATING PANEL
When a pump alarm is activated, the LEDs indicate the alarm type as defined in the table below. If
multiple alarms are active at the same time, the LEDs only show the error with the highest priority.
The priority is defined by the sequence of the table.
Operating Panel
LED1 LED2 LED3 LED4 LED5 Indication Pump Operation Remedy
• • Rotor is blocked Trying to start again
every 1.33 seconds
Wait or unblock
the rotor shaft
• • Supply voltage
too low
Warning only -
Pump runs
Control the
supply voltage
• •
Electrical error Pump stopped due
to low supply voltage
or serious failure
Control the supply
voltage. Replace the
pump - contact ADEY
Customer Services
Troubleshooting Guide (Cont.)

20
27/08/2021
Adrian Weichert
Date: 27/08/2021
UK DECLARATION OF CONFORMITY
Product:
Name: MagnaClean CMX Nano Pumped Sidestream
Model: FL1-03-05666
Manufacturer:
Name: ADEY Commercial Ltd
Address: ADEY Commercial Ltd, Unit 2, St. Modwen Park, Stonehouse, GL10 3EZ
Object of the declaration:
Pumped Sidestream Filter
The object of the declaration described above is in conformity
with the relevant UK legislation
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Electrical Equipment (Safety) Regulations 2016
REACH & RoHS
and carries the UKCA mark accordingly.
The product also complies with the requirements of the WEEE Directive 2013
and carries the WEEE symbol accordingly.
Conformity to the essential requirements of the legislation(s)
have been demonstrated by using the following standards:
EMC:
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
Safety:
EN ISO 12100
EN 60335-1
EN 60335-2-51
EN 62233
EN 60529-1
Technical documentation is kept at the following address: ADEY Commercial Limited,
UK Head Office, Unit 2, St. Modwen Park, Stonehouse, GL10 3EZ
This declaration of conformity is issued under the sole responsibility of the manufacturer.
SIGNED FOR AND ON BEHALF OF ADEY Commercial Limited.
Signature:
SIGNED FOR AND ON BEHALF OF ADEY Commercial Limited.
Signature:
Signature:
