User Instructions
MEGA QA GO

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 2
©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product
names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes
all forms and matters of copyrightable materials and information now allowed by statutory or judicial
law or hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC
brands and product names are trademarks or registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation
of this product.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits per Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device uses and can radiate radio frequency energy and, if not
installed and used in accordance with the included instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user is encouraged to
try to correct the interference by one or more of the following methods:
• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit different from which the radio receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn off all electrical products
when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment
from power when not in use. Thank you!

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 3
Unpacking: Thank you for purchasing the Mega QA Go by ADJ Products, LLC. Every Mega QA Go has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are missing, please contact our toll
free customer support number for further instructions. Do not return this unit to your dealer without rst
contacting customer support.
Introduction: The ADJ Mega QA Go is a DMX intelligent, high powered LED par xture. This xture
can be used in a stand alone mode or connected in a Primary/Secondary conguration. This wash has
ve operating modes: Sound Active mode, Auto Run mode, RGBA Dimmer mode, Static Color mode,
and DMX control mode. To optimize the performance of this product, please read these operating
instructions care- fully to familiarize yourself with the basic operations of this unit. These instructions
contain important safety information regarding the use and maintenance of this unit. Please keep this
manual with the unit, for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit http://parts.americandj.com
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax
323-532-2941 | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V.
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
Mega QA Go Introduction

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 4
• Five Operating Modes
• Electronic Dimming 0-100%
• 5 Selectable Dimming Curves
• 64 Color Macros
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• 8 DMX Modes: 1 Channel Mode, 2 Channel Mode, 3 Channel Mode, 4 Channel Mode, 5 Channel
Mode, 6 Channel Mode, 7 Channel Mode, & 8 Channel Mode.
• ADJ UC IR, (Not Included) & Airstream IR compatible
• Power Cord Daisy Chain
The Mega QA Go carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate
your purchase. All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the
outside of the return package. A brief description of the problem as well as the R.A. number must also
be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by contacting
our customer support team on our customer support number. All packages returned to the service
department not displaying a R.A. number on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided), afxing it to the mounting bracket
that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times the unit’s weight. Also, always use a safety cable that can
hold 12 times the weight of the unit when installing the xture. The equipment must be installed by a
professional, and it must be installed in a place where it is out of the reach.
Mega QA Go Features
Mega QA Go Warranty Registration
Mega QA Go Installation

Mega QA Go Battery Precautions
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 5
• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The xture should be cleaned only as recommended by the manufacturer. See page 31
for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when: A. The power-supply cord or the
plug has been damaged. B. Objects have fallen, or liquid has been spilled into the appliance. C. The
appliance has been exposed to rain or water. D. The appliance does not appear to operate normally
or exhibits a marked change in performance.
Mega QA Go Safety Precautions
Do Not Short Circuit the Battery:
Do not short circuit the battery. It generates a very high current which could cause the battery to
overheat, resulting in electrolyte gel leakage, harmful fumes, or explosion. The LIR tabs may easily
short-circuit by placing them on conductive surface. A short circuit may lead to heat build up and
damage of the battery. An appropriate circuitry with PCM is employed to protect accidental short circuit
of the battery pack.
Mechanical shock:
Dropping the unit, impact hit, bending, etc., may cause failure or shortened life of the LIR battery.
Battery connection:
• Direct soldering of wire leads or devices to the battery is strictly prohibited.
• Lead tabs with pre-soldered wiring shall be spot welded to the batteries. Direct soldering may cause
damage of components, such as separator and insulator, by heat build up.
Prevention of short circuit within a battery pack:
There is enough insulation layers between wiring and the batteries to provide extra safety protection.
The battery pack is constructed in a way that no short circuit will occur which may cause smoke or re.

Mega QA Go Battery Precautions
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 6
Do No Disassemble the Batteries:
• Never disassemble the batteries as doing this may cause a internal short circuit in the battery, which
may lead to harmful fumes, re, explosion, or other problems.
• Electrolyte Gel is harmful and should not leak from the LIR battery. Should the electrolyte gel come
into contact with the skin or eyes, ush the area of contact immediately with fresh water and seek
medical attention immediately.
Do Not Expose the Battery to Heat or Fire:
Never incinerate or dispose of the batteries in re. This may cause an explosion, which would be very dangerous.
Do Not Expose the Battery to water or liquids:
Never soak/drop the batteries in liquids such as water, seawater, drinks such as soft drinks, juices,
coffee or other.
Battery Replacement:
For battery replacement please contact ADJ customer support [phone].
Do Not use a damaged Battery:
The battery could be damaged during shipping, caused by shock. Should the battery be found dam-
aged, including damages to the plastic casing of the battery, deformation of the battery package,
smelling of an electrolyte, or leakage of the electrolyte gel, or other, DO NOT use the battery. A battery
with a odor of electrolyte or a gel leakage should be placed away from re to avoid re or explosion.
Battery Storage:
When storing the battery, it should be stored at room temperature, with a charge of at least 50%. We
recommend that during long periods of storage that the battery be charged every 6 months. Doing this
will prolong the life of the battery and will also make sure that the battery charge does not fall below the
30% mark.
Other Chemical Reaction:
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if
stored for a long period of time without being used. In addition, if the various usage conditions such as
charge, discharge, ambient temperature, etc. are not maintained within the specied ranges, the life
expectancy of the battery maybe shortened or the device in which the battery is used may be damaged
by electrolyte gel leakage. If the batteries cannot maintain a charge for long periods of time, even when
they are charged correctly, this may indicate it is time to change the battery.
Battery Disposal:
Please dispose of battery according to local regulations.

Mega QA Go DMX Setup
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 7
1
2
3
DMX +
DMX -
3
1
XLR Male Socket
1 Ground
XLR Female Socket
2 Cold
3 Hot
1 Ground
3 Hot
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication
between intelligent xtures and controllers. A DMX controller sends DMX data instructions from the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the DATA
“IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not inuence
the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a DMX
address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter
where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Element QA can be controlled
via DMX-512 protocol. The Element Hex has 5 DMX modes, please see pages 13 or 19 for the different
modes. The DMX address is set on the front panel of the Element QA. Your unit and your DMX controller
require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-
Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with
a male and female XLR connector on either end of the cable. Also remember that DMX cable must be
daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
Figure 3
DMX512 OäT
3-PIN XLR DMX512 IN
3-PIN XLR
Figure 2
COMMON
2 Cold
2
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 8
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
3
1
Termination reduces signal errors and avoids signal
transmission problems and interference. It is always
advisable to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3
(DMX+) of the last xture. Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATAtransmission
in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting standard
5-pin data cables in to a 3-pin line a cable adapter must be used, these adapters are readily available
at most electric stores. The chart below details a proper cable conversion.
Mega QA Go DMX Setup
2
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Do Not Use
Not Used Do Not Use

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 9
Mega QA Go Operating Instructions
System Menu: The display will lock after 30 seconds, press the MODE button for 3 seconds to unlock.
LED Display On/Off:
To set the LED display to turn off after 10 seconds, press the MODE button until “don” is displayed,
press the UP button to display “doff”. Now the display will disappear after 10s. Press any button to turn
the display on again. Be advised though that the display will turn off automatically after 10 seconds.
To set the display press the MODE button until “dXX” is displayed. Use the UP or DOWN buttons to
select either: “don” = LED display on at all times. “doFF” = LED display shuts off after 10 seconds.
LED Display Inversion:
Follow these instructions to ip the display 180° so that the display can be read upside down.
1. Plug the xture in and press the MODE button until “dXX” is dis- played. “XX” represents either “on”
or “oFF”.
2. Press the SET UP button until “Stnd” is displayed.
3. Press the UP or DOWN buttons to reverse the display 180°.
Energy Saving Mode:
1. Plug the xture in and press the MODE button until “bXXX” is dis- played. “XX” represents the
current battery life.
2. Press the SET UP button so that “bSXX” is displayed.
3. Press the UP or DOWN buttons to turn enery saving mode either “On” or “Off”.
Operating Modes:
The Mega QA Go has ve operating modes:
• RGBA Dimmer Mode - Choose one of the four colors to remain static or adjust the intensity of each
color to make your desired
• color.
• Sound-Active mode - The unit will react to sound, chasing through the built in programs. There are
16 sound active modes.
• Auto Run Mode - In Auto Run mode, you can choose 1 of 16 color change modes, 1 of 16 color fade
modes, or a combo color change & fade mode.
• Static Color Mode - There are 64 colors to choose from.
• DMX control mode - This function will allow you to control each individual xtures traits with a
standard DMX 512 controller.
DMX Mode:
Operating through a DMX controller gives the user the freedom to create their own programs tailored
to their own individual needs. This function also allows you to use your xtures as spot lights. The
Mega QA Go has 8 DMX modes: 1 channel mode, 2 channel mode, 3 channel mode, 4 channel mode,
5 channel mode, 6 channel mode, 7 channel mode, and 8 channel mode. See page’s 20-27 for each
mode’s DMX traits.
1. This function will allow you to control each individual xture’s traits with a standard DMX 512
controller.
2. To run your xture in DMX mode press the MODE button until “d.XXX” is displayed. “XXX” represents
the current displayed DMX address. Use the UP or DOWN buttons to select your desired DMX
address, then press the SETUP button to select your DMX Channel mode.

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 10
3. Use the UP or DOWN buttons to scroll through the DMX Channel modes. The Channel modes are
listed below:
•To run the 1 Channel Mode, press the MODE button until “Ch01” is displayed. This is the 1
Channel DMX Mode.
•To run the 2 Channel Mode, press the MODE button until “Ch02” is displayed. This is the 2
Channel DMX Mode.
•To run the 3 Channel Mode, press the MODE button until “Ch03” is displayed. This is the 3
Channel DMX Mode.
•To run the 4 Channel Mode, press the MODE button until “Ch04” is displayed. This is the 4
Channel DMX Mode.
•To run the 5 Channel Mode, press the MODE button until “Ch05” is displayed. This is the 5
Channel DMX Mode.
•To run the 6 Channel Mode, press the MODE button until “Ch06” is displayed. This is the 6
Channel DMX Mode.
•To run the 7 Channel Mode, press the MODE button until “Ch07” is displayed. This is the 7
Channel DMX Mode.
•To run the 8 Channel Mode, press the MODE button until “Ch08” is displayed. This is the 8
Channel DMX Mode.
4. Please see pages 20-27 for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in the xture via the XLR connections
to any standard DMX controller.
RGBA Dimmer Mode:
1. Plug the xture in and press the MODE button until:
2. When “r.XXX” is displayed you are in Red dimming mode. Press the UP and DOWN buttons to
adjust intensity.
3. When “G.XXX” is displayed you are in Green dimming mode. Press the UP and DOWN buttons to
adjust intensity.
4. When “b.XXX” is displayed you are in Blue dimming mode. Press the UP and DOWN buttons to
adjust intensity.
5. When “A.XXX” is displayed you are in Amber dimming mode. Press the UP and DOWN buttons to
adjust intensity.
6. After you have adjusted the RGBA colors to make your desired color you can then activate strobing
by pressing the SET UP but- ton to enter the Flash (strobe) mode.
7. “FS.XX” will be displayed, this is Flash mode. The Flash can be adjusted between “FS.00” (ash
off) to “FS.15” (fastest ash).
Sound Active Mode:
1. Plug the xture in and press the MODE button until “SoXX” is dis- played. “XX” represents the
current sound active mode (1-16).
2. Use the UP or DOWN buttons to nd your desired sound active mode.
3. Press the SET UP button to enter sound sensitivity adjustment. “SJ-X” will be displayed. Use the
UP or DOWN buttons to adjust the sensitivity. “SJ-1” is the lowest sensitivity, “SJ-8” is the highest.
Mega QA Go Operating Instructions

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 11
Auto Run Mode:
There are 3 types of Auto Run Modes to choose from; Color Fade, Color Change, and both modes
running together. The running speed is adjustable in all 3 modes.
1. Plug the xture in and press the MODE button until either “AFXX”, “AJXX”, or “A-JF” is displayed.
•AFXX = Color Fade mode, there are 16 Color Fade modes to choose from. Use the UP or
DOWN buttons to scroll through the different Auto Fade modes.
•AJXX = Color Change mode, there are 16 Color Change modes to choose from. Use the UP or
DOWN buttons to scroll through the different Auto Change modes.
•A-JF = Both Color Fade and Color Change modes running.
2. After you have chosen your desired running mode press the SET UP button until “SP.XX” is displayed.
When this is displayed you can adjust the running speed of your desired program. Use the UP or
DOWN button to adjust the speed between “SP.01” (slow- est) and “SP.16” (fastest). Once you have
set your desired running speed, press the SET UP button to return to your desired Auto Run Mode.
Static Color Mode:
1. Plug the xture in and press the MODE button until “CLXX” is dis- played.
2. There are 64 colors to choose from. Select your desired color by pressing the UP and DOWN
buttons. After you have selected your desired color you can activate strobing by pressing the SET
UP button to enter the Flash (strobe) mode.
3. “FS.XX” will be displayed, this is Flash mode. The Flash can be adjusted between “FS.00” (ash
off) to “FS.15” (fastest ash).
DMX State:
This mode can be used as a precaution mode, that in case the DMX signal is lost, the operating mode
chosen in the setup is the running mode the xture will go into when the DMX signal is lost. You can
also set this as the operating mode you would like the unit to return to when
power is applied.
1. Plug the xture in and press the MODE button until “d.XXX” is displayed. “XXX” represents the
current displayed DMX address.
2. Press the SET UP button so that “nodn” is displayed. Use the UP and DOWN buttons to scroll
through the DMX states.
•“bLAC” (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into
stand by mode.
•“LASt” (Last State) - If the DMX signal is lost or interrupted, the xture will stay in the last DMX set
up. If power is applied and this mode is set, the unit will automatically go into the last DMX set up.
•“ProG” (Auto Run) - If the DMX signal is lost or interrupted, the unit will automatically go into Auto
Run mode.
3. After you have found your desired setting, press SET UP to exit.
Mega QA Go Operating Instructions

ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 12
Mega QA Go Operating Instructions
Dimmer Curve:
This is used to set the dimming curve used with DMX mode. See page 30 for the dimming curves chart.
1. Plug the xture in and press the MODE button until “d.XXX” is dis- played. “XXX” represents the
current displayed DMX address.
2. Press the SET UP button until “dr-X” is displayed. “X” represents the displayed dimmer curve (0-4).
• 0 - Standard
• 1 - Stage
• 2 - TV
• 3 - Architectural
• 4 - Theatre
3. Press the UP or DOWN buttons to scroll through and select your desired dimming curve.
Activate IR Sensor:
This function is used to activate and deactivate the IR sensor. When this function is activated you can
control the xture using the UC IR, or Airstream IR App. Please see page 16 for controls and functions.
1. Plug the xture in and press the MODE button until “dXX” is dis- played. “XX” represents either “on”
or “oFF”.
2. Press the SET UP button until “IrXX” is displayed. “XX” represents either “on” or “oF”.
3. Press the UP or DOWN buttons to either activate the remote function (On) or deactivate it (Off).
Default Running Mode:
This is a default running mode. When this mode is activated all modes will return to their default settings.
1. Plug the xture in and press the MODE button until “dXX” is dis- played. “XX” represents either “on”
or “oFF”.
2. Press the SET UP button until “dEFA” is displayed.
3. Press the UP and DOWN buttons simultaneously. Press the MODE button to exit.
Primary-Secondary Conguration:
This function will allows you to link units together to run in a Primary-Secondary set-up. In a Primary-
Secondary set-up one unit will act as the control- ling unit and the others will react to the controlling
units built-in programs. Any unit can act as a Primary or as a Secondary however, only one unit can be
programmed to act as the “Primary.”
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables
to link your units together. Remember that the Male XLR connector is the input and the Female XLR
connector is the output. The rst unit in the chain (Primary) will use the female XLR connector only.
The last unit in the chain will use the male XLR connector only.
2. Connect the rst “Secondary” unit to the “Primary.”
3. Set the “Primary” unit to your desired mode of operation. Set the “Secondary” unit(s) to the DMX
address setting of 001.The “Secondary” unit(s) will now follow the “Primary”.

Mega QA Go Operating Instructions
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 13

The UC IR (sold separately) infrared remote gives you control of various functions (See below). To
control the xture you must aim the remote at the front of the xture and be no more than 30 feet away.
To use the ADJ UC IR you must rst activate the xtures infrared sen- sor, to activate the sensor please
see the instructions on page 14.
The Airstream IR (sold separately) remote transmitter plugs into the headphone jack of your iOS
phone or tablet. To control your IR xture you must raise the volume to the maximum on your iOS phone
or tab- let and aim the transmitter at the xture sensor and be no more than 15 feet away. After you have
purchased the Airstream IR transmitters, the app is a free download from the app store for your iOS
phone or tablet. The app comes with 3 pages of control depending on the xture you are using. Please
see below for IR functions including the corresponding app page.
Works with App page 1.
STAND BY - Pressing this button will blackout the xture. Press the button again to return to the initial
state.
FULL ON - Hold this button down to fully light up the unit. When you let the button go, the unit will return
to its previous state.
FADE/GOBO - This button activates color fade mode.
“DIMMER +” and “DIMMER -” - These buttons are used to adjust the color output intensity in static color
mode.
STROBE - Press and hold this button for strobing.
COLOR - Press this button to activate color mode. Use buttons 1-9 to nd your desired color.
1-9 - Use buttons 1-9 to select your desired color when color mode is active, and your desired show
when show mode is active.
SOUND ON & OFF - Use the buttons to activate and deactivate sound active mode.
SHOW 0 - Press this button to activate show mode. Use buttons 1-9 to nd your desired show. Press
the Show 0 button twice to run show 10, and button 1 twice to run show 11.
Mega QA Go UC IR & Airstream App Control
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 14

Mega QA Go 1 Channel Mode
Channel Value Function
1 0 - 255 COLOR MACROS
See the Color Macro Chart on page 23
Mega QA Go 2 Channel Mode
Channel Value Function
1 0 - 255 COLOR MACROS
See the Color Macro Chart
2 0 - 255 MASTER DIMMER
0% - 100%
Mega QA Go 3 Channel Mode
Channel Value Function
1 0 - 255 COLOR MACROS
See the Color Macro Chart
2 0 - 255 MASTER DIMMER
0% - 100%
3 0 - 15
16 - 255
STROBE
OFF
STROBING SLOW - FAST
Mega QA Go 4 Channel Mode
Channel Value Function
1 0 - 255 RED
0% - 100%
2 0 - 255 GREEN
0% - 100%
3 0 - 255 BLUE
0% - 100%
4 0 - 255 AMBER
0% - 100%
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 15

Mega QA Go 5 Channel Mode
Channel Value Function
10 - 255
RED
0% - 100%
20 - 255
GREEN
0% - 100%
30 - 255
BLUE
0% - 100%
40 - 255
AMBER
0% - 100%
50 - 255
MASTER DIMMER
0% - 100%
Mega QA Go 6 Channel Mode
Channel Value Function
10 - 255
RED
0% - 100%
20 - 255
GREEN
0% - 100%
30 - 255
BLUE
0% - 100%
40 - 255
AMBER
0% - 100%
50 - 255
MASTER DIMMER
0% - 100%
60 - 255
COLOR MACROS
See the Color Macro Chart
Channel Value Function
10 - 255
RED
0% - 100%
20 - 255
GREEN
0% - 100%
30 - 255
BLUE
0% - 100%
40 - 255
AMBER
0% - 100%
50 - 255
MASTER DIMMER
0% - 100%
6 0 - 15
16 - 255
STROBE
OFF
STROBING SLOW - FAST
7 0 - 255 COLOR MACROS
See the Color Macro Chart
Mega QA Go 7 Channel Mode
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 16

Channel Value Function
10 - 255
RED
0% - 100%
20 - 255
GREEN
0% - 100%
30 - 255
BLUE
0% - 100%
40 - 255
AMBER
0% - 100%
50 - 255
MASTER DIMMER
0% - 100%
60 - 15
16 - 255
0 - 255
0 - 255
STROBE/PROGRAM SPEED/
SOUND SENSITIVITY
STROBING OFF
STROBING SLOW - FAST
PROGRAM SPEED SLOW - FAST
SOUND LEAST SENSITIVE - MOST SENSITIVE
7
0 - 51
51 - 102
103 - 153
154 - 204
205 - 255
PROGRAM SELECTION MODE
DIMMING MODE
COLOR MACRO MODE
COLOR CHANGE MODE
COLOR FADE MODE
SOUND ACTIVE MODE
8
0 - 255
0 - 15
16 - 31
32 - 47
48 - 63
64 - 79
80 - 95
96 - 111
112 - 127
128 - 143
144 - 159
160 - 175
176 - 191
192 - 207
208 - 223
224 - 239
240 - 255
COLOR MACROS/PROGRAMS/SOUND ACTIVITY
COLOR MACRO MODE
See the Color Macro Chart
COLOR CHANGE PROGRAMS
COLOR CHANGE 1
COLOR CHANGE 2
COLOR CHANGE 3
COLOR CHANGE 4
COLOR CHANGE 5
COLOR CHANGE 6
COLOR CHANGE 7
COLOR CHANGE 8
COLOR CHANGE 9
COLOR CHANGE 10
COLOR CHANGE 11
COLOR CHANGE 12
COLOR CHANGE 13
COLOR CHANGE 14
COLOR CHANGE 15
COLOR CHANGE 16
Mega QA Go 8 Channel Mode
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 17

Channel Value Function
8
0 - 15
16 - 31
32 - 47
48 - 63
64 - 79
80 - 95
96 - 111
112 - 127
128 - 143
144 - 159
160 - 175
176 - 191
192 - 207
208 - 223
224 - 239
240 - 255
0 - 15
16 - 31
32 - 47
48 - 63
64 - 79
80 - 95
96 - 111
112 - 127
128 - 143
144 - 159
160 - 175
176 - 191
192 - 207
208 - 223
224 - 239
240 - 255
COLOR FADE PROGRAMS
COLOR FADE 1
COLOR FADE 2
COLOR FADE 3
COLOR FADE 4
COLOR FADE 5
COLOR FADE 6
COLOR FADE 7
COLOR FADE 8
COLOR FADE 9
COLOR FADE 10
COLOR FADE 11
COLOR FADE 12
COLOR FADE 13
COLOR FADE 14
COLOR FADE 15
COLOR FADE 16
SOUND ACTIVE PROGRAMS
SOUND ACTIVE MODE 1
SOUND ACTIVE MODE 2
SOUND ACTIVE MODE 3
SOUND ACTIVE MODE 4
SOUND ACTIVE MODE 5
SOUND ACTIVE MODE 6
SOUND ACTIVE MODE 7
SOUND ACTIVE MODE 8
SOUND ACTIVE MODE 9
SOUND ACTIVE MODE 10
SOUND ACTIVE MODE 11
SOUND ACTIVE MODE 12
SOUND ACTIVE MODE 13
SOUND ACTIVE MODE 14
SOUND ACTIVE MODE 15
SOUND ACTIVE MODE 16
Mega QA Go 8 Channel Mode
When Channel 7 is between the values of 0-51, Channels 1-4 are used, and Channel 6 will control strobing.
When Channel 7 is between the values of 52-102, Channel 8 is in Color Macros Mode, and Channel 6 will
control strobing.
When Channel 7 is between the values of 103-153, Channel 8 is in Color Change Mode, and Channel 6
will control the color change speed.
When Channel 7 is between the values of 154-204, Channel 8 is in Color Fade Mode, and Channel 6 will
control the color fade speed.
When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 6
will control the sound sensitivity.
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 18

Mega QA Go Color Macro Chart
RGBA COLOR INTENSITY
AMBER
0
0
0
0
0
00
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
BLUE
143
153
138
98
0
0
11
171
97
173
199
212
163
86
208
209
201
212
192
184
115
166
167
86
182
85
35
222
231
247
189
255
GREEN
206
177
192
165
121
17
0
139
5
77
130
164
2
38
142
148
134
145
121
129
83
97
100
40
219
165
46
107
156
198
0
255
RED
255
254
254
254
254
176
96
234
224
175
119
147
88
0
0
52
1
0
0
0
0
0
1
0
209
42
0
8
107
165
0
255
DMX
Value
129-132
133-136
137-140
141-144
145-148
149-152
153-156
157-160
161-164
165-168
169-172
173-176
177-180
181-184
185-188
189-192
193-196
197-200
201-204
205-208
209-212
213-216
217-220
221-224
225-228
229-232
233-236
237-240
241-244
245-248
249-252
253-255
Color No.
Color33
Color34
Color35
Color36
Color37
Color38
Color39
Color40
Color41
Color42
Color43
Color44
Color45
Color46
Color47
Color48
Color49
Color50
Color51
Color52
Color53
Color54
Color55
Color56
Color57
Color58
Color59
Color60
Color61
Color62
Color63
Color64
Color65
RGBA COLOR INTENSITY
AMBER
0
80
80
77
83
77
83
77
74
77
74
74
71
83
93
96
93
87
90
77
77
67
77
77
144
153
147
138
147
138
138
138
255
BLUE
0
234
164
112
83
77
83
77
74
77
74
77
77
134
182
236
255
255
255
255
255
255
255
255
144
153
147
186
251
255
255
255
255
GREEN
0
255
255
255
255
255
255
243
200
166
125
97
71
83
93
96
93
87
90
77
100
148
195
234
255
251
175
138
147
138
138
169
255
RED
0
80
80
77
117
160
223
255
255
255
255
255
255
255
255
255
238
196
150
100
77
67
77
77
158
255
255
255
255
151
151
138
255
DMX
Value
0
1-4
5-8
9-12
13-16
17-20
21-24
25-28
29-32
33-36
37-40
41-44
45-48
49-52
53-56
57-60
61-64
65-68
69-72
73-76
77-80
81-84
85-88
89-92
93-96
97-100
101-104
105-108
109-112
113-116
117-120
121-124
125-128
Color No.
OFF
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
Color12
Color13
Color14
Color15
Color16
Color17
Color18
Color19
Color20
Color21
Color22
Color23
Color24
Color25
Color26
Color27
Color28
Color29
Color30
Color31
Color32
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 19

Battery Status:
This function is used to check the life status of the battery. Plug the xture in and press the MODE
button until “bXXX” is displayed. “XXX” represents an number between “000” and “100”. The number
that is displayed is the remaining battery life. If “b---” is displayed, it means the battery is dead or you
are running the unit on AC power. Please do not let the battery fully die, this severely shortens the
life of the battery.
Example: If “b050” is displayed, the battery is at half life. If “b025” is displayed, the battery is at 25% life.
NOTE: When the battery is charging or if the battery life is below 30% the digital display will ash.
NOTE: After 20 seconds of inactivity, the display will revert back to the battery life display.
Battery Recharge: To recharge the battery, plug the supplied AC cord into the AC input on the side of
the unit and plug the other end into a matching power supply. It takes about 4 hours to reach full charge.
The display will STOP ashing when the unit reaches 100% charge.
Note: When unplugging the unit from charging and then applying power via battery, there will
be a minimal charge drop.
For a faster recharge, put the Load Switch in the “Off” position and the Battery Switch in the “ON” position.
Mega QA Go Battery Status & Recharge

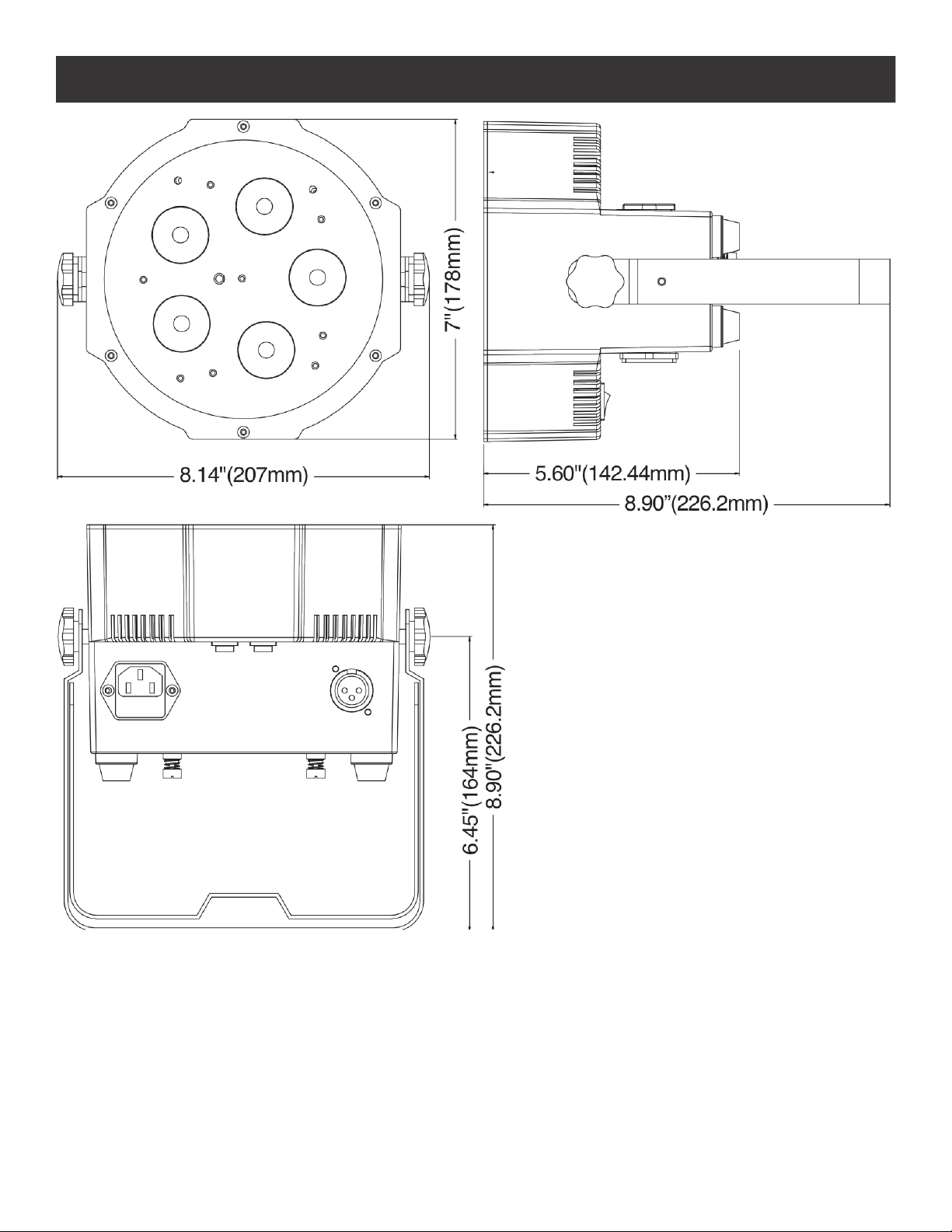

Mega QA Go Photometric Chart
ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page 20
