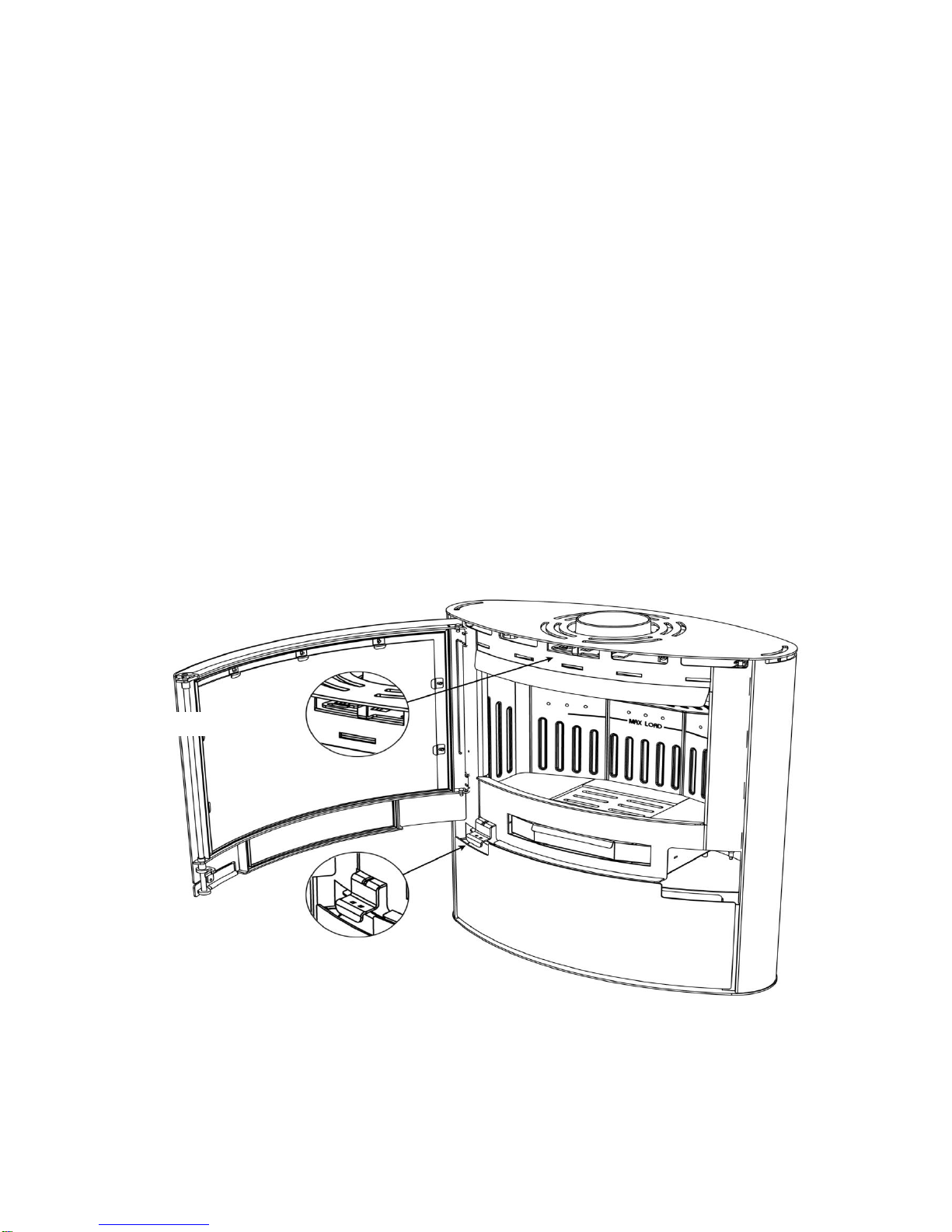

Congratulation with your new wood burning stove!
In order to get the best possible pleasure and benefit from your new Aduro wood burning stove, it is important that
you read this User Manual thoroughly before you install your wood burning stove and start to use it.
1.0 General
1.1 Compliance
Aduro 15/15-1 complies with the EN 13240 European standards, as well as the NS 3058 Norwegian standard and
is thereby approved for installation and use in Europe. At the same time, the manufacturing process is subject to
external quality control. Aduro 15/15-1 also carries the Nordic Swan Eco-label, which guarantees that the wood
burning stove complies with the most stringent environmental requirements and has been manufactured in an
environmentally correct manner. DoP (Declaration of Performance) can be seen on www.aduro.dk.
1.2 Technical data
Nominal power
6,5 kW
Flue outlet, diameter
Ø150 mm top/rear
Measurements (HxBxD)
840 x 779 x 366 / 795 x 779 x 366 (Aduro 15-1) mm
Height exhaust branch above floor level
820 / 775 (15-1) mm
Distance from centre of exhaust branch to
rear edge of fireplace
185 mm
Weight
89 / 86 kg (Aduro 15-1)
Material
Steel
Fuel
Wood and woodbriquettes
Max wood lenght
50 cm
Convection stove
Primary-, sekundary- og tertiary air supply
Air-wash system
Ashpan
Energy efficiency
78%
Chimney draught
12 Pa
Maximum combustion amount per hour:
- Wood approx.
ca. 3.1 kg
Heat rating in buildings with
- Optimum insulation
- Average insulation
- Inadequate insulation
150 m2
100 m2
60 m2
1.3 IMPORTANT: PRODUCTION NUMBER
The fireplace insert has a production number at the bottom of the rating plate on the back of the fireplace. We
recommend that you note down this number before mounting the fireplace insert. For the purposes of the
guarantee and for other enquiries, it is important that you are able to quote this number.
P/ Nr.
English

_______________________________________________________________________________________________________________________________
22
1.4 Transportation
When taking your wood burning stove home, please ensure that it travels in an upright position. If you wish to lay it
flat, it is important that you remove all loose parts from the combustion chamber (cast iron grate and loose fireproof
tiles) and remove the ash drawer. Alternatively you could also fill the combustion chamber with excess packaging
so the parts are kept in place.
2.0 Installation of the wood burning stove
You are welcome to install your wood burning stove yourself –but we strongly recommend that you consult your
chimney sweep before you begin the installation. Your dealer can also provide you with installation advice. It is
important to ensure that all local rules and regulations, including ones relating to national and European standards,
are complied with when installing this device.
Please note: You may not begin to use the wood burning stove until it has been inspected and approved by your
local chimney sweep.
2.1 Position of the stove/distance requirements
The new wood burning stove must be installed in a suitable and physically possible position. You need to be sure
that the position complies with local regulations. Distance requirements will only apply if the wood burning stove is
to be placed close to flammable materials. See below.
If the stove is positioned against a brick wall or other non-flammable material, there is no minimum distance
requirement. To facilitate cleaning and for the best use of the convection air, we recommend that you leave a
distance of approximately 5–10 cm to the wall. The Aduro 15/15-1 is built as a convection stove. This means that
air from the room circulates between the inner stove and the outer covering. As a result, the heated air is
distributed evenly throughout the room.

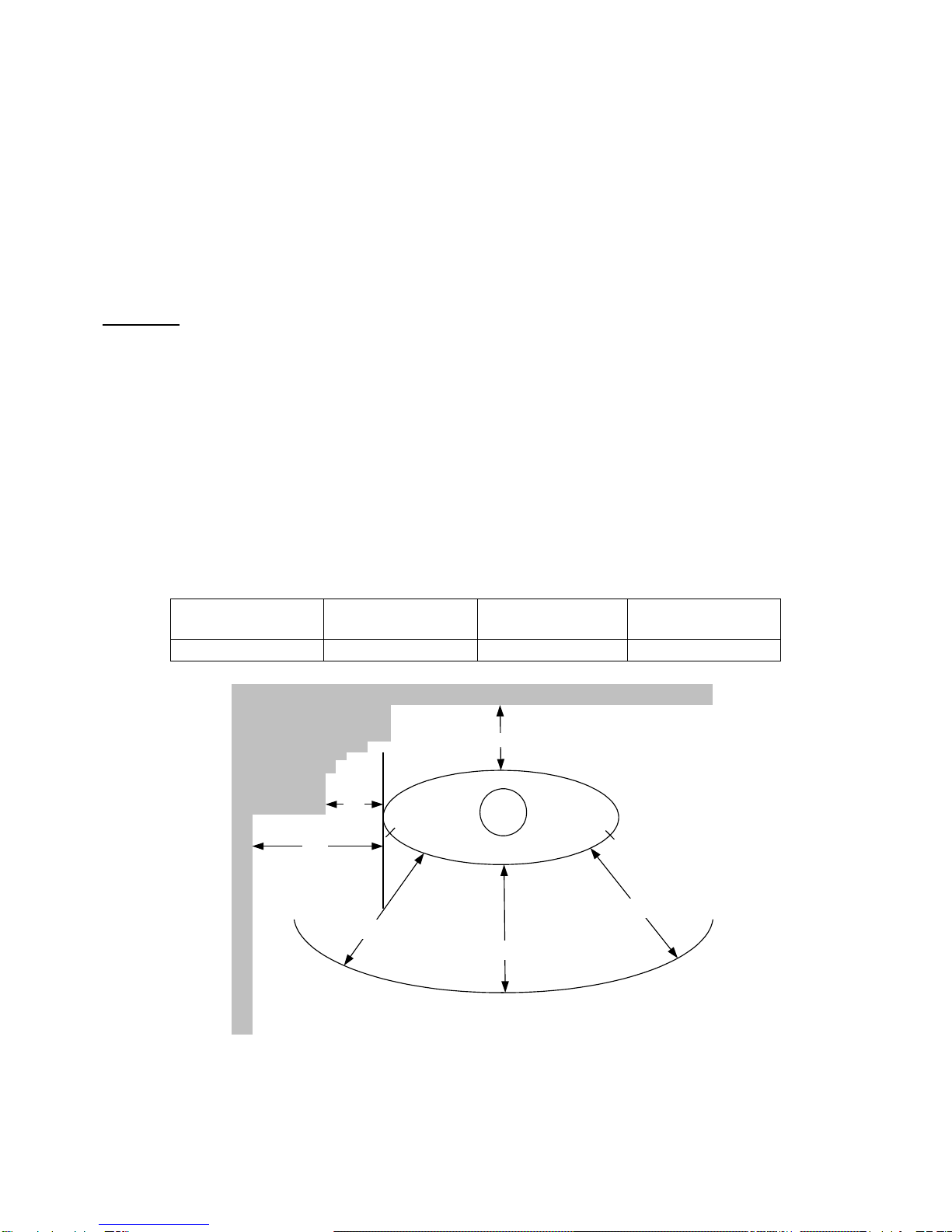

Distance to flammable material
Behind the stove
Behind stove with
insulated flue pipe
To the sides of the
stove
To furniture
20 cm
12 cm
34/11 cm
120 cm
34
11
20 / *12
* with insulated pipe
120
120
120

_______________________________________________________________________________________________________________________________
23
Please note: that the Aduro 15/15-1 must be installed on a floor with the adequate load-bearing capacity. If the
existing construction does not meet this requirement, appropriate adaptation measures must be taken (e.g. a load-
distributing plate).
If the wood burning stove is to be placed close to flammable material, such as a wooden floor or carpet, it must be
placed on a non-flammable base. The floor plate should extend for at least 30 cm in front of the wood burning
stove, and 15 cm on each side.
2.2 Pipe connection
Aduro 15/15-1 leaves the factory with the flue outlet mounted on the top. If you require the flue outlet on the back,
remove the round circle from the rear cover and heat shield at the upper rear of the stove and then exchange the
exhaust connector (located on the top outlet above the stove) with the cover plate (that covers the rear outlet). The
top outlet is finished with the plate that lies in the ash drawer. A flue pipe with an internal diameter of 150 mm
should be used for Aduro stoves.
2.3 Connection to a brick chimney
If the stove is being connected to a brick chimney, the rear outlet should be used, or a curved flue pipe via the top
outlet. After measurement, a hole is made in the chimney in which the pipe sleeve is placed and fireplace mortar is
used to seal it in place. The stove is placed in position and the flue pipe is put in place. A thin gasket is placed

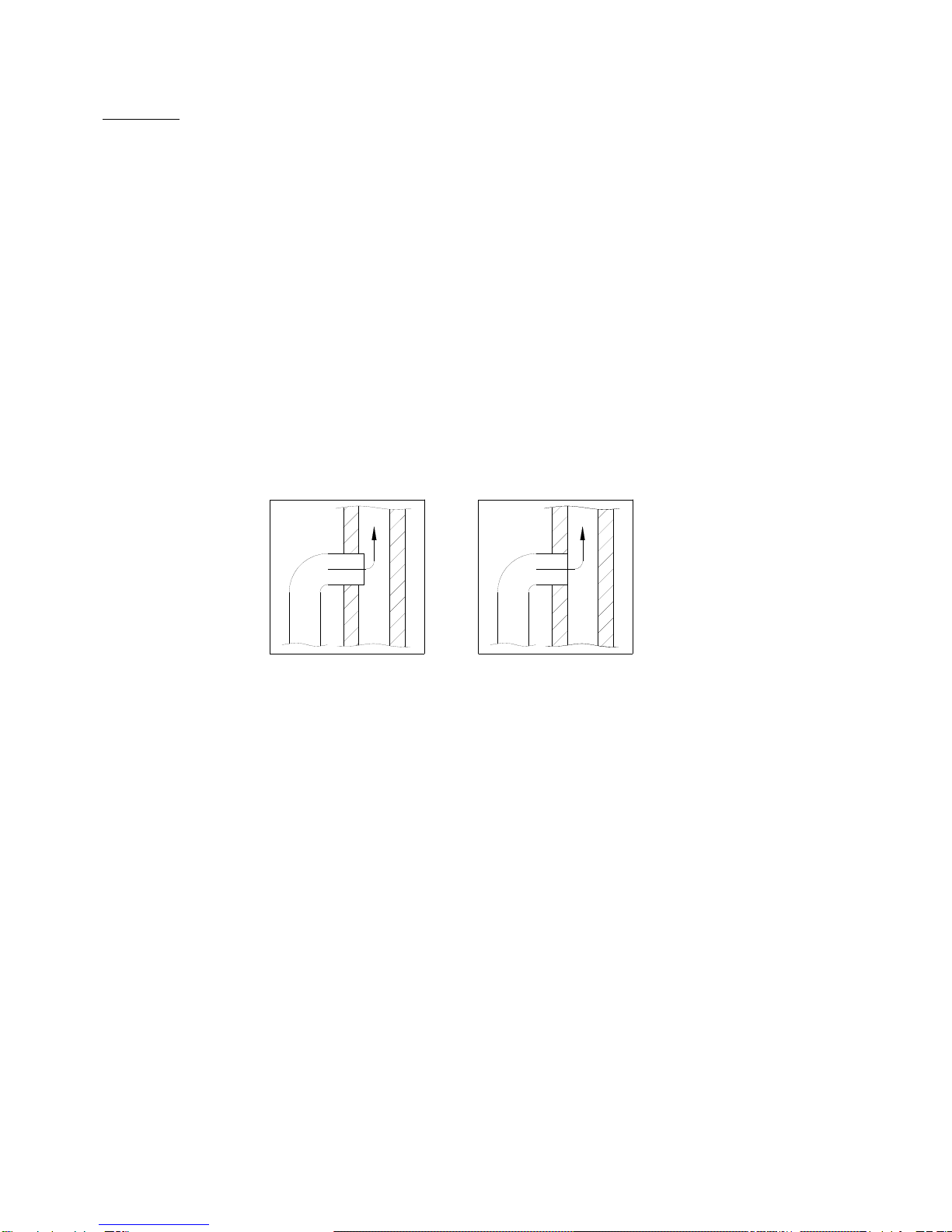

between the flue pipe and the pipe sleeve to seal the joints. The flue pipe should protrude 5–10 cm into the pipe
sleeve, but must not block the opening in the chimney (see the illustration below).
The wood burning stove can be connected to a chimney to which other heat sources are connected.
2.4 Safetywire
The stove comes with a safety wire. Following are step by step instructions how to mount the safety wire (see
below):
1. Mount the bracket on the wall central to the stove
For Aduro 15: ca. 53 cm above the floor hearth
For Aduro 15-1: ca. 48,5 cm above the floor hearth
2: Slide the safety wire through the two oblong holes in the backplate of the stove as well as through the eye in the
wall bracket. The safety wire ends must be secured in the rectangular wirelock.
3: The lenght of the wire is adjusted and the wirelock tightened. Excess wire is cut off. In case the wire should be
real tightened, the stove can temporarily be pushed slightly against the wall, while the wire is tightened.
X

_______________________________________________________________________________________________________________________________
24
2.5 Dismounting the backplate
1. Dismount the two screws placed in the middle
of the backplate
2. Lift up the flanges placed on the right hand
side of the backplate
3. Twist the backplate. The backplate can now
be released in the opposite side.
3.0 Lighting a fire in the wood burning stove
3.1 Important safety information
The wood burning stove will become
warm during use and therefore it should
be treated with all necessary caution.
Never keep easily combustible fluids
such as petrol in the vicinity of the wood burning stove –and never use easily combustible fluids to light the
fire in the wood burning stove.
Never empty the ash drawer when the wood burning stove is warm. Embers may still be found in the ash
drawer for up to 24 hours after the fire has gone out. Please wait to empty the ash drawer until you are
sure that there are no embers in the ash.
The door should be kept closed while the wood burning stove is in use. While lighting the fire, the door can
stand ajar for the first few minutes.
In the event of a chimney fire: Close all the dampers on the wood burning stove and call the fire-fighting
service.
3.2 Recommended fuels?
Wood and woodbriquettes. We recommend the use of split hardwood that has been stored outdoors under
cover for at least 1 year. Wood that has been stored indoors has a tendency to become too dry and will burn
too quickly. The wood should preferably be felled in the winter, when a lot of the moisture in the wood will have
been drawn down into the roots. In order to achieve optimum combustion, the wood’s moisture level should not
