Advantech WISE-2410 User manual

Advantech Condition Monitoring Senso
AM100 device to your Azure IoT services
Connect:
INTRODUCTION 2
PRE-INSTALLATION 2
CONNECT A LORAWAN GATEWAY 3
CONNECT THE LORAWAN SENSOR 4
CONNECT YOUR DEVICES TO AZURE IOT HUB 5
CONNECT TO AZURE IOT CENTRAL 7
ADDITIONAL LINKS 9

Introduction
WISE-2410 is a LoRaWAN wireless condition monitoring sensor integrated with an ARM Cortex-
M4 processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. It balances the
wireless bandwidth between WISE-2410 and the gateway, so it also mitigates the data
transmission fail rates between edge-devices and gateways.
IoT Plug and Play certified device simplifies the process of building devices without custom
device code. Using Solution builders can integrate quickly using the certified IoT Plug and Play
enabled device based on Azure IoT Central as well as third-party solutions.
This getting started guide provides step by step instruction on getting the device online within
minutes and feeding data into Azure IoT Hub, Azure IoT Central, Azure Events Hub, Azure
Storage, Power BI or any other 3rd party platform
Additional Hardware & Software
Requirements
The WISE-2410 is a LoRaWAN wireless condition monitoring sensor has both an additional
hardware and software dependency that are required in order to connect to Azure:
•To use this device, it must be connected to a LoRaWAN gateway
•To use this device, you must also use the IoT in a Box service from MyDevices
This device was tested with the following Azure Certified Device gateway:
https://devicecatalog.azure.com/devices/6a49a967-ec14-9894-32b4-9ac9ac9cc8fd
More information on how to configure the dependency hardware and software service is below
Pre-Installation

Sign up for the free myDevices’ app called IoT in a Box. This online/mobile app that lets you
instantly set up your LoRaWAN gateways and devices and connect them to Azure IoT Central,
Azure Events Hub, Azure IOT Hub, Azure Service Bus, Azure Storage and Power BI as well as any
other 3rd party app or platform.
Set up your free account before adding gateways and sensors.
1. Open your browser and navigate to http://iotinabox.mydevices.com
2. Create your free account and get started.
Connect a LoRaWAN Gateway
You'll need a myDevices’ certified LoRaWAN gateway to connect your LoRa device to Azure.
These gateways are available directly from the gateway manufacturers, such as MultiTech,
Tektelic, Gemtek (aka Browan); or from Ingram Micro, myDevices.com or other distributors
around the world.
From the myDevices IoT in a Box App:
1. Select. Menu > Add Gateway
2. Scan QR Code to add gateways

Connect the LoRaWAN Sensor
From the myDevices IoT in a Box App: simply scan the QR code located on the back of the
device to the correct location.
1. Select. Menu > Add Device
2. Scan sensor into app and enter Name

Connect your Devices to Azure IOT Hub
From the myDevices’ IoT in a Box Application, go to the integrations tab and select the Azure
IoT Hub(PnP) option
Configure the each device(s) with the DPS credentials

Use the following instructions to have your IoT events sent to your Azure IoT Hub account.
1. https://iotinabox.zendesk.com/hc/en-us/articles/360048504933-Azure-IoT-Hub

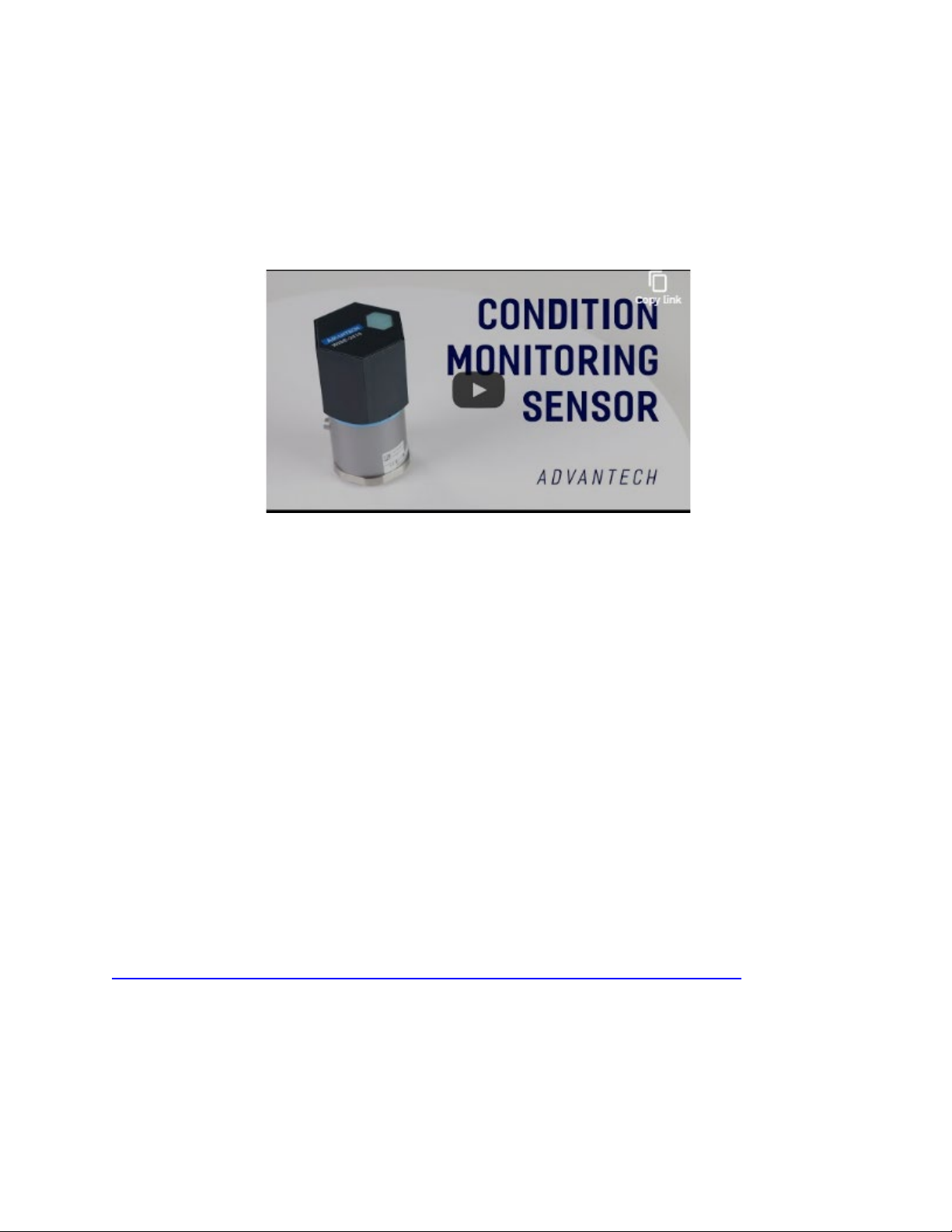

https://youtu.be/YPtgjNge3IQ

Connect to Azure IoT Central
From the myDevices’ IoT in a Box Application, go to the integrations tab and select the select
the Azure IoT Central option
Easily integrate with Azure IoT Central and connect hundreds of devices. This integration
connects IoT Central with myDevices to create a device bridge and bringing the best of the two
platforms. Azure IoT Central is a hosted platform that simplifies setup of your IoT solution.
•ID scope: In your IoT Central application, navigate to Administration > Device
Connection. Make a note of the ID scope value.
•Group primary key: In your IoT Central application, navigate to Administration > Device
Connection > SAS-IoT-Devices. Make a note of the shared access signature Primary key
value.
Enter the DPS information that you previously obtained:
Use the Cloud Shell to generate a device specific key from the group SAS key you just retrieved
using the Azure CLI

az extension add --name azure-iot az iot central device compute-device-key --device-id sample-
device-01 --pk
Make a note of the generated device key, and the ID scope for this application and flash it on
the device

Additional Links
Please refer to the below link for additional information for Plug and Play
•Manage cloud device messaging with Azure-IoT-Explorer
•Import the Plug and Play model
•Configure to connect to IoT Hub
•How to use IoT Explorer to interact with the device
