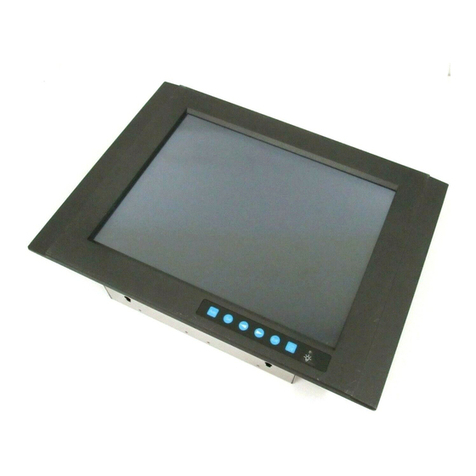

Advantech FPM-3150 Series User manual

FPM-3150 Series
Flat Panel Monitor with 15" Color
TFT/LCD Display enchanced
version
User Manual

FPM-3150 Series User Manual ii
Copyright Notice
This document is copyrighted by Advantech Co., Ltd. All rights are
reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time.
Specifications are thus subject to change without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this manual is
intended to be accurate and reliable. However, Advantech Co., Ltd.,
assumes no responsibility for its use, nor for any
infringements upon the rights of third parties which may result from its
use.
All brand and product names mentioned herein are trademarks or
registered trademarks of their respective holders.
This Manual Covers the Following Models
• FPM-3150G
Part Number: 2003315000
Edition 1 November 2004

iii
Product Warranty (1 year)
Advantech warrants to you, the original purchaser, that each of its prod-
ucts will be free from defects in materials and workmanship for one year
from the date of purchase.
This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper instal-
lation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.
All defective products under normal / standard operation will be serviced
by Advantech’s global RMA system. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty
period. For out-of-warranty repairs, you will be billed according to the
cost of replacement materials, service time and freight. Please consult
your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU speed, Advantech products used, other hardware
and software used, etc.) Note anything abnormal and list any
onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your man-
ual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
merchandize authorization) number from your dealer. This allows
us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for war-
ranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.

FPM-3150 Series User Manual iv
FCC Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a residential environment. This
equipment generates, uses and can radiate radio frequency energy. If not
installed and used in accordance with this user's manual, it may cause
harmful interference to radio communications. Note that even when this
equipment is installed and used in accordance with this user’s manual,
there is still no guarantee that interference will not occur. If this equip-
ment is believed to be causeing harmful interference to radio or television
reception, this can be determined by turning the equipment on and off. If
the interference is occurring, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment to a power outlet on a circuit different from that
to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

v
Packing List
Before installing your equipment, make sure that the following materials
have been received:
• FPM-3150 Series flat panel monitor
• Accessory pack, including:
- AC/DC adapter
- AC/DC power adapter bracket
- DC in Power Cord Bracket x 1 piece
- Video Signal Cable, 1.8m
- RS-232 cable, 1.8m (FPM-3150-R only)
- Screw Bag (M6x35mm screws with spring by 4 pieces)
- Driver / Manual CD-ROM
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
Additional Information and Assistance
1. Visit the Advantech web site at www.advantech.com where you can
find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's
customer service center for technical support if you need additional
assistance. Please have the following information ready before you
call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version, application
software, etc.)
• A complete description of the problem
• The exact wording of any error messages

FPM-3150 Series User Manual vi
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning.
Use a damp cloth. Do not use liquid or spray detergents for clean-
ing.
4. For plug-in equipment, the power outlet socket must be located
near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Drop-
ping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before con-
necting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or elec-
trical shock.
13. Never open the equipment. For safety reasons, the equipment
should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked
by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.

vii
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY
DAMAGE THE EQUIPMENT.
The sound pressure level at the operator's position according to IEC 704-
1:1982 is no more than 70dB(A).
DISCLAIMER: This set of instructions is given according to IEC 704-1.
Advantech disclaims all responsibility for the accuracy of any statements
contained herein.
Wichtige Sicherheishinweise
1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.
2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Ver-
wenden Sie Keine Flüssig-oder Aerosolreiniger. Am besten dient
ein angefeuchtetes Tuch zur Reinigung.
4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und
leicht zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten.
Ein Kippen oder Fallen könnte Verletzungen hervorrufen.
7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät
vor überhitzung schützt. Sorgen Sie dafür, daB diese Öffnungen
nicht abgedeckt werden.
8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBw-
erte.
9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber
fallen kann. Es sollte auch nichts auf der Leitung abgestellt werden.
10. Alle Hinweise und Warnungen die sich am Geräten befinden sind
zu beachten.
11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten
Sie es vom Stromnetz trennen. Somit wird im Falle einer Überspan-
nung eine Beschädigung vermieden.

FPM-3150 Series User Manual viii
12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder
Flüssigkeiten in das Gerät gelangen. Dies könnte einen Brand bzw.
elektrischen Schlag auslösen.
13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der ele-
ktrischen Sicherheit nur von authorisiertem Servicepersonal geöff-
net werden.
14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz
zu trennen und von einer qualifizierten Servicestelle zu überprüfen:
a - Netzkabel oder Netzstecker sind beschädigt.
b - Flüssigkeit ist in das Gerät eingedrungen.
c - Das Gerät war Feuchtigkeit ausgesetzt.
d - Wenn das Gerät nicht der Bedienungsanleitung entsprech end
funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesse-
rung erzielen.
e - Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f - Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil
1000 beträgt 70dB(A) oder weiger.
15. VOSICHT: Explisionsgefahr bei unsachgemaben Austausch der
Batterie.Ersatz nur durch densellben order einem vom Hersteller
empfohlenemahnlichen Typ. Entsorgung gebrauchter Batterien
navh Angaben des Herstellers.
16. ACHTUNG: Es besteht die Explosionsgefahr, falls die Batterie auf
nicht fachmännische Weise gewechselt wird. Verfangen Sie die
Batterie nur gleicher oder entsprechender Type, wie vom Hersteller
empfohlen. Entsorgen Sie Batterien nach Anweisung des Herstell-
ers.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000
beträgt 70dB(A) oder weiger.
Haftungsausschluss: Die Bedienungsanleitungen wurden entsprechend
der IEC-704-1 erstellt. Advantech lehnt jegliche Verantwortung für die
Richtigkeit der in diesem Zusammenhang getätigten Aussagen ab.
DISCLAIMER: This set of instructions is given according to IEC704-1.
Advantech disclaims all responsibility for the accuracy of any statements
contained herein.

ix Table of Contents
Contents
Chapter 1 Introduction ..................................................... 2
1.1 Introduction ................................................................................. 2
1.2 Specifications............................................................................... 2
1.3 LCD Specification ....................................................................... 3
1.4 Power Consumption .................................................................... 3
1.5 Connectors................................................................................... 4
1.6 Dimensions .................................................................................. 5
Figure 1.1: FPM-3150G Dimensions ....................................... 5
Chapter 2 Mounting.......................................................... 8
2.1 Mounting the Monitor ................................................................. 8
2.1.1 Wall Mounting ......................................................................... 8
Figure 2.1: Wall Mounting ....................................................... 8
2.1.2 Panel Mounting ........................................................................ 9
Figure 2.2: Panel Mounting (cut out dim.: 396 x 296 mm) ..... 9
2.1.3 Rack Mounting (Optional) ..................................................... 10
Figure 2.3: Rack Mounting by Rack Mounting Brackets ...... 10
2.2 Desktop, Swing-ARM for FPM-3150 ....................................... 11
2.2.1 Desktop Stand ......................................................................... 11
Figure 2.4: Desktop Stand for FPM-3150 Series ................... 11
2.2.2 Swing-ARM (VESA Compliant) ........................................... 12
Figure 2.5: Swing-ARM for FPM-3150 Series ...................... 12
Appendix A Touchscreen ................................................... 14
A.1 Introduction ............................................................................... 14
A.2 Touchscreen Specifications ....................................................... 14
A.3 Installing Driver for Windows 2000/XP ................................... 15
A.4 Configuring PenMount Windows 2000/XP Driver................... 20
A.4.1 PenMount Control Panel ....................................................... 20
A.4.2 PenMount Monitor Menu Icon ............................................... 30
A.4.3 PenMount Rotating Functions ................................................ 31
A.5 Uninstall the PenMount Windows 2000/XP driver................... 32
Appendix B Std. Timing Set Serial Data for Expansion. 34
B.1 Setting serial data for expansion................................................ 34

FPM-3150 Series User Manual x
Appendix C OSD................................................................. 36
C.1 Keypad Interface........................................................................ 36
C.2 Power Indicator LED Status...................................................... 36
C.3 OSD Function............................................................................ 37

2
CHAPTER
1
Introduction
This chapter includes:
• Introduction
• Specifications
• LCD Specification
• Power Consumption
• Connectors
• Dimensions

FPM-3150 Series User Manual 2
Chapter 1 Introduction
1.1 Introduction
Advantech's FPM-3150 is a 15" color TFT LCD flat panel monitor built
specifically for industrial applications. With the optional touchscreen,
FPM-3150 is an excellent and user-friendly system control interface.
In addition to its usual application as an LCD panel monitor, FPM-3150
comes standard with direct VGA control signal input, making it compati-
ble with Industrial PCs and Workstations. Its OSD (On Screen Display)
function allows you to adjust display factors such as brightness, contrast,
colors and VGA signal information. Functions that are more and more
critical as HMI users become aware of the benefits of flat panel monitors.
The whole chassis is of stainless steel, and the front panel is of aluminum
with NEMA4/IP65 compliance.
FPM-3150 also comes in a touch screen version (FPM-3150-R). With an
8-wire resistive type touchscreen, this monitor can be immediately trans-
formed into a remote control system. The Advantech FPM-3150 is the
ultimate HMI solution for your industrial application.
1.2 Specifications
General
• Construction: Heavy-duty aluminum and steel chassis
• Front panel: Aluminum, NEMA4 / IP65 Compliant
• Control: OSD (On Screen Display) control pad on front side
• Mounting: Panel, wall, desktop, VESA ARM or rack (with rackmount
• Dimensions (W x H x D): 422 x 310 x 86 mm (16.6" x 12.2" x 3.4")
• Weight: 6.2 kg (13.7 lb)

3 Chapter1
Touchscreen (Optional)
• Type: 8 wire, analog resistive
• Resolution: 1024 x 1024
• Light Transmission: 75% (Gouge Hardness is greater tahn 4H per
ASTM D3363-92 for HCC01, HCG10 and HCG12
• Operating Pressure: 30 ~ 45 gram for stylus pen
contact bounce < 10 ms
• Controller: RS-232 interface
• Power Consumption: +5 V @ 200 mA
• OS Support: Windows 95/98, Windows NT/2000, MS-DOS
• Life Span: 1,000,000 activation (typical) at a single point with a 5/8"
diameter silicone finger with a 350 g load at 2 touches per second
1.3 LCD Specification
• Display Type: XGA TFT LCD
• Display Size: 15"
• Max. Colors: 16.2 M (6 bit + FRC) Full Color
• Max. Resolution: 1024 x 768
• Dot Pitch: 0.297 x 0.297 mm
• View Angle: 140° (V), 125° (H)
• Luminance: 400 cd/m2
• Storage Temperature: -20 ~ 60 ° C
• Operating Temperature: 0 ~ 50 ° C
• Contrast Ratio: 500:1 (typ)
• Lamp Life Time (MTBF): 50,000 hrs.
1.4 Power Consumption
• Max. Output Power: 48 W
• AC Input Voltage: 100-240 VAC
• Output Voltage: + 12 V @ 4 A
• Safety Standards: CE/CCC/UL/TUV/CB

FPM-3150 Series User Manual 4
1.5 Connectors
The following connectors are situated on the left hand side of the
FPM-3150 Series:
VGA Port (DB-15)
This DB-15 connector can be connected to the system via the external
15-pin DB-15 connector locatd on the left side of the system unit.
Touchscreen Connector (DB-9) (optional)
This connector will be present only if a touchscreen is installed. It must
be connected to the RS-232 port of the PC. The touchscreen cable is
included with all orders which include the touchscreen option.
DC 12V Power In
This connector will be connected to the DC 12V Switching Power
Supply.

5 Chapter1
1.6 Dimensions
Figure 1.1: FPM-3150G Dimensions

FPM-3150 Series User Manual 6

2
CHAPTER
2
Mounting
• Wall Mounting
• Panel Mounting
• Rack Mounting
• Desktop Mounting
• Swing Arm Mounting

FPM-3150 Series User Manual 8
Chapter 2 Mounting
2.1 Mounting the Monitor
The FPM-3150 Series can be mounted in many different ways. The ver-
satility of the FPM-3150 mounts enable it to be mounted on your desk or
anywhere else.
2.1.1 Wall Mounting
FPM-3150 can be mounted directly on a wall with panel mounting brack-
ets. Please refer to figure 2-1 and follow the following steps to mount
FPM-3150 on a wall:
1. Screw the hook and panel-mount brackets on the wall.
2. Place the FPM-3150 in the brackets.
3. Fix FPM-3150 on the hook and panel-mount bracket..
Figure 2.1: Wall Mounting

9 Chapter2
2.1.2 Panel Mounting
If you need to install the FPM-3150 series in a panel, please release the
mounting brackets by detaching four screws on rear side and fix them on
the top and bottom with screws.
Figure 2.2: Panel Mounting (cut out dimension: 396 x 296 mm)
Panel Mounti
ng
Brackets

FPM-3150 Series User Manual 10
2.1.3 Rack Mounting (Optional)
If you need to install the FPM-3150 on a rack, you must order the rack
mount kit for FPM-3150 (Part Number is FPM-3150Rack-MT). Attach
the two rack mounting brackets on each side of FPM-3150 with 12
screws, then affix the monitor in the rack.
Figure 2.3: Rack Mounting by Rack Mounting Brackets
