Advoli TA4E DISTANCE User manual

TM
SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS.
HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS
+Ensure that your computer system and all of its components are completely
disconnected from any power source before you proceed to install the advoliTM TA4E
Performance graphics card.
+As with majority of electronic products that have exposed circuitry and that are not
labeled as water proof - do not use the advoliTM TA4E Performance graphics card
near water or liquids or with wet hands/body.
+Ensure that the graphic card is not placed on surfaces or in an environment that
inhibits air flow or blocks ventilation slots and fans. It is important that the graphic
card has proper air flow to reduce temperature of GPU and other components and
prevent over heating.
+Avoid placing the graphics card or its computer in an environment or close to a
source with significant heat, dust or humidity as it will destroy the advoliTM TA4E
Performance graphics card.
+Keep product on a safe, stable and secure surface before installing inside computer.
Damage to this product will void warranty and will most likely result in it failing.
+No item should rest on the graphics card or any of its components, such as power
cord, fans or other cables. Ensure that none of the peripherals for your computer or
computer itself is placed in such a way that the computer is damaged. A damaged
computer will most likely damage its internal components such as the advoliTM TA4E
Performance graphics card.
+Ensure that you discharge any static electricity by touching a grounded surface
before installing or touching the graphics card. Static electricity can damage
components on the graphics card.
+Ensure that you do not put pressure on or lift the advoliTM TA4E Performance
graphics card by the fans. Do not touch the fans when they are operating.
+All 4 channel advoli HDBaseT graphics cards come with Power over Ethernet (PoE) /
Power over HDBaseT (PoH) enabled by default. If you use our products with other
HDBaseT products from other manufacturers we do not guarantee that this function
will work as some manufacturers implement PoE/PoH in non-standard ways. The
PoE/PoH functionality is useful as you can power the advoliTM RA1 Performance or
advoliTM RB1 Standard receivers from the graphics card. advoliTM is not responsible
for any damage in any shape, way or form, caused to products or people when you
use the PoE/PoH functionality with any other product than those listed here: advoliTM
RA1 Performance and advoliTM RB1 Standard receivers.
COMPLIANCE
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without
the approval of manufacturer could void the user’s authority to operate this equipment!
!
In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is
likely to result in interference to radio and TV reception.
CE CONFORMITY FOR EUROPEAN COUNTRIES
The device complies with the EMC Directive 2014/30/EU and Low Voltage directive
2014/35/EU.
The following information is only for EU-member states:!
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent
or discarded batteries or accumulators as unsorted municipal waste, but use the return
and collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal
content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than
0.004% Lead.
FOR CANADA
CAN ICES-3 (B)/NMB-3(B)!
!
DECLARATION OF RoHS2 COMPLIANCE!
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS2 Directive)
and is deemed to comply with the maximum concentration values issued by the
European Technical Adaptation Committee (TAC) as shown below:!
Certain components of products as stated above are exempted under the Annex III of
the RoHS2 Directives. Lead as an alloy element in aluminium containing up to 0.4%
lead by weight. Copper alloy containing up to 4% lead by weight. Lead in high melting
temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead). Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectric devices, or in a glass or ceramic
matrix compound.
ADVOLI TA4E PERFORMANCE
QUICK START GUIDE
EQUIPMENT LIST!
+1 x USB 9-Pin Cable
+1 x USB 3.0 to 2.0 Adapter Card!
+1 x advoliTM TA4E Performance graphics card, with MXM module and Fan Sink +
Casing
FEATURES!
+Drive 4 x 4K2K Displays at one time at a distance of up to 100 meters / 328 feet using
shielded CAT cables
+AMD Ultra-High Performance Embedded GPU E9550!
+Emulated universal IR emitter and decoder for each HDBaseT port. Physical bi-
directional IR ports for IR pass-through!
+Emulated RS232 for all four HDBaseT ports
+Emulated CEC Analyser for all four HDBaseT ports!
+Ethernet Switch on two ports and ethernet pass through on HDBaseT ports!
+Environmental Diagnostics
+Passive and Active HDBaseT Tester for all four HDBaseT channels!
+EDID emulation, cloning and lock functionality in serial console!
+Power over HDBaseT / Ethernet (PoH / PoE) 48V 0.5A for each channel to power advoli
HDBaseT receivers.
Restricted Substance
Maximum Threshold Limit
Cadmium and its compounds
100 ppm (0.01 weight %)
Mercury and its compounds
1000 ppm (0.1 weight %)
Hexavalent chromium and its compounds
1000 ppm (0.1 weight %)
Lead and its compounds
1000 ppm (0.1 weight %)
Polybrominated biphenyls (PBB)
1000 ppm (0.1 weight %)
Polybrominated diphenyls (PBDE)
1000 ppm (0.1 weight %)
Bis(2-Ethylhexyl) phtalate (DEHP)
1000 ppm (0.1 weight %)
Benzyl butyl phthalate (BBP)
1000 ppm (0.1 weight %)
Dibutyl phtalate (DBP)
1000 ppm (0.1 weight %)
Diisobutyl phthalate (DIBP)
1000 ppm (0.1 weight %)
Thursday, May 9, 2019 V1.2 - Copyright 2019, advoli Limited. All Rights Reserved.
LEGAL !
This document and its content is provided as is and only in connection with Advoli Limited (hereinafter referred to as “advoliTM”) products. advoliTM do
not take responsibilities with respect to the accuracy or completeness of the contents herein and reserves the right to change or discontinue products,
technical specifications, descriptions and documentation at any time without notice.
For product terms of sale and use, please visit www.advoli.com/tosu
advoliTM’s products are not designed or authorised to be used for life critical and/or death situations and/or in any other situation where the failure of
advoliTM’s product could create an event where bodily injury, death and/or severe property and environmental damage may occur.
No license of intellectual property rights is given to any party at any time by this document, unless expressly written in a formal agreement between
parties of such rights being granted. advoliTM assumes no liability whatsoever and makes no warranty relating to its products, except what is set forth in
advoli’s terms and conditions of sale. !
Advoli, advoliTM and advoli logo are trademarks of Advoli Limited. Any other registered trademark or trademark of any other company, organisation or
entity is exclusively used for informational purposes and advoliTM does not claim to own, be certified by, have licensed or be endorsed by any such
entity or trademark.
This product is protected by copyright and product is protected by multiple published and pending patents in multiple territories and/or countries around
the world. The use of this copyrighted and patented technology without the written authorisation of advoliTM is strictly prohibited. Reverse engineering or
disassembly is strictly prohibited.
Although advoliTM has taken every precautions in preparing this document, Advoli Limited assumes no liability with respect to the operation of advoliTM
software, hardware or any product or documentation described in this document. In no event shall advoliTM be liable for any incidental, special, punitive,
consequential, or other damages whatsoever, including without limitations, interruption of service, loss or interruption of business, loss of expected
profits, incidental or consequential damages in connection with the use of product, software and services referenced, regardless of whether provided by
advoliTM or third party. The entire risk and consequences directly or indirectly arising from the use of this document, product, software and services
referenced herein, remains with the user.

HARDWARE INSTALLATION
READ ALL SAFETY DIRECTIONS & WARNINGS IN THE
COMPLETE INSTALLATION GUIDE LOCATED ON THE
PRODUCT WEBSITE, BEFORE INSTALLING. ENSURE YOUR
COMPUTER IS SWITCHED OFF AND ALL POWER CABLES
ARE REMOVED FROM THE SYSTEM BEFORE PROCEEDING
WITH INSTALLATION!
1. Remove any static electricity on your body before touching any electronic
component.!
2. Turn off and unplug the power cord to your computer and all of its peripherals.
Wait for your system to cool down before proceeding.!
3. Carefully insert the advoliTM TA4E Performance graphics card in the primary PCI
express x16 slot. Ensure graphics card is firmly secured.!
4. Connect one 6-pin PCI Express auxiliary power connector to the top right edge of
the advoliTM TA4E Performance graphics card where there is a power connector.
5. Connect one 9-pin cable that comes with the advoliTM TA4E Performance
graphics card to the to the top right edge of the advoliTM TA4E Performance
graphics card and the other end of the cable to the motherboard USB 2.0 9-pin
header. Use the converter board that comes along with the cable if your
motherboard only has USB 3.0 header.
6. Close the computer casing/panel once you have completed the installation of the
advoliTM TA4E Performance graphics card. You may now power up your
computer.
7. Install driver from advoli website: www.advoli.com/drivers/ It is advised to use an
already existing HDMI/VGA connector on the motherboard with a paired monitor
to setup the driver for the graphics cards.
8. You will need to have CAT 5e/6/7/+ cables in at least one of the four RJ45
sockets with a HDBaseTTM certified display or HDBaseTTM certified receiver
connected to a display in order to use the HDBaseTTM certified advoliTM TA4E
Performance graphics card. You may use all four RJ45 sockets paired with their
own display respectively. It is advised to use HDBaseTTM certified receivers to
ensure compatibility. We highly recommend the advoliTM HDBaseT RA1
Performance receiver for guaranteed performance, please note that the RA1
does not have ethernet.!
9. For further information on installing and using the product please go to the
product page on advoli website for the complete installation guide.
!
!
SPECIFICATION
BEFORE YOU INSTALL
MUST ITEMS!
+Read the full installation guide before beginning, it can be found at: !
http://www.advoli.com/ta4eperformance/!
!
Why? You will make mistakes and you need to read the warnings and safety related
items!
+For troubleshooting & questions, please go to:!
http://www.advoli.com/support/!
+For drivers, please go to:!
http://www.advoli.com/drivers/!
+We highly recommend to start with a fresh installation of your operating system as drivers
of other graphics cards are highly likely to interfere with driver of the TA4E Performance.

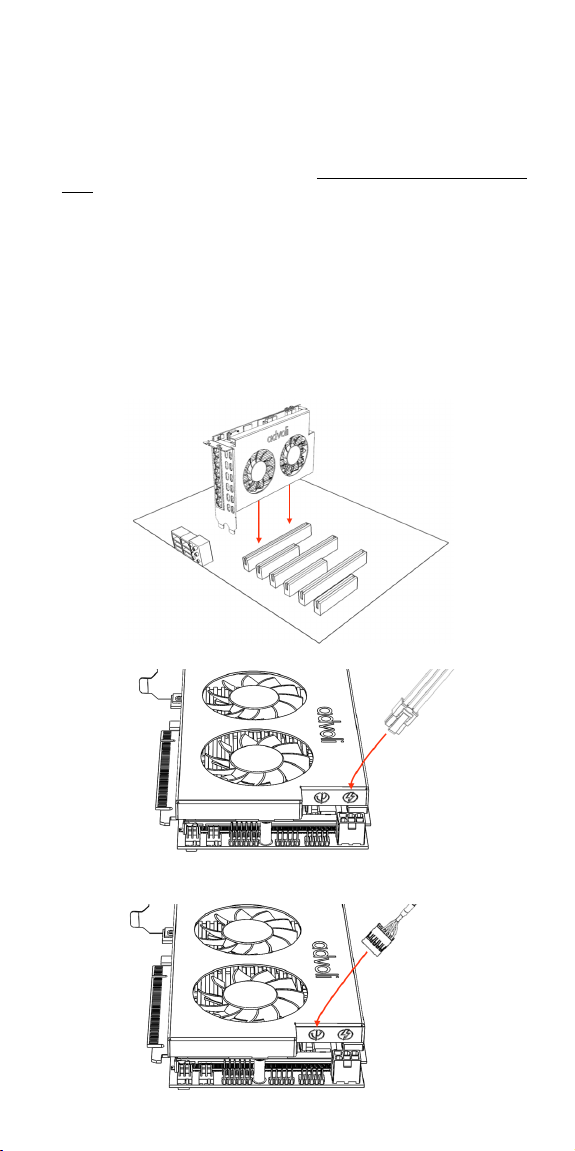

CONNECTION ILLUSTRATION!
1:
!
!
!
!
!
!
!
!
!
!
2:!
!
!
!
!
!
!
!
!
!
3: !
VIDEO
# of HDBaseT Tx Channels
4 x RJ45 Connectors
HDCP 1.4 / 2.2
Compatible pass through
HDMI 1.4 / 2.0
Compatible pass through
300 MHz Pixel Clock Limitation
3D
Supported
Max Resolution
4K DCI 4096×2160 24Hz/25Hz/30Hz
4096×2160 30Hz @ chroma subsampling 4:4:4 8-bit
Max Resolution with all
channels active
4 x UHD 30Hz
Color Space
YUV, RGB
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Depth
8-bit, 10-bit, 12-bit
HDR
4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit
AUDIO
Pass-Through
All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital,
DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
GRAPHICS / MXM
Model
AMD™ Embedded E9550
MXM Type
B
Desktop Software by AMD™
AMD™ Eyefinity™
Driver provided by AMD™
Win 10 – 64 Bit
Win 7 – 64 Bit
Win 7 – 32 Bit
Linux x86_64
Architecture
Polaris™
Video Control
Direct GMA™
Compute Units
5,8 TFLOPS
Memory
8GB GDDR5. 256 bit wide
GPU Power
95W
Video Encode/Decode
UVD4 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Projector Edge Blend
Available through Third Party Software
Display Bezel Correction
AMD™ Eyefinity™
CONTROLS
Diagnostics
HDBaseT™, Environmental & Electrical
Infrared
External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack
Connector
Emulated IR IN/OUT – RAW Data
RS232
External In/Out – 3 Pin Audio Jack Connector
Emulated Serial Port IN/OUT!
(Virtual COM port)!
max baud rate: 115,200 bps
CEC Compatible
Pass through
Ethernet
2 x RJ45 10/100 & Ethernet Pass Through on HDBaseT
EDID Management
Raw EDID pass through & EDID Serial Console Tools
PHYSICAL
Fansink
Copper with 2 dual ball bearing fans
Dimensions
L: 167mm H: 120mm W: 39mm L: 6.6in H: 4.7in W: 1.5in
Dimensions of Packaging
L 350mm H: 70mm W: 195mm L: 13.8in H: 2.8in W: 7.7in
Weight of Product
566g +/- 10g OR 19.97oz +/- 0.35 oz
Weight of Packaging &
Product
0.85 kg / 30 oz +/- 0.5 oz
Form Factor
Half-length, dual width Graphics Card
ENVIRONMENTAL
Ambient Operating Temp
0°C to 40°C / 32°F to 104°F
Storage Temp
-20°C to 60°C / -4°F to 140°F
Humidity
20 to 90% non-condensing
Ethernet
HDBaseT
Tuesday, May 14, 2019 V1.3 - Copyright 2019, advoli Limited. All Rights Reserved.

HARDWARE INSTALLATION
READ ALL SAFETY DIRECTIONS & WARNINGS IN THE
COMPLETE INSTALLATION GUIDE LOCATED ON THE
PRODUCT WEBSITE, BEFORE INSTALLING. ENSURE YOUR
COMPUTER IS SWITCHED OFF AND ALL POWER CABLES
ARE REMOVED FROM THE SYSTEM BEFORE PROCEEDING
WITH INSTALLATION!
1. Remove any static electricity on your body before touching any electronic
component.!
2. Turn off and unplug the power cord to your computer and all of its peripherals.
Wait for your system to cool down before proceeding.!
3. Carefully insert the advoliTM TA4E Performance graphics card in the primary PCI
express x16 slot. Ensure graphics card is firmly secured.!
4. Connect one 6-pin PCI Express auxiliary power connector to the top right edge of
the advoliTM TA4E Performance graphics card where there is a power connector.
5. Connect one 9-pin cable that comes with the advoliTM TA4E Performance
graphics card to the to the top right edge of the advoliTM TA4E Performance
graphics card and the other end of the cable to the motherboard USB 2.0 9-pin
header. Use the converter board that comes along with the cable if your
motherboard only has USB 3.0 header.
6. Close the computer casing/panel once you have completed the installation of the
advoliTM TA4E Performance graphics card. You may now power up your
computer.
7. Install driver from advoli website: www.advoli.com/drivers/ It is advised to use an
already existing HDMI/VGA connector on the motherboard with a paired monitor
to setup the driver for the graphics cards.
8. You will need to have CAT 5e/6/7/+ cables in at least one of the four RJ45
sockets with a HDBaseTTM certified display or HDBaseTTM certified receiver
connected to a display in order to use the HDBaseTTM certified advoliTM TA4E
Performance graphics card. You may use all four RJ45 sockets paired with their
own display respectively. It is advised to use HDBaseTTM certified receivers to
ensure compatibility. We highly recommend the advoliTM HDBaseT RA1
Performance receiver for guaranteed performance, please note that the RA1
does not have ethernet.!
9. For further information on installing and using the product please go to the
product page on advoli website for the complete installation guide.
!
!
SPECIFICATION
BEFORE YOU INSTALL
MUST ITEMS!
+Read the full installation guide before beginning, it can be found at: !
http://www.advoli.com/ta4eperformance/!
!
Why? You will make mistakes and you need to read the warnings and safety related
items!
+For troubleshooting & questions, please go to:!
http://www.advoli.com/support/!
+For drivers, please go to:!
http://www.advoli.com/drivers/!
+We highly recommend to start with a fresh installation of your operating system as drivers
of other graphics cards are highly likely to interfere with driver of the TA4E Performance.
CONNECTION ILLUSTRATION!
1:
!
!
!
!
!
!
!
!
!
!
2:!
!
!
!
!
!
!
!
!
!
3: !
VIDEO
# of HDBaseT Tx Channels
4 x RJ45 Connectors
HDCP 1.4 / 2.2
Compatible pass through
HDMI 1.4 / 2.0
Compatible pass through
300 MHz Pixel Clock Limitation
3D
Supported
Max Resolution
4K DCI 4096×2160 24Hz/25Hz/30Hz
4096×2160 30Hz @ chroma subsampling 4:4:4 8-bit
Max Resolution with all
channels active
4 x UHD 30Hz
Color Space
YUV, RGB
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Depth
8-bit, 10-bit, 12-bit
HDR
4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit
AUDIO
Pass-Through
All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital,
DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
GRAPHICS / MXM
Model
AMD™ Embedded E9550
MXM Type
B
Desktop Software by AMD™
AMD™ Eyefinity™
Driver provided by AMD™
Win 10 – 64 Bit
Win 7 – 64 Bit
Win 7 – 32 Bit
Linux x86_64
Architecture
Polaris™
Video Control
Direct GMA™
Compute Units
5,8 TFLOPS
Memory
8GB GDDR5. 256 bit wide
GPU Power
95W
Video Encode/Decode
UVD4 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Projector Edge Blend
Available through Third Party Software
Display Bezel Correction
AMD™ Eyefinity™
CONTROLS
Diagnostics
HDBaseT™, Environmental & Electrical
Infrared
External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack
Connector
Emulated IR IN/OUT – RAW Data
RS232
External In/Out – 3 Pin Audio Jack Connector
Emulated Serial Port IN/OUT!
(Virtual COM port)!
max baud rate: 115,200 bps
CEC Compatible
Pass through
Ethernet
2 x RJ45 10/100 & Ethernet Pass Through on HDBaseT
EDID Management
Raw EDID pass through & EDID Serial Console Tools
PHYSICAL
Fansink
Copper with 2 dual ball bearing fans
Dimensions
L: 167mm H: 120mm W: 39mm L: 6.6in H: 4.7in W: 1.5in
Dimensions of Packaging
L 350mm H: 70mm W: 195mm L: 13.8in H: 2.8in W: 7.7in
Weight of Product
566g +/- 10g OR 19.97oz +/- 0.35 oz
Weight of Packaging &
Product
0.85 kg / 30 oz +/- 0.5 oz
Form Factor
Half-length, dual width Graphics Card
ENVIRONMENTAL
Ambient Operating Temp
0°C to 40°C / 32°F to 104°F
Storage Temp
-20°C to 60°C / -4°F to 140°F
Humidity
20 to 90% non-condensing
Ethernet
HDBaseT
Tuesday, May 14, 2019 V1.3 - Copyright 2019, advoli Limited. All Rights Reserved.

HARDWARE INSTALLATION
READ ALL SAFETY DIRECTIONS & WARNINGS IN THE
COMPLETE INSTALLATION GUIDE LOCATED ON THE
PRODUCT WEBSITE, BEFORE INSTALLING. ENSURE YOUR
COMPUTER IS SWITCHED OFF AND ALL POWER CABLES
ARE REMOVED FROM THE SYSTEM BEFORE PROCEEDING
WITH INSTALLATION!
1. Remove any static electricity on your body before touching any electronic
component.!
2. Turn off and unplug the power cord to your computer and all of its peripherals.
Wait for your system to cool down before proceeding.!
3. Carefully insert the advoliTM TA4E Performance graphics card in the primary PCI
express x16 slot. Ensure graphics card is firmly secured.!
4. Connect one 6-pin PCI Express auxiliary power connector to the top right edge of
the advoliTM TA4E Performance graphics card where there is a power connector.
5. Connect one 9-pin cable that comes with the advoliTM TA4E Performance
graphics card to the to the top right edge of the advoliTM TA4E Performance
graphics card and the other end of the cable to the motherboard USB 2.0 9-pin
header. Use the converter board that comes along with the cable if your
motherboard only has USB 3.0 header.
6. Close the computer casing/panel once you have completed the installation of the
advoliTM TA4E Performance graphics card. You may now power up your
computer.
7. Install driver from advoli website: www.advoli.com/drivers/ It is advised to use an
already existing HDMI/VGA connector on the motherboard with a paired monitor
to setup the driver for the graphics cards.
8. You will need to have CAT 5e/6/7/+ cables in at least one of the four RJ45
sockets with a HDBaseTTM certified display or HDBaseTTM certified receiver
connected to a display in order to use the HDBaseTTM certified advoliTM TA4E
Performance graphics card. You may use all four RJ45 sockets paired with their
own display respectively. It is advised to use HDBaseTTM certified receivers to
ensure compatibility. We highly recommend the advoliTM HDBaseT RA1
Performance receiver for guaranteed performance, please note that the RA1
does not have ethernet.!
9. For further information on installing and using the product please go to the
product page on advoli website for the complete installation guide.
!
!
SPECIFICATION
BEFORE YOU INSTALL
MUST ITEMS!
+Read the full installation guide before beginning, it can be found at: !
http://www.advoli.com/ta4eperformance/!
!
Why? You will make mistakes and you need to read the warnings and safety related
items!
+For troubleshooting & questions, please go to:!
http://www.advoli.com/support/!
+For drivers, please go to:!
http://www.advoli.com/drivers/!
+We highly recommend to start with a fresh installation of your operating system as drivers
of other graphics cards are highly likely to interfere with driver of the TA4E Performance.
CONNECTION ILLUSTRATION!
1:
!
!
!
!
!
!
!
!
!
!
2:!
!
!
!
!
!
!
!
!
!
3: !
VIDEO
# of HDBaseT Tx Channels
4 x RJ45 Connectors
HDCP 1.4 / 2.2
Compatible pass through
HDMI 1.4 / 2.0
Compatible pass through
300 MHz Pixel Clock Limitation
3D
Supported
Max Resolution
4K DCI 4096×2160 24Hz/25Hz/30Hz
4096×2160 30Hz @ chroma subsampling 4:4:4 8-bit
Max Resolution with all
channels active
4 x UHD 30Hz
Color Space
YUV, RGB
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Depth
8-bit, 10-bit, 12-bit
HDR
4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit
AUDIO
Pass-Through
All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital,
DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
GRAPHICS / MXM
Model
AMD™ Embedded E9550
MXM Type
B
Desktop Software by AMD™
AMD™ Eyefinity™
Driver provided by AMD™
Win 10 – 64 Bit
Win 7 – 64 Bit
Win 7 – 32 Bit
Linux x86_64
Architecture
Polaris™
Video Control
Direct GMA™
Compute Units
5,8 TFLOPS
Memory
8GB GDDR5. 256 bit wide
GPU Power
95W
Video Encode/Decode
UVD4 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Projector Edge Blend
Available through Third Party Software
Display Bezel Correction
AMD™ Eyefinity™
CONTROLS
Diagnostics
HDBaseT™, Environmental & Electrical
Infrared
External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack
Connector
Emulated IR IN/OUT – RAW Data
RS232
External In/Out – 3 Pin Audio Jack Connector
Emulated Serial Port IN/OUT!
(Virtual COM port)!
max baud rate: 115,200 bps
CEC Compatible
Pass through
Ethernet
2 x RJ45 10/100 & Ethernet Pass Through on HDBaseT
EDID Management
Raw EDID pass through & EDID Serial Console Tools
PHYSICAL
Fansink
Copper with 2 dual ball bearing fans
Dimensions
L: 167mm H: 120mm W: 39mm L: 6.6in H: 4.7in W: 1.5in
Dimensions of Packaging
L 350mm H: 70mm W: 195mm L: 13.8in H: 2.8in W: 7.7in
Weight of Product
566g +/- 10g OR 19.97oz +/- 0.35 oz
Weight of Packaging &
Product
0.85 kg / 30 oz +/- 0.5 oz
Form Factor
Half-length, dual width Graphics Card
ENVIRONMENTAL
Ambient Operating Temp
0°C to 40°C / 32°F to 104°F
Storage Temp
-20°C to 60°C / -4°F to 140°F
Humidity
20 to 90% non-condensing
Ethernet
HDBaseT
Tuesday, May 14, 2019 V1.3 - Copyright 2019, advoli Limited. All Rights Reserved.

TM
SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS.
HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS
+Ensure that your computer system and all of its components are completely
disconnected from any power source before you proceed to install the advoliTM TA4E
Performance graphics card.
+As with majority of electronic products that have exposed circuitry and that are not
labeled as water proof - do not use the advoliTM TA4E Performance graphics card
near water or liquids or with wet hands/body.
+Ensure that the graphic card is not placed on surfaces or in an environment that
inhibits air flow or blocks ventilation slots and fans. It is important that the graphic
card has proper air flow to reduce temperature of GPU and other components and
prevent over heating.
+Avoid placing the graphics card or its computer in an environment or close to a
source with significant heat, dust or humidity as it will destroy the advoliTM TA4E
Performance graphics card.
+Keep product on a safe, stable and secure surface before installing inside computer.
Damage to this product will void warranty and will most likely result in it failing.
+No item should rest on the graphics card or any of its components, such as power
cord, fans or other cables. Ensure that none of the peripherals for your computer or
computer itself is placed in such a way that the computer is damaged. A damaged
computer will most likely damage its internal components such as the advoliTM TA4E
Performance graphics card.
+Ensure that you discharge any static electricity by touching a grounded surface
before installing or touching the graphics card. Static electricity can damage
components on the graphics card.
+Ensure that you do not put pressure on or lift the advoliTM TA4E Performance
graphics card by the fans. Do not touch the fans when they are operating.
+All 4 channel advoli HDBaseT graphics cards come with Power over Ethernet (PoE) /
Power over HDBaseT (PoH) enabled by default. If you use our products with other
HDBaseT products from other manufacturers we do not guarantee that this function
will work as some manufacturers implement PoE/PoH in non-standard ways. The
PoE/PoH functionality is useful as you can power the advoliTM RA1 Performance or
advoliTM RB1 Standard receivers from the graphics card. advoliTM is not responsible
for any damage in any shape, way or form, caused to products or people when you
use the PoE/PoH functionality with any other product than those listed here: advoliTM
RA1 Performance and advoliTM RB1 Standard receivers.
COMPLIANCE
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without
the approval of manufacturer could void the user’s authority to operate this equipment!
!
In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is
likely to result in interference to radio and TV reception.
CE CONFORMITY FOR EUROPEAN COUNTRIES
The device complies with the EMC Directive 2014/30/EU and Low Voltage directive
2014/35/EU.
The following information is only for EU-member states:!
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent
or discarded batteries or accumulators as unsorted municipal waste, but use the return
and collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal
content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than
0.004% Lead.
FOR CANADA
CAN ICES-3 (B)/NMB-3(B)!
!
DECLARATION OF RoHS2 COMPLIANCE!
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS2 Directive)
and is deemed to comply with the maximum concentration values issued by the
European Technical Adaptation Committee (TAC) as shown below:!
Certain components of products as stated above are exempted under the Annex III of
the RoHS2 Directives. Lead as an alloy element in aluminium containing up to 0.4%
lead by weight. Copper alloy containing up to 4% lead by weight. Lead in high melting
temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead). Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectric devices, or in a glass or ceramic
matrix compound.
ADVOLI TA4E PERFORMANCE
QUICK START GUIDE
EQUIPMENT LIST!
+1 x USB 9-Pin Cable
+1 x USB 3.0 to 2.0 Adapter Card!
+1 x advoliTM TA4E Performance graphics card, with MXM module and Fan Sink +
Casing
FEATURES!
+Drive 4 x 4K2K Displays at one time at a distance of up to 100 meters / 328 feet using
shielded CAT cables
+AMD Ultra-High Performance Embedded GPU E9550!
+Emulated universal IR emitter and decoder for each HDBaseT port. Physical bi-
directional IR ports for IR pass-through!
+Emulated RS232 for all four HDBaseT ports
+Emulated CEC Analyser for all four HDBaseT ports!
+Ethernet Switch on two ports and ethernet pass through on HDBaseT ports!
+Environmental Diagnostics
+Passive and Active HDBaseT Tester for all four HDBaseT channels!
+EDID emulation, cloning and lock functionality in serial console!
+Power over HDBaseT / Ethernet (PoH / PoE) 48V 0.5A for each channel to power advoli
HDBaseT receivers.
Restricted Substance
Maximum Threshold Limit
Cadmium and its compounds
100 ppm (0.01 weight %)
Mercury and its compounds
1000 ppm (0.1 weight %)
Hexavalent chromium and its compounds
1000 ppm (0.1 weight %)
Lead and its compounds
1000 ppm (0.1 weight %)
Polybrominated biphenyls (PBB)
1000 ppm (0.1 weight %)
Polybrominated diphenyls (PBDE)
1000 ppm (0.1 weight %)
Bis(2-Ethylhexyl) phtalate (DEHP)
1000 ppm (0.1 weight %)
Benzyl butyl phthalate (BBP)
1000 ppm (0.1 weight %)
Dibutyl phtalate (DBP)
1000 ppm (0.1 weight %)
Diisobutyl phthalate (DIBP)
1000 ppm (0.1 weight %)
Thursday, May 9, 2019 V1.2 - Copyright 2019, advoli Limited. All Rights Reserved.
LEGAL !
This document and its content is provided as is and only in connection with Advoli Limited (hereinafter referred to as “advoliTM”) products. advoliTM do
not take responsibilities with respect to the accuracy or completeness of the contents herein and reserves the right to change or discontinue products,
technical specifications, descriptions and documentation at any time without notice.
For product terms of sale and use, please visit www.advoli.com/tosu
advoliTM’s products are not designed or authorised to be used for life critical and/or death situations and/or in any other situation where the failure of
advoliTM’s product could create an event where bodily injury, death and/or severe property and environmental damage may occur.
No license of intellectual property rights is given to any party at any time by this document, unless expressly written in a formal agreement between
parties of such rights being granted. advoliTM assumes no liability whatsoever and makes no warranty relating to its products, except what is set forth in
advoli’s terms and conditions of sale. !
Advoli, advoliTM and advoli logo are trademarks of Advoli Limited. Any other registered trademark or trademark of any other company, organisation or
entity is exclusively used for informational purposes and advoliTM does not claim to own, be certified by, have licensed or be endorsed by any such
entity or trademark.
This product is protected by copyright and product is protected by multiple published and pending patents in multiple territories and/or countries around
the world. The use of this copyrighted and patented technology without the written authorisation of advoliTM is strictly prohibited. Reverse engineering or
disassembly is strictly prohibited.
Although advoliTM has taken every precautions in preparing this document, Advoli Limited assumes no liability with respect to the operation of advoliTM
software, hardware or any product or documentation described in this document. In no event shall advoliTM be liable for any incidental, special, punitive,
consequential, or other damages whatsoever, including without limitations, interruption of service, loss or interruption of business, loss of expected
profits, incidental or consequential damages in connection with the use of product, software and services referenced, regardless of whether provided by
advoliTM or third party. The entire risk and consequences directly or indirectly arising from the use of this document, product, software and services
referenced herein, remains with the user.

TM
SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS.
HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS
+Ensure that your computer system and all of its components are completely
disconnected from any power source before you proceed to install the advoliTM TA4E
Performance graphics card.
+As with majority of electronic products that have exposed circuitry and that are not
labeled as water proof - do not use the advoliTM TA4E Performance graphics card
near water or liquids or with wet hands/body.
+Ensure that the graphic card is not placed on surfaces or in an environment that
inhibits air flow or blocks ventilation slots and fans. It is important that the graphic
card has proper air flow to reduce temperature of GPU and other components and
prevent over heating.
+Avoid placing the graphics card or its computer in an environment or close to a
source with significant heat, dust or humidity as it will destroy the advoliTM TA4E
Performance graphics card.
+Keep product on a safe, stable and secure surface before installing inside computer.
Damage to this product will void warranty and will most likely result in it failing.
+No item should rest on the graphics card or any of its components, such as power
cord, fans or other cables. Ensure that none of the peripherals for your computer or
computer itself is placed in such a way that the computer is damaged. A damaged
computer will most likely damage its internal components such as the advoliTM TA4E
Performance graphics card.
+Ensure that you discharge any static electricity by touching a grounded surface
before installing or touching the graphics card. Static electricity can damage
components on the graphics card.
+Ensure that you do not put pressure on or lift the advoliTM TA4E Performance
graphics card by the fans. Do not touch the fans when they are operating.
+All 4 channel advoli HDBaseT graphics cards come with Power over Ethernet (PoE) /
Power over HDBaseT (PoH) enabled by default. If you use our products with other
HDBaseT products from other manufacturers we do not guarantee that this function
will work as some manufacturers implement PoE/PoH in non-standard ways. The
PoE/PoH functionality is useful as you can power the advoliTM RA1 Performance or
advoliTM RB1 Standard receivers from the graphics card. advoliTM is not responsible
for any damage in any shape, way or form, caused to products or people when you
use the PoE/PoH functionality with any other product than those listed here: advoliTM
RA1 Performance and advoliTM RB1 Standard receivers.
COMPLIANCE
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The user is cautioned that changes and modifications made to the equipment without
the approval of manufacturer could void the user’s authority to operate this equipment!
!
In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is
likely to result in interference to radio and TV reception.
CE CONFORMITY FOR EUROPEAN COUNTRIES
The device complies with the EMC Directive 2014/30/EU and Low Voltage directive
2014/35/EU.
The following information is only for EU-member states:!
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent
or discarded batteries or accumulators as unsorted municipal waste, but use the return
and collection systems available.
If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal
content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than
0.004% Lead.
FOR CANADA
CAN ICES-3 (B)/NMB-3(B)!
!
DECLARATION OF RoHS2 COMPLIANCE!
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS2 Directive)
and is deemed to comply with the maximum concentration values issued by the
European Technical Adaptation Committee (TAC) as shown below:!
Certain components of products as stated above are exempted under the Annex III of
the RoHS2 Directives. Lead as an alloy element in aluminium containing up to 0.4%
lead by weight. Copper alloy containing up to 4% lead by weight. Lead in high melting
temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead). Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectric devices, or in a glass or ceramic
matrix compound.
ADVOLI TA4E PERFORMANCE
QUICK START GUIDE
EQUIPMENT LIST!
+1 x USB 9-Pin Cable
+1 x USB 3.0 to 2.0 Adapter Card!
+1 x advoliTM TA4E Performance graphics card, with MXM module and Fan Sink +
Casing
FEATURES!
+Drive 4 x 4K2K Displays at one time at a distance of up to 100 meters / 328 feet using
shielded CAT cables
+AMD Ultra-High Performance Embedded GPU E9550!
+Emulated universal IR emitter and decoder for each HDBaseT port. Physical bi-
directional IR ports for IR pass-through!
+Emulated RS232 for all four HDBaseT ports
+Emulated CEC Analyser for all four HDBaseT ports!
+Ethernet Switch on two ports and ethernet pass through on HDBaseT ports!
+Environmental Diagnostics
+Passive and Active HDBaseT Tester for all four HDBaseT channels!
+EDID emulation, cloning and lock functionality in serial console!
+Power over HDBaseT / Ethernet (PoH / PoE) 48V 0.5A for each channel to power advoli
HDBaseT receivers.
Restricted Substance
Maximum Threshold Limit
Cadmium and its compounds
100 ppm (0.01 weight %)
Mercury and its compounds
1000 ppm (0.1 weight %)
Hexavalent chromium and its compounds
1000 ppm (0.1 weight %)
Lead and its compounds
1000 ppm (0.1 weight %)
Polybrominated biphenyls (PBB)
1000 ppm (0.1 weight %)
Polybrominated diphenyls (PBDE)
1000 ppm (0.1 weight %)
Bis(2-Ethylhexyl) phtalate (DEHP)
1000 ppm (0.1 weight %)
Benzyl butyl phthalate (BBP)
1000 ppm (0.1 weight %)
Dibutyl phtalate (DBP)
1000 ppm (0.1 weight %)
Diisobutyl phthalate (DIBP)
1000 ppm (0.1 weight %)
Thursday, May 9, 2019 V1.2 - Copyright 2019, advoli Limited. All Rights Reserved.
LEGAL !
This document and its content is provided as is and only in connection with Advoli Limited (hereinafter referred to as “advoliTM”) products. advoliTM do
not take responsibilities with respect to the accuracy or completeness of the contents herein and reserves the right to change or discontinue products,
technical specifications, descriptions and documentation at any time without notice.
For product terms of sale and use, please visit www.advoli.com/tosu
advoliTM’s products are not designed or authorised to be used for life critical and/or death situations and/or in any other situation where the failure of
advoliTM’s product could create an event where bodily injury, death and/or severe property and environmental damage may occur.
No license of intellectual property rights is given to any party at any time by this document, unless expressly written in a formal agreement between
parties of such rights being granted. advoliTM assumes no liability whatsoever and makes no warranty relating to its products, except what is set forth in
advoli’s terms and conditions of sale. !
Advoli, advoliTM and advoli logo are trademarks of Advoli Limited. Any other registered trademark or trademark of any other company, organisation or
entity is exclusively used for informational purposes and advoliTM does not claim to own, be certified by, have licensed or be endorsed by any such
entity or trademark.
This product is protected by copyright and product is protected by multiple published and pending patents in multiple territories and/or countries around
the world. The use of this copyrighted and patented technology without the written authorisation of advoliTM is strictly prohibited. Reverse engineering or
disassembly is strictly prohibited.
Although advoliTM has taken every precautions in preparing this document, Advoli Limited assumes no liability with respect to the operation of advoliTM
software, hardware or any product or documentation described in this document. In no event shall advoliTM be liable for any incidental, special, punitive,
consequential, or other damages whatsoever, including without limitations, interruption of service, loss or interruption of business, loss of expected
profits, incidental or consequential damages in connection with the use of product, software and services referenced, regardless of whether provided by
advoliTM or third party. The entire risk and consequences directly or indirectly arising from the use of this document, product, software and services
referenced herein, remains with the user.
