AEG AFNDA2565 User manual

AFNDA2565
ANGLED FINISH NAILER
ORIGINAL INSTRUCTIONS

2
1
4
10
9
8
7
56
3
4
9
11
12

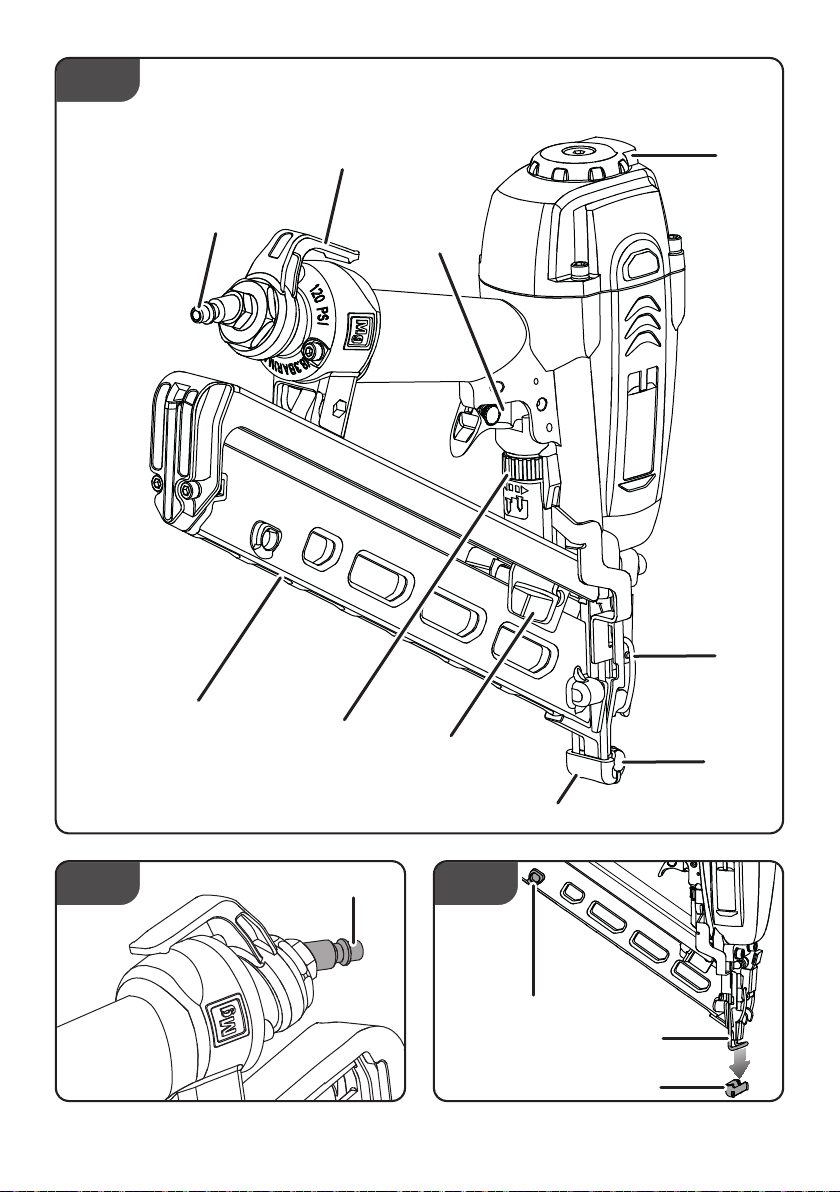

Fig. 1
Fig. 2 Fig. 3

12
15
16
17
1
13
7
14
5
2
8
4

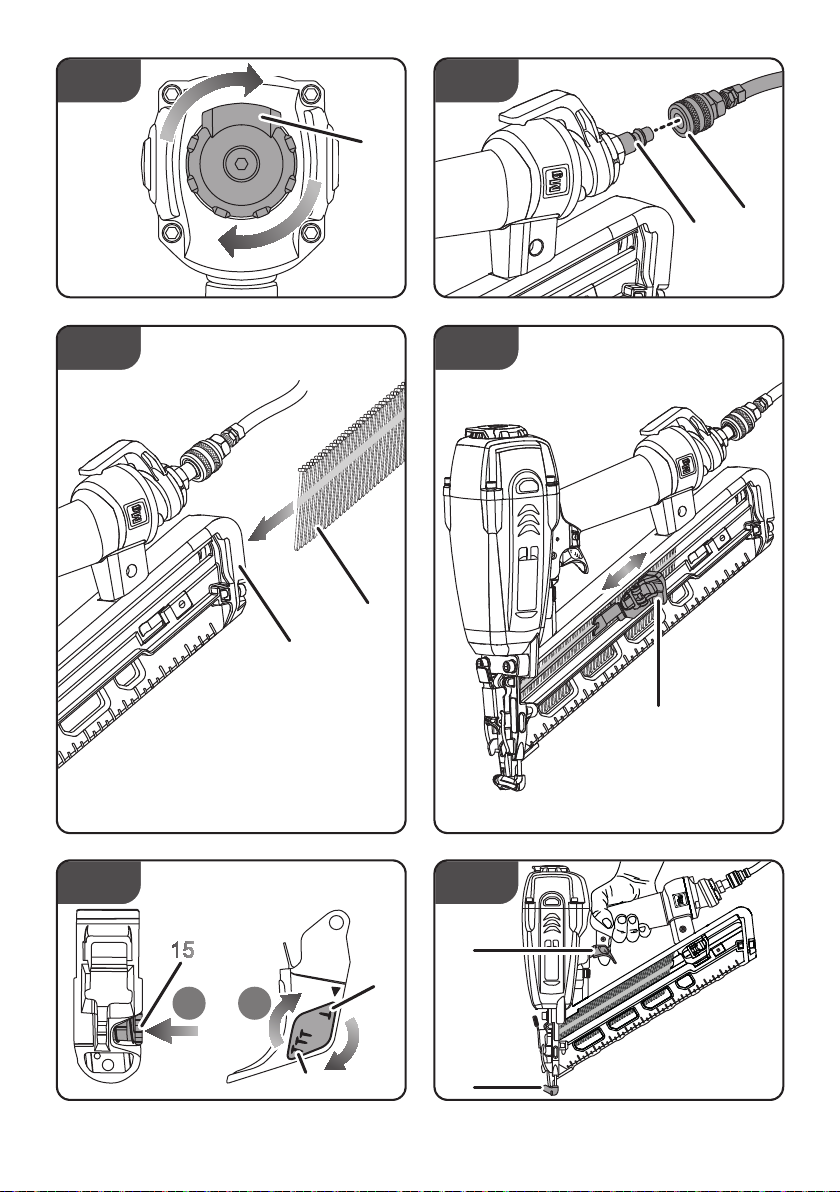

Fig. 4
Fig. 6
Fig. 5
Fig. 7
Fig. 8 Fig. 9

19
6
10
21
7
20
18
1
2

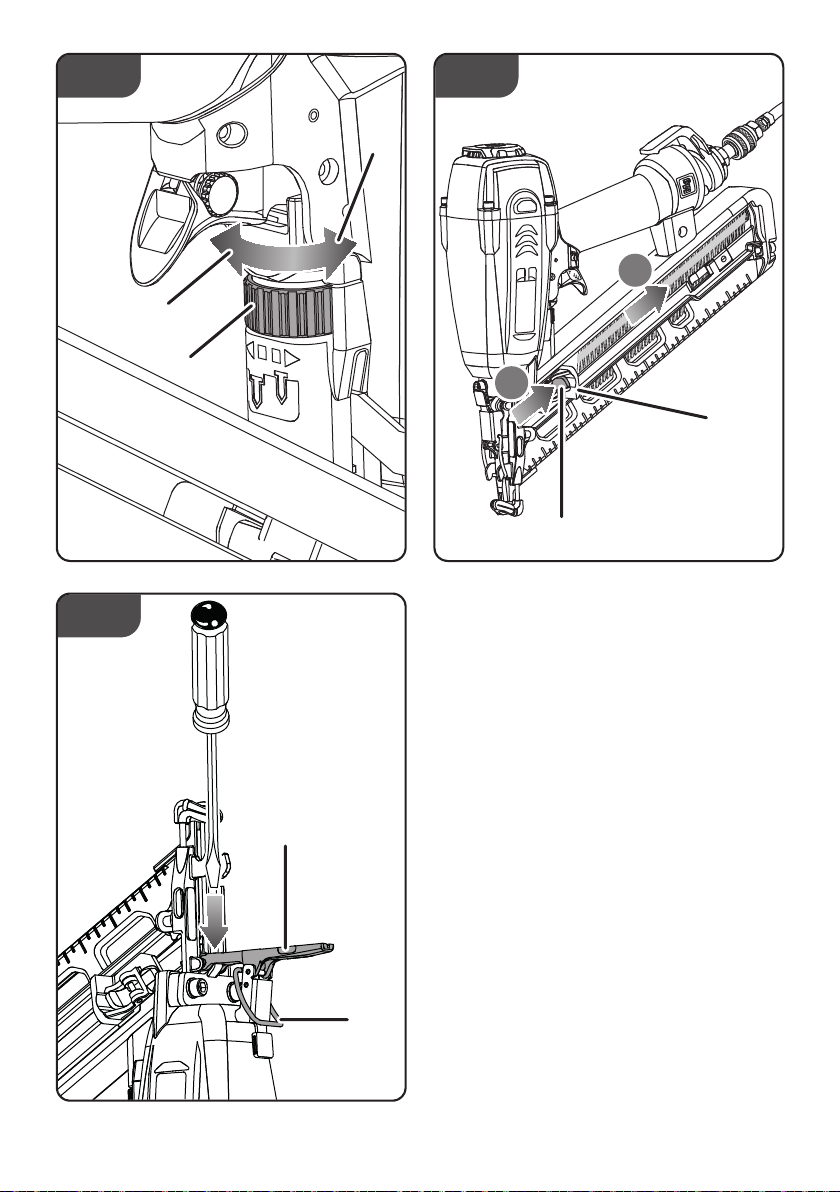

Fig. 10
Fig. 12
Fig. 11

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modications.

1
GENERAL SAFETY WARNINGS
DANGER
READ AND UNDERSTAND TOOL LABELS AND
MANUAL. Failure to follow warnings could result in
death or serious injury.
Save these instructions.
1. WORK AREA SAFETY
a. Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep bystanders, children, and visitors away
while operating a power tool. Distractions can
cause you to lose control.
2. PERSONAL SAFETY
a. Eye protection which conforms to ANSI
specifications and provides protection against
flying particles both from the FRONT and
SIDE should ALWAYS be worn by the operator
and others in the work area when loading,
operating or servicing this tool. Eye protection
is required to guard against ying fasteners and
debris, which could cause severe eye injury.
b. The employer and/or user must ensure that
proper eye protection is worn. We recommend
wide vision safety mask for use over eyeglasses
or standard safety glasses that provide protection
against ying particles both from the front and
side. Always use eye protection which is marked
to comply with ANSI Z87.1.
c. Additional safety protection will be required in
some environments. For example, the working
area may include exposure to noise level which
can lead to hearing damage. The employer and
user must ensure that any necessary hearing
protection is provided and used by the operator
and others in the work area. Some environments
will require the use of head protection equipment.
When required, the employer and user must
ensure that head protection conforming to ANSI
Z89.1-1997 is used.
d. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
e. Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewellery, or long hair can be
caught in moving parts.
f. Keep fingers away from trigger when not
driving fasteners to avoid accidental firing.
g. Do not overreach. Keep proper footing and
balance at all times. Proper footing and balance
enables better control of the tool in unexpected
situations.
h. Use safety equipment. Always wear eye
protection. Dust mask, nonskid safety shoes,
hard hat, or hearing protection must be used for
appropriate conditions.
i. Do not use on a ladder or unstable support.
Stable footing on a solid surface enables better
control of the tool in unexpected situations.
3. TOOL USE AND CARE
a. Do not force tool. Use the correct tool for your
application. The correct tool will do the job better
and safer at the rate for which it is designed.
b. Do not use tool if trigger does not actuate
properly. Any tool that cannot be controlled with
the trigger is dangerous and must be repaired.
c. Check operation of the workpiece contact
mechanism frequently. Do not use the tool if
the workpiece contact mechanism is not working
correctly as accidental driving of a fastener may
result. Do not interfere with the proper operation
of the workpiece contact mechanism.
d. Store idle tools out of the reach of children and
other untrained persons. Tools are dangerous
in the hands of untrained users.
e. Maintain tools with care. Follow maintenance
instructions. Properly maintained tools are easier
to control.
f. Check for misalignment or binding of moving
parts, breakage of parts, and any other
condition that may affect the tool’s operation.
If damaged, have the tool serviced before
using. Many accidents are caused by poorly
maintained tools.
g. Use only fasteners that are recommended for
your model.
h. Keep the tool and its handle dry, clean and free
from oil and grease. Always use a clean cloth
when cleaning. Never use brake uids, gasoline,
petroleum-based products, or any strong solvents
to clean your tool. Following this rule will reduce
the risk of loss of control and deterioration of the
enclosure plastic.
4. SERVICE
a. Tool service must be performed only
by qualified repair personnel. Service or
maintenance performed by unqualied personnel
may result in a risk of injury.
b. When servicing a tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
instructions may create a risk of injury.
SPECIAL SAFETY RULES
■Know your pneumatic tool. Read operator’s manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
tool. Following this rule will reduce the risk of serious

2
injury.
■Always wear safety glasses with side shields.
Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
■Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
■Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
■Make sure the hose is free of obstructions or snags.
Entangled or snarled hoses can cause loss of balance or
footing and may become damaged.
■Use the tool only for its intended use. Do not
discharge fasteners into open air.
■Use the pneumatic tool only for the purpose for
which it was designed.
■Do not use hardened nails in this tool.
■Use only the fasteners recommended for this tool.
Use of the wrong fasteners could result in poor fastener
feeding, jammed fasteners, and nails leaving the tool at
erratic angles. If fasteners are not feeding smoothly and
properly, discontinue their use immediately. Jammed
and improperly feeding fasteners could result in serious
personal injury.
■Never use this tool in a manner that could cause a
fastener to be directed toward anything other than
the workpiece.
■Do not use the tool as a hammer.
■Always carry the tool by the handle. Never carry the
tool by the air hose.
■Do not alter or modify this tool from the original
design or function without approval from the
manufacturer.
■Always be aware that misuse and improper handling
of this tool can cause injury to yourself and others.
■Never clamp or tape the trigger or workpiece contact
in an actuated position.
■Never leave a tool unattended with the air hose
attached.
■Do not operate this tool if it does not contain a
legible warning label.
■Do not continue to use a tool that leaks air or does
not function properly.
OPERATION
■Always assume that the tool contains fasteners.
■Do not carry the tool from place to place holding
the trigger. Accidental discharge could result.
■Always handle the tool with care:
●Respect the tool as a working implement.
●Never engage in horseplay.
●Never pull the trigger unless nose is directed
toward the work.
●Keep others a safe distance from the tool while
tool is in operation as accidental actuation may
occur, possibly causing injury.
■Choice of triggering method is important. Check
manual for triggering options.
■Pneumatic tools are designed for single-hand
use. Do not hold the tool by the front of the magazine.
Do not put hands, head, or other parts of your body
near the bottom of the magazine where the nail exits
the tool, as serious personal injury could result.
■Do not point the tool toward yourself or anyone
whether it contains fasteners or not.
■Do not actuate the tool unless you intend to drive
a fastener into the workpiece.
■Always ensure that the workpiece contact is fully
positioned above the workpiece. Positioning the
workpiece contact only partially above the workpiece
could cause the fastener to miss the workpiece
completely and result in serious personal injury.
■Do not drive fasteners near edge of material.
The workpiece may split causing the fastener to
ricochet, injuring you or a co-worker. Be aware that
the nail may follow the grain of the wood, causing it
to protrude unexpectedly from the side of the work
material.
■Keep hands and body parts clear of immediate
work area. Hold workpiece with clamps when
necessary to keep hands and body out of potential
harm. Be sure the workpiece is properly secured
before pressing the nailer against the material. The
workpiece contact may cause the work material to
shift unexpectedly.
■Keep face and body parts away from back of the
tool cap when working in restricted areas. Sudden
recoil can result in impact to the body, especially
when nailing into hard or dense material.
■During normal use the tool will recoil immediately
after driving a fastener. This is a normal function
of the tool. Do not attempt to prevent the recoil by
holding the nailer against the work. Restriction to the
recoil can result in a second fastener being driven
from the nailer. Grip the handle firmly, let the tool
do the work and do not place second hand on top of
tool or near exhaust at any time. Failure to heed this
warning can result in serious personal injury.
■Do not drive fasteners on top of other fasteners or
with the tool at an overly steep angle as this may
cause deflection of fasteners which could cause
injury.
■Do not drive fasteners close to the edge of the
workpiece as the wood may split, allowing the
fastener to be deflected possibly causing injury.
AIR SUPPLY AND CONNECTIONS
■Do not use oxygen, combustible gases or bottled
gases as a power source for this tool as tool will
explode, possibly causing injury or death.
■Do not use with an air compressor which can
potentially exceed 13.8 bar (200 psi) as tool may
burst, possibly causing injury.
■The connector on the tool must not hold pressure
when air supply is disconnected. If an incorrect
fitting is used, the tool can remain charged with air
after disconnecting and thus will be able to drive

3
a fastener even after the air line is disconnected,
possibly causing injury.
■Always disconnect air supply:
●before making adjustments
●when servicing the tool
●when clearing a jam
●when tool is not in use
●When moving to a different work area, as
accidental actuation may occur, possibly causing
injury.
LOADING TOOL
■Do not load the tool with fasteners when any one
of the operating controls is activated.
When loading tool:
●Never place a hand or any part of body in
fastener discharge area of tool.
●Never point tool at anyone.
●Do not pull the trigger or depress the
workpiece contact as accidental actuation
may occur, possibly causing injury.
SAVE THESE INSTRUCTIONS
■Refer to them frequently and use them to instruct
others who may use this tool. If you loan someone
this tool, loan them these instructions also.
SYMBOL
Safety alert
Please read the instructions carefully before
starting the machine.
Wear ear protection
Wear eye protection
Keep hands away. Keep hands and body
away from the discharge area of the tool.
Hot surface. To reduce the risk of injury or
damage, avoid contact with any hot surface.
PRODUCT SPECIFICATIONS
Operating pressure 4.8 - 8.3 bar (70 - 120 psi)
Fastener type 15 gauge nish nails
Fastener range 25 - 65mm
Magazine capacity 100 nails
Air consumption 3.1 L/cycle at 100 psi
Air inlet 3/8 in. NPT
Weighted sound
impulse power level
92.9 dB(A)
Emission sound
pressure level
80.6 dB(A)
Vibration 2.48 m/s2
Weight 1.9 kg
DESCRIPTION
1. Adjustable exhaust
2. Selectable trigger
3. Belt hook
4. Quick-connect swivel connector
5. Angled magazine
6. Depth of drive adjustment
7. Pusher
8. Workpiece contact
9. No-mar pad
10. Jam release
11. No-mar pad storage
12. Nose
13. Air hose connector
14. Nails
15. Trigger lever pivot pin
16. Selector in position A
17. Selector in position B
18. To increase depth
19. To decrease depth
20. Inside lever
21. Latch
KNOW YOUR FINISH NAILER
See gure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual
as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all
operating features and safety rules.
ADJUSTABLE EXHAUST
The exhaust can be adjusted to a variety of positions
depending on operator preference.
ANGLED MAGAZINE
The angled magazine allows access to tighter areas, and
its rear-loading design offers quick two-step reloading of
fasteners.
BELT HOOK
The hook will rotate to either side of the tool and can be
used to hang the tool from a belt when disconnected and
not in use.
CONSTRUCTION RULER
A construction ruler located along the left side of the
angled magazine allows the operator to make quick
measurements while working.

4
●Hex keys (4 mm and 5 mm)
●Eye protection
●Operator’s manual
WARNING
If any parts are damaged or missing do not operate
this tool until the parts are replaced. Use of this
product with damaged or missing parts could result in
serious personal injury.
WARNING
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modication is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
OPERATION
DANGER
Do not use oxygen, combustible gases or bottled
gases as a power source for this tool. The tool will
explode and cause death or serious injury.
WARNING
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufcient to inict severe injury.
WARNING
Always wear safety goggles or safety glasses with
side shields when operating tools. Failure to do so
could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING
Disconnect the tool from the air supply before leaving
the work area, moving the tool to another location, or
handing the tool to another person. Failure to do so
could result in serious personal injury.
WARNING
Always wear eye protection. Eye protection does
not t all operators in the same way. Make sure the
eye protection chosen has side shields or provides
protection from ying debris both from the front and
sides.
DEPTH OF DRIVE ADJUSTMENT
The tool-free depth of drive adjustment lets the operator
select precise driving depth of the fastener.
IN-HANDLE AIR FILTER
The self-cleaning in-handle air lter helps keep debris out
to extend the life of the tool.
INTERNAL PISTON CATCH
The internal piston catch delivers consistent driving
power.
JAM RELEASE
A tool-free jam release is provided for ease in clearing
infrequent jams.
MUFFLER
The mufer reduces noise during operation.
NO-MAR PAD
The no-mar pad prevents marring and denting when
using the tool on softer woods.
OVERMOLD GRIP AND TRIGGER
The overmold grip and trigger offer increased comfort
and control of the tool.
QUICK-CONNECT SWIVEL CONNECTOR
The quick-connect swivel connector helps prevent hose
tangles.
SELECTABLE TRIGGER
The selectable trigger lets the operator choose between
Contact Actuation for higher productivity and Single
Sequential Actuation for precise fastener placement.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
■Carefully remove the tool and any accessories from
the box. Make sure that all items listed in the packing
list are included.
WARNING
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged.
Use of a product that is not properly and completely
assembled could result in serious personal injury.
■Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
■Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
tool.
PACKING LIST
●Angled finish nailer
●Tool bag
●Oil

5
APPLICATIONS
You may use this tool for the purposes listed below:
●Finish and trim (Interior and exterior)
●Door & window casing
●Door jambs
●Baseboard
●Crown molding
●Cabinetry
●Molding
●Staircases
●Door and window trim
●Chair rail
●Brickmold
●Hardwood flooring
●Paneling
●Furniture
PREPARING THE TOOL FOR USE
See gure 2.
Under normal use conditions, the tool should be
lubricated before connecting the tool to an air supply.
Add air tool lubricant into the air tting on the tool once
daily with minimal use, or twice a day with heavy use.
Only a few drops of oil at a time is necessary. Too much
oil will only collect inside the tool and will be noticeable in
the exhaust cycle.
Before connecting the tool, check the air compressor
gauge to be sure it is functioning within the proper range
of 4.8 - 8.3 bar (70 - 120 psi).
NO-MAR PAD
See gure 3.
The no-mar pad attached to the nose of the tool helps
prevent marring and denting when working with softer
woods.
WARNING
Disconnect the tool from the air supply before
removing or replacing the no-mar pad. Failure to do so
could result in serious personal injury.
The pad can be removed by pulling it down and away
from the nose. To replace the pad, t it into place over the
nose and push up at the back to reseat.
On-board storage for the pad is located on the magazine
of the tool. An extra no-mar pad is provided in the on-
board storage area.
ADJUSTING THE EXHAUST
See gure 4.
The adjustable exhaust on the end cap of the tool allows
the operator to direct the exhaust according to operator
preference.
To adjust, turn the exhaust cap in the desired direction.
WARNING
Disconnect the tool from the air supply before leaving
the work area, moving the tool to another location, or
handing the tool to another person. Failure to do so
could result in serious personal injury.
CONNECTING THE TOOL TO AN AIR SUPPLY
See gure 5.
DANGER
Do not use oxygen, combustible gases or bottled
gases as a power source for this tool. The tool will
explode and cause death or serious injury.
This tool is designed to operate on clean, dry compressed
air at regulated pressures between 4.8 - 8.3 bar (70 - 120
psi). The correct air pressure is the lowest pressure that
will do the job.
NOTE: Air pressure that is higher than 8.3 bar (120 psi)
may damage the tool.
The tool and air hose must have a hose coupling that
allows all pressure to be removed from the tool when the
coupling is disconnected.
WARNING
Always use a coupling that discharges all the
compressed air in the tool at the time the tting or
hose coupling is disconnected. Using a coupling that
does not discharge the compressed air could cause
unintended operation and serious personal injury.
WARNING
Do not climb rigging or scaffolding while carrying a tool
that is connected to an air hose. Doing so could result
in serious personal injury.
Connect the tool to the air supply with a 1/4 in. female
quick connector. A 3/8 in. female quick connector may
be used in situations where a 1/4 in. supply line is not
available. For maximum tool performance, a 3/8 in.
supply line and ttings are required.
LOADING THE TOOL WITH NAILS
See gure 6 - 7.
WARNING
The tool’s driving mechanism may cycle when the tool
is rst connected to the air supply. Always connect the
tool to a pressurized air supply before loading nails to
prevent injury from unintended cycling. Always make
sure the tool’s magazine is empty at the beginning of
each work session, before connecting to an air supply.
1. Connect the tool to the air supply.
2. With the nose of the tool pointed away from you, feed
a strip of nails into the magazine. Be sure the nails
are pointed downward and at the angle shown.

6
WARNING
Keep the tool pointed away from yourself and others
when loading nails. Failure to do so could result in
possible serious personal injury.
■Slide the pusher all the way to the rear of the
magazine. Release the pusher and allow it to push
the nails up to the driving mechanism. The pusher
will stop when it rests against the end of the nail strip.
NOTE: Do not allow the pusher to snap back into place.
WARNING
Use only the nails recommended for use with this
tool. The use of any other nails can result in tool
malfunction, leading to serious injuries.
WARNING
Never load nails with the workpiece contact or trigger
activated. Doing so could result in possible serious
personal injury.
WARNING
Do not use nails smaller than 2.87 mm nail shank
diameter. Doing so may cause nails to exit the tool
prematurely through the guide track. Do not use
hardened nails with pneumatic tools. This could lead
to excessive wear of the guide body and allow nails
to exit the back of the guide body, leading to serious
personal injury.
USING THE SELECTABLE TRIGGER
See gure 8 - 9.
WARNING
Never wedge or hold back the workpiece contact
mechanism during operation of the tool. Doing so
could result in possible serious injury.
This tool is shipped from the factory with a selectable
trigger set in the single sequential actuation mode. The
selectable trigger can also be set for contact actuation
mode.
Note: Do not use this tool in the contact actuation mode
unless you have had training in the use of this mode of
operation. Untrained or inexperienced operators should
not use the contact actuation mode.
SINGLE SEQUENTIAL ACTUATION MODE
Single sequential actuation provides the most accurate
fastener placement.
1. Disconnect the tool from the air supply.
2. Depress the trigger lever pivot pin.
3. Rotate the selector to position A.
4. Release the trigger lever pivot pin.
WARNING
The nailer will not function properly if the selector is
not securely seated in either position A or B. Always
assure the selector is seated properly to avoid an
unexpected fastener discharge and possible serious
personal injury.
5. Reconnect the tool to the air supply.
6. Grip the tool rmly to maintain control. Position the
nose of the tool onto the work surface.
7. Push the tool against the work surface to depress the
workpiece contact.
8. Squeeze the trigger to drive a fastener.
9. Allow the tool to recoil away from the work surface as
the fastener is driven.
10. Always remove your nger from the trigger when the
desired number of nails has been driven.
CONTACT ACTUATION MODE (BUMP FIRE)
Contact actuation allows very fast repetitive fastener
placement.
1. Disconnect the tool from the air supply.
2. Depress the trigger lever pivot pin.
3. Rotate the selector to position B.
4. Release the trigger lever pivot pin.
NOTE: The trigger lever pivot pin is spring loaded and
held in position by locking tab to prevent movement
during operation.
5. Reconnect the tool to the air supply.
6. Grip the tool rmly to maintain control.
7. Squeeze and hold the trigger. Push the tool against
the work surface to depress the workpiece contact
and drive a fastener.
8. Allow the tool to recoil away from the work surface as
the fastener is driven.
9. Always remove your nger from the trigger when the
desired number of nails has been driven.
NOTE: In contact actuation mode, the tool may also be
operated by depressing the workpiece contact against
the surface and squeezing the trigger.
WARNING
When used in the contact actuation mode do not
carry the tool with the trigger depressed as this will
cause a fastener to discharge if the workpiece contact
accidentally bumps against an object. Failure to observe
this warning can result in serious personal injury.
WARNING
During normal use the tool will recoil immediately
after driving a fastener. This is a normal function
of the tool. Do not attempt to prevent the recoil by
holding the nailer against the work. Restriction to the
recoil can result in a second fastener being driven from
the nailer. Grip the handle rmly, let the tool do the
work, and do not place second hand on top of tool or
near exhaust at any time. Failure to heed this warning
can result in serious personal injury.

7
from you while clearing the jam.
1. Remove fasteners from the tool.
2. Pull up on the latch and open the jam release.
3. Insert a at blade screwdriver into the driving
mechanism and push the driver mechanism back,
freeing the fastener jam.
4. Remove the bent fastener.
5. Close the jam release and latch.
6. Reconnect the tool to the air supply.
7. Reinstall fasteners.
MAINTENANCE
WARNING
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
Disconnect the tool from the air supply before
performing maintenance. Failure to do so could result
in serious personal injury.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake uids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
LUBRICATION
Frequent, but not excessive, lubrication is required for
best performance. Oil for pneumatic fastening tools
added through the air line connection will lubricate the
internal parts. Do not use detergent oil or additives as
these lubricants will cause accelerated wear to the
seals and bumpers in the tool, resulting in poor tool
performance and frequent tool maintenance.
COLD WEATHER OPERATION
For cold weather operation, near and below freezing,
the moisture in the air line may freeze and prevent tool
operation. We recommend the use of air tool lubricant or
permanent antifreeze (ethylene glycol) as a cold weather
lubricant.
SETTING THE AIR PRESSURE
The amount of air pressure required will depend on the
size of the nail and the workpiece material.
Begin testing the depth of drive by driving a test nail into
the same type of workpiece material used for the actual
job.
Drive a test nail with the air pressure set at 6.2 - 6.5 bar
(90 - 95 psi). Raise or lower the air pressure to nd the
lowest setting that will perform the job with consistent
results.
It may be possible to achieve the desired depth with
air pressure adjustments alone. If ner adjustments are
needed, use the drive depth adjustment on the tool.
DRIVE DEPTH ADJUSTMENT
See gure 10.
The driving depth of the nail may be adjusted. It is
advisable to test the depth on a scrap workpiece to
determine the required depth for the application.
To determine depth of drive, rst adjust the air pressure
and drive a test nail. To achieve the desired depth, use
the drive depth adjustment on the tool.
1. Disconnect the tool from the air supply.
2. Turn the depth selector left or right to change the
driving depth.
3. Reconnect the tool to the air supply.
4. Drive a test nail after each adjustment until the
desired depth is set.
REMOVING NAILS FROM THE TOOL
See gure 11.
1. Disconnect the tool from the air supply.
WARNING
Disconnect the tool from the air supply before
performing maintenance. Failure to do so could result
in serious personal injury.
2. To remove a strip of nails from the tool, retract the
pusher until it reaches the end of the magazine and
locks into place.
NOTE: Always keep fingers clear of nail track of
magazine to prevent injury from unintended release
of the pusher.
3. Holding your left hand underneath the rear of the
magazine, tilt the tool up so that the hose connector
faces down. The nails will slide back and exit the rear
of the magazine.
WARNING
Disconnect the tool from the air supply before clearing
a jammed fastener. Failure to do so could result in
serious personal injury.
CLEARING A JAMMED FASTENER
See gure 12.
If a nail or fastener becomes jammed in the tool,
disconnect the air hose and keep the tool pointed away

8
CAUTION
Do not store tools in a cold weather environment to
prevent frost or ice formation on the tools’ operating
valves and mechanisms that could cause tool failure.
NOTE: Some commercial air line drying liquids are
harmful to “O” rings and seals. Do not use these low
temperature air dryers without checking compatibility.
AIR SUPPLY PRESSURE AND VOLUME
Air volume is as important as air pressure. The air
volume supplied to the tool may be inadequate because
of undersize ttings and hoses, or from the effects of dirt
and water in the system. Restricted air ow will prevent
the tool from receiving an adequate volume of air, even
though the pressure reading is high. The results will
be a slow operation or reduced driving power. Before
evaluating tool problems for these symptoms, trace the
air supply from the tool to the supply source for restrictive
connectors, low points containing water and anything
else that would prevent full volume ow of air to the tool.
REQUIRED DAILY CHECKLIST
See gure 8 -10.
1. Disconnect the air supply from the tool and remove
all fasteners.
2. Check all screws, nuts, bolts, and pins on the tool. If
any of these are loose, they must be tightened with
the appropriate size wrench.
3. Press the workpiece contact against a workpiece to
ensure that it moves smoothly.
4. With the workpiece contact depressed, pull the trigger.
The trigger should move smoothly, without binding.
5. While the tool is not loaded, connect the appropriate
air supply at 4.8 bar (70 psi) to the tool.
6. Rotate the selectable trigger knob on the trigger to
single sequential actuation operation, position A (See
figure 8). No air should leak from the tool.
●Without pulling the trigger, press the workpiece
contact against a workpiece several times. The
tool must not operate.
●With the workpiece contact not engaged on the
workpiece, point the tool down and away and pull
the trigger several times. Hold the trigger in this
position for a minimum of 5 seconds. The tool
must not operate.
●Press the workpiece contact firmly against the
workpiece. The tool must operate.
●With the workpiece contact still depressed,
release the trigger. The driver must return to its
up position.
7. Rotate the selectable trigger knob on the trigger to
contact actuation operation, position B (See figure 8).
●With the workpiece contact not engaged on the
workpiece, point the tool down and away. Pull the
trigger. The tool must not operate.
●Keeping the trigger fully depressed, push the
workpiece contact against a workpiece. The tool
must operate.
8. If the tool successfully meets all the requirements in
this checklist, it is ready for use. Set the trigger on
the tool to operate in the manner that best ts your
application. Load the proper fasteners for the desired
application.
Note: Do not use this tool in the contact actuation
mode unless you have had training in the use of
this mode of operation. Untrained or inexperienced
operators should not use the contact actuation mode.
9. Set the depth of drive according to the “drive depth
adjustment” section in this manual. Repeat this
checklist before using the tool each day, or if the tool
is dropped or damaged in any way.
ACCESSORIES
To order parts and maintenance kits, call
Australia - 1300 361505
New Zealand - 0800 279624
WARNING
Current attachments and accessories available for
use with this tool are listed above. Do not use any
attachments or accessories not recommended by the
manufacturer of this tool. The use of attachments or
accessories not recommended can result in serious
personal injury.

9
TROUBLESHOOTING
PROBLEM CAUSE POSSIBLE SOLUTION
Air leak near the top of the tool
or in the trigger area
Loose screws Tighten screws
Worn or damaged O-rings or seals Install overhaul kit
Air leak near the bottom of the
tool
Loose screws Tighten screws
Worn or damaged O-rings or bumper Install overhaul kit
Tool does nothing or operates
sluggishly
Inadequate air supply Verify adequate air supply
Inadequate lubrication Lubricate tool
Worn or damaged O-rings or bumper Install overhaul kit
Tool jams frequently Incorrect fasteners Verify that fasteners are the correct size
Damaged fasteners Replace fasteners
Loose magazine Tighten screws
Dirty magazine Clean magazine
Worn or damaged driver Install driver maintenance kit
TPG20110208v2
