AEG AP218E2-0 User manual

AP218E2-0

2
2
Important!
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
It is essential that you read the instructions in this manual
before operating this machine.
Subject to technical modifications.

33
x 4x 4
2
1
4
6
3
14
16
15
10
11
12
13 19
17
20
7
5
1. Collapsible handle
2. Battery cover
3. Washable HEPA filter
4. On/off switch
5. Speed selector
6. Blower adapter
7. Battery ports
8. Latch
9. Vacuum port
10. Extension tube
11.
Air regulator
12.
Power tool adaptor
13.
Crevice tool
14. Foam sleeve filter
15. Dust bag
16. Anti-crush hose
17. Floor tool
Round brush18.
19.
20.
Caster feet
Caster feet screw
8
9
18

4
4
Fig. 1
Fig. 2
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 3
3
1
2
1
2
3
2
1
1
12
1
2

55

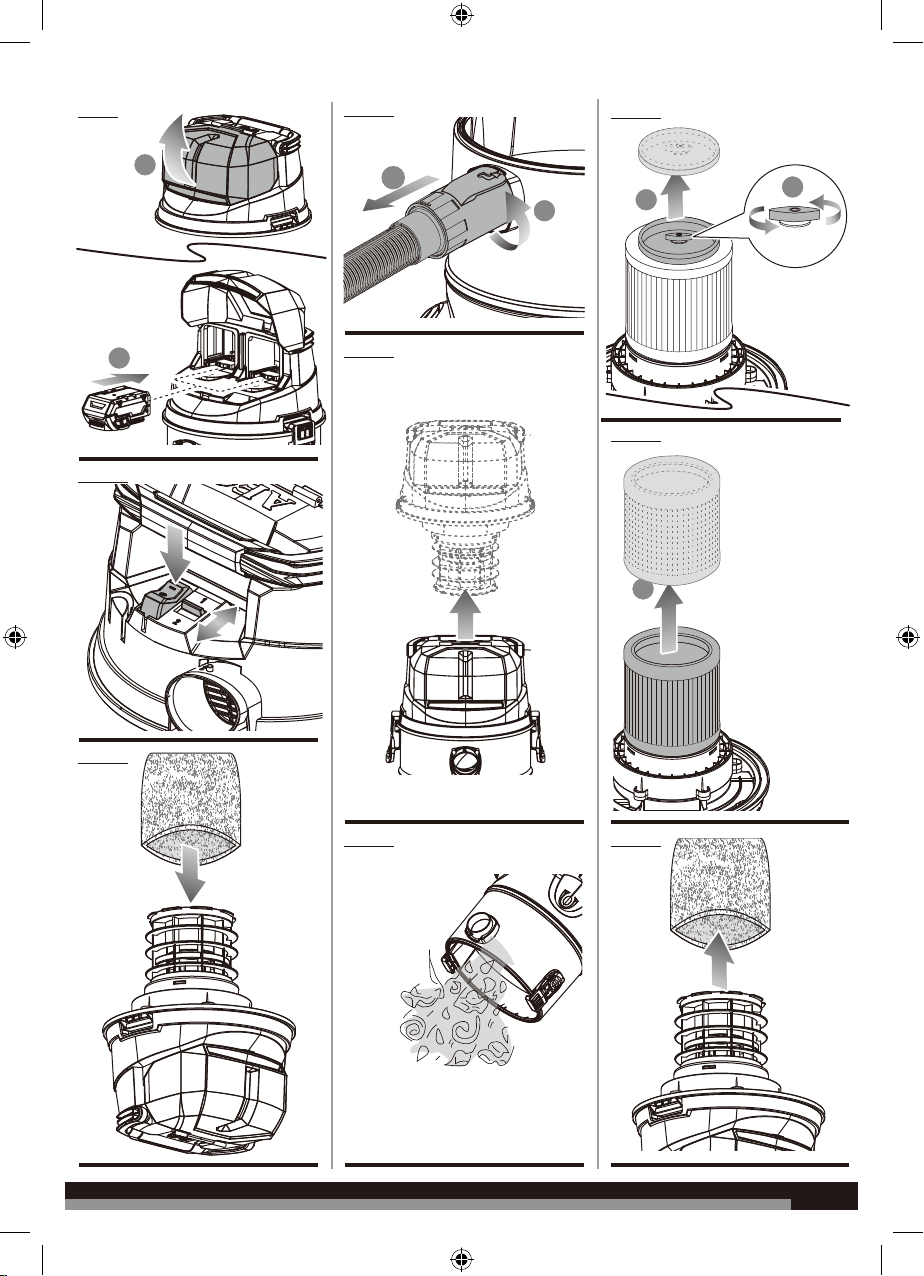

Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
1
2
Fig. 16
1
2
3
Fig. 14
Fig. 15
Fig. 17
1
2

6
6

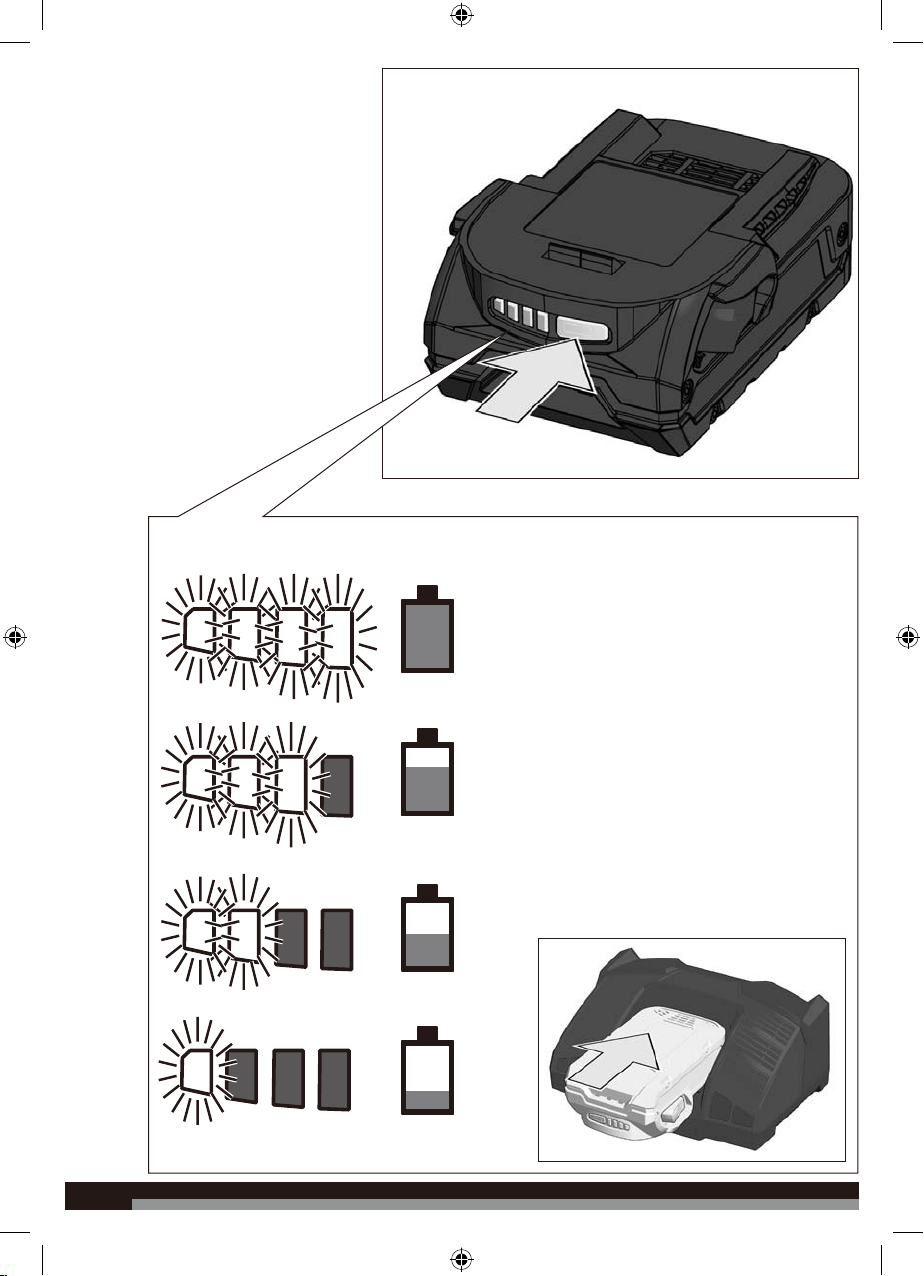

75-100 %
50-75 %
25-50 %
0-25 %

77
WARNING! Read all safety warnings and all
instructions.
Failure to follow the warnings and instructions may result in electric
Save all warnings and instructions for future reference.
DUST EXTRACTOR SAFETY WARNINGS
■The product is designed solely for use in the private sector
and for the designated purpose. The product is not suitable
for commercial use. Do not use the product outdoors
(unless it has been specifically designed for use outdoors).
Do not subject the product to heat, direct sunshine or very
high moisture (e.g., rain).
■Never immerse the product in liquids and be aware of sharp
edges that may damage it. Never use the product with wet
or damp hands. Remove all battery packs immediately if
the product becomes wet or damp when it is running. Do
not immerse the appliance in water.
■The product may only be used and kept in a private home.
■The product is designed to vacuum up materials that are
not hazardous to your health and that are not flammable.
■Never hold the connectors in front of your face (especially
your eyes, ears, etc.). Never direct the nozzle towards
persons or animals.
■Only use the product for its designated purpose. Any
other types of use are at your own risk and are possibly
dangerous.
■Other uses and unattended operation are not allowed.
■The manufacturer cannot be made responsible for damages
that are caused by improper use or incorrect operation.
■Wear protective clothing and gloves.
■Make sure that the correct dust bag has been inserted
securely in its holder before using the product. The wrong
dust bag or incorrectly installed dust bags can cause
damage to the product and cause the guarantee to become
void.
■Do not vacuum up ashes, hot coals and the like, large
fragments of glass and sharp objects.
■Do not vacuum up any printer toner dust as it is electrically
conductive. In addition, it is possible that it will not be
completely filtered out by the filter system of the wet/dry
vacuum cleaner and can be released into the air via the
exhaust fan.
■Never vacuum flammable or poisonous liquids like petrol,
oil, acids, or other volatile substances.
■Do not vacuum up liquids that are hotter than 60°C or any
poisonous or flammable dusts.
■Never lay the product on its side. Pay particular attention to
a horizontal position and adequate stability on stairs.
■Always remove all battery packs after use and before
cleaning or changing the filters or accessories.
■Only trained specialists may make repairs on electric
equipment. Improper repairs could result in considerable
danger to the user.
■Do not store the product directly beside a hot oven or
radiator.
■Children, disabled persons, and the aged are often not
aware of the dangers that can result from handling electric
appliances. The above mentioned persons and untrained
persons must never work with this electrical appliance.
■When cleaning or removing the product, always switch it
off. Remove all battery packs, if you are not going to use
the product for an extended period of time. Also, remove
any special accessories from the product.
■Always keep the product clean. Do not use any solvents
or cleaners that may damage or be harmful to the product
or user.
■Never leave the product switched on unattended. If you
leave the work area, switch the product off and remove all
battery packs.
■In order to protect children from electric household
appliances, do not give children access to the product.
■Never use the product when you are under the influence
TECHNICAL DATA AP218E2-0
18 V
12 kPa
1,500 L/min
20 L
4.9 kg
IPX4
2 A
H12
1.8 m
35 mm
≤85 dBA
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
Model series L18XXR includes
models below:
L1815R
L1820R
L1825R
L1830R-X5
L1840R
L1850R
L1860R
L1860R-X5
L1890R
AL18G
AL1218G
BL1218
BLK1218
BL18DP-X5
BL18DP2-X5
BL18DPS
Use AEG 18V battery and charger only
Rated voltage...................................................................................................................................................................
Suction power...................................................................................................................................................................
Air flow.......................................................................................................................................................................
Tank volume..........................................................................................................................................................................
Weight - not including battery pack....................................................................................................................................
Ingress protection.................................................................................................................................................................
Electrical Wattage/Current draw.............................................................................................................................................
HEPA Filter rating..................................................................................................................................................................
Hose Length........................................................................................................................................................................
Hose diameter...................................................................................................................................................................
Operation Noise figures.................................................................................................................................................
20L WET & DRY DUST EXTRACTOR

8
8
of medication, alcohol or drugs, if you are currently under
medical care, or if you are tired.
■Check the product regularly for any possible damage. Do
not use damaged appliances.
■Do not try to repair the product yourself. Always use an
authorised technician for repairs.
■Only use original spare parts and accessories. Non
approved parts or third-party accessories may be a possible
source of danger and cause the guarantee to become void.
■If you notice liquid leaking from the product, switch it off
immediately and remove all battery packs.
■Do not submerge the product in water. Make sure that
water is not spilled on the product.
■When disposing of the wastewater, make sure that you
observe any legal regulations.
■Only store the product in a safe and dry location outside the
reach of children.
■This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
■Children should be supervised to ensure that they do not
play with the appliance.
■Never vacuum up hot ashes, pointed or sharp objects.
■Never use the product in damp rooms.
■Do not use the product without a dust bag (an exception is
wet vacuuming or with the cartridge filter). Make sure that
the dust bag is inserted into the appliance correctly.
■When using the product, make sure that no hair, clothing,
or members are drawn in.
■Keep the vacuum cleaner away from heat sources such as
radiant heaters, ovens, and so on.
■If the hose or tools are blocked, switch off the product and
remove the blockage(s) before re-starting the product.
■Cleaning filters and replacing them regularly maintains
vacuum performance. We recommend that your filters
should be checked, cleaned and replaced periodically.
■Damage to the vacuum cleaner caused as a direct result
of not adhering to the general safety information and the
instructions in this user guide invalidates the warranty.
■Cleaning and user maintenance shall not be made by
children without supervision.
■Rechargeable batteries are to be removed from the
appliance before being charged.
■Exhausted batteries are to be removed from the appliance
and safely disposed of.
■If the appliance is to be stored unused for a long period, the
batteries should be removed.
■The supply terminals are not to be short-circuited.
SPECIFIED CONDITIONS OF USE
This cordless wet/dry vacuum is intended for household use. It
may be used for light vacuuming of wet or dry media.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
ASSEMBLY
CAUTION
bags. Before attempting to use or before cleaning this
vacuum, be sure that you fully understand the instructions
UNPACKING THE PRODUCT AND GENERAL ASSEMBLY

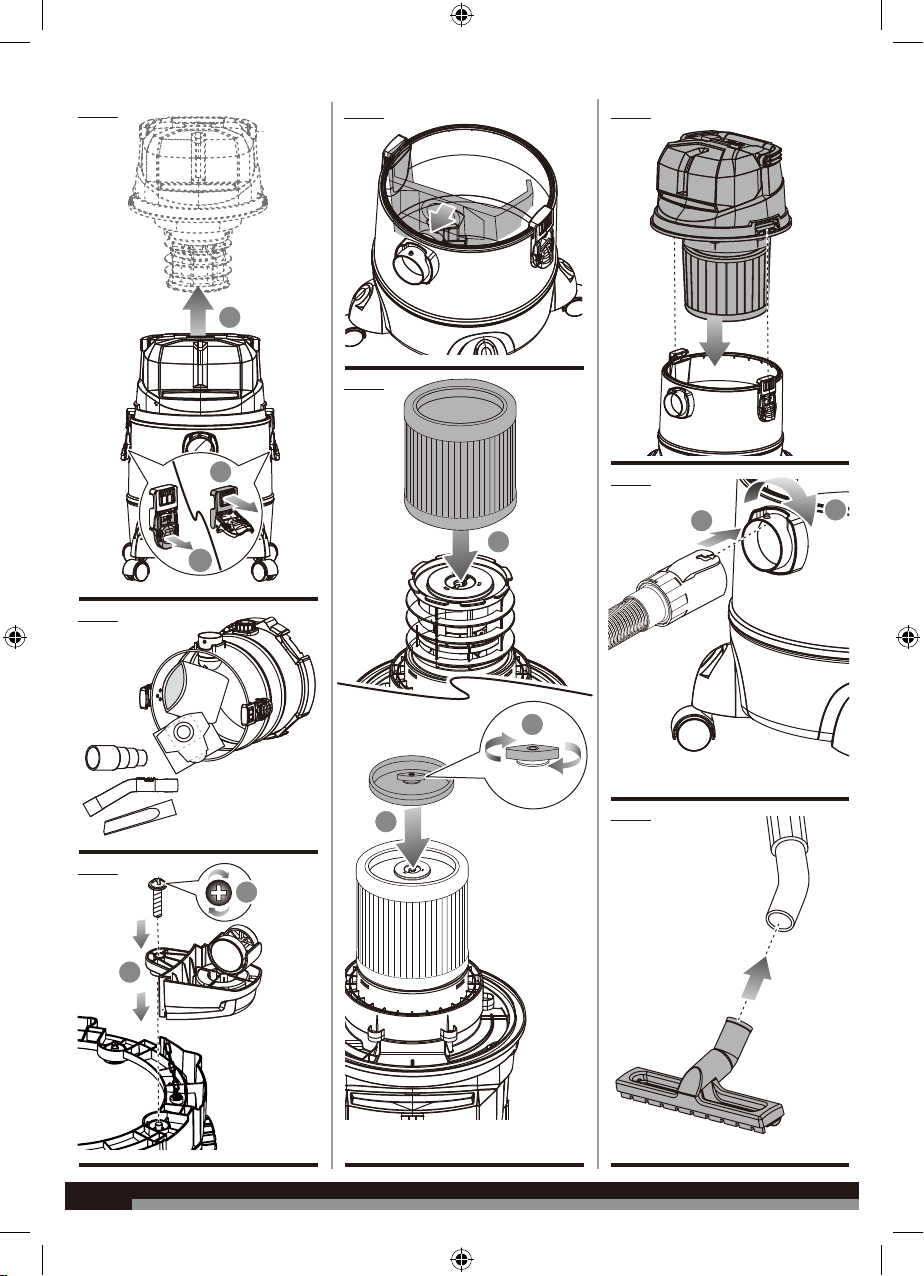

See figure 1-8.
1. Verify that no battery pack is inserted in the battery port(s).
2. Undo the latches.
3. Lift the power head off the tank (Fig 1).
4. Remove the contents from inside the tank and carton.
Make sure you have all contents as listed in component list
(Fig 2).
5. Turn the tank upside down and insert the four caster feet
into the slots on the base. Apply downward pressure to
each caster. Verify that the casters are mounted correctly.
Lock the casters in place with the provided screws (Fig 3).
6. The product comes ready for dry vacuum cleaning. If
HEPA filter is not installed, refer to the Installing HEPA filter
section for instructions of installation (Fig 5).
7. Fit collection bag flange onto the inlet stub, taking care not
to damage the bag (Fig 4).
8. For wet vacuum cleaning, remove the HEPA filter and
collection bag. Install the supplied foam filter. Refer to
the Installing foam sleeve filter section for instructions of
installation (Fig 11).
9. Place the power head back on the tank, aligning the top
section with the latches, and hook the latches (Fig 6).
10. Insert the locking end of the hose into the vacuum port and
turn to lock into place (Fig 7).
11. Choose the desired accessories and push onto the suction
tube (Fig 8).
WARNING
replaced prior to performing wet vacuuming operations.
BATTERY PORTS
The product is equipped with dual battery ports for an extended
operation time per use. When two battery packs are inserted,
the product draws power from the battery pack at the left port
the product will begin drawing power from the battery pack at
the right port.
INSTALLING/REMOVING BATTERY PACK
See figure 9.
The product is operated by an AEG 18V battery pack.
1. Open the battery port cover (Fig 9).
2. Place the battery pack in the product, aligning the ribs on
the battery pack with the grooves in the battery port (Fig 9).

99
3. Make sure the latches on the battery pack snap into place
and the battery pack is secured to the product before
beginning operation.
OPERATION
DRY VACUUMING
See figure 4-11.
WARNING
Be sure to read, understand all warnings and instructions
in the manual before use. Do not vacuum in areas with
WARNING
Flammable gases or vapors include but are not limited to;
alcohol or aerosol sprays. Explosive dusts include but are
not limited to; coal, magnesium, grain or gun powder. To
reduce the risk of health hazards from vapors or dust, do not
vacuum toxic materials.
CAUTION
of hazardous material into the work area will take place if
not installed. Make sure no battery pack is inserted in the
battery ports before assembly.
NOTE:
dust port of the power tool.
1. Verify that no battery pack is inserted in the battery ports.
2. In order to prepare your vacuum for dry vacuuming, verify
that the HEPA filter is securely mounted. With power head
removed and in upside down position, make sure the filter
is pushed in until it stops against the power head and the
filter cap is installed. Turn the locking knob clockwise to
lock the filter cap in place (Fig 5).
3. For improved dust collecting, fit collection bag flange onto
the inlet stub, taking care not to damage the bag (Fig 4).
4. Place the power head back on the tank, and secure it in
place using the latches (Fig 6).
5. Insert the locking end of the hose into the vacuum port and
lock in place. Push the required attachment onto the free
end of the hose or extension (Fig 7).
6. Open the battery port cover and insert a battery pack in
the battery port (Fig 9).
7. Turn the motor on by turning the switch to the ‘I’ ON
position (Fig 10).
8. Slide the speed selector for the desired vacuuming speed.
9. Once you have completed vacuuming, flip the switch to
the ‘O’ OFF position and remove all battery packs from the
battery ports (Fig 10).
WARNING
replaced prior to performing wet vacuuming operations.
NOTE:
WET VACUUMING
See figure 11.
WARNING
Be sure to read, understand all warnings and instructions
in the manual before use. Do not vacuum in areas with
WARNING
Flammable gases or vapors include but are not limited to;
alcohol or aerosol sprays. Explosive dusts include but are
not limited to; coal, magnesium, grain or gun powder. To
reduce the risk of health hazards from vapors or dust, do not
vacuum toxic materials.
1. Verify that no battery pack is inserted in the battery ports.
Verify that the tank is clean and free of dust and dirt.
2. Remove the HEPA filter and dust bag (Fig 16 & reverse of
3. Rinse out the inside of tank to remove any loose debris.
4. Carefully install the foam sleeve filter over the filter cage
and place the power head back on the tank (Fig 11).
NOTE:
WARNING
replaced prior to performing wet vacuuming operations.
Wet vacuuming operation instructions
1. Fit the desired nozzle to the vacuum hose.
2. Verify that the switch is in the ‘O’ OFF position before
inserting the battery pack.
3. Open the battery port cover and insert a battery pack in
the battery port (Fig 9).
4. Turn the motor on by flipping the switch to the ‘I’ ON
position (Fig 10).
5. After use, empty the tank (Fig 15).
NOTE:
NOTE: When vacuuming large quantities of liquids, do not
immerse the nozzle completely in the liquid. Leave a gap at the
action when the tank reaches its maximum capacity. You will
notice an increase in motor speed.
When this happens, turn off the machine, remove all battery
Fig 4).

10
10
packs, and drain the liquid into a suitable receptacle or drain.
wet vacuuming, turn the machine off and remove all battery
packs. Empty the tank, clean and dry the inside and outside
before storage.
BATTERIES
Battery packs which have not been used for some time should
be recharged before use.
Temperatures in excess of 50°C reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully
charged, after used.
To obtain the longest possible battery life remove the battery
pack from the charger once it is fully charged.
For battery pack storage longer than 30 days:
•Store the battery pack where the temperature is below
27°C and away from moisture.
•Store the battery packs in a 30% - 50% charged condition.
•Every six months of storage, charge the pack as normal.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance
with local, national and international provisions and regulations.
■The user can transport the batteries by road without further
requirements.
■Commercial transport of Lithium-Ion batteries by third
parties is subject to Dangerous Goods regulations.
Transport preparation and transport are exclusively to
be carried out by appropriately trained persons and the
process has to be accompanied by corresponding experts.
When transporting batteries:
■Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
■Ensure that battery pack is secured against movement
within packaging.
■Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it
from being overloaded and helps to ensure long life. Under
extreme stress the battery electronics switch off the machine
automatically. To restart, switch the machine off and then
on again. If the machine does not start up again, the battery
pack may have discharged completely. In this case it must be
recharged in the battery charger.
MAINTENANCE
See figure 12-14.
WARNING
Always remove all battery packs before removing the power
head from the tank.
1. Verify that no battery pack is inserted in the battery ports.
2. Disconnect the hose from the vacuum (Fig 13).
3. Undo the latches and remove the power head from the
tank (Fig 14).
4. Clear all dirt or debris from the tank and hose (Fig 15 ).
5. Clean the foam filter by washing it with water and mild
soap.
6. Check the hose and attachments to verify that they have
not been damaged.
INSTALLING AND REMOVING HEPA FILTER
See figure 5.
1. Verify that no battery pack is inserted in the battery ports.
2. Remove power head and place in upside down position.
3. Install the HEPA filter over the filter cage with the flat end of
the filter towards the vacuum power head. Carefully push
filter in until it stops against the power head.
4. Install the filter cap. Turn the locking knob clockwise to lock
the filter cap in place.
See figure 15-16.
1. Unlock and remove the filter cap by tuning cap counter
clockwise.
2. Carefully hold and pull the HEPA filter up for removal.
3.
NOTE:
and cap attached, the motor will burn out and the warranty will
be voided.
NOTE:
quality materials designed to stop small dust particles. The
when removing it for replacing it. Check the HEPA cartridge
through and out of the cleaner.
it immediately.
off. For optimal performance it is recommended to regularly
To clean, either dust off the filter by gently tapping or
brushing direct off. Alternatively wash it with clean water. If
washed, please allow to air dry for 24hours before installing
back onto the unit.

11 11
CLEANING AND CHANGING HEPA FILTER
WARNING
after each discharge cycle or if performance drops. Replace
basis.
NOTE: Filter maintenance is important. Make sure the HEPA
completely dry before reusing in the vacuum. We recommend
in case of urgent use needed.
occur after you have checked for any obstructions in the hose
or wand. Also, install a new collection bag.
INSTALLING AND CLEANING FOAM SLEEVE FILTER
See figure 11.
1. Verify that no battery pack is inserted in the battery ports.
2. Remove power head and place in upside down position.
3. Carefully slide foam sleeve filter down over the filter cage
making sure the hole is covered.
4. Replace the power head on to the tank.
See figure 17.
1. With the removed power head in the upside down position,
carefully remove foam sleeve filter.
2. Use a mild soap and water solution to wash foam sleeve
filter and rinse with clean water.
3. Allow filter to air dry before installing and using again.
CHANGING THE DUST BAG
When the collection bag is 3/4 full, it must be replaced.
from the vacuum tank and can result in breakage and spills.
When collection bag becomes 3/4 full, turn off vacuum and
slowly remove the collection bag from the tank until the
opening in the collection bag is clear of the tank.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been
described, please contact one of our AEG service agents (see
our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the Article No. as well as the machine type printed on
the label and order the drawing at your local service agents
or directly at:
Techtronic Industries (Australia) Pty. Ltd.
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 361 505
Australia
Techtronic Industries N.Z. Ltd.
PO Box 12-806
Penrose AUCKLAND 1642
Tel no. 0800 279 624
New Zealand
SYMBOLS
Safety alert
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Please read the instructions carefully before
starting the machine.
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the
end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
TROUBLESHOOTING
Problem Possible Causes Solution
Vacuum will not operate. 1. No power supply.
2. Tank full.
1. Check if battery pack is properly inserted.
2. Check if battery pack if charged.
3. Empty tank.
Dust comes out from motor
cover.
1. The cartridge filter is missing or damaged.
2. HEPA cartridge filter is not installed
correctly.
1. Attach or replace cartridge filter.
2. Check the HEPA catridge filter and install
it correctly.
Reduced efficiency and motor/
speed vibration.
1. There is a blockage in the nozzle, hose,
or the tank inlet. The cartridge filter is
clogged by fine dust.
2. Dust bag is full.
1. Check nozzle, hose and tank inlets for
blockage. Take off the filter and clean it. Or
install a new cartridge filter.
2. Replace the dust bag.

Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
