AEG 825 D User manual

825 D - 8259 D
Dunstabzugshaube
Cooker Hood
Hotte
Afzuigkap
Cappa aspirante
Montage- und Gebrauchsanweisung
Operating and Installation Instructions
Notice d utilisation et d installation
Installatie- en gebruiksaanwijzing
Istruzioni di montaggio e uso
Odhgije" sujndesh" kai crhjsh"
Aporrofhthjra"

2
Gedruckt auf umweltschonend hergestelltem Papier
wer ökologisch denkt, handelt auch so...

18
Printed on recycled paper.
AEG  putting words into action.
Contents
Introduction 20
Extractor version 20
Filter version 21
Electrical connections 22
Safety warnings for electrician 22
Technic Details 23
Installation 24
Safety warnings for kitchen unit installer 24
Installation 26
Hood Operation 28
Safety warnings for user 29
Maintenance and care 30
Metal grease filter 30
Open the metal grease filter 30
Carbon filter 31
Changing the light bulb 32
Cleaning 33
Special accessories 33
Technical assistance service 33

19
Introduction
Extractor version
●The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting activated carbon filters (special
accessory).
●You will need original AEG activated carbon filters for this function
(see Special Accessories).
●The air is forced out through a hose fitted to the top of the hood
A. Fig. 1.
●The outlet hose must have a diameter of 120 mm (special
accessory) for the filtering version.
●Fit the connection ring above the hood with two screws then fir an
exhausting pipe long enough to reach the outside. Fig. 1.
●If the cooking vapour is passed through an outside wall, you will
need an MKZ telescopic wall pipe (with intake and ventilation) E-
Nr.: 610 899 004 (120 mm Ø) from our range of special
accessories.
Fig. 1
A

20
Filter version
●The air is filtered through an activated carbon filter and passed back
into the kitchen through the top outlet duct grids.
●You will need an original AEG activated carbon filter for the
filtering function. (See Special Accessories).
●Fix the deflector with two screws Ø3,5x6,5. Fig. 2.
Fig. 2

21
Electrical connections
Safety warnings for electrician
It must be ensured that the voltage and current indicated on the rating plate
agree with the voltage of the user to electricity supply.
If the appliance has been equipped with a mains lead with a moulded-on type plug,
the following regulations must be comply with:
The plug moulded on to the lead incorporates a fuse. For replacement, use a 5
amp BS1362 fuse. Only ASTA approved or certified fuses should be used. If the
fuse cover/carrier is lost, a replacement cover/carrie must be obtained from an
electrical goods retailer. If the socket outlets are not suitable for the plug fitted to
the appliance, then the plug must be cut off and destroyed for safety reasons, and
an appropriate plug be fitted.
When wiring the plug ensure that all strands of wire are securely retained in each
terminal. Do not forget to tighten the mains lead clamp on the plug.
Electrical connections
230 V - using fixed power supply line with plug.
240 V - using fixed power supply line (Great Britain).
Fuse rating 13 amps
(The unit should only be connected up by an authorized electrician).
See rating plate for further information.
It is recommended that the socket for the plug is sited above the cooker hood
or above the overhead cabinet.
This has 2 advantages:
1) The socket is not visible.
2) The appliance can easily be unplugged when necessary.
If a fixed connection is required the cooker hood should be connected by an
electrical installer registered with a competent electricity company. An isolating
device is to be provided on the fixed wiring side. Switches with a contact opening
of more than 3mm apply as isolating devices.
These include-automatic cut-out switches, fuses and contactors (VDE 0730, s.
7, Part1).

22
Electrical connection for the UK
Appliances with 2 wires
The appliance must be connected to fixed wiring with a double
pole switched fused spur outlet with or without pilot lamp.
We strongly recommend the appliance to be connected only by a
qualified electrician who is a member of the NICEIC who will com-
ply with the IEE and any local regulations.
NOTE:
The terminology DOUBLE POLE means that both the live and the
neutral supplies are switched and disconnected at the same time.
The terminations labelled SUPPLY are for the connection for the
internal house wiring and the terminations labelled LOAD are for
the appliance.
IMPORTANT
The wires of the mains lead supplied with this appliance are
coloured in accordance with the following code:
Blue-Neutral
Brown-Live
As the colours of the flexible cord of this appliance may not
correspond with the coloured markings identifying the ter-
minals in the plug, proceed as follows: The wire which is col-
oured brown must be connected to the terminal which is
marked with the letter L or coloured red.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
N
LOAD
L
SUPPLY
L
LOAD
NSUPPLY
DP 13A, 250V
BLUE
(NEUTRAL) BROWN (LIVE)
FUSE ON

23
Technic Details
Dimensions (825 D):
Height x Width x Depht (in cm) 84-117 x 59,9 x 51.5
Dimensions (8259 D):
Height x Width x Depht (in cm) 84-117 x 89,9 x 51.5
Weight (825 D):
Net: 10,7 kg
Gross: 16,2 kg
Weight (8259 D):
Net: 13,1 kg
Gross: 19,6 kg
Maximum absorbed power: 250W
Motor absorption: 1 x 170 W
Lighting: 2 x 40 W
Length of the cable: 100 cm
Fan powers (speed), speed in compliance with DIN 44971
Extractor version:
1 179 m3/h
2 219 m3/h
3 336 m3/h
i 402 m3/h
Filter version:
1 102 m3/h
2 150 m3/h
3 252 m3/h
i 265 m3/h
Flange: 120 mm Ø

24
Installation
Safety warnings for kitchen unit installer
●When used as an extractor unit, the hood must be fitted
with a 120mm diameter hose.
●If the fumes must be forced out through the wall, you
must obtain a MKZ sizable wall exhaust pipe (with
external exhaust and air intake), E-Nr.- 610 899 004 (Ø 120
mm) which is one of our optional parts.
●When installing the hood, make sure you respect
the following minimum distance from the top edge
of the cooking hob/ring surfaces:
electric cookers 600 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.
●The air outlet must not be connected to chimney flues or
combustion gas ducts. The air outlet must under no cir-
cumstances be connected to ventilation ducts for rooms in
which fuel-burning appliances are installed.
●It is advisable to apply for authorization from the relevant
controlling authority when connecting the outlet to an
unused chimney flue or combustion gas duct.
The air outlet installation must comply with the
regulations laid down by the relevant authorities.
●When the unit is used in its extractor version, a
sufficiently large ventilation hole must be provided, with
dimensions that are approximately the same as the outlet
hole.
●National and regional building regulations impose a
number of restrictions on using hoods and fuel-burning
appliances connected to a chimney, such as coal or oil
room-heaters and gas fires, in the same room.
●The national decree on fuel-burning systems specifies a
maximum depression of 0.04 bar in such rooms.

25
●Hoods can only be used safely with appliances connected
to a chimney if the room and/or flat (air/environment
combination) is ventilated from outside using a suitable
ventilation hole approximately 500-600 cm2 large to
avoid the possibility of a depression being created during
operation of the hood.
If you have any doubts, contact the relevant controlling
authority or building inspectors office.
●Since the rule for rooms with fuel burning appliances is
outlet hole of the same size as the ventilation hole, a
hole of 500-600 cm2, which is to say a larger hole, could
reduce the performance of the extractor hood.
●If the hood is used in its filtering function, it will operate
simply and safely in the above conditions without the
need for any of the aforementioned measures.
●When the hood is used in its extractor function, the
following rules must be followed to obtain optimal
operation:
 short and straight outlet hose
 keep bends in outlet hose to a minimum
 never install the hoses with an acute angle, they must
always follow a gentle curve only
 keep the hose as large as possible (120 mm Ø min.).
●Failure to observe these basic rules will drastically reduce
the performance and increase the noise levels of the
extractor hood.

26

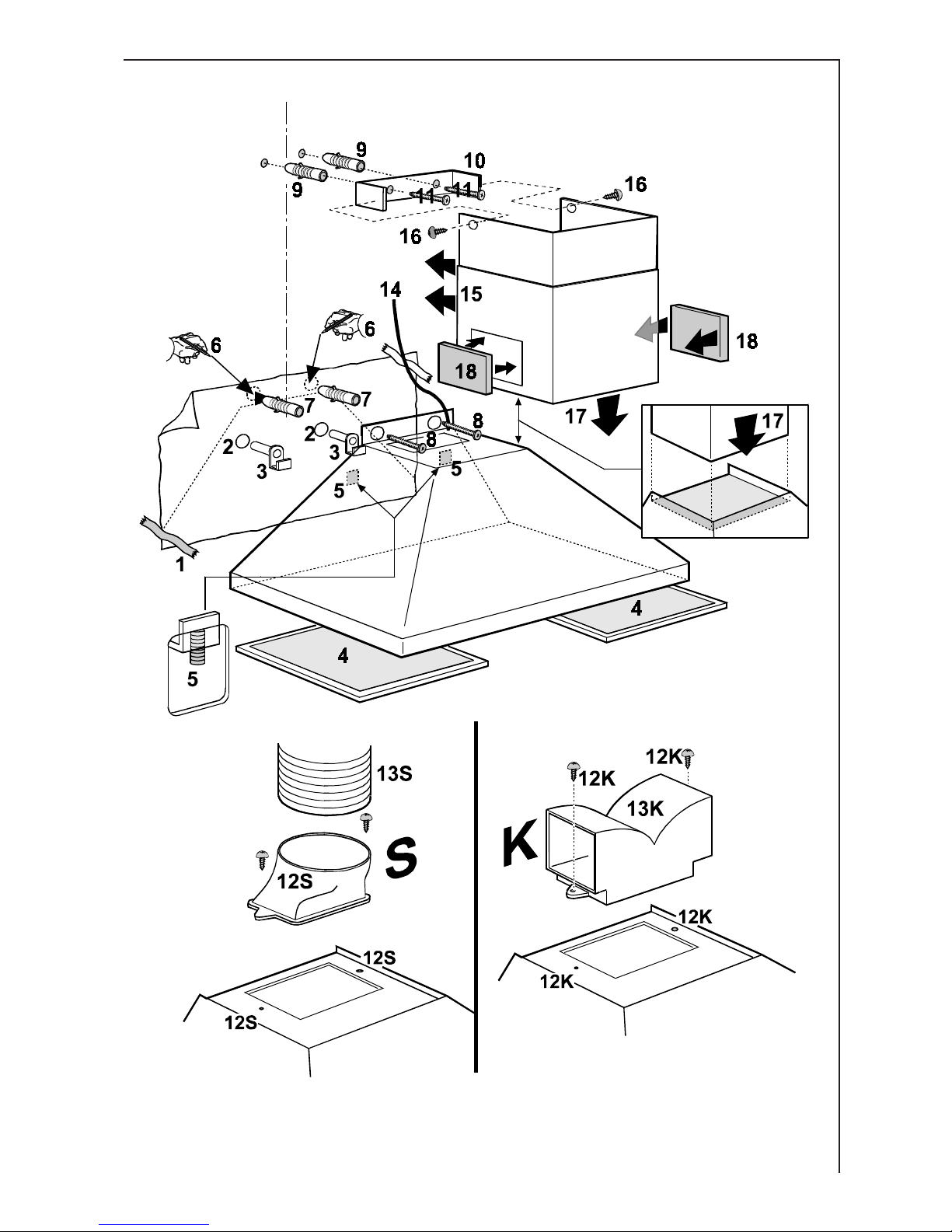

Installation - Fig. 3
●●
●●
●Put the template onto the wall (1) and drill two Ø12mm holes (2).
●●
●●
●Fit two hooks (3) on the drilled holes.
●●
●●
●Hang the hood on the hooks and adjust the position of the hood
using the two screws on the bottom of the hooks (5).
●●
●●
●Remove the metal filters (4) and mark two points (6). Remove the
hood and drill two Ø8mm holes on the marked points.
Fit two Ø8mm wall dowels (7), Hang again the hood and fix the
hood definitively with two screws 5X45 (8).
●●
●●
●Fix the chimney support (10) with two screws 5 x 45 mm (9) and
two wall dowels (11) on the wall close to the ceiling.
●●
●●
●For exhausting version: Fit the connection ring (S) on the top of
the hood with two screws Ø 3,5 x 6,5 mm (12S) then fit an
axhausting pipe long enough to reach the outside (13S).
For recycling version: Fix definitively the deflector (13K) on the top of
the hood with two screws Ø 3,5 x 6,5 mm (12K).
●●
●●
●Prepare the electric connection (14) (see relative chapter).
●●
●●
●Fit the chimney (15) and fix it on the chimney support with two
screws 3,0 x 9 mm (16).
The lower part of the chimney must be slided down and inserted
on the housing on the upper part of the hood (17).
●●
●●
●Fit the two grids (18) on both sides of the chimney.

27
Fig. 3
Ø 120 mm

28
OI O123i
Hood Operation
●The hood is fitted with a variable speed motor. The most
effective use of the hood is obtained by switching it on a
few minutes before you start cooking and leaving it on a
for approximately 15 minutes after you have finished,
thus ensuring all cooking odours are eliminated. The
control switches are located on the units front panel:
●the light switch switches the hood lamp on and off;
●the motor switch switches the cooking smoke and
vapour extractor motor on and off, enabling you to select
one of the three different speeds plus an intensive set.
Motor power
adjustable to 3
positions plus an intensive set
Light switch
ON/OFF

29
Safety warnings for user
●Never leave a cooking hob or ring on without a pot
or pan on top of it, to avoid the possibility of excess
heat damaging the unit. Gas, oil or coal cooker
flames in particular should never be left uncovered.
●Special care should be taken when using deep fat
fryers since the oil in them can overheat and burst
into flames.
●The risk of a fat fire increases when using dirty oil.
●It is extremely important to note that overheating
can cause a fire.
●Never carry out any flambé cooking under the
hood.
●Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb (take
the cartridge fuse out of the fuse holder or switch
off the automatic circuit breaker).
●It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause grease
deposits to build up, causing a fire hazard.

30
Maintenance and care
●The hood must always be disconnected from the
mains power supply before beginning any
maintenance work.
Metal grease filter
●The purpose of the grease filters is to aspirate grease particles
which form during cooking and it must always be used, either in
the external evacuation or internal recycling function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Open the metal grease filter
●Push it towards the back of the
unit and then pull it down and
out.Fig. 4.
Hand washing
Soak grease filters for about one hour in hot water with
a grease-loosening cleaner, then rinse off thoroughly
with hot water. Repeat the process if necessary. Refit the
grease filters when it are dry.
Dishwasher machine
Place grease filters in dish washer. Select most powerful
washing programme and highest temperature, at least
65°C. Repeat the process. Refit the grease filters when it
are dry.
When washing the metal grease filter in the dishwasher
a slight discoloration of the filter can occur, this does not have any
impact on its performance.
●Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Fig. 4

31
Carbon filter
●The activated carbon filter should only be used if you
want to use the hood in its filtering function.
●To do this you will need an original AEG activated carbon
filter (see special accessories).
●This filter cannot be cleaned or reused.
●As a general rule, the activated carbon filter should
be changed once every four months.
●Mounting  Fig. 5
Fit one carbon filter on the left and one on the right so to
cover the plastic grids that protect the fan wheel, then
turn clockwise the central handle of the carbon filter.
●To dismount proceed in reverse order.
●Always specify the hood model code number and serial
number when ordering replacement filters. This
information is shown on the registration plate located on
the inside of the unit.
●The activated carbon filter can be ordered from the AEG
technical assistance service.
Fig. 5

32
Fig. 6
Warning
●Failure to observe the instructions on cleaning the unit
and changing the filters will cause a fire hazard. You are
therefore strongly recommended to follow these
instructions.
●The manufacturer declines all responsibility for any
damage to the motor or any fire damage linked to
inappropriate maintenance or failure to observe the
above safety recommendations.
Changing the light bulb
●Disconnect the unit from the
mains power supply.
●Remove the lamp cover.
●Replace the old light bulb with
a new light bulb (40 W
max.).
●Fit the lamp cover on its seat.
●If the light does not come on,
make sure the bulb has been
screwed in correctly before
contacting the technical
assistance service.

33
Cleaning
●Warning: always disconnect the hood from the mains
power supply before cleaning it.
Never insert pointed objects in the motors protective
grid.
●Wash the outside surfaces using a delicate detergent
solution. Never use caustic detergents or abrasive brushes
or powders.
●Only ever clean the switch panel and filter grille using a
damp cloth and delicate detergents.
●It is extremely important to clean the unit and change the
filters at the recommended intervals. Failure to do so will
cause grease deposits to build up that could constitute a
fire hazard.
Special accessories
MKZ telescopic wall pipe E-Nr. 610 899 004
outlet hose ABS120 - 120 mm Ø 942 118 611
Carbon filter Type 200
Technical assistance service
You are welcome to telephone our technical assistance
service (see list of technical assistance centres) whenever
you need information or in the unlikely event of a fault.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate
inside the unit behind the grease filter grille.
We reserve the right to change specifications and colours
as a result of our policy of continuing technological
development.

34
Imprimé sur papier recyclé pour la protection de la nature
- Qui pense écologie, agit dans ce sens...
