Safety warnings
For the user
• Thecookerhoodisdesignedtoextractunpleasantodoursfromthe
kitchen, it will not extract steam.
• Alwayscoverlightedelements,topreventexcessheatfrom
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/cooker
undercarefulcontrol.
• Thehotoilinthe frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
•Never carry out any flambé cooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
theautomatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
• Theapplianceisnotintended for use by young children or infirm
personswithoutsupervision.
• Olderchildrenmustbesupervisedifusingtheappliance.
• Young children should be supervised to ensure that they do not play
withtheappliance.
• WARNING - Ensure that the appliance is switched offbefore
replacing the lamp to avoid the possibility of electric shock.
Thisapplianceismarkedaccordingtothe European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potentialnegativeconsequences fortheenvironmentand humanhealth,
whichcouldotherwisebecausedbyinappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
householdwaste.Insteaditshould be taken to the appropriate
collection point for the recycling of electrical and electronic equipment.
Disposalmustbecarriedoutinaccordancewithlocalenvironmental
regulationsforwastedisposal.
Formoredetailedinformation about treatment, recoveryandrecycling
of this product, please contact your local council, your household
wastedisposalserviceortheshopwhereyoupurchasedtheproduct.

4
For the installer
• When used as an extractor unit, the hood must be fitted with a
150mmdiameterhose.
Should there already be a pipe of diameter 125 or 120 mm that ducts
to the outside through the walls, it is possible to use the 150/125-
120mmreductionflangeprovided.
In this case the hood will be slightly noisier.
•When installing the hood, make sure you observe the follow-
ing minimum distance from the top edge of the cooking hob/
ringsurfaces:
electric cookers 500 mm
gascookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
• ThenationalStandardonfuel-burningsystemsspecifiesamaximum
depression of 0.04 mbar in such rooms.
• The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
toventilationductsforrooms in which fuel-burning appliancesare
installed.
• The air outlet installation must comply with the regulations laid down
bytherelevantlocalauthorities.
• When the unit is used in extraction mode, a sufficiently large
ventilationholemustbeprovided, with dimensions that areapproxi-
mately the same as the outlet hole.
• Nationalandregionalbuilding regulationsimposeanumberof
restrictionsonusinghoodsandfuel-burningappliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
sameroom.
• Hoods can only be used safely with appliances connected to a
chimneyiftheroomand/or flat (air/environment combination) is
ventilatedfromoutsideusing a suitable ventilationholeapproximately
500-600cm2 largetoavoidthepossibilityofadepressionbeing
createdduringoperationof thehood.
• Ifyouhaveanydoubts,contacttherelevantcontrollingauthorityor
buildinginspector’soffice.
• Since the rule for rooms with fuel burning appliances is “outlet hole of
the same size as the ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
• If the hood is used in its recirculation mode, it will operate simply
andsafely in the above conditions without theneed for any of the
aforementionedmeasures.

5
• When the hood is used in its extraction mode, the following rules
mustbefollowedtoobtainoptimaloperation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
followagentle curve.
- keepthe hose as large aspossible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3metres with one 90° bend
2 metres with two 90° bends
Bendsof more than 90° will reduce theefficiency of the hood and
reducetheairflow.
• Failure to observe these basic instructions will drastically reduce the
performanceandincreasethenoiselevelsof the extractor hood.
Description of the Appliance
•The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
• The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
• Insomemodelsthecharcoalfilterissupplied.Thehood,therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
• In this mode fumes are extracted to the outside
via a hose connected to the coupling ring A.
Fig. 1.
• Inordertoobtainthe best performance
thehoseshouldhave a diameter equal
to the outlet hole.
• Shouldtherealreadybeapipeof
diameter 125 or 120 mm that ducts to
the outside through the walls, it is
possibletousethe150/125-120 mm
reductionflangeprovided.In thiscase
the hood will be slightly noisier.
Fig. 1

6
Recirculation mode
• The air is filtered through a charcoal filter and returned to the
kitchen.
• Youwillneedanoriginalcharcoalfilterfortherecirculationmode.
(SeeSpecialAccessories).

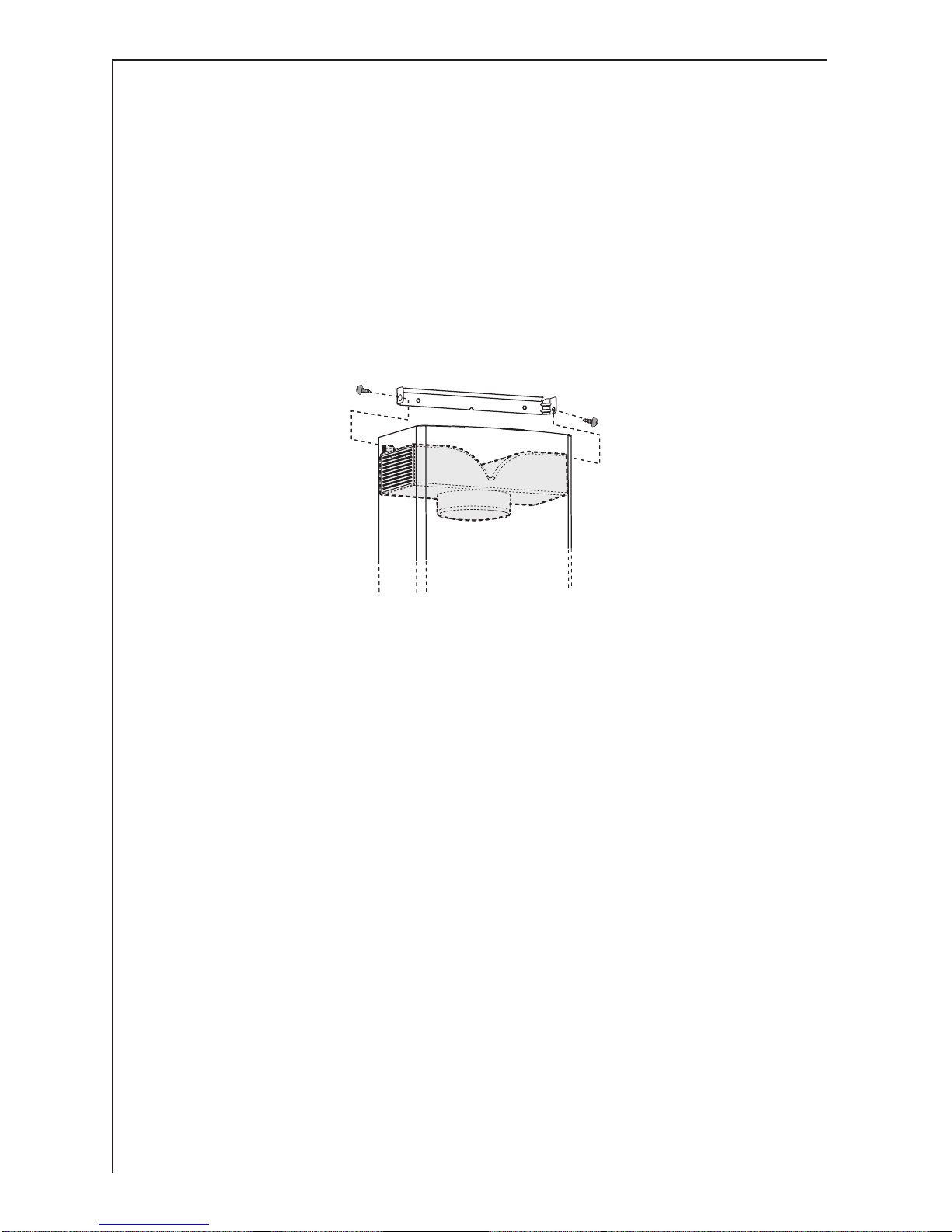

• Fix the deflector using 2 screws Ø 2,9x13 mm. Fig. 2.
• Optionally, the position of the chimney elements can be changed.
When using the hood in the recirculation mode the chimney must be
fixed at the top, with the air outlet grill at the side.
Fig. 2

7
Control Panel
• Best results are obtained by using a low speed for normal conditions
andahighspeedwhen odours are more concentrated.
Turnthehoodona few minutes before you start cooking.
Thehoodshouldbeleft on after cooking for about 15 minutes or until
alltheodours havedisappeared.

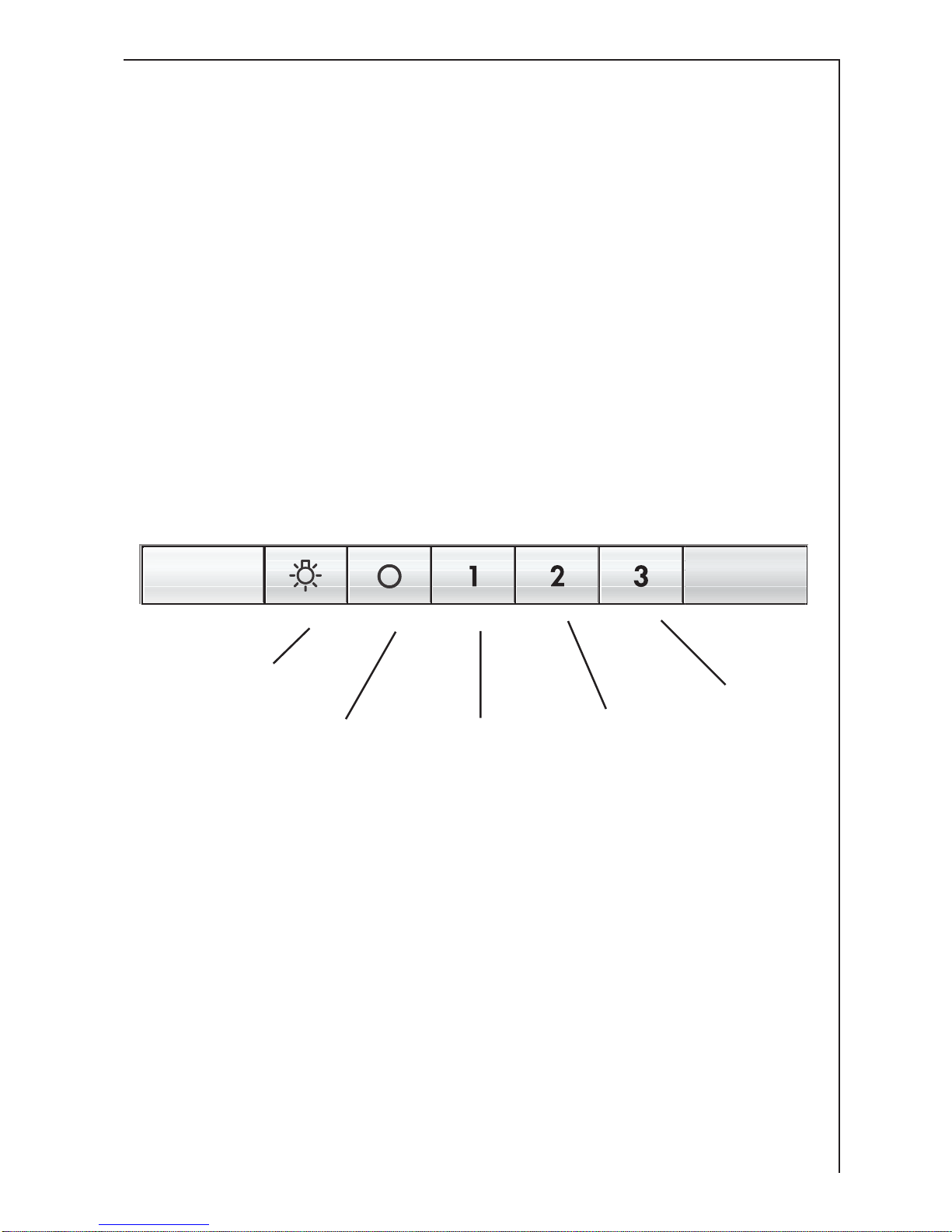

Thecontrolswitchesarelocated on the hood’s front panel:
•the light switch switches the hood lamp on and off
•the motor switch switches the motor off
• Speed 1: Speed 1 push-button
• Speed 2: Speed 2 push-button
• Speed 3: Speed 3 push-button
Light switch
Motor switch Speed 1 Speed 2
Speed 3

8
Maintenance and Care
•The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a solution of
waterandmildwashingupliquid.
• Neverusecorrosive, abrasiveorflammable cleaningproductsor
productscontainingbleach.
• Neverinsertpointedobjectsinthemotor’sprotectivegrid.
• Only ever clean the switch panel and filter grill using a damp cloth
andmildwashingupliquid.
• It is extremely important to clean the unit and change the filters at
therecommendedintervals.Failuretodosowillcausegrease
deposits to build up that could constitute a fire hazard.
Metal grease filter
• Thepurposeofthegrease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
externalextractionorinternalre-circulationfunction.
Attention:themetalgreasefiltersmustberemovedandwashed,
eitherbyhandorinthedishwasher,everyfourweeks.
Removing the metal grease filter
• First, push the metal grease filter stop backwards, then extract the
filter,pullingdownwards.Fig. 3.
Hand washing
Soakgreasefiltersforabout one hour in hot water with a grease-
looseningcleaner,thenrinse offthoroughly
with hot water. Repeat the process if
necessary.Refitthegreasefilterswhen
they are dry.
Dishwasher
Place grease filters in the
dishwasher.Selectthe
mostpowerfulwashing
programmeandthe highest
temperature,atleast65°C.
Repeattheprocess.Refit
thegreasefilterswhenthey
aredry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
onitsperformance.
• Cleantheinnerhousingusingahand hot solution only(never use
causticdetergents,abrasivepowders or brushes).
Fig. 3

9
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
recirculationmode.
• Todothisyouwillneedanoriginalcharcoalfilter(Availablefrom your
localServiceForce Centre).
•Cleaning/replacing the charcoal filter
Unlikeothercharcoalfilters,theLONGLIFEcharcoalfiltercanbe
cleanedandreactivated.Withnormalusethefiltershouldbecleaned
everysecondmonth(whenusingthehood2.5hoursperday,on
avarage).The best way to clean the filter is in the dishwasher. Use
normaldetergentandchoosethehighesttemperature(65ºC).Wash
the filter separately so that no food parts get stuck on the filter and
latercausesbad odours.Toreactivatethecharcoal,thefiltershould
bedriedinanoven for 10 minutes with a maximum temperature of
100ºC.
After approximately three years of use, the charcoal filter should be
replaced with a new one, as the odour reduction capacity will be
reduced.
•Fitting - Fig. 4
Put the charcoal filter frame in place and fix it with 5 screws.
Fit the charcoal filter first from the rear side and fix it frontwards
using the two red keys A.
•To remove proceed in the reverse order.
• Alwaysspecifythehoodmodelcodenumberandserialnumber
whenorderingreplacementfilters.This information is shown onthe
rating plate located on the inside of the unit.
• Thecharcoalfiltercanbe ordered from your localServiceForce
Centre.
Fig. 4

10
Warning
• Failuretoobservetheinstructionsoncleaningtheunitandchanging
the filters will cause a fire hazard.You are therefore strongly
recommendedtofollowtheseinstructions.
• Themanufacturerdeclinesallresponsibilityforanydamagetothe
motororanyfiredamage linked to inappropriate maintenanceor
failuretoobserve theabovesafetyrecommendations.
Changing the light bulb
•Disconnect the cooker hood from the mains supply.
• Press (1) the lamp cover (2) and open it. Fig. 6.
• Replace the old bulb with a new one of the same type (3).
• Closethelampcover.
• If the light does not come on, make sure the bulb has been inserted
incorrectlybeforecontactingyourlocalServiceForceCentre.
3
1
2
Fig. 5

11
What to do if
Ifyourappliancefailstoworkproperlypleasecarryoutthefollowing
checks.
Symptom Solution
The cooker hood will not start... Check that:
Thehoodis connected to
the electricity supply.
Check that a fan speed has
beenselected
The cooker hood is not working Check that:
effectively.. The fan speed is set high
enoughforthetask.
Thegreasefiltersareclean.
Thekitchenisadequately vented
to allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
Thecookerhoodhas Thesafety cut-out device has been
switchedoffduring operation... tripped.
Turnoffthehoband then wait for
thedevice to reset.
Ifthehoodhasbeeninstalled
below the heights indicated in the
installation instructions the motor
willcut-outfrequentlywhichwill
damagethehood.
If after all these checks, the problem persists, contact your local
ServiceForceCentre,quotingthe model and serial number.
Pleasenotethatitwill be necessary to provide proof of purchase for
anyin-guaranteeservicecalls.
In-guaranteecustomersshouldensure thattheabovecheckshave
been made as the engineer will make a charge if the fault is not a
mechanicalorelectricalbreakdown.

12
Special accessories
CharcoalfilterTYPE150 LONGLIFE
Technical assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list
oftechnicalassistancecentres)wheneveryouneedinformationorinthe
unlikelyeventofafault.
ForserviceinAustralia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
ourpolicyofcontinuing technologicaldevelopment.
Service and Spare Parts
Intheeventofyourappliancerequiringservice,orifyouwishto
purchase spare parts, contact your local Service Force Centre by
telephoning:08705 929 929
Your call will be automatically routed to the Service Centre covering
yourpostcodearea.For the address of your local Service Force Centre
andfurtherinformationaboutServiceForce,please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section “What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdowneveniftheapplianceisunderwarranty. Please note that
proof of purchase is required for in-guarantee service calls.
Help us to help you
Pleasedetermineyourtypeofenquirybeforewritingortelephoning.
Whenyoucontactusweneedtoknow:
•Yourname •Clearandconcisedetailsofthefault
•Addressandpostcode • Nameandmodeloftheappliance*
•Telephonenumber •Enumber*
•Serialnumber*
* This information can be found on the rating plate, which can be seen
whenthegrease filtersareremoved.

13
CUSTOMER CARE DEPARTMENT
Forgeneralenquiriesconcerning yourAEGapplianceorfor further
informationonAEG products, please contactourCustomerCare
Departmentbyletterortelephone at the address below or visit our
websiteatwww.aeg.co.uk
CustomerServicesDepartment
MajorAppliances
AEGElectrolux
AddingtonWay
Luton
Bedfordshire
LU49QQ
08705 350 350 (*)
* calls to this number may be recorded for training purposes.
If you require Customer Service in the Republic of Ireland please
contact us at the address below:
AEG
ElectroluxGroup(Ire)Ltd
LongMileRoad
Dublin12
RepublicofIreland
Tel: + 353 (0) 1 4090751
Email:[email protected]

14
Technical Details
Dimensions (in cm):
Height (extraction): 75 - 113
Height (recirculation): 75 - 122
Width: 59,8
Depth: 47
Maximum absorbed power: 200 W
Motor: 1x 170 W
Lighting: 2 x 20W (G4)
Electrical connection: 220-240V
Length of the cable: 150 cm
Mounting accessories included
6 wall plugs Ø 8 mm (brick fixing only)
6 wood-screws 5 x 45 mm
2 metal screws 2,9 x 13
4 metal screws 2,9 x 6,5
5 metal screws 3,5 x 9,5
2 hooks
1chimneysupport
2 clamps
1deflector
1reductionflangeØ 150-125 mm
1charcoalfilterframe
1allenspanner

15
Electrical connection (not for UK)
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltageindicatedontheratingplatecorrespondstothemainspower
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorisedelectrician.
Electrical connection for UK only
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
ThefollowingisvalidintheUnitedKingdomonly:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ),orcoloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
BROWN
CORD CLAMP
BLUE
GREEN & YELLOW
5AT




16

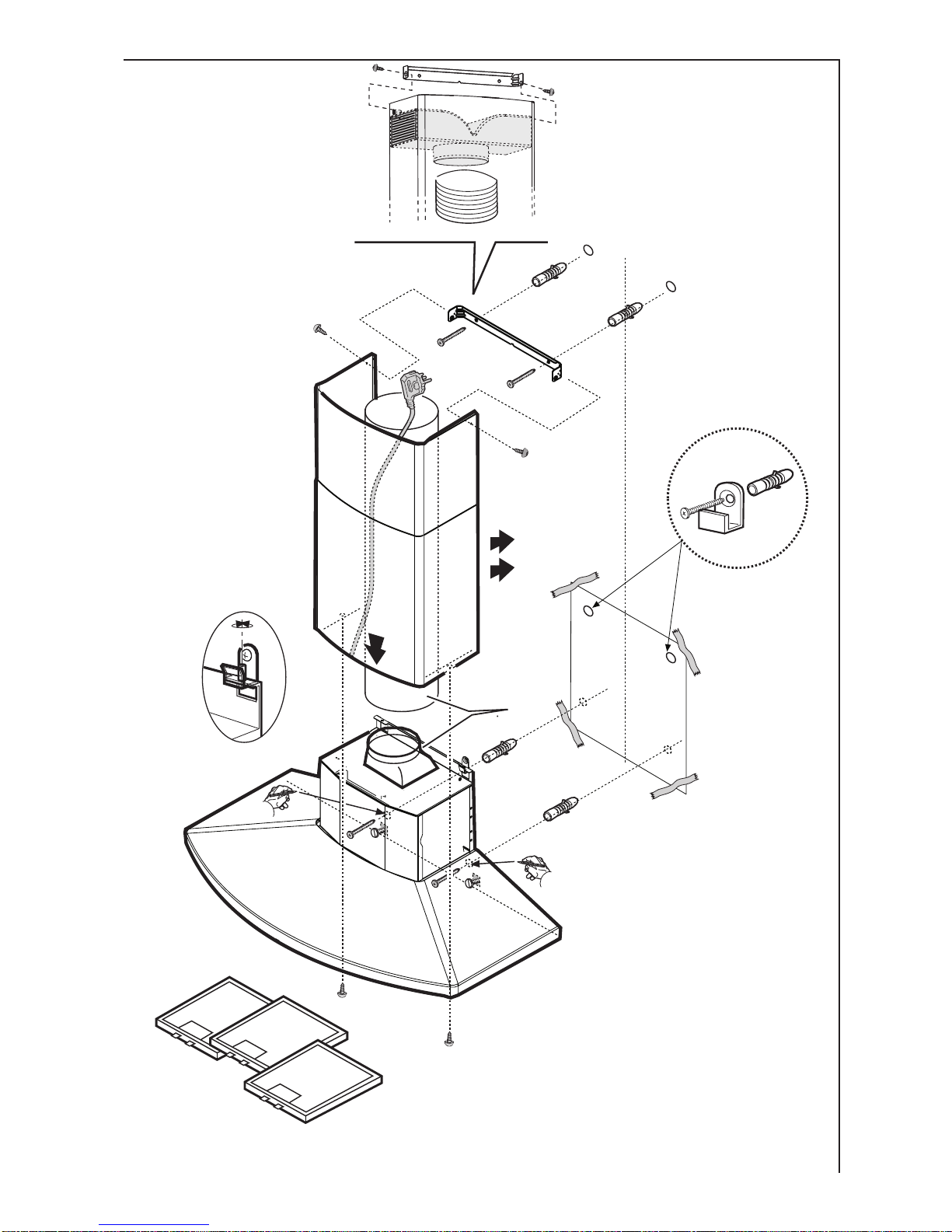

Wall unit mounting - Fig. 7
•Position the template on the wall (1) and mark the position, and drill
(2) the holes (2 x Ø 8 mm).
•Mount the two wall plugs with the hooks (3).
•Hang the hood on the hooks and level it with the adjustment screws
(4).
•Remove the grease filters (5) and mark for the two screws (6).
Remove the hood and drill the holes (2 x Ø 8 mm).
Insert the rawl plugs (7) and hang the hood on the wall again. Adjust
it with the screws (8) and secure it with the screws (9).
•Mount the chimney support (11) with the wall plugs (10) and the
screws (12). Be careful that it is centered over the hood and
horizontallyaligned.
• Extractor version: Connect a tube between the hoodair outlet and
the wall or roof exhaust channel. Fix it with the tube clamps
supplied.
Filter version: Mount the deflector Kwith the two screws supplied
(2,9x13 mm) (13).
•Make the electrical connection (14) (see previous page)
•Place the chimney (15) and fix it to the top chimney support with the
two screws (16) supplied (2,9x6,5 mm). Lower the bottom part of
the chimney (17) and fasten it to the top of the hood with two
screws, supplied (18) (2,9x6,5 mm).

17
Fig. 7 *Ø125-150mm
K
13
*
4
3
2
2
8
8
1
6
6
6
7
7
9
9
6
10
10
11
12
12
14
15
16
16
17
18
18
5
4
4

18
240
22
59,8
270
330
Wall bracket
Electrichob500 mm
Gashob650 mm
59,8
265
100
60
20
530-550
105 105 105
X
==
Electric hob 500 mm
Gas hob 650 mm
Exhaust tube
Poweroutlet

19

LI25YA Ed. 03/07
