INSTALLATION INSTRUCTIONS

AVL SERIES LUMINAIRE

American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA

DRAWING NO. A66193 REV A (FRONT)

PART NUMBER 057-71-66193

WARNING

Tools required: 3/4" socket w/extension, 5/16" nut driver (bridge mount), slotted screw driver

INSTALLATIONINSTALLATION

INSTALLATION

Mounting the fixture (Arm mount and Post-Top Instructions):Mounting the fixture (Arm mount and Post-Top Instructions):

Mounting the fixture (Arm mount and Post-Top Instructions):

1. Remove reflector by loosening the 2 door screws or latches and slowly open the

fixture. The reflector can be removed by gently prying and pulling the reflector loose.

Once loose, disengage the socket quick disconnect and remove from the fixture housing.

This will give you access for mounting and wiring the fixture.

2. For arm mount fixtures, remove the top cap from pole, if in place. Insert the mounting plate

inside pole or tenon adaptor, aligning the three (3) mounting holes in plate with the three

(3) mounting holes provided on the pole. Slide the two threaded rods through the top and

bottom mounting holes in the pole and start to thread the rods into the matching holes in

the mounting plate (three turns are sufficient). Place one of the gaskets over the threaded

rods and against the pole.

3. To mount the arm, slide arm over threaded rod using the bolt guides inside the arm. Place

remaining gasket over the threaded rods and against the mounting arm.

4. Position the housing at the end of the arm

and feed fixture wires through arm, pole backing

plate, and out pole top. Align the holes with

the threaded rods and insert the threaded rods

into the fixture. Install split lockwashers

and hex nuts (furnished) on the ends of the

threaded rods that are inside the fixture and

tighten securely. Make sure fixture is mounted

straight and square with pole before

raising pole.

5. Make wire connections observing voltage

and polarity. Connect green ground wire

from the fixture to field ground wire.

Pole Top MountPole Top Mount

Pole Top Mount

1. The AVL mounts to a 4, 4-1/2, 5, or 6" diameter pole

top determined by the option ordered).

2. Remove the top plate of the wiring compartment.

Make wire connections, replace the top plate.

3. Secure the fixture by slipping into the pole top and

tightening (1) internal fitter device.

Lamp InstallationLamp Installation

Lamp Installation

1. Re-install reflector by plugging the socket quick disconnect back in, line up the reflector to

its appropriate direction and gently push or pop back into place being sure to align the four

pop balls with their receptacles. Check to insure reflector is seated properly and secure

before installing lamp.

2. Prior toinstallingthe lamp(optionally included) inthe fixture, verify thatthe lampsource and

wattage corresponds with the fixture label. Screw the lamp securely into the socket, back

it out one or two turns, and tighten it securely again. This procedure properly seats the

lamp in the socket.

Optical RotationOptical Rotation

Optical Rotation

(This fixture is designed with optical rotation ease in mind via tool-less design)

1. Open door assembly. Gently pry or pull reflector away fromhousing. Rotate optical assembly

to desired light output as indicated by light distribution arrow on reflector. Insert reflector

assembly back into housing being sure to line up the four pop balls and their receptacles.

2. Check to make sure the reflector is seated properly and secure before installing lamp and

closing door assembly.

Tools Required: Slotted screwdriver

Check the voltage values of the ballast leads attachedto one side of Terminal Block.

Place the corresponding incoming line voltage leads, being sure to observe proper

polarity and voltage. Secure by tightening screws.

Prior toInstallationPrior toInstallation

Prior toInstallation

Read carefullybefore installinglightfixtures. If you do notunderstandthese instructions, please

contact your local American Electric Lighting distributor or agent before installing.

Arm MountArm Mount

Arm Mount

InternalInternal

Internal

FitterFitter

Fitter

Terminal Block

• This fixture must be wired in accordance with the National

Electrical Code and applicable local codes and ordinances.

Proper grounding is required.

Use approved connectors for all electrical connections.

Be certain the green lead fromthe fixture is secured to

ground.

ALL work should be performed by a qualified electrician.

IMPORTANT SAFETY

INSTRUCTIONS

(For Your Protection, Read Carefully)

Verify the proper fixture voltage lead has been selected

to match the supply voltage before energizing. Improper

wiring may result in ballast failure and void all warranties

NEVER disconnect any component while power supply is

engaged.

Upon receipt of fixture and accessories (packaged separately)

thoroughly inspect for any freight damage which should be

brought to the attention of the delivery carrier. Compare the

catalog description listed on the packing slip with the fixture

label on the outside of the ballast box to be sure you have

received the correct merchandise.

•

SAVE THESE INSTRUCTIONS

American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA

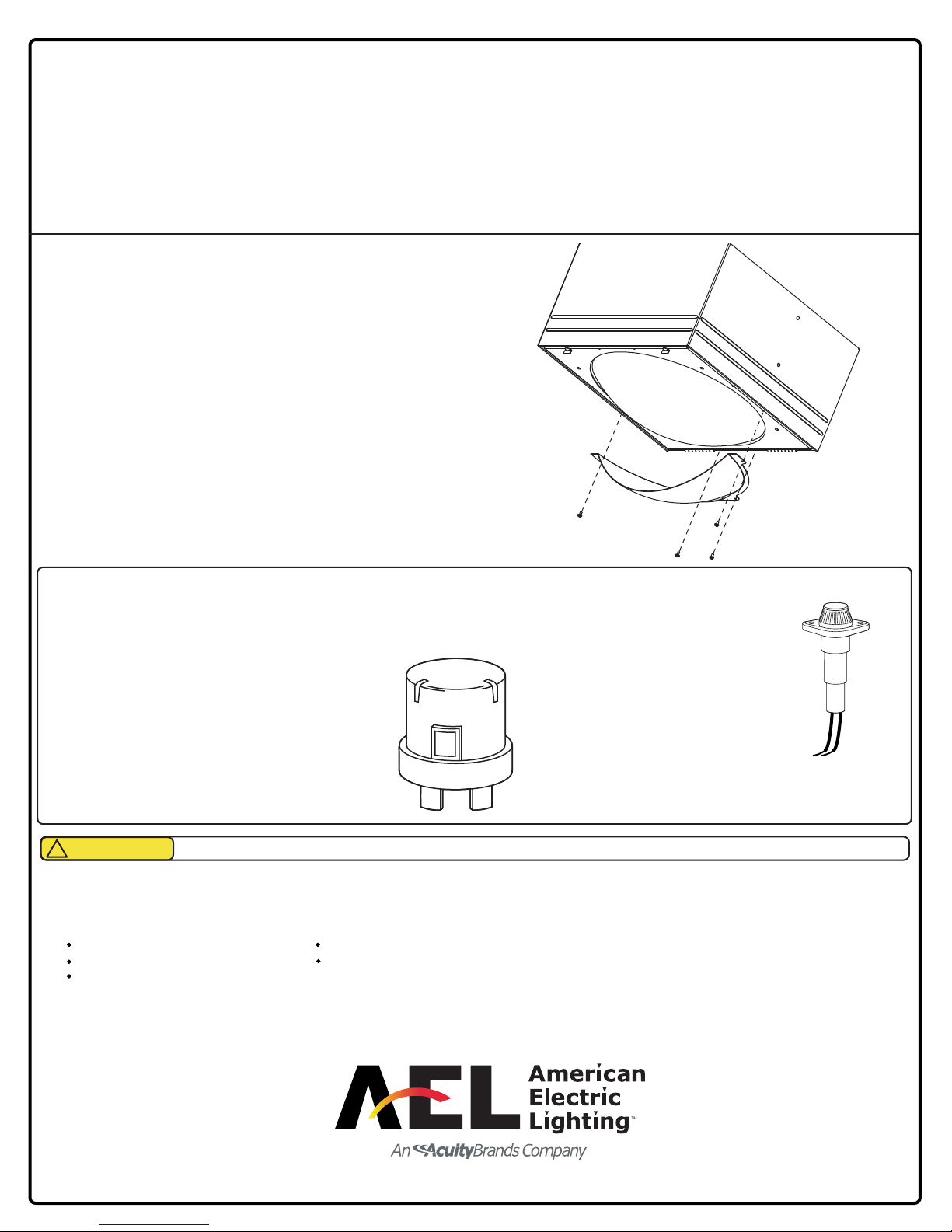

DRAWING NO. A66193 REV A (BACK)

FACTORYINSTALLEDOPTIONSFACTORYINSTALLEDOPTIONS

FACTORYINSTALLEDOPTIONS

NEMA TWIST LOCK RECEPTACLES ANDPHOTOCONTROLNEMA TWIST LOCK RECEPTACLES ANDPHOTOCONTROL

NEMA TWIST LOCK RECEPTACLES ANDPHOTOCONTROL

Photocellreceptacle: PRPhotocellreceptacle: PR

Photocellreceptacle: PR

The photocell receptacle is factory installed, and be ordered with

MUSTMUST

MUST

the fixture as it is wired to correspond with the voltage of the fixture.

PhotocontrolsPhotocontrols:

Photocontrols:Photocontrols:

Photocontrols: The photocontrol is shipped separately

and must be field installed.

Important:Important:

Important: The voltage of the photocontrol must

be the same as the fixture voltage.

SINGLE/DOUBLE FUSING- complete withfusesSINGLE/DOUBLE FUSING- complete withfuses

SINGLE/DOUBLE FUSING- complete withfuses

SFSF

SF - Single Fuse is internally accessible for use

with 120, 277, or 347 volt fixtures

DFDF

DF - Double Fuse is internally accessible for use

with 208, 220, 240, or 480 volt fixtures.

TROUBLESHOOTINGTROUBLESHOOTING

TROUBLESHOOTING

If this fixture fails to operate properly, check to make sure:

The correct lamp is properly installed. The fixture is grounded correctly.

The fixture is wired correctly. The line voltage at the fixture is correct.

The lamp is not faulty.

If all these variables have been checked and the fixture still does not operate as specified, contact your local American Electric Lighting distributor or agent.

Observe lamp manufacturer’s recommendations and restrictions on lamp operations, particularly ballast type, burning position, etc.

MAINTENANCE:MAINTENANCE:

MAINTENANCE: Your fixture is designed for years of trouble-free operation. For optimum performance, periodically clean reflector and lens with a soft, damp cloth.
