AEMC Wire Mapper Pro CA7028 User manual

CA7028
WIRE MAPPER PRO
LAN CABLE TESTER
E N G L I S H User Manual
www. .com [e-mail]1.800.561.8187

Statement of Compliance
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
certifies that this instrument has been calibrated
using standards and instruments traceable to
international standards.
We guarantee that at the time of shipping your
instrument has met its published specifications.
The recommended calibration interval for this
instrument is 12 months and begins on the date of
receipt by the customer. For recalibration, please
use our calibration services. Refer to our repair
and calibration section at www.aemc.com.
Serial #: ________________________________
Catalog #: 2127.82
Model #: CA7028
Please fill in the appropriate date as indicated:
Date Received: _________________________________
Date Calibration Due: _______________________
Chauvin Arnoux®, Inc.
d.b.a AEMC®Instruments
www.aemc.com
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 1
Table of Contents
1. INTRODUCTION ........................................................................ 2
1.1 International Electrical Symbols.....................................................2
1.2 Receiving Your Shipment...............................................................3
1.3 Ordering Information ......................................................................3
1.3.1 Accessories and Replacement Parts ................................3
2. PRODUCT FEATURES ............................................................... 4
2.1 Description .....................................................................................4
2.2 Wire Mapper Pro Features.............................................................5
3. SPECIFICATIONS ...................................................................... 6
4. OPERATION............................................................................... 8
4.1 Getting Started...............................................................................8
4.2 Cable/Network Type and General Setup .......................................8
4.3 Determining and Measuring Vp Values..........................................9
4.4 TNV (Telecom Network Voltage) Testing and Warning ................10
4.5 Service Detection......................................................................... 11
4.6 General Operation ....................................................................... 11
4.7 Test Pass/OK Screen...................................................................13
4.8 Test Failed Screen .......................................................................14
4.8.1 Open and Short Fault ......................................................14
4.8.2 Reversed and Split Pair Fault..........................................15
4.9 Multiple Faults..............................................................................16
4.10 Missing Remote ...........................................................................16
4.11 Cable Length Measurement.........................................................17
4.12 Tone Generator ............................................................................18
4.13 Backlight ......................................................................................18
5. WIRE PROTOCOL.................................................................... 19
6. MAINTENANCE ....................................................................... 22
6.1 Changing the Battery ...................................................................22
6.2 Cleaning.......................................................................................22
6.3 Storage ........................................................................................22
Repair and Calibration.................................................................................23
Technical and Sales Assistance ..................................................................23
Limited Warranty / Warranty Repairs...........................................................24
www. .com [e-mail]1.800.561.8187

2 Wire Mapper Pro Model CA7028
CHAPTER 1
INTRODUCTION
Warning
● Thisinstrumentmeetsthesafetyrequirementsof
IEC61010-1:1995.
● TheModelCA7028isdesignedforuseonde-energized
circuits only.
● Connectiontolinevoltageswilldamagetheinstrumentand
couldbehazardoustotheoperator.
● Thisinstrumentisprotectedagainstconnectiontotelecom
network voltages according to EN 61326-1.
● Safetyistheresponsibilityoftheoperator.
1.1 International Electrical Symbols
Thissymbolsigniesthattheinstrumentisprotectedbydoubleor
reinforcedinsulation.Useonlyspeciedreplacementpartswhen
servicing the instrument.
This symbol on the instrument indicates a WARNING and that
the operator must refer to the user manual for instructions before
operating the instrument. In this manual, the symbol preceding
instructions indicates that if the instructions are not followed, bodily
injury, installation/sample and product damage may result.
Risk of electric shock. The voltage at the parts marked with this
symbol may be dangerous.
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 3
1.2 Receiving Your Shipment
Upon receiving your shipment, make sure that the contents are consistent
with the packing list. Notify your distributor of any missing items. If the
equipmentappearstobedamaged,leaclaimimmediatelywiththecar-
rier and notify your distributor at once, giving a detailed description of any
damage. Save the damaged packing container to substantiate your claim.
1.3 Ordering Information
Wire Mapper Pro Model CA7028.........................................Cat. #2127.82
Includes meter, carrying case, remote ID (#1), 2 patch cords, 4 x 1.5 AA batteries, user
manual and a product warranty card.
1.3.1 Accessories and Replacement Parts
Tone Receiver / Cable Tracer Model TR03 .........................Cat. #2127.76
www. .com [e-mail]1.800.561.8187

4 Wire Mapper Pro Model CA7028
CHAPTER 2
PRODUCT FEATURES
2.1 Description
The Wire Mapper Pro is a hand-held structured cable tester and trouble-
shooterdesignedforuseonUTP,STP,FTP&SSTPcablingequippedwith
RJ45 connectors and wired to either TIA 568A/B (ISO11801 & EN50137),
USOCorISDNspecications.Itdetectsopencircuitpairs,shorts,crossed
wires, crossed pairs, reversed pairs, shield faults and split pairs.
In the event of opens and shorts, the Wire Mapper Pro uses TDR technology
to indicate if the fault is at the near end of the cable, the remote end, or if it is
somewhere in between. It will then indicate the distance to the fault.
The Wire Mapper Pro has the ability to measure and indicate the length of the
cable under test, using a Vp (Velocity of Propagation), set by the user. It will
measure and report the length of all 4 pairs of wires in the cable under test. It
also generates an audible tone that is transmitted into all 4 pairs on the cable
undertest.Thiscanbeusedforcabletracingandidentication.
This instrument also has the ability to identify telephone and data lines. If the
main unit is plugged into an operational RJ45 socket, it will give a continuous
warning tone and appropriate display if a telephone voltage is present on any
of the pins. If the Service Detect key is pressed, it will give a display distin-
guishing 10base-T, Token Ring and 100Mbit+ connections.
Features:
Hand-held cable and troubleshooting tester
DesignedforuseonUTP,STP,FTP&SSTPcablingequipped
with RJ45 connectors and wired to either TIA568A/B (ISO11801 &
EN50137),USOCorISDNspecications.
Detects open circuit pair, shorts, crossed wires, crossed pairs,
reversed pairs, shield faults and split pairs.
Indicates location of the fault
Measures and indicates the length of the cable under test

Emits an audible tone, used to trace a cable and identify the type of fault

Identiestelephoneanddatalines

Upto16RemoteIDsidentied
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 5
2.2 Wire Mapper Pro Features
Structured Cable Tester
WIRE MAPPER PRO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp
1
2
3
4
5
6
7
81
9
WIRE MAPPER PRO
MODEL CA7028
Remote Unit
AEMC Instruments
Wire Mapper Pro V1.0
TIA568 UTP Vp=75%
1. RJ-45 input connector
2. Graphical LCD
3. Service Test/Vp (Velocity of Propogation) decrement button
4. Wire map test/function select button
5. Backlight button
6. Cable Length Test/Vp (Velocity of Propogation) increment button
7. Tone generator select button
8. Power ON/OFF button
9. Remote ID Unit
www. .com [e-mail]1.800.561.8187

6 Wire Mapper Pro Model CA7028
CHAPTER 3
SPECIFICATIONS
Range: 500 ft (150m)
Accuracy: ±5%
Cable Types: UTP, STP, FTP & SSTP
Faults Indicated: Short Circuit Pair
Open Circuit Wire
Short Between Pairs
Split / Cross Pairs
Pair Reversals
Shield Continuity
Fault Location: Near end, remote end, or distance
if midway
Wiring Schemes: TIA 568A/B, USOC & ISDN
Service Indication: Telephone, 10BaseT, 100Mbit+, Token Ring
Voltage Warning: Warns of TNV (Telecom Network Voltage)
presence
Test Inhibit: Inhibits testing in the presence of
live voltages
Tone Generator:
Tonegenerator(oscillating)810to1110Hz
Main Unit Display: 128 x 64 pixel Graphical LCD
Fault Display: All fault and setting info displayed
textually and graphically
Display Backlight: Electroluminescent
Remote Display: Green/Red LED
Languages: English (USA and UK), German,
French, Spanish, Portuguese, Italian
Power Source: 4 x 1.5V AA alkaline batteries
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 7
Auto Power O:after 3 minutes
Battery Life: Standby mode >4000hrs
Continuous testing >7.5hrs
Storage Temperature: -4 to 158°F (-20 to 70°C)
5 to 95% RH non-condensing
Operating Temperature: 32 to 112°F (0 to 40°C)
5 to 95% RH non-condensing
Main Unit Weight:12oz(350g)
Main Unit Dimensions: 6.5 x 3.5 x 1.5" (165 x 90 x 37mm)
Remote Weight:1.5oz(40g)
Remote Dimensions: 2.5 x 2.0 x 1.0" (65 x 52 x 25mm)
Safety: IEC 61010-1
EMC: EN 61326-1
CE: Compliant with current EU directives
ESD: EN 61000-4-2
EM: EN 61000-4-3
Burst: EN 61000-4-4
Conducted RF: EN 61000-4-6
All specications are subject to change without notice.
www. .com [e-mail]1.800.561.8187

8 Wire Mapper Pro Model CA7028
CHAPTER 4
OPERATION
4.1 Getting Started
Theinstrumentisswitchedonandousingthegreenpowerbutton
found on the lower right side of the front panel.
AEMC Instruments
Wire Mapper Pro V2.12
TIA568 UTP Vp=75%
Whentheunitisrstswitchedon,itwilldisplaytheopeningscreengiving
the software version and remaining battery capacity.
The wire type (TIA568, STP...) and the Vp (Velocity of Propogation) is also
displayed. To change these settings, see § 4.2 below.
4.2 Cable/Network Type and General Setup
To enter a menu for Cable and Network selection:
•Pressdownonthebutton, then press the
MAP
/
button.
Typical display:
Type = TIA568 STP
Vp = 71%
Feet
Eng (USA)
Contrast
>
The >(line selector) is moved by pressing the
MAP /
button. When the
appropriate line is selected, the
SERVICE / Vp
and
LENGTH / Vp
buttons may
be pressed to increment or decrement through the alternative options for
the selected item.
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 9
•UnderType, the following selections can be made:
TIA568 STP TIA568 UTP ISDN USOC UTP USOC STP
NOTE: For testing of wiremap in accordance with ISO11801 & EN50137
theproductshouldbesettoTIA568whichistheequivalentstandard.
For FTP and SSTP cables use the STP setting.
•Vpisselectableintherange20%to100%.
(see § 4.3 if the Vp is not known)
•TheWireMapperPromaybesettomeasurecablelengthinfeetormeters.
•TheinstrumentmaybesettooperateinEnglish(USAorUK),French,
German, Italian, Spanish or Portuguese.
•ThedisplaycontrastmaybesetbyselectingContrast and then press-
ing the
SER
VICE / Vp
button to decrease the contrast or the
LENGTH / Vp
button to increasethecontrastandoptimizethedisplaytotheambient
lighting conditions. The unit also has a display backlight.
•Toexitsetupmode,pressthebutton.
4.3 Determining and Measuring Vp Values
Vp, or Velocity of Propagation, values are characteristic of each cable
type and brand. The Vp is used to measure the length of a cable and to
measure a fault location. The more accurate the Vp, the more accurate the
measurement result will be.
ThecablemanufacturermaylisttheVpontheirspecicationsheetor
may be able to provide it when asked. Sometimes this value is not readily
available,ortheusermaywishtodetermineitspecicallytocompensate
forcablebatchvariations,orforspecialcableapplications.Thisisquite
easy:
1. Take a cable sample of exact length increments (ft or m) longer than
60ft (20m).
2. Measure the exact length of the cable using a tape measure.
3. Connect one end of the cable to the Wire Mapper Pro (see § 4.11).
Leave the end un-terminated and make sure the wires do not short to
each other.
4.
Measure the length and adjust the Vp until the exact length is displayed.
5. When the exact length is displayed, Vp is established.
www. .com [e-mail]1.800.561.8187

10 Wire Mapper Pro Model CA7028
4.4 TNV (Telecom Network Voltage) Testing and Warning
The Wire Mapper Pro is designed to work on non-
energized circuits only. Make sure that the circuit to
be tested is not live before mapping.
Turn the unit on and plug it into the port to be tested with a short patch
cord.
Structured Cable Tester
WIRE MAPPER PRO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp
If a Telecom Network Voltage is present, the unit will give a continuous
audible warning, and display the following:
! ! ! !
Telephone Voltage
detected on
Pin X
! ! ! !
NOTE: The pin on the RJ45 connection, on which the voltage is detected,
is displayed.
In the event of a TNV (Telecom Network Voltage)
Warning, the unit should immediately be discon-
nected and testing stopped, since it is not designed
for testing on live networks.
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 11
4.5 Service Detection
To detect an active data port, plug the unit into the port to be tested using
a short patch cable and press the
SER
VICE / Vp
button.
The display will show the type of data connection or service present from
the following list:
Token Ring 10base T
100Mbit+ No Service
Unknown Service
4.6 General Operation
WIRE MAPPER PRO
MODEL CA7028
Remote Unit
Structured Cable Tester
WIRE MAPPER PRO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp

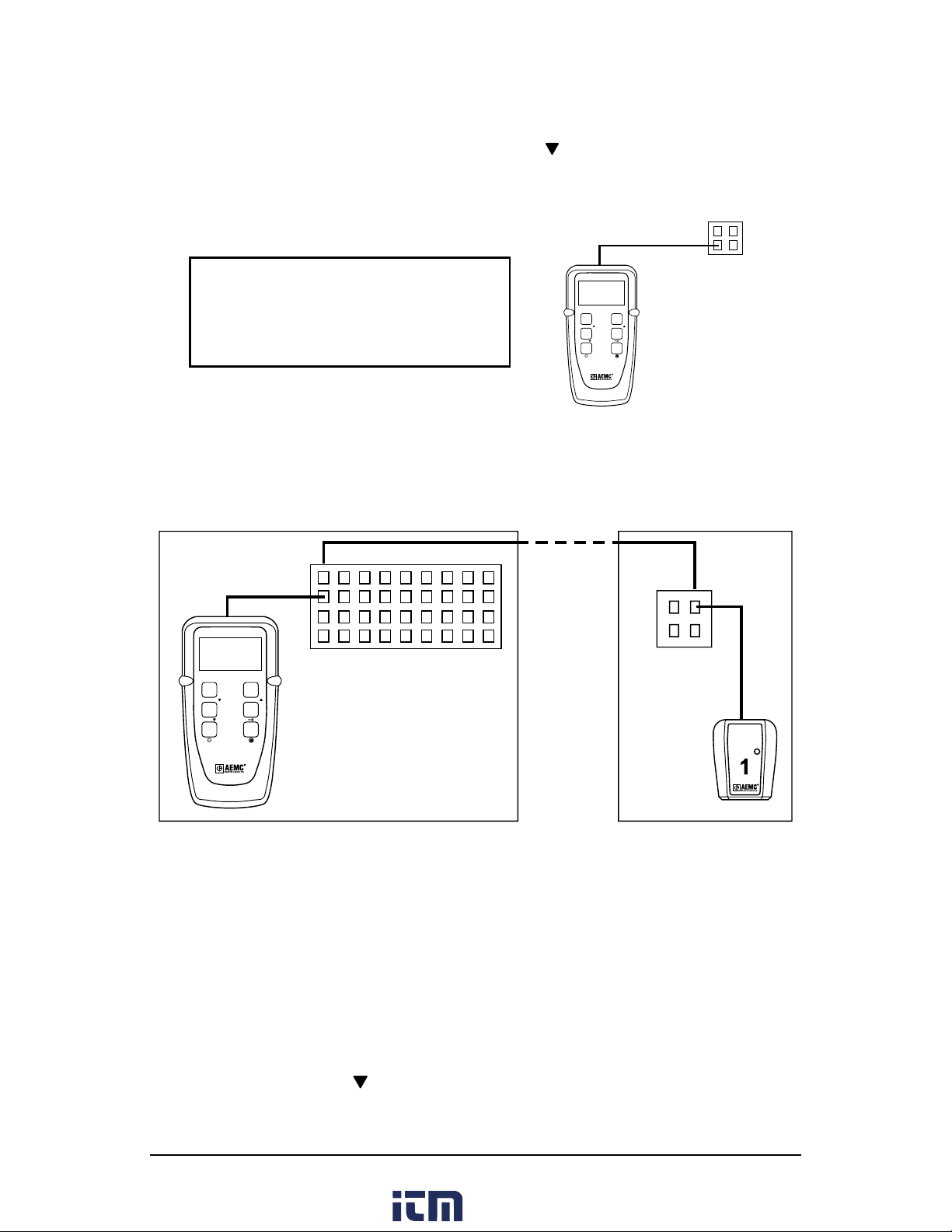

•Settheinstrumenttothedesiredcabletypeandwiringscheme
(see § 4.2).
•MakesurenoTelecomNetworkVoltagesorotherservicesare
detected (see § 4.4).
•Attachtheinstrumenttooneendofthecabletobetested
•Attachtheremoteunittotheotherendofthesamecable
•Pressthe
MAP
/
button.
Structured Cable Tester
WIRE MAPPER P RO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp
www. .com [e-mail]1.800.561.8187

12 Wire Mapper Pro Model CA7028
Thedisplaywillbrieyshowthefollowingmessagewhiletestingisbeing
performed:
* * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * *
Test in
Progress
Thisscreenisquicklyfollowedbythetestresultsscreen.
•TestPass/OKScreen
•TestFailedScreen
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 13
4.7 Test Pass/OK Screen

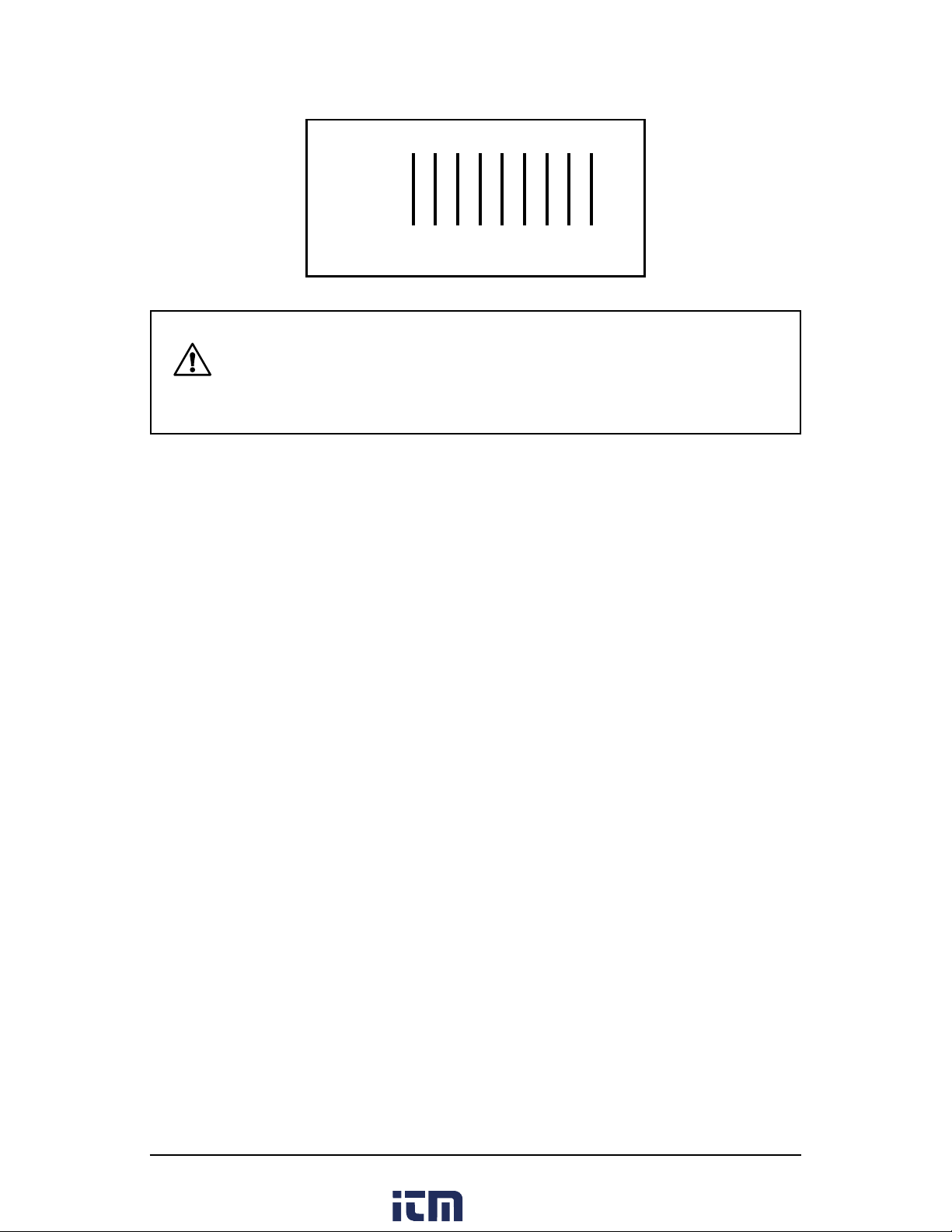

ID1
PASS
TIA568
L=94ft
Vp=71%
4 5 1 2 3 6 7 8 S
Cable OK
4 5 1 2 3 6 7 8 S
When testing ISDN wiring, any resistive terminators
should be switched out of the circuit or disconnected.
Failure to do so could lead to erroneous test results.
•Theleftsideofthedisplayshowsinformationaboutthetestper-
formed and the status of the test result.
•Therstlineshowstheuniqueidentityoftheactiveremoteunit
connected to the far end (in this case, ID1). There are 15 addi-
tional active remote units available as optional accessories (ID#2
to ID#16).
•Theteststatus,PASS is indicated on the second line. A test
PASSisconrmedbyadoublebeepfromthemainunitanda
doublegreenashontheLEDoftheactiveremoteunit.
•Next,informationaboutthetesttypeselected,alongwithamea-
sured value of the cable length, and an indication of the current
VP setting is displayed.
•Ifafaultisfoundanappropriatemessagewillbedisplayed,along
withawarningtoneonthemainunit,andaredashingLEDon
the remote unit.
www. .com [e-mail]1.800.561.8187

14 Wire Mapper Pro Model CA7028
4.8 Test Failed Screen
4.8.1 Open and Short Fault

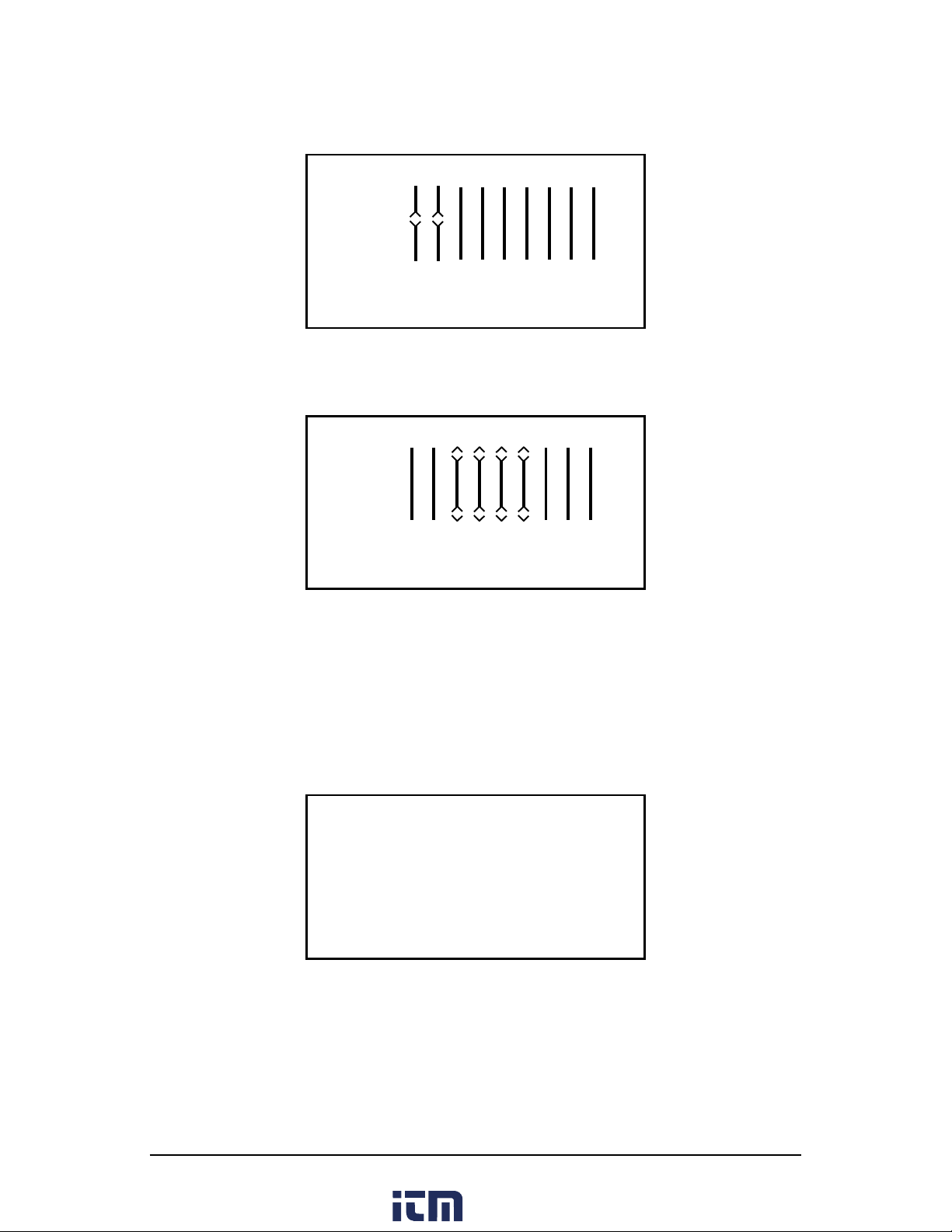

In the event of an Open fault, the following is displayed:
ID1
FAILED
TIA568
L=94ft
Vp=71%
4 5 1 2 3 6 7 8 S
Open at remote end
Pin 7
4 5 1 2 3 6 7 8 S
Notice the word FAILED under the cable ID1 and also the detailed mes-
sage at the bottom of the display.
The graphical portion of the display also shows that the fault is an open on
pin 7 at the remote end by showing a break in the line at this point.
NOTE: In the event that an open or short circuit fault occurs at
either end of a cable or link under test, the unit will show the fault
as at the near end or the remote end. These faults are the most
common and are mainly due to termination problems.
If the fault occurs some way along the cable or link under test,
then a display similar to the one shown below will occur. Notice,
that on this occasion the actual measured distance to the fault
is given.
In the event of a Short fault, the following is displayed:
ID1
FAILED
TIA568
L=94ft
Vp=71%
4 5 1 2 3 6 7 8 S
Short at 36ft
Pin 1 2
4 5 1 2 3 6 7 8 S
In this situation, the graphical portion of the display also shows that the fault
is a short between pins 1 and 2 and the short is drawn at an approximation
to the distance along the cable or link under test, at which it occurs.
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 15
4.8.2 Reversed and Split Pair Fault
In the event of a Reversed Pair fault, the following is displayed:
ID1
FAILED
TIA568
L=94ft
Vp=71%
4 5 1 2 3 6 7 8 S
Reversed Pair
Pin 4 5
4 5 1 2 3 6 7 8 S
In the event of a Split Pair fault, the following is displayed:
ID1
FAILED
TIA568
L=94ft
Vp=71%
4 5 1 2 3 6 7 8 S
Split Pair
Pin 1 2 3 6
4 5 1 2 3 6 7 8 S
NOTE: For cables less than 6 ft (2m) in length the tester is unable to
distinguish a Split Pair condition.
Inthisevent(cabletooshort),thefollowingscreenisdisplayedbriey,
before the screen to warn the user that a Split Pair test has not been car-
ried out.
* * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * *
Too Short for
Split Pair Test
www. .com [e-mail]1.800.561.8187

16 Wire Mapper Pro Model CA7028
4.9 Multiple Faults
In the event of a multiple fault, or a cable or link with more than one fault on
it, the tester will report the faults in the following order of priority.
•Shorts
•Reversals
•Opens
For example, on a cable with an Open on pin 3 and a Short between
pins 7 and 8, only the Short in pins 7 and 8 will be reported.
4.10 Missing Remote
If a wire map test is performed without a remote unit connected at the far
end, the following screen will be displayed:
? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Missing
Remote Unit
www. .com [e-mail]1.800.561.8187

Wire Mapper Pro Model CA7028 17
4.11 Cable Length Measurement
Structured Cable Tester
WIRE MAPPER P RO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp
The remote unit does not need to be attached for this
test to be performed. Although it does not matter if it
is attached, any terminators on ISDN wiring or sockets
should be switched out of the circuit or disconnected.
Attach the main unit to one end of the cable and press the
LENGTH / Vp
button.
The length of all four pairs in the cable are measured, and the results dis-
played simultaneously, as shown below.
Pr. 4-5 64ft
Pr. 1-2 64ft
Pr. 3-6 -----
Pr. 7-8 64ft
TIA568 UTP Vp=71%
In this example, the length of pair 3 - 6 is missing, as there is a fault on the
pair which is preventing the TDR circuit from measuring the length.
Length will be displayed in the selected units, either meters or feet, and
the Vp and cable testing standard will also be displayed. Length measure-
ment accuracy depends on the correct setting of the Vp (Velocity of Propa-
gation) for the cable under test.
If the Vp is not known for a particular cable, then a known length of that
cable (at least 60ft or 20m long) may be connected to the instrument and
the Vp adjusted until the correct length reading is obtained (see § 4.3).
www. .com [e-mail]1.800.561.8187

18 Wire Mapper Pro Model CA7028
4.12 Tone Generator
The Wire Mapper Pro may also be used as a tone generator, to trace and
identify cables and wires. The user will need a cable tone tracer, such as
the AEMC Tone Receiver/Cable Tracer Model TR03 (Cat. #2127.76).
Structured Cable Tester
WIRE MAPPER PRO
MODEL CA7028
SERVICE / Vp
MAP /
LENGTH / Vp
Pressing the key will inject a warbling (oscillating) tone into the cable
or link under test. When set, the following will be displayed:
* * * * * * * * * * * * * * * * * * *
* * * * * * * * * * * * * * * * * * *
Warble Tone
Theinjectedsignaloscillatesbetween810Hzand1110Hz,sixtimesper
second.
NOTE: Theauto-ofunctionisdisabledinToneGeneratormode,sothat
the tone can be injected into a cable for an extended period of time while
tracing takes place.
4.13 Backlight
Thedisplaybacklightisswitchedonandowiththebutton.
www. .com [e-mail]1.800.561.8187
