Aeotec Dual Nano Switch ZW132 User manual

View the expanded manual:
http://aeotec.com/support
Dual Nano Switch
IMPORTANT!
This product has been fully tested and certified to
work with Z-Wave by the Z-Wave Alliance. It is
crafted using Z-Wave Plus, the latest device version
of Z-Wave. As such, if the product does not work
with your gateway, please be sure to check with your
gateway manufacturer that they have integrated this
device with their gateway for full operation.

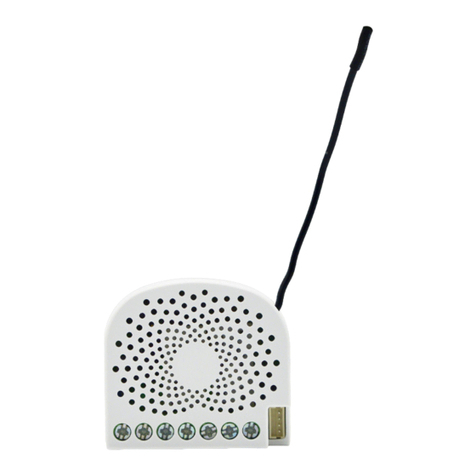

Aeotec by Aeon Labs Dual Nano
Switch.
Aeotec Dual Nano Switch is a low-cost Z-Wave
Switch specically used to enable Z-Wave command
and control (on/off) of any wall switches. It can report
immediate wattage consumption or kWh energy
usage over a period of time. In the event of power
failure, non-volatile memory retains all programmed
information relating to the unit’s operating status.
It can connect to 2 external manual switches to
control the load ON/OFF independently. Its surface
has a pin socket, which can be used for connecting
to the touch panel, so you can also use the touch
panel to control the Dual Nano Switch.
The Dual Nano Switch is also a security Z-Wave
device and supports Over The Air (OTA) feature for
the products rmware upgrade.
1
32
1
Z-Wave and Z-Wave Plus are
registered trademarks of Sigma
Designs and its subsidiaries in the
United States and other countries
FCC ID: XBAFT132
Certications (regional):
Version: 501013200001-AA www.aeotec.com
Contact your local government for information
regarding the collection systems available.

231
(Front)
Action Button
Touch panel connection port
RGB LED
RF antenna
Fastening screws
Familiarize yourself with your Dual
Nano Switch.
2
(Back)
(Bottom)
Wire connection
port
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Warning
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consul the dealer or an experienced radio/TV
technician for help.
UL NOTICE (For USA).
Install only in a UL listed junction box sized
3×2×2.75 inch (75×50×70 mm) or larger,
minimum volume 14 in (230 cm ).
Use Copper Conductors Only.
“CAUTION – Risk of Electric Shock – More than
one disconnect switch may be required to de-
energize the equipment before servicing”.
“WARNING - This device shall not be used in
combination with a wall switch controlling a
receptacle.”
1.
2.
3.
4.
3 3

330
N – Power input for neutral
L – Power input for live
IN – Input for load power supply
OUT1 – Output for load 1
OUT2 – Output for load 2
S1 – External switch control for load 1
S2 – External switch control for load 2
Notes for the wire connection ports:
Touch panel
LN IN OUT1 OUT2 S1 S2
found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur in
a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.

429
Install the Dual Nano Switch.
1. Shut off the main circuit breaker of your home for
safety during the installation and ensure the wires
are not short circuited during the installation which
will cause damage to the Dual Nano Switch.
Important: A licensed electrician with knowledge
and understanding electrician systems and electrical
safety should complete the electrical installation.
Note: Your home’s main circuit breaker must support
the overload protection for safety.
FCC NOTICE (for USA)
THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
STORE INDOORS WHEN NOT IN USE. SUITABLE
FOR DRY LOCATIONS. DO NOT IMMERSE
IN WATER. NOT FOR USE WHERE DIRECTLY
EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference,
and
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and
1.
2.

28
Cut wire if neccessary
0.27"
(5mm)
Strip Gage (measure barehere)
5
Preparing connection wires
14 AWG power wires for Input/ Output.
18 AWG copper wires for external manual switch.
Use the wire stripper cut the metallic part of the
connection wire and make sure the length of the
metallic part is about 5mm.
2.
Note: All connection wires needs to be exible cable.
USE OF THE PRODUCTS, WHETHER BASED
ON NEGLIGENCE, STRICT LIABILITY, BREACH
OF WARRANTY, BREACH OF AGREEMENT, OR
EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED
TO, AT AEON LABS' OPTION, REPLACEMENT
OF, OR REPAYMENT OF THE PURCHASE
PRICE FOR THAT PORTION OF PRODUCTS
WITHRESPECT TO WHICH DAMAGES ARE
CLAIMED. ALL CLAIMS OF ANY KIND ARISING
IN CONNECTION WITH THIS AGREEMENT OR
THE SALE OR USE OF PRODUCTS SHALL BE
DEEMED WAIVED UNLESS MADE IN WRITING
WITHIN THIRTY (30) DAYS FROM AEON LABS'
DELIVERY, OR THE DATE FIXED FOR DELIVERY IN
THE EVENT OF NONDELIVERY. THE INDEMNITY
AND WARRANTY IN ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER INDEMNITIES
OR WARRANTIES, WHETHER EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

627
Wiring diagram of AC120V/230V power input.
LTouch
panel
Live
Neutral
AC120V~230V
N IN OUT1 OUT2 S1 S2
or relating to any actual or alleged infringement or
misappropriation of any patent, trademark, mask
work, copyright, trade secret or any actual or alleged
violation of any other intellectual property rights
arising from or in connection with the products,
except to the extent that such infringement exists as
a result of Aeon Labs' manufacturing processes.
IN NO EVENT SHALL AEON LABS BE LIABLE
FOR ANY INDIRECT, INCIDENTAL, PUNITIVE,
SPECIAL OR CONSEQUENTIAL DAMAGES, OR
DAMAGES FOR LOSS OF PROFITS, REVENUE,
OR USE INCURRED BYCUSTOMER, COMPANY
OR ANY THIRD PARTY, WHETHER IN AN ACTION
IN CONTRACT, OR TORT, OR OTHERWISE
EVENIF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. AEON LABS' LIABILITY AND
CUSTOMER'S EXCLUSIVE REMEDY FOR ANY
CAUSE OF ACTION ARISING IN CONNECTION
WITH THIS AGREEMENT OR THE SALE OR

726
Touch
panel
Live
Neutral
-
+
AC120V~230V
DC 24V
L
In some cases, you may have some loads just only
can be used on the voltage of DC24V and hope that
it still can be controlled by the Dual Nano Switch, so
please refer to the following diagram to achieve this:
NIN OUT1 OUT2S1 S2
Note: The “IN” terminal should be connected to the
“-” of DC 24V input.
needs, Company must prepay shipping and
transportation charges for returned Products, and
insure the shipment or accept the risk of loss or
damage during such shipment and transportation.
Aeon Labs will ship the repaired or replacement
products to Company freight prepaid.Customer
and Company shall indemnify, defend, and hold
Aeon Labs and Aeon Labs' afliates, shareholders,
directors, officers, employees, contractors,
agents and other representatives harmless from
all demands, claims, actions, causes of action,
proceedings, suits, assessments, losses, damages,
liabilities, settlements, judgments, fines, penalties,
interest, costs and expenses (including fees and
disbursements of counsel) of every kind (i) based
upon personal injury or death or injury to property
to the extent any of the foregoing is proximately
caused either by a defective product (including strict
liability in tort) or by the negligent or willful acts or
omissions of Customer or its officers, employees,
subcontractors or agents, and/or (ii) arising from

825
Wiring diagram of DC24V power input.
Since the Dual Nano Switch also supports the
DC24V power input, so you can use it to control the
loads that powered by DC24V.
-
+
LN IN OUT1OUT2 S1 S2 Touch
panel
DC 24V
Any repairs under this warranty must be conducted
by an authorized Aeon Labs service representative
and under Aeon Labs' RMA policy. Any repairs
conducted by unauthorized persons shall void this
warranty.
Excluded from the warranty are problems
due to accidents, acts of God, civil or military
authority, civil disturbance, war, strikes, res, other
catastrophes, misuse, misapplication, storage
damage, negligence, electrical power problems, or
modication to the Products or its components.
Aeon Labs does not authorize any person or party
to assume or create for it any other obligation or
liability in connection with the Products except as
set forth herein. Aeon Labs will pass on to Company
all manufacturers’ Material warranties to the extent
that they are transferable, but will not independently
warrant any Material. Company will assist Customer
with all warranty, repair, return and technical support
