OPERATING MANUAL

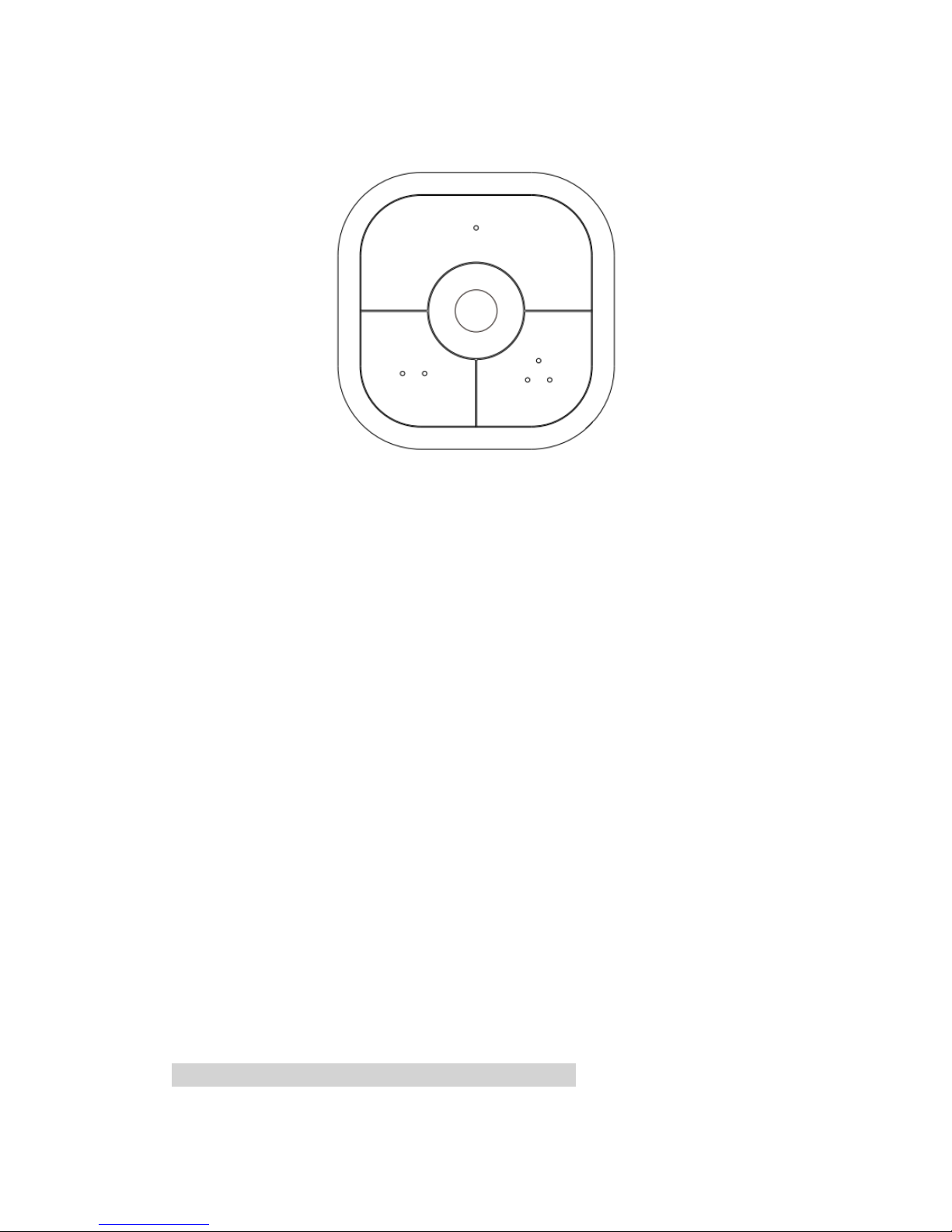

NanoMote Quad
ZWA003-A/C
NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to
control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave
Gateway. On the other hand, it can also be used to program a scene by Gateway app which groups
many smart nodes such as Plugs, Bulbs, and Siren... The scene may refer to sleep scene, movie
scene and entertainment scene, etc. as you created.
Features:
1. Z-Wave Plus certified for good compatibility (500 serials chipset)
2. Z-Wave S2 system
3. Support remote control anywhere and anytime
4. Program up to 4 customized scenes
5. The battery is rechargeable, will run for three months per charge
6. Support low battery alarm with buzzer
7. Support Child Lock function
8. Supporting firmware OTA
Ⅰ. GENERAL INFORMATION ABOUT NANOMOTE QUAD

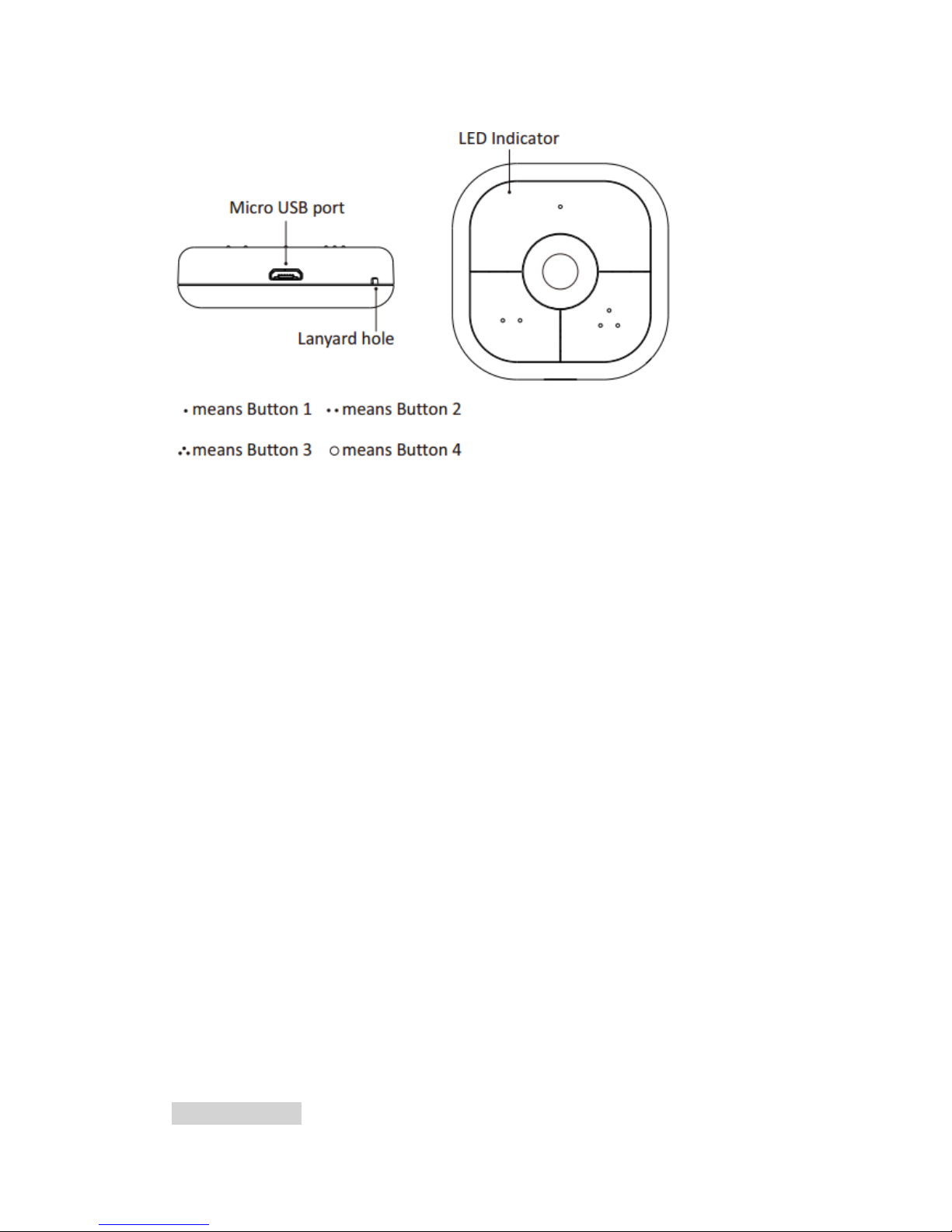

1. Product layout
2. Specifications
Power supply:
1 x LIR2450 3.6V Battery
Storage environment:
-10℃-50℃0%-85%
Operational temperature:
0-40℃
Radio protocol:
Z-Wave
Radio frequency:
868.42MHz (EU) 908.42MHz (US)
921.42MHz(ANZ)
Range:
More than 100m outdoors
About 30m indoors (depending
on building materials)
Dimensions:
50*50*14.5MM
Working current:
36mA
Standby current:
2.5uA
Ⅱ. INSTALLATION

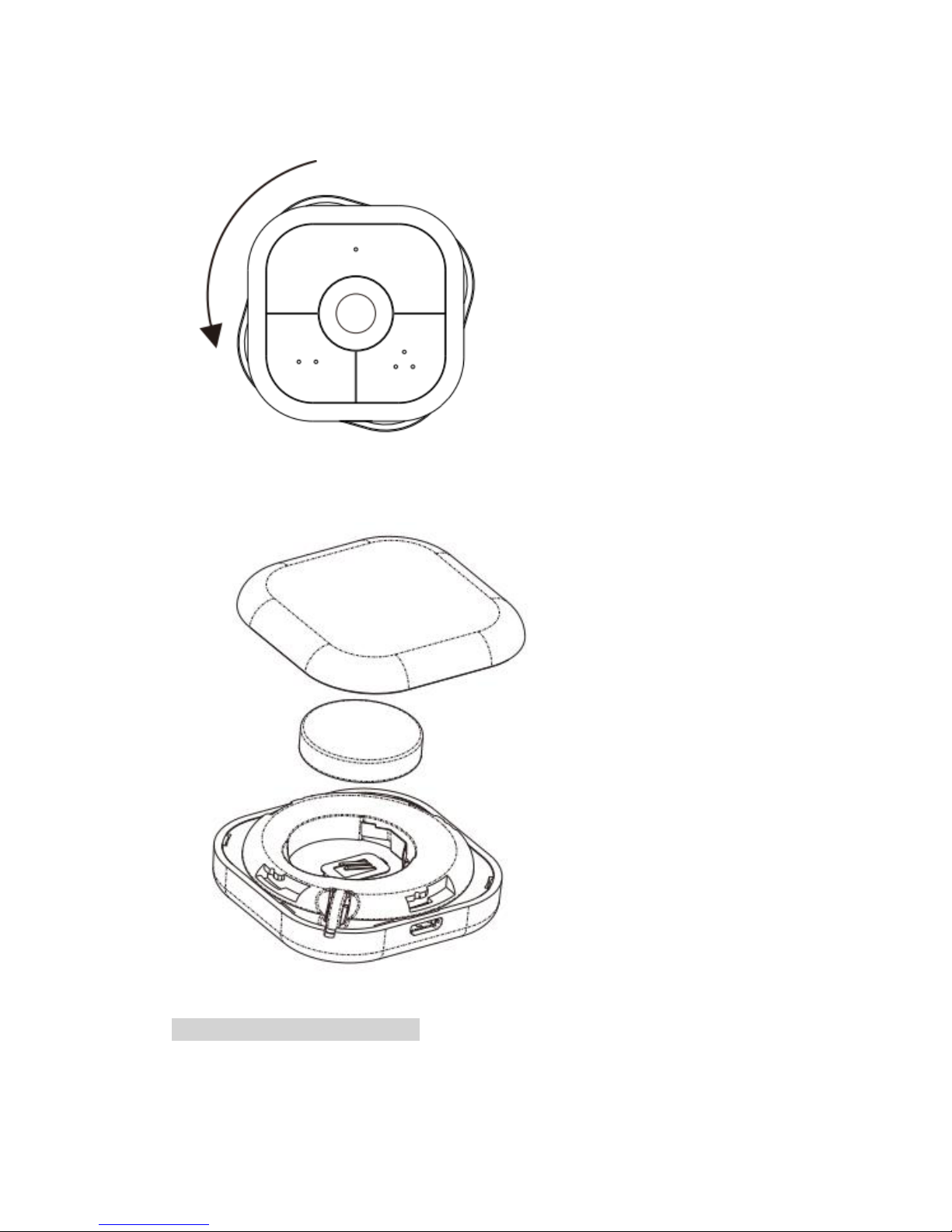

Open the cover
Insert your battery and close the cover
Ⅲ. Z-WAVE NETWORK INCLUSION
NanoMote Quad can be included and operated in any Z-Wave network with other Z-Wave certified
devices from other manufacturers and/or other applications. All non-battery operated nodes
within the network will act as repeaters regardless of vendor to increase reliability of the network.

1. Insert the LIR2450 battery.
2. Place the device within the direct range of your Z-Wave controller.
3. Set the main controller’s adding mode (see the controller’s manual).
4. Double click the button quickly, the LED indicator should blink fast.
5. Wait for the adding process to end.
6. Successful adding will be confirmed by the Z-Wave controller’s message.
TIP:
If you want your NanoMote Quad to be a security device that use
secure/encrypted message to communicate in a Z-Wave network, then a security
enabled Z-Wave controller is needed .
Ⅳ. Z-WAVE NETWORK EXCLUSION
To remove the NanoMote Quad from the Z-Wave network:
1. Insert the LIR2450 battery.
2. Place the device within the direct range of your Z-Wave controller.
3. Set the main controller remove mode (see the controller’s manual).
4. Double click the button quickly, the LED indicator should blink fast.
5. Wait for the removing process to end.
6. Successful adding will be confirmed by the Z-Wave controller’s message.
V .Security features of NanoMote Quad in Z-Wave network
7. The following is a list of supported command classes:
8. 1.The node info frame supports:
COMMAND_CLASS_ZWAVEPLUS_INFO
V2
COMMAND_CLASS_SECURITY
V1
COMMAND_CLASS_SECURITY_2
V1
COMMAND_CLASS_TRANSPORT_SERVICE
V2
2. Security Command Supported Report Frame:
COMMAND_CLASS_VERSION
V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC
V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO
V1
COMMAND_CLASS_ASSOCIATION
V2
COMMAND_CLASS_BATTERY
V1
COMMAND_CLASS_WAKE_UP
V2
COMMAND_CLASS_POWERLEVEL
V1
COMMAND_CLASS_CONFIGURATION
V1
COMMAND_CLASS_SUPERVISION
V1
!

COMMAND_CLASS_FIRMWARE_UPDATE_MD
V3
COMMAND_CLASS_DEVICE_RESET_LOCALLY
V1
COMMAND_CLASS_CENTRAL_SCENE
V3
COMMAND_CLASS_MARK
V1
COMMAND_CLASS_SWITCH_MULTILEVEL
V2
VI. LOW BATTERY ALARM FUNCTION
NanoMote Quad will send battery report to the lifeline group when button is triggered during
the sleep mode. If the battery level of the NanoMote Quad is less than 20%, the NanoMote
Quad will send a low battery alarm to the main controller.
VII. WAKE UP
Pressing and holding button for 5 seconds and then release so the NanoMote Quad will wake up
itself and send wake-up notification out to Z-Wave Controller. After that, it can be operated to
update parameters, OTA, and detect battery level etc.
VIII. CHILD LOCK FUNCTION
Child Lock function. If enable the Child Lock function, the LED indicator will not be on when press
down the button. To switch on/off the Child Lock function, please press and hold the button for 10
seconds, the LED indicator will be solid on in red. Then release the button, the LED indicator will
be continuously stay in red for 2 seconds. During this 2 seconds, please click the button once, the
LED light will be blink fast in red for 2 seconds.
IX. TESTING Z-WAVE NETWORK RANGE
Press and hold the button for 15 seconds, the LED light will be solid on in purple. Then release the
button, the LED light will be stay in purple for 2 seconds, during this 2 seconds, please click the
button once, it will start to test the Z-Wave network range and LED light will blink fast in purple.
After finish the test, if the LED light is in green, it refers to strong signal; if in blue, it refers to
medium signal, and if in red, it refers to weak signal or no signal.
TIP:
This function works only when NanoMote Quad has been included into a Z-
Wave network.
!

X. RESET NANOMOTE QUAD
Reset procedure clears the NanoMote Quad's memory, including Z-Wave network information.
To reset NanoMote Quad:
Press and hold the button for 20 seconds, the LED light will be solid on in red. Then release the
button, the LED light will be stay in red for 2 seconds, during this 2 seconds, please click the button
once, it will start to restore factory default. At the same time, the LED light will be solid on in
colorful for 15 seconds. Then Sending Device Reset locally notification to the controller.
NOTE:
Use this procedure only in the event that the network primary controller is
missing or otherwise inoperable.
XI. BATTERY CHARGING
NanoMote Quad has an internal rechargeable battery that will run for three months under the
normal use condition. The charger's output should be a micro USB terminal with the specification
of output DC 5V.The LED color is red during the charging process, and it will turn to green if the
charging is finished.
Ⅻ. BASIC COMMAND
There is no relevant commands are available for mapping.
ⅩⅢ. BATTERY COMMAND
NanoMote Quad will send battery report to the lifeline group when Button is triggered during the
sleep mode. If the battery level of the Scene Controller is less than 20%, the Scene Controller will
beep 3 times when the button is pressed.
ⅩⅣ. ASSOCIATION
Association allows the NanoMote Quad to control another Z-wave device directly, such as Smart
Switch, Smart Dimmer, etc. NanoMote Quad supports three association groupings, every group
relates to a specific button action. View details in the follow section of “XI. BUTTON FUNCTION”.
Group 1 allows NanoMote Quad sends central scene notification command and battery report
command when any button is triggered. Details shown as the below diagram 1.

Group 2 allows NanoMote Quad sends basic set command when the button 1 is triggered.
Group 3 allows NanoMote Quad sends switch multilevel set, multilevel start level change and
multilevel stop level change command when the button 1 is triggered.
Group 4 allows NanoMote Quad sends basic set command when the button 2 is triggered.
Group 5 allows NanoMote Quad sends switch multilevel set, multilevel start level change and
multilevel stop level change command when the button 2 is triggered.
Group 6 allows NanoMote Quad sends basic set command when the button 3 is triggered.
Group 7 allows NanoMote Quad sends switch multilevel set, multilevel start level change and
multilevel stop level change command when the button 3 is triggered.
Group 8 allows NanoMote Quad sends basic set command when the button 4 is triggered.
Group 9 allows NanoMote Quad sends switch multilevel set, multilevel start level change and
multilevel stop level change command when the button 4 is triggered.
Details shown as the below diagram 2
Diagram 1:
Diagram 2:
Button ID
1
2
3
4
Scene Number
1
2
3
4

TIP:
1. The max number of associated nodes of all each group is 5.
2. Association allows for direct transmission of control command between
devices and takes place without the participation of the main controller.
XV. BUTTON FUNCTION
!
Button ID
Group ID
Action & notification
Any button
1
Press: Central scene notification ( Key Attributes=0)
Hold: Central scene notification ( Key Attributes=2)
Release: Central scene notification ( Key Attributes=1)
Button 1
2
Press: Basic Set
Hold: Reserve
Release: Reserve
3
Press: Switch multilevel set
Hold: Multilevel start level change
Release: Multilevel stop level change
Button 2
4
Press: Basic Set
Hold: Reserve
Release: Reserve
5
Press: Switch multilevel set
Hold: Multilevel start level change
Release: Multilevel stop level change
Button 3
6
Press: Basic Set
Hold: Reserve
Release: Reserve
7
Press: Switch multilevel set
Hold: Multilevel start level change
Release: Multilevel stop level change
Button 4
8
Press: Basic Set
Hold: Reserve
Release: Reserve
9
Press: Switch multilevel set
Hold: Multilevel start level change
Release: Multilevel stop level change

NanoMote Quad offers three button action types, including short press, press and hold,
release.
Short press allows NanoMote Quad sends:
Central scene notification commands to the associated nodes.
Basic set command to the associated nodes.
Switch multilevel set command to the associated nodes.
Press and Hold (more than 2 seconds) allows NanoMote Quad sends:
Central scene notification command to the associated nodes.
Multilevel start level change command to the associated nodes.
Release allows NanoMote Quad sends:
Central scene notification command to the associated nodes.
Multilevel stop level change command to the associated nodes.
XVI. ADVANCED CONFIGURATION
NanoMote Quad offers a wide variety of advanced configuration settings. Below parameters can be
accessed from main controllers configuration interface.
Parameter No.32 Level of low battery.
Available settings: 10-50 (10% - 50%)
Default setting: 20 (20%)
Parameter size: 1[byte]
Parameter No.41 Enable send central scene notification.
0- Disable.
1–Enable.
Default setting: 1
Parameter size: 1[byte]
Parameter No.42 Setting the duration value of the command switch multilevel.
Available settings: 0-255
Default setting: 255
Parameter size: 1[byte]
Parameter No.43 Enable/disable the buzzer alarm when battery is running low.

0- Disable.
1–Enable.
Default setting: 0
Parameter size: 1[byte]
XVII. NOTES FOR OTA
With reference to Wake-up operation (VI.WAKE UP) and Z-Wave controller's guidances to do OTA.
XVIII. FCC NOTICE (for USA)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications or change to this equipment. Such modifications or change could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
