AERMEC OmniaRadiant User manual

IUL_R-UL_RITY. 6976431_00 1307
FANCOIL - TECHNICAL
Omnia
UL_R-UL_RI
FAN COILS
• VERTICAL INSTALLATION
• VENTILATED HEATING
• LOW TEMPERATURE IRRADIATION
• COOLING / DEHUMIDIFICATION
• LOW TEMPERATURE OF EXCERCISE
2PQLD
DGLDQW
EN

2Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Dear Customer,
Thank you for choosing an AERMEC product. This product is the result of many years of experience and
in-depth engineering research, and it is built using top quality materials and advanced technologies.
In addition, the CE mark guarantees that our appliances fully comply with the requirements of the European
Machinery Directive in terms of safety. We constantly monitor the quality level, and as a result AERMEC prod-
ucts are synonymous with Safety, Quality, and Reliability.
The data may be subject to modifications deemed necessary for improving the product at any time and
without forewarning.
Thank you again.
AERMEC S.p.A
Aermec reserves the right to make all modification deemed necessary for improving the product at any time with any modification of technical data.

3Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Omnia UL_R-UL_RI
Bevilacqua, 01/06/2013
La Direzione Commerciale – Sales and Marketing Director
Luigi Zucchi
AERMEC S.p.A.
I-37040 Bevilacqua (VR) Italia – Via Roma, 996
Tel. (+39) 0442 633111
Telefax (+39) 0442 93730 – (+39) 0442 93566
DICHIARAZIONE DI CONFORMITÀ
Noi, firmatari della presente, dichiariamo sotto la nostra esclusiva responsabilità,
che il prodotto:
VENTILCONVETTORE
serie Omnia UL_R - UL_RI
al quale questa dichiarazione si riferisce è conforme alle seguennorme armonizzate:
- CEI EN 60335-2-40
- CEI EN 55014-1
- CEI EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-2
- CEI EN 61000-6-3
- CEI EN 61000-6-4
soddisfando così i requisiessenziali delle seguendireve:
- Direva LVD 2006/95/CE
- Direva compabilità eleromagneca EMC2004/108/CE
- Direva Macchine: 2006/42/CE
OMNIA UL_R - UL_RI CON ACCESSORI
E’ fatto divieto di mettere in servizio il prodotto dotato di accessori non di fornitura
Aermec.
CONFORMITY DECLARATION
We the undersigned declare, under our own exclusive responsibility, that the product:
FAN COIL
OMNIA UL_R - UL_RI series
to which this declaraon refers, complies with the following standardised regulaons:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-2
- CEI EN 61000-6-3
- CEI EN 61000-6-4
thus meeng the essenal requisites of the following direcves:
- Direcve LVD 2006/95/CE
- EMC Electromagnec Compability Direcve 2004/108/CE
- Machinery Direcve: 2006/42/EC
OMNIA ULR - ULRI WITH ACCESSORIES
It is not allowed to use the unit equipped with accessories not supplied by Aermec.
CERTIFICAT DE CONFORMITÉ
Nous soussignés déclarons sous notre exclusive responsabilité que le produit:
VENTILOCONVECTEURS
série OMNIA UL_R - UL_RI
auquel cette déclaration fait référence, est conforme aux normes harmonisées sui-
vantes:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-2
- CEI EN 61000-6-3
- CEI EN 61000-6-4
sasfaisant ainsi aux condions essenelles des direcves suivantes:
- Directive LVD 2006/95/CE
- Directive compatibilité électromagnétique EMC2004/108/CE
- Direcve Machines: 2006/42/CE
OMNIA ULR - ULRI PLUS ACCESSOIRES
Il est interdit de faire fonctionner l'appareil avec des accessoires qui ne sont pas fournis
de Aermec.
KONFORMITÄTSERKLÄRUNG
Wir, die hier Unterzeichnenden, erklären auf unsere ausschließlich Verantwortung,
dass das Produkt:
GEBLÄSEKONVEKTOR
der Serie OMNIA UL_R - UL_RI
auf das sich diese Erklärung bezieht, den folgenden harmonisierten Normen entspricht:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-2
- CEI EN 61000-6-3
- CEI EN 61000-6-4
womit die grundlegenden Anforderungen folgender Richtlinien erfüllt werden:
- Richtlinie LVD 2006/95/CE
- Richtlinie zur elektromagneschen Verträglichkeit EMC2004/108/CE
- Maschinenrichtlinie: 2006/42/EG
OMNIA UL_R - UL_RI + ZUBEHÖR
Falls das Gerät mit Zubehörteilen ausgerüstet wird, die nicht von Aermec geliefert wer-
den, ist dessen Inbetriebnahme solange untersagt.
DECLARACIÓN DE CONFORMIDAD
Los que suscriben la presente declaran bajo la propia y exclusiva responsabilidad que el
conjunto en objeto, definido como sigue:
FAN COIL
serie Omnia OMNIA UL_R - UL_RI
al que esta declaración se refiere, está en conformidad a las siguientes normas armo-
nizadas:
- EN 60335-2-40
- EN 55014-1
- EN 55014-2
- CEI EN 61000-6-1
- CEI EN 61000-6-2
- CEI EN 61000-6-3
- CEI EN 61000-6-4
- EN 61000-6-3
al que esta declaración se refiere, está en conformidad a las siguientes normas armo-
nizadas:
- Directiva LVD 2006/95/CE
- Directiva compatibilidad electromagnétic EMC2004/108/CE
- Direcva Máquinas: 2006/42/CE
OMNIA UL_R - UL_RI CON ACCESORIOS
Está prohibido poner en marcha el producto con accesorios no suministra-
dos por Aermec.

4Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
1. Descripon of the unit ..................................................................6
1.1. Versions available.............................................................................. 6
1.2. The four different working modes of
Omnia radiant annual funconing .................................................... 6
2. Main descripon...........................................................................7
2.1. Radiant plate..................................................................................... 7
2.2. Heat exchange coil ............................................................................ 7
2.3. Cabinet.............................................................................................. 7
2.4. Electrostacally precharged air filter ................................................ 7
2.5. Electric fan assembly......................................................................... 7
2.6. Electric motor ................................................................................... 7
2.7. Load-bearing structure ..................................................................... 7
2.8. Head with adjustable fins.................................................................. 7
2.9. Condensate drain ............................................................................. 7
2.10. Diverng valve .................................................................................. 7
3. Accessories ...................................................................................8
4. Technical Data...............................................................................9
5. Technical data and operang limits .............................................11
6. Heang mode .............................................................................12
7. Cooling mode..............................................................................13
8. Pressure drop .............................................................................17
9. Correcon factor in cooling with glycol-water ............................18
10. Correcon factor in heang with glycol-water............................19
11. Sound power ..............................................................................20
12. Accessories data .........................................................................21
12.1. Gu - exhaust grille ........................................................................... 21
12.2. Zu - wedges for floor mount ........................................................... 21
12.3. Pcu - rear closing panel ................................................................... 21

5Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
WARNING: OMNIA fan coils are designed for
indoor use.
WARNING: the fan coil is connected to power
supply and water circuit. Operations performed
by persons without the required technical skills
can lead to personal injury to the operator or
damage to the unit and surrounding objects.
WARNING: components sensitive to static elec-
tricity may be destroyed by discharge notably
lower than those at the human perception
threshold. These discharges form when you
touch a component or electric contact of a unit,
without first discharging accumulated static
electricity from your body. The damage caused
to the unit by an overvoltage is not immediately
evident - it only appears after a certain period of
operation.
STATIC ELECTRICITY ACCUMULATION
Any person not connected in a conductive man-
ner with the electronic potential of his surround-
ing environment can accumulate electrostatic
charges.
STANDARD PROTECTION AGAINST ELECTROSTATIC
CHARGES
Earthing quality
When working with units sensitive to electrostatic
electricity, ensure that people, workplaces and
unit casings are correctly earthed. This will pre-
vent the formation of electrostatic charges.
Avoid direct contact
Only touch the element exposed to electrostatic
risk when absolutely essential (e.g. for mainte-
nance).
Touch the element without coming into contact
with either the contact pins or the wire guides.
If you follow this rule, the energy of the electro-
static charges cannot reach or damage the sensi-
tive parts.
Before taking measurements on the unit, it is nec-
essary to discharge all electrostatic charges from
your body: to do this, just touch an earthed metal
object. Only use earthed measuring instruments.
POWER THE FAN COIL ONLY WITH 230V, SINGLE
PHASE VOLTAGE
Any other type of power supply could permanently
damage the fan coil.
DO NOT USE THE FAN COIL IMPROPERLY
Do not use the fan coil for animal husbandry
applications (e.g. incubation).
AIR THE ROOM
Periodically air the room in which the fan coil has
been installed. This is particularly important if the
room is occupied by many people, or if gas appli-
ances or sources of odours are present.
ADJUST TEMPERATURE ADEQUATELY
The room temperature should be adjusted in order
to provide maximum comfort to the people in the
room, especially if they are elderly, children or sick
people; avoid differences over 7°C between the
outdoor temperature and the temperature inside
the room in summer.
In summer, a temperature that is too low causes
higher electrical consumption.
CORRECTLY ADJUST THE AIR JET
Air coming out from the fan coil must not reach
people directly; in fact, even if the air is warmer
than the room temperature, it could cause a cold
sensation and result in discomfort.
DURING OPERATION
Always leave the filter fitted on the fan coil during
operation (otherwise dust in the air could soil the
coil surface area).
WHAT IS NORMAL
In the cooling operation, water vapour may be pres-
ent in the air delivery of the fan coil.
In the heating operation, a slight hiss might be
heard close to the fan coil. Sometimes the fan coil
might give off unpleasant smells due to the accu-
mulation of substances present in the air of the
room (clean the filter more often, especially if the
room is not ventilated regularly).
While the unit is functioning, there could be nois-
es and creaks inside the device due to the vari-
ous thermal expansions of the elements (plastic and
metal), but this does not indicate any malfunction and
does not damage the unit unless the maximum input
water temperature is exceeded.
MALFUNCTIONING
In the event of a malfunction, cut off power sup-
ply to the unit, then restore the power and start
the unit again. If the problem occurs again, call
the local After-Sales Service immediately.
DO NOT TUG THE ELECTRIC CABLE
It is very dangerous to pull, tread on or crush the
electric power cable, or fix it with nails or draw-
ing pins.
A damaged power cable can cause short circuits and
injure people.
DO NOT OBSTRUCT THE AIR OUTLETS BY
PLACING OBJECTS INTO THEM
Do not put anything in the air outlet slots.
This could injure people and damage the fan.
IMPORTANT INFORMATION

6Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
1. DESCRIPTION OF THE UNIT
Omnia Radiant and Omnia Radiant Plus Aermec
innovative solutions
In this particular worldwide market evolution, we are
pleased to present to you OMNIA Radiant, which re-
presents the innovation of the OMNIA AERMEC series,
fan coils especially designed for residential comfort.
1.1. VERSIONS AVAILABLE
1. Omina Radiant (Omnia UL_R).
inherits all the advantages of the OMNIA UL
series, and is characterized by the introduc-
tion of the frontal plate for radiant heating.
1. OMNIA Radiant Plus
is provided with the DC
Brushless electric engine, equipped with the
latest Inverter technology, granting the highest
energy efficiency and able to regulate the air
flow through the continuous fan speed modula-
tion. This allows to achieve up to 60% in energy
saving when compared to the traditional On-Off
fan system, in both air conditioning and heating
OMNIA Radiant e Radiant Plus (Omnia UL_RI)
OMNIA Radiant and Radiant Plus offer the following
advantages when compared to the traditional systems:
• the radiant plate combination – the finned coil
allows the best winter comfort with the lower
energy consumption because it provides heating
with lower water temperature: only 45°C against
the about 65°C needed for the traditional radiator.
This not only increases the comfort for the user,
but also significantly increases the overall effi-
ciency in case of heat pumps usage;
• the fan system allows to quickly reach the desired
temperature, meeting the requirement of a fast
start-up;
• the unit can be combined other than the boiler,
also to energy saving heat pumps: air to water,
water to water and geothermic type;
• the electrostatic charge filter standard supplied,
provides pure and clean air;
• during summer Omnia Radiant and Radiant Plus
provide air conditioning and dehumidification in a
fast and efficient way in every room.
1.2. THE FOUR DIFFERENT WORKING MODES OF
OMNIA RADIANT ANNUAL FUNCTIONING
Radiant:
Heating through radiation, comfortable and noiseless,
is granted by the radiant plate placed on the front of
the fan coil cover; if necessary, the triple-fins delivery
head can be closed to increases the heating of the
plate, thus maximizing the radiant effect.
Radiant + Natural Convection
With the triple-fins open, heating through natural con-
vection, obtained thanks to the bigger coil exchange
surface, is added to the radiant heating.
As for the radiant-only mode (see above), the fan
groups are in off mode. This results in acoustic comfort
and energy saving.
Radiant + Forced Convection
The electronic regulation, precise and reliable, conti-
nuously compares the effective indoor temperature
with the desired temperature: whenever the difference
between the two should prove to be too high (e.g.
during the heating system start-up) the software will
lead the fan system start-up. Start-up is fast and effi-
cient and grants significant energy savings especially in
rooms that are occasionally used..
Omnia Radiant during summer provides air conditio-
ning and dehumidification
:
Forced Convection
During summer, Omnia Radiant and Radiant Plus provi-
de air conditioning and dehumidification for each room
of the house in a fast and efficient way. Efficiency and
quietness benefit from the quality that has always cha-
racterized the Omnia series.
Omina Radiant (Omnia UL_R).
Omina Radiant Plus (Omnia UL_RI).
Cabinet RAL 9002
heatboard RAL 7044
Feet RAL 7044
(accessory ZU)
Cabinet RAL 9002
heatboard RAL 7044
Feet RAL 7044
(accessory ZU)
Radiant Radiant + Natural Convection Radiant + Forced Convection Forced Convection

7Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
2. MAIN DESCRIPTION
2.1. RADIANT PLATE
Realized in copper and plate tube to maximize
the radiant surface.
2.2. HEAT EXCHANGE COIL
coil with copper pipe and aluminium fins, held in
place by means of the mechanical expansion of
the pipes
Please note:
The coil cannot be revolved on site. The aach-
ments are only le.
2.3. CABINET
Casing in RAL9002
The casing is made of galvanised steel, varnished
with polyester powders to guarantee high resi-
stance to rust and corrosion.
The feet (accessory) are in plastic, colour
RAL7044.
2.4. ELECTROSTATICALLY PRECHARGED AIR
FILTER
Fire resistance Class 2 (UL 900).
Easily extracble, it is supplied with the fan coil
in a sealed box which should be opened only
upon use. The electrostacally pre-charged
filter combines the normal mechanical filtering
of the air that passes through the filter, with an
electrostac aracon of powder that increases
its filtering considerably.
2.5. ELECTRIC FAN ASSEMBLY
Applied directly to the frame, it consists of extre-
mely quiet, compact, double sucon centrifugal
fans. The electrical motor, protected against
overloading, has three speeds with the running
capacitor always on, directly coupled with the
fans and cushioned with flexible supports. The
fan shrouds can be inspected (an operaon that
can only be carried out by personnel with the
specific technical skills), which also means the
inner parts can be accurately cleaned.
2.6. ELECTRIC MOTOR
2.6.1. Omnia Radiant (UL_R)
Electric motor, protect against overcharges,it has
three speeds, with always switched run capaci-
tor, directly coupled to fans and cushioned with
flexible mounngs.
2.6.2. Omnia Radiant Plus (UL_RI)
The elecric motor “brushless with probes of Hall”
and the control system used in the fan coils arise
from the fusion of the most sofiscated techno-
logies in the field of mechanics and electronics,
enrely developped inside the industrial group.
It is a motor with permanent magnets, with low
inrush current and easy to regualte in speed.
It is not interested from electromagnec disor-
ders.
The fact that it is without brushes permits less
fricons and a reduced wear.
Through a dedicated inverter device it is possible
to control the speed and the rotor couple in a
connous way, simply operang on the stator
currents.
The electric motor is amorzed with elasc
supports and the steel shais mounted on
bushings, the resistance to salt spray is tested
according to the standards ASTM B117/64.
The electric motor presents enormous advan-
tages, compared to tradional motors with
alternave current and with hybrid and inverter
motors (without Hall probes) normally used on
other modulang fan coils:
- Reduced wear
- Possibility of regulang rotaon speed in a
precise and connuous way (0-100%)
- Higher energy efficiency
- Higher reliability and duraon
- Low magnec noise
- Connuous control of rotor posion; this
means higher efficiency and guaranteed and
controlled starng.
- Guaranteed minimum speed 90 rpm (for ther-
modynamic reasons this limit has been carried
to 200 rpm).
2.7. LOADBEARING STRUCTURE
Made of sheet metal of an adequate thickness,
and galvanised to protect against oxidaon.
Equipped with closed cell thermal insulaon with
Class 1 fire resistance.
Holes in the back for wall mounng.
2.8. HEAD WITH ADJUSTABLE FINS
Colour RAL7044
With the deflector fin fully closed, the tripping
of the microswitch stops venlaon thereby
interrupng any further heat exchange with the
environment.
The control panel is also housed in the head, and
is protected by a flap
2.9. CONDENSATE DRAIN
Each device is equipped with condensate drain.
2.10. DIVERTING VALVE
On the inlet water side there is an ON -OFF diver-
ng valve controlled with electric servocontrol.
Note:
The coil had hydraulic hoses on the left and is not
reversible.
1
2
3
4
1
2
3
4

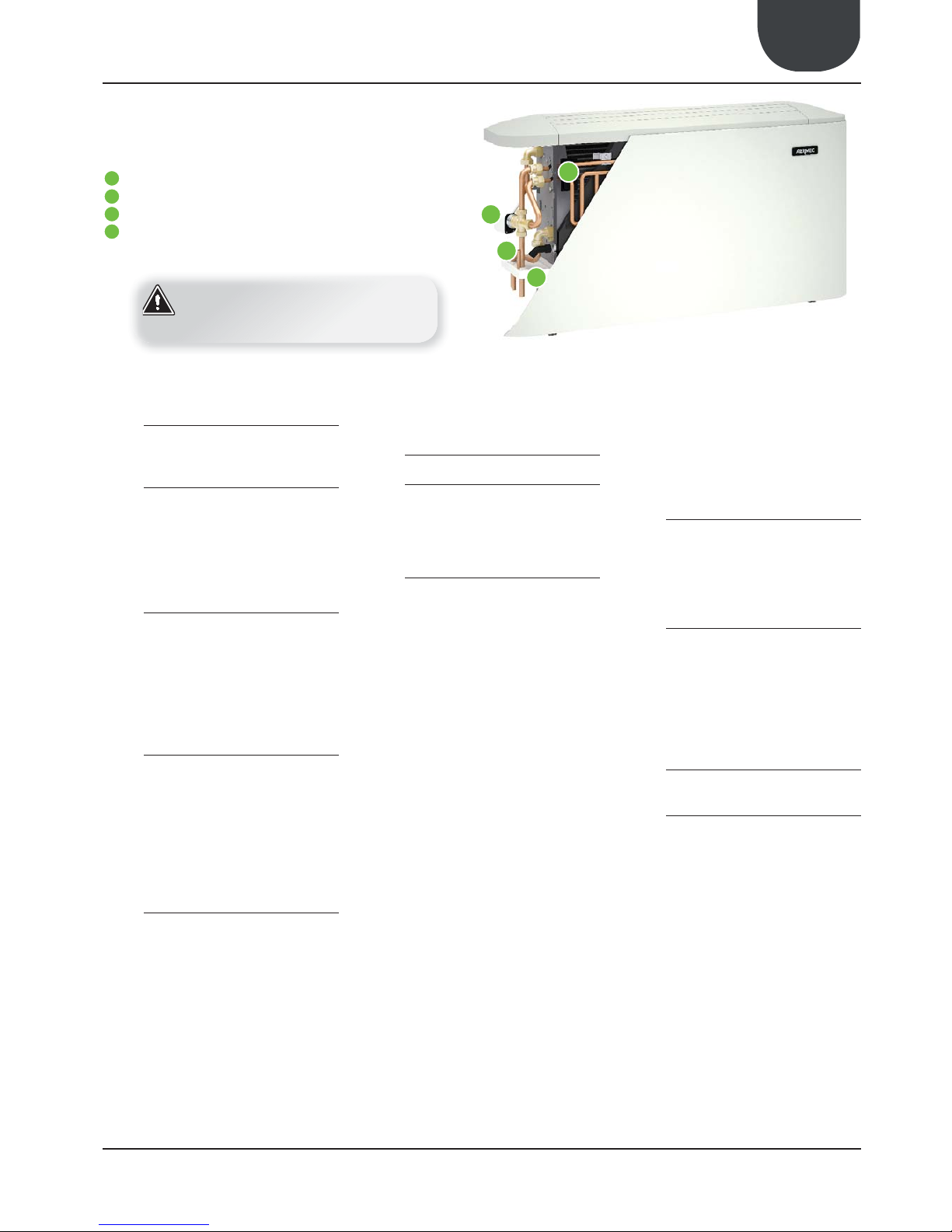

Radiant plate
Switching valve
Water probe
Condensate storage container, hydraulic hoses

8Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
TTL Line
L= max 30 mt.
E0R/E18R
E0R/E18R
E0R/E18R
E0R/E18R
E0R/E18R
E0R/E18R
3. ACCESSORIES
• PCU: Rear closing panel.
• ZU: Wedges for floor mount.
• GU: Exhaust grille: covers the front space of
the wedges and does not interfere with the air
filter. Must be combined with ZU wedges.
VMF: Variable Multi Flow system.
Management and control system of hydronic
systems for the conditioning, heating and pro-
duction of domestic hot water.
The VMF system allows complete control of
every component of a hydronic system both
locally and centrally and, communicating betwe-
en the various components of the system, mana-
ges the performance without ever neglecting the
end user’s request of comfort, but reaching it as
efficiently as possible with energy saving.
• VMF-E4/E4D (COMPULSORY ACCESSORY):
this is the wall mounted user interface Innovative
design, extremely slim and inexpensive, allows
control of functions via a capacitive touch keypad
with LCD display.
WARNING
It’s COMPULSORY schoose to adjust the room
temperature with the probe panel on board.
•VMF-E4
with frontal gray
PANTONE COOL GRAY 1C
•VMF-E4D:
with frontal gray
PANTONE 425C (METAL)
The accessory combined with Omnia Radiant /
Radiant Plus allows you to control:
1. Control of a single terminal
2. Control of a micro-area (a maximum of 5
terminals and terminal MASTER SLAVE)
STAND ALONE APPLICATION:
single terminal
ZONE CONTROL Applicaon:
max. 6 terminals
Omnia radiant Omnia Radiant plus
UL26R UL36R UL26RI UL36RI
PCU 25 35 25 35
GU 25 35 25 35
ZU ••••
VMF system
VMF-E4 1••--
VMF-E4D 1••--
VMF-E5B --••
VMF-E5N --••
1 Compulsory accessories
WARNING
VMF-E4 is REQUIRED because
for the temperature control in
the environment must be made
through the probe to the edge of
the same panellino

9Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
4. TECHNICAL DATA
Mod. UL26R UL36R
Heang capacity (70°C) (1)
W (max.) 4620 5940
W (med.) 3830 4870
W (min.) 2890 3530
Heang capacity (50°C) (2) W (E) 2750 3540
Water flow rate l/h 397 511
Water pressure drop kPa 17 21
Stac heang power (70°C) (3) W 650 750
Stac heang power (50°C) (4) W 390 450
Stac heang power (35°C) (5) W 200 230
Total cooling capacity
W (max.) (E) 2030 2830
W (med.) 1780 2310
W (min.) 1420 1730
Sensible cooling capacity
W (max.) (E) 1640 2040
W (med.) 1370 1790
W (min.) 1050 1280
Water flow rate l/h 349 487
Water pressure drop kPa (E) 18 22
CENTRIFUGAL FAN
Air flow rate
m3/h (max.) 350 460
m3/h (med.) 270 350
m3/h (min.) 190 240
n° Fans n. 2 2
SOUD DATA
Sound pressure
dB (A) (max.) 39,5 39,5
dB (A) (med.) 34,5 32,5
dB (A) (min.) 26,5 25,5
Sound power
dB (A) (max.) (E) 48 50
dB (A) (med.) (E) 43 41
dB (A) (min.) (E) 35 34
ELECTRICAL DATA
Power supply V/ph/Hz 230V/1/50Hz 230V/1/50Hz
Max. motor power W (E) 35 42
Max. input current A 0,18 0,22
HYDRAULIC CHARACTERISTICS
Water contents l 0,8 1,1
Coil connecons (in/out) ø (mm) 14 14
DIMENSIONS AND WEIGHT
Height A (mm) 606 606
Width B (mm) 980 1200
Depth C (mm) 173 173
Height with ZU (Accessories) D (mm) 93 93
Wight (1) (kg) 20 24
Cooling:
Room temperature 27°C b.s./19°C b.u.; Cold water (in/out) 7°C/12°C
Heang:
(1) Room temperature 20°C b.s.; Hot water (in) 70°C; Δt 10°C
(2) Room temperature 20°C b.s.; Hot water (in/*) 50°C/*°C (water flow same as in heang cycle)
(3) Radiant power + natural convecon; Hot water (in) 70°C (water flow same as in heang cycle)
(4) Radiant power + natural convecon; Hot water (in/*) 50°C/*°C (water flow same as in heang cycle)
(5) Radiant power + natural convecon; Hot water (in/*) 35°C/*°C (water flow same as in heang cycle)
Level of sound pressure (A-weighted) measured in the room with volume V = 85m3 ; reverberaon me t = 0.5s;
direcon factor Q = 2; distance r = 2.5m
A
B
C
A
D
ZU
B
C
Wall installaon
Floor installaon
Omnia Radiant UL26R/RL36R

10 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Mod. UL26RI UL36RI
Heang capacity (70°C) (1)
W (max.) 4620 5940
W (med.) 3830 4870
W (min.) 2890 3530
Heang capacity (50°C) (2) W (E) 2750 3540
Water flow rate l/h 397 511
Water pressure drop kPa 17 21
Stac heang power (70°C) (3) W 650 750
Stac heang power (50°C) (4) W 390 450
Stac heang power (35°C) (5) W 200 230
Total cooling capacity
W (max.) (E) 2030 2830
W (med.) 1780 2310
W (min.) 1420 1730
Sensible cooling capacity
W (max.) (E) 1640 2040
W (med.) 1370 1790
W (min.) 1050 1280
Water flow rate l/h 349 487
Water pressure drop kPa (E) 18 22
CENTRIFUGAL FAN
Air flow rate
m3/h (max.) 350 460
m3/h (med.) 270 350
m3/h (min.) 190 240
n° Fans n. 2 2
SOUD DATA
Sound pressure
dB (A) (max.) 39,5 39,5
dB (A) (med.) 34,5 32,5
dB (A) (min.) 26,5 25,5
Sound power
dB (A) (max.) (E) 48 50
dB (A) (med.) (E) 43 41
dB (A) (min.) (E) 35 34
ELECTRICAL DATA
Power supply V/ph/Hz 230V/1/50Hz 230V/1/50Hz
Max. motor power W (E) 12 16
Max. input current A 0,18 0,22
HYDRAULIC CHARACTERISTICS
Water contents l 0,8 1,1
Coil connecons (in/out) ø (mm) 14 14
DIMENSIONS AND WEIGHT
Height A (mm) 606 606
Width B (mm) 980 1200
Depth C (mm) 173 173
Height with ZU (Accessories) D (mm) 93 93
Wight (1) (kg) 20 24
Omnia Radiant Plus UL26RI/RL36RI
Cooling:
Room temperature 27°C b.s./19°C b.u.; Cold water (in/out) 7°C/12°C
Heang:
(1) Room temperature 20°C b.s.; Hot water (in) 70°C; Δt 10°C
(2) Room temperature 20°C b.s.; Hot water (in/*) 50°C/*°C (water flow same as in heang cycle)
(3) Radiant power + natural convecon; Hot water (in) 70°C (water flow same as in heang cycle)
(4) Radiant power + natural convecon; Hot water (in/*) 50°C/*°C (water flow same as in heang cycle)
(5) Radiant power + natural convecon; Hot water (in/*) 35°C/*°C (water flow same as in heang cycle)
Level of sound pressure (A-weighted) measured in the room with volume V = 85m3 ; reverberaon me t = 0.5s;
direcon factor Q = 2; distance r = 2.5m
A
B
C
A
D
ZU
B
C
Wall installaon
Floor installaon

11Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
5. TECHNICAL DATA AND OPERATING LIMITS
OPERATIONAL LIMITS
UL26R UL36R UL26RI UL36RI
Maximum water inlet temperature °C 80°C
Maximum operang pressure bar 8bar
FLOW LIMITS
Flow rate (min) l/h 100 150 100 150
Flow rate (max) l/h 700 1050 700 1050
Minimum average water temperature [°C]
Temperature of the air in the room with dry bulb
21 23 25 27 29 31
Temperature with wet bulb of the air in the
room
15333333
17333333
19333333
21654333
23-87655
WARNING
Minimum average water tem-
perature
If the fan coil is working in
continuous cooling mode in an
environment where the relative
humidity is high, condensate
might form on the air delivery
and on the outside of the
device. This condensate might
be deposited on any objects
underneath and on the floor.
To avoid condensate on the
external structure of the device
while the fan is functioning,
the average temperature of the
water must not be lower than the
limits shown in the table below,
that depend on the thermo-
hygrometric conditions of the air
in the room.
These limits refer to unit operat-
ing with fan at minimum speed.

12 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
6. HEATING MODE
100
200
300
400
500
600
700
500 1500 2500 3500 4500 5500 6500
20 60
50
40
30
Water flow rate [l/h]
Heating capacity [W]
∆t °C (temperature entering water - temperature entering air)
150
250
350
450
550
650
750
850
950
1050
500 1500 2500 3500 4500 5500 6500 7500 8500
20 30 40 60
50
Water flow rate [l/h]
Heating capacity [W]
∆t °C (temperature entering water - temperature entering air)
UL26R/UL26RI
UL36R/UL36RI
THERMIC POWER WITH FAN OFF
OMNIA UL36R/RI
OMNIA UL26R/RI
MOD. UL26R/UL26RI
Medium fan speed 0,83
Minimum fan speed 0,63
MOD. UL36R/UL36RI
Medium fan speed 0,82
Minimum fan speed 0,59
Heating capacity figures refer to maximum fan speed.
Performance for other fan speeds can be obtained by
multiplying
these figures by the following correction factors:
Heating capacity figures refer to maximum fan speed.
Performance for other fan speeds can be obtained by
multiplying
these figures by the following correction factors:
20°C
22°C
24°C
26°C
30 35 40 45 50 55 60 65 70 75 80
0
100
200
300
400
500
600
700
800
20°C
22°C
24°C
26°C
30
0
100
200
300
400
500
600
700
35 40 45 50 55 60 65 70 75 80
Heating capacity [W]
Heating capacity [W]
Room temperature [°C]
Room temperature [°C]
Inlet water temperature [°C]
Inlet water temperature [°C]

13Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
7. COOLING MODE
Omnia Radiant (UL26R)/Omnia Radiant Plus (UL26RI)
TW
(°C)
Δt Ta b.u.
(°C)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
21°C Ta b.s. 23°C Ta b.s. 25°C Ta b.s. 27°C Ta b.s. 29°C Ta b.s. 31°C Ta b.s.
5
3
15 1481 1162 1997 1752 2177 2000 2440 2241 2698 2478 2957 2716
17 2648 1507 2621 1743 2625 1988 2676 2239 2759 2484 2962 2721
19 3437 1529 3424 1748 3410 1984 3397 2225 3377 2462 3383 2702
21 - - 4263 1772 4242 1978 4229 2210 4209 2448 4195 2686
23 - - - - 5128 1999 5108 2200 5088 2424 5075 2662
5
15 1282 1151 1469 1350 1707 1568 2030 1864 2325 2136 2608 2396
17 1564 1055 1633 1304 1822 1588 2053 1870 2330 2140 2611 2398
19 2621 1180 2602 1406 2574 1639 2593 1884 2667 2139 2796 2404
21 - - 3558 1469 3541 1687 3524 1921 3504 2157 3484 2391
23 - - - - 4497 1730 4468 1934 4457 2166 4444 2404
7
15 1112 1019 1314 1207 1517 1393 1721 1580 1928 1771 2136 1962
17 1282 933 1389 1174 1536 1397 1725 1585 1928 1771 2140 1966
19 1716 829 1707 1062 1753 1303 1855 1544 1979 1767 2145 1970
21 - - 2335 997 2316 1228 2288 1457 2344 1704 2482 1973
23 - - - - 3598 1378 3585 1599 3571 1835 3530 2062
7
3
15 1423 1251 1638 1505 1918 1762 2187 2009 2445 2246 2704 2483
17 2071 1263 2058 1501 2127 1758 2235 2010 2450 2250 2708 2487
19 2884 1287 2870 1513 2861 1755 2832 1989 2851 2233 2921 2490
21 - - 3719 1536 3766 1752 3685 1986 3665 2222 3652 2460
23 - - - - 4591 1769 4578 2014 4558 2207 4538 2443
5
15 1054 968 1259 1157 1467 1347 1758 1614 2067 1898 2358 2165
17 1195 899 1310 1139 1472 1352 1762 1619 2071 1903 2362 2170
19 1864 882 1827 1108 1892 1366 2030 1640 2196 1910 2390 2151
21 - - 2925 1217 2916 1445 2898 1681 2879 1915 2907 2158
23 - - - - 3001 1153 3880 1707 3867 1941 3846 2176
7
15 902 828 1107 1017 1312 1205 1515 1392 1721 1580 1924 1767
17 966 788 1126 1016 1315 1208 1518 1394 1721 1580 1926 1769
19 1282 670 1325 914 1425 1157 1559 1384 1725 1584 1928 1771
21 - - 1790 806 1781 1040 1818 1280 1901 1517 2021 1751
23 - - - - 2832 1101 2814 1328 2787 1561 2796 1800
9
3
15 1077 989 1379 1267 1661 1525 1928 1771 2191 2013 2450 2250
17 1412 996 1513 1261 1691 1528 1933 1775 2196 2017 2455 2255
19 2279 1041 2265 1274 2242 1511 2275 1757 2362 2013 2496 2100
21 - - 3128 1294 3115 1519 3101 1758 3081 1993 3075 2233
23 - - - - 4014 1535 1481 649 3981 1984 3967 2223
5
15 944 867 1052 966 1257 1155 1485 1364 1804 1657 2099 1928
17 888 753 1052 966 1259 1157 1485 1364 1808 1661 2103 1931
19 1204 641 1236 883 1340 1124 1518 1371 1813 1665 2108 1936
21 - - 2196 946 2184 1182 2168 1413 2242 1669 2362 1931
23 - - - - 3242 1245 3222 1468 3209 1705 3189 1939
7
15 ------------
17 705 634 902 828 1107 1017 1312 1205 1515 1392 1721 1580
19 877 523 989 773 1137 1005 1315 1208 1518 1394 1721 1580
21 - - 1335 653 1370 894 1462 1136 1592 1370 1744 1583
23 - - - - 1882 787 1868 1022 1910 1265 2002 1511
Note:
Values of capacity in bold face refer to nominal value.
Values of sensible capacity higher than values of total capacity mean that coo-
ling is without dehumidification In this case consider only the values of sensible
capacity
Key
Tw Inlet water temperature °C
Ta b.u. Inlet wet bulbe air temperature
Ta b.s. Dry bulbe air temperature
Pc Total cooling capacity
Ps Sensible cooling capacity

14 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Omnia Radiant (UL26R)/Omnia Radiant Plus (UL26RI)
TW
(°C)
Δt Ta b.u.
(°C)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
21°C Ta b.s. 23°C Ta b.s. 25°C Ta b.s. 27°C Ta b.s. 29°C Ta b.s. 31°C Ta b.s.
11
3
15 791 726 1100 1010 1393 1280 1669 1533 1935 1778 2196 2017
17 814 721 1102 1013 1398 1284 1672 1536 1938 1780 2201 2021
19 1592 780 1569 1014 1642 1271 1762 1530 1942 1784 2205 2026
21 - - 2487 1050 2473 1282 2459 2198 2454 1759 2501 2004
23 ----3390 1297 3377 1521 3356 1757 3343 1993
5
15 ------------
17 639 587 846 777 1052 966 1257 1155 1527 1403 1841 1691
19 793 495 906 741 1061 965 1259 1157 1532 1407 1845 1695
21 - - 1259 627 1282 866 1393 1117 1637 1404 1896 1700
23 - - - - 2491 984 2473 1214 2445 1446 2491 1695
7
15 ------------
17 ------------
19 537 390 711 628 904 830 1107 1017 1312 1205 1515 1392
21 - - 904 510 1013 758 1158 994 1319 1204 1518 1394
23 - - - - 1398 637 1421 876 1504 1116 1624 1350
13
3
15 ------------
17 577 530 796 731 1121 1029 1407 1292 1679 1542 1942 1784
19 714 468 876 737 1144 1034 1412 1297 1684 1547 1947 1788
21 - - 1767 796 1744 1029 1781 1277 1878 1533 2021 1790
23 ----2713 1058 2694 1287 2681 1524 2667 1758
5
15 ------------
17 ------------
19 464 361 642 539 846 777 1052 966 1259 1157 1573 1445
21 - - 823 484 927 728 1077 958 1262 1159 1578 1449
23 ----1449 651 1458 890 1595 1146 1827 1451
7
15 ------------
17 ------------
19 ------------
21 - - 546 380 722 620 904 830 1107 1017 1312 1205
23 - - - - 936 497 1038 742 1176 978 1338 1199
15
3
15 ------------
17 ------------
19 390 331 582 535 823 756 1139 1047 1421 1305 1688 1551
21 - - 752 462 978 759 1199 1042 1423 1307 1693 1555
23 - - - - 1947 805 1938 1042 1938 1280 2007 1530
5
15 ------------
17 ------------
19 ------------
21 - - 473 354 648 583 846 777 1052 966 1278 1174
23 ----8494719507151093 947 1296 1183
7
15 ------------
17 ------------
19 ------------
21 ------------
23 - - - - 556 371 731 611 911 827 1107 1017
Note:
Values of capacity in bold face refer to nominal value.
Values of sensible capacity higher than values of total capacity mean that coo-
ling is without dehumidification In this case consider only the values of sensible
capacity
Key
Tw Inlet water temperature °C
Ta b.u. Inlet wet bulbe air temperature
Ta b.s. Dry bulbe air temperature
Pc Total cooling capacity
Ps Sensible cooling capacity

15Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Omnia Radiant (UL36R)/Omnia Radiant Plus (UL36RI)
TW
(°C)
Δt Ta b.u.
(°C)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
21°C Ta b.s. 23°C Ta b.s. 25°C Ta b.s. 27°C Ta b.s. 29°C Ta b.s. 31°C Ta b.s.
5
3
15
2064 1446 2785 2180 3035 2487 3401 2787 3762 3083 4123 3379
17
3692 1875 3653 2168 3660 2472 3731 2785 3846 3090 4129 3384
19
4792 1903 4773 2174 4754 2468 4735 2767 4707 3063 4717 3361
21
- - 5942 2204 5914 2461 5896 2749 5868 3045 5849 3341
23
----7150 2487 7121 2737 7093 3015 7075 3312
5
15
1787 1432 2048 1679 2380 1950 2830 2319 3242 2657 3636 2980
17
2180 1312 2277 1622 2541 1975 2862 2326 3248 2662 3640 2983
19
3653 1467 3628 1749 3589 2039 3615 2343 3718 2661 3898 2990
21
- - 4960 1828 4936 2099 4913 2390 4885 2683 4857 2975
23
----6270 2152 6228 2406 6213 2694 6195 2990
7
15
1550 1267 1832 1501 2115 1733 2399 1966 2688 2203 2978 2440
17
1787 1160 1936 1461 2142 1737 2405 1971 2688 2203 2983 2445
19
2393 1031 2380 1321 2444 1620 2586 1921 2759 2198 2990 2451
21
- - 3255 1240 3229 1527 3190 1812 3267 2120 3460 2454
23
----5016 1715 4997 1989 4979 2282 4922 2564
7
3
15
1984 1556 2284 1872 2674 2192 3049 2498 3409 2794 3769 3089
17
2888 1571 2869 1867 2965 2186 3116 2500 3415 2799 3776 3094
19
4020 1601 4001 1882 3988 2183 3948 2474 3975 2778 4072 3097
21
- - 5184 1910 5250 2180 5138 2471 5110 2765 5091 3060
23
----6401 2201 6382 2505 6354 2745 6326 3039
5
15
1469 1204 1756 1439 2045 1676 2450 2008 2881 2361 3287 2694
17
1666 1119 1826 1417 2052 1681 2457 2013 2888 2367 3293 2699
19
2598 1097 2547 1379 2637 1699 2830 2040 3062 2376 3332 2676
21
- - 4078 1513 4065 1797 4039 2091 4014 2382 4052 2685
23
----4184 1434 5409 2123 5390 2414 5362 2707
7
15
1257 1030 1543 1265 1830 1499 2113 1731 2399 1966 2682 2198
17
1347 980 1569 1264 1833 1502 2116 1734 2399 1966 2685 2201
19
1788 833 1847 1138 1987 1439 2174 1722 2405 1971 2688 2203
21
- - 2495 1002 2483 1294 2534 1592 2650 1887 2817 2178
23
----3948 1370 3924 1652 3885 1941 3898 2239
9
3
15
1501 1231 1923 1576 2315 1898 2688 2203 3055 2504 3415 2799
17
1968 1239 2109 1568 2357 1901 2695 2208 3062 2509 3423 2805
19
3177 1295 3158 1585 3126 1879 3171 2186 3293 2504 3480 2613
21
- - 4361 1610 4342 1889 4324 2187 4296 2479 4286 2777
23
----5596 1910 2065 807 5549 2468 5531 2765
5
15
1315 1078 1466 1202 1752 1436 2071 1697 2515 2061 2926 2398
17
1238 937 1466 1202 1756 1439 2071 1697 2521 2066 2932 2403
19
1678 798 1723 1098 1868 1398 2116 1705 2528 2071 2938 2408
21
- - 3062 1177 3045 1470 3023 1758 3126 2076 3293 2402
23
----4520 1549 4492 1826 4473 2120 4445 2412
7
15
------------
17
983 788 1257 1030 1543 1265 1830 1499 2113 1731 2399 1966
19
1222 651 1379 962 1585 1250 1833 1502 2116 1734 2399 1966
21
- - 1862 812 1910 1112 2039 1414 2219 1704 2431 1970
23
----2624 979 2605 1271 2663 1574 2791 1879
Note:
Values of capacity in bold face refer to nominal value.
Values of sensible capacity higher than values of total capacity mean that coo-
ling is without dehumidification In this case consider only the values of sensible
capacity
Key
Tw Inlet water temperature °C
Ta b.u. Inlet wet bulbe air temperature
Ta b.s. Dry bulbe air temperature
Pc Total cooling capacity
Ps Sensible cooling capacity

16 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Omnia Radiant (UL36R)/Omnia Radiant Plus (UL36RI)
TW
(°C)
Δt Ta b.u.
(°C)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
Pc
(W)
Ps
(W)
21°C Ta b.s. 23°C Ta b.s. 25°C Ta b.s. 27°C Ta b.s. 29°C Ta b.s. 31°C Ta b.s.
11
3
15
1103 904 1534 1257 1942 1592 2327 1907 2698 2211 3062 2509
17
1135 897 1537 1260 1949 1597 2331 1911 2701 2214 3068 2514
19
2219 970 2187 1261 2290 1581 2457 1904 2708 2219 3074 2520
21
- - 3467 1307 3448 1595 3428 2734 3422 2188 3486 2493
23
- - - - 4726 1614 4707 1891 4679 2185 4660 2480
5
15
------------
17
890 730 1180 967 1466 1202 1752 1436 2129 1745 2566 2103
19
1106 615 1264 922 1479 1200 1756 1439 2135 1750 2573 2108
21
- - 1756 780 1788 1077 1942 1389 2282 1746 2644 2115
23
- - - - 3473 1224 3448 1510 3409 1799 3473 2108
7
15
------------
17
------------
19
748 485 992 781 1260 1033 1543 1265 1830 1499 2113 1731
21
- - 1260 634 1412 943 1614 1236 1839 1498 2116 1734
23
- - - - 1949 793 1981 1089 2097 1389 2264 1679
13
3
15
------------
17
805 659 1109 909 1563 1281 1962 1608 2341 1919 2708 2219
19
995 582 1222 916 1595 1286 1968 1613 2348 1924 2714 2224
21
- - 2463 990 2431 1280 2483 1588 2618 1907 2817 2226
23
- - - - 3782 1316 3756 1601 3737 1896 3718 2187
5
15
------------
17
------------
19
647 449 895 670 1180 967 1466 1202 1756 1439 2193 1797
21
- - 1147 602 1292 905 1501 1191 1759 1441 2199 1802
23
- - - - 2019 810 2032 1108 2223 1426 2547 1805
7
15
------------
17
------------
19
------------
21
- - 761 473 1006 771 1260 1033 1543 1265 1830 1499
23
- - - - 1305 618 1447 923 1640 1216 1865 1491
15
3
15
------------
17
------------
19
543 411 811 665 1148 941 1588 1302 1981 1623 2354 1929
21
- - 1048 574 1363 944 1672 1296 1984 1626 2360 1934
23
- - - - 2714 1002 2701 1296 2701 1592 2798 1903
5
15
------------
17
------------
19
------------
21
- - 659 440 903 726 1180 967 1466 1202 1781 1460
23
- - - - 1183 586 1325 889 1524 1178 1807 1472
7
15
------------
17
------------
19
------------
21
------------
23
- - - - 776 461 1019 760 1270 1028 1543 1265
Note:
Values of capacity in bold face refer to nominal value.
Values of sensible capacity higher than values of total capacity mean that coo-
ling is without dehumidification In this case consider only the values of sensible
capacity
Key
Tw Inlet water temperature °C
Ta b.u. Inlet wet bulbe air temperature
Ta b.s. Dry bulbe air temperature
Pc Total cooling capacity
Ps Sensible cooling capacity

17Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
Portata d’acqua (l/h)
Perdite di carico (kPa)
UL26R/UL26RI
UL36R/UL36RI
0 100 200 300 400 500 600 700 800 900
0
10
20
30
40
50
60
8. PRESSURE DROP
TABLE CORRECTION FACTORS
Average water temperature 5 10 15 20 50 60 70
Correction factor 1,03 1,00 0,96 0,91 0,78 0,75 0,72
water temperature °C (in/out) 7°C/ 12°C
Average water temperature 10° C
The pressure drops in the charts above refer
to an average water temperature of 10 °C. The
following table shows the corrections to apply
to the pressure drops with a variation in average
water temperature

18 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
9. CORRECTION FACTOR IN COOLING WITH GLYCOLWATER
0,8
0,9
1,0
1,1
1,2
6 7 8 9 10 11 12 13 14 15 16 17 °C
0,6
0,7
0,8
0,9
1,0
1,1
1,2
6 7 8 9 10 11 12 13 14 15 16 17 °C
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
1,3
1,4
1,5
1,6
6789101112131415161718 °C
Average temperature of the glycol water
Correction factor
Average temperature of the glycol water
Correction factor
Average temperature of the glycol water
Correction factor
Pressure drops
Water flow
Capacity
Pressure drops
Water flow
Capacity
Pressure drops
Water flow
Capacity
GLYCOL WATER AT 10%
GLYCOL WATER AT 35%
GLYCOL WATER AT 20%

19Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
0,8
0,9
1,0
1,1
1,2
1,3
1,4
30 40 50 60 70 80 90 °C
30 40 50 60 70 80 90 °C
0,8
0,9
1,0
1,1
1,2
1,3
1,4
0,8
0,9
1,0
1,1
1,2
1,3
1,4
30 40 50 60 70 80 90 °C
Average temperature of the glycol water
Average temperature of the glycol water
Average temperature of the glycol water
GLYCOL WATER ATL 10%
GLYCOL WATER AT 35%
GLYCOL WATER AT 20%
Correction factor
Correction factor
Correction factor
10. CORRECTION FACTOR IN HEATING WITH GLYCOLWATER
Pressure drops
Water flow
Capacity
Pressure drops
Water flow
Capacity
Pressure drops
Water flow
Capacity

20 Aermec cod. 6976431_00 13.07
Omnia UL_R/UL_RI 26-36
EN
11. SOUND POWER
Mod Speed Band middle frequency (Hz) Sound levels Total
POWER PRESSURE
125 250 500 1000 2000 4000 8000 dB dBAdBA
UL26R
Max 46,4 48,5 47,4 42,7 37,4 27,1 14,3 52,9 48,0 (E) 39,5
Med 44,3 44,2 43,1 36,3 30,5 18,8 10,2 49 43,0 (E) 34,5
Min 41,7 37,1 35,5 24,5 19 9,4 8,1 43,8 35,0 (E) 26,5
UL36R
Max 47,4 49,4 49,7 43,8 40,8 31,0 19,2 54,4 50,0 (E) 39,5
Med 45 40,9 41,4 33,5 29,2 18,8 8,4 47,8 41,0 (E) 32,5
Min 42,1 34,4 34,4 24,1 19,9 10,5 9,1 43,4 34,0 (E) 25,5
UL-
26RI
Max 46,4 48,5 47,4 42,7 37,4 27,1 14,3 52,9 48,0 (E) 39,5
Med 44,3 44,2 43,1 36,3 30,5 18,8 10,2 49 43,0 (E) 34,5
Min 41,7 37,1 35,5 24,5 19 9,4 8,1 43,8 35,0 (E) 26,5
UL-
36RI
Max 47,4 49,4 49,7 43,8 40,8 31,0 19,2 54,4 50,0 (E) 39,5
Med 45 40,9 41,4 33,5 29,2 18,8 8,4 47,8 41,0 (E) 32,5
Min 42,1 34,4 34,4 24,1 19,9 10,5 9,1 43,4 34,0 (E) 25,5
Level of sound pressure (A-weighted) measured
in the room with volume V = 85m3 ; reverbera-
on me t = 0.5s; direcon factor Q = 2; distance
r = 2.5m
(E) Eurovent data
Table of contents
Other AERMEC Heater manuals

AERMEC
AERMEC Omnia UL Series Technical specifications

AERMEC
AERMEC OMNIA ULS Technical specifications

AERMEC
AERMEC Omnia UL N Technical specifications

AERMEC
AERMEC FCW 21 User manual

AERMEC
AERMEC CLIMAFON 12P User manual

AERMEC
AERMEC RX 62 User manual

AERMEC
AERMEC Omnia UL 11 N Technical specifications

AERMEC
AERMEC Omnia HL S Series Technical specifications

AERMEC
AERMEC FCX US Manual

AERMEC
AERMEC FCW Series User manual
