AERMEC PRGD1 User manual
EN
Technical Manual
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
6193617_00 18.07
User manual
PRGD1
PRGDX
3
Dear customer,
Thank you for choosing an AERMEC product. This product is the result of many years of experience and
in-depth engineering research, and it is manufactured using top quality materials and cutting edge
technologies.
In addition, the mark guarantees that our appliances fully comply with the safety requirements defined in
the applicable product standards. The quality level is under constant surveillance, and AERMEC products are
therefore synonym of Safety, Quality and Reliability.
Aermec reserves the right to make all the modifications deemed necessary for improving the product,
including technical data.
Thank you once again.
AERMEC S.p.A
4
1. INDEX
2. PRGD1.............................................................................................................................................................................. 6
2.1. KEY ICONS........................................................................................................................................................... 6
2.2. HOME SCREEN ICONS ........................................................................................................................................ 7
2.3. USER LOGIN ........................................................................................................................................................ 8
2.4. Z. USER LOGOUT................................................................................................................................................. 8
2.5. XA. CHANGE DATE AND TIME............................................................................................................................ 9
2.6. XB. APPLICATION LANGUAGE CHANGE .......................................................................................................... 9
2.7. XC. UNIT OF MEASUREMENT CHANGE ............................................................................................................ 9
2.8. XD. USER PASSWORD CHANGE....................................................................................................................... 10
2.9. ALARMS............................................................................................................................................................. 10
2.10. QB. UNIT ON/OFF ............................................................................................................................................. 10
2.11. QC. ADJUSTMENT TEMPERATURE, FLOW FAN AND OPERATING MODE SETPOINT................................ 10
2.12. QA. UNIT OPERATION INFO............................................................................................................................. 11
3. PRGDX............................................................................................................................................................................ 13
3.1. KEY ICONS......................................................................................................................................................... 13
3.2. HOME................................................................................................................................................................. 13
3.3. SET POINT ......................................................................................................................................................... 14
3.4. ON/OFF ............................................................................................................................................................. 15
3.5. CLOCK AND TIME EVENTS .............................................................................................................................. 15
5
6
2. PRGD1
2.1. Key icons
Alarm
Access to the alarm menu.
Flashing signal alarm present but resettable.
Permanent signal alarm present but not resettable.
Prg Access to the unit/machine menu
Esc
Exit from the unit/machine menu without conrmation of the
changes
Exit from the short menu
Exit from the settings without conrmation of the changes
Up/Down Scrolling of unit/machine menu and settings
Short menu scrolling
Enter
Conrm unit/machine menu input
Conrm short menu input
Conrm settings
7
2.2. Home screen icons
1
2
3
4
5
6
1
2
3
4
5
6
1 Flow and ejection fan status
2Heating
Cooling
Heating
Cooling
3 OFF ALL. : unit switched o due to alarm (see alarm table)
OFF BMS : unit switched o by supervision system
(enable from parameter)
OFF PERIOD : unit switched o by time period
OFF INP. D. : unit switched o by digital input
OFF KEY. : unit switched o by keyboard
OFF FAN : unit switched o by fan
OFF COND. : unit switched o by specic operating conditions
OFF ANTIFRE. : Anti-freeze OFF
IGNITION
PRE-HEATING
HEATING. : unit in heating mode
COOLING : unit in cooling mode
DEFROS : unit in defrosting
ANTI-FREEZE
A.PROBE RO. : adjustment probe error
SHUTDOWN : unit in shutdown
: time periods enabled
OFFbyALR. : unit switched o due to alarm (see alarm table)
OFFbyBMS : unit switched o by supervision system
(enable from parameter)
OFFbySCHED : unit switched o by time period
OFFbyDIN : unit switched o by digital input
OFFByKEYB : unit switched o by keyboard
OFFbyFAN : unit switched o by fan
OFFByCOND : unit switched o by specic operating conditions
ANTIFREEZE OFF
SWITH ON
WARM UP : preheating
HEATING. : unit in heating mode
COOLING : unit in cooling mode
DEFROST
ANTIFREEZE
ADJ. PRB ERR : control probe error
SHUTDOWN : unit in shutdown
: scheduler
4 Current machine date and time
5 Flow air adjustment temperature set-point
6
Short menu On/O
Short menu info
Short menu Set-point
Short menu On/O
Short menu info
Short menu Set-point
8
2.3. USER Login
The password to be set to access the machine menu is 0010.
Not all screens will be available for display and/or editing.
To access the menu, press the Prg key, use the Up/Down keys to modify/change/edit the value and conrm by pressing the Enter key.
Once the Login password has been entered
Login
you can access the menu
Menu
otherwise the following message will be displayed
Login
2.4. Z. USER Logout
To Logout the user, scroll to the Z menu using the Up/Down key and access by pressing Enter.
Login
Pressing the Enter key again exits the USER prole to automatically go back to the home screen
9
2.5. Xa. Change date and time
Once accessed as USER, scroll the menu using the Up/Down key up to the X. menu and access by pressing the Enter key.
Scroll the menu again by using the Up/Down key up to the a. menu and access by pressing the Enter key.
Once in the screen, it will be possible to switch to the edit mode by pressing the Enter key.
The parameter that can be edited by using the Up/Down keys will be the one highlighted by the cursor ( type ) and you will conrm
by using the Enter key or exit without conrming by using the Esc key.
Press the Enter key to switch between parameters.
Xa01
2.6. Xb. Application language change
Once accessed as USER, scroll the menu using the Up/Down key up to the X. menu and access by pressing the Enter key.
Scroll the menu again by using the Up/Down key up to the b. menu and access by pressing the Enter key.
Use the Enter key to change the application language to one of the ones available.
Xb01
2.7. Xc. Unit of measurement change
Once accessed as USER, scroll the menu using the Up/Down key up to the X. menu and access by pressing the Enter key.
Scroll the menu again by using the Up/Down key up to the c. menu and access by pressing the Enter key.
Once in the screen, it will be possible to switch to the edit mode by pressing the Enter key.
The parameter that can be edited by using the Up/Down keys will be the one highlighted by the cursor and you will conrm by using the Enter key or
exit without conrming by using the Esc key.
Xc01
The possible units of combinations combinations are:
• Kpa / °C / Pa / m3/h
• bar / °C / Pa / m3/h (default)
• psi / °C / “wc / cfm
• psi / °F / “wc / cfm
10
2.8. Xd. User password change
Once accessed as USER, scroll the menu using the Up/Down key up to the X. menu and access by pressing the Enter key.
Scroll the menu again by using the Up/Down key up to the a. menu and access by pressing the Enter key.
Once in the screen, it will be possible to switch to the edit mode by pressing the Enter key.
The parameter that can be edited by using the Up/Down keys will be the one highlighted by the cursor and you will conrm by using the Enter key or
exit without conrming by using the Esc key.
Press the Enter key to switch between parameters.
Xd01
2.9. Alarms
If the Alarm key is on xed or ashing, press the relative key to display the alarm and contact the support centre.
2.10. Qb. Unit On/O
Use the Up / Down key to bring the short menu icon to On/O and conrm by using Enter and access the screen Qb01 for switching the unit on and o.
The unit can be switched on (if not switched o from BMS or digital input) or o via the Enter key .
2.11. Qc. Adjustment temperature, ow fan and operating mode set-point
Use the Up/Down key to bring the short menu icon to Set and conrm by using Enter to access the Qc01 screens to set the ow temperature (within the
factory limits in the QC03 screen) and the ow rate (inside the factory default values), Qc02 to set the heating, cooling, automatic mode.
Once in the screen, it will be possible to switch to the edit mode by pressing the Enter key.
The parameter that can be edited by using the Up/Down keys will be the one highlighted by the cursor ( type ) and you will
conrm by using the Enter key or exit without conrming by using the Esc key.
Press the Enter key to switch between parameters.
Qc01
Standard
version
Qc01
CO2 version
11
Qc02
Qc03
2.12. Qa. Unit operation info
Use the Up/Down key to bring the short menu icon to Info and conrm with Enter and access the screen Qa01 - Qa10 (the Qa02 screen is not relevant
for this application)
Qa01
Qa03
Standard
version
12
Qa03
CO2 version
Qa04
Qa06
Qa07
Qa08
Qa10
13
3. PRGDX
3.1. Key icons
pGD1 Reserved to SUPPORT
Home Return to the main screen
Alarm Access the alarm menu
Alarm presence warning
Info Reserved to SUPPORT
SetPoint Access to the temperature and ow rate set point setting menu
On/O Access to the unit start-up and shutdown menu
Clock Access to the time, time periods setting menu
O Unit OFF from time period warning
Eco Unit in Economy from time period warning
Pre Unit in PreComfort from time period warning
Comfort Unit in Comfort from time period warning
Error Warning error caused by no communication between terminal and machine
3.2. Home
Main screen where the temperature set point, the operating mode and any presence of machine alarms are displayed.
14

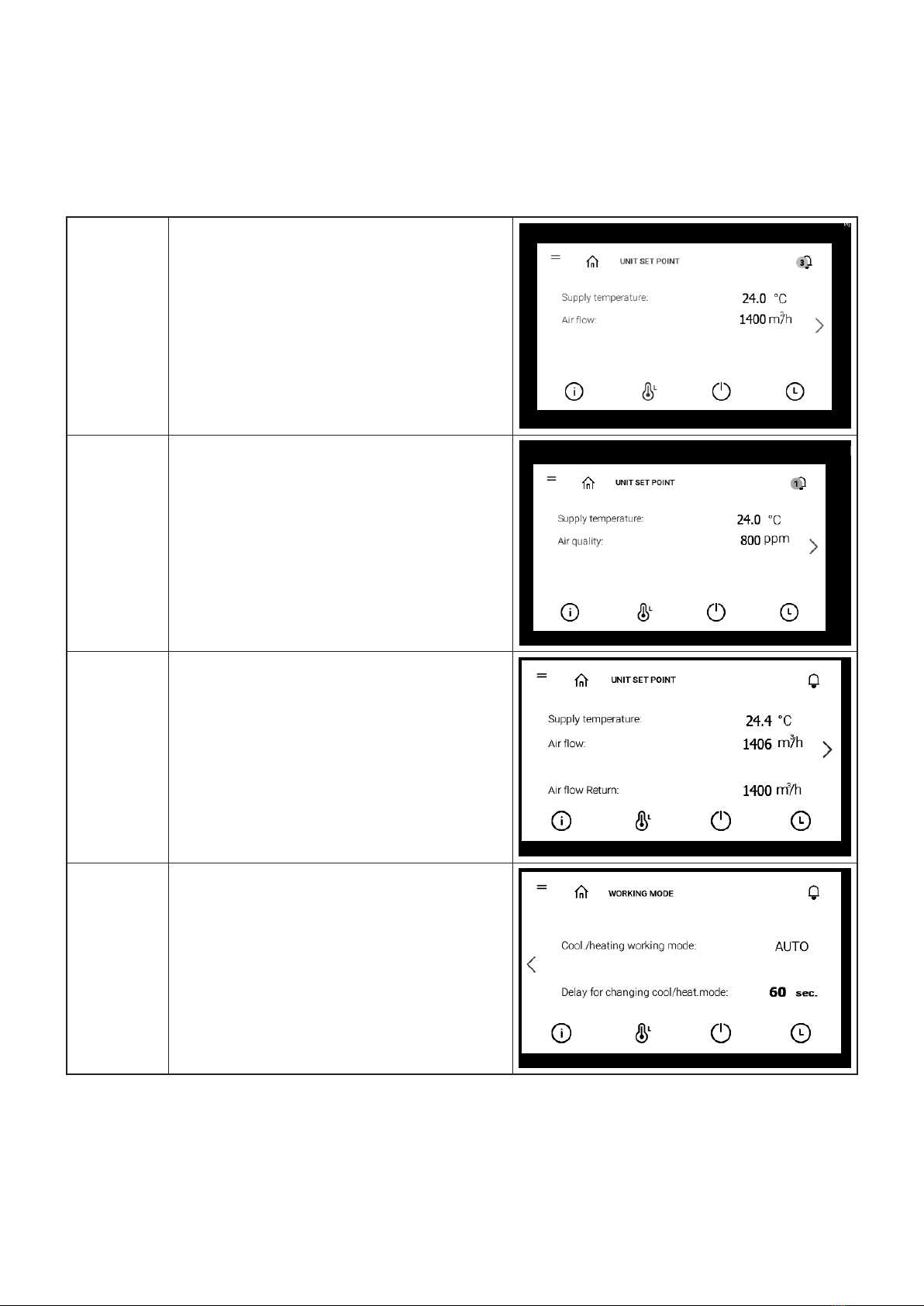

3.3. Set Point
Clicking on the centre of the Home screen will access the current set point setting menu. The screens may change according to the type of unit congu-
ration.
The possible settings are :
A. Flow temperature + Air ow rate (m3/h) ow if CPO control
B. Flow temperature + Return air fouling (ppm CO2) if CPQ control
C. Flow temperature + Air ow rate (m3/h) ow and return if CPO+CPVR control
D. Heating/Cooling/Automatic operating mode
A
B
C
D
15
3.4. On/O
3.5. Clock and time events
The possible settings are :
A. Current date and time
B. Time periods and set settings enable
C. Daily settings (4 dierent events for each day of the week, the settings of one day can also be copied on others)
D. Holiday days (3 periods per year)
E. Special days (6 individual days per year)
F. Graphical display of daily time periods (dierent colours will be present depending on the operating status)
A
B
16
C
D
E
F
17
18
19
carta riciclata
recycled paper
papier recyclé
recycled Papier
AERMEC S.p.A.
Via Roma, 996
37040 Bevilacqua (VR) - Italia
Tel. + 39 0442 633111
Fax +39 0442 93577
www.aermec.com
Aermec reserves the right to make all modification deemed necessary for improving the product at any time with any modification of technical data.
