FEATURES AT A GLANCE
ISDN lines trouble-shooter essential for
installing operations
Predefined test set-ups to save time on site
Possibility to save test results for later analysis
ETSI Euro-ISDN standard network interfaces 2B1Q
and 4B3T (different ordering codes)
Onboard multi protocol analysis including
full frames decoding
Includes PC108 for Windows™software for powerful
analysis and remote management

Onboard multi language GUI
In field upgradeable firmware
OVERVIEW
With D2001NX, Aethra®intends to answer the problems which occur if
working over ISDN Basic Rate lines. Thanks to its simplicity of use due to
the very intuitive GUI (Graphic User Interface), D2001NX makes extremely
easy installing and troubleshooting operations also for those whom have
little knowledge about ISDN lines.
Its advanced design, the protective holster and the compact and ergonomic
structure, allow an optimal use of the device in every type operation.
The D2001NX presents a graphic interface with common characteristics to
the entire test instruments family of new-generation made by Aethra®, in
this way it is possible to use with the same modalities, the whole range of
test sets as the navigation procedures through the various menus remain
unchanged. Such easy navigation, is also due to the bright, back-lit and
high resolution display and to the zoom feature which allows to highlight all
the useful information.
The features PREDEFINED TESTS and HISTORY, allow respectively the
management of personalized test setup and to recall the results of each
test performed. This simplify hugely the technician daily tasks by avoiding
possible setup errors and allowing also post analysis of the results obtained.
All the information necessary to verify the line status and the possible
presence of troubles over the line, is now within a button’s reach, thanks
to the immediate access to the Smart Status™feature.
The access to such a feature is always available also while a test is in
progress and allows to have always under control monitoring over layer 1,
2 and 3, alarms, errors, channel configurations
and the test settings, as well as the device status itself.
D2001 NX
2B1Q – 4B3T ISDN BRI TESTER
BRI ISDN
Euro-ISDN Standards
Smart troubleshooting tool
Powerful background monitor
Ideal for first installation problems
Automatic line checking for all ISDN layers

GENERATE TRAFFIC
This traffic simulation permits to verify the
call management capabilities on behalf of
the user system (PABX) or of the net.
The simulated load, may be programmed
by quantity of calls to perform and duration
time.
Up to 999 failures are stored reporting
causes and times.
•Programmable time between calls
•Maximum 65000 test cycles
•Settable minimum call duration
•Test cycles on connection or B channel
notification
AUTOMATIC TESTS
This test is used to verify immediately and
automatically the ISDN line under
measurement.
If not otherwise specified, the device
automatically generates a series of calls
toward a remote user or in autocall mode
and verifies the complete status of the line.
With the possibility to set up and save a
personalized test sequence, the control of
several line typologies is easier and more
immediate.
•It is possible to set a complete automatic test
or set manually layers or services to verify
•Physical layer settings control
•Layer 2 configuration
•Availability status of the several bearer
services, teleservices and supplementary
services
•Availability check of single B channels
•TEI detection for X.25(X.31) service
MISCELLANEOUS
The device owns a powerful automatic
answering feature to incoming calls.
The technician can set such feature in
order to be able to filtering acceptable
incoming calls, performing a loop over data
or a call back toward the calling user.
The device can completely substitutes the
NT1, providing the phantom power over S/T
Bus so as to verify the user’s terminal (TE)2
correct working.
•Loopbox
•Call back
•Feed power from S/T-Bus or U-Bus
•S/T-Bus wiring test
•NT
2Simulation
1PC108 for Windows™
2TT2001
3AB2001N
MONITOR
The device captures and decodes both in
real time and off-line the main communication
protocols over D channel. The onboard
decoding allows to analyze traces directly
at the user’s site.
The advanced analysis through the PC
software1issued with the device, helps to
solve also more complex problems regarding
ISDN
The feature is available both as high
impedance monitor and simulator.
•Dchannel monitor
•E-DSS1,1TR6,X.25,VN4,Q.SIG,DASS2,
DPNSS, CorNet®
•Capturing filters
•Statistics information
•Communication protocol monitor and
audio in NT1 mode2
X.25
D2001NX is able to realize an X.25/X.31
connection over D channel and verify the
quality of the line.
The statistics help to check out the real
band of the connection and possible net
congestion problems.
•Dchannel X.25/X.31 support
•DTE and DCE simulation
•Programmable transmission throughput
•Variable data packet length
•Traffic statistics
BER
D2001NX performs quality tests (Bit Error
Rate) over ISDN and Leased lines and
provides results valuation according to
G.821 standard
•G.821
•Multi test pattern
•Test modes End-to-End and Selfcall
•2B mode
•Bearing physical layer quality test
•Multiple measurement cycles
MAKE A CALL
Using the multi-functional make a call test,
it is possible to verify the correct operation
of the several supplementary services
supplied by provider, such as AOC, CF,
CLI, 3PTY and all the other common ones.
People who work with PABX will find very
useful the possibility to generate more calls
simultaneously with several numbers and
profiles; making the devices setting up
faster and very functional.
In order to solve the problems concerning
data connection such as video-conferencing,
the test makes available round trip delays
of B channels, in milliseconds.
Integrated microphone and loudspeaker,
allow to use the device also as a normal
ISDN or POTS5telephone.
•ETSI supplementary services check and
support
•Bchannel round trip delay
•Multiple profiles (Speech, Data, Fax,..)
•Bchannel connected to incorporated
microphone and loudspeaker or external
handset
•ISDN and POTS simulation
•Tone generation at 300 - 3400Hz band

TELECOM INTERFACES
•Basic Rate Access
S/T ITU-T (CCITT) Rec.I.430, ETS
300 012
UITU-T (CCITT) Rec.I.430, ETS
300 012 2B1Q (D2001-Q)1or
4B3T (D2001-T)2TS 102 080
1-2Only one module at time is
available from the factory
PROTOCOLS SUPPORTED
•Simulation mode EDSS-1, Q.SIG, 1TR6, TN1R6®,
VN4, X.25 over D channel,
CorNet®-N, -T
•Monitor mode EDSS-1, Q.SIG, 1TR6, TN1R6®,
VN4, X.25, CorNet®-N, -T
•Other protocols available DMS100, NI1, 5ESS

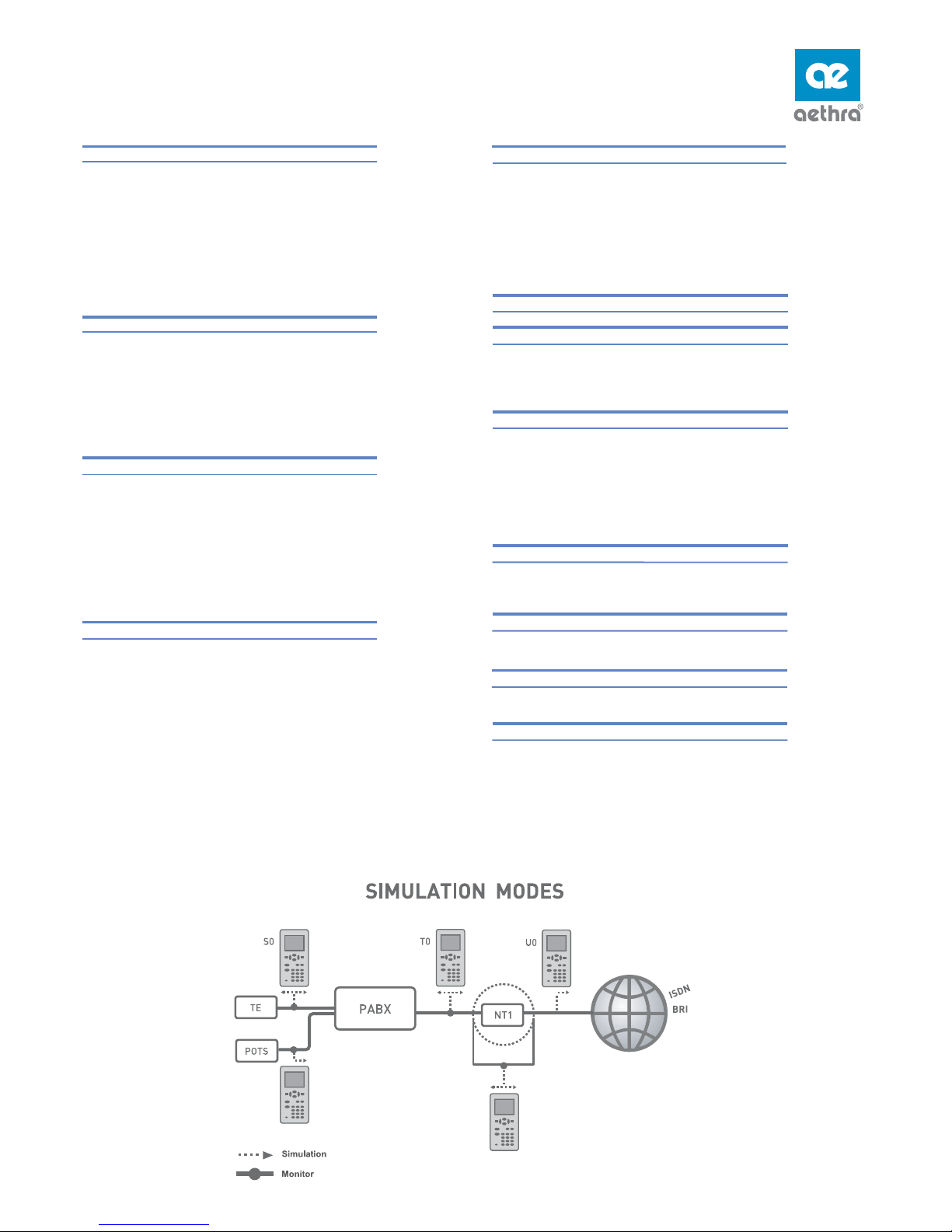

OPERATING MODES AVAILABLE
•BRI TE-S
•BRI MON-S
•BRI NT-S TT2001Option
•BRI NT-U
•BRI NT1 TT2001 Option
•BRI S /T-Bus wiring test WT2001N Option
•POTS TE AB2001N Option
•POTS MON AB2001N Option
SMART STATUS™
•Physical layer All physical Layer
relevant information
•ISDN line Status ISDN layers 1, 2 and 3
clearly displayed
•Bchannels All B channel relevant
information
BACKGROUND MONITOR
•Modes
High impedance and during
simulation
•Complete protocol analysis on-board
•Programmable filters Independent filters capture
and displaying
•Statistics information
• Analysis of results stored into PC PC108 for Windows™
ADVANCED LOOP-BOX FEATURES
AUTOMATIC ACCESS TEST
•Fully automated Access test
•Supplementary services automatic test
•Programmable test sequence
BIT ERROR RATE TEST
• G.821 statistics ES, SES, US, DM, PASS/FAIL,
S-LOSS
• Pseudo-Random bit sequences User definable 211-1,2
15-1,2 23-1,
16 bits octet, HDLC frame
• Error Injection User selectable,
manual, automatic, single
GENERATE TRAFFIC
•Number of cycles Up to 65535
•Number of parallel calls Up to 2
X.25 OVER D CHANNEL
•Modes DTE, DCE
HISTORY AND PREDEFINED TESTS FEATURES
•Saving and recalling of 10 different setup and results for each kind of test
CONNECTORS
•S/T Basic Access interface RJ45 (ISO 8877)
•UBasic Access interface RJ45 (ISO 8877)
•RS232 Mini - DIN 4 (ISO 4902)
•Handset 4 wires RJ9
•Power in External AC/DC adapter 4 wires
TECHNICAL SPECIFICATIONS

Aethra SpA
Telecommunications
via Matteo Ricci 10
60020 Ancona - Italy
Telephone [phone]
Fax [phone]
Video 1 +39.071.2189160
Video 2 +39.071.2189701
Email: [email protected]
www.aethra.com
Aethra, Inc.
701 Brickell Avenue
Suite 1390
Miami, FL 33131 USA
Telephone [phone]
Toll Free (US only) 1.888.4.AETHRA
Fax [phone]
Video +1.305.577.3524
Email: [email protected]
ENVIRONMENTAL CHARACTERISTICS
•Dimension
Weight, with battery ≈ 500 gr.
Dimensions, with holster (mm) 100 (w) x 180 (l) x 50 (d)
•Power
Battery Type Rechargeable, Ni-MH.
Battery life ≈ 6 hours, @ 25°C, LCD
back-lit off, without power
from S/T-Bus or U-Bus
•External AC/DC adapter 115/230Vac ±10% @ 50/60Hz
TEMPERATURE
Storage/Transport -40oC to +70oC
Operating, nominal -5oC to +45oC
Operating, limits -10oC to +55oC
•Humidity, non-condensing ≤ 93% RH @ 40oC
≤ 70% RH @ 55oC
•User's Safety Aspects EN 61010-1, EN 60950
EN 41003
•EMC Aspects EN 55022, EN 55024,
EN 61000-3-2 / -3-3
•CE Marking Class B (residential devices)
MISCELLANEOUS
•LCD display 320x200 Graphic display wide
bright and back-lit, with Zoom
function
•Internal microphone & loudspeaker
•Upgradeable firmware
