MAINTENANCE MANUAL
PSD60-2R
FUEL QUANTITY TEST SET
MANUAL NUMBER: E6-0597-00 (75321)
REVISION: A1
DATE: 12/01/2010
WARNING: INFORMATION SUBJECT TO EXPORT CONTROL LAWS
This document contains controlled technology or technical data under the jurisdiction of the Export Administration
Regulations (EAR), 15 CFR 730-774. It cannot be transferred to any foreign third party without the specific prior
approval of the U.S. Department of Commerce Bureau of Industry and Security (BIS). Violations of these
regulations are punishable by fine, imprisonment, or both.
This document is proprietary to Aeroflex,
and is not to be reproduced or otherwise disseminated without the written consent of Aeroflex.
14408 West 105th Street – Lenexa, KS – 66215-2316
Telephone: [phone] Fax: [phone]
www.aeroflex.com

Aeroflex Wichita, Inc. • 14408 West 105th Street • Lenexa • KS 66215-2316 • USA
Tel: [phone] • Fax: + 1 [phone] • www.aeroflex.com
05-0035-00 Rev 05
ELECTROSTATIC DISCHARGE GENERAL WARNINGS FOR ALL EQUIPMENT
CAUTION: THIS EQUIPMENT MAY CONTAIN ELECTROSTATIC DISCHARGE (ESD) SENSITIVE
COMPONENTS. TO PREVENT ESD SENSITIVE EQUIPMENT FROM POSSIBLE
DAMAGE, OBSERVE THE FOLLOWING PRECAUTIONS WHEN HANDLING ANY ESD
SENSITIVE COMPONENTS, OR UNITS CONTAINING ESD SENSITIVE
COMPONENTS:
a. Maintenance or service personnel must be grounded though a conductive wrist strap, or a similar
grounding device, using a 1 Mseries resistor for equipment protection against static discharge,
and personal protection against electrical shock.
b. All tools must be grounded (including soldering tools) that may come into contact with the
equipment. Hand contact will provide sufficient grounding for tools that are not otherwise
grounded, provided the operator is grounded through an acceptable grounding device such as a
wrist strap.
c. Maintenance or service of the unit must be done at a grounded, ESD workstation.
d. Before maintenance or service of the equipment, disconnect all power sources, signal sources,
and loads connected to the unit.
e. If maintenance or service must be performed with power applied, take precautions against
accidental disconnection of equipment components. Specifically, do not remove integrated
circuits or printed circuit boards from equipment while the equipment has power applied.
f. All ESD sensitive components are shipped in protective tubes or electrically conductive foam.
The components should be stored using the original container/package when not being used or
tested. If the original storage material is not available, use similar or equivalent protective
storage material.
g. When ESD sensitive components are removed from a unit, the components must be placed on a
conductive surface, or in an electrically conductive container.
h. When in storage or not being repaired, all printed circuits boards must be kept in electrically
conductive bags, or other electrically conductive containers.
i. Do not unnecessarily pick up, hold, or directly carry ESD sensitive devices.
Failure to comply with these precautions may cause permanent damage to ESD sensitive devices. This
damage can cause devices to fail immediately, or at a later time without apparent cause.

Aeroflex JcAIR Test Systems Maintenance Manual
SAFETY AND REGULATORY INFORMATION
PSD60-2R - REV. 1 – JANUARY 5, 2006 – PAGE 1
Safety and Regulatory Information
Review this product and related documentation to familiarize yourself with
safety markings and instructions before you operate this equipment.
WARNING The WARNING notice denotes a hazard. It calls attention to a procedure,
practice, or the like, that, if not correctly performed or adhered to, could result in
damage to the product or loss of important data. Do not proceed beyond a
WARNING notice until the indicated conditions are fully understood and met.
CAUTION The CAUTION notice denotes a hazard. It calls attention to an operating
procedure, practice, or the like, which, if not correctly performed or adhered to,
could result in damage to the product or loss of important data. Do not proceed
beyond a CAUTION notice until the indicated conditions are fully understood and
met.
Caution (refer to accompanying documents). Attention – refer to the manual.
This symbol indicates that information about usage of a feature is contained in
the manual.
Equipment Markings
The following markings may appear on this equipment:
Direct current. This symbol indicates that the equipment requires direct current
input.
Alternating current. This symbol indicates that the equipment requires
alternating current input.
Both direct and alternating current. This symbol indicates that the equipment
requires either ac or dc input at the same connector.
Three-phase alternating current. This symbol indicates that the equipment
requires 3-phase ac input.
Earth (ground) terminal. This symbol indicates the ground (earth) terminal.
3

Aeroflex JcAIR Test Systems Maintenance Manual
SAFETY AND REGULATORY INFORMATION
PSD60-2R - REV. 1 – JANUARY 5, 2006 – PAGE 2
Protective conductor terminal. This symbol indicates the protective ground
(earth) terminal.
Frame or chassis terminal. This symbol indicates the frame or chassis terminal
for connection to ground.
Equipotentiality. This symbol indicates an equipotentiality terminal.
On (Supply). This symbol indicates that the power line switch is ON.
Off (Supply). This symbol indicates that the power line switch is OFF.
Standby. This symbol indicates that the power line switch is in STANDBY.
Caution, risk of electric shock. Danger – high voltage.
Caution, hot surface. Danger – high temperature surface.
Caution (refer to accompanying documents). Attention – refer to the manual.
This symbol indicates that information about usage of a feature is contained in
the manual.
In-position of a bistable push control. This symbol indicates the in (on)
position of a bistable push control.
Out-position of a bistable push control. This symbol indicates the out (off)
position of a bistable push control.
CE Mark. ™ of the European Community.

Aeroflex JcAIR Test Systems Maintenance Manual
SAFETY AND REGULATORY INFORMATION
PSD60-2R - REV. 1 – JANUARY 5, 2006 – PAGE 3
Fuse Symbol. To indicate a fuse.
Warnings
WARNING Do not use the equipment in a manner not specified in this manual!
WARNING Equipment should only be serviced by authorized personnel.
CLEANING WARNING
Keep the equipment dry to avoid damage to the equipment. To prevent damage,
never apply solvents to the equipment housing. For cleaning, wipe the
equipment with a cloth that is lightly dampened with water, mild detergent, or
alcohol. Do not use aromatic hydrocarbons, chlorinated solvents, or methanol-
based fluids.
DO NOT OPERATE IN EXPLOSIVE ATMOSPHERES
To avoid explosion, do not operate the equipment in an atmosphere of explosive
gas.
WARNING Equipment contains no-rechargeable batteries. Use only 1.5-V size C alkaline
cells. Never attempt to recharge these cells.
NOTE For EMC testing M17/84-RG223 double shielded coaxial cable, 4.5 m long, with
BNC connectors, shielding terminated 360°at both end connectors, and
unterminated at far end were used at terminals (ports) INDICATOR LOZ (J1),
INDICATOR HIZ (J2), INDICATOR COMP (J3), TANK UNITS LOZ (J4), TANK
UNITS HIZ (J5), AND TANK UNITS COMP (J6).
CAUTION This equipment is electrostatic discharge (ESD) sensitive. Use of the supplied
ESD wrist strap with cord (JPN 90-0283-02), or equivalent, must be used at all
times when operating this unit. See the manufacturer’s instructions that come
with each package for proper connection and use.

Aeroflex Maintenance Manual
REVISION HISTORY – PSD60-2R MAINTENANCE MANUAL
E6-0597-00 / 10000015088 / 75321
06-0597-00 / 10000015089 / 3357
Revision Date Reason Reference
60 04/07/09 Update drawings J38229
61 09/30/09 Update dwgs change address J39558
A0 09/30/10 Add 2-wire / 3-wire switch, update dwgs 500000001002
A1 12/01/10 Update dwgs 500000001250

Aeroflex Maintenance Manual
REVISION HISTORY BY DRAWING NUMBER
MANUAL: PSD60-2R Fuel Quantity Test Set
REVISION: A1 – December 1, 2010
REV. REV.
DRAWING NO. LEVEL DRAWING NO. LEVEL
Safety and Regulatory
Information 01
Table of Contents 14
Section I 14
Section II 11
Section III 16
DRAWING REVISION HISTORY – PSD60-2R – DECEMBER 1, 2010 – PAGE 1 OF 1

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE T-1
TABLE OF CONTENTS
SECTION I
GENERAL INFORMATION
SECTION PAGE NUMBER
1.1 INTRODUCTION ........................................................................................ 1-1
1.2 EQUIPMENT DESCRIPTION..................................................................... 1-2
1.3 UNPACKING AND INSPECTING EQUIPMENT ........................................ 1-5
1.4 SPECIFICATIONS...................................................................................... 1-5
1.5 ACCESSORIES SUPPLIED ....................................................................... 1-6
1.6 EQUIPMENT REQUIRED BUT NOT SUPPLIED....................................... 1-6
SECTION II
MAINTENANCE
2.1 GENERAL MAINTENANCE........................................................................ 2-1
2.2 BILLS OF MAT, ASSY DWGS, SCHEMATICS & TEST PROCED............ 2-1
SECTION III
DRAWINGS
3.1 BILLS OF MAT, ASSY DWGS, SCHEMATICS & TEST PROCED............ 3-1

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-1
SECTION I
GENERAL INFORMATION
1.1 INTRODUCTION
This manual provides maintenance information for the Aeroflex PSD60-2R Fuel Quantity Gauging System Test
Set.
The PSD60-2R Fuel Quantity Gauging System Test Set is an instrument that permits complete functional
checkout and calibration of an AC Fuel Gauging System, on or off the aircraft. The test set can accurately
measure the capacitance of Tank Units, Compensators, or entire systems. The test set can also simulate
capacitance values for the operation of Indicators, as well as measure the insulation resistance of Tank Units and
cabling.
The insulation resistance measurement circuit normally operates in three terminal configuration. If a direct short
is present from signal source to ground the system will display short. If a direct short is present from signal return
to ground the systems reading is undefined.
Operation of the test set is essentially automatic (no manual nulling required). To evaluate a particular system,
connect it to the applicable input. Panel controls are set to determine what is displayed on the digital display.
The test set is powered by 18 C sized alkaline batteries. The batteries may be replaced without need of test set
recalibration. Battery condition is displayed on the digital readout.
The test set is shipped with a chassis ground cable. In order to properly test a system, specific aircraft interface
cables are required but not furnished with the test set.

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-2
1.2 EQUIPMENT DESCRIPTION

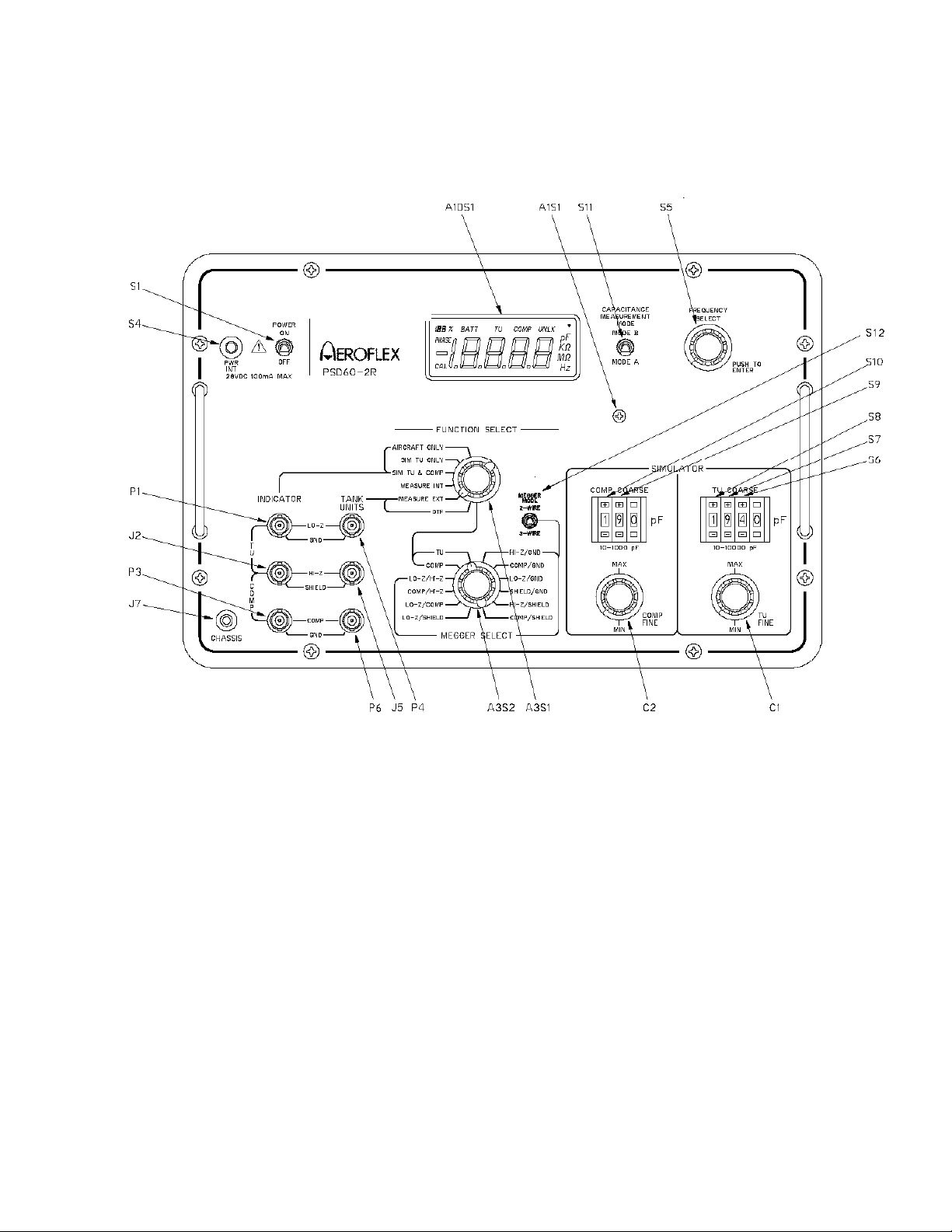

Figure 1-1 shows the front panel of the test set. Refer to Table 1-1 for the description and function of each item.
FIGURE 1-1

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-3
ITEM FUNCTION DESCRIPTION
S4 POWER INTERRUPT
SWITCH Turns power off when lid is closed regardless of the position of
Power Switch
S1 POWER SWITCH Applies power to the test set.
A3S1 FUNCTION SELECT Used to select function to be performed.
MEASURE EXT Use to select measurement of TANK UNIT parameters through
P4, J5, P6 and/or J7 depending on MEGGER SELECT switch
(A3S2) position.
MEASURE INT Use to select measurement of SIMULATOR capacitance
depending on SELECT switch S3 (TU or COMP) position.
DTF Sets the unit to measure distance to fault.
SIM TU & COMP Connects the two simulators to the INDICATOR jacks
(P1, J2, & P3) for capacitance output.
SIM TU ONLY Connects the TU SIMULATOR to the INDICATOR TU jacks
(P1 & J2) for capacitance output.
AIRCRAFT ONLY Disconnects both simulators from the INDICATORS jacks
(P1, J2, & P3)
A3S2 MEGGER SELECT Use to select parameter to measure depending on the position
of the FUNCTION SELECT switch.
S12 MEGGER MODE
2-WIRE / 3-WIRE Changes the Megger section from the 3-wire mode to the 2- wire mode. See Appendix A of the PSD60-2R Operation
Manual for details of the 2-wire and 3-wire operation.
A1DS1 LCD Display Displays:
1. Frequency of LO-Z signal.
2. Capacitance under test, either internal or external.
3. Insulation resistance of system wiring or unit under test.
4. Relative charge of the PSD60-2R batteries.
5. Capacitance measurement mode
A1S1 CALIBRATION MODE
Switch To put the unit in Calibration mode, the screw is removed and the switch beneath the screw hole is held depressed during
power up.
P1 INDICATOR LO-Z Allows connection from test set TU SIMULATOR to aircraft
FQGs.
J2 INDICATOR HI-Z Allows connection from test set SIMULATOR (TU, and COMP)
HI-Z line to aircraft FQGs.
P3 INDICATOR COMP Allows connection from test set COMP SIMULATOR to aircraft
FQGs.
P4 TANK UNITS LO-Z Allows connection from test set measurement circuits to aircraft
tanks.

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-4
J5 TANK UNITS HI-Z Allows connection from test set measurement circuits to aircraft
tanks.
P6 TANK UNITS COMP Allows connection from test set measurement circuits to aircraft
tanks.
J7 CHASSIS Access to PSD60-2R chassis ground. Normally
required to connect the PSD60-2R to aircraft ground.
S5 FREQUENCY SELECT Use to enter the LO-Z frequency. Also used to calibrate the
unit
S6, S7
& S8 TU DECADE CAPACITOR Increments TU SIMULATOR by 10, 100, or 1000 pF increments depending on decade chosen (increments are not
calibrated)
S9 &
S10 COMP DECADE
CAPACITOR Increments COMP SIMULATOR by 10 or 100 pF increments
depending on decade chosen (increments are not calibrated)
S11 CAPACITANCE
MEASUREMENT
MODE
Used to select between measuring Mode B (magnitude
capacitance) and Mode A (parallel capacitance).
C1 TU FINE Rotate for fine adjustment of TU simulation capacitance.
C2 COMP FINE Rotate for fine adjustment of COMP simulation capacitance.
NOTE:
C1 and C2 have 180 degree rotation for minimum to maximum value with no stops. It is
therefore possible to have an increasing value in either the clockwise or counter clockwise
direction.
TABLE 1-1

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-5
1.3 UNPACKING AND INSPECTING EQUIPMENT
Exercise extreme care when unpacking the unit. Make a visual inspection of the unit for evidence of damage
incurred during shipment. If a claim for damage is to be made, save the shipping container to substantiate the
claim. When the equipment has been unpacked, return all the packing material to the container for future use in
storing or shipping of the equipment. Remove any protective covers from connectors before using the equipment.
Replace any covers on the connectors after using the PSD60-2R.
1.4 SPECIFICATIONS
Environmental Specifications
The environmental specifications are as follows:
Size: 16.5 cm H x 35.6 cm W x 26.9 cm D (6.5” H x 14” W x 10.6” D)
Mass (Weight): 5.4 kg (12 lbs.)
Container: High-impact plastic
Operating Temperature: -25 C to +55 C
Relative Humidity (Non-Condensing):
80%maximumfor30 C
Decrease linearly to 50% at 40 C
40C 50% maximum 55 C
Operating Altitude: 2 000 m
IEC Overvoltage Category: II
Pollution Degree: 2
Intrinsic Safety: 1 J @ 0.02 F (normal operation)
Measurement Range
Capacitance Measurement Range
Range Resolution
Low 0 - 199.99 F 0.01 F
Mid 200 - 1999.9 F 0.1 F
High 2,000 - 19,999 F 1 F
20.00K - 39.99 KF 10 F
DTF 0 - 19,999 F 1 F
20.00K - 39.99 KF 10 F
Resistance Measurement Mode (9 ranges) 10 mto 1999 M
(optional) 2000 Mto 19999 M
Measurement Accuracy
AC Capacitance:
Mode A Greater of +/- 0.1% of reading or 0.05 F from 0 – 39.99 KF at
0Phase Shift.
Mode B Greater of +/- 0.1% of reading or 0.05 F from 0 – 39.99 KF
at 0to 359Phase Shift.
DTF Greater of +/- 0.1% of reading or 2 F
Resistance: Greater of 2% of reading or 0.1 ohm
+/- 5% of reading for R > 2000 M ohm

Aeroflex Maintenance Manual
PSD60-2R – REV 14 – SEPTEMBER 30, 2010 – PAGE 1-6
Capacitance Simulators Range
Tank Unit: 10 F – 9900 F infinite resolution
Compensator: 10 F – 990 F infinite resolution. The capacitance simulators
are calibrated to an exact value by using MEASURE INT TU or
COMP and, therefore, are as accurate as the capacitance
measurement circuitry.
Power 27 V, 150 mA maximum.
Batteries: 18 C sized Alkaline batteries
1.5 ACCESSORIES SUPPLIED
The following is a list of accessories that are supplied with the PSD60-2R:
1. Ground strap cable, JPN 55-7002-00.
2. Operation Manual, JPN 06-0597-01.
1.6 EQUIPMENT REQUIRED BUT NOT SUPPLIED
The following is a list of equipment that is referenced in this manual but not supplied with a PSD60-2R:
1. Aircraft Interface Cabling

Aeroflex Maintenance Manual
PSD60-2R – REV 11 – SEPTEMBER 30, 2009 – PAGE 2-1
SECTION II
MAINTENANCE
2.1 GENERAL MAINTENANCE
CLEANING WARNING:
Keep the equipment dry to avoid damage to the equipment. To prevent damage,
never apply solvents to the equipment housing. For cleaning, wipe the
equipment with a cloth that is lightly dampened with water, mild detergent, or
alcohol. Do not use aromatic hydrocarbons, chlorinated solvents, or methanol-
based fluids.
CAUTION: THE PSD60-2R CONTAINS ESD SENSITIVE DEVICES. OPEN AND
CALIBRATE AT ESD PROTECTED AREA ONLY.
A. Battery Replacement:: a "LO BAT" indication will illuminate on the digital display
when batteries require replacement. Remove the front panel and replace used
batteries with fresh alkaline batteries.
B. Calibration: The suggested calibration interval is 1 year. A test procedure,
JPN 04-0597-00 is included in this manual. It contains a section that tests the units
accuracy, a section that calibrates the unit, and a section that does complete testing
of the unit. Periodic calibration and certification service is also provided by:
Aeroflex
14408 West 105th Street
Lenexa KS 66215-2316
Telephone: [phone]
Attn: Service Dept.
2.2 BILLS OF MATERIAL, ASSEMBLY DRAWINGS, SCHEMATICS & TEST
PROCEDURE
To assist in the maintenance of the PSD60-2R, bills of material, assembly drawings, schematics and
a test procedure are included in Section 3 of this manual.

Aeroflex Maintenance Manual
PSD60-2R – REV 16 – DECEMBER 1, 2010 – PAGE 3-1
SECTION III
DRAWINGS
3.1 BILLS OF MATERIAL, ASSEMBLY DRAWINGS, SCHEMATICS & TEST
PROCEDURE
To assist in the maintenance of the PSD60-2R; bills of material, assembly drawings, schematics and
a test procedure are included in this section of the manual.
DRAWING NUMBER DESCRIPTION REVISION
Drawing Section 1. Top Level Drawings
01-0597-00 / 693 BOM, PSD60-2R A2
25-0597-00 / 10000011851 Assy Dwg, PSD60-2R AB
02-0597-00 / 10000011852 Schematic, PSD60-2R AB
Drawing Section 2. A2 Simulator Board
20-5919-00 BOM, A2 Simulator Board 3
25-5919-00 Assy Dwg, A2 Simulator Board 6
02-5919-00 Schematic, A2 Simulator Board 5
Drawing Section 3. Main Board
20-6859-00 BOM, Main Board 10
25-6859-00 Assy Dwg, Main Board 11
02-6859-00 Schematic, Main Board 10
Drawing Section 4. Switch Board
20-6859-10 / 18175 BOM, Switch Board A0
25-6859-10 / 10000011859 Assy Dwg, Switch Board AA
02-6859-10 / 10000011860 Schematic, Switch Board AA
Drawing Section 5. I/O Board
20-6859-20 BOM, I/O Board 1
25-6859-20 Assy Dwg, I/O Board 2
02-6859-20 Schematic, I/O Board 2
Drawing Section 6. Ground Cable
55-7002-00 / 58345 Cable, Ground A0
85-7002-00 / 10000011089 Dwg, Cable Ground AA
Drawing Section 7. Test Procedure
04-0597-00 / 10000011858 Test Procedure, PSD60-2R AA

12/01/2010 Display BOM Level by Level 1
M
aterial RevLev Description Plnt Key date
693 A2 PSD60-2R AC CAPACITANCE FUEL QTY 1100 12/01/2010
BOM Use Alt Alternative Text Base quantity BUn Valid from -to
00020898 Z 1.000 EA 03/18/2009 12/31/9999
Lv Item Component no. SortStrng Quant Un Fix Valid from - To
Description Ict OD Pha Asm Change No. Ex.
1 0050 11789 1.000 EA 03/18/2009 - 12/31/9999
CASE PLASTIC YEL MOD PSD60-2R L
0001 1 1.000 EA
1 0060 11959 2.000 EA 03/18/2009 - 12/31/9999
CBL POUCH 6X6 BLK CANVAS/MESH L
0001 2 2.000 EA
1 0070 16475 1.000 EA 03/18/2009 - 12/31/9999
PSD60-2R BATTERY PACK ASSY L
0001 A 5 1.000 EA
1 0080 17695 1.000 EA 03/18/2009 - 12/31/9999
CAPACITANCE BOARD PSD60-2R L
0001 A 2 1.000 EA
1 0090 18173 1.000 EA 03/18/2009 - 12/31/9999
PSD60-2R MAIN BD L
0001 A 1 1.000 EA
1 0100 18175 A0 1.000 EA 03/18/2009 - 12/31/9999
PSD60-2R SWITCH BD L
0001 A 3 1.000 EA
1 0110 18177 1.000 EA 03/18/2009 - 12/31/9999
PSD60-2R I/O BD L
0001 A 4 1.000 EA
1 0130 38312 4.000 EA 03/18/2009 - 12/31/9999
CONN BNC RCPT BULKHEAD FRNT MN L
0001 P 1 1.000 EA
0002 P 3 1.000 EA
0003 P 4 1.000 EA
0004 P 6 1.000 EA
1 0140 38338 2.000 EA 03/18/2009 - 12/31/9999
CONN BNC RCPT BULKHEAD FRONT M L
0001 J 2 1.000 EA
0002 J 5 1.000 EA

12/01/2010 Display BOM Level by Level 2
M
aterial RevLev Description Plnt Key date
693 A2 PSD60-2R AC CAPACITANCE FUEL QTY 1100 12/01/2010
BOM Use Alt Alternative Text Base quantity BUn Valid from -to
00020898 Z 1.000 EA 03/18/2009 12/31/9999
Lv Item Component no. SortStrng Quant Un Fix Valid from - To
Description Ict OD Pha Asm Change No. Ex.
1 0150 39047 1.000 EA 03/18/2009 - 12/31/9999
CONN HOUS SR CRIMP .1SP 2 POS L
0001 J 16 1.000 EA
1 0160 39049 2.000 EA 03/18/2009 - 12/31/9999
CONN HOUS SR CRIMP .1SP 4 POS L
0002 J 13 1.000 EA
0003 J 15 1.000 EA
1 0170 41372 17.000 EA 03/18/2009 - 12/31/9999
CONTACT FEMALE BOX CRIMP L
0001 3 17.000 EA
1 0180 41611 1.000 EA 03/18/2009 - 12/31/9999
SWIT ROT ENCODER W/PSHBTN 32 P L
0001 S 5 1.000 EA
1 0190 41786 1.000 EA 03/18/2009 - 12/31/9999
SWIT TOGGLE SPDT ON-NONE-ON L
0001 S 1 1.000 EA
1 0200 41903 2.000 EA 03/18/2009 - 12/31/9999
SWIT TOG SPDT ON-NONE-ON SHRT L
0001 S 11 1.000 EA
0002 S12 1.000 EA
1 0210 41944 5.000 EA 03/18/2009 - 12/31/9999
SWITCH THUMBWHEEL BCD 1-2-4-8 L
0001 S 6 1.000 EA
0002 S 7 1.000 EA
0003 S 8 1.000 EA
0004 S 9 1.000 EA
0005 S 10 1.000 EA
1 0220 41946 2.000 EA 03/18/2009 - 12/31/9999
SWITCH THUMBWHEEL END MOUNTING L
0001 4 2.000 EA
1 0230 41948 A1 2.000 EA 03/18/2009 - 12/31/9999
SWITCH THUMBWHEEL -03 MOD L
0001 5 2.000 EA

12/01/2010 Display BOM Level by Level 3
M
aterial RevLev Description Plnt Key date
693 A2 PSD60-2R AC CAPACITANCE FUEL QTY 1100 12/01/2010
BOM Use Alt Alternative Text Base quantity BUn Valid from -to
00020898 Z 1.000 EA 03/18/2009 12/31/9999
Lv Item Component no. SortStrng Quant Un Fix Valid from - To
Description Ict OD Pha Asm Change No. Ex.
1 0240 42053 1.000 EA 03/18/2009 - 12/31/9999
SWITCH PUSHBUTTON SPST NC L
0001 S 4 1.000 EA
1 0250 45342 1.000 EA 03/18/2009 - 12/31/9999
JACK BANANA INS SLDR TERM GRN L
0001 J 7 1.000 EA
1 0260 47608 18.000 EA 03/18/2009 - 12/31/9999
BATTERY ALKALINE 1.5V SIZE C L
0001 6 18.000 EA
1 0270 51125 A0 1.000 EA 03/18/2009 - 12/31/9999
FRT PNL PSD60-2R (MOD 4 & UP) L
0001 7 1.000 EA
1 0280 51805 1.000 EA 03/18/2009 - 12/31/9999
BRKT KILL SWIT PSD90-1M L
0001 8 1.000 EA
1 0290 58345 A0 1.000 EA 03/18/2009 - 12/31/9999
CABLE GROUND STRAP L
0001 ACC 1 1.000 EA
1 0300 58812 A0 1.000 EA 03/18/2009 - 12/31/9999
SER TAG PSD60-2R AC CAPACITANC L
0001 9 1.000 EA
1 0310 59202 1.000 EA 03/18/2009 - 12/31/9999
PLACARD PSD50-2/PSD60-2R ERROR L
0001 27 1.000 EA
1 0320 59488 A0 2.000 EA 03/18/2009 - 12/31/9999
OVRLY CASE PSD60-2R AC CAP FQT L
0001 10 2.000 EA
1 0330 60746 1.000 EA 03/18/2009 - 12/31/9999
PROG UCNTRLR PSD60-2R VR 1.03 L
0001 A1U27 1.000 EA
1 0340 68617 1.000 EA 03/18/2009 - 12/31/9999
MOUNT PSD90-1M CAL SELECT L
0001 11 1.000 EA

12/01/2010 Display BOM Level by Level 4
M
aterial RevLev Description Plnt Key date
693 A2 PSD60-2R AC CAPACITANCE FUEL QTY 1100 12/01/2010
BOM Use Alt Alternative Text Base quantity BUn Valid from -to
00020898 Z 1.000 EA 03/18/2009 12/31/9999
Lv Item Component no. SortStrng Quant Un Fix Valid from - To
Description Ict OD Pha Asm Change No. Ex.
1 0350 68622 8.000 EA 03/18/2009 - 12/31/9999
BATTERY LIMITER PSD90-1M L
0001 12 8.000 EA
1 0360 68668 2.000 EA 03/18/2009 - 12/31/9999
BATTERY COVER PSD60-2R AC CAP L
0001 13 2.000 EA
1 0370 70927 1.000 EA 03/18/2009 - 12/31/9999
LENS PSD60-2R (MOD 4 & UP) L
0001 14 1.000 EA
1 0380 70963 2.000 EA 03/18/2009 - 12/31/9999
WASHER FLAT 3/8 NYLON .0625 TH L
0001 15 2.000 EA
1 0390 70982 8.000 EA 11/19/2010 - 12/31/9999
WASHER FLAT FIBRE .312OD X .17 L 500000001196
0001 26 8.000 EA
1 0400 71393 2.000 EA 03/18/2009 - 12/31/9999
WASHER SHOULDER .750 OD .375 I L
0001 16 2.000 EA
1 0410 71751 4.000 EA 03/18/2009 - 12/31/9999
FERRULE FOR .187 RND HANDLE AL L
0001 17 4.000 EA
1 0420 72038 2.000 EA 03/18/2009 - 12/31/9999
HANDLE 3" C/C 1" HT #6-32 BLK L
0001 19 2.000 EA
1 0430 72483 3.000 EA 03/18/2009 - 12/31/9999
KNOB .980 OD RIBBED W/INDICATO L
0001 20 3.000 EA
1 0440 72487 2.000 EA 03/18/2009 - 12/31/9999
KNOB .980 OD PTER W/INDCTR LIN L
0001 21 2.000 EA
1 0450 72641 4.000 EA 03/18/2009 - 12/31/9999
SPACER F/F #4-40 X .500 L
0001 22 4.000 EA
