Saluki Technology MSO1000 User manual
MSO1000 Mixed Signal Oscilloscope
User Manual
Saluki Technology Inc.
2
The document applies to the Mixed Signal Oscilloscopes of the following models:
MSO1062 Mixed Signal Oscilloscope (2CH + L16)
MSO1102 Mixed Signal Oscilloscope (2CH + L16)
MSO1202 Mixed Signal Oscilloscope (2CH + L16)
MSO1000 Mixed Signal Oscilloscope standard accessories:
Main Machine
Probe x2
USB cable
Power cable
CD
3
Preface
Thank you for choosing MSO1000 Mixed Signal Oscilloscope producedby SalukiTechnology Inc.
We devote ourselves to meeting your demands, providing you high-quality measuring instrument and the best after-
sales service. We persist with “superiorqualityand considerate service”, and are committed tooffering satisfactory
products and service for our clients.
Document No.
MSO1000-03-01
Version
Rev01 2017.05
Saluki Technology
Document Authorization
The information contained in thisdocument is subject to change without notice. The power to interpretthe contentsof
and terms used in this document rests with Saluki.
Saluki Tech ownsthe copyright of this document which should not be modified or tampered by any organization or
individual, or reproduced or transmitted for the purpose of making profit without its prior permission, otherwise Saluki
willreserve the right to investigateand affix legalliability of infringement.
Product Quality Assurance
The warranty period ofthe product is 36 months from the dateof delivery. The instrument manufacturer will repair or
replacedamagedparts according to theactual situation within the warranty period.
Product Quality Certificate
The product meets the indicator requirements of the document at the time of delivery. Calibration and measurement
are completed bythe measuring organization withqualifications specified bythe state,and relevantdata are
provided for reference.
Quality/Settings Management
Research, development, manufacturing and testing of the product comply with the requirementsof the quality and
environmental management system.
4
Contacts
Service Tel: 886.2.2175 2930
Website: www.salukitec.com
Email: info@salukitec.com
Address: No. 367 Fuxing N Road, Taipei 105，Taiwan (R.O.C.)
5
Content
1Safety Information..................................................................................................................................................................8
1.1 System Symbols...............................................................................................................................................................8
1.2 System Terms..................................................................................................................................................................8
1.3 Product Scrapping............................................................................................................................................................8
2Overview................................................................................................................................................................................9
2.1 Brief Introduction...............................................................................................................................................................9
2.2 Help System.....................................................................................................................................................................9
3Getting Started Guide...........................................................................................................................................................11
3.1 Installation......................................................................................................................................................................11
3.2 Functional Check............................................................................................................................................................11
3.3 Probe Examination.........................................................................................................................................................12
3.4 Manual Probe Compensation.........................................................................................................................................13
3.5 Probe Attenuation Setting...............................................................................................................................................13
3.6 Self Calibration...............................................................................................................................................................14
3.7 Logic Analyzer Flat Input Cable......................................................................................................................................14
4Main Feature Description.....................................................................................................................................................16
4.1 Oscilloscope Setup.........................................................................................................................................................16
4.2 Trigger............................................................................................................................................................................16
4.3 Data Acquisition..............................................................................................................................................................17
4.4 Waveform Scaling and Positioning.................................................................................................................................18
4.5 Waveform Measurement................................................................................................................................................19
5Basic Operation....................................................................................................................................................................20
5.1 User Interface.................................................................................................................................................................20
5.2 Horizontal System...........................................................................................................................................................22
5.3 Vertical Controls.............................................................................................................................................................25
5.4 Trigger Controls..............................................................................................................................................................32
5.5 Menu and Option Buttons...............................................................................................................................................39
5.6 Fast Action Buttons.........................................................................................................................................................45
5.7 Multi-functional Knobs and Buttons................................................................................................................................50
5.8 Signal Connectors..........................................................................................................................................................50
5.9 Logic AnalyzerChannels Setup......................................................................................................................................51
6Application Examples...........................................................................................................................................................55
6.1 Example 1: Taking Simple Measurements.....................................................................................................................55
6.2 Example 2: Taking Cursor Measurements......................................................................................................................57
6.3 Example 3: Analyzing Input Signals to Eliminate Random Noise...................................................................................60
6.4 Example 4: Capturing Single-shot Signal.......................................................................................................................61
6.5 Example 5: Using X-Y Mode...........................................................................................................................................62
6.6 Example 6: Triggering on Pulse Width...........................................................................................................................63
6.7 Example 7: Triggering on Video Signal..........................................................................................................................64
6
6.8 Example 8: Using Slope Trigger to Capture Particular SlopeSignal..............................................................................65
6.9 Example 9: Using Overtime Trigger to Measure Long Pulse Signal...............................................................................66
6.10 Example 10: Using Math Functions to Analyze Waveforms...........................................................................................67
6.11 Example 11:Measuring Data Propagation Delay...........................................................................................................68
6.12 Example 12: Using Trigger toMeasure Digital Signal....................................................................................................69
7Troubleshooting...................................................................................................................................................................74
7.1 Problem Settlement........................................................................................................................................................74
8General Care and Cleaning..................................................................................................................................................75
8.1 General Care..................................................................................................................................................................75
8.2 Cleaning.........................................................................................................................................................................75
9Harmful and Poisonous Substances or Elements................................................................................................................76
7
General Safety Summary
Read the following safetyprecautions to avoid injuryand prevent damage to this product orany products connected
to it. To evade potential hazards, use this product only as specified.
Only qualified personnel should perform maintenance.
Avoid fire or personal injury.
Use suitable power cord.
Use only the power cord specified for thisproduct and certified for the country of use.
Connect and disconnect properly.
Connect aprobe with theoscilloscope before it is connected to measured circuits; disconnect the probe from the
oscilloscope after it is disconnected from measured circuits.
Ground the product.
This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding
conductormust be connected to earth ground.Beforemaking connections to the input or output terminals of the
product, ensure that the product is properly grounded.
Connect the probe in a right way.
The probeground lead isat ground potential. Do not connectthe ground lead to an elevated voltage.
Check all terminal ratings.
To avoidfire or shock hazard,check all ratings and markings on the product. Refer to the product manual fordetailed
information about ratings before making connections to the product.
Do not operate without covers.
Do not operate this product with covers orpanels removed.
Avoid exposed circuitry.
Do not touch exposed connections andcomponents when power is present.
Do not operate with suspected failures.
If you suspect there isdamage to this product,have it inspected byqualifiedservice personnel.
Assure good ventilation.
Do not operate in wet/damp environments.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry.
8
1Safety Information
In orderto ensure the correct using and the best efficient service, please carefully read the user’s manual.

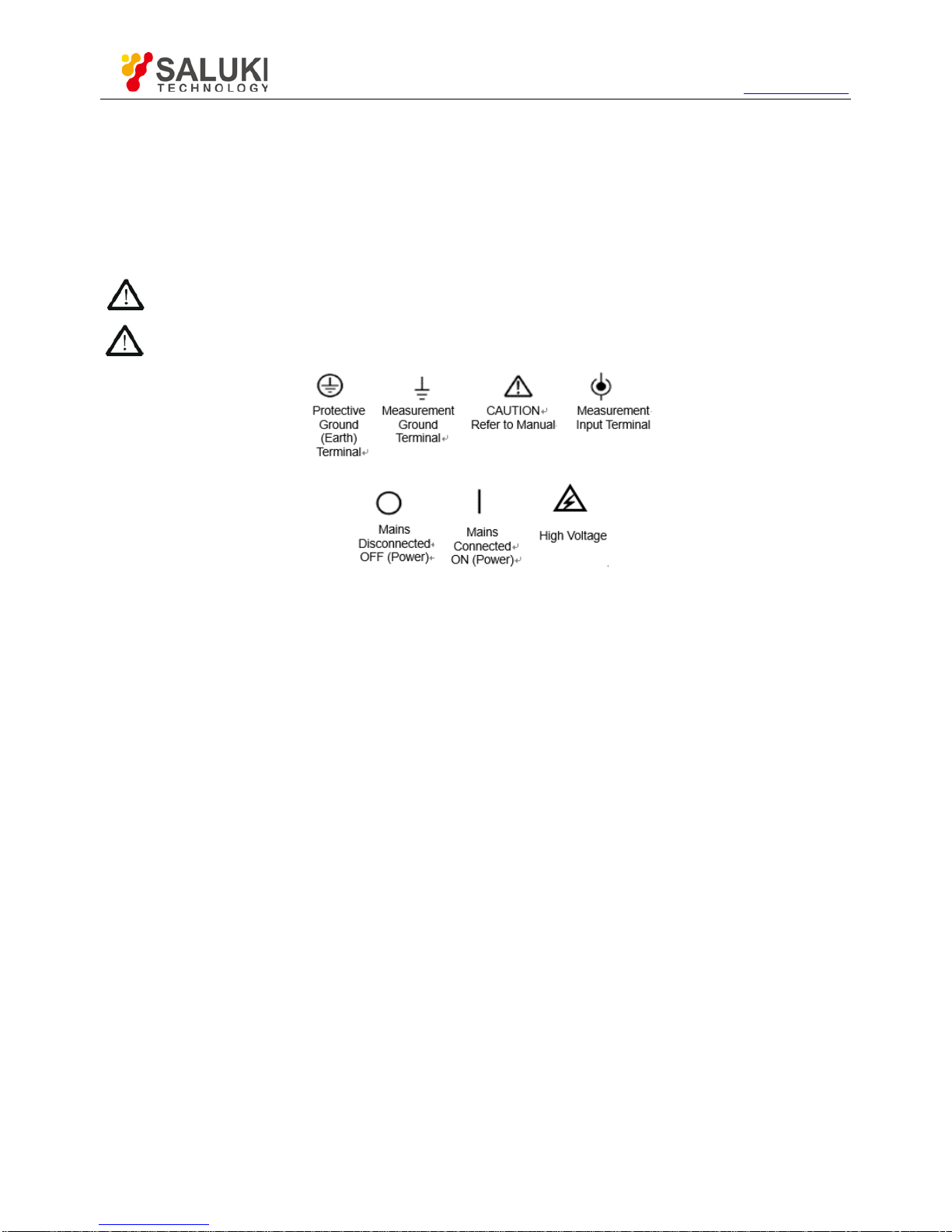

1.1 System Symbols
These symbols may appearin this manual or onthe instrument.
Warning: “Waring”identifies conditions and actions that pose hazards to the users.
Caution: “Caution” identifies conditions and actions that may damage the productor other properties.
1.2 System Terms
The following termsmay appear on the instrument:
Danger: The term “Danger” is used in the manualto indicate that when you read this mark, personal injury may be
caused to immediately.
Waning: The term “Warning”is used in the manual to indicate that when you read thismark, personal injurymay not
be caused to you immediately, but you needto be cautionary.
Notice: The term “Notice” is used in this manual to indicate thatdamagesmay becaused on thisproduct orother
properties.
1.3 Product Scrapping
Device Recycling
We need extract and utilize natural resources to produce this device.If you do not reclaim the device in a proper
way, some substances it contains maybecome harmfulor poisonous to environments or human bodies. To avoid
them being released outside and to minimize the waste of natural resources, we suggestyou reasonably call back
this device toensure properrecovery and recycling ofmost materials within it.
9
2Overview
2.1 Brief Introduction
MSO1000 oscilloscope is with the bandwidth of 60MHz/100MHz/200MHz, and provides the real-time and equivalent
sample rates respectively up to 1GSa/s and 25GSa/s. In addition, it has maximum 1M memory depth for better
observation of the waveform details, and7 inch colorTFT LCD as well as WINDOWS-style interfaces and menus for
easy operation.
What’s more, the plenty menu informationand the easy-to-operate buttons allow you to gain information as much as
possible in measurement; the multifunctional knobs and the powerful shortcutkeyshelp you save a lotof time in
operation; the Autoset function lets you detect sine and square waves automatically; the Probe Check Wizard guides
you to adjust the probe compensation and set the Probe option attenuationfactor.By usingthe three methods the
oscilloscope provides (context-sensitive, hyperlinks, and an index), you may master all operations on the device in
quite a short time so asto greatly improve your efficiency in production anddevelopment.
Model Channels Bandwidth Sample Rate LCD
MSO1062 2 60MHz 1GS/s 7 inch color
MSO1102 2 100MHz 1GS/s 7 inch color
MSO1202 2 200MHz 1GS/s 7 inch color
Model List of MSO1000 Series
2.2 Help System
This oscilloscope has a Help system with topics covering all of its features. You canuse the Help system to display
several kinds of information:
General information about understanding and using the oscilloscope,such as Using the Menu System.
Information about specific menus and controls,such as the Vertical Position Control.
Advice to problems you may come across while using an oscilloscope, such as Reducing Noise.
The Help systemprovidesthree methods foryou to findthe information you want: context-sensitive, hyperlinks, and
an index.
Context-Sensitive
10
Push the HELP front-panel button and the oscilloscope displays information about the last menu displayed on the
screen. The HELP SCROLL LED lights beside the HORIZONTAL POSITIONknob indicate the alternativefunction of
the knob. If a topic uses more than onepage, turn theHELP SCROLL knobto move from page to page within the
topic.
Hyperlinks
Most of the help topics contain phrases marked with angle brackets, such as <Autoset>. They are links to other
topics. Turn the HELP SCROLL knobto move the highlight fromone linkto another. Push the Show Topic option
button to display the topic correspondingto the highlighted link. Press the Back option button to return to the previous
topic.
Index
Push the front-panel HELPbutton, and then press the Index option button. Push the Page Up or Page Down option
buttonuntil you find the index page which contains the topic you want to view. Turn the HELP SCROLL knob to
highlight a help topic. Press the Show Topic option button to displaythe topic.
NOTE: Press the Exit option button or any menu button to remove the Help text from the screenand return to
displaying waveforms.
11
3Getting Started Guide
3.1 Installation
To keep proper ventilation of the oscilloscope inoperation, leave a space ofmore than 5cmaway from the top and
the two sides of the product.
3.1.1 Power Supply
Use a power supply that delivers 90 to 240 VRMS, 45 to 440 Hz.
3.1.2 Power Cord
Use only power cords designed for this product.
3.2 Functional Check
Follow the steps below to perform a quick functional check to your oscilloscope.
3.2.1 Power on the oscilloscope
Plug in the oscilloscope and press the ON/OFF button. Then push the DEFAULT SETUP button. The default Probe
option attenuation setting is 10X.
3.2.2 Connect the oscilloscope

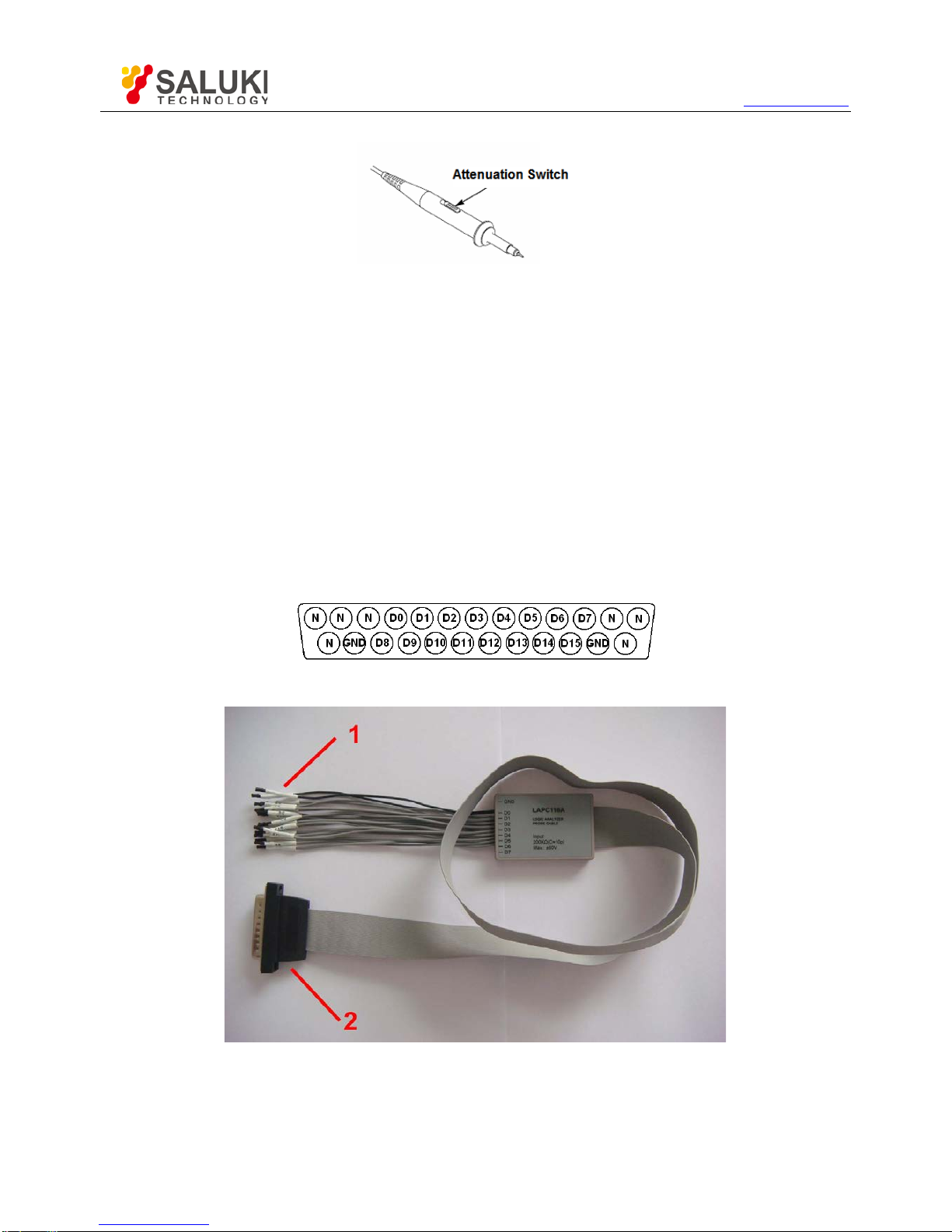

Set the switch on the probe to 10X and connectthe probe to Channel 1 on theoscilloscope. First, align the slot in the
probe connector with the protuberance on the CH1 BNC and push to connect; then, turn to right to lockthe probe in
place; after that, connect the probe tip and reference lead to the PROBE COMP connectors. There isa markon the
panel: Probe COMP ~5V@1KHz.
12
3.2.3 Observe the waveform

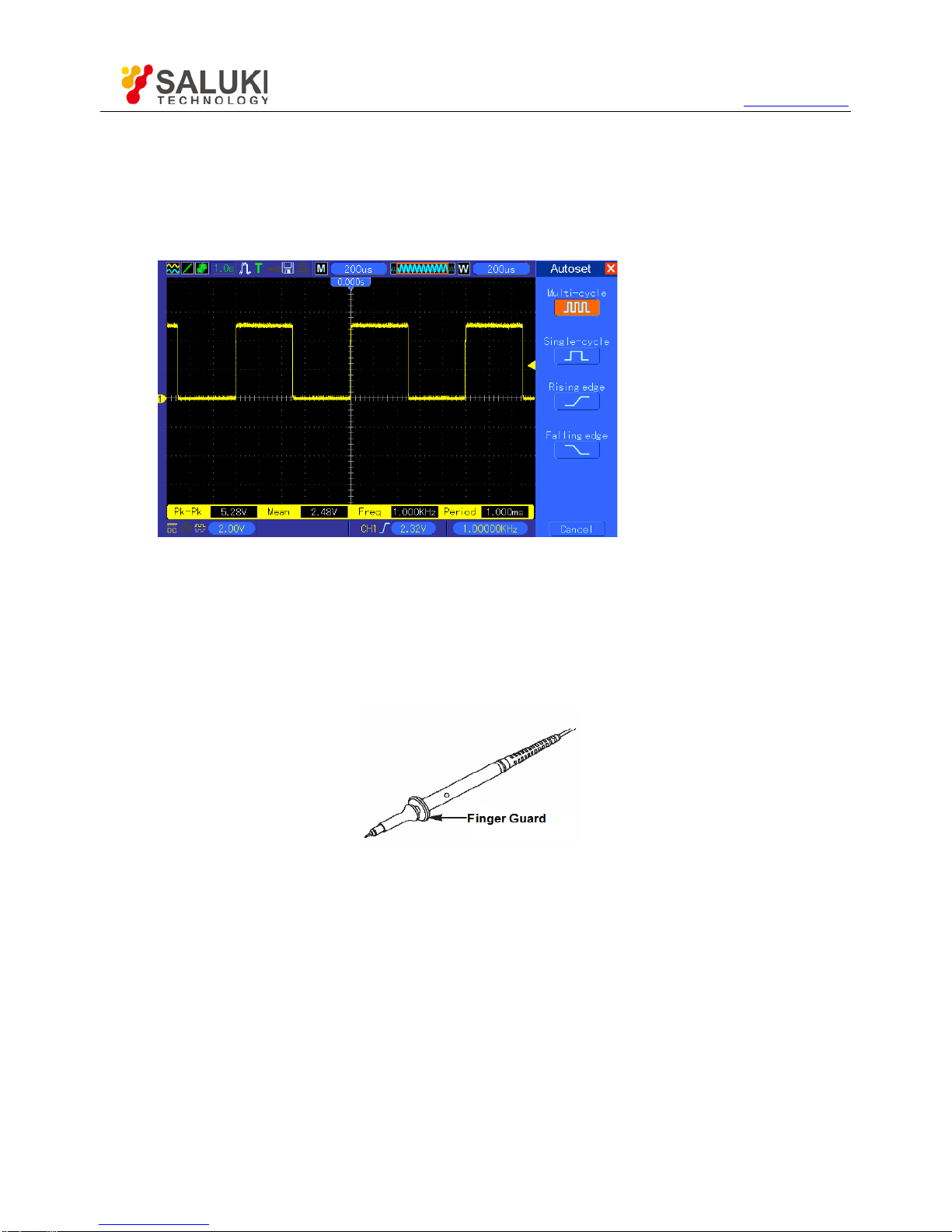

Press the AUTOSET button and you should see within a few secondsa square wave of about 5V peak-to-peak at
1kHz in the display. Press the CH1 MENU button twice to remove Channel 1. Push the CH2 MENU button and
repeat Step 2 and Step 3 to observe Channel 2.
3.3 Probe Examination
3.3.1 Safety
When using the probe, keep your fingers behind the guard on the probe body to avoid electric shock. Do not touch
metallic portions ofthe probe head while it is connectedto a voltage source. Connectthe probe to the oscilloscope
and connect the ground terminal to ground before youstart any measurements.
3.3.2 Use of Probe Check Wizard
Every time you connecta probe to an input channel, you shoulduse theprobe check wizard to verify that this probe
is operating correctly. There are two ways to do this:
1) Use the vertical menu (for example, push the CH1 MENU button) to set the Probe option attenuation factor.
2) Press the PROBE CHECKbutton to use the Probe Check Wizard and configure the probe option attenuation
factor properlyfollowing menu prompts.
13
3.4 Manual Probe Compensation
Upon thefirst connection ofa probe and an input channel, you should manually perform this adjustmentto match the
probe to the input channel.Uncompensated or miscompensated probes may leadto errors or faults in measurement.
To adjust the probe compensation,follow the stepsbelow.
1. Set the Probe option attenuation in the channel menu to 10X. Set the switch on the probe to 10X and connect
the probe to Channel 1 on the oscilloscope. If youuse the probe hook-tip, ensure it is firmly inserted onto the
probe. Attachthe probe tip to the PROBE COMP ~5V@1KHz connector and the reference lead to the PROBE
COMP Ground connector. Display the channeland then press the AUTOSET button.

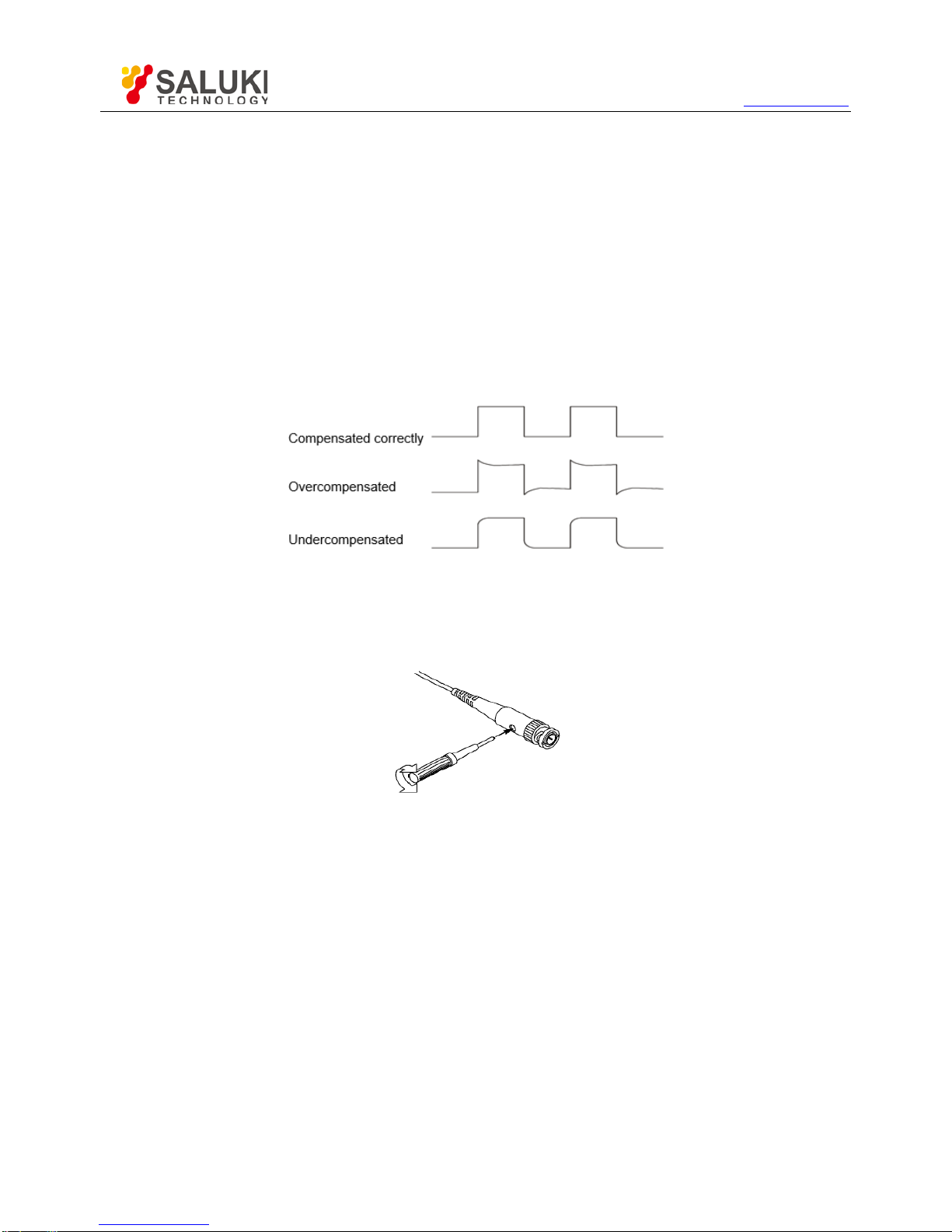

2. Check the shape of the displayed waveform.
3. If necessary,use a nonmetallic screwdriver to adjust the variable capacity of your probe until the shape of the
waveformturns tobe the same as the above figure. Repeat this step as necessary. See the figure below for the
way of adjustment.
3.5 Probe Attenuation Setting
Probes are of various attenuation factors which affect the vertical scale ofthe signal. TheProbe Check function is
used to verify if the Probe attenuation option matchesthe attenuation ofthe probe.
As an alternative method toProbe Check, you canpush a vertical menu button (such as the CH 1 MENU button) and
select the Probe option that matches the attenuation factor of your probe.
Make sure that the Attenuation switch on the probe matches the Probe option in the oscilloscope. Switch settingsare
1X and 10X.
When the Attenuation switch is setto 1X, theprobe limits the bandwidth of the oscilloscope to 6MHz. To use the full
bandwidth of the oscilloscope, be sure to set the switch to 10X.
14
3.6 Self Calibration
The self calibration routinehelps optimize the oscilloscope signalpath for maximum measurement accuracy. You
can run the routine at any time but should alwaysrun it if the ambient temperature changes by 5℃or more. For a
more accurate calibration,please power on the oscilloscope and wait for 20 minutesuntil it has adequatelywarmed
up.
To compensate the signal path, disconnect any probes or cables from the front-panel input connectors. Then, push
the UTILITY button, select the Do Self Cal option and follow the directions on the screen.
3.7 Logic Analyzer Flat Input Cable
MSO1000 series has logic analyzer function,and its logic signalinput port is shown as follows:
The flat terminal connection cable is shown as below.
1. Digital Input Terminal
The total of digital signal input terminals is 18, arranged as two rows, GND, D0-D7 and GND, D8-D15.
15
2. Flat Cable Plug
Plug the flat cable into the logic signal input port inaccordance with the sequence of the input port.
Note: When connectwith device, please insert input terminals gently to avoid damaging cable socketor other
components.
16
4Main Feature Description
This chapter provides some general information that you need to learn before using an oscilloscope. It contains:
1. Oscilloscope setup
2. Trigger
3. Data acquisition
4. Waveform scaling and positioning
5. Waveform measurement
4.1 Oscilloscope Setup
While operating the oscilloscope, you may often use three features: Autoset, saving a setup and recalling a setup.
Hereinafter they are introduced one by one.
Autoset: This function can be used to adjustthe horizontal and verticalscales of the oscilloscope automaticallyand
set the trigger coupling,type, position, slope, leveland mode, etc.,to acquire a stable waveformdisplay.
Saving a Setup: By default, theoscilloscope will save the setup each timebefore being closed, and automatically
recall the setup once being turned on. (Note: If you modify the setup, please wait for more than 5 seconds
before turning off the oscilloscope to ensure the proper storage of new settings.) You can save 10 settings
permanently in the oscilloscope and reset them as necessary.
Recalling a Setup: The oscilloscope can recall any of your saved setups and the default factory setup.
Default Setup: The oscilloscope is preset for normaloperations when it is shipped from the factory. This is the
default setup.You may recall this setup atany time for your requirements. To view the default settings, refer to
Section 5.6.3.
4.2 Trigger
The trigger determines when the oscilloscope begins to acquire data and displaya waveform. Once a trigger is
properlyset up, the oscilloscope can convertunstable displays orblank screensto meaningful waveforms. Here
introduce some basic concepts about trigger.
Trigger Source
The trigger can be generated with multiple sources. The most common one is the input channel (alternative between
CH1 and CH2). Whether the input signal is displayed or not, it can trigger normal operations. Also the trigger source
can be any signal connected to an external trigger channel or the AC power line (only for Edge triggers). The source
with the AC power line shows the frequency relationship between the signaland the AC commercialpower.
Trigger Type:
The oscilloscope has six types of triggers: Edge, Video, Pulse Width,Slope, Overtime and Swap.
Edge Trigger uses theanalog ordigital test circuitsfor triggering. It happens when the input trigger source
crossesa specified levelin a specified direction.
Video Trigger performs a field or line triggerthrough standard video signals.
17
Pulse Width Trigger can trigger normal or abnormalpulses that meet trigger conditions.
Slope Trigger uses the rise and fall timeson the edge of signal for triggering.
Overtime Trigger happens after theedge of signal reachesthe set time.
Swap Trigger, as a feature of analog oscilloscopes,gives stable displays ofsignals at two different
frequencies. Mainly it uses a specific frequency to switch between twoanalog channels CH1 and CH2so
that the channels will generate swap trigger signals through the trigger circuitry.
Trigger Mode
You can select the Auto or Normal mode to define how the oscilloscope acquiresdata when it does not detecta
trigger condition. Auto Mode performs the acquisition freely in absence of valid trigger. It allows the generation of
untriggered waveformswith thetime base set to80ms/div or slower. Normal Mode updatesthe displayed
waveforms onlywhen the oscilloscope detects a valid trigger condition. Beforethis update, the oscilloscope still
displaysthe old waveforms.This mode shall be used when you wantto only view the effectivelytriggered
waveforms. In this mode, the oscilloscope displays waveforms only afterthe first trigger. To perform a single
sequence acquisition, push the SINGLE SEQ button.
Trigger Coupling
Trigger Coupling determines which part of the signal will be delivered to the trigger circuit. This can help to obtain a
stable displayof the waveform. To use trigger coupling, push the TRIG MENU button, select an Edge or Pulse
trigger, and then select a Coupling option.
Trigger Position
The horizontalposition control establishesthe timebetween the trigger position and the screen center.
Slope and Level
The Slopeand Level controlshelp to define the trigger.The Slope option determines whether the trigger point is on
the rising or falling edge of a signal. To perform the trigger slope control, press the TRIG MENU button, select an
Edge trigger, and use the Slopebuttonto select rising or falling. The TRIGGER LEVEL knobcontrols the trigger point
is on which position of the edge.
4.3 Data Acquisition
When you acquire an analog signal, the oscilloscope will convert it into a digital one. There are two kinds of
acquisition: Real-time acquisition and Equivalent acquisition. The real-time acquisition hasthree modes: Normal,
Peak Detect, and Average. The acquisitionrate isaffected by the setting of time base.
18
Normal: In thisacquisition mode, theoscilloscope samples the signal inevenly spaced intervals to establish the
waveform. This mode accurately represents signals in most time. However, it does not acquire rapid variations
in the analog signal that may occur between two samples, which can result in aliasing and may cause narrow
pulses to be missed. In such cases, you should use the Peak Detectmode to acquire data.
Peak Detect:In this acquisition mode, the oscilloscope gets the maximum and minimum values of the input
signal over each sample interval and uses these valuesto display the waveform. In this way, the oscilloscope
can acquire and display those narrow pulses that may have otherwise been missed in Normal mode. However,
noise will appear to be higher in this mode.
Average: In this acquisition mode, the oscilloscope acquires several waveforms, averages them, and displays
the resulting waveform. Youcan use this mode to reduce random noise.
Equivalent Acquisition: This kind of acquisition can be utilizedfor periodic signals. In case theacquisition rate
is too low when using the real-time acquisition, the oscilloscope will use afixed rate to acquire data with a
stationary tiny delayafter each acquisition of a frame of data. After repeating this acquisition for N times, the
oscilloscope will arrange the acquired N framesof databy time to makeup a new frame ofdata. Then the
waveform can be recovered. The number of times N is related to the equivalent acquisition rate.
Time Base: The oscilloscope digitizes waveforms byacquiring the valueof an input signal at discrete points.
The time base helps to control how often the values are digitized. Use the SEC/DIV knob toadjust the time base
to a horizontal scale that suits your purpose.
4.4 Waveform Scaling and Positioning
The display of waveforms on the screen can be changed by adjusting their scale and position. Once the scale
changes, the waveform display will increase ordecrease in size. Once the position changes, the waveform will move
up, down, right, or left.
The channel referenceindicator (located on the left of the graticule) identifies each waveform on the screen. It points
to the ground levelof the waveformrecord.
Vertical Scale and Position:
The vertical position of a waveformcan be changed bymoving it up and downon the screen.To compare data, you
may align a waveform over another. When you push the VOLTS/DIV button to change the vertical scale of a
waveform, the waveformdisplay willcontractor expand verticallyto the ground level.
Horizontal Scale and Position:
You canadjust the HORIZONTAL POSITION control toview waveform data before the trigger, after the trigger, or
some of each. When you change the horizontal position of awaveform, you are actually changing the time between
the trigger position and the screen center.
For example, if you want to find out the cause ofa glitchin your test circuit, you should trigger on the glitch and make
the pretrigger period long enough to capture databefore the glitch. Then you can analyze thepretrigger data and
perhaps find the cause.Youare allowed to change the horizontalscale of all the waveforms byturning the SEC/DIV
knob. For example, you may want to see justone cycle of awaveformto measure the overshoot on itsrisingedge.
19
The oscilloscope showsthe horizontalscale astime perdivision in the scale readout. Since allactive waveforms use
the same time base, the oscilloscope only displays onevalue forall theactive channels.
4.5 Waveform Measurement
The oscilloscope displays graphs of voltage versus time and can help to measure the displayedwaveform. There are
several ways to take measurements,using thegraticule, thecursors orperforming an automatic measurement.
Graticule
This method allows you tomake a quick, visual estimate and take a simple measurement through the graticule
divisions and the scale factor.
For example, youcan takesimple measurements bycounting the major and minor graticule divisions involved and
multiplying bythe scale factor. If you counted 6 major vertical graticule divisions between the minimum and maximum
values of a waveform and knew you had a scale factor of 50mV/division, you could easily calculate your peak-to-
peak voltage as follows:
6 divisions x 50mV/division = 300mV.
Cursor:
This method allows you to take measurements by moving the cursors. Cursors always appear in pairs andthe
displayedreadouts are justtheir measured values. There are two kinds ofcursors: AmplitudeCursor and Time
Cursor. The amplitude cursor appear as a horizontal broken line, measuring the vertical parameters. The time cursor
appear as a vertical broken line, measuring the horizontal parameters.
When using cursors, please make sure to set the Source to the waveform that youwant to measure on the screen.
To use cursors,push the CURSOR button.
Automatic Measurement:
The oscilloscopeperforms all the calculations automatically in this mode. As this measurement uses the waveform
record points, it is more precise than the graticule andcursormeasurements.Automatic measurements showthe
measurement results by readouts which are periodically updated with the new data acquired by the oscilloscope.
20
5Basic Operation
The front panelof the oscilloscope is divided into several functional areas. In this chapter, we will give a quick
overview of all controlbuttonsand knobson the front panel aswell as the displayed information on the screenand
relative testing operations. The figure below illustrates the front panel of theMSO1000 digital oscilloscope.
Front Panel of MSO1000
5.1 User Interface
Table of contents
