Aetina Nvidia Jetson Series User manual

i
User Manual
Nvidia Jetson Series Carrier board
Aetina ACE-N510

ii
Document Change History
Version
Date
Description
Authors
V1 2018/03/15 Initial Release. Eric Chu

iii
Contents
1. Introduction..........................................................................................................................................................- 1 -
1.1 Features .......................................................................................................................................................- 1 -
1.2 Board ...........................................................................................................................................................- 1 -
2. Board Specification ..............................................................................................................................................- 2 -
3. Block Diagram....................................................................................................................................................... - 3 -
3.1 Board Placement ......................................................................................................................................... - 3 -
3.2 Mechanical Dimensions...............................................................................................................................- 4 -
4. Connectors and Pin-outs ...................................................................................................................................... - 5 -
4.1 J1 (Front Panel and Expansion I/O) .............................................................................................................- 5 -
4.2 GPIO PIN Define...........................................................................................................................................- 6 -
4.3 CAN BUS PIN Define.....................................................................................................................................- 6 -
4.4 Power Input (Euroblock Connector)............................................................................................................- 7 -
4.5 Micro USB .................................................................................................................................................... - 7 -
4.6 Micro SD ...................................................................................................................................................... - 7 -
4.7 HDMI............................................................................................................................................................ - 8 -
5. Accessary (Optional) ............................................................................................................................................- 9 -
6. Software & BSP................................................................................................................................................... - 10 -
7. Recovery system................................................................................................................................................. - 10 -

- 1 -
1. Introduction
ACE-N510 is the smallest form factor carrier board in Aetina production line. Support for
NVIDIA® Jetson™ TX2 and Jetson™ TX1. You can quickly emulate the functionality of your
desired end product for software development and hardware verification.
To build a functional prototype of your target system you will need:
•Nvidia TX1/TX2 module (Aetina’s P/N: NSO-MD-TX1/NSO-MD-TX2)
•Nano-ITX carrier board (Aetina’s P/N: ACE-N510)
•Power adaptor 12V DC/5A
1.1 Features
•Smallest design for Nvidia TX2/TX1
•Specifically designed for high performance and low-power envelope AI computing
•Extended temperature range -20°C to 70°C
•Suitable for general robotics, Drone, UAV, industrial inspection, medical imaging and
deep learning
1.2 Board
•6-layer printed circuit board(PCB)
•Phsical dimensions: 87mm x 50 mm
•Board TDP: 15W
•High-Bandwidth Digital Content Protection (HDCP) support

- 2 -
2. Board Specification
Specification
ACE-N510 Description
Module Compatibility Nvidia Jetson TX1 / Nvidia Jetson TX2
GPU
Jeston TX1 :
-Nvidia MaxwellTM, 256 CUDA cores.
Jetson TX2 :
-Nvidia PascalTM, 256 CUDA cores.
CPU Jetson TX1:
-Quad ARM® A57/2MB L2
Jetson TX2:
-HMP Dual Denver 2/2MB L2 + Quad ARM® A57/2MB L2
Dimension
-87mm x 50mm
Display -1 x HDMI
Audio
-HDMI Integrated
Connectivity -1 Gigabit Ethernet, 802.11ac WLAN, Bluetooth
USB
Jetson TX1 :
-1 x USB3.0 Type A
-1 x USB2.0 Type A
-1 x USB OTG Micro AB
Jetson TX2 :
-2 x USB3.0 Type A
-1 x USB OTG Micro AB
SD CARD -Micro SD CARD Slot
UART
-1 x UART
RS232 -1 x RS232
GPIO
-4 x GPIO
CAN Bus -2 x DB9 connector.(TX2/TX2i support)
Input Power
-+12V DC input Euroblock connector
Operating Temperature -0°C to + 55°C
--20°C to + 70°C (Optional)
Storage Temperature
--25°C to + 80°C
Warranty -14 Months

- 3 -
3. Block Diagram
3.1 Board Placement

- 4 -
TX1/TX2 Module Connector Compatible with Jetson TX1/TX2
HDMI Type A
Euroblock Connector 2-pin DC in
USB3.0 Type A
CN21 CAN BUS x2 (10-pin)
LAN RJ45
USB2.0 OTG Micro-AB
J1 Front Panel+Expansion I/O(30-pin)
3.2 Mechanical Dimensions

- 5 -
4. Connectors and Pin-outs
4.1 J1 (Front Panel and Expansion I/O)
Pin number Define Pin number Define
PIN 1 UART1_RXD_HDR_3V3 PIN 2 RS232_RXD
PIN 3 UART1_TXD_HDR_3V3 PIN 4 RS232_TXD
PIN 5 UART1_RTS_HDR_3V3 PIN 6 RS232_RTS
PIN 7 UART1_CTS_HDR_3V3 PIN 8 RS232_CTS
PIN 9 GND PIN 10 GND
PIN 11 POWER_BTN_R PIN 12 GND
PIN 13 RESET_IN_L_R PIN 14 GND

- 6 -
PIN 15 FORCE_RECOVERY_L_R PIN 16 GND
PIN 17 SLEEP_R PIN 18 GND
PIN 19 VDD_3V3_SYS PIN 20 EXT_LED
PIN 21 GPIO_1 PIN 22 GND
PIN 23 GPIO_2 PIN 24 GND
PIN 25 GPIO_3 PIN 26 GND
PIN 27 GPIO_4 PIN 28 GND
PIN 29 ACOK PIN 30 GND
* In order to boot up the system, pleas quickly short-circuit Pin11 and Pin12.
*Disable Pin29 and Pin30 can enable Auto power on function.
4.2 GPIO PIN Define
* The default setting of GPIO1 is high.
4.3 CAN BUS PIN Define
CN21 Pin number Define
PIN 1 CAN0H
PIN 2 CAN1H
PIN 3 CAN0L
PIN 4 CAN1L
PIN 5 CAN0_STBY
PIN 6 CAN1_STBY
PIN 7 CAN0_ERR
PIN 8 CAN1_ERR
PIN 9 CAN_WAKE
PIN 10 GND
Pin Number Define Sysfs TX1 Sysfs TX2
PIN 21 GPIO_1 GPIO186 GPIO298
PIN 23 GPIO_2 GPIO187 GPIO388
PIN 25 GPIO_3 GPIO63 GPIO389
PIN 27 GPIO_4 GPIO184 GPIO481

- 7 -

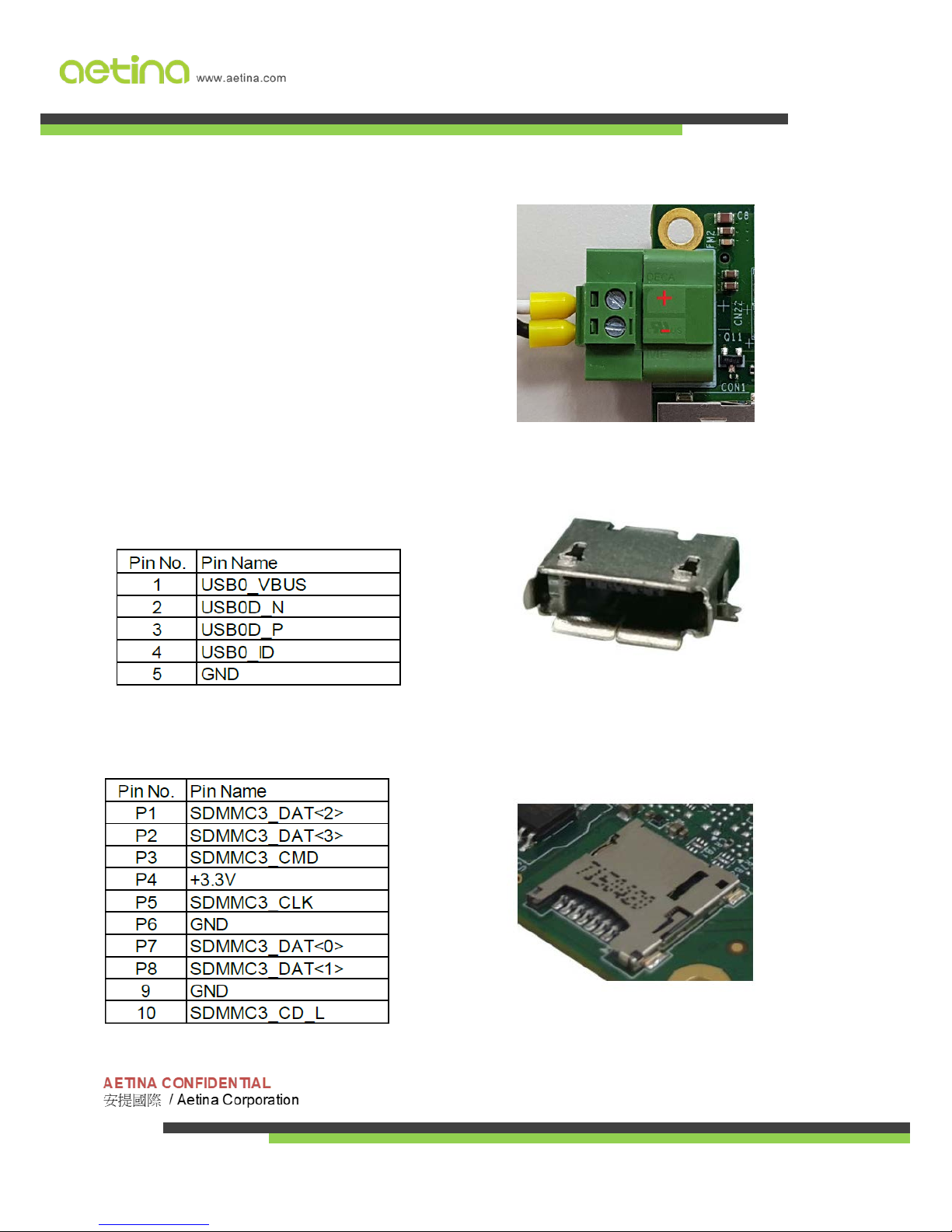

4.4 Power Input (Euroblock Connector)
4.5 Micro USB
4.6 Micro SD
