Afikim Breeze 3W User manual

2
WARNING
Read the User’s Manual carefully before operating the Breeze.
If you do not fully understand any part of this Manual,
please contact your dealer or any of our Service Center.
Read this manual step by step, as injury or damage may occur from misuse!
WARNING
Electromagnetic Interference (“EMI”) can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take
time to read Chapter 6 (“EMI WARNING”) before operating the Breeze.
Serial Number and Manufacturer’s data are fixed to the top of the
Batteries Cover near the Manual release Lever (subject to change
as per local ordinances).
WARRANTY
AFIKIM ELECTRIC VEHICLES strives continuously to improve its products,
their quality and reliability in an incessant effort to ensure its customers’
satisfaction as well as its place on the market.
Warranty for the Breeze is subject to your local distributor's warranty.
CE CERTIFICATION
The Afikim Electric Vehicles Ref. Registration Number with the
Competent Authority (UK)
Is: CA 000292.
Our Authorized Representative with the Competent
Authorities is: MEDES LTD.POB 231
Stanmore, Middlesex, HA7 4YA, England
TEL/FAX: [phone]

3
CONTENTS
CHAPTER 1 – OVER VIEW OF THE BREEZE – MAIN FEATURES 4
1.1 SAFETY INSTRUCTIONS 5
1.2 GENERAL DESCRIPTION OF THE BREEZE 7
1.3 TECHNICAL SPECIFICATIONS 10
CHAPTER 2 - ADJUSTMENT & OPERATING INSTRUCTIONS 12
CHAPTER 3 - MAINTENANCE 21
CHAPTER 4 – CHARGING 23
CHAPTER 6 - EMI WARNING 28

4
CHAPTER 1 – OVER VIEW OF THE BREEZE – MAIN FEATURES
Congratulations on choosing the Breeze as your electrically powered Scooter.
The Breeze is a scooter for Elderly and Disabled persons, Fun and Sport.
Scooter classification: Class C with according to EN12184 .
The Breeze is designed to a Maximum occupant mass of 160 Kg (352lbs).
The Breeze is an outdoor scooter designed to work at normal environment
conditions from very cold areas of (-30ºC, -22ºF) and up to very hot areas up to
(+45ºC, +113ºF).
The Breeze will operate in light splashing rain, but it is not recommended to use
the Breeze at heavy rain conditions for long period.
The Breeze is easy to operate. The relatively large wheels enable driving on
unpaved roads, over rough terrain and to overcome obstacles as high as 5”
(12 cm).
If cases that driving on grass or more stability is needed, the Breeze IV can be
attached with rear wide tires, that allow also driving in Golf fields.
Pressure inflating of the tires can found in the technical specification table. The
Breeze can climb slopes up to 21% (11.85º).
The braking system stops the Breeze smoothly and a short distance after the
Operating Lever is released.
The Breeze is equipped with both Front and Rear Shock Absorbers to give the
user the most comfort and soft driving, even when using the vehicle at terrain
roads.
A standard hand brake is also provided for backup.
The Seat is spacious, comfortable and can be rotated for easy access (standard
Seats) and adjusted forward/reverse up/down for most fitness to the user.
All controls are conveniently located on the tiller and handlebar and are simple to
operate.
Under normal conditions the Breeze can travel approximately 40 km (26.7 miles)
before the batteries require recharge.
After reading through all this manual, before start using the Breeze, do a visual
check through the all parts of the vehicle, to make sure that no external damage
has been occur to the vehicle while transportation. In any case you are not sure
call your dealer and ask for an explanation.
The Breeze is developed to use dry or gel batteries only.

5
1.1 SAFETY INSTRUCTIONS
1. Please note and strictly adhere to the following Safety Instructions. Additional
Warnings and Notices are printed in this User’s Manual; it is imperative that
you read carefully all chapters of this Manual before operating the Breeze.It is
also advisable to refresh your memory by re-reading this Manual periodically.
2. Get acquainted with the Breeze and its operational features before driving it.
3. Drive slowly (Place Speed Selector in position “1/2”) until you get used to the
Breeze, to its various functions, safety features, and to its braking capabilities
and limitations.
4. Watch carefully for pedestrians and drive your Breeze accordingly. In crowded
areas always drive with the Speed Selector at Low Speed.
5. Drive only where permitted according to all applicable local laws and
ordinances.
6. BreezeIV with wide tires is 90 cm (36") width. Pay special attention not to hit
persons or any objects around the vehicle.
7. Never remove any of the Breeze safety parts like Fenders ,Plastic Covers or
Emergency Brake lever .
8. Never remove any of the Warnings Labels . If any of the Warning labels is
removed , got wear , painted etc. ask your dealer to supply you a new labels.
9. Never put your hands, fingers , legs into any moving parts or under any
protection cover , since moving parts are under covers and heated surfaces as
well .
10. Do not release the Manual or Electrical Release Lever of the Electromagnetic
Brake when the Breeze is on a slope.
11. Never load the Breeze total loads (User weight and all other loads combined)
more than 160Kg (352lbs).
12. The load in the Rear Basket should not exceed 20kg (44 lbs).
13. Never inflate the Breeze tires more than recommended on the tires by the
manufacturer.
14. The Breeze is designed and built to carry ONE person only on the Single Seat
model.
15. Never operate it with an additional person on board, not even a child.
16. Do not change the Speed Selector position while driving.
17. Never use the Breeze for climbing up or riding down stairs.
18. If for any reason the Breeze does not stop when you release the Operating
Lever, or stopped after longer distance than regular or higher than 3 meters
(level surface) , immediately use the Hand Brake to stop the Breeze and turn
the Main Key Switch to “OFF”. Contact your dealer immediately.
19. Never use a hose for cleaning. This may severely damage the power and
electronic components. Use only a damp cloth and mild detergent.
20. Do not use the Breeze neither at heavy rain or extreme humidity conditions
nor at temperatures below -30ºC (-22ºF) or above +45ºC (+113ºF).
21. Never try to go an obstacle that is more than the maximum recommended
slope angle and curb climbing in the specification sheet.

6
22. The seat weight is 15 Kg (33lbs). Each battery weight 20 Kg (44lbs) and more.
Be careful when lifting the seat and the batteries. See instruction for lifting in
Chapter 3: Maintenance and Chapter 5: Repair and troubleshooting. Keep
lifting with your Knees/legs and not loading your Back.
23. When adjusting/folding the seat back, armrest, seat sliders (forward / reverse),
tiller distance and as well when squeezing the speed lever or hand brake,
always be careful that your hands and fingers will not be trapped between any
of the adjusting parts .
24. If the WARNING Led start flashes while driving, your motor exceeded too high
temperature; you should stop the Breeze and let the motor cool for a while.
25. If the Breeze is involved in any kind of an accidents that part are damaged, it is
necessary to check the vehicle by qualified technician before go on using it.
26. Batteries contain lead and acid, and should be disposed only to a proper
disposal.
27. When driving always make sure, that the backrest is in most upright position.
28. When climbing an Obstacle drive always so that the Breeze Front is toward the
obstacle.
29. Be ware from trapping your fingers in the tiller mechanism , when adjusting the
tiller – Forward / Reverse .
30. Use gel/dry batteries only.
WARNING !!!
•Special care must be taken to prevent children from operating the Breeze.
•Always drive carefully, adjust the speed according the limitation of the road.
•Instability problem can arise when performing turns at high speed. Before making
sharp turns, reduce the Breeze speed to minimum to prevent side roll-over.
•The Breeze is able to go up slope higher than the recommended safe slope. Do
not drive on slopes you are not sure about their angle. However drive very slowly
and prevent side driving on such slopes.
•Never disengaged manually or electrically the electromagnetic parking brake
when the vehicle is on a slope.
•The lights of the Breeze should be on when visibility is restricted, either by day or
by night.
•Since that your seat upholstery is Fire resistant, do not cover or replace with
other upholstery than an original one.
•When removing the Batteries cover be careful from hot parts .The Motor,
Transaxle, EMB, Electronic cards and Electronic Box might be wormed, Do not
touch them before you make sure about their temperature.
•Pay attention that your fingers will not be pressed between the squeeze or Brake
lever and the Rubber Grip.
•The seat weight is 15 Kg (33lbs). Keep lifting the seat with your Knees/legs and
not loading your Back. Hold the Seat in your two hands – one hand on the
backrest and a second hand at the front lower part of the seat and lift the seat up
from its pivot.

7
1.2 GENERAL DESCRIPTION OF THE BREEZE
Note: The numbers in parentheses refer to the parts illustrated
on Figure 1+2+3.

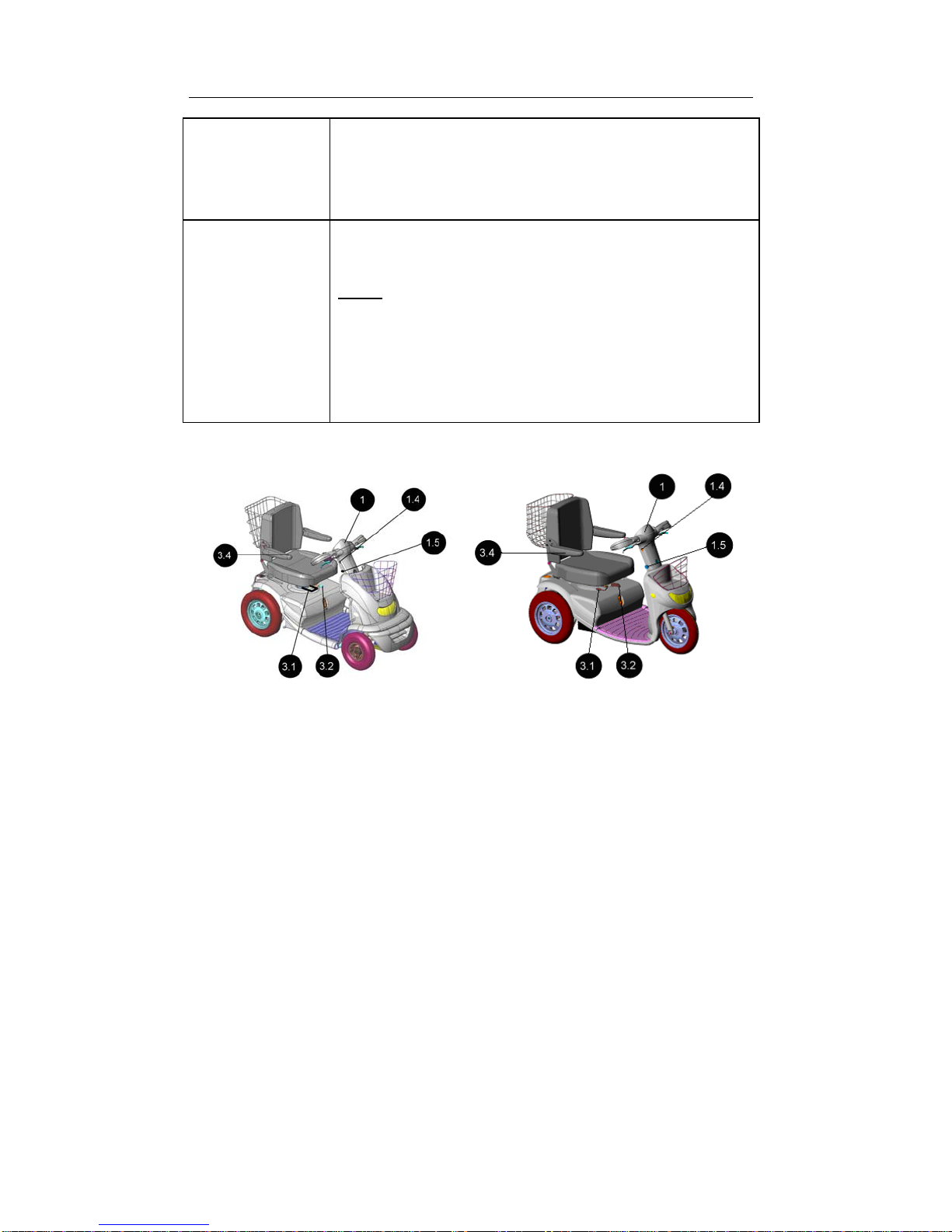

Figure 1: Breeze 4W
Figure 2: Breeze 3W
3.4 3.3
3

8

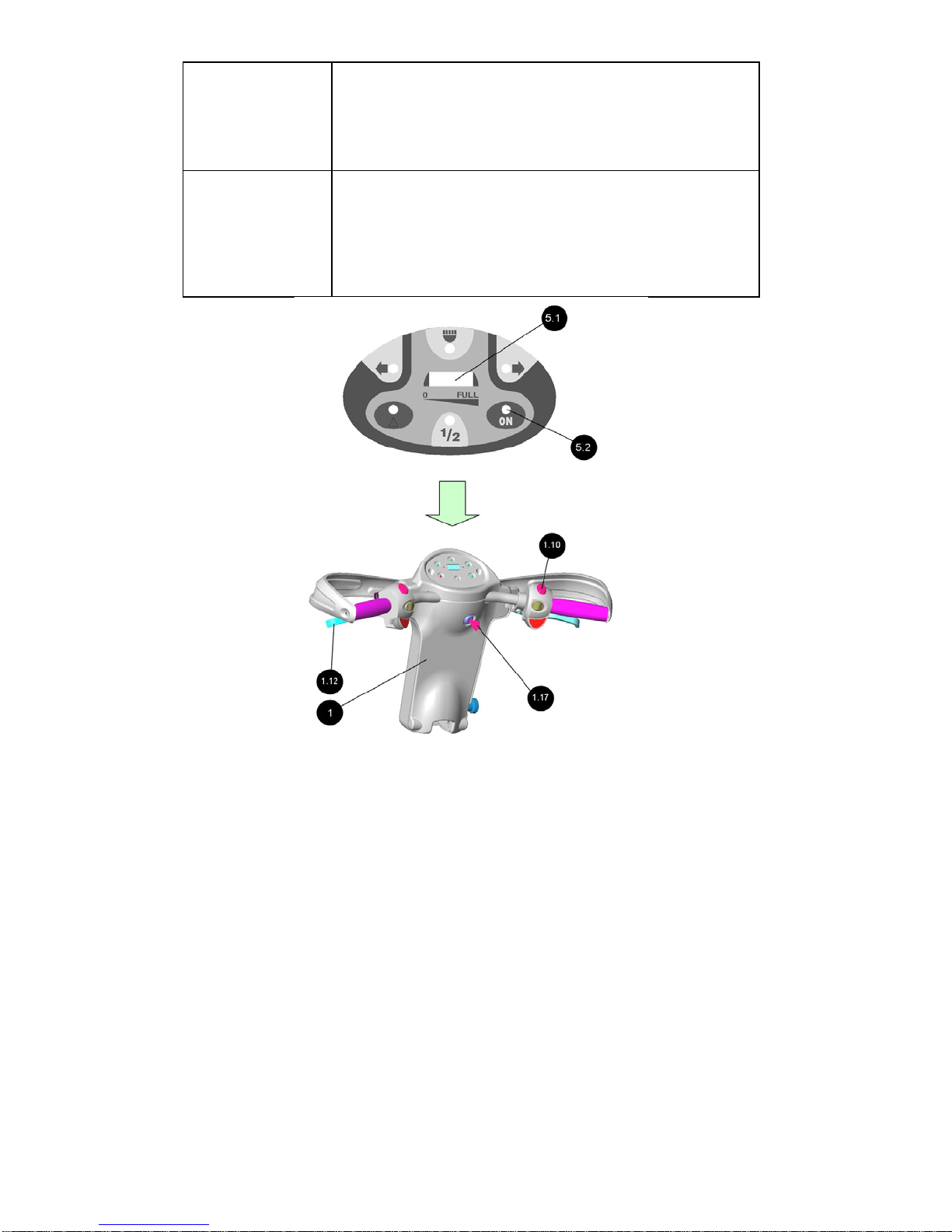

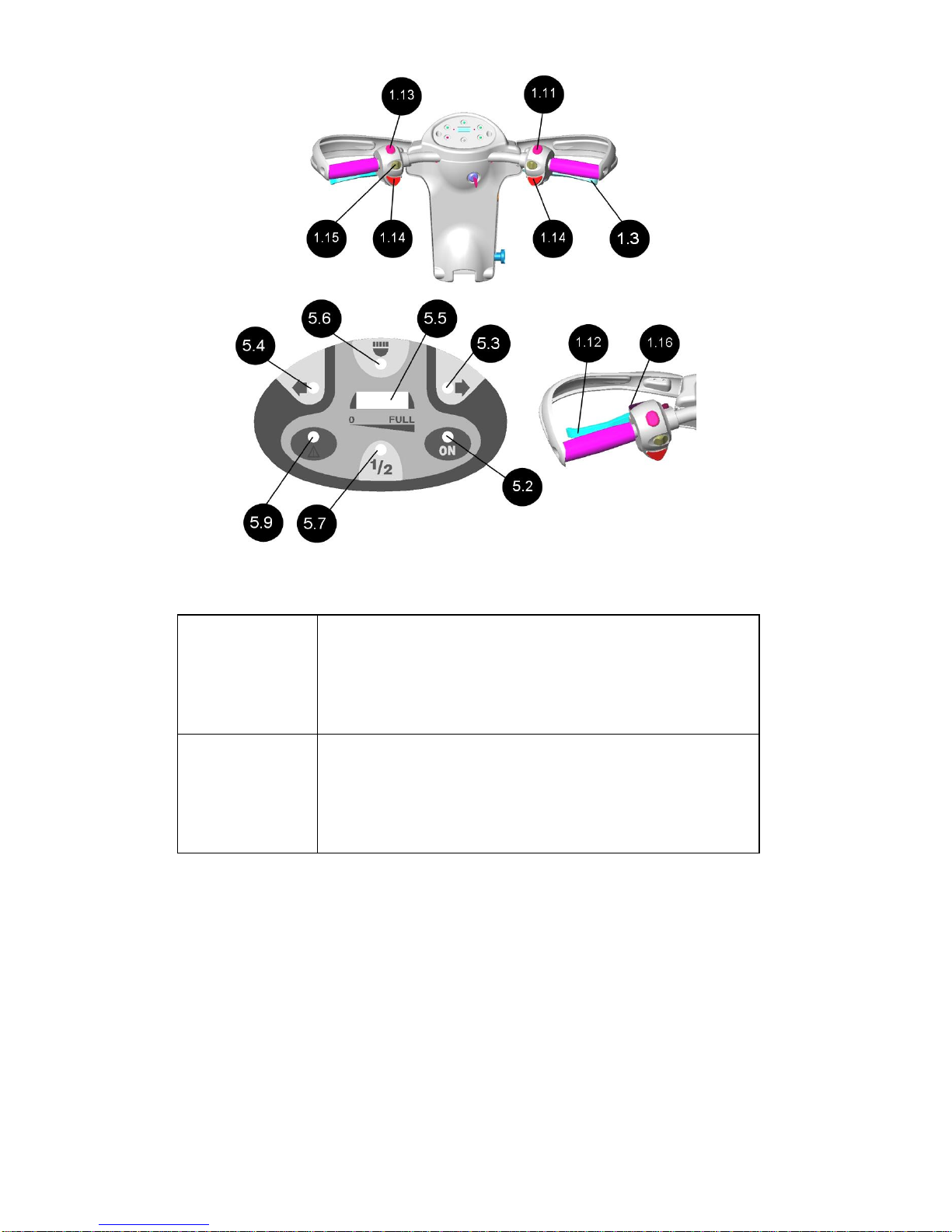

Handlebars (1) Your Breeze is delivered to you with right-hand
controls.
(Left-hands controls can be setup by your
dealer).
Serial No. (1.2) Serial Number and Manufacturer’s data are fixed
near the Charging Fuse (2.1C).
Operating lever (1.3) Use to control the Breeze speed. Standard is
right hand (optional left hand).
Charging Socket (1.4) The socket is used to connect the charger plug
for batteries charging. Right hand side of the
Handlebar.
Handlebars Adjusting Lever
(1.5)
The Handlebar of the Breeze is adjustable
Forward and Reverse by releasing the Adjusting
Lever.
Buzzer (1.6)
Front Basket (1.7) For carrying parcels and personal effects.
Maximum load 5 kg (11 lbs).

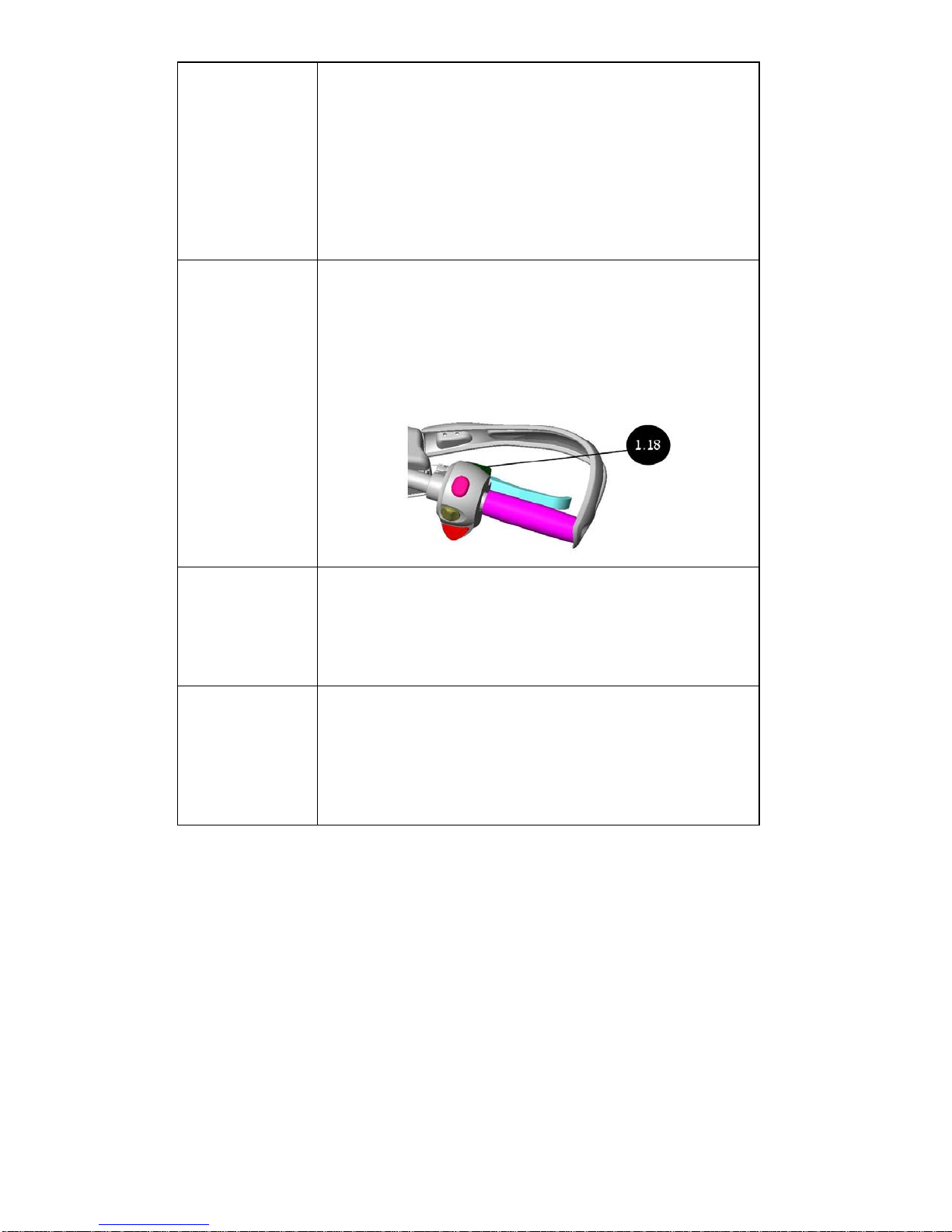

Headlight and Blinkers (1.8) (A) Road light for dark hours
(B) Blink light for turnings mark
Electric Button to release the
Electromagnetic Brake (1.9)
Located on the Handlebar of the Breeze, the
Electromagnetic Brake Release button allows
free movement of the Breeze.
To engage just push the button.
To release the brake just leave the button.
Battery Cover (2) Protect the power unit and electronics.
Fuses (2.1A, 2.1C) 2.1A -Main fuses 70A – Semi Automatic
2.2C –Supply fuse -3A – Semi Automatic
(at the electronics box side)
2.1C – Charge fuse 15A–Semi Automatic
Manual Release of
electromagnetic brake (2.2)
The lever is at the rear area of the Breeze in the
front of the right wheel. Manual release lever
allow you to push or pull the Breeze manually.
Push / Pull the lever as shown in the
label: Release, Engaged. When
the lever is in released position the Breeze can
not be operated.
Note: Do not release the lever when the Breeze
is on slope.
Seat (3) The Breeze Seat is equipped with folding
armrests (3.4) to allow convenient access to the
Seat. The Seat itself can be rotated to allow
easy access.

9
Seat Forward / Reverse Lever
(3.1)
The Lever is used to change the seat position
Forward and Reverse , to fit the driver mostly.
Seat Rotation Lever (3.2) The Lever is used to swivel the Seat 45 and 90
degrees in either direction, to ease the driver's
access to the Seat.
Seat Height adjust The Seat Height can be Adjusted Up / Down to
fit the user Height. This adjustment can be made
by a technician.
For adjusting the seat height , You need to
remove the seat and the batteries cover , and
than remove the screw that secure the seat pin
and to reassemble it at another hole as desired,
than re-secure the screw and nut.
Rear Basket (3.3) For carrying parcels and personal effects.
Maximum load 20 kg (44 lbs).
Hand Rest (3.4) Use for comfort entrance, Folded.
Floor (4) Carpet covered. Possible to remove for
cleaning.
Figure 3

10
1.3 TECHNICAL SPECIFICATIONS
MODEL Breeze 4W Breeze 3W
Units Metric US
A
Metric US
A
Dimensions
*Length without basket
Length with basket
Length with turned handlebar.
Length with golf carrier open /
fold
155 cm
170 cm
190/165
cm
60.6” 145 cm
160 cm
140 cm
57"
Width standard Breeze
Width with Wide seat Breeze
Width with wide Golf tires
67 cm
90 cm
90 cm
26.4”
36"
36"
67 cm
90 cm
90 cm
26.4”
36"
36"
Folded Height (for transport:
folded handlebar w/o seat )
~90 cm 35.4” ~90 cm 35.4”
Ground clearance 12 cm 5” 12 cm 5”
Seat Height 38-50cm 15-19” 38-50cm 15-19”
Weights * Total, without batteries 111 kg 244 lbs 104 kg 228 lbs
Total, with batteries 155 kg 341 lbs 148 kg 325 lbs
Max. User Weight
Max. Weight in front basket
Maximum Weight in rear
basket
Maximum Total load (including
front and rear basket load)
160 kg
5 kg
20 kg
160 kg
352 lbs
11 lbs
44 lbs
352 lbs
160 kg
5 kg
20 kg
160 kg
352 lbs
11 lbs
4
4 lbs
352 lbs
Batteries weight 2x20kg 2x44 lbs 2x20kg 2x44 lbs
Seat Weight 15 Kg 33 lbs 15 Kg 33 lbs
Speed ** Forward
(Speed selector in 1 pos.)
(Speed selector in 1/2 pos)
10 km/h
5 km/h
6.2 mph
3.2 mph
10 km/h
5 km/h
6.2 mph
3.2 mph
Reverse 5 km/h 3.2 mph 5 km/h 3.2 mph
Climbing
ability Maximum slope angle 21% 11.85º 21% 11.85º
Obstacle climbing ability 12 cm 5” 12 cm 5”
Tires Front tire size 4.10/3.50
-6
3-10”
Pneumatic Rear tires size "3.5-10 "3.5-10
Golf wide tires 16 x 7.5 - 8"
Pressure of front tires :
Pressure of rear tires :
Pressure or rear Golf tires:
1.3 bars
2.3 bars
1.3 bars
20 psi
35 psi
20 psi
2.3 bars
2.3 bars
1.3 bars
35 psi
35 psi
20 psi
Batteries
*** Gel / dry batteries only
Dimensions l x b x h
60-70 Ah , 2x12 V ,
280x175x 230mm
Travel
Distance Fully charged batteries, level
surface, driver 80 kg ( 176 lbs)
40 km
2
6.7
miles
40 km
2
6.7
miles
Charger *** For charging Lead Acid Battery 24VDC, Max.12A
Options 1. Left/Twist/Foot operation
2. Rear large / close basket
3. Rear adaptor / Rear hook
4. Golf wheels / Carrier
5. Canopy / Foot support / Crutch holder

11
Remarks :
All technical specifications are subject to change without prior notice.
All dimensions are in round figures.
•* Dimensions and weight do not include Breeze Canopy.
•** The maximum speed can be adjusted by the manufacturer to allow
for lower or higher maximum speed (i.e., max. 12 km/h, 8 mph or max
15 km/h - 10mph). The maximum speed at every country is limited
according local restrictions.
•*** Deep cycle batteries. Consult your dealer for other type and sizes.
For Using another type of batteries and / or charger ask your dealer /
supplier.
•**** A Maintenance Manual is available for trained technicians.

12
CHAPTER 2 - ADJUSTMENT & OPERATING INSTRUCTIONS
(Reference numbers refer to the figures #4 and #5)
Adjusting the
Handlebars (1)
Adjust height/ distance of handlebars as follows:
•Release the Handlebars Adjusting Lever (1.5),
which secures the handlebars in place, by
pulling the Knob outward.
•Release the Knob and insure handlebar lock.
Seating into the
Breeze
Before driving the Breeze make sure that the
Charging Plug is disconnected from the Charging
Socket (1.4).
Note: While the Charging Plug is inserted in
the Charging Socket, the Breeze cannot be
operated.
Lift the Lever (3.2) upward, rotate the Seat and raise
the Armrest (3.4) to give you easy access to the Seat.
Adjust the seat Forward Reverse using
the Lever (3.1)
Figure 4: Breeze 4W figure 5: Breeze 3W

13
(Numbers in the table refers to figure no.6)
Key Switch  The Breeze has a Main Key Switch (1.17) - located on
the backside of the Tiller Box (1).
The Main Key Switch has two positions:
 “OFF” - The Breeze cannot be driven and the
Electromagnetic Brake is locked.
 “ON” - Power is supplied to the Breeze. The
Electromagnetic Brake releases automatically when the
Operating Lever is squeezed.
To operate the Breeze, insert the key into the Main Key
Switch and turn it to “ON” (clockwise). The switch will
remain in this position and the green (5.2) light will be lit.
Remark : Key Switch is used for operating the Breeze ,
but not for locking .
Automatic Shut Off When Key Switch is at “ON” position, after a few minutes
(about 20 minutes) without using the Operating Lever, the
control system will be shut off automatically to save battery
energy.
In such cases, to restart control system, turn Main Key
Switch “OFF” and “ON” again.
Battery Status
Indicator
The Battery Status Indicator (5.1) located on top of the
Tiller Box shows you the remaining capacity of the
batteries. Like in cars the Batteries indicator is not absolute
accurate, but will help you from running out of fuel. The
best way to use the battery indicator is to learn it's behavior
to the change of the battery capacity. The Batteries
indicator display the capacity after about 1 second, but after
1 minute, the accuracy of the reading is much better.
When the indicator shows that mid-half capacity remains,
recharge batteries as soon as possible.
When the indicator points that to first or second segment
on the left you should get to immediate charging, it is
possible to drive only a short distance (1-4 km on level
surface).
The accuracy of the battery indicator reading depends also
on the type and age of the batteries.
Fault Indicator The Battery Status Indicator (5.1) is used also as a Fault
indication.
When the Leds are flashing, the number of lit Leds are the
code of the fault . ( See Maintenance Manual for code
definition).

14
Forward/Reverse
Selector
The Forward/Reverse Selector (1.10) is located on the
handlebar. Select the desired direction (as marked). In
reverse mode, a warning buzzer sounds automatically (in
certain models only and subject to local ordinances).
Warning: Do not change Selector position while the
Breeze is in motion.
Adjusting the Hand
Brake (1.12)
The hand brake cable mechanism can be adjusted by an
authorized serviceman, dealer or by any professional
authorized to adjust hand brakes mounted on bicycles or
motorcycles.
The Hand Brake is part of your safety system. DO NOT
adjust the Hand Brake by yourself - get professional
assistance!
Figure 6

15
(Numbers in the table refers to figure no.7)
Speed Range Selector The Speed Range Selector (1.11) is located on
the handlebar. It has two positions:
•Mark “1/2”: Low speed –up to 5
km/h(3.2 mph).
•Mark “1”: High speed – 10 km/h (6.5 mph).
Do not shift the selector while the Breeze is in
motion.
Notes:
1. When driving the Breeze inside a building
or in a crowded area, use only position
“1/2” (Low speed).
2. When Low speed - position “1/2” is used ,
the Led (7) will lit.
3. The max speeds 12 and 15 km/h in related
models .
Operating Lever and
Manual Hand Brake
To start driving, squeeze the Operating
Lever(1.3) gently until you reach the desired
speed.
The speed is directly proportional to the
deflection of this Lever .
To stop - release the Operating Lever (1.3).
The Breeze will stop gradually.
Additionally, emergency braking is possible
using the Manual Hand Brake (1.12). Squeeze
Hand Brake (Red).
Signaling Before turning, shift the “Turn Signal Switch”
(1.15), on the Handlebar to the desired direction
- left for left, right for right.
To stop the signal lights just Push the switch
knob forward. This will stop the blinking lights.
While blinkers light are activated, the Right (5.3)
/ Left(5.4) Leds signing will operate respectively.
A warning buzzer also sounds (in certain models
only and subject to local ordinances).

16
Horn/Buzzer (in certain
models only)
Push one of the 2 Buttons (1.14) activates the
buzzer.
The buzzer sounds automatically under the
following conditions (subject to change where
prohibited by law):
1. When reversing.
2. When operating the “Turn Signal Switch”
(Right or Left).
Remark: It is possible to change the Buzzer
Functioning by changing a Dip Switch in the
front Board .This have to be made by a trained
technician.
Headlight Switch Turn on the Headlight with Light Switch (1.13).
This switch activates both the Headlight and the
Rear Lights.
When Lights are activated the Light Led (5.6) is
lit.
Hazard Warning The Hazard Button (1.16) operates all flashing
lights on the Breeze. Pushing the button once
turns the lights ON.
A second push turns them OFF.
When Hazard is activated all signaling Leds
(5.3+5.4+5.6) are Flashing.
Charge Inhibit / Motor
overheated Condition
Indicator (5.9)
When the Vehicle is being charged it is inhibited.
In this condition the Inhibit Led (5.6) lit and no
driving can be done.
Also when the motor is overheated the Led (5.6)
will blink. At this condition it is recommended to
stop the Breeze and let the motor cool for a
while.

17
Figure 7
Parking After stopping, turn the Main Key Switch to OFF and
remove the key. The ON lights will turn OFF. The
Electromagnetic Brake is engaged (locked).
Note: The Electromagnetic Brake is automatically
locked whenever the Operating Lever is released
and after the Breeze stops completely.
Safe driving When driving on Ramp , Steep Curbs , Step and turns
drive the Breeze very slowly and carefully , even
consider changing the speed switch (1.11) to “1/2”
position : Low speed .
When going up or down a step always drive the Breeze
so that the wheels will get in perpendicular direction to

18
the step and the rear wheels wheel climb or go down
together.
Never try to go on an obstacle that is more than the
maximum recommended slope angle and curb climbing
is in the specification sheet.
Always drive carefully , adjust the speed according
the limitation of the road.
Before making sharp turns , reduce the Breeze
speed to minimum to prevent side roll-over.
Electric Button
to release the
Electromagnetic
Brake (1.18)
See figure
Located on the Handlebar of the Breeze, the
Electromagnetic Brake Release button allows free
movement of the Breeze. To release, simply push the
button. To engage brake, Just release the button.
The Button will operate only when the Key Switch is at
O
position.
Climbing an
Obstacle
To climb an Obstacle drive the Breeze forward, toward
the Obstacle.
Drive until that the front wheel is touching the obstacle
and than squeeze the lever speed , keeping the
direction .
Driving on
slopes and
Turns
and especially on slopes . Before making sharp turns ,
reduce the Breeze speed to minimum to prevent side
roll-over.
The Breeze is able to go up slope higher than the
recommended safe slope. Do not drive on slopes you
are not sure about their angle. However drive very
slowly and prevent side driving on

19
Pre-use Now after learning through all the operating instructions,
before starting to use the Breeze, do a visual check
through the all the parts of the vehicle, to make sure
that no external damage has been occur to the vehicle
while transportation. In any case you are not sure call
your dealer and ask for an explanation.
Controller
Programming
Several parameters of the Breeze Controller can be
programmed with a special Programmer.
Programming should be done by trained authorized
technician only. Wrong programming can cause
abnormal operation of the Breeze ,Harm persons and
Injury.
Performance
check
It is very much recommended that when receiving as
new or from another user or after a period of not using
the Breeze a performance check will be made as
follows:
1. Switch on the main switch.
2. See that on the display panel – the battery indicator
is lit and the Ready/ON led is lit as well.
3. Squeeze the speed lever slowly and make sure that
the Breeze is traveling with correspondence to the
squeezing on the lever.
4. Release the lever and make sure that the Breeze is
stopping softly and that you hear a click coming from
the EMB engaging.
5. Make a check of all the buttons functions on the
handlebar.
6. Switch off the main key switch. Your Breeze is now
ready to drive.
Pre-use
measures
The user should know his weight and all other loads is
lower than the maximum of 160 Kg (352lbs).
If not sure it should be measured.

20
Safety Belt
Assembling
(option)
If a safety belt is needed.
Secure a standard car Safety belt to the seat armrest
securing bolts (See 3.5 on Figure 6 ).
Attaching the
Breeze in motor
vehicle for
transportation
To transport the Breeze in a motor vehicle , the Breeze
has to be secured while traveling .
The Foot rest of the Breeze should be tie down (6) to
the motor vehicle floor with a suitable restrain belts and
tight systems.
The Rear part of the Breeze should be tie down (7) as
at the 2 Yellow Marks at the rear part of the Breeze-in
the lower part of the power unit .
The tie/restrain system should be with similar
components and securing ,like the ones used in
standard cars fasten belt.
Transportation To reduce the height of the Breeze while transporting it
, The seat can be removed as explained in chapter 3 :
maintenance ,
And as well the Tiller can be folded to horizontal
position .
Figure 8
Shock
Absorbers
Adjust
It is possible to adjust the Shock Absorbers according to
the User Weight. Adjusting the shock absorber can be
done by a technician only
