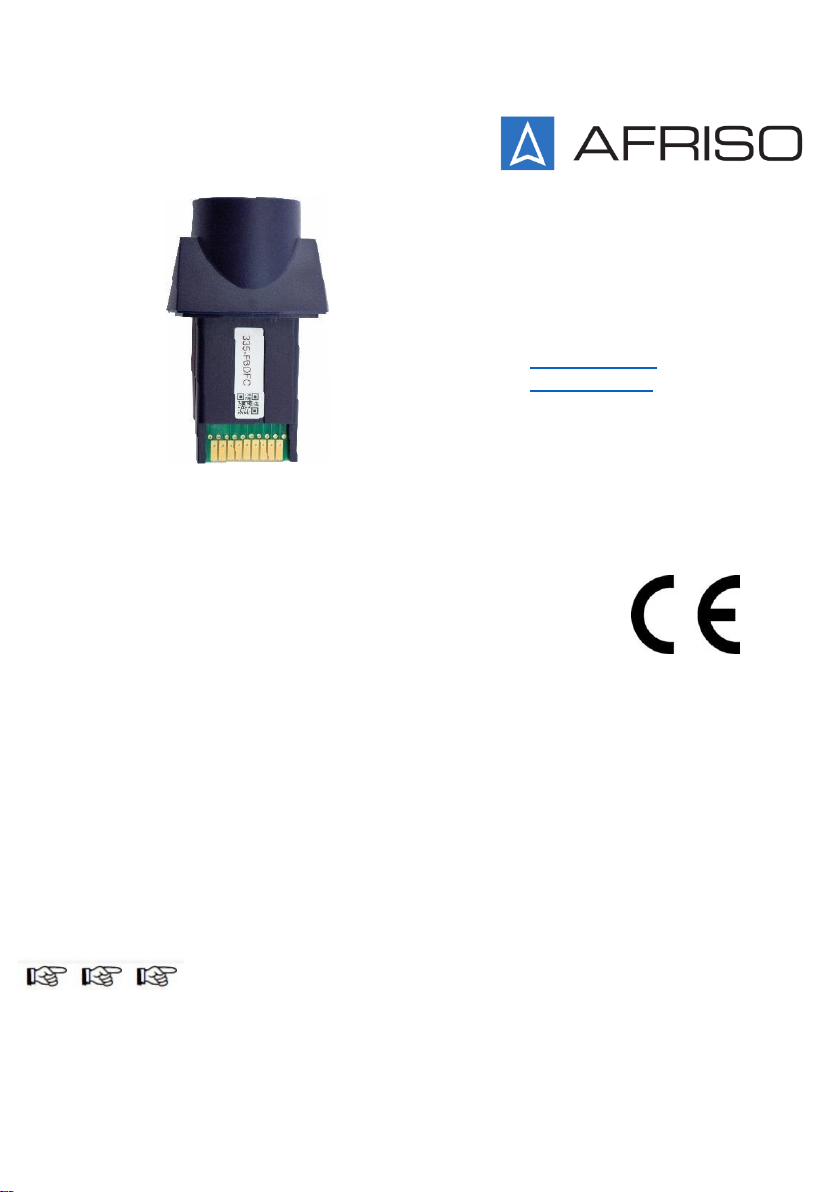

AFRISO CAPBs sens CO User manual
Operating instructions
CAPBs® sens CO
1 About these operating instructions
These operating instructions describe the CAPBs sens sensor
module. A CAPBs sens cannot be operated without a CAPBs
handle. The CAPBs handle and a plugged in CAPBs sens sensor
Read instructions before using device!
Observe all safety information!
Keep instructions for future use!
04.2017.0
524166.01
2CAPBs®
module form a measuring instrument (also referred to as "CAPBs"
in these operating instructions). Read and understand the operating
instructions for the CAPBs handle which you use together with the
sensor module. These operating instructions are part of CAPBs
sens sensor module.
You may only use the measuring instrument if you have fully
read and understood these operating instructions.
Verify that these operating instructions are always accessible
for any type of work performed on or with the measuring
instrument.
Pass these operating instructions as well as all other related
documents on to all owners of the measuring instrument.
If you feel that these operating instructions contain errors,
inconsistencies, ambiguities or other issues, contact the
manufacturer prior to using the measuring instrument.
There operating instructions are protected by copyright and may
only be used as provided for by the corresponding copyright
legislation. We reserve the right to modifications.
The manufacturer shall not be liable in any form whatsoever for
direct or consequential damage resulting from failure to observe
these operating instructions or from failure to comply with directives,
regulations and standards and any other statutory requirements
applicable at the installation site of the measuring instrument.
2 Information on safety
2.1 Safety messages and hazard categories
These operating instructions contain safety messages to alert you to
potential hazards and risks. In addition to the instructions provided
in these operating instructions, you must comply with all directives,
standards and safety regulations applicable at the installation site of
the measuring instrument.
Verify that you are familiar with all directives, standards and safety
regulations and ensure compliance with them prior to using the
measuring instrument.
Safety messages in these operating instructions are highlighted with
warning symbols and warning words. Depending on the severity of
a hazard, the safety messages are classified according to different
hazard categories.
CAPBs®3
WARNING Type and source of the hazard are shown here.
WORD Precautions to take in order to avoid the hazard are shown here.
Consequences of failure to observe the instructions are shown here.
2.2 Intended use
These measuring instruments are intended for detection carbon
monoxide (CO) in the area of heating, ventilation, air conditioning
(HVAC) or for equivalent applications.
When using the measuring instrument, perform all work and all
other activities in conjunction with the product in compliance with
the conditions specified in the operating instructions, as well as with
all directives, standards and safety regulations applicable at the
installation site of the product
2.3 Predictable incorrect application
These measuring instruments must never be used in the following
cases and for the following purposes:
•Unprotected outdoor use
•Usage in hazardous area/potentially explosive atmosphere:
If the product is operated in hazardous areas, sparks may
cause deflagrations, fires or explosions.
•Use outside of the technical specifications and limit values
•Applications covered by the European Measuring
Instruments Directive MID
•Applications which involve hazardous substances unless all
applicable safety directive, standards and regulations are
met
•Applications which involve special hygienic requirements,
such as, but not limited to, the food and beverages
industries, pharmaceutical industry, biotechnology industry
•Applications which are used for health-saving or life-saving
purposes, such a medical technology
2.4 Qualification of personnel
Only appropriately trained persons who are familiar with and
understand the contents of these operating instructions and all other
4CAPBs®
pertinent documentation concerning the measuring instrument are
authorized to work on and with this measuring instrument. These
persons must have sufficient technical training, knowledge and
experience and be able to foresee and detect potential hazards that
may be caused by using the measuring instrument. All persons
working on and with the measuring instrument must be fully familiar
with all directives, standards and safety regulations that must be
observed for performing such work.
2.5 Modifications to the CAPBs
Only perform work on and with the measuring instrument which is
explicitly described in these operating instructions.
Do not make any modifications to the product which are not
described in these operating instructions.
2.6 Usage of spare parts and accessories
Usage of unsuitable spare parts and accessories may cause
damage to the product.
Use only genuine spare parts and accessories of the
manufacturer.
2.7 Specific safety information
WARNING
INCORRECT USE OF THE MEASURING INSTRUMENT
Perform a risk assessment in view of the planned application,
according to an approved risk assessment method.
Implement the appropriate safety measures, based on the
results of the risk assessment.
Implement all safety measures in compliance with the conditions
specified in the operating instructions as well as with all
directives, standards and safety regulations applicable at the
operation site of the measuring instrument and verify that all
risks resulting from hazardous substances and all other hazards
are excluded when using the measuring instrument.
Failure to follow these instructions can result in death, serious injury
and equipment damage.
CAPBs®5
DANGER
POISIONING HAZARD
Do not use the CAPBs sens CO30 as a device for determining
and/or monitoring CO concentrations that are hazardous to
persons.
Failure to follow these instructions will result in death or serious
injury.
Information on carbon monoxide
Carbon monoxide is an extremely hazardous gas which is highly
toxic even at very low concentrations. It is invisible, tasteless and
odourless. The table below provides a general overview of the
effects of specific CO concentrations on humans.
Concentration
in air
Symptoms*
30 ppm
Maximum CO concentration at the workplace,
during eight hours of work (limit value in
Germany)
60 ppm
Short-term limit value (15-minutes mean vale,
limit value in Germany)
200 ppm
Headache within 2 to 3 hours
800 ppm
Dizziness, nausea, jactation within 45 minutes,
unconsciousness within 2 hours
1600 ppm
Headache, dizziness, nausea within 45 minutes,
unconsciousness within 2 hours
3200 ppm
Headache, dizziness, nausea within 5 to 10
minutes, death within 30 minutes
6400 ppm
Headache, dizziness, nausea within 1 to 2
minutes, death within 10 to 15 minutes
12800 ppm
Death within 1 to 3 minutes
* Depending on body height, age, sex and health, persons react
differently to CO concentrations.
6CAPBs®
3 Technical specifications

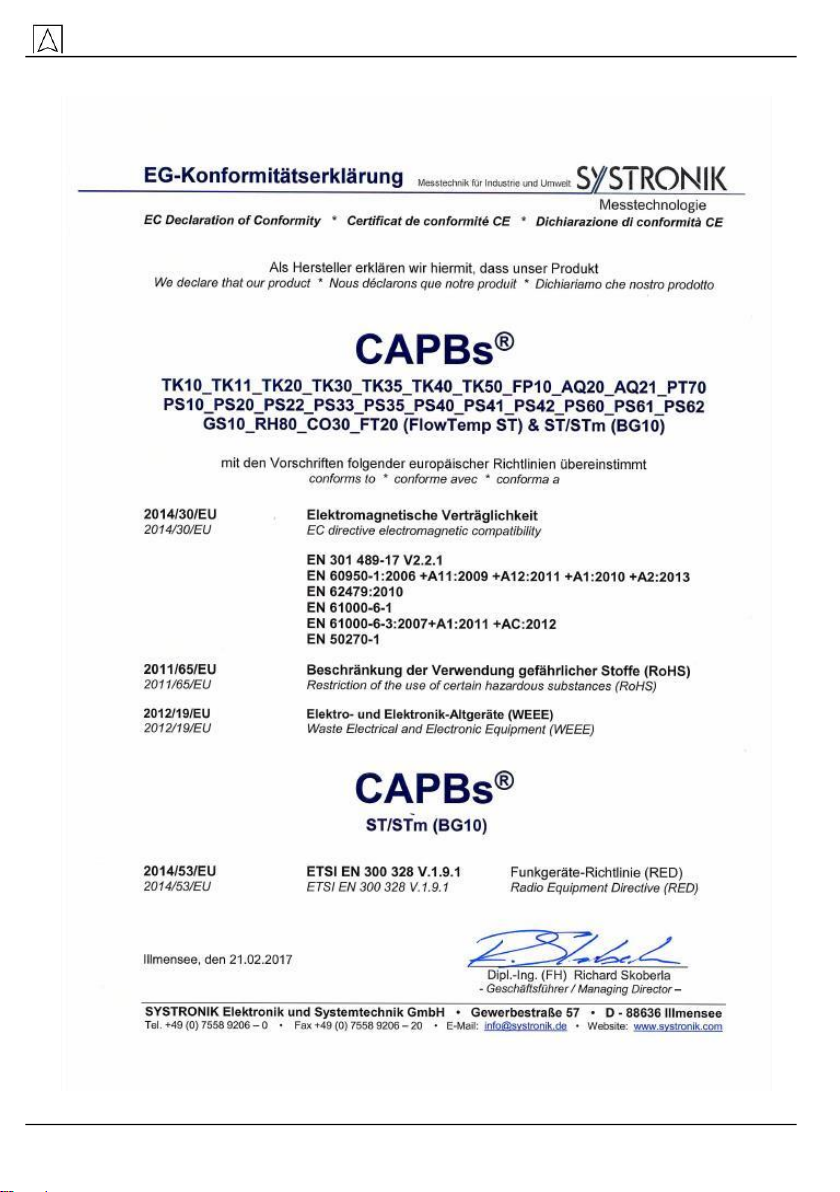

3.1 Approvals, conformities
- EMC Directive - 2014/30/EU
- RoHS Directive - 2011/65/EU
- WEEE Directive 2012/19/EU

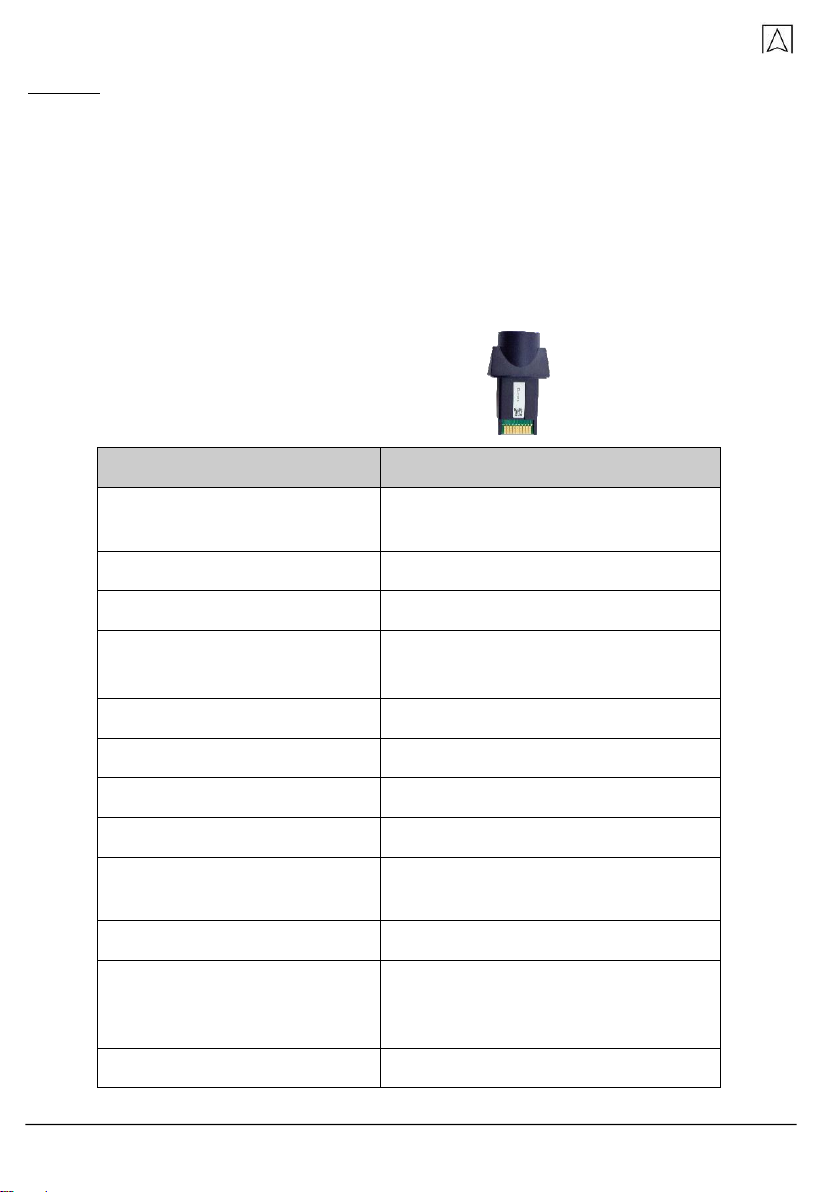

3.2 CAPBs sens CO: Carbon monoxide
Parameter
CO30
Use
CAPBs sens sensor module for
detection of carbon monoxide (CO)
Measuring range
0 … 2000 ppm CO
Measuring principle
Electro-chemical cell
Measuring accuracy
±5 ppm (up to 50 ppm)
±5 % (more than 50 ppm)
Resolution
1 ppm
Units
ppm
Operating temperature
0 °C to 40 °C
Storage temperature
-20 °C to +60 °C
Atmospheric pressure
(operation)
800 to 1,200 mbar
Humidity (operation)
15 to 95 % rh, non-condensing
Cross sensitivities
Gases such as acetylene, ethylene,
hydrogen, nitrogen oxide or chlorine
can generate a positive signal
Dimensions W x H x D [mm]
64 x 42 x 35
CAPBs®7
CAPBs STm hours of
operation
Up to 45 hours of battery operation
Application programs
CO ambient measurement
4 Operation
When the CAPBs is switched on, the measuring instrument
performs zero calibration. Zero calibration must be performed in
COfree air. If you want to take a measurement, verify that you only
switch on the measuring instrument in CO-free air.
If zero calibration is performed in air with a CO concentration of >
50 ppm, the sensor does not yield measured values, but
generates an error message. New zero calibration in CO-free air
clears this error.
WARNING
INCORRECT MEASURED VALUES
Perform zero calibration immediately after switching on in
COfree fresh air.
Failure to follow these instructions can result in death, serious injury
or equipment damage.
8CAPBs®
DANGER
INCORRECT MEASURED VALUES AFTER EXCCEEDING OF
MEASURING RANGE
If a CO concentration above the maximum value of the
measuring range was measured, the sensor requires a
recovery time before it can deliver precise measured values
again.
If the maximum value of the measuring range was exceeded,
immediately leave the area where the measured CO
concentration occurred.
If the maximum value of the measuring range was exceeded,
perform a function test by taking a measurement at a point with
a known, safe CO concentration and verifying that the known
CO concentration is correctly displayed.
Do not perform further measurements unless you have verified
that the sensor delivers correct measured values.
Failure to follow these instructions will result in death or serious
injury.
5 Storage Store the device in a dry location away from solvents.
6 Maintenance
The measuring instrument does not contain any parts that can be
serviced or repaired by the customer.
Prior to performing a measurement, perform a visual inspection of
the CAPBs for visible damage. Do not use damaged measuring
instruments.
•Clean the measuring instrument after each use. Use a dry,
lint-free cloth for cleaning.
•Use a slightly wetted cloth to remove pollution that cannot be
removed with a dry cloth.
•Do not use cleaning agents for cleaning.
The CAPBs measuring instrument must be serviced by the
manufacturer or an authorised service point at regular intervals. The
service intervals depend, among other things, on the legal
requirements and regulations.
CAPBs®9
7 Troubleshooting
Repairs may only be performed by specially trained, qualified staff.
Problem
Possible
reason
Repair
Display device shows
sensor error during zero
calibration in fresh air,
no measured values
Sensor
inoperative
Send the measuring
instrument to the
manufacturer
Other malfunctions
–
Send the measuring
instrument to the
manufacturer
8 Decommissioning, disposal
Dispose of the product in compliance with all applicable directives,
standards and safety regulations.
Electronic components and batteries must not be disposed of
together with the normal household waste.
9 Warranty See our terms and conditions at www.afriso.com or your purchase
contract for information on warranty.
10 Addresses
The addresses of our worldwide representations and offices can be
found on the Internet at www.afriso.cz.
10 CAPBs®
11 Declaration of Conformity
CAPBs®11
Table of contents
Other AFRISO Accessories manuals
