Title & Document Type: E6392B GSM MS Test Set User’s Guide
Manual Part Number: E6392-90051
Revision Date: November 2001
HP References in this Manual
This manual may contain references to HP or Hewlett-Packard. Please note that
Hewlett-Packard's former test and measurement, semiconductor products and chemical
analysis businesses are now part of Agilent Technologies. We have made no changes to
this manual copy. The HP XXXX referred to in this document is now the Agilent XXXX.
For example, model number HP8648A is now model number Agilent 8648A.
About this Manual
We’ve added this manual to the Agilent website in an effort to help you support your
product. This manual provides the best information we could find. It may be incomplete
or contain dated information, and the scan quality may not be ideal. If we find a better
copy in the future, we will add it to the Agilent website.
Support for Your Product
Agilent no longer sells or supports this product. You will find any other available product
information on the Agilent Test & Measurement website:
www.tm.agilent.com
Search for the model number of this product, and the resulting product page will guide
you to any available information. Our service centers may be able to perform calibration
if no repair parts are needed, but no other support from Agilent is available

i
Agilent Technologies

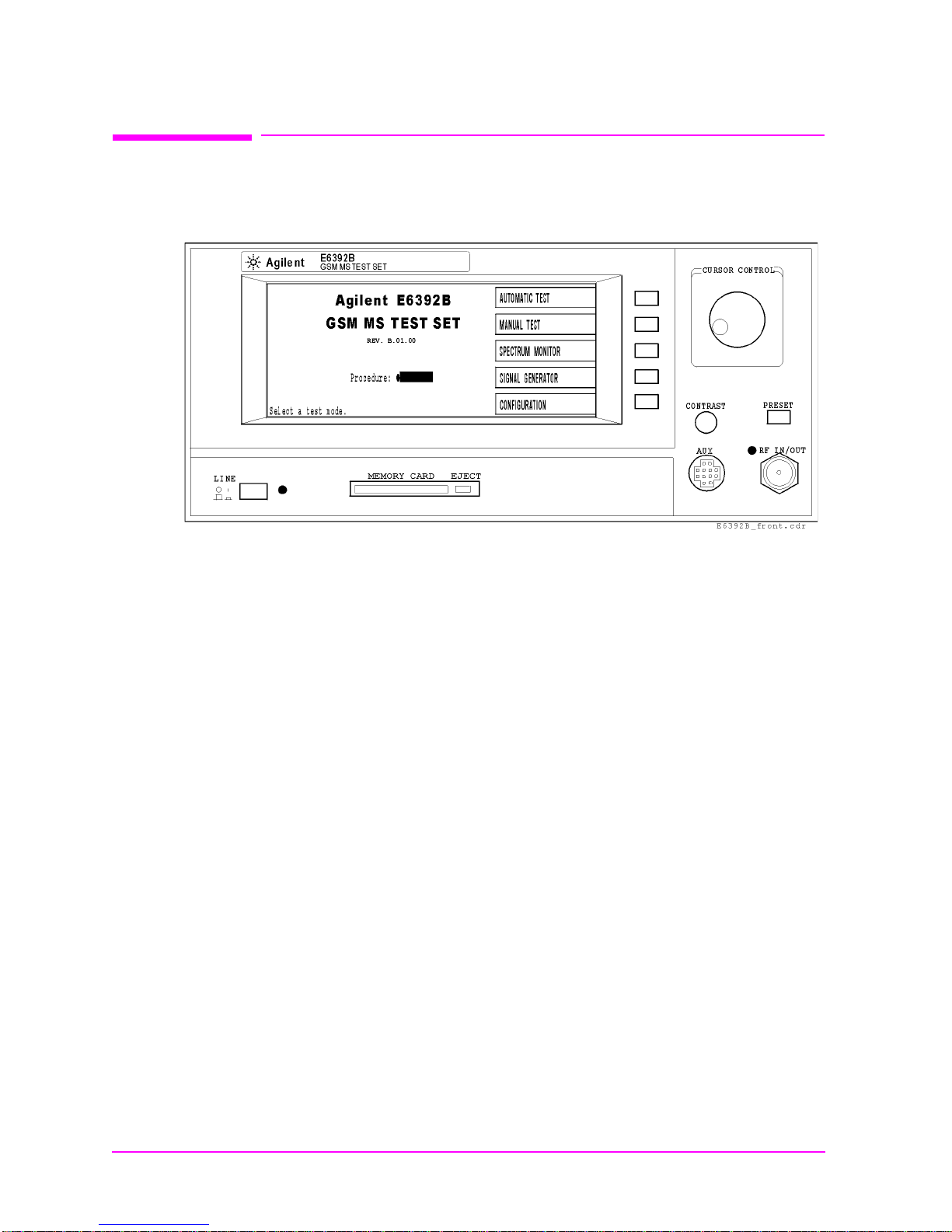

E6392B GSM MS Test Set
User’s Guide
Serial Numbers
This manual applies directly to instruments with serial number prefix
JP5MG, or firmware revision B.03.00 and above.
Agilent Part No. E6392-90051
Printed in Japan

ii
Manual Part Number
E6392-90051
Edition/Print Date
All Editions and Updates of this manual
and their creation dates are listed below.
First Edition......................February 2000
Second.....................................June 2000
Third.........................................July 2000
Fourth.............................September 2001
Fifth................................November 2001
Notices
Copyright©
Agilent Technologies, Inc. 2000, 2001
All Rights Reserved
Information contained in this document
is subject to change without notice.
This document contains proprietary
information that is protected by
copyright. All rights are reserved. No
part of this document may be
photocopied, reproduced, or, translated
to another language without the prior
written consent of Agilent Technologies.
Certification
Agilent Technologies certifies that this
product met its published specifications
at the time of shipment from the factory.
Agilent Technologies further certifies
that its calibration measurements are
traceable to the United States National
Institute of Standards and Technology, to
the extent allowed by the Institution's
calibration facility, or to the calibration
facilities of other International Standards
Organization members.
Warranty
This Agilent Technologies instrument
product is warranted against defects in
material and workmanship for a period
of one year from the date of shipment,
except for certain components listed in
Specifications section of this manual.
During the warranty period, Agilent
Technologies will, at its option, either
repair or replace products which prove to
be defective.
For warranty service or repair, this
product must be returned to a service
facility designated by Agilent. Buyer
shall prepay shipping charges to Agilent
Technologies and Agilent Technologies
shall pay shipping charges to return the
product to Buyer. However, Buyer shall
pay all shipping charges, duties, and
taxes for products returned to Agilent
Technologies from another country.
Agilent Technologies warrants that its
software and firmware designated by
Agilent for use with an instrument will
execute its programming instruction
when properly installed on that
instrument. Agilent Technologies does
not warrant that the operation of the
instrument, or software, or firmware will
be uninterrupted or error free.
Limitation Of Warranty
The foregoing warranty shall not apply
to defects resulting from improper or
inadequate maintenance by Buyer,
Buyer-supplied software or interfacing,
unauthorized modification or misuse,
operation outside of the environmental
specifications for the product, or
improper site preparation or
maintenance. No other warranty is
expressed or implied. Agilent
Technologies specifically disclaims the
implied warranties of merchantability
and fitness for a particular purpose.
Exclusive Remedies
The remedies provided herein are buyer's
sole and exclusive remedies. Agilent
Technologies shall not be liable for any
direct, indirect, special, incidental, or
consequential damages, whether based
on contract, tort, or any other legal
theory.
Assistance
Product maintenance agreements and
other customer assistance agreements are
available for Agilent Technologies
products.
For any assistance, contact your nearest
Agilent Technologies Sales and Service
Office. Addresses are provided at the
back of this manual.
Agilent Technologies Japan, Ltd.
Kobe Wireless Test Development
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo, 651-2241 Japan

iii
Safety
Information The following general safety precautions must be observed during all phases of
operation, service, and repair of this instrument. Failure to comply with these
precautions or with specific WARNINGS elsewhere in this manual violates safety
standards of design, manufacture, and intended use of the instrument. Agilent
Technologies assumes no liability for the customer's failure to comply with these
requirements.
NOTE: The Agilent Technologies E6392B complies with INSTALLATION CATEGORY II and
POLLUTION DEGREE 2 in IEC61010-1. Agilent E6392B is an INDOOR USE product.
Ground the Instrument
To minimize electric shock hazard, the instrument chassis and cabinet must be
connected to an electrical protective earth ground. The instrument must be
connected to ac power through a grounded power cable, with the ground wire
firmly connected to an electrical ground (safety ground) at the power outlet. Any
interruption of the protective (grounding) conductor or disconnection of the
protective earth terminal will cause a potential shock hazard that could result in
personal injury.
DO NOT Operate In An Explosive Atmosphere
Do not operate the instrument in the presence of flammable gasses or fumes.
Operation of any electrical instrument in such an environment constitutes a
definite safety hazard.
Keep Away From Live Circuits
Operating personnel must not remove instrument covers. Component replacement
and internal adjustments must be made by qualified maintenance personnel. Do
not replace components with the power cable connected. Under certain
conditions, dangerous voltages may exist even with the power cable removed. To
avoid injuries, always disconnect power and discharge circuits before touching
them.
DO NOT Service Or Adjust Alone
Do not attempt internal service or adjustment unless another person, capable of
rendering first aid and resuscitation, is present.

iv
DO NOT Substitute Parts Or Modify Instrument
Because of the danger of introducing additional hazards, do not install substitute
parts or perform unauthorized modifications to the instrument. Return the
instrument to an Agilent Technologies Sales and Service Office for service and
repair to ensure that safety features are maintained.
Safety
Symbols General definitions of safety symbols used on equipment or in manuals are listed
below.
Refer to the instruction manual when you see this symbol.
Alternating current.
Direct current.
On (Supply).
Off (Supply).
In position of push-button switch.
Out position of push-button switch.
WARNING: This WARNING notice denotes a hazard. It calls attention to a procedure, practice,
condition or the like, which, if not correctly performed or adhered to, could result in
injury or death to personnel.
CAUTION: This CAUTION notice denotes a hazard. It calls attention to a procedure,
practice, condition or the like, which, if not correctly performed or adhered
to, could result in damage to or destruction of part or all of the product.
NOTE: NOTE denotes important information. It calls attention to a procedure, practice, condition
or the like, which is essential to highlight.
!
|
Ο

v

vi
ACOUSTIC NOISE EMISSION
LpA < 70 dB
operator position
normal operation
per ISO 7779
GERXUSCHEMISSION
LpA < 70 dB
am Arbeitsplatz
normaler Betrieb
nach DIN 45635 T. 19

vii
In this Book This guide describes how to use the Agilent Technologies E6392B GSM MS Test
Set. This Test Set provides a variety of test functions to validate the performances
of GSM900, E-GSM, DCS1800, and PCS1900 mobile phones.
Throughoutthis manual the term "Test Set" is used to refer to the Agilent E6392B.
This guide contains the following information:
Chapter 1, "Preparing for Use"
This chapter provides a quick overview on the fundamentals required before starting
actual tests with the Test Set.
Chapter 2, "Using Functions"
This chapter explains some of basic test procedures for the first time users to become
familiar with the Test Set.
Chapter 3, "Screen Reference"
This chapter provides detailed information on each function of the screen displays and
activated softkeys.
Chapter 4, "Functionality/Operation"
This chapter introduces the typical block diagram of a GSM mobile phone to relate
some blocks with each test item done by the Test Set, especially from the perspective
of incoming inspection and repair for GSM mobile phones.
Chapter 5, "Specifications"
This chapter lists the performance characteristics of the Test Set.
Appendix A, “General Information on the GSM System”
This appendix describes some major information on the GSM system for your
reference.
Appendix B, “Input Fields and Allowable Ranges”
This appendix summarizes the allowable ranges and corresponding choices for the
parameter input fields.
Appendix C, “Manual Changes”
This appendix provides a manual change history.

viii

Contents
9
Table of Contents
1. Preparing for Use
Major Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Installing the Test Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Checking the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Meeting Electrical and Environmental Requirements . . . . . . . . . . . . . . . . . . . . .20
Replacing the Line Power Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Warm-Up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Preparation for Each Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
System Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Installing the Test SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Adjusting the Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
UUT Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Entering Attenuations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Connecting a Printer (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
No Measurement after Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Out of Order Internal Clock, Lost Settings, or Both . . . . . . . . . . . . . . . . . . . . . . .25
2. Using Functions
Testing a Mobile Phone with the Test Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Testing a Dual Band Mobile with AUTOMATIC TEST . . . . . . . . . . . . . . . . . . . . . .29
Testing a Dual Band Mobile with MANUAL TEST (Synchronous mode) . . . . . . . .34
Testing a Mobile with MANUAL TEST (Asynchronous mode) . . . . . . . . . . . . . . . .40
Testing a Mobile with MANUAL TEST (GPRS mode) . . . . . . . . . . . . . . . . . . . . . .44
Testing a Mobile with SPECTRUM MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3. Screen Reference
General Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Front Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Rear Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Display Annotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Test Parameters, Test Items and Allowable Ranges . . . . . . . . . . . . . . . . . . . . . . .58
Initial Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
AUTOMATIC TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Stand-by Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Talk Measuring Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Aborted Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Pass/Fail Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Pass/Fail Screen Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
MANUAL TEST (Synchronous Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Measurement Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

10
Contents
Test SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Stand-by Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
MS Call or BS Call Measuring Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Talk/RF Test Measuring Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Measuring Screen Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
MANUAL TEST (Asynchronous Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Stand-by Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Measuring Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Measuring Screen Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
MANUAL TEST (GPRS Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Stand-by Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Attached Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Measuring Screen Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
SPECTRUM MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Initial Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
SIGNAL GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
SIGNAL GENERATOR Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
CONFIGURATION Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Test Setup: Test Condition Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Test Setup: Test Sequence Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
File Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
How to Update the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
4. Functionality/Operation
GSM Mobile Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
GSM Measurements Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
GPRS Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Difference from HSCSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
GPRS Network Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
5. Specifications
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
RF Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
RF Signal Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
RF Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Transmitter Carrier Peak Power Measurement . . . . . . . . . . . . . . . . . . . . . . . . . 176
Power Ramp Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Phase and Frequency Error Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Spectrum Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
DC Current Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Contents
11
Table of Contents
Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178
Asynchronous Test (Option 002) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179
Spectrum Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179
RF Signal Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179
GPRS Test (Option 040) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180
Specifications Unique for GPRS Measurement . . . . . . . . . . . . . . . . . . . . . . . . .180
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Frequency Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Printer Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
A. General Information on the GSM System
The GSM System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
RF Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
Power Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
Power Control Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185
RX Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
RX Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Limits for BER and FER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Limits for Frequency Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
B. Input Fields and Allowable Ranges
C. Manual Changes
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Manual Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Change 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Change 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196

12
Contents

13
1. Preparing for Use
1 Preparing for Use
This chapter is an overview of the Test Set’s major functions. It also describes the
fundamental requirements that must be met before starting your actual tests with
the Test Set.

14 Chapter1
Preparing for Use
Major Functions
Major Functions
Figure 1-1 Agilent E6392B GSM MS Test Set
The Agilent E6392B GSM MS Test Set has many desirable features such as
multi-band test capability, fast test speed, easy-to-use operation, flexibility,
programmability and low cost ownership. These features allow the Test Set to be
utilized at GSM/DCS mobile phone service stations and shops to test mobile
phones with a short turn-around-time. This easy and quick testing ensures
customers’ satisfaction.
The Test Set acts as both a base station, to make a call with the mobile under test,
and a measurement system to carry out testing. The Test Set is designed to provide
the following function modes for testing GSM900, E-GSM, DCS1800 and
PCS1900 mobile phones:
• The AUTOMATIC TEST mode automatically executes a test sequence that is
configured properly for individual testing requirements. Testing on sixdifferent
traffic channels or dc power voltages is allowed to test the overall operational
characteristics of a mobile phone. Multi-band mobile phones such as GSM900
with DCS1800 and E-GSM with DCS1800 can be quickly tested with this
feature. Pass/Fail test results are obtained for the call sequences from Location
Update to BS/MS Release of a test flow, and for the test items in Table 1-1 on
page 15.
• The MANUAL TEST mode is designed to make real-time tests and
measurements that facilitate troubleshooting and adjusting mobile phones, even
with multi-band capability.

Chapter 1 15
Preparing for Use
Major Functions
1. Preparing for Use
There are three test modes for the MANUAL TEST mode:
o Synchronous mode: Tests are made while the Test Set and the mobile are
networked to communicate with each other. This is used to test mobile
phones during the Talk/RF Test step of a test flow, in a real-time manner.
o Asynchronous mode: (requires Option 002) Tests are made without
networking the Test Set and the mobile phone with each other. This is used
to test the RF transmission characteristics of mobile phones in a real-time
manner. Therefore, the receiver related characteristics such as sensitivity,
RX quality and level are not measured.
o GPRS mode: (requires Option 040) General Packet Radio Service (GPRS)
is a GSM data service that provides higher data transfer rates. Tests are
made while the Test Set and the mobile are attached to communicate with
each other. This is used to test mobile phones during the Attached step of a
test flow, in a real-time manner.
Table 1-1 Test Items available for Test Modes
• The SPECTRUM MONITOR mode (requires Option 002) allows you to
measure each radio channel’s spectrum transmitted from a mobile phone. The
spans for 0 to 400 kHz and ±100 kHz, relative to the traffic channel frequency,
are provided.
• The SIGNAL GENERATOR mode (requires Option 002) generates an RF
signal with or without modulation by a PN9 pseudo-random binary sequence or
all-zero data.
Test Item AUTOMATIC
TEST
MANUAL TEST
Synchronous
Mode
Asynchronous Mode GPRS Mode
Signal: Burst Signal: CW
Peak TX Power ×××××
Burst Timing ×× Power vs Time
Power Ramp ×××
Phase Error ××× ×
Frequency Error ×××××
Sensitivity
in BER and FER ×× ×
in BLER
RX Quality ××
RX Level ××
DC Current ×××××
Spectrum Monitor ××××

16 Chapter1
Preparing for Use
Major Functions
NOTE The MANUAL TEST Asynchronous mode, the SPECTRUM MONITOR and the
SIGNAL GENERATOR functions are available for the Test Sets with Option 002.
The MANUAL TEST GPRS mode is available for the Test Sets with Option 040 .

Chapter 1 17
Preparing for Use
Installing the Test Set
1. Preparing for Use
Installing the Test Set
This section contains the following procedures for properly installing the Test Set:
• Checking the shipment
• Meeting electrical and environmental requirements
• Adjusting the display
Checking the Shipment
1. Inspect the shipping container for damage.
Look for any signs of damage such as a dented or torn shipping container, or
cushioning material that shows signs of unusual stress or compacting given on
the way of shipment.
2. Carefully remove all items contained in the shipping container and verify if
your orderis complete. Refer to Table 1-2, “Shipment Verification List,” for the
items that are shipped standard with the Test Set. Table 1-3, “Additional Option
List,” is the optional items you may also have ordered.
Table 1-2 Shipment Verification List
Table 1-3 Additional Option List
Item Qty Part Number
Memory Card (PCMCIA SRAM 512 kbyte) 1 E6392-85001
Universal DC Power Adapter 1 E6392-60001
CDR Manual 1 E6392-90500
Quick Start Guide Set 1 E6392-96020
AC Power Corda
a. The part number depends on where the instrument is used, see “Power
Cable” on page 18.
1
Option Description Part Number
001 Antenna Coupler E6392-60002
002 Add Asynchronous Test Capability
007 Test SIM 08922-80029
008 Test SIM micro 08922-80030
010 Delete Memory Card

18 Chapter1
Preparing for Use
Installing the Test Set
Power Cable
In accordance with international safety standards, this instrument is equipped with
a three-wire power cable. When connected to an appropriate ac power outlet, this
cable grounds the instrument frame. The type of power cable shipped with each
instrument depends on the country of destination. Refer to Figure 1-2, “Power
Cable Supplied,” for the part number of the power cables available.
WARNING For protection from electrical shock, the power cable ground must not be
defeated. The power plug must be plugged into an outlet that provides a
protective earth ground connection.
011 Delete Universal DC Power Adapter
040 Add GPRS Test Capability
0B0 Delete Manual Set
0B1 Add Manual Set
Programmer’s Guide
User’s Guide E6392-90042 E6392-90051
150 PoST Software for GSM/DCS/PCS Mobile
Phones Agilent E8292A
202 RF Cable for Nokia 51xx, 61xx, 71xx
mobile phones E6392-61603
203 RF Cable for Ericsson mobile phones E6392-61601
AB0 Taiwan - Chinese localization (User’s
Guide; Traditional Chinese) E6392-96631
AB2 China - Chinese localization (User’s Guide;
Simplified Chinese) E6392-96531
UK6 Test Report
Option Description Part Number

Chapter 1 19
Preparing for Use
Installing the Test Set
1. Preparing for Use
Figure 1-2 Power Cable Supplied
