Agria Grizzly 5500 Series User manual

Before commissioning the machine, read operating
instructions and observe warnings and safety instructions!
Operating Instructions No. 998 475GB 09.18

Tool Carrier
5500 Grizzly
Operating Instructions
Translation of the original operating instructions
- Steering brake clutch
- Brake central
- Petrol engine Vanguard 19L2
5500 345

2agria Tool Carrier 5500 Grizzly
Symbols, Name Plate
Please complete:
Machine Type No.:.......................
Identification No.:
...................................................
EngineType:.................................
EngineNo.:...................................
Date of Purchase:.......................
For name plate, refer to p4/fig. A/17.
For Engine type and number, refer to
p58/fig. C/11
Please state these data when order-
ing spare parts to avoid wrong deliv-
eries.
Only use original agria spare
parts!
Specifications,figuresanddimensions
stated in these instructions are not
binding.Noclaimscanbederivedfrom
them. We reserve the right for im-
provements without changing these
instructions.
This delivery comprises:
 Two-wheel tractor
 Tool kit
 Original operating instructions
 Original engine operating
instructions
 Machine identity card
(in connector cover on the outside of
the cardboard box).
The completed machine identity
card is to be sent back to Agria-
Werke.

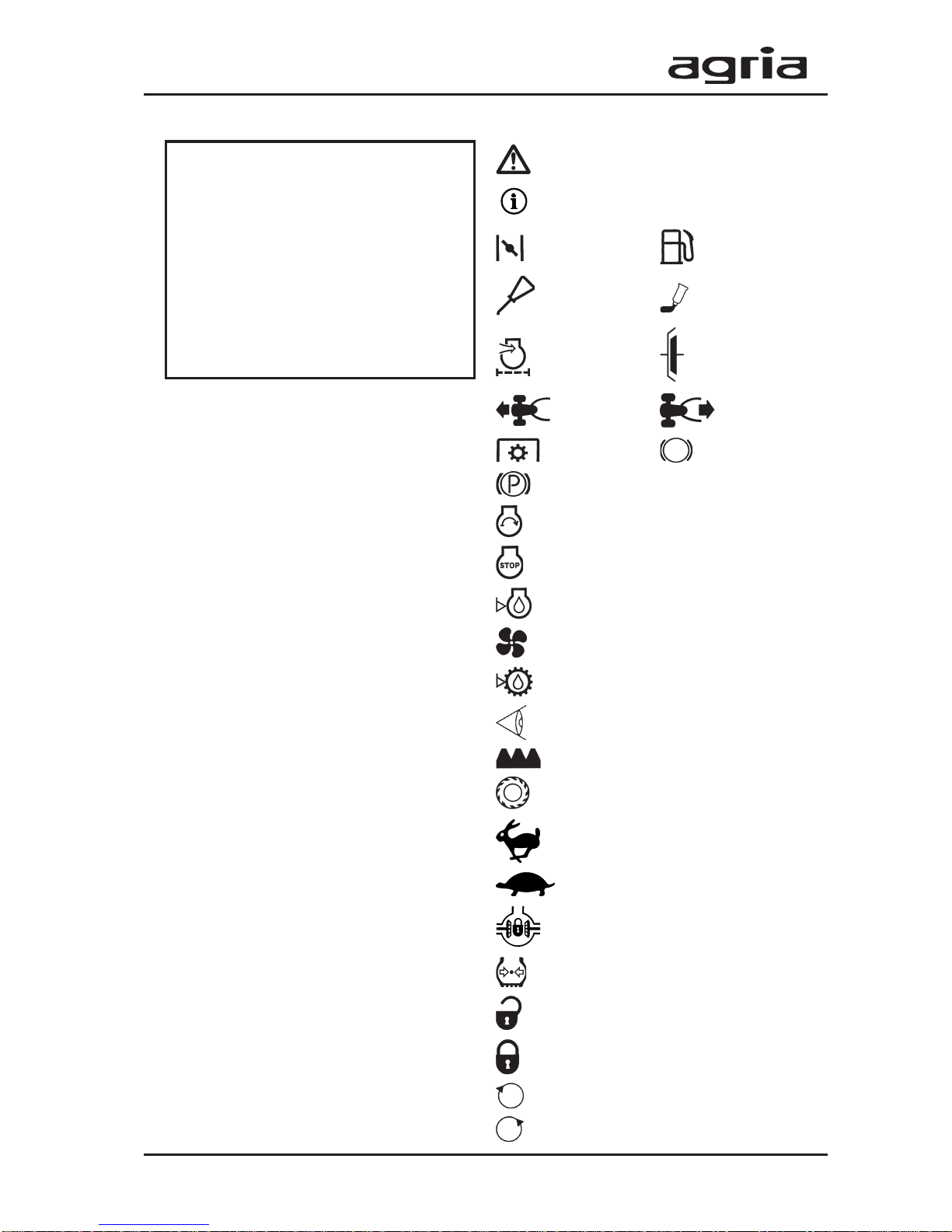

Symbols
Warning – Danger
Important information
Choke Fuel
Oil Glue
Air filter Clutch
Forward Reverse
PTO Brake
Parking brake
Engine Start
Engine Stop
Engineoillevel
Air cooling
Transmission oil level
Visualcheck
Mowing drive
Wheel drive
Fast
Slow
Differential lock
Tyre air pressure
Open (unlocked)
Closed (locked)
Clockwise
Anticlockwise
agria- Service
= contact your agria-workshop

agria Tool Carrier 5500 Grizzly 3
Scope of Supply................................ 2
Recommendations
Lubricants ......................................... 6
Fuel ................................................... 6
Maintenance and Repair .................. 6
Designation of Parts .......... 4, 58
1. Safety Instructions..........7-12
Due Use............................................ 7
2. Specifications

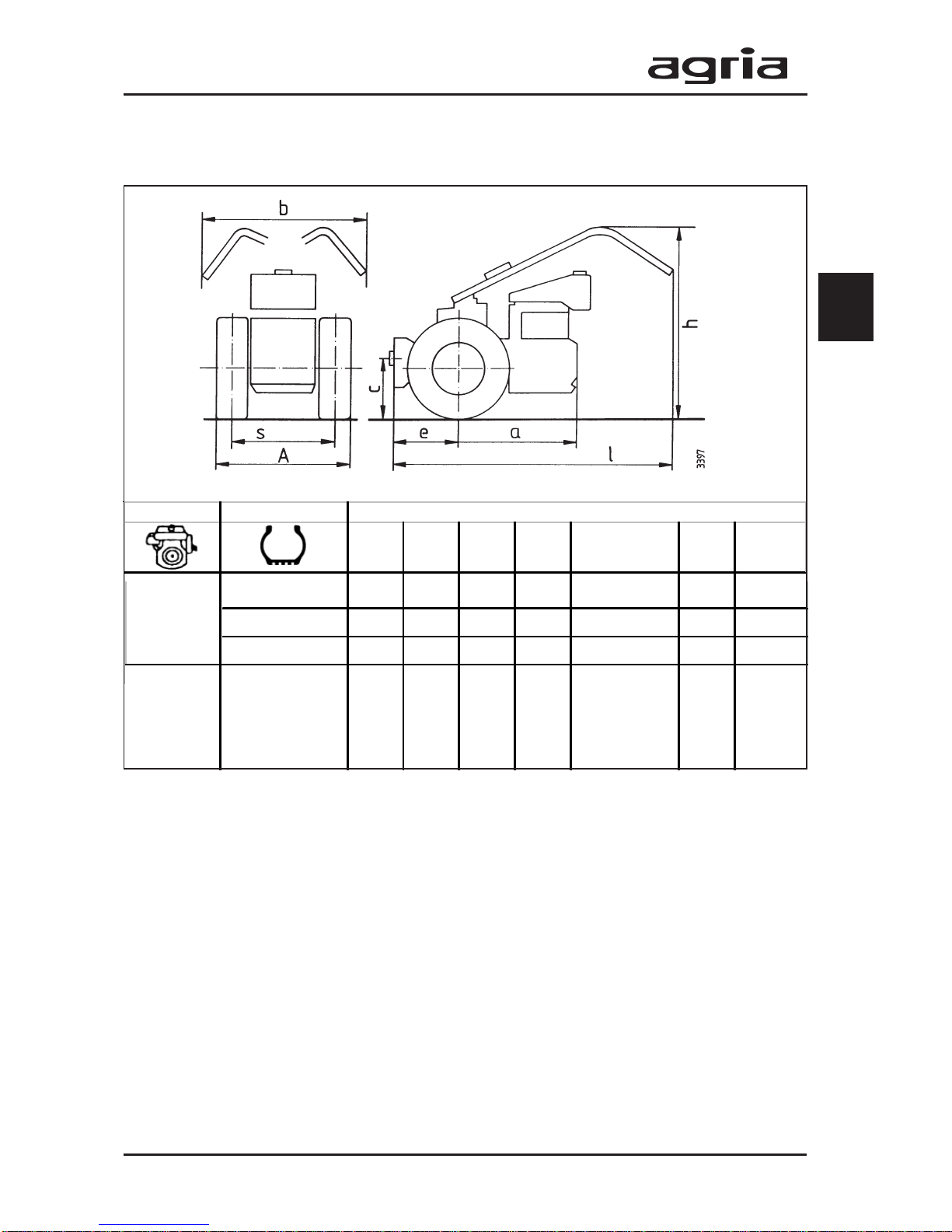

Dimensions ..................................... 13
Machine .......................................... 14
Vibration AccelerationValue ........... 14

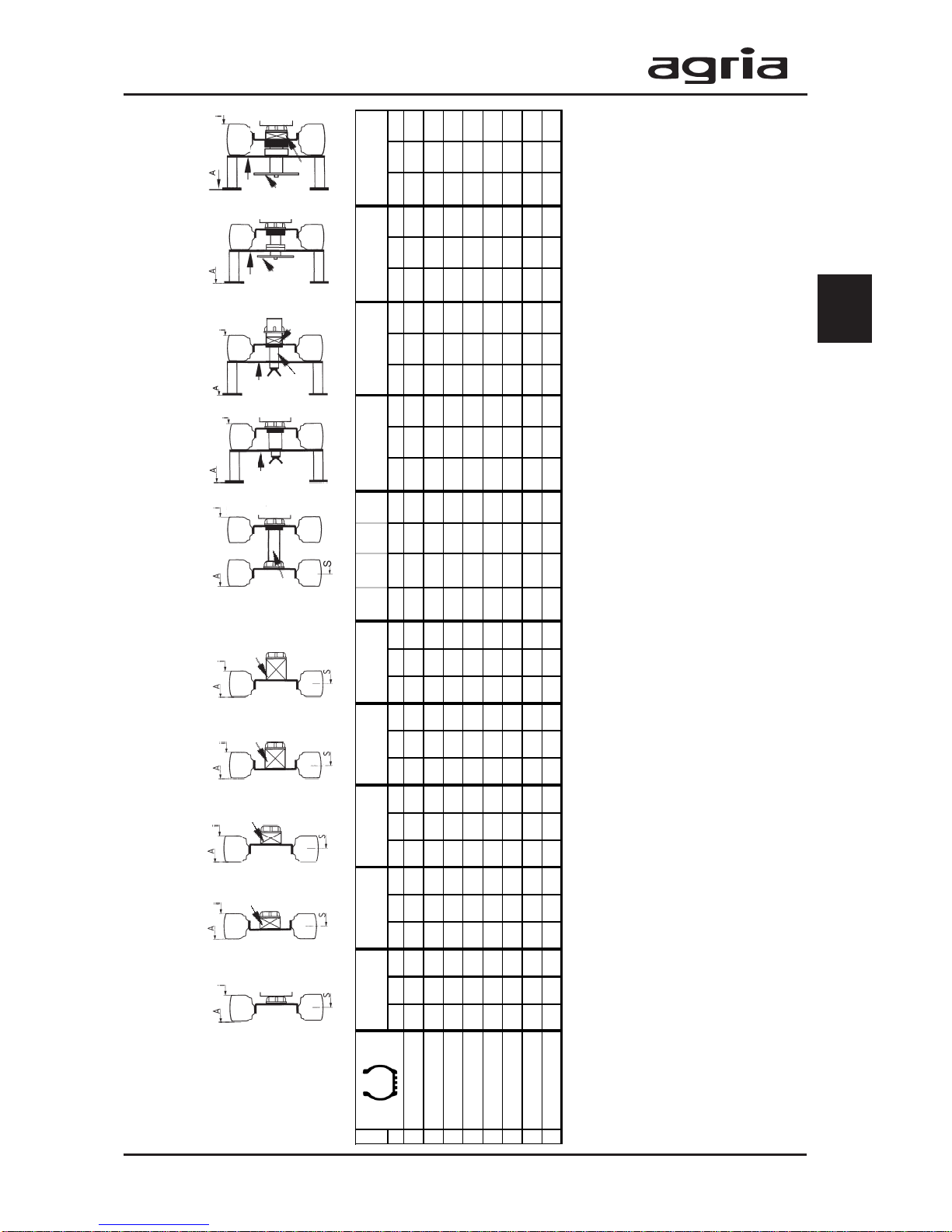

Track Width Plan ............................. 15
Petrol 19L2...................................... 16
Noise Level ..................................... 16
Operation on Slopes....................... 16
3. Devices and
Operating Elements
Engine ............................................. 18
Safety Circuit................................... 19
Clutch .............................................. 21
Gearbox.......................................... 22
Single Wheel Steering Brake Clutch24
Service and Parking brake ............. 24
Steering Handle.............................. 25
Loading Eye .................................... 25
FixingPoints .................................... 25
Drive-Wheels ........................... 26 - 28
Hood ............................................... 29
Coupling and Decoupling
Attachments .................................... 30
4. Commissioning and
Operation
Commissioning the Machine........... 31
Starting the Petrol Engine ............... 32
Switching off the Petrol Engine ....... 33
Operations ...................................... 34
Danger Zone .................................. 35
Mowing on slopes ........................... 36
References for the Handling.......... 38
5. Maintenance
Petrol Engine............................ 39 - 42
- Air Filter ........................................ 40
- Spark Plug .................................... 41
Machine .......................................... 43
Hand Lever Adjustment .................. 47
Gaphic Symbols.............................. 48
General Maintenance, Cleaning..... 50
Storage ........................................... 51
6.Troubleshooting ..................52
7. Decommissioning,
disposal................................... 53
Diagram: Electric Circuit....... 54
Varnishes, Wear Parts ........... 54
Lubrication Plan ..................... 55
Inspection and
Maintenance Chart................. 56
Conformity Declaration ......... 59
Note fold-out pages!
Fig. A + B ................................... 4
Fig. C ....................................... 58
Index

4agria Tool Carrier 5500 Grizzly

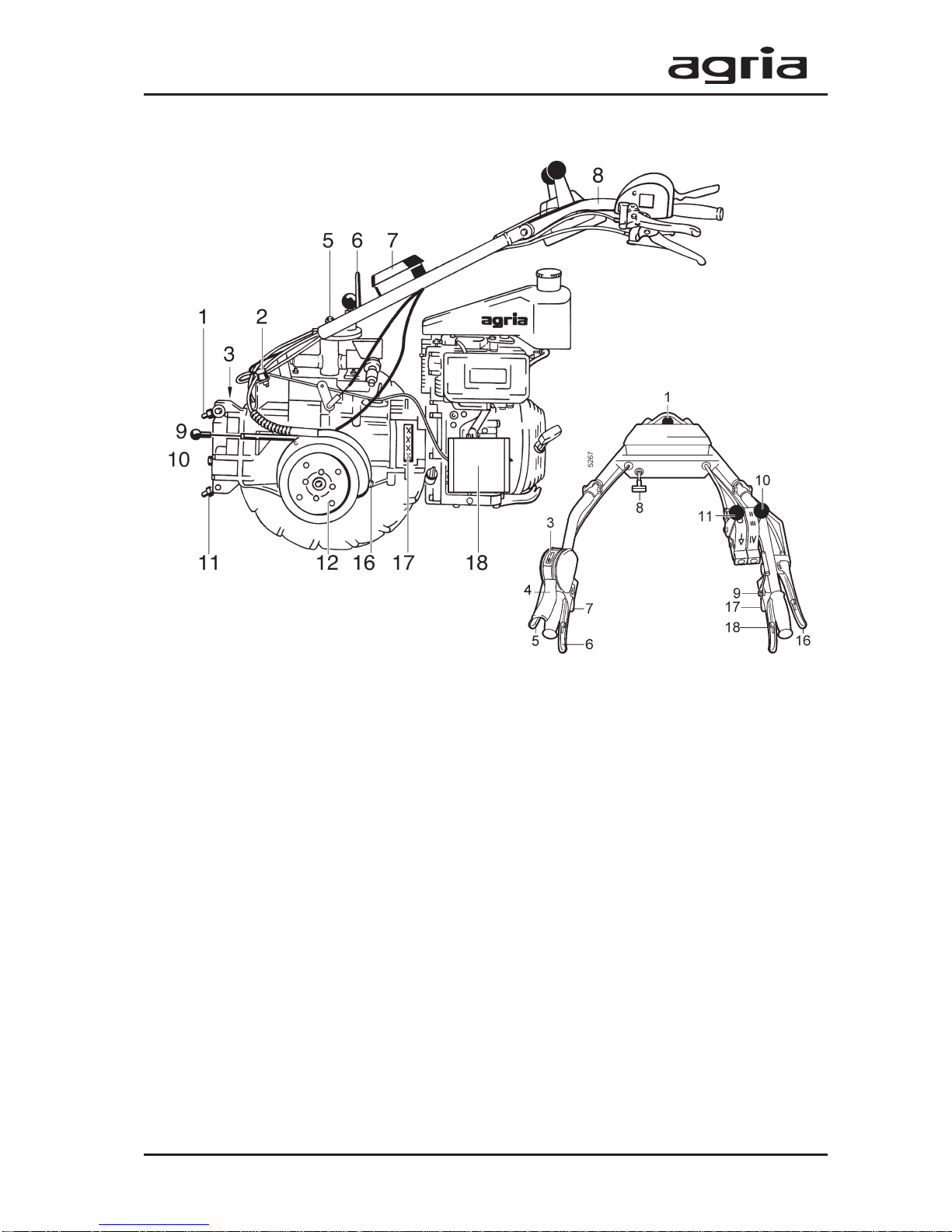

Designation of Parts
Fig. A
Fig. B

agria Tool Carrier 5500 Grizzly 5
Figure A
1 Eye bolt with cap nut, top
2 Hood-receiving spherical button
3 Transmission oil filling opening and oil dip-stick
4 Disc brake (safety hillholder)
5 Hexagonal nut for steering handle central mounting
6 Hooked yoke for retaining rope
7 Tool kit
8 Steering handles
9 PTO shifting mechanism
10 PTO
11 Eye bolt with cap nut, bottom
12 Wheel hub
16 Transmission drain screw
17 Name plate/Identification no.
18 Engine
Figure B
1 Locking bolt for lateral steering adjustment
3 Engine-off-switch
4 Safety shifting lever
5 Hand lever for steering brake clutch, left
6 Hand lever for clutch and safety hillholder (Vers. compact, comfort)
6 Hand lever for clutch (Vers. Premium)
7 Pawl for hand clutch lever
8 PTO shifting mechanism
9 Speed control lever
10 Gear shifting lever
11 Locking lever for R shifting (Vers. compact, comfort)
11 Gear shifting lever F-R (Vers. premium)
12 Pawl for F-R shifting
13 Lever for F-R shifting
14 Pawl for differential lock
15 Lever for differential lock
16 Hand lever for steering brake clutch, right
17 Pawl for parking brake
18 Lever for brake central
3
5
2
1
4
6
Designation of Parts

6agria Tool Carrier 5500 Grizzly
Recommendations
Lubricants and
Anti-Corrosive Agents
Use the specified lubricants for engine
and gearbox (see “Specifications”).
We recommend using bio-lubricating
oil orbio-lubricating grease for“open”
lubricating points or nipples (as speci-
fied in the operating instructions).
We recommend using bio-slushing oil
for preservation of machines and imple-
ments (do not apply on painted exter-
nal covers). Oil can be brushed or
sprayed on.
Anti-corrosive agents are environmen-
tally friendly and degrade fast.
Using ecologically safe bio-lubricants
and bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Fuel
This engine runs perfectly using com-
mercially available lead-free Normal
and Super petrol (also E10) as well
as Super plus and Aspen 4T petrol.
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drainedcompletelywhen shutting down
the engine for more than 30 days.This
is to prevent resin residue from depos-
itinginthecaburetor,fuel filter,andtank.
Or add a fuel stabilizer.
For further instructions refer to “Engine
Preservation”.
Maintenance and
Repair
The trained mechanics of your agria
workshopcarry out expert maintenance
and repair.
You should only carry out major main-
tenance work and repairs on your own,
if you have the proper tools and knowl-
edge of machines and internal combus-
tion engines.
Donothammer againsttheflywheelwith
a hard object or metal tools as it might
crack and shatter in operation causing
injuries and damage. Only use suitable
tools for pulling the flywheel.

agria Tool Carrier 5500 Grizzly 7
1. Safety Instructions
Before starting the engine, read the op-
erating instructions and note:
Warning
Thissymbolmarksallparagraphs which
affect yoursafety.Passallsafetyinstruc-
tions to other users and operators.
Due Use
The tool carrier is a hand-controlled
automatic single-axle machine which
can power and/or pull various imple-
ments approved by the manufacturer.
Areasofapplication are forsuchasturn-
ing over the ground, mowing grass and
meadowland, snow clearance and
sweeping (due use).
Any other type of operation is consid-
ered undue.The manufacturer is not li-
able for any damages resulting from
undue use, for which the risk lies with
the user alone.
When the tool carrier is used on public
roads,thelocalnationalroad trafficrules
mustbe observed,e.g.reflectors, lights.
The tool carrier is not intended for use
with a trailer on public roads or as as a
tractor unit without implements.
Due use includes compliance with
manufacturer’s instructions on opera-
tion, maintenance and repair.
Any unauthorized changes to the ma-
chine render manufacturer liability null
and void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For drives on public roads, the national
traffic code applies.
Accordingly, check the tool carrier for
road and operational safety each time
you take up operation.
Only persons familiar with the machine
and instructed on the hazards of opera-
tion are allowed to use, maintain and
repair the machine.
Teenagers of 16 years or younger may
not operate the tool carrier!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
onthemachinefor safe operation.Com-
pliance is for your own safety.
When transporting the machine on ve-
hicles or trailers outside the area to be
mowed,ensurethattheengineisturned
off.
1

8agria Tool Carrier 5500 Grizzly
1. Safety Instructions
Careful with rotating tools – keep at a
safe distance!
Beware of coasting tools. Before you
startanymaintenanceorrepair onthem,
wait until tools have come to a complete
stop.
Foreignpoweredpartsshearandcrush!
Riding on the attachment during opera-
tion is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the machine. There-
fore, ensure steering and braking func-
tions are sufficient. Match operating
speed to conditions.
Donotchangesettingsofgovernor.High
engine speed increases risk of acci-
dents.
Working Area and
Hazardous Area
The user is liable to third parties work-
ing within the machine’s working range.
Staying in hazardous area is not per-
mitted.
Check the immediate surroundings of
the machine before you start it. Watch
out for children and animals.
Before you start work, clear the area
from any foreign object. During opera-
tion,alwayswatchoutforfurther objects
and remove them in time.
For operationinenclosedareas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and Safety
Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
Withnoimplementmounted,makesure
PTO-shaft is covered with the protec-
tive cap.
Starting the engine
Donotstartengineinclosedrooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
frontof themachineandtheimplement.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion.
Operation
Never leave the operator’s position at
the steering handle while machine is at
work.
Never adjust the operating handles dur-
ing work – danger!
1

agria Tool Carrier 5500 Grizzly 9
1. Safety Instructions
Duringoperationthe operatormust keep
at a distance as defined by the steering
handle, especially when turning the
machine.
Riding on the implement during opera-
tion or in transport is not permitted.
Ifcloggingoccursinthe implement, turn
off the engine and clean the implement
with an appropriate tool.
In case of damage to the tool carrier or
to the implement, immediately turn off
the engine and have it repaired.
If steering causes problems, immedi-
ately bring the machine to a halt and
turn itoff.Havethe malfunction removed
without delay.
To prevent the machine from sliding on
slopes, make sure it is secured by an-
other person using a bar or a rope.This
person must be located at a higher po-
sition than the vehicle and at a safe dis-
tance from the attachment at work.
If possible, always work horizontally on
the slope.
End of Operation
Never leave the machine unattended
with the engine running.
Before you leave the tool carrier, turn
off the engine.
Securetoolcarrieragainstunauthorized
use. If machine is equipped with igni-
tion key, remove the key. For all other
versions, remove spark plug connector.
Implements
Only mount implements with the engine
and PTO switched off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting imple-
ments bring support leg into proper po-
sition and ensure stability.
Secure machine and implements
against rolling off (parking brake, wheel
chocks).
Beware of injuries while coupling imple-
ments.
Mountimplementsasspecified and only
couple at specified points.
Securemachineandimplementagainst
unauthorized use and rolling off when
you leave the machine.If necessary, in-
stall transport or security devices and
secure.
Mowing Attachment
Handle with care! Sharp blades of the
cutter bar may cause injuries! Remove
protective knife strips only for mowing
and refit immediately after work has fin-
ished.
For transportandstoragealwaysmount
the protective knife strips. Secure fin-
ger bars additionally with tension
springs.
Do not transport the dismounted cutter
bar without protective strips.
1

10 agria Tool Carrier 5500 Grizzly
1. Safety Instructions
Before mounting and dismounting the
cutter bar, make sure all blades are pro-
tected by the protective strip.
To exchange the mowing knife and to
mount/dismount the knife driver, make
sure that you turn screws away from
cutting edges.
For grinding the mowing knives, always
wear safety goggles and gloves.
Weights
Always fit weights onto appropriate
weight mounting devices.
Snow Clearing
Ensure snow dozer is mounted cor-
rectly! Wear slip-proof shoes.
When swivelling the snow dozer watch
out for crush and shear points. Adjust
working speed to conditions. Operator
may be injured when the mache comes
in contact with solid objects.
Maintenance
Never carry out any maintenance or
cleaning with the engine running.
Before you work on the engine, always
remove spark plug connector (petrol
engine only).
Check regularly and, if necessary, re-
place all protecting devices and tools
subject to wear and tear.
Replace damaged cutting tools.
Always wear safety gloves and use
proper tools when exchanging cutting
tools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety-relevant parts (e.g. coupling de-
vices)!
Keep machine and implement clean to
avoid risk of fire.
Checknutsand screwsregularlyfortight
fit and re-tighten, if necessary.
Aftermaintenanceandcleaning,ensure
that you re-install all safety and protec-
tive devices and adjust them properly.
Only use original agria spare parts. All
other commercial spare parts must cor-
respondtoqualityandtechnical require-
ments specified by agria.
Storage
It is not allowed to store the machine in
rooms with open heating.
Neverparkthemachinein closed rooms
with fuel left in tank. Fuel vapours are
hazardous.
1

agria Tool Carrier 5500 Grizzly 11
1. Safety Instructions
Engine, Fuel, and Oil
Neverlettheengineruninclosedrooms.
Extreme danger of intoxication! For the
same reason, also replace damaged
exhaust parts immediately.
Caution with hot engine parts!
The exhaust and other engine parts
become very hot, if the engine runs and
immediately after turning off. Hold for
sufficientdistancefrom hot surfacesand
keep children away from the running
engine.
Becarefulwhen dealing with fuel. Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts. Do not refill fuel in closed
rooms. Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
In case of fuel spillage, pull the tool car-
rier away from the spillage before you
start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
For safety reasons the petrol tank and
fuel cap should be replaced regularly.
Store anti-corrosive agents and stabi-
lizing liquids out of reach of children. If
sicknessand vomitingoccur, see adoc-
tor. If fuel has contacted eyes, rinse
them thoroughly, avoid inhaling of va-
pours.
Read and observe enclosed instruc-
tions.
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
ofassist-starting liquids) makesure they
are completely empty. Empty them in
ventilated places safe from spark for-
mation or flames.If necessary, dispose
of tins in hazardous waste deposits.
Be careful when draining hot oil, dan-
ger of burns.
Makesure oil isofspecifiedquality.Stor-
age is in approved cans only.
Dispose of oil, greases, and filters
seperately and properly.
Tyres and
Tyre Air Pressure
When working on tyres, make sure tool
carrier is parked properly and secured
against rolling off.
Any repairs are to be carried out by
trained mechanics only and with the
appropriate tools.
Regularly check tyre air pressure. Ex-
cessive pressure may cause bursts.
Use appropriate tyre air pressure when
mounting weights or implements.
Re-tighten fastening screws of drive-
wheels or check tightness when doing
maintenance work.
Electrical System and
Battery
Persons having a pacemaker must not
touch live parts of ignition system when
the engine is running.
1

12 agria Tool Carrier 5500 Grizzly
1. Safety Instructions

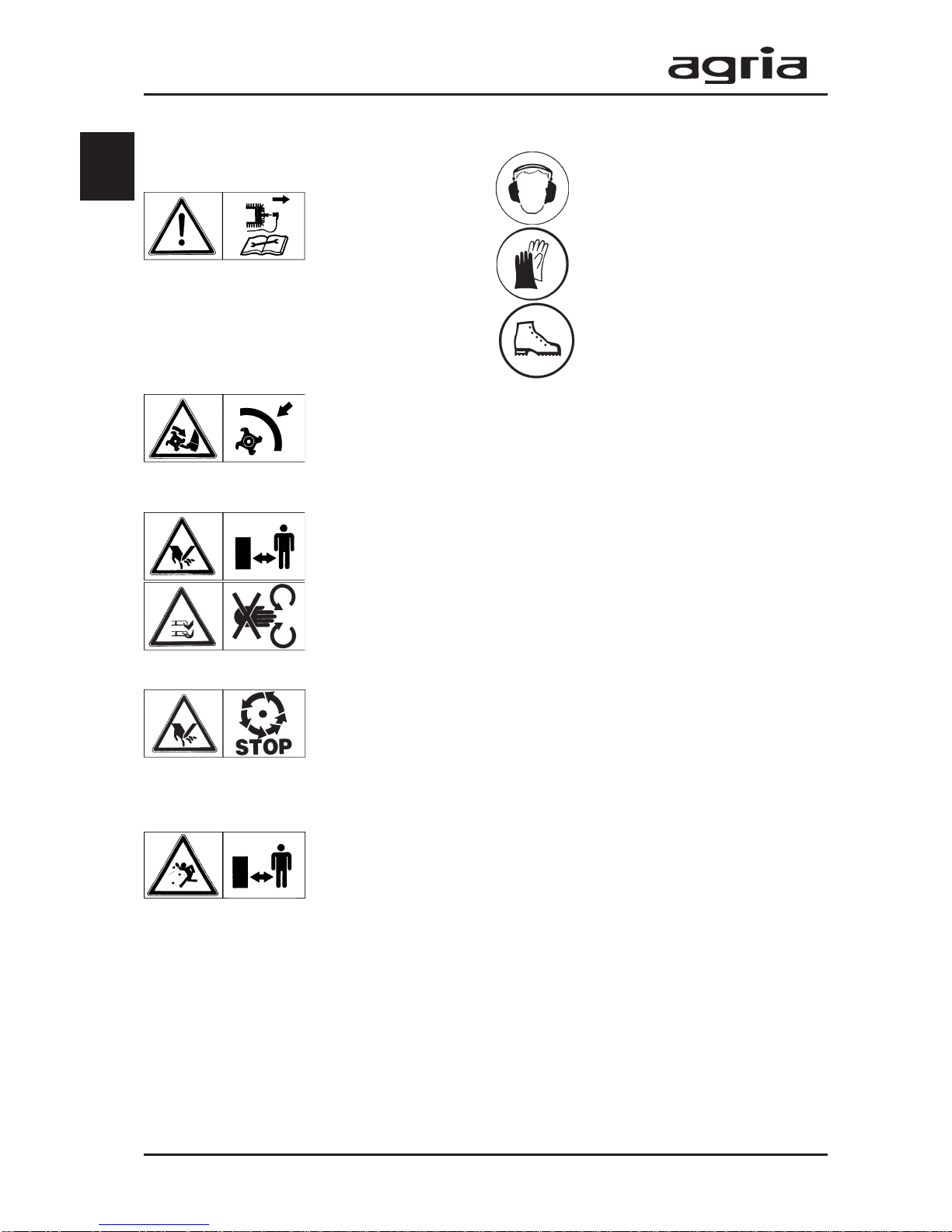

Explanation of
Warning Signs
Before any clean-
ing, maintenance,
and repair work
switch off the en-
gine and pull spark
plug connector.
Donot workwithout
protective covers
mounted. Before
starting the engine,
bring covers in
proper position.
With engine run-
ning,keepat a safe
distance from cut-
ting knife.
Do not touch mov-
ing machinery
parts. Wait until
they have come to
a complete stop.
With engine run-
ning,keepat a safe
distance from tool
carrier.
Signs
When working with the ma-
chine, wear individual protec-
tive ear plugs.
Wear protective gloves.
Wear solid shoes.
1

agria Tool Carrier 5500 Grizzly 13
2. Specifications
abce h l
5.00-10 AS 560 740 255 270 ca.920 1270
20x8.00-10 560 740 255 270 ca.920 1270
21x11.00-8 560 740 260 270 ca.930 1270
(mm)
Tool Carrier
Dimensions :
Tyres: ..................... 5.00 -10 field tyre
Optionally:
3490 511......20x 8.00 - 10 grass tyre
3490 611...... 21x11.00 - 8 terra-tyre
Drive-wheel attachment and applica-
tion ..........................see page 26 - 28.
Tyre air pressure at:
5.00-10 / 4.50-10 ..................... 1,5 bar
21x11.00 - 8............................. 0,8 bar
20x8.00 - 10............................. 0,8 bar
3221 051 Pair wheel weight ...... 52 kg
S + A = see track width plan
*
2

14 agria Tool Carrier 5500 Grizzly
2. Specifications
2
Carrier Tool Grizzly
premium
Type 5500 345
Engine: .................... 4-stroke (petrol)
.................................... Vanguard19L2
Gearbox:........... Mechanical gearbox,
4 forward and 4 reverse speeds
Steering brake clutch
Brake central
Transmission oil
filling quantity: ............. approx. 2,0 Ltr.
Transmission oil SAE 90 - API - GL5
(e.g. BP Energear Hypo)
Travel Speeds (km/h):
PTO: ...................................... 825 rpm
gear independent
at engine speed 3600 rpm
direction of rotation:
clockwise, looking on PTO
constant in forward and reverse
Steering handle:
Anti-vibration steering handle bearing
(2-axle-steering handle bearing) -
Licenser is Frauenhofer Gesellschaft
zur Förderung der angewandten
Forschung e.V. (German society for
the promotion of applied research).
............................... height-adjustable,
side adjustable without tools
Vibration acceleration value:
on handlebar grip:
Double knife mowing drive ahw = 6,1 m/s2
in accordance with EN 12733
Weights:
Empty weight (with fuel tank filled up):
withoutdrive-wheels 5.00-10
...kg ...kg
1. 2. 3. 4.
5.00-10 AS 1,0 1,9 3,25 7,1
4.50-10 AS 1,0 1,9 3,25 7,1
20x8.00-10 R 1,0 1,9 3,25 7,1
21x11.00-8 TG 1,05 2,0 3,4 7,4
+

agria Tool Carrier 5500 Grizzly 15
2
2. Specifications
Wheel combination and Track Widths Table 5500 Grizzly
premium
60 60 60
(mm)
220
90
30 = 2519 011 60 = 5516 021 90 = 5519 031
220 = 5616 511
220A = 5519 011
V = 5916 511
S = 762 32
Gf (10“) = 5517 531 Gf (12“) = 5917 541
G (10“) = 5917 011 G (12“) = 5917 021
G
VV
90
G
90
Gf
S
Gf
B220 220
+ B1
220
+B5
AS i AS i AS i AS i AS i A A A i A i " A i " A i " A i "
14.00-8 AS 630 530 430 640 540 440 750 650 550 700 600 500 810 710 610 1070 430 1090 430 8 216x6.50-8 AS 760 590 420 660 490 320 880 710 540 720 550 380 940 770 600 1200 1080 420 1220 420 8 321x11.00-8 Terra 780 505 230 830 555 280 900 625 350 890 615 340 960 685 410 1220 230 10 1884 410 10
44.50-10 AS 670 550 430 640 520 400 790 670 550 700 580 460 850 730 610 1110 430 1154 430 10 1154 430 10 55.00-10 AS 680 550 420 650 520 390 800 670 540 710 580 450 860 730 600 1120 420 1164 420 10 1164 420 10 620x8.00-10 R 710 520 330 740 550 360 830 640 450 800 610 420 890 700 510 1150 330 10 1194 330 10 1180 420 10 75.00-12 AS 720 565 410 660 505 350 840 685 530 720 565 410 900 745 590 1160 410 12 1204 410 12 8 23x8.50-12 AS 800 585 370 700 485 270 920 705 490 760 545 330 980 765 550 1240 1170 370 12 1284 370 12
60 90 9060 V +90
+G
Gf Gf
+90 +S
V
+G

16 agria Tool Carrier 5500 Grizzly
2. Specifications
2
Petrol Engine
Manufacturer: ........Briggs & Stratton
Type: ..................... Vanguard 19L236
Version:............................ Fan-cooled
1-cylinder-4-stroke engine (petrol) OHV
Bore: .................................... 79.2 mm
Stroke: ................................. 61.9 mm
Cubic capacity: ...................305 ccm
Output: .......... 7.5 kW (10.2 DIN-HP)
at 3600 rpm
Max torque: ...19.80 Nm at 3100 rpm
Spark plug:.............Bosch FR8 DCX,
Champion RC12YC
Spark plug gap ..................... 0.76 mm
Ingnition system:...........Contactless
electronic magnet ignition,
ignition point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold)
Intake: ........................ 0.10 - 0.15 mm
Outlet: ........................ 0.10 - 0.15 mm
Generator: ............alternating current
12 V 120 W
Starter: ..........................Recoil starter
Fuel:commercially available car petrol,
octane number see engine operating
instructions
Fuel tank capacity: ...... approx. 3.6 l
Fuel consumption:............... 3.1 l/h
Air filter:.......... Dry filter element with
foamed preliminary filter
Carburetor:........................ Horizontal
float carburetor
Rated speed:......................3600 rpm
Idling speed: ......................2000 rpm
Engine oil:
Fillingquantity .................. approx. 0.8 l
Multi-grade oil
at ambient temperature -15° to +45°C:
SAE 10W-40 API-SF, SG (or higher)
at ambient temperature -25° to +15°C:
SAE 5W-30 API-SF, SG (or higher)
Noise level:
Noiselevel
at operator’s ear ...................84 dB(A)
(in accordance with EN 709 and EN
1553)
For values with implements refer to p31
Operability on Slopes:
Engine is suited for use on slopes (with
oil level at “max” = upper level mark)
Continuous operation possible:
up to 30° inclination (58 %)

agria Tool Carrier 5500 Grizzly 17
2

18 agria Tool Carrier 5500 Grizzly
3. Devices and Operating Elements
The tool carrier agria 5500 Grizzly is a
base power machine and is always op-
erated with an implement mounted.
Therefore, the machine is suited for all
commonapplicationsinfarmingandfor-
estry, as well as for winter service.
Thefollowingattachments are available:
 Mowing attachments
 Sweeping attachments
 Snow dozers and snow casters
 Gravel and salt spreaders
Engine
The four-stroke petrol engine runs on
commercial petrol (refer to “Fuel Rec-
ommendations”, p6).
Ignition System
The engine is equipped with a mainte-
nance-free, contactless electronic igni-
tion system. We recommend to have
necessary check-upsdonebyanexpert
only.
During the first 20 operating hours
(break-in period) do not use engine to
maximum power.
Even after break-in period never use
engine at higher speed than necessary
for the work in hand.
IHigh engine speed is harmful
to any engine and consider-
ably affects its durability.This applies
especially for no load operation. Any
overspeed (have the engine roar) can
result in immediate damage.
Cooling System
Coolingsystem is fan-cooled.Therefore
keep screen at recoil starter and cool-
ing ribs of cylinder clean and free from
sucked-in plant trash.
Idling-speed
Always ensure that idling-speed is ad-
justed correcty. At low speeds and with
the speed control lever set to idle, the
engineissupposedto run smoothly and
without run-out.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
3

agria Tool Carrier 5500 Grizzly 19
3. Devices and Operating Elements
Speed Control Lever
The speed control lever (B/12) on the
steering handle is for stepless setting
ofenginespeed from min. = idle to max.
= full throttle.
Engine-off-Switch
Thetoolcarrier isequippedwithanelec-
tric off-switch (B/1). This switch is for
switching off the ignition system (engine
is off).
“I” = operating position
“0” = engine-off position
IThe engine-off-switch also
serves as emergency off-
switch.To turn engine off quickly, bring
switch into position “0”.
Safety Circuit
Stop position: Upon release of
safety shifting lever (B/4), the ignition
system is switched off (engine is off).
Caution–enginecontinuesrunning due
to centrifugal mass.
Start position: For starting the en-
gine and for short breaks, press the
safety shifting lever, pull the hand clutch
lever (B/6) and lock with pawl (B/7).
Operating position: To operate,
press safety lever (B/4).
WDo not fasten safety lever.
IThe safety lever also serves to
switch off in an emergency.
In an emergency release the safety le-
ver for fast engine switch-off.The lever
automatically goes to STOP position.
3
B/3
B/4
B/7 B/6



B/9

20 agria Tool Carrier 5500 Grizzly
3. Devices and Operating Elements

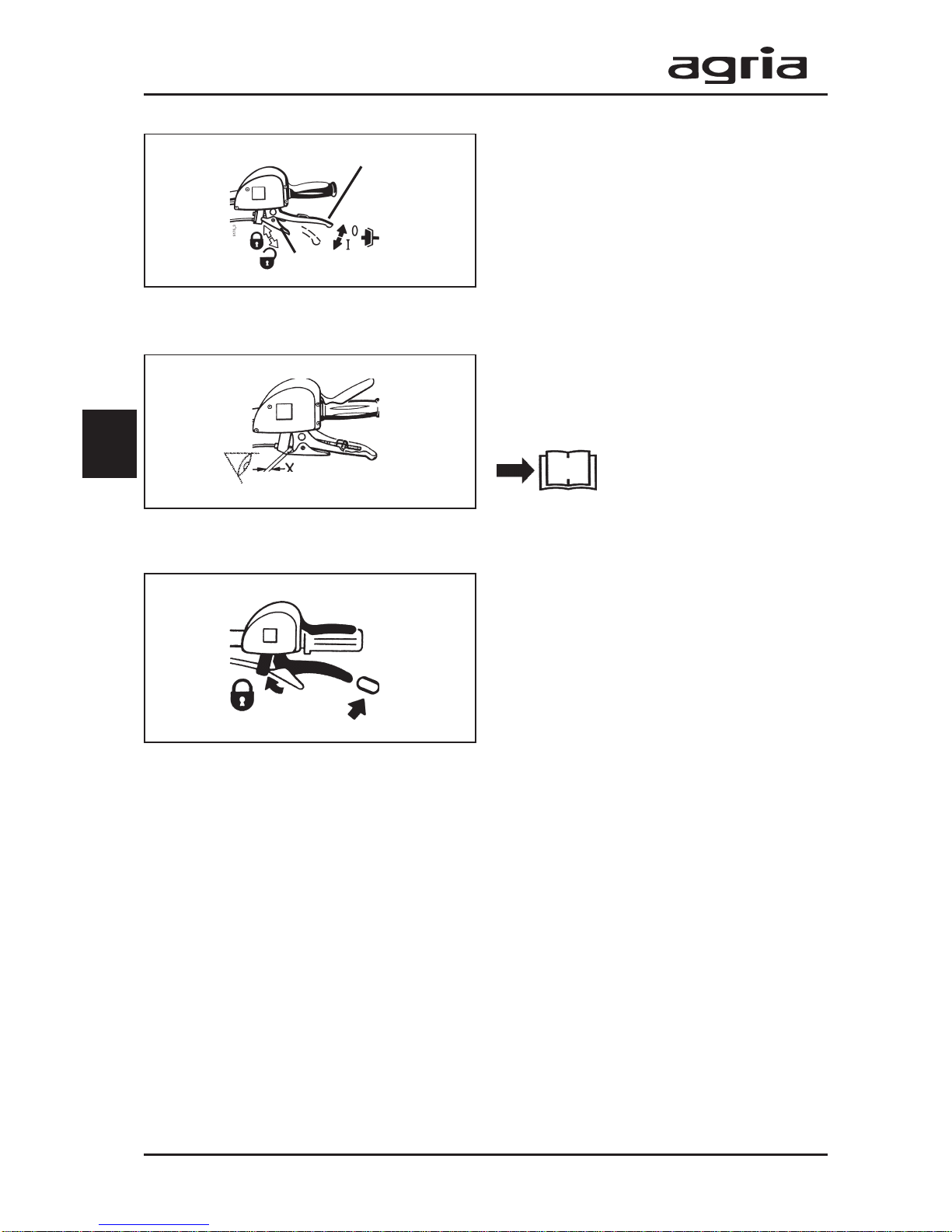

Clutch
The machine is equipped with a single
platedryclutch.Operationisviathehand
clutch lever (B/6).
Themachine isdecoupledwhenyoupull
thehand clutchlevertoposition“0”.Now,
the engine stops driving the tool carrier.
 To avoid clutch slipping away during
operation, a clutch play is factory-set on
the hand lever.
IDo not park the machine with the
clutch pulled and the engine
running. This may damage the clutch
release bearing.
Ensurethelever is pulled(pawlislocked
in place) when you park the machine
with the engine stopped, otherwise
clutch problems may result due to cor-
rosion.
B/6
B/7
47
3
