Agrisem Combiplow 31+ User manual

NOTT-AN-569-B 16-04-2007
AGRISEM - « Beaucé » F 44850 LIGNE - Tél. : [phone] – Fax : [phone]
USER’S GUIDE AND SPARE PARTS LIST
Send back the guarantee certificate
within 15 days with joined invoice
(without these documents we cannot
apply the guarantee procedure).

Tel Tel
Date : ……. / ………/……….
Dealer's signature and dealer's stamp
GUARANTEE RECLAMATION FORM N°
Tractor description and horse power
Type of soil, clay %
Dealer Owner
Name
Address
Code Nb
Address
Customer's signature and client's stamp
To be returned on reception of the machine
We are fully aware of, and accept, the contents of the instruction manual and we hereby adhere to the
clauses of the guarantee.
AGRISEM INTERNATIONAL"Beaucé" 44850 LIGNE - France Tel: [phone] Fax: [phone]
Nom
Delivery date to the user's place (join a
copie of invoice and dealer's delivery note)
Working width
Serial number of the machine
Surface area of farm
Type of machine
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

DECLARATION OF CONFORMITY
TO « MACHINE » REGULATIONS
The above-named constructor certifies that the hereby designated new material:
COMBIPLOW 31+
Conforms to the dispositions of the modified “machines” regulations (regulation 98/37/CE) and the
national legislations transposed
Signed in Ligné, France, 19 May 2003
Michel EVIN
Managing Director
“Beaucé” F - 44850 LIGNÉ - Tél. [phone] Fax. [phone]
MODEL
SERIAL N°
EQUIPMENT MANUFACTURED UNDER LICENCE
2

INTRODUCTION

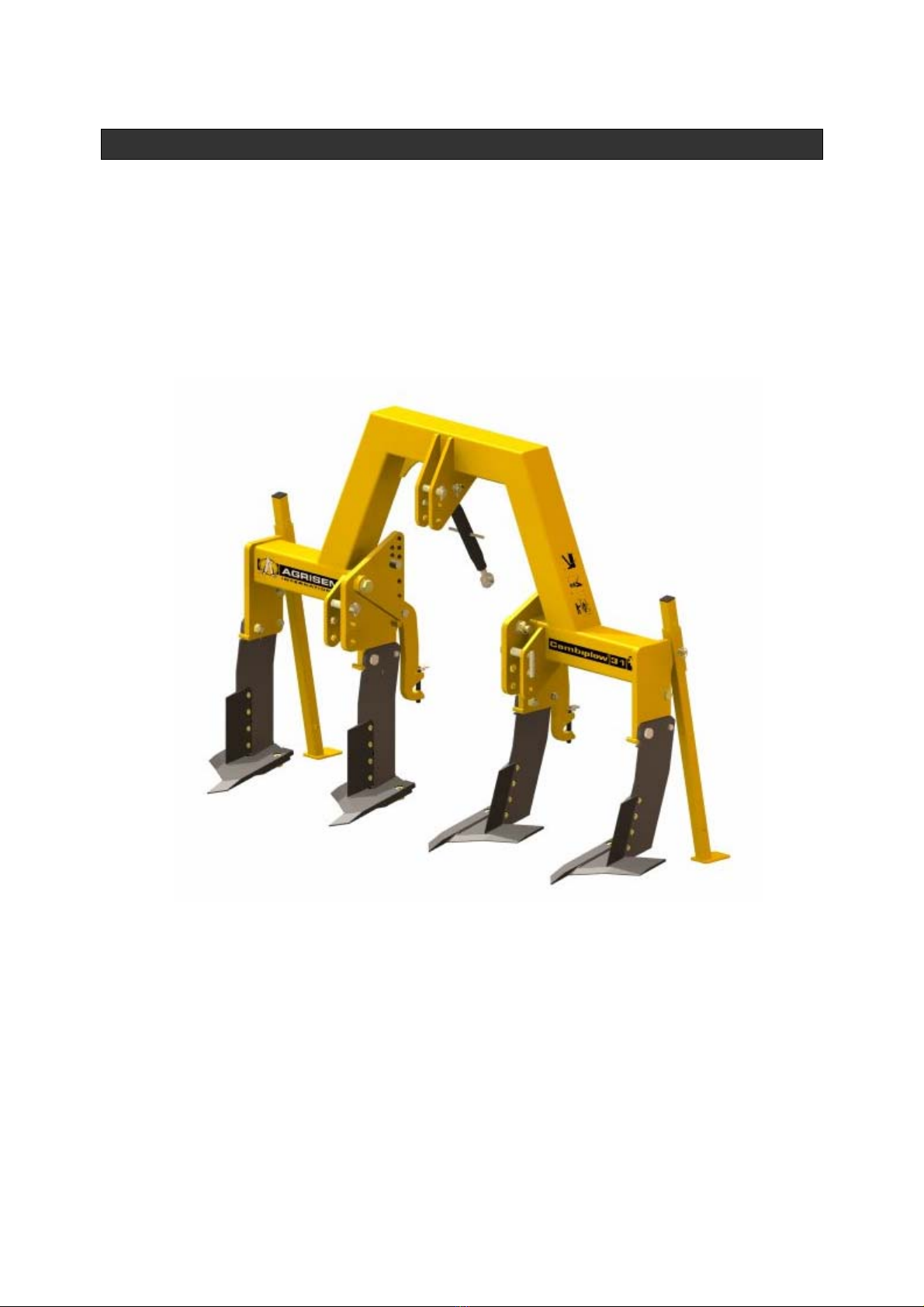

You are the owner of a COMBIPLOW 31+. This machine has been designed to give you complete
satisfaction.
This equipment is the result of research into new solutions aimed at reducing costs.
In order to get the most out of your COMBIPLOW 31+, please read your manual with care and
follow, the maintenance and adjustment advice carefully.
Your dealer remains at your disposal for information on any particular point, so please don’t
hesitate to contact him.
In the interest of improvement, AGRISEM INTERNATIONAL reserves the right to modify their
products, but in so doing they are not under obligation to reproduce these modifications on existing
models.
Likewise, characteristics in this manual can be modified without notice and adjustment procedures
and subsequent use, which is indicative, can not be under our responsibility.
3

TABLE OF CONTENTS
A – GUARANTEE CONDITIONS 5
1.1 CORRECT USE OF THE machine 7
B – SAFETY INSTRUCTIONS 8
1.2 HYDRAULIC Circuit 8
1.3 GENERAL SAFETY RULES 10
C – USING YOUR COMBIPLOW 31+ 11
I – Description 11
II – Preparation for use 11
III – Coupling-up to the tractor 11
IV – Coupling of a complementary device 11
V – Adjustment 12
VI – Maintenance/repair 12
VII – Advice for optimal use 13
D – PIECES DETACHEES 14
Blades installing 16
Combiplow 31+ 17
Kit 3 point linkage 19
Kit Blade AGRISEM 610. 21
Kit Axle 23
Kit Support 25
Kit stickers 27
4

A – GUARANTEE CONDITIONS
These guarantee conditions are only applicable to machines exclusively equipped with original
AGRISEM INTERNATIONAL parts, « Beaucé », 44850 LIGNE, FRANCE; they are as follows:
•If a fault is noticed on any structural part of the machine within the 6 months following delivery
and if this fault is due to a raw material defect or due to fabrication procedures at the factory. The
parts presumed faulty should be returned to the company for appraisal.
Proof of delivery:
-The date on the delivery note and the bill.
-The return of the guarantee card within 8 days of delivery (signed and stamped by the dealer
and the owner).
The guarantee is limited to refunding or repair of the faulty parts with material and finishing defects
in our factory and by our technical service.
•Costs relating to dismantling and replacement of the faulty part are not covered by the guarantee
nor are the transport costs for the machines or machine-parts to the repair site and back.
•As concerns the guarantee, the term “Machine” is designated exclusively for new machines and
parts manufactured by AGRISEM INTERNATIONAL. It does not include outside components such
as tyres, flexible hydraulic tubes etc even though these parts are also provided by the company.
•Naturally the guarantee does not apply to :
-Faults due to wear and tear, misuse, lack of maintenance
-Accident-damage or use not consistent with usual functions.
•The company can not be held responsible for damage incurred during transport and manipulation
by whichever Transport Company. It is the addressee who must act as necessary as regards the
transporters in such a situation.
•The guarantee will be rendered null and void if any modifications are carried out on the
machine without the formal agreement of AGRISEM INTERNATIONAL or if parts other than
those produced by the company are used on the machine (eg. Counterfeit parts).
•AGRISEM INTERNATIONAL cannot be held responsible for complaints or injuries to the owner or
a third person, nor the indirect consequences as a result; likewise no recourse is possible in the
case of the breakdown of an instrument due to a defect or incident with the machine.
•The company’s responsibility concerning the guarantee is dependent on the strict respect of the
dealer and the user of the following regulations :
A) THE RETURN OF THE GUARANTEE CARD BY THE DEALER, DULY FILLED-IN AND SIGNED
BY THE DEALER AND THE OWNER.
5

B) The recourse must imperatively be formulated on the AGRISEM INTERNATIONAL guarantee
reclamation form and sent by the dealer to the company’s technical service, by recorded delivery,
with an acknowledgement of receipt, within a delay of one month following the incident. The
reclamation form must be clearly filled in by the dealer and include the following information :
-Name and address of the dealer, client code,
-Name and address of the owner,
-Type of machine,
-Designation of combined equipment (make and type)
-Working width,
-Serial number of the machine,
-Delivery date to the owner,
-Date of the problem,
-Precise references of replaced parts, with invoice number and date,
-Make and type of tractor used,
-Detailed description of presumed causes of incident,
-Surface area worked by COMBIPLOW 31+,
-Surface area of farm,
-Type of soil clay %,
-stoney yes no
C) The parts presumed faulty should be returned to the company for appraisal along with a duplicate
of the guarantee reclamation form as proof. The consecutive transport costs necessary to return
the above-said parts are the responsibility of the sender.
D) Maintenance and use of the machine must conform to the user’s manual explanations.
E) The technical director or managing director of the company will make the final decision as regards
the reclamation. This decision, regardless of the object of the guarantee appeal, is irreversible
and the buyer must undertake to accept the decision regarding the defect, its replacement or that
of certain parts.
The Company salesmen are not competent to make such a decision and if they do so, it could be
considered null and void.
NOTA: In case of refusal, the part remains at the disposition of the client for 8 days, after this delay it will be scrapped with
no appeal possible.
F) All safety measures mentioned in the user’s manual and likewise those of all complementary
material must be respected. All protector elements and safety devices, plus all dangerous parts
(eg. Shock absorbers) must be regularly inspected and replaced when necessary.
•The machine dealers have no right or power to take any decision whatsoever, on purpose or
otherwise, in the name of the company.
•Concerned with the constant improvement of its products, AGRISEM INTERNATIONAL reserves
the right to modify them, with no obligation of reproducing the improvements on existing models.
Furthermore, due to the constant evolution of techniques, no guarantee can be given as regards the
description of materials in all documentation produced by the company.
6

1.1 CORRECT USE OF THE MACHINE
The COMBIPLOW 31+ produced by AGRISEM INTERNATIONAL must only be used for the work they
are destined for.
Stubble-breaking of arable soil in standard conditions
In the case of damage due to use of the machine for work outside the constructor’s specifications, the
constructor can not be held responsible.
Particularly, you cannot root out or clear or stones with the COMBIPLOW 31+.
The correct use of the machine also implies:
-The respect of regulations of use, maintenance and upkeep as stated by the constructor,
-Exclusive use of replacement parts, accessories and original equipment appointed by the
constructor.
The COMBIPLOW 31+.must only be used, maintained and repaired by people competent to do so,
familiar with the characteristics and the way to use the machine. The above said people should be
aware of the possible risks to which they are exposed.
The user must strictly comply with all regulations regarding:
-Accident prevention.
-Safety at work (labour laws).
-Driving on the road (Highway Code).
He has the obligation to observe all warnings placed on the machine. All modifications made by the
user or any other person without the written agreement of the constructor disengages all responsibility
of the constructor should damage result.
7

B – SAFETY INSTRUCTIONS
Most accidents that happen while working, during maintenance or when displacing a machine are due
to non-observance of elementary security regulations. Consequently, it is imperative that all people
likely to work with this machine strictly respect the following fundamental rules and likewise the safety
instructions stipulated on the stickers placed on the COMBIPLOW 31+.
1. Before all operations make sure that the COMBIPLOW 31+ is on a stable surface with its supports
2. This COMBIPLOW 31+ was conceived for precise work, it must always be in perfect working order
and only repaired with original AGRISEM INTERNATIONAL parts.
3. All necessary precautions must be taken when adapting working parts that are heavy or sharp.
4. Verify that the personal safety is respected when using the machine.
5. Verify tightness of screws and bolts before each use.
6. Verify that the COMBIPLOW 31+ is coupled correctly and the supports are lifted.
7. Ensure that the tractor has sufficient ballast at the front before starting to work, in order to avoid
any risk of tipping up; if necessary add ballast to the front of the tractor.
8. Distance all people from the manoeuvring area of the COMBIPLOW 31+.
9. Never transport anybody on the COMBIPLOW 31+ or its complementary equipment during work
or displacement.
10. Be aware of hidden obstacles (stones, roots, tubing, cable, etc) if an incident occurs, STOP
IMMEDIATELY, and find the cause.
NB: If the obstacle is an electric cable or gas-line, alert the authorities competent to deal with it.
11. Never leave the tractor unless the COMBIPLOW 31+ is resting on the ground, brakes on, motor
off and the key out of the ignition.
12. Never adjust or repair anything unless the tractor motor is stopped and the machine is resting on
the ground.
13. Before driving on the road, the user must ensure that the COMBIPLOW 31+ is coupled correctly
and visible, in respect of the Highway Code.
14. Verify the correct type-pressure on your tractor.
15. On rough ground or at tight turns reduce your speed.
16. Before any displacement, even short distances, verify the balance of the tractor and
complementary equipment. Never drive over 25 Km/h when loaded.
NOTICE : The « right » means right-hand side and the « left » means the left-hand side when you
stand behind the machine moving forward.
1.2 HYDRAULIC CIRCUIT
8

Beware ! The hydraulic circuit is under pressure.
1. When assembling the jacks and hydraulic devices take care to connect up the circuit correctly
as indicated in the manufacturer’s instructions.
2. Before connecting a hose to the hydraulic circuit of the tractor ensure that the tractor’s circuits
and those of the COMBIPLOW 31+ are perfectly clean and not under pressure.
3. Regularly verify the hydraulic hoses ! The damaged and worn hoses must be replaced
immediately.
When replacing the hydraulic hoses only use those with the characteristics and quality as
recommended by the manufacturer of the machine.
4. If a leak is discovered you must take all necessary precautions to avoid accidents.
5. All liquid beeing under pressure, particularly the oil in the hydraulic circuit can penetrate the
skin a cause serious injury!
In case of injury see your docotr immediately, there is a risk of infection!
6. Before any operation on the hydraulic circuit, lower the machine, cut the pressure in the
circuit, stop the motor and remove the key from the ignition.
9

1.3 GENERAL SAFETY RULES
•Never let children climb on the tractor or play close to equipment, even when the machine is
stopped ;
•On delivery of a machine (new or second-hand) demand the user’s manual and the certificate of
conformity to the Labour code and thereon respect the constructor’s instructions ;
•Make sure that the COMBIPLOW 31+ and its complementary equipment do not hide the tractors
rear lights ;
•If necessary provide your equipment with reflective signalization panels or complementary
luminous indicators ;
•Clear the highway of any mud left by the tractor or the equipment;
•Be aware that soil-working equipment, however narrow, presents a real danger (cutting-edge
blades, ploughshares, discs…) and can be fatal in an accident ;
•Wear safety shoes and gloves when manipulating sharp parts ;
•If the equipment is not already provided with, anticipate means of signalization: illumination
ramps, catadioptres, plates or bands of reflective stickers. Long or large equipment must
imperatively have a signalling system when the tractor’s rear lights are hidden ;
•Always employ split pins and locking systems ;
•After using clean the points of quick hydraulic connections and put on the protection caps.
Replace the leaking connections and those which are locked weakly. The hydraulic hoses can
never lie on the ground.
•Verify if the hydraulic hoses are not torn or excessively worn.
•Before any operation discharge the accumulators from the hydraulic circuit (non-stop security).
•For exposed metal parts, use an anti-rusting product or grease
10

C – USING YOUR COMBIPLOW 31+
I – Description
The COMBIPLOW 31+ framework can be equipped with a variety of blades. Each blade is supplied
with replaceable wear and tear part. It is protected with a shear bolt or a safety spring. The blades’
working depth is controlled by the depth-control device or by a pair of adjustable wheels.
The COMBIPLOW 31+ is coupled with 3 point linkage category 2 and 3. All the models are supplied
with supports.
II – Preparation for use
When you receive your COMBIPLOW 31+, verify that its characteristics are suitable. Then, carry out
the preliminary operations for starting up, as indicated in this manual.
III – Coupling-up to the tractor
1. Reverse the tractor in order to couple-up with the COMBIPLOW 31+, which should be grounded
on a stable surface with its supports.
2. Place the lower lifting arms in line with the coupling braces.
3. Couple-up the lower lifting arms by means of the appropriate device.
4. Adjust the length of the 3 point linkage then fix it with the shaft and clip supplied.
5. Lift the supports
5. To unfasten the COMBIPLOW 31+, do the preceding operations in reverse order and ensure
that the machine is on a stable surface.
6. During coupling-up or unfastening, nobody should remain between the tractor wheels and the
COMBIPLOW 31+,.
IV – Coupling of a complementary device
1. Follow the above mentioned instructions and the user’s guide of the complementary device
manufacturer.
2. If this equipment is supplied with a cardan you will have to replace this standard transmission by a
long transmission. It has to be elongated by about 75 cm. The both half-transmissions have to be
equally long.
3. Verify that in the most remote position this transmission flare union conforms to the constructor
working conditions.
Also think to reduce the retractility of the rear coupling of the COMBIPLOW 31+ if it is needed.
11

Putting into operation :
•In order to respect the parallelogram effect, ensure that the distances AA’ and BB’ are equal.
•With adjusting of the stop axle C you can control the working depth. So, higher you place the stop
axle C, more deeply you work with Combiplow 31+.
•The adjustment of the stop axle D is needed to control the total compactness. That why the
maximal compactness is achieved when you put the stop axle Din the highest position.
V – Adjustment
1. Working width of an element (see page 16) :
-Adjust the distance between each pair of blades if you like it by moving their support along the
frame.
2. Depth adjustment :
-Put the elements in their working position.
-Adjust the depth by manipulating the depth control handle or the shafts of the multistop braces
when your machine is equipped with a roller.
VI – Maintenance/repair
1. Before beginning any maintenance operation or oiling, make sure that the safety instructions have
been followed. Before adjustments or verification, make sure the COMBIPLOW 31+ is horizontal
and stable. Block the machine if necessary.
12

2. If there are wheels you have to oil the hubs roller-bearing every 30 hours.
3. Each blade COMBIPLOW 31+ is equipped with a shear bolt which breaks when blade accidentally
come across an obstacle. To replace it you have proceed as following:
−Lift the COMBIPLOW 31+ about 15 cm off the ground and block it in that position with the
tractor motor off and the parking brake on
−Take off a damaged bolt
−Put again the blade in the working position and fasten it with a new bolt. USE ONLY PARTS
OF AGRISEM INTERNATIONAL
4. The ploughshares are fixed by a bolt. When replacing these parts, check that the new ones have
been supplied by AGRISEM INTERNATIONAL. All the parts are made from specially treated
steel, thus it is not advisable to solder them or else the thermal treatment loses its efficiency.
VII – Advice for optimal use
Before all usage, make sure that all safety instructions are followed and that the machine has been
greased and maintained correctly.
To obtain good results the soil cannot be too humid or too dry: the soil has to bend at the blade
passing and produce enough of fissures.
When the soil humidity is great, slipping could degrade the superficial soil structure. It is better to use
a tractor with four-wheel drive to reduce sliding.
The degree of the soil loosening depends on the working depth, the distance between blades and the
working speed.
When the depth is 25-35 cm, the distance of 50 cm between the blades ensures the complete
loosening in the most of conditions. When you work mostly on the surface you might have to use
TWINPLOW (winged) ploughshares. The working speed depends on the conditions and usually is 5-8
km/h. Higher is the working speed, more important is the loosening.
Before starting to work verify the following list:
−Are the wearing parts in good condition and fixed correctly?
−ls there enough ballast on the front of the tractor to lift the COMBIPLOW 31+?
During the work verify that the COMBIPLOW 31+ is correctly coupled and perfectly horizontal
when working, in the longitudinal and transversal sense.
If required, consult your tractor’s manual to study all safety aspects and adjustments for raising
the tractor in order to optimize the use of your material.
The correct use of the COMBIPLOW 31+ optimizes and ensures a good planting of your crop.
AGRISEM INTERNATIONAL can not be held responsible for soil degradation or a result which is
not up to your expectations. The user must make his own decisions and assume the risks taken
should his machine be used incorrectly or inappropriately.
13

D – SPARE PARTS
14

15

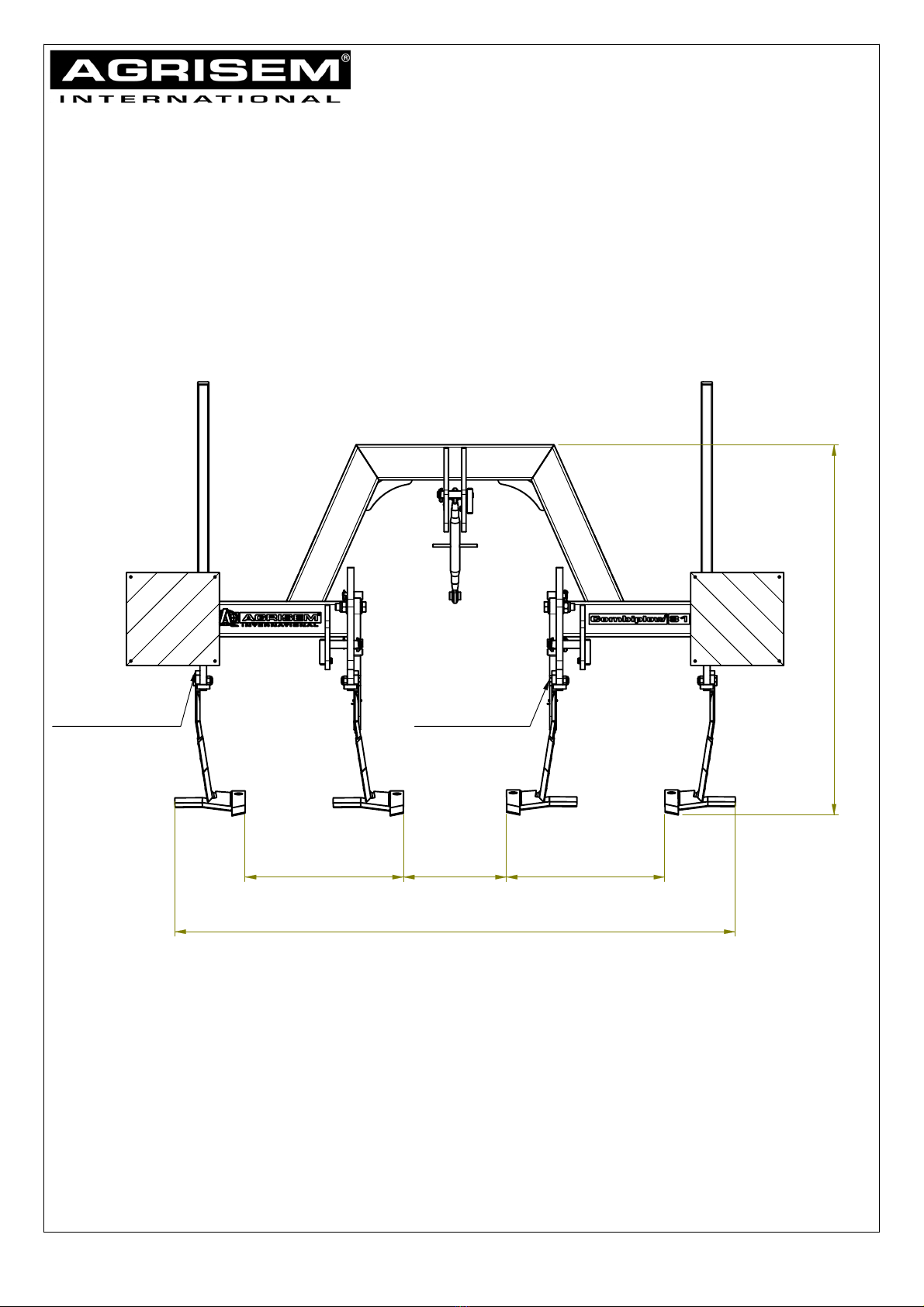

Blades installing
AGRISEM INTERNATIONAL S.A. "Beaucé" 44850 LIGNÉ - FRANCE Tél : [phone] - Fax : [phone]
720 468
2548
1684
720
Blade insideBlade outside
16

"Beaucé" 44850 LIGNÉ - FRANCE Tél : [phone] - Fax : [phone]
Reference : BC-31+304-AGR
AGRISEM INTERNATIONAL S.A.
Combiplow 31+ - 3.00m 4 blades
8
9
4
1
62
5
7
63
17
