Preliminary information
4
Prelimi nary inform ation
Target group for
these assembly
instructions
These instructions are intended for authorised dealers, workshops
and agents qualified in the field of agricultural mechanical enginee-
ring.
For your safety
You must familiarise yourself with the contents of these assembly ins-
tructions before assembly or operating the machine. In this way, you
will achieve optimum work results and operational safety. The assem-
bly instructions form an integral part of the machine and must always
be kept to hand. This will allow:
•accidents to be avoided,
•warranty requirements to be met.
For the employer:
Untrained or unauthorised individuals are not permitted to assemble
the machine.

Preliminary information
5
Symbols used
In this operating manual, the following symbols and terms have been
used:
•A bullet point accompanies each item in a list.
A triangle indicates operating functions which must be performed.
An arrow indicates a cross-reference to other sections of this
manual.
[+] A plus sign indicates additional equipment which is not included
in the standard version.
We have also used pictograms to help you find instructions more
quickly:
The "Information" pictogram indicates tips and additional information.
The "Examples" pictogram indicates examples that assist understan-
ding of the instructions.
The spanner indicates tips for assembly or adjustment work.
This arrow in the diagram shows the direction of travel.
The brush indicates the points that must be lubricated using the brush.
The grease gun indicates the points that must be lubricated using the
grease gun.
Switch on the tractor.
Secure the tractor against rolling away, shut off the engine and
remove the ignition key.
Caution
The warning triangle indicates important safety information. Failure
to observe this safety information can result in:
•Serious faults in the correct operation of the implement.
•Damage to the machine.
•Personal injury or accidents.

Safety
6
Safety
For your safety
Please carefully read and observe the safety information in this chap-
ter prior to assembly. All persons involved in assembling or setting up
this machine must read and pay close attention to the assembly inst-
ructions that follow.
Correct assembly
Non-compliance with the following rules amounts to gross negligence.
As a result, the manufacturer cannot be held liable for any damage
caused by negligence. The risk is then borne solely by the operator.
This machine must only be assembled by trained technicians. in ac-
cordance with the current version of the assembly instructions. Before
the implement is coupled to a tractor, transported, or initially operated,
the operating manual and its safety instructions must be thoroughly
read and observed.
It is the responsibility of the operator to ensure that all personnel invol-
ved in the assembly are provided with the relevant accident prevention
regulations, as well as generally applicable health and safety and road
safety regulations. All personnel involved in the assembly must be
aware of these rules and regulations and adhere to them; they must
also be instructed on the potential risks and dangers.
Unauthorised alterations to the machine invalidate any liability of the
manufacturer for resultant damage.
The following rules and regulations must be observed:
•The locally applicable accident prevention regulations,
•Recognised safety regulations, occupational health requirements
and road traffic regulations,
•The functional limits and safety regulations as set out in the
technical operating instructions.
Danger indicators signify the risk of serious injury or death. Whe-
never you see this sign in the assembly instructions, please make
sure that you implement all appropriate safety measures.
Moreover, danger indicators warn of damage to machinery as well
as of financial and legal consequences (e.g. invalidation of
warranty, legal liabilities, etc.)
Faulty assembly or misuse results in:
•Risks to life and limb of the operator, third parties, and animals
in the vicinity of the machine.
•Risks for the machine and other property belonging to the
operator or third parties.
Impairment of the efficient and damage-free operation of the ma-
chine.

Safety
7
General safety and
accident prevention
regulations
•Responsibilities for the various activities on the machine must be
clearly defined and maintained. There must not be any confusion
regarding responsibilities, otherwise the safety of the assembly
personnel is put at risk.
•Before you start work, familiarise yourself with all the fittings and
actuation elements and their functions.
•For all work on the machine, use only appropriate tools and
implements in perfect condition.
•You must only use parts (accessories, lubricants etc.) which
comply with at least the manufacturer's specifications; you must
use them in accordance with instructions (including specified
torques).
•A part conforms to the requirements only if it is an original part or if
it is expressly approved by the manufacturer.
•Wear close-fitting clothes when operating the machine. Wear
sturdy footwear and prescribed protective equipment.
•Support and secure the machine carefully during assembly.
•Particular care must be taken in dealing with energy accumulators
such as springs and hydraulic or compressed-air assemblies.
•Dispose of oils, grease, and filters in accordance with regulations.
•Protective equipment must be properly attached and swung into its
protective position.
•Actuation elements (cords, chains, and rod assemblies) of
remotely controlled equipment must be fitted in such a way that
they cannot cause unintended movement in any transport or work
position.
•Do not leave the engine running in enclosed spaces.
•All remote-powered and all other movable parts (e.g. hydraulics)
have crush or shear points.
•Pay close attention to the markings on reversible connections and
be aware of the risk of installing a part the wrong way round.
•Always disconnect the power supply before working on the
electrical system.
•When carrying out electric welding on the machine, always
disconnect electric cables from the alternator and battery.

Safety
8
Screw and bolt
tightening torques
Note the tightening torques that are shown in the table or specified in
the text. The torque specifications refer to a dry coefficient of friction
(0.12).

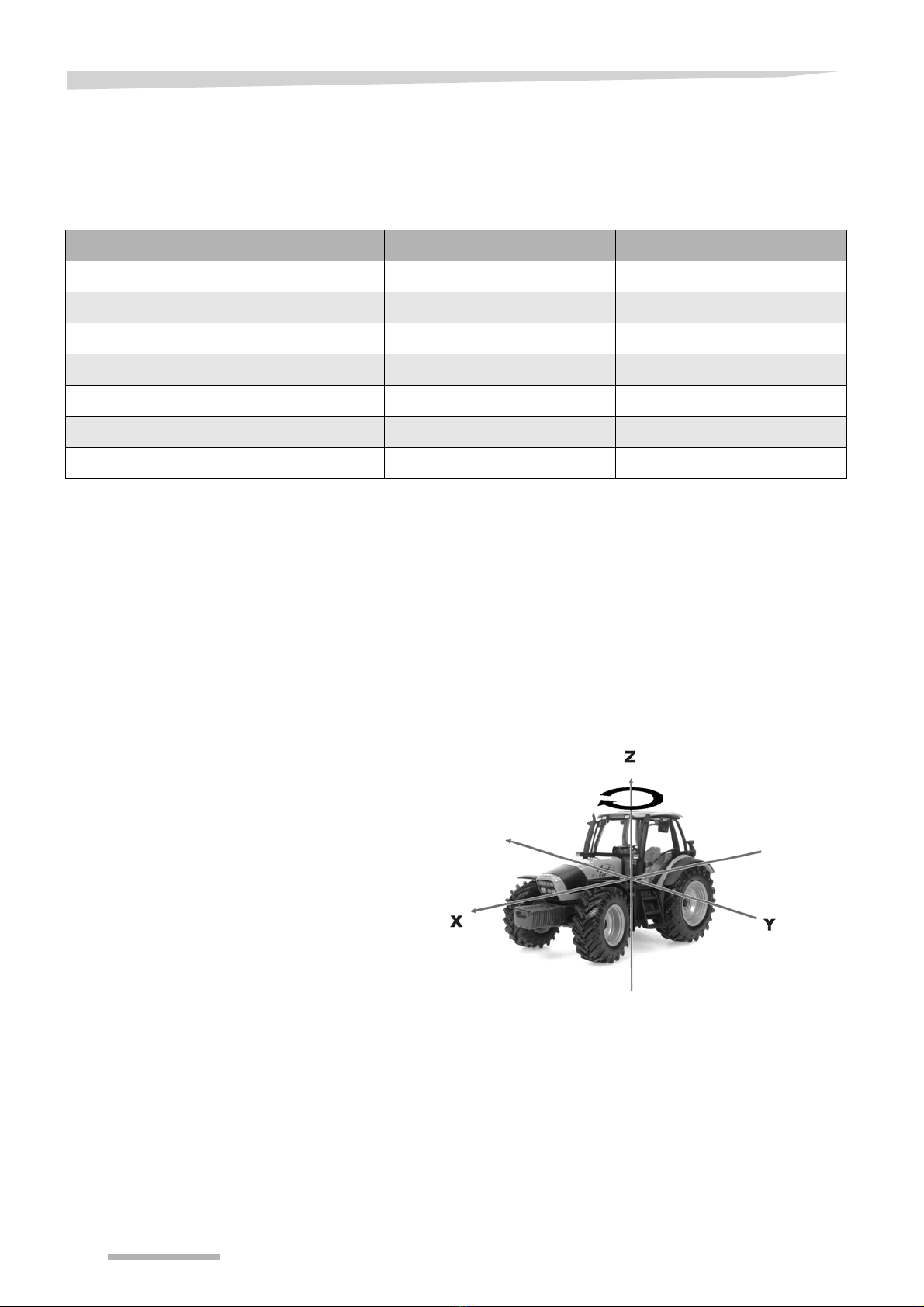

Direction
information
Direction information (right, left, front, rear) is given in relation to the
direction of travel. Rotary direction is defined as follows:
•Rotary direction right = clockwise.
•Rotary direction left = anticlockwise.
•Rotation about a vertical axis, viewed from top to bottom.
•Rotation about a horizontal axis, viewed at right angles to the
direction of travel, from left to right.
•The rotation of screws and nuts, etc. is always viewed from the
operating side.
8.8 10.9 12.9
M 6 9.9 Nm (7.3 ft.lbs) 14 Nm (10.3 ft.lbs) 17 Nm (12.5 ft.lbs)
M 8 24 Nm (17.7 ft.lbs) 34 Nm (25 ft.lbs) 41 Nm (30.3 ft.lbs)
M 10 48 Nm (35.4 ft.lbs) 68 Nm (50.2 ft.lbs) 81 Nm (59.8 ft.lbs)
M 12 85 Nm (62.7 ft.lbs) 120 Nm (88.6 ft.lbs) 145 Nm (104 ft.lbs)
M 14 135 Nm (99.6 ft.lbs) 190 Nm (140 ft.lbs) 230 Nm (166 ft.lbs)
M 16 210 Nm (155 ft.lbs) 290 Nm (214 ft.lbs) 350 Nm (258 ft.lbs)
M 20 410 Nm (302 ft.lbs) 580 Nm (428 ft.lbs) 690 Nm (509 ft.lbs)
Front
Left
Right
Rear
Top
Bottom
Rotary direction right

Overview
9

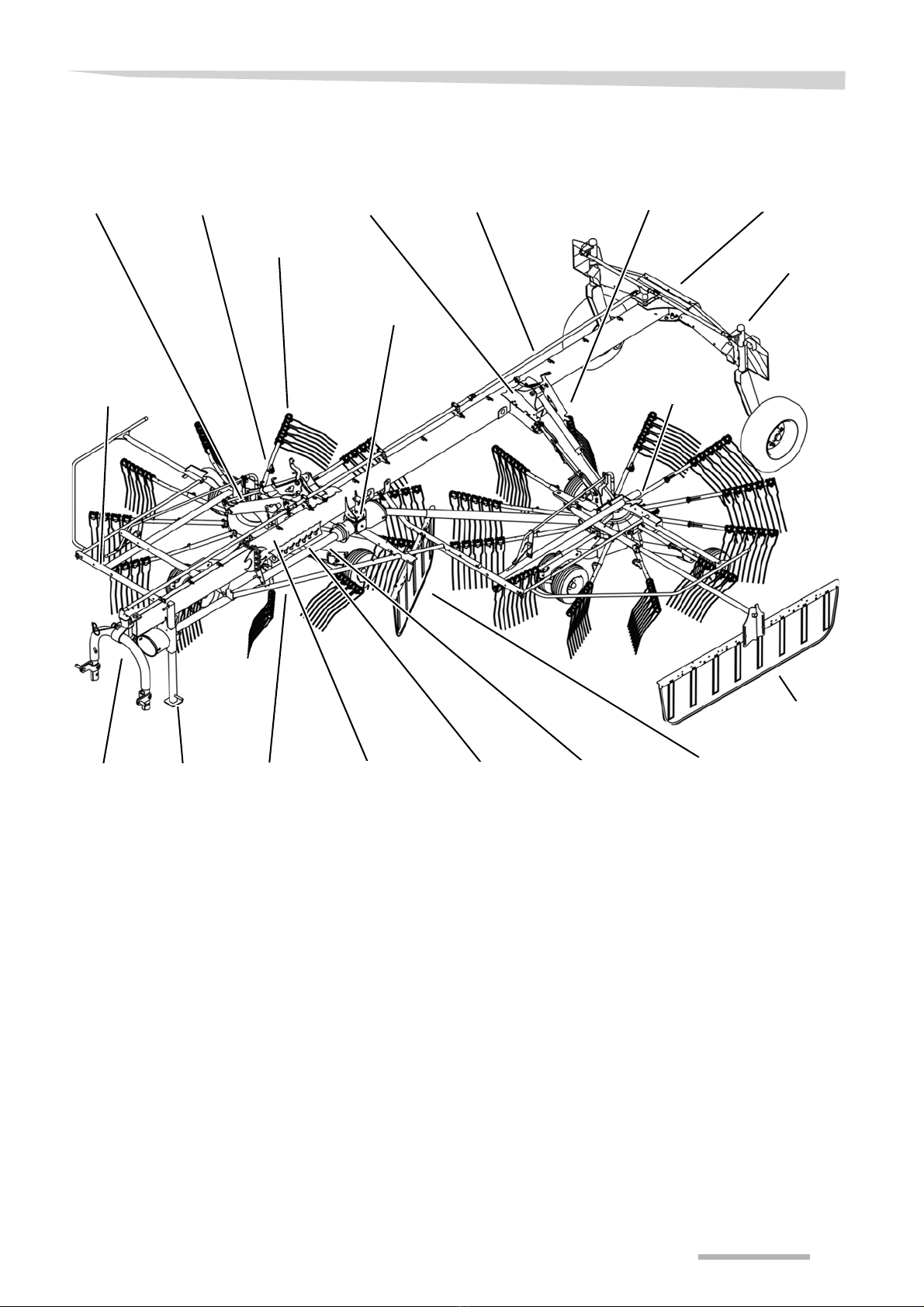

Overview
Designation of
components
Rotor
Attachment
carrier
Sustainer Transport holder
for tine supports
Main frame
Rotor arm
Rear swath
former
Deflector bridge
Transport chassis
Rotor chassis
Main drive
Deflector bar
Lift limiter
T-gear box
Steering arm
Lifting arm console Steering
Front 
swath former
Tine support

Overview
10

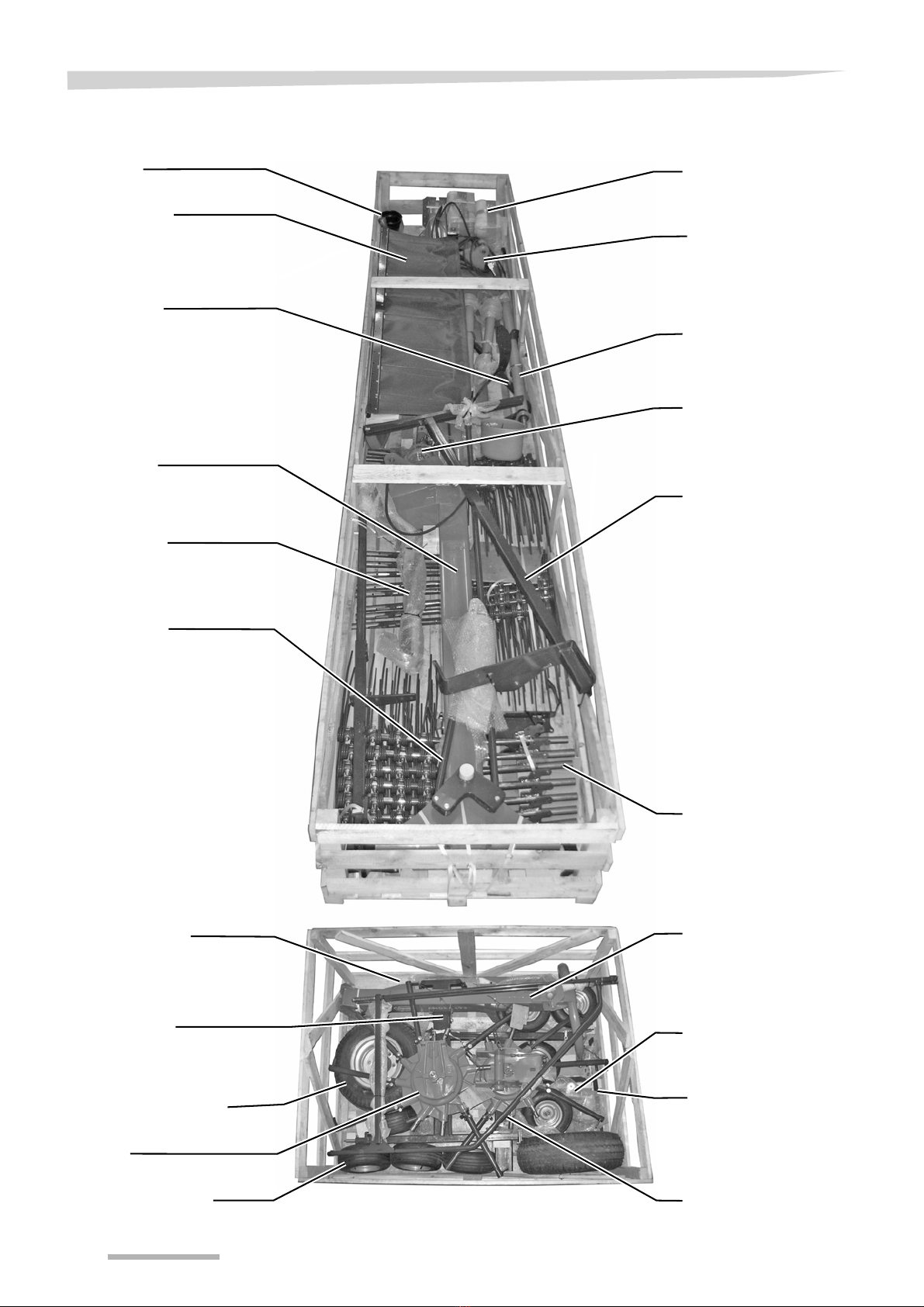

Crate packaging
Swath former
Rear main
frame
Tine support
Deflector bar
Small parts
Rotor chassis
Main drive
PTO shaft
Deflector bar
Lifting arm
control rod
Front main
frame
Rotor chassis wheels
Transport chassis wheels
Rotor
Auxiliary drive
PTO shafts
Transport 
chassis frame
Transport 
chassis axles
Right deflector
carrier
Lifting arms with 
hydraulic cylinder
Steering linkage
T-gear box
Left deflector carrier

Overview
11
Crate packaging for
small parts
9 pcs M12 x 35
2 pcs M12 x 45
2 pcs M10 x 30
12 pcs M 16 x 60
Cover caps for rotor
chassis wheels
Assembly kit for
flange bearing
Fastening clamp for front
hydraulic connection
23 lynch pins
2 traction ropes (6 m and 9 m)
6 pcs M 16 x 140
4 flange bearings
Assembly kit for lifting arm / transport locking bar

Overview
12

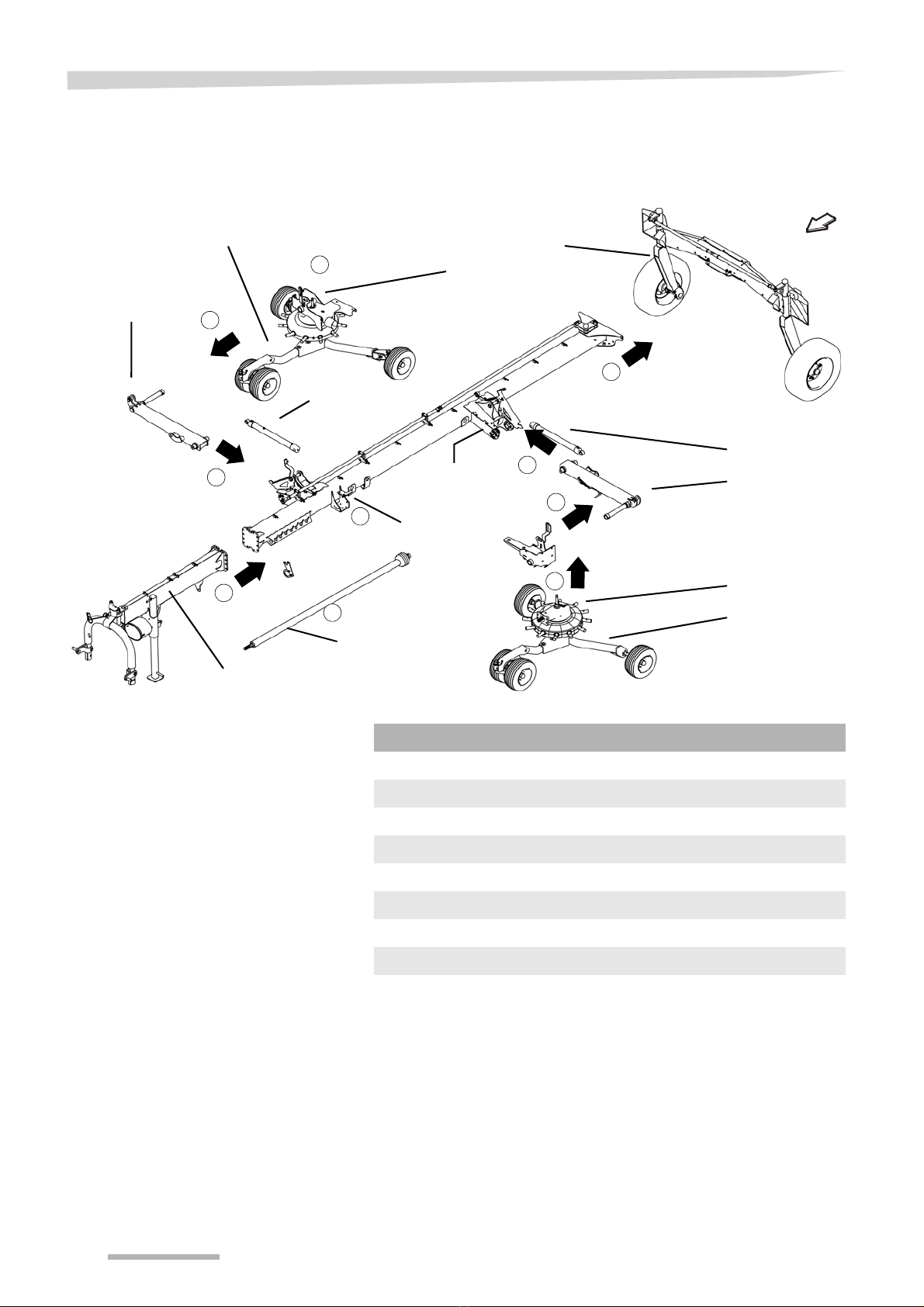

Overview of
assembly groups
crate packaging
Transport chassis
Right lifting arm
Front main frame
Rotor gear
Bearing housing
Intermediate shaft
Rotor chassis
Lift cylinder
Rotor chassis
Transmission
console
Left lifting arm
Lift cylinder
2
3
4
5
7
1
3
6
6
8
Lifting arm
console
No. Assembly group Page
1 Connect front main frame with rear main frame 16
2Connect main frame with transport chassis 14
3 Fit left and right lifting arms to lifting arm console 27
4Fit bearing housing onto left lifting arm 33
5 Fit bearing housing to right rotor 34
6Fitting the rotors onto the lifting arms 36
7 Fit gear box to main frame 25
8Fit PTO shaft 38

Crate packaging
13
Crate packaging
Requirements
•Suitable flat surface approx. 10 x 10 m as assembly space.
•Lifting gear with lifting accessories for at least 1,500 kg.
•Floor conveyor (pallet truck or fork lift) with a fork length of at least
1,800 mm.
•Stands for safely depositing implement parts.
•Spanners for tightening bolts.
Preparations for
assembly
Place the wooden crate on level ground (with the pallet floor at the
bottom) and open it without damaging the parts inside.
Take out loose parts (wheels, axles, boxes etc.).
Clear plenty of space around larger components to make access
easier.
Checking the scope
of delivery
Check that the scope of delivery is complete.
In the event of missing, incorrect or damaged parts, fill in the
“REPORT MISSING PARTS” form and send it to the “ORDER
DESK” in Kerteminde straight away.
Removing the
surface protection
Remove the surface protection (e.g. Tectyl) with which the bare
surfaces (such as tine arms, tine supports and bearing shafts)
have been coated.
Grease the bare surfaces using a brush.
Observe the safety information
Observe the safety information when carrying out all work. Disre-
gard for safety information can lead to serious or fatal injury.
Ensure that hydraulic connections are correct
Before lowering the implement, you must check that the hydraulic
lines are correctly connected. Wrongly connected hydraulic hoses
can trigger unpredictable movements of the machine. Serious or
fatal injury may be caused as a result.
No persons within the slewing range
There is an acute risk of injury within the slewing range from ma-
chine parts which are slewing or folding. Serious or fatal injury
would be caused as a result.

Crate packaging
14
Main frame
Use suitable lifting accessories to remove the frame elements from the
crate.
Loosen all fastenings (wires, lashing straps).
Fitting the transport
chassis
Fit the transport chassis to the main frame.
Raise the frame of the transport chassis and screw it to the rear
main frame (torsion-free).
Raise the main frame and transport chassis.
Use a brush to grease the running surfaces of the axles, steering
arms and bushes.
Push the axles and wheels into the transport chassis and secure.
Fit the wheels of the transport chassis onto the axles.
Fit the steering arms, then adjust them and screw into place.
Rear main frame
Transport chassis
Steering arm
Axle
No. Quantity Part
1 1 Transport chassis
2 6 M 16 x 140 bolts (10.9)
3 12 M 16 nuts (10.9)
418 M 16 washers
52Axles
6 2 10.0/75-15.3 wheels
7 2 Steering arm
8 2 M 16 x 80 bolts (10.9)
9 2 Spacer sleeves
10 2Wheel chocks and support
11 4 Rivets for attaching the wheel chocks
12 416 x 80 dowel pin
13 4 10 x 80 dowel pin
14 2Protective caps
15 2 Wheel hubs with M 18 wheel nuts x 1.5
16 4M 16 x 120 bolts (8.8)
17 2 Reflectors, self-adhesive

Crate packaging
15
Dowel pins
Wheel chock
M 18 wheel nuts x 1.5
270 Nm
M 16 x 140 (10.9)
M 16 (290 Nm)
Spacer sleeve
Spacer sleeve
Drive in the dowel pins 
at 90° to each other.
Reflector
(30 cm above driving surface)
M 16 x 120 (8.8)
M 16 (210 Nm)
M 16 x 80 (10.9)

Crate packaging
16
Fitting the main
frame
Screw both parts of the main frame together at the flange piece.
Raise the rear main frame with lifting accessories and secure
under the flange piece with stand.
Raise the front main frame with lifting accessories and secure.
At the flange piece, screw the front main frame to the rear main
frame (torsion-free).
Fit the PTO shaft holder.
PTO shaft holder
Front 
main frame
Rear main frame
No. Quantity Part
1 1 Rear main frame
2 1 Front main frame
3 12 M 16 x 60 bolts
412 M 16 nuts
5 24 M 16 washers
6 1 PTO shaft holder
Rear main frame
Stand
Front main frame

Crate packaging
17
Fit the sustainer
Raise the front main frame with lifting accessories, and fit and secure
the sustainer.
Use a brush to grease the running surfaces on the sustainer.
Fitting the hose guide
Fit the hose guide onto the attachment carrier.
Sustainer
Front main frame
No. Quantity Part
1 1 Sustainer with assembly material
Hose guide
No. Quantity Part
11Hoseguide
2 1 Perforated plate
3 2 M 10 x 30 rounded head bolts
4 2 11 x 20 x 2 washers
5 2 Self-locking nuts

Crate packaging
18
Fitting the front cable
duct
Lay the hydraulic hoses and electrical cables in the front cable
duct.
Fit the front cable duct with hydraulic hoses and electrical cables
under the main frame.
Fit the PTO shaft holder and deflector bridge.
No. Quantity Part
1 1 Front cable duct
2 2 M 8 x 16 thread-rolling bolt
Front cable duct
Hydraulic hoses and
electrical cables

Crate packaging
19

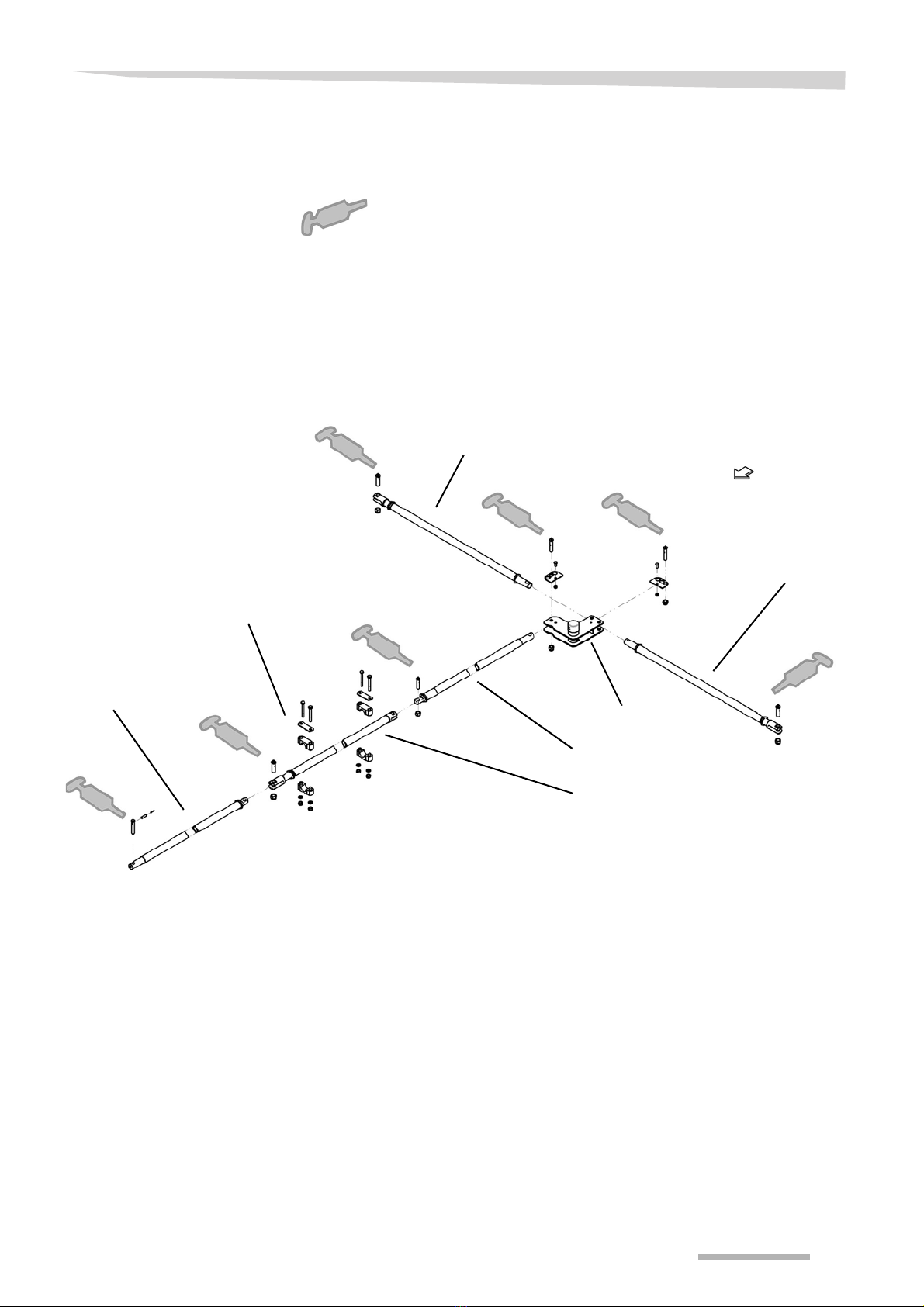

Steering
The rear steering rod is fitted to the swinging arm. The front steering
rod is fitted onto the attachment carrier. Fit and attach the other stee-
ring rods as follows.
Use a grease gun to grease all of the pins.
Fit the left and right steering rods to the steering arms.
See »Fitting the left and right steering rods«, page 20.
Connect the front steering rod.
See »Fit the front steering rod«, page 21.
Connect the centre steering rod.
See »Fitting the centre steering rod«, page 21.
Connect the rear steering rod.
See »Connecting the rear steering rod«, page 23.
Front
steering rod
Rear
steering rod
Swinging arm
Right 
steering rod
Left 
steering rod
Bearing shell
Centre
steering rod

Crate packaging
20
Fitting the left and
right steering rods
Connect the rear and left steering rods with the swinging arm. The
steering is preset at the factory.
Use a grease gun to grease all of the pins.
Connect the right steering rod to the swinging arm and align.
Insert the pins through the locking plate, swinging arm and steering
rod
Secure the pin with a self-locking nut.
Right steering rod
Left 
steering rod
Do not tighten the self-locking nut on the block.
The steering rods must be fitted within the swinging arm in such a
way that they are secure yet still free-moving. Otherwise, the ma-
chine may be damaged.
No. Quantity Part
1 1 Right steering rod
2 1 Left steering rod
3 1 Locking plate
4 1 M 8 x 20 bolt
5 1 M 8 self-locking nut
6 2 Threaded pins with lubricating nipple
7 2 M 16 self-locking nuts
Right steering rod
Left steering rod
Threaded pin
Locking plate
Self-locking nuts
Swinging arm
