Agrisem Classic DISC-O-MULCH Guide

USER’S MANUAL AND SPARE-PART LIST

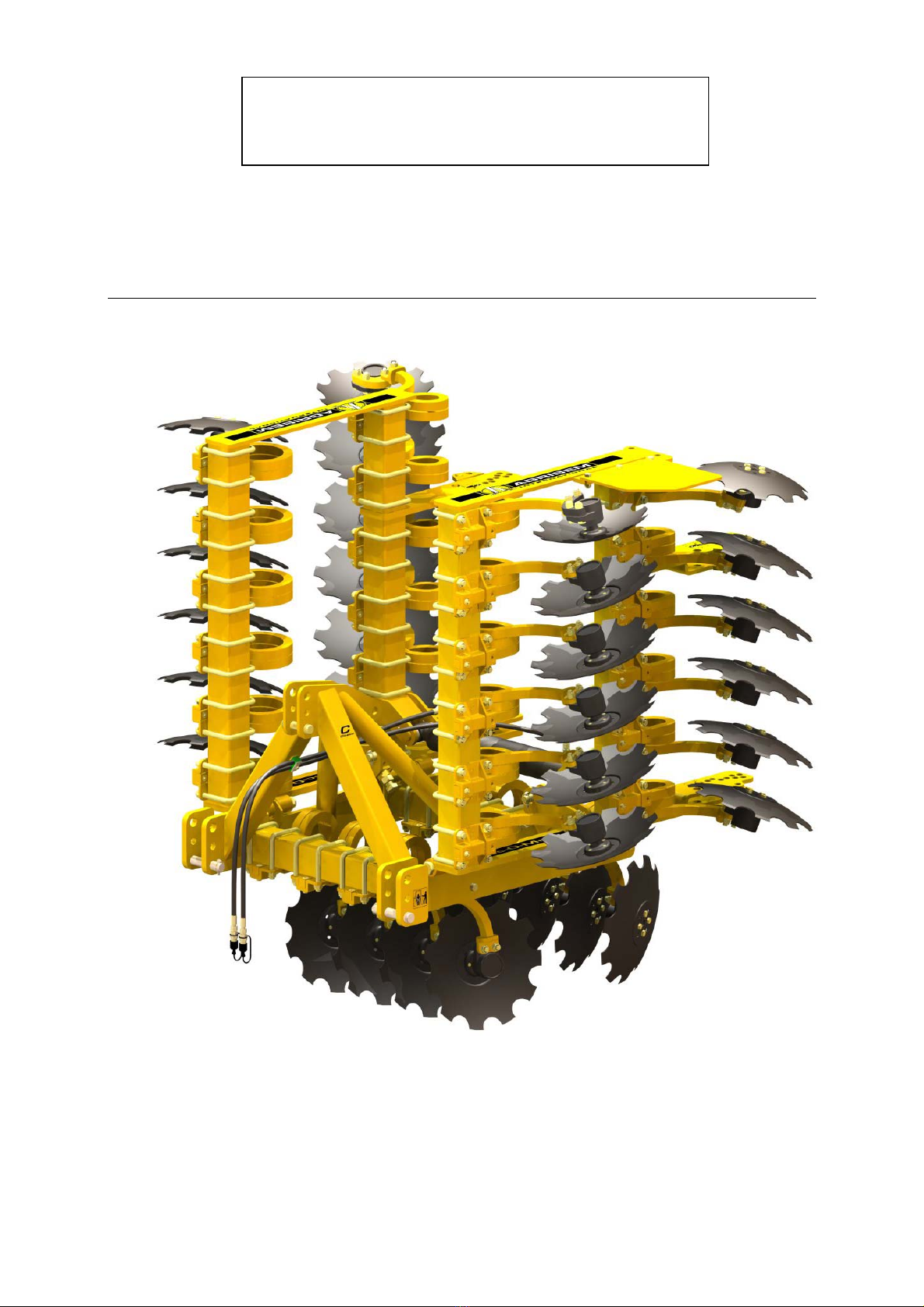

Classic DISC-O-MULCH
Folding models
AGRISEM INTERNATIONAL S.A. « Beaucé » 44 850 LIGNE – France – Tél. : [phone] – Fax : [phone]
NOTT-AN-562-B 06/09/05
Send back the guarantee certificate
within 15 days with joined invoice
(without these documents we cannot
apply the guarantee procedure).

Tel Tel
Date : ……. / ………/……….
Dealer's signature and dealer's stamp
GUARANTEE RECLAMATION FORM N°
Tractor description and horse power
Type of soil, clay %
Dealer Owner
Name
Address
Code Nb
Address
Customer's signature and client's stamp
To be returned on reception of the machine
We are fully aware of, and accept, the contents of the instruction manual and we hereby adhere to the
clauses of the guarantee.
AGRISEM INTERNATIONAL"Beaucé" 44850 LIGNE - France Tel: [phone] Fax: [phone]
Nom
Delivery date to the user's place (join a
copie of invoice and dealer's delivery note)
Working width
Serial number of the machine
Surface area of farm
Type of machine
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I

DECLARATION OF CONFORMITY
TO « MACHINE » REGULATIONS
The above-named constructor certifies that the hereby designated new material:
DISC-O-MULCH
Conforms to the dispositions of the modified “machines” regulations (regulation 98/37/CE) and the
national legislations transposed.
Signed in Ligné, France
06th September 2005
Michel EVIN
Managing Director
“Beaucé” F - 44850 LIGNÉ - Tél. [phone] Fax. [phone]
MODEL
SERIAL N°
MATERIAL MANUFACTURED UNDER LICENCE

SOMMAIRE
CERTIFICATE OF GUARANTEE ......................................................................................................................
SUMMARY ........................................................................................................................................................... 1
INTRODUCTION................................................................................................................................................. 3
GUARANTEE CONDITIONS ............................................................................................................................ 4
CORRECT USE OF THE MACHINE ............................................................................................................... 6
SAFETY INSTRUCTIONS.................................................................................................................................. 7
GENERAL SAFETY RULES.............................................................................................................................. 8
USING YOUR DISC-O-MULCH........................................................................................................................ 9
1.1.DESCRIPTION............................................................................................................................................. 9
1.2. PREPARATION FOR USE.......................................................................................................................... 9
1.3. COUPLING-UP TO THE TRACTOR ......................................................................................................... 9
1.4. ADJUSTMENTS ......................................................................................................................................... 9
1.1.1. Working width of an element........................................................................................................... 9
1.1.2. Depth adjustment ............................................................................................................................ 9
1.1.3. Maintenance and repair................................................................................................................ 10
1.5 ADVICE FOR OPTIMAL USE ........................................................................................................................... 11
DIMENSIONS AND QUOTATIONS ............................................................................................................... 14
DIMENSIONS AND QUOTATIONS 4,00 M MODEL .................................................................................................. 15
DIMENSIONS AND QUOTATIONS 5,00 M MODEL .................................................................................................. 16
RANGE OF MACHINES (DECLINAISON ET NOMENLATURES)…………………………………… ................. 18
DISC-O-MULCH 3D –4,00 M MODEL ....................................................................................................................
•DOM-C35C-400-03……………………………………………………………………. 19
•DOM-C35C-400-04…………………………………………………………………… 21
DISC-O-MULCH 3D –5,00 M MODEL ....................................................................................................................
•DOM-C35C-500-03.…………………………………………………………………… 23
•DOM-C35C-500-03.…………………………………………………………………… 25
SPARE PARTS ………………………………………………………………………………………… ........... 28
ROLLER CAGE KIT Ø520 X 2M............................................................................................................................ 29
ROLLER CAGE KIT Ø520 X 2.5M......................................................................................................................... 31
LEFT LATERAL DEFLECTOR KIT .......................................................................................................................... 33
3D 35 C510 FRONT KIT...................................................................................................................................... 35
3D 35 MC460 FRONT KIT +GUIDANCE LEGS .................................................................................................... 37
3D 35 MC510 REAR KIT .................................................................................................................................... 39
3D 35 MC510 REAR KIT +GUIDANCE LEGS ...................................................................................................... 41
1

3D 35 MC460 REAR KIT +GUIDANCE LEGS....................................................................................................... 43
3D 35 MC510 REAR KIT +T2 X 32.................................................................................................................... 45
3D 35 MC510 REAR KIT +GUIDANCE LEGS +T2 X 32....................................................................................... 47
3D 35 MC460 REAR KIT +GUIDANCE LEGS +T1 X 32....................................................................................... 49
ATTACHMENT PLATE KIT QDC 35 ....................................................................................................................... 51
MOULDED CULTIVATION HUB ........................................................................................................................... 53
HYDRAULICKIT D-O-M C4M........................................................................................................................... 55
HYDRAULICKIT D-O-M C5M........................................................................................................................... 57
STICKERS KIT .................................................................................................................................................... 59
2

INTRODUCTION
You are the owner of a DISC-O-MULCH. This machine has been designated to give you complete
satisfaction.
This equipment is the result of research into new solutions aimed at reducing costs.
In order to get the most out of your DISC-O-MULCH, please read your manual with care and follow,
the maintenance and adjustment advice carefully.
Your dealer remains at your disposal for information on any particular point, so please don’t hesitate
to contact him.
In the interest of improvement, AGRISEM INTERNATIONAL reserves the right to modify their
products, but in so doing they are not under obligation to reproduce these modifications on existing
models.
Likewise, characteristics in this manual can be modified without notice and adjustment procedures
and subsequent use, which is indicative, can not be under our responsibility.
3

GUARANTEE CONDITIONS
These guarantee conditions are only applicable to machines exclusively equipped with original
AGRISEM INTERNATIONAL parts, « Beaucé », 44850 LIGNE, FRANCE; they are as follows:
•If a fault is noticed on any structural part of the machine in the 6 months following delivery and if
this fault is due to a raw material defect or due to fabrication procedures at the factory. The parts
presumed faulty should be returned to the company for appraisal.
Proof of delivery:
-The date on the delivery note and the bill.
-The return of the guarantee card within 8 days of delivery (signed and stamped by the dealer
and the owner).
The guarantee is limited to refunding or repair of the faulty parts with material and finishing in our
factory and by our technical service.
•Costs relating to dismantling and replacement of the faulty part are not covered by the guarantee
nor are the transport costs for the machines or machine-parts to the repair site and back.
•As concerns the guarantee, the term “Machine” is designated exclusively for new machines and
parts manufactured by AGRISEM INTERNATIONAL. It does not include outside components such
as tyres, flexible hydraulic tubes etc even though these parts are also provided by the company.
•Naturally the guarantee does not apply to :
-Faults due to wear and tear, misuse, lack of maintenance
-Accident-damage or use not consistent with usual functions.
•The company can not be held responsible for damage incurred during transport and manipulation
by whichever Transport Company. It is the addressee who must act as necessary as regards the
transporters in such a situation.
•The guarantee will be rendered null and void if any modifications are carried out on the
machine without the formal agreement of AGRISEM INTERNATIONAL or if parts other than
those produced by the company are used on the machine (eg. Counterfeit parts).
•AGRISEM INTERNATIONAL cannot be held responsible for complaints or injuries to the owner or a
third person, nor the indirect consequences as a result; likewise no recourse is possible in the case
of the breakdown of an instrument due to a defect or incident with the machine.
•The company’s responsibility concerning the guarantee is dependent on the strict respect of the
dealer and the user of the following regulations :
A) THE RETURN OF THE GUARANTEE CARD BY THE DEALER, DULY FILLED-IN AND SIGNED
BY THE DEALER AND THE OWNER.
4

B) The recourse must imperatively be formulated on the AGRISEM INTERNATIONAL guarantee
reclamation form and sent by the dealer to the company’s technical service, by recorded delivery,
with an acknowledgement of receipt, within a delay of one month following the incident. The
reclamation form must be clearly filled in by the dealer and include the following information :
-Name and address of the dealer, client code,
-Name and address of the owner,
-Type of machine,
-Working width,
-Serial number of the machine,
-Delivery date to the owner,
-Date of the problem,
-Precise references of parts replaced, with invoice number and date,
-Make and type of tractor used,
-Detailed description of presumed causes of incident,
-Surface area worked by machine,
-Surface area of farm,
-Type of soil clay %,
-stoney yes no
C) The parts presumed faulty should be returned to the company for appraisal along with a duplicate
of the guarantee reclamation form as proof. The consecutive transport costs necessary to return
the above-said parts are the responsibility of the sender.
D) Maintenance and use of the machine must conform to the user’s manual explanations.
E) The technical director or managing director of the company will make the final decision as regards
the reclamation. This decision, regardless of the object of the guarantee appeal, is irreversible and
the buyer must undertake to accept the decision regarding the defect, its replacement or that of
certain parts.
The Company salesmen are not competent to make such a decision and if they do so, it could be
considered null and void.
NOTA: In case of refusal, the part remains at the disposition of the client for 8 days, after this delay it will be scrapped with
no appeal possible.
F) All safety measures mentioned in the user’s manual and likewise those of all complementary
material must be respected. All protector elements and safety devices, plus all dangerous parts
(eg. Shock absorbers) must be regularly inspected and replaced when necessary.
•The machine dealers have no right or power to take any decision whatsoever, on purpose or
otherwise, in the name of the company.
•Concerned with the constant improvement of its products, AGRISEM INTERNATIONAL reserves
the right to modify them, with no obligation of reproducing the improvements on existing models.
Furthermore, due to the constant evolution of techniques, no guarantee can be given as regards the
description of materials in all documentation produced by the company.
5

CORRECT USE OF THE MACHINE
The AGRISEM INTERNATIONAL DISC-O-MULCH products must only be used for the work they are
destined for.
Stubble-breaking of arable soil in standard conditions
In the case of damage due to use of the machine for work outside the constructor’s specifications, the
constructor can not be held responsible.
The correct use of the machine also implies:
-The respect of regulations of use, maintenance and upkeep as stated by the constructor,
-Exclusive use of replacement parts, accessories and original equipment appointed by the
constructor.
The DISC-O-MULCH must only be used, maintained and repaired by people competent to do so,
familiar with the characteristics and the way to use the machine. The above said people should be
aware of the possible risks to which they are exposed.
The user must strictly comply with all regulations regarding:
-Accident prevention.
-Safety at work (labour laws).
-Driving on the road (Highway Code).
He has the obligation to observe all warnings concerning the machine. All modifications made by the
user or any other person without the written agreement of the constructor disengages all responsibility
of the constructor should damage result.
6

SAFETY INSTRUCTIONS
Most accidents that happen while working, during maintenance or when displacing a machine are due
to non-observance of elementary security regulations. Consequently, it is imperative that all people
likely to work with this machine strictly respect the following fundamental rules and likewise the safety
instructions stipulated on the stickers placed on the DISC-O-MULCH.
1. Before all operations make sure that the DISC-O-MULCH is on a stable surface.
2. This DISC-O-MULCH was conceived for precise work, it must always be in perfect working order
and only repaired with original AGRISEM INTERNATIONAL parts.
3. All necessary precautions must be taken when adapting working parts that are heavy or sharp.
4. Verify that the machine respects personal safety.
5. Verify tightness of screws and bolts before each use.
6. Verify that the DISC-O-MULCH is coupled correctly.
7. Ensure that the tractor has sufficient ballast at the front before all work, in order to avoid any risk of
tipping up; if necessary add ballast to the front of the tractor.
8. Distance all people from the manoeuvring area of the DISC-O-MULCH.
9. Never transport anybody on the DISC-O-MULCH or its complementary tools during work or
displacement.
10. Be aware of hidden obstacles (stones, roots, tubing, cable, etc) if an incident occurs, STOP
IMMEDIATELY, and find the cause.
NB: If the obstacle is an electric cable or gas-line, alert the authorities competent to deal with it.
11. Never leave the tractor unless the DISC-O-MULCH is resting on the ground, brakes on, motor off
and the key out of the ignition.
12. Never adjust or repair anything unless the tractor motor is stopped and the machine is resting on
the ground.
13. Before driving on the road, the user must ensure that the instrument is coupled correctly and visible,
in respect of the Highway Code.
14. Verify the correct type-pressure on your tractor.
15. On rough ground or tight turns reduce your speed.
16. Before any displacement, even short distances, verify the balance of the tractor and complementary
material. Never drive over 25 Km/h when loaded.
7

GENERAL SAFETY RULES
•Never let children climb on the tractor or play close to material, even when the machine is
stopped ;
•On delivery of a machine (new or second-hand) insist on the provision of the user’s manual and
the code of work certificate of conformity and thereon respect the constructor’s instructions ;
•Make sure that the DISC-O-MULCH and its complementary material does not hide the tractors rear
lights ;
•If necessary equip your material with reflective signalization panels or complementary luminous
indicators ;
•Clear the highway of any mud left by the tractor or tools ;
•Be aware that soil-working material, however narrow, presents a real danger (cutting-edge blades,
ploughshares, discs…) and can be fatal in an accident ;
•Wear safety shoes and gloves when manipulating sharp parts ;
•If the material is not already equipped, anticipate means of signalization: illumination ramps,
catadioptres, plates or bands of reflective stickers. Long or large material must imperatively
have a signalling system when the tractor’s rear lights are hidden ;
•Always employ bolts and locking systems ;
•For exposed metal parts, use an anti-rusting product or grease.
8

USING YOUR DISC-O-MULCH
1.1. DESCRIPTION
The DISC-O-MULCH framework can be equipped with a variety of main portions. Each portion is
supplied with replaceable wear and tear discs. The discs’ working depth is controlled by the depth-
control device and a roller.
1.2. PREPARATION FOR USE
When you receive your DISC-O-MULCH, verify that its characteristics are suitable. Then, carry out the
preliminary operations for starting up, as indicated in this manual.
1.3. COUPLING-UP TO THE TRACTOR
1. Reverse the tractor in order to couple-up with the DISC-O-MULCH which should be resting
on a stable surface.
2. Place the lower lifting arms in line with the coupling caps.
3. Couple-up the lower lifting arms by means of the appropriate device.
4. Adjust the length to the third hole then fix in place with the shaft and clip supplied.
5. To unfasten the DISC-O-MULCH, do the preceding operations in reverse order and ensure
that the apparatus is on a stable surface.
6. During coupling-up or unfastening, nobody should remain between the tractor wheels and
the DISC-O-MULCH.
1.4. ADJUSTMENTS
11.5 Working width of an element
-The DISC-O-MULCH is delivered with a pre-adjusted distance between each disc.
21.5 Depth adjustment
-Put the elements in their working position.
-Adjust the depth by manipulating the shafts of the multistop caps when your tool is equipped
with a roller.
1.5. MAINTENANCE AND REPAIR
Before beginning any maintenance operation or oiling, make sure that the safety instructions
have been followed. Before adjustments or verification, make sure the DISC-O-MULCH is
horizontal and stable. Block the machine if necessary.
Oiling
The roller cages are fixed by means of two self-aligning blocks which provide grease. For the
auto-alignment to function correctly the blocks should be greased at the start of each new
season and regularly throughout the season.
The grease used is lithium based grease reinforced with molybdenum bisulphide / NLGI2
grade. AGRISEM INTERNATIONAL can not be held responsible when any other type of grease
is used.
9

Disc
⇒The discs must be replaced as soon as their diameter reaches the following values.
AGRISEM INTERNATIONAL can not be held responsible if the DISC-O-MULCH is
used with discs that have a level of wear and tear superior to that specified.
⇒To replace the discs :
a. Lift the DISC-O-MULCH about 15 cm off the ground and block it in that
position with the tractor motor stopped and the parking brake on.
b. Take off the damaged disc.
c. Put on a new one.
Only use original AGRISEM INTERNATIONAL parts
Worn spare parts
All the parts are made from specially treated steel, thus it is not advisable to solder
them or else the thermal treatment loses its efficiency.
Masse à eau
At times of important drops in temperature, don’t forget to empty your water ballast to
avoid freezing
Disc diameter Maximum diameter of wear
and tear.
Ø510
Ø560
Ø 420
Ø610
10

1.6. ADVICE FOR OPTIMAL USE
Before all usage, make sure that all safety instructions are followed and that the machine has been
greased and maintained correctly.
When the soil humidity is great, slipping could degrade the superficial soil structure. It is better to
use a tractor with four-wheel drive to reduce sliding.
For road transport remember to retract the lateral apron and dismantle the end disc
Before any folding or unfolding intervention on the machine, remember to remove the two
latching shaft from extensions.
Adapt your working speed to the type of soil and chosen working depth.
Work only in a straight line and never turn the machine when in the soil.
Respect the following working depths:
•Stubble-breaking from 3 to 4 cm.
The Disc-O-Mulch equipped with absorbing arms can only work in easy soil without any
form of obstacle
Before beginning work verify the following list:
•Are the working parts in good condition and fixed correctly?
•ls there enough ballast on the front of the tractor to lift the DISC-O-MULCH?
•During use verify that the DISC-O-MULCH is correctly coupled and perfectly horizontal
when working, in the longitudinal and transversal sense.
•If required, consult your tractor’s manual to study all safety aspects and adjustments for
raising the tractor in order to optimize the use of your material.
•The correct use of the DISC-O-MULCH optimizes and ensures a good establishment of
your crop. AGRISEM INTERNATIONAL can not be held responsible for soil degradation or
a result which is not up to your expectations. The user must make his own decisions and
assume the risks taken should his machine be used incorrectly or inappropriately.
All Disc-O-Mulch must, imperatively, only work arable land free of foreign bodies.
Ex.: (string, rope…)
11

12

13

DIMENSIONS AND QUOTATIONS
4m folding Disc-o-mulch transport position
CLASSI
C
DIS
C
-
O
-
M
ULC
H
FOLDING MODEL
14

0
27,3
277,3
527,3
777,3
1027,3
1277,3
1532,3
1782,3
2032,3
2282,3
2537,3
2787,3
3037,3
3287,3
3537,3
3787,3
0
6,3
256,3
506,3
756,3
1006,3
1511,3
1761,3
2011,3
2261,3
2524,3
2773,9
3024,3
3274,3
3524,3
3774,3
1255
1400
1820
2718
"Beaucé" 44850 LIGNÉ - FRANCE Tél : [phone] - Fax : [phone]
Encombrement
AGRISEM INTERNATIONAL S.A.
DOM-C35C-400R-03
3985
4060
1515
